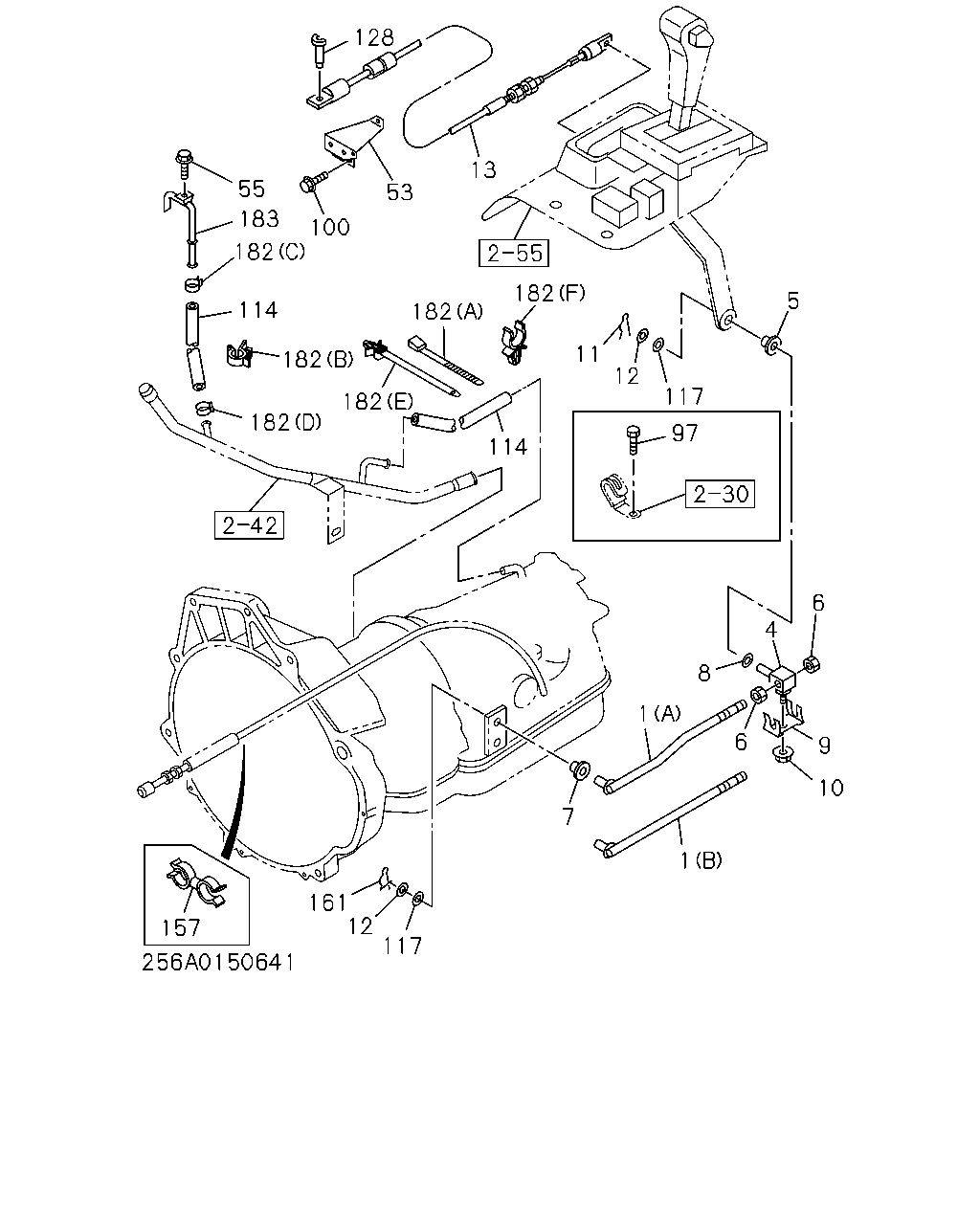

1 |
ROD; LINK,SELECT CONT
(B)
|
8-94374-686-1 |
01 |
1 |
9112-9305 |
● |
|
| |
1 |
ROD; LINK,SELECT CONT
(B)
|
8-97096-447-0 |
01 |
1 |
9306-9504 |
● |
|
| |
1 |
ROD; LINK,SELECT CONT
(B)
|
8-97124-684-2 |
01 |
1 |
9505- |
● |
|
| |
1 |
ROD; LINK,SELECT CONT
(A)
|
8-94374-685-0 |
01 |
1 |
9112-9305 |
|
● |
| |
1 |
ROD; LINK,SELECT CONT
(A)
|
8-97096-448-0 |
01 |
1 |
9306-9504 |
|
● |
| |
1 |
ROD; LINK,SELECT CONT
(A)
|
8-97124-685-2 |
01 |
1 |
9505- |
|
● |
| |
4 |
BOSS; SELECT LEVER
|
8-94128-905-1 |
01 |
1 |
9112-9504 |
● |
● |
| |
4 |
BOSS; SELECT LEVER
|
8-97124-639-0 |
01 |
1 |
9505- |
● |
● |
| |
5 |
BUSHING; LINK ROD TO SELECT LEVER
|
8-97038-937-0 |
01 |
1 |
9112- |
● |
● |
| |
6 |
NUT; SELECT CONT
M10
|
9-09111-410-0 |
02 |
1 |
9112-9504 |
● |
● |
| |
7 |
BUSHING; JOINT,A/T CONT
|
8-97038-937-0 |
01 |
1 |
9112- |
● |
● |
| |
8 |
WASHER; PL,A/T CONT
ID=8.4 OD=22
|
9-09160-708-0 |
01 |
1 |
9112- |
● |
● |
| |
9 |
CLIP; NUT STOPPER
|
8-94124-163-0 |
01 |
1 |
9112-9504 |
● |
● |
| |
10 |
NUT; CLIP
M6 FLANGE
|
5-09440-004-0 |
01 |
1 |
9112-9504 |
● |
● |
| |
10 |
NUT; CLIP
M8 FLANGE
|
0-91150-208-0 |
01 |
1 |
9505-9505 |
● |
● |
| |
10 |
NUT; CLIP
M10 FLANGE
|
0-91150-210-0 |
01 |
1 |
9506- |
● |
● |
| |
11 |
PIN; SNAP,A/T CONT
L=27.7
|
8-94210-407-0 |
01 |
1 |
9112- |
● |
● |
| |
12 |
WASHER; PL,SELECT CONT
ID=8.4 OD=22
|
9-09160-708-0 |
02 |
1 |
9112-9305 |
● |
● |
| |
12 |
WASHER; PL,SELECT CONT
ID=8.4 OD=22
|
9-09160-708-0 |
03 |
1 |
9306- |
● |
● |
| |
13 |
CABLE; SAFETY LK
|
8-94374-688-5 |
01 |
1 |
9112-9504 |
● |
● |
| |
13 |
CABLE; SAFETY LK
|
8-97123-782-1 |
01 |
1 |
9505-9510 |
● |
● |
| |
13 |
CABLE; SAFETY LK
EXC. AIR BAG DRIVER<AJ3>
|
8-97123-782-1 |
01 |
1 |
9511-9511 |
● |
● |
| |
13 |
CABLE; SAFETY LK
EXC. AIR BAG DRIVER<AJ3>
951120-
|
8-97141-778-0 |
01 |
1 |
9511- |
● |
● |
| |
13 |
CABLE; SAFETY LK
AIR BAG DRIVER<AJ3>
|
8-97133-423-1 |
01 |
1 |
9511- |
● |
● |
| |
53 |
BRACKET; PIPE FIX
|
8-97072-528-0 |
01 |
1 |
9606- |
|
● |
| |
55 |
BOLT; PIPE FIX
M6X12
|
0-28010-612-0 |
01 |
1 |
9112-9204 |
|
● |
| |
55 |
BOLT; PIPE FIX
M6X12 FLANGE
|
0-28080-612-0 |
01 |
1 |
9205- |
|
● |
| |
97 |
BOLT; CLIP
M8X12 FLANGE
|
0-28080-812-0 |
01 |
1 |
9209-9509 |
|
● |
| |
100 |
BOLT; BRKT FIX
M6X16 W/LK&PL WASHER
|
0-50140-616-0 |
01 |
1 |
9606-9612 |
|
● |
| |
100 |
BOLT; BRKT FIX
M6X16 W/LK&PL WASHER
|
0-50140-616-0 |
02 |
1 |
9701-9705 |
|
● |
| |
100 |
BOLT; BRKT FIX
M6X16 FLANGE
|
0-28680-616-0 |
02 |
1 |
9706- |
|
● |
| |
114 |
HOSE; BREATHER
L=480
SERVICED BY L=3000
|
0-02857-300-0 |
01 |
1 |
9112- |
|
● |
| |
114 |
HOSE; BREATHER
L=640
SERVICED BY L=3000
|
0-02857-300-0 |
01 |
1 |
9112-9504 |
|
● |
| |
114 |
HOSE; BREATHER
EXC. VARIABLE TORQUE SPRIT<7HA>
L=640
SERVICED BY L=3000
|
0-02857-300-0 |
01 |
1 |
9505- |
|
● |
| |
114 |
HOSE; BREATHER
VARIABLE TORQUE SPRIT<7HA>
L=500
SERVICED BY L=3000
|
0-02857-300-0 |
01 |
1 |
9505- |
|
● |
| |
117 |
WASHER; CURVED,SELECT CONT
ID=8.5 T=0.3
|
5-09509-001-0 |
02 |
1 |
9112- |
● |
● |
| |
128 |
PIN; SNAP,STRG LK TO CABLE
|
8-94170-423-0 |
01 |
1 |
9112- |
● |
● |
| |
157 |
CLIP; T/V CABLE
ID=10 & 12
|
8-94155-296-0 |
01 |
1 |
9112-9504 |
● |
|
| |
161 |
PIN; SNAP,LINK ROD TO SELECT LEVER
L=27.7
|
8-94111-137-0 |
01 |
1 |
9112-9503 |
● |
● |
| |
161 |
PIN; SNAP,LINK ROD TO SELECT LEVER
L=27.7
|
8-94210-407-0 |
01 |
1 |
9504- |
● |
● |
| |
182 |
CLIP; BREATHER HOSE
(E)
L=112
|
8-94232-618-0 |
01 |
1 |
9505-9511 |
● |
|
| |
182 |
CLIP; BREATHER HOSE
(B)
ID=14-12
|
8-94379-592-0 |
02 |
1 |
9505- |
● |
|
| |
182 |
CLIP; BREATHER HOSE
VARIABLE TORQUE SPRIT<7HA>
(F)
ID=10.7
|
8-94400-275-0 |
01 |
1 |
9505- |
● |
|
| |
182 |
CLIP; BREATHER HOSE
(A)
L=140
|
5-09707-031-0 |
01 |
1 |
9112-9504 |
● |
● |
| |
182 |
CLIP; BREATHER HOSE
(A)
L=140
|
5-09707-031-0 |
01 |
1 |
9505- |
|
● |
| |
182 |
CLIP; BREATHER HOSE
(C)
ID=12 PLATED
|
8-94121-566-0 |
01 |
1 |
9112-9605 |
|
● |
| |
182 |
CLIP; BREATHER HOSE
(D)
ID=12
|
8-94238-610-0 |
01 |
1 |
9112-9605 |
|
● |
| |
182 |
CLIP; BREATHER HOSE
(B)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
9112-9208 |
|
● |
| |
183 |
JOINT; BREATHER HOSE
|
8-97066-405-0 |
01 |
1 |
9112-9202 |
|
● |
| |
183 |
JOINT; BREATHER HOSE
|
8-97078-258-0 |
01 |
1 |
9203- |
|
● |
