2-55 — AUTO TRANS SHIFT CONTROL LEVER (#166894) — 187 parça

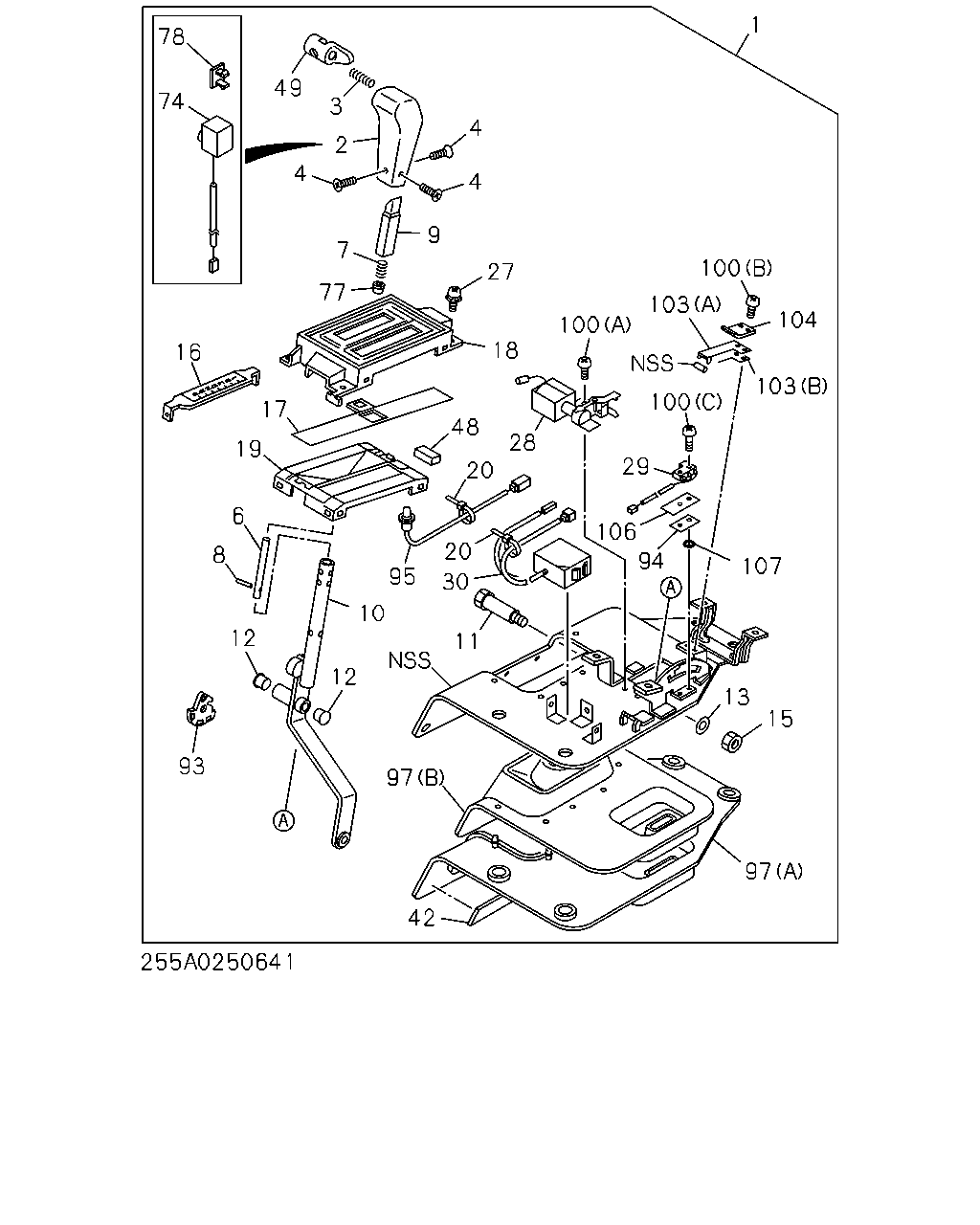

çizim 493618
49 78 74 2 4 3 7 77 4 4 27 9 18 100 103 100 1 16 17 19 6 8 12 12 10 93 95 20 20 48 28 29 106 94 100 103 104 107 13 15 97 42 97 30 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; SHIFT,A/T
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97008-001-0 01 1 9112-9201 ●
1 LEVER; SHIFT,A/T
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97009-367-2 01 1 9202-9307 ●
1 LEVER; SHIFT,A/T
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97008-002-0 01 1 9112-9201 ●
1 LEVER; SHIFT,A/T
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97009-368-2 01 1 9202-9307 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97097-673-3 01 1 9308-9504 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97154-445-1 01 1 9505-9508 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97155-224-0 01 1 9509-9511 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> 951120- BLACK 		8-97155-224-0 01 1 9511-9605 ●
1 LEVER; SHIFT,A/T
LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- BLACK 		8-97155-224-0 01 1 9511-9605 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97157-929-1 01 1 9606- ●
1 LEVER; SHIFT,A/T
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-97098-093-4 01 1 9308-9504 ●
1 LEVER; SHIFT,A/T
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-97154-446-1 01 1 9505-9511 ●
1 LEVER; SHIFT,A/T
EXC. CONVENIENT PACKAGE<6QZ>,LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- BLACK 		8-97154-446-1 01 1 9511-9605 ●
1 LEVER; SHIFT,A/T
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-97157-927-1 01 1 9606- ●
1 LEVER; SHIFT,A/T
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97006-707-0 01 1 9112-9202 ●
1 LEVER; SHIFT,A/T
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97009-369-2 01 1 9203-9307 ●
1 LEVER; SHIFT,A/T
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97006-708-0 01 1 9112-9202 ●
1 LEVER; SHIFT,A/T
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97009-370-2 01 1 9203-9307 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97098-211-3 01 1 9308-9408 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97151-607-1 01 1 9409-9504 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97154-448-0 01 1 9505-9508 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97155-225-0 01 1 9509-9511 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> 951120- BLACK 		8-97155-225-0 01 1 9511-9605 ●
1 LEVER; SHIFT,A/T
LOTUS JB LIMITED MODEL(7NF) 951120- BLACK 		8-97155-225-0 01 1 9511-9605 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97157-928-1 01 1 9606- ●
1 LEVER; SHIFT,A/T
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-97098-094-4 01 1 9308-9504 ●
1 LEVER; SHIFT,A/T
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-97154-450-0 01 1 9505-9511 ●
1 LEVER; SHIFT,A/T
EXC. CONVENIENT PACKAGE<6QZ>,LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- BLACK 		8-97154-450-0 01 1 9511-9605 ●
1 LEVER; SHIFT,A/T
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-97157-926-1 01 1 9606- ●
2 KNOB ASM; AUTO CONT LEVER
CONVENIENT PACKAGE<6QZ> BLACK 		8-97151-627-0 01 1 9409-9511 ●
2 KNOB ASM; AUTO CONT LEVER
CONVENIENT PACKAGE<6QZ> 951120- BLACK 		8-97151-627-0 01 1 9511-9605 ●
2 KNOB ASM; AUTO CONT LEVER
LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- BLACK 		8-97151-627-0 01 1 9511-9605 ●
2 KNOB ASM; AUTO CONT LEVER
CONVENIENT PACKAGE<6QZ> BLACK 		8-97151-627-0 01 1 9606- ●
2 KNOB ASM; AUTO CONT LEVER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97004-154-0 01 1 9112-9307 ● ●
2 KNOB ASM; AUTO CONT LEVER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97004-155-0 01 1 9112-9307 ● ●
2 KNOB ASM; AUTO CONT LEVER
BLACK 		8-94389-630-0 01 1 9308-9308 ● ●
2 KNOB ASM; AUTO CONT LEVER
930816- BLACK 		8-94389-630-0 01 1 9308-9408 ●
2 KNOB ASM; AUTO CONT LEVER
EXC. CONVENIENT PACKAGE<6QZ> 930816- BLACK 		8-94389-630-0 01 1 9308-9408 ●
2 KNOB ASM; AUTO CONT LEVER
EXC. CONVENIENT PACKAGE<6QZ> 930816- BLACK 		8-94389-630-0 01 1 9409-9511 ● ●
2 KNOB ASM; AUTO CONT LEVER
EXC. CONVENIENT PACKAGE<6QZ>,LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- BLACK 		8-94389-630-0 01 1 9511-9605 ●
2 KNOB ASM; AUTO CONT LEVER
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-94389-630-0 01 1 9606- ● ●
2 KNOB ASM; AUTO CONT LEVER
CONVENIENT PACKAGE<6QZ> 930816- BLACK 		8-97098-212-0 01 1 9308-9408 ●
2 KNOB ASM; AUTO CONT LEVER
CONVENIENT PACKAGE<6QZ> BLACK 		8-97151-630-0 01 1 9409-9511 ●
2 KNOB ASM; AUTO CONT LEVER
CONVENIENT PACKAGE<6QZ> 951120- BLACK 		8-97151-630-0 01 1 9511-9605 ●
2 KNOB ASM; AUTO CONT LEVER
LOTUS JB LIMITED MODEL(7NF) 951120- BLACK 		8-97151-630-0 01 1 9511-9605 ●
2 KNOB ASM; AUTO CONT LEVER
CONVENIENT PACKAGE<6QZ> BLACK 		8-97151-630-0 01 1 9606- ●
3 SPRING; RETURN,KNOB 8-94370-126-0 01 1 9112- ● ●
4 SCREW; KNOB TO LEVER 8-94370-128-0 03 1 9112-9508 ● ●
4 SCREW; KNOB TO LEVER
EXC. CONVENIENT PACKAGE<6QZ> 		8-94370-128-0 03 1 9509-9511 ● ●
4 SCREW; KNOB TO LEVER
EXC. CONVENIENT PACKAGE<6QZ>,LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- 		8-94370-128-0 03 1 9511-9605 ●
4 SCREW; KNOB TO LEVER
EXC. CONVENIENT PACKAGE<6QZ> 		8-94370-128-0 03 1 9606- ● ●
4 SCREW; KNOB TO LEVER
CONVENIENT PACKAGE<6QZ> 		8-94370-128-0 02 1 9509-9511 ● ●
4 SCREW; KNOB TO LEVER
CONVENIENT PACKAGE<6QZ> 951120- 		8-94370-128-0 02 1 9511-9605 ● ●
4 SCREW; KNOB TO LEVER
LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- 		8-94370-128-0 02 1 9511-9605 ● ●
4 SCREW; KNOB TO LEVER
CONVENIENT PACKAGE<6QZ> 		8-94370-128-0 02 1 9606- ● ●
6 ROD; A/T SHIFT LEVER 8-97039-061-0 01 1 9308-9508 ●
6 ROD; A/T SHIFT LEVER
EXC. CONVENIENT PACKAGE<6QZ> 		8-97039-061-0 01 1 9509-9511 ●
6 ROD; A/T SHIFT LEVER
EXC. CONVENIENT PACKAGE<6QZ>,LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- 		8-97039-061-0 01 1 9511-9605 ●
6 ROD; A/T SHIFT LEVER
EXC. CONVENIENT PACKAGE<6QZ> 		8-97039-061-0 01 1 9606- ●
7 SPRING; RETURN,ROD 8-97029-913-0 01 1 9112- ● ●
8 PIN; SELECT GATE 8-97035-012-0 01 1 9308-9508 ●
8 PIN; SELECT GATE
EXC. CONVENIENT PACKAGE<6QZ> 		8-97035-012-0 01 1 9509-9511 ●
8 PIN; SELECT GATE
EXC. CONVENIENT PACKAGE<6QZ>,LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- 		8-97035-012-0 01 1 9511-9605 ●
8 PIN; SELECT GATE
EXC. CONVENIENT PACKAGE<6QZ> 		8-97035-012-0 01 1 9606- ●
9 SLEEVE; KNOB,SHIFT LEVER 8-94370-129-0 01 1 9112- ● ●
10 LEVER; A/T CONT 8-97039-069-2 01 1 9112-9504 ●
10 LEVER; A/T CONT 8-97125-745-0 01 1 9505- ●
10 LEVER; A/T CONT 8-97039-068-0 01 1 9112-9202 ●
10 LEVER; A/T CONT 8-97077-886-1 01 1 9203-9504 ●
10 LEVER; A/T CONT 8-97125-746-0 01 1 9505- ●
11 LEVER; A/T SHIFT LEVER TO LINK 8-97066-339-0 01 1 9112-9202 ●
11 LEVER; A/T SHIFT LEVER TO LINK 8-97066-339-0 01 1 9203-9306 ● ●
11 LEVER; A/T SHIFT LEVER TO LINK 8-97066-339-0 01 1 9307-9307 ●
11 LEVER; A/T SHIFT LEVER TO LINK 8-97103-314-0 01 1 9307- ●
11 LEVER; A/T SHIFT LEVER TO LINK 8-97024-960-0 01 1 9112-9202 ●
11 LEVER; A/T SHIFT LEVER TO LINK 8-97066-339-0 01 1 9203- ●
12 BUSHING; SELECT LEVER 8-97066-338-0 02 1 9112- ●
12 BUSHING; SELECT LEVER 8-94389-643-0 02 1 9112-9202 ●
13 WASHER; LEVER TO SHAFT
ID=8.2 		9-09150-608-0 01 1 9112-9508 ● ●
13 WASHER; LEVER TO SHAFT
EXC. CONVENIENT PACKAGE<6QZ> ID=8.2 		9-09150-608-0 01 1 9509-9511 ● ●
13 WASHER; LEVER TO SHAFT
EXC. CONVENIENT PACKAGE<6QZ>,LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- ID=8.2 		9-09150-608-0 01 1 9511-9605 ● ●
13 WASHER; LEVER TO SHAFT
EXC. CONVENIENT PACKAGE<6QZ> ID=8.2 		9-09150-608-0 01 1 9606- ● ●
15 NUT; LEVER TO SHAFT
M8 		9-09111-408-0 01 1 9112- ● ●
16 LENS; INDICATOR 8-97039-066-0 01 1 9112-9504 ●
16 LENS; INDICATOR 8-97123-317-0 01 1 9505- ●
16 LENS; INDICATOR 8-97039-065-0 01 1 9112-9504 ●
16 LENS; INDICATOR 8-97123-316-0 01 1 9505- ●
17 PLATE; INDICATOR 8-97032-482-0 01 1 9112-9408 ● ●
17 PLATE; INDICATOR 8-97113-988-0 01 1 9409- ● ●
18 COVER; INDICATOR,UPR 8-97039-063-0 01 1 9112- ● ●
19 COVER; INDICATOR,LWR 8-97039-064-0 01 1 9112- ● ●
20 CLIP; INHIBITOR SW 8-94389-647-0 03 1 9112- ●
20 CLIP; INHIBITOR SW 8-94389-647-0 02 1 9112- ●
27 SCREW; INDICATOR TO BRKT
M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9112-9511 ● ●
27 SCREW; INDICATOR TO BRKT
951120- M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9511- ● ●
28 SOLENOID ASM 8-97039-072-0 01 1 9112- ● ●
29 SWITCH; A/T 8-97035-007-0 01 1 9112- ● ●
30 CONTROLLER; A/T
WITH BUZZER 		8-97039-073-0 01 1 9112-9605 ● ●
30 CONTROLLER; A/T
WITHOUT BUZZER 		8-97176-460-0 01 1 9606- ● ●
42 SEAL; RUBBER
CONVENIENT PACKAGE<6QZ> 		8-97137-597-0 01 1 9509-9511 ● ●
42 SEAL; RUBBER
CONVENIENT PACKAGE<6QZ> 951120- 		8-97137-597-0 01 1 9511-9605 ● ●
42 SEAL; RUBBER
LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- 		8-97137-597-0 01 1 9511-9605 ● ●
42 SEAL; RUBBER
CONVENIENT PACKAGE<6QZ> 		8-97137-597-0 01 1 9606- ● ●
48 INSULATION; PLATE 8-97066-477-0 02 1 9112-9504 ●
48 INSULATION; PLATE 8-97066-477-0 02 1 9505- ● ●
49 BUTTON; PUSH,KNOB
BLACK 		8-94389-615-0 01 1 9308- ● ●
49 BUTTON; PUSH,KNOB
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97004-146-0 01 1 9112-9307 ● ●
49 BUTTON; PUSH,KNOB
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97004-147-0 01 1 9112-9307 ● ●
74 SWITCH; OVERDRIVE,A/T CONT LEVER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97004-162-0 01 1 9112-9307 ●
74 SWITCH; OVERDRIVE,A/T CONT LEVER
BLACK 		8-94389-653-0 01 1 9308-9408 ●
74 SWITCH; OVERDRIVE,A/T CONT LEVER
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-94389-653-0 01 1 9409-9504 ●
74 SWITCH; OVERDRIVE,A/T CONT LEVER
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-97154-117-1 01 1 9505-9511 ●
74 SWITCH; OVERDRIVE,A/T CONT LEVER
EXC. CONVENIENT PACKAGE<6QZ>,LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- BLACK 		8-97154-117-1 01 1 9511-9605 ●
74 SWITCH; OVERDRIVE,A/T CONT LEVER
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-97154-117-1 01 1 9606- ●
74 SWITCH; OVERDRIVE,A/T CONT LEVER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97004-163-0 01 1 9112-9307 ●
74 SWITCH; OVERDRIVE,A/T CONT LEVER
CONVENIENT PACKAGE<6QZ> BLACK 		8-97151-628-0 01 1 9409-9504 ●
74 SWITCH; OVERDRIVE,A/T CONT LEVER
CONVENIENT PACKAGE<6QZ> BLACK 		8-97154-118-1 01 1 9505-9511 ●
74 SWITCH; OVERDRIVE,A/T CONT LEVER
CONVENIENT PACKAGE<6QZ> 951120- BLACK 		8-97154-118-1 01 1 9511-9605 ●
74 SWITCH; OVERDRIVE,A/T CONT LEVER
LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- BLACK 		8-97154-118-1 01 1 9511-9605 ●
74 SWITCH; OVERDRIVE,A/T CONT LEVER
CONVENIENT PACKAGE<6QZ> BLACK 		8-97154-118-1 01 1 9606- ●
77 SUPPORT; SPRING,A/T CONT LEVER 8-94370-130-0 01 1 9112- ● ●
78 PROTECTOR; LAMP CABLE,A/T CONT LEVER
BLACK 		8-94389-656-0 01 1 9308- ●
78 PROTECTOR; LAMP CABLE,A/T CONT LEVER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97003-314-0 01 1 9112-9202 ●
78 PROTECTOR; LAMP CABLE,A/T CONT LEVER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97009-373-0 01 1 9203-9307 ●
78 PROTECTOR; LAMP CABLE,A/T CONT LEVER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97003-316-0 01 1 9112-9202 ●
78 PROTECTOR; LAMP CABLE,A/T CONT LEVER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97009-374-0 01 1 9203-9307 ●
78 PROTECTOR; LAMP CABLE,A/T CONT LEVER
BLACK 		8-97097-675-0 01 1 9308-9408 ●
78 PROTECTOR; LAMP CABLE,A/T CONT LEVER
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-97097-675-0 01 1 9409-9511 ●
78 PROTECTOR; LAMP CABLE,A/T CONT LEVER
EXC. CONVENIENT PACKAGE<6QZ>,LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- BLACK 		8-97097-675-0 01 1 9511-9605 ●
78 PROTECTOR; LAMP CABLE,A/T CONT LEVER
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-97097-675-0 01 1 9606- ●
93 STOPPER; SOLENOID 8-97069-805-0 01 1 9202-9202 ●
93 STOPPER; SOLENOID 8-97069-805-0 01 1 9203-9504 ● ●
94 PLATE; SWITCH 8-97035-011-0 01 1 9112-9305 ● ●
95 LAMP; INDICATOR 8-97039-067-0 01 1 9112-9202 ● ●
95 LAMP; INDICATOR 8-97039-067-0 01 1 9203- ●
95 LAMP; INDICATOR 8-97035-013-0 01 1 9203- ●
97 BOOT
(A) 		8-97034-998-5 01 1 9112- ● ●
97 BOOT
(B) 		8-97034-999-0 01 1 9112- ● ●
100 SCREW
(C) 		8-97024-167-1 02 1 9112- ● ●
100 SCREW
(A) M5X10 W/LK+PL WASHER 		9-03920-510-0 02 1 9112-9305 ● ●
100 SCREW
(A) 		8-97093-499-0 02 1 9306- ● ●
100 SCREW
(B) M4X10 W/LK&PL WASHER 		9-03920-410-0 02 1 9112-9206 ●
100 SCREW
(B) M4X10 W/LK&PL WASHER 		9-03920-410-0 02 1 9207- ● ●
103 SPRING; PLATE
(A) 		8-97035-014-0 01 1 9112-9206 ●
103 SPRING; PLATE
(A) 		8-97035-014-0 01 1 9207- ● ●
103 SPRING; PLATE
(B) 		8-97066-443-0 01 1 9203-9206 ●
103 SPRING; PLATE
(B) 		8-97066-443-0 01 1 9207- ● ●
104 PLATE; LINK 8-97035-016-1 01 1 9112- ● ●
106 SHEET; SWITCH 8-97035-009-0 01 1 9112- ● ●
107 WASHER; PL 8-97030-612-0 02 1 9112-9202 ●

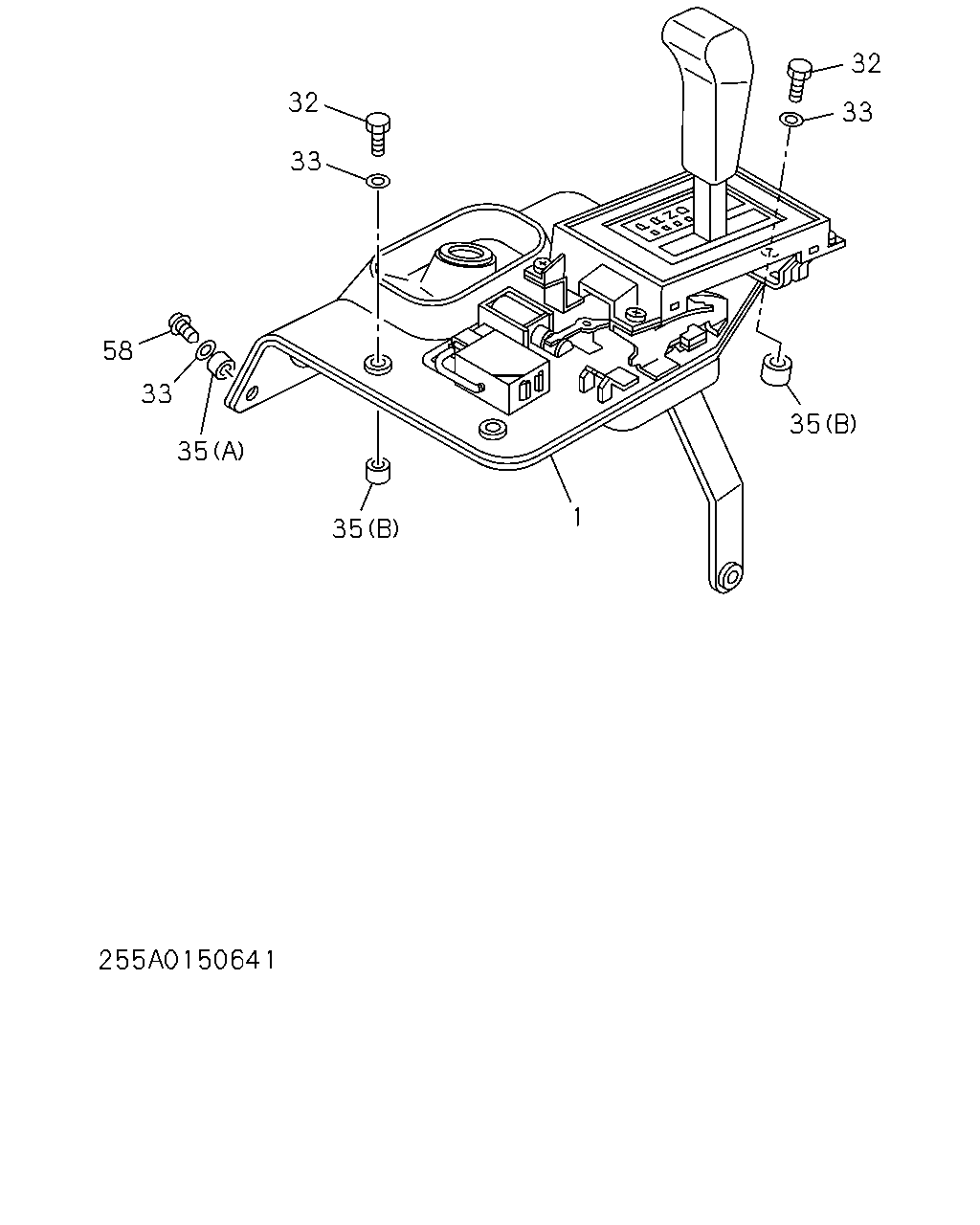

çizim 494309
32 33 58 35 33 35 1 35 33 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; SHIFT,A/T
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97008-001-0 01 1 9112-9201 ●
1 LEVER; SHIFT,A/T
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97009-367-2 01 1 9202-9307 ●
1 LEVER; SHIFT,A/T
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97008-002-0 01 1 9112-9201 ●
1 LEVER; SHIFT,A/T
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97009-368-2 01 1 9202-9307 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97097-673-3 01 1 9308-9504 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97154-445-1 01 1 9505-9508 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97155-224-0 01 1 9509-9511 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> 951120- BLACK 		8-97155-224-0 01 1 9511-9605 ●
1 LEVER; SHIFT,A/T
LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- BLACK 		8-97155-224-0 01 1 9511-9605 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97157-929-1 01 1 9606- ●
1 LEVER; SHIFT,A/T
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-97098-093-4 01 1 9308-9504 ●
1 LEVER; SHIFT,A/T
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-97154-446-1 01 1 9505-9511 ●
1 LEVER; SHIFT,A/T
EXC. CONVENIENT PACKAGE<6QZ>,LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- BLACK 		8-97154-446-1 01 1 9511-9605 ●
1 LEVER; SHIFT,A/T
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-97157-927-1 01 1 9606- ●
1 LEVER; SHIFT,A/T
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97006-707-0 01 1 9112-9202 ●
1 LEVER; SHIFT,A/T
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97009-369-2 01 1 9203-9307 ●
1 LEVER; SHIFT,A/T
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97006-708-0 01 1 9112-9202 ●
1 LEVER; SHIFT,A/T
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97009-370-2 01 1 9203-9307 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97098-211-3 01 1 9308-9408 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97151-607-1 01 1 9409-9504 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97154-448-0 01 1 9505-9508 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97155-225-0 01 1 9509-9511 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> 951120- BLACK 		8-97155-225-0 01 1 9511-9605 ●
1 LEVER; SHIFT,A/T
LOTUS JB LIMITED MODEL(7NF) 951120- BLACK 		8-97155-225-0 01 1 9511-9605 ●
1 LEVER; SHIFT,A/T
CONVENIENT PACKAGE<6QZ> BLACK 		8-97157-928-1 01 1 9606- ●
1 LEVER; SHIFT,A/T
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-97098-094-4 01 1 9308-9504 ●
1 LEVER; SHIFT,A/T
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-97154-450-0 01 1 9505-9511 ●
1 LEVER; SHIFT,A/T
EXC. CONVENIENT PACKAGE<6QZ>,LOTUS JB LIMITED MODEL(7NF),JANUARY 96YEAR LIMITED MODEL(7PM) 951120- BLACK 		8-97154-450-0 01 1 9511-9605 ●
1 LEVER; SHIFT,A/T
EXC. CONVENIENT PACKAGE<6QZ> BLACK 		8-97157-926-1 01 1 9606- ●
32 BOLT; CONT LEVER TO BODY
M8X25 		0-28410-825-0 04 1 9112-9204 ● ●
32 BOLT; CONT LEVER TO BODY
M8X25 FLANGE 		0-28480-825-0 04 1 9205-9302 ● ●
32 BOLT; CONT LEVER TO BODY
M8X25 W/LK&PL WASHER 		8-94411-977-0 04 1 9303- ● ●
33 WASHER; PL,CONT LEVER TO BODY
ID=8.4 OD=22 		9-09164-708-0 06 1 9112-9302 ● ●
33 WASHER; PL,CONT LEVER TO BODY
ID=8.4 OD=22 		9-09164-708-0 02 1 9303- ● ●
35 SPACER; BRKT TO FLOOR,SELECT LEVER
(A) OD=13 T=4.5 		8-94230-464-1 02 1 9112- ● ●
35 SPACER; BRKT TO FLOOR,SELECT LEVER
(B) OD=15 T=6.8 		8-94437-495-0 04 1 9112- ● ●
58 SCREW; BRKT 8-94220-277-0 02 1 9112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
