2-53 — TRANSMISSION OIL COOLER SYSTEM (#166893) — 67 parça

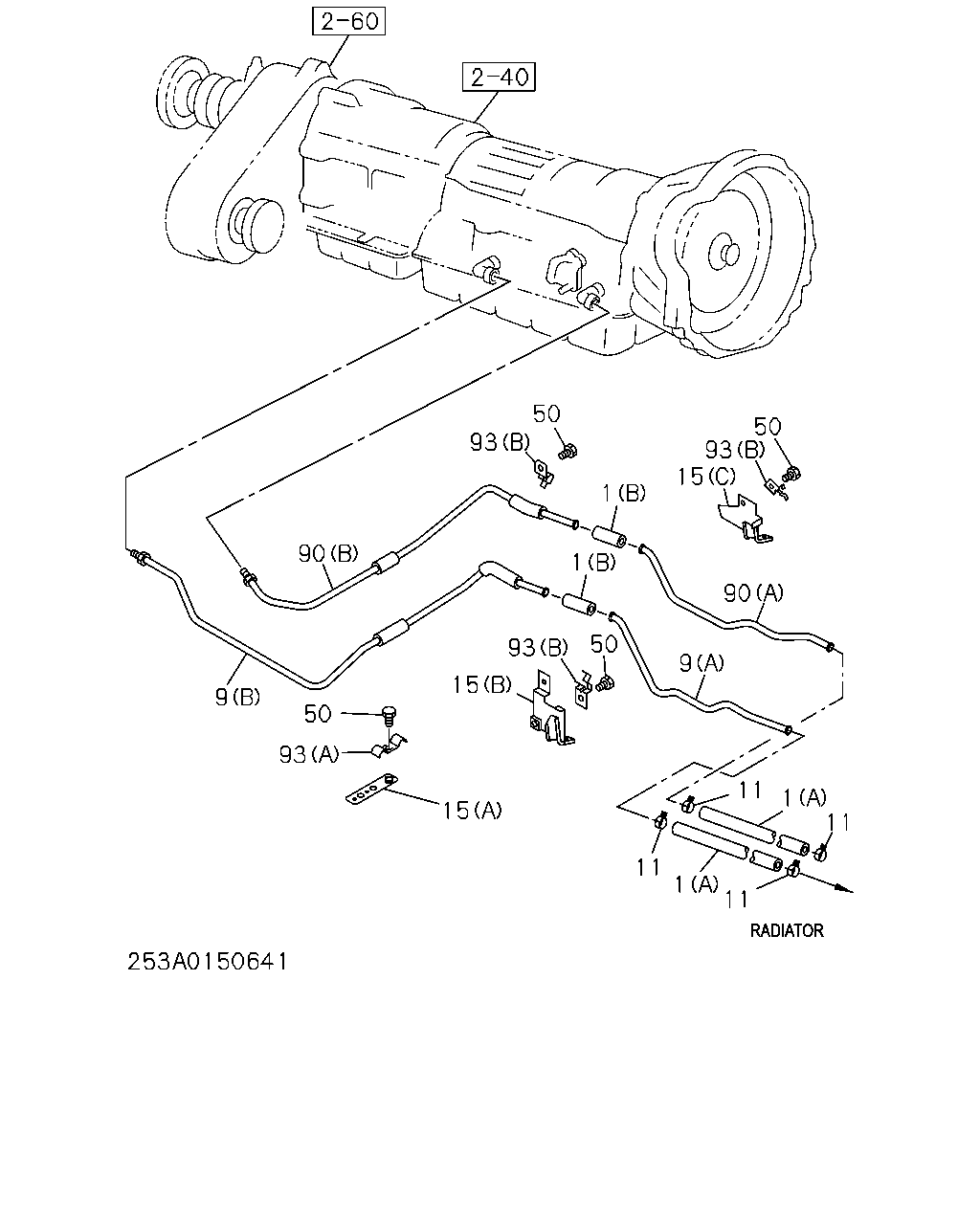

çizim 494239
93 50 1 1 50 93 15 15 93 50 9 90 93 15 50 90 9 11 1 11 11 1 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF
(A) L=250 SERVICED BY L=3000 		0-02259-300-0 02 1 9112-9212 ●
1 HOSE; ATF
(A) L=250 		8-97089-701-0 02 1 9301- ●
1 HOSE; ATF
(B) L=96 		8-97019-868-1 02 1 9112- ●
1 HOSE; ATF
(C) L=340 SERVICED BY L=3000 		0-02259-300-0 02 1 9112-9212 ●
1 HOSE; ATF
(C) L=340 		8-97089-702-0 02 1 9301- ●
9 PIPE; ATF,INL,A/T
(A) 		8-97065-884-1 01 1 9112- ●
9 PIPE; ATF,INL,A/T
(B) 		8-97069-418-1 01 1 9112-9212 ●
9 PIPE; ATF,INL,A/T
(B) 		8-97092-860-0 01 1 9301- ●
9 PIPE; ATF,INL,A/T 8-94375-176-5 01 1 9112-9504 ●
9 PIPE; ATF,INL,A/T 8-97110-819-0 01 1 9505- ●
11 CLIP; PIPE
ID=14 		8-94238-572-0 04 1 9112-9711 ● ●
11 CLIP; PIPE
ID=14 		8-97173-221-0 04 1 9712- ● ●
15 BRACKET; ATF PIPE
(A) 		8-97038-932-0 01 1 9112-9307 ●
15 BRACKET; ATF PIPE
(B) 		8-97061-685-0 01 1 9112- ●
15 BRACKET; ATF PIPE
4JG2 ENG(RJC) FRIGID ZONE(YL3) (C) 		8-97061-686-0 01 1 9112-9303 ●
15 BRACKET; ATF PIPE
(C) 		8-97061-686-0 01 1 9304- ●
50 BOLT; CLIP
M8X16 W/LK WASHER 		9-01900-816-0 04 1 9112-9204 ●
50 BOLT; CLIP
M8X16 W/LK WASHER 		0-50040-816-0 04 1 9205- ●
50 BOLT; CLIP
4JG2 ENG(RJC) FRIGID ZONE(YL3) M6X16 		0-28010-616-0 02 1 9112-9204 ●
50 BOLT; CLIP
4JG2 ENG(RJC) FRIGID ZONE(YL3) M6X16 FLANGE 		0-28080-616-0 02 1 9205-9303 ●
50 BOLT; CLIP
M6X16 FLANGE 		0-28080-616-0 02 1 9304- ●
50 BOLT; CLIP
4JG2 ENG(RJC) EXC. FRIGID ZONE(YL3) M6X16 		0-28010-616-0 01 1 9112-9204 ●
50 BOLT; CLIP
4JG2 ENG(RJC) EXC. FRIGID ZONE(YL3) M6X16 FLANGE 		0-28080-616-0 01 1 9205-9303 ●
50 BOLT; CLIP
M8X16 W/LK WASHER 		9-01900-816-0 01 1 9112-9204 ●
50 BOLT; CLIP
M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205- ●
90 PIPE ASM; ATF
(B) 		8-97062-860-2 01 1 9112-9212 ●
90 PIPE ASM; ATF
(B) 		8-97092-861-0 01 1 9301- ●
90 PIPE ASM; ATF
(A) 		8-97065-885-1 01 1 9112- ●
90 PIPE ASM; ATF 8-94375-177-5 01 1 9112-9504 ●
90 PIPE ASM; ATF 8-97110-820-0 01 1 9505- ●
93 CLIP; BRKT
(A) 		8-94334-345-1 01 1 9112- ●
93 CLIP; BRKT
(B) 		8-97062-040-0 03 1 9112- ●
93 CLIP; BRKT 8-97062-040-0 02 1 9112-9201 ●
93 CLIP; BRKT 8-97072-948-0 02 1 9202- ●

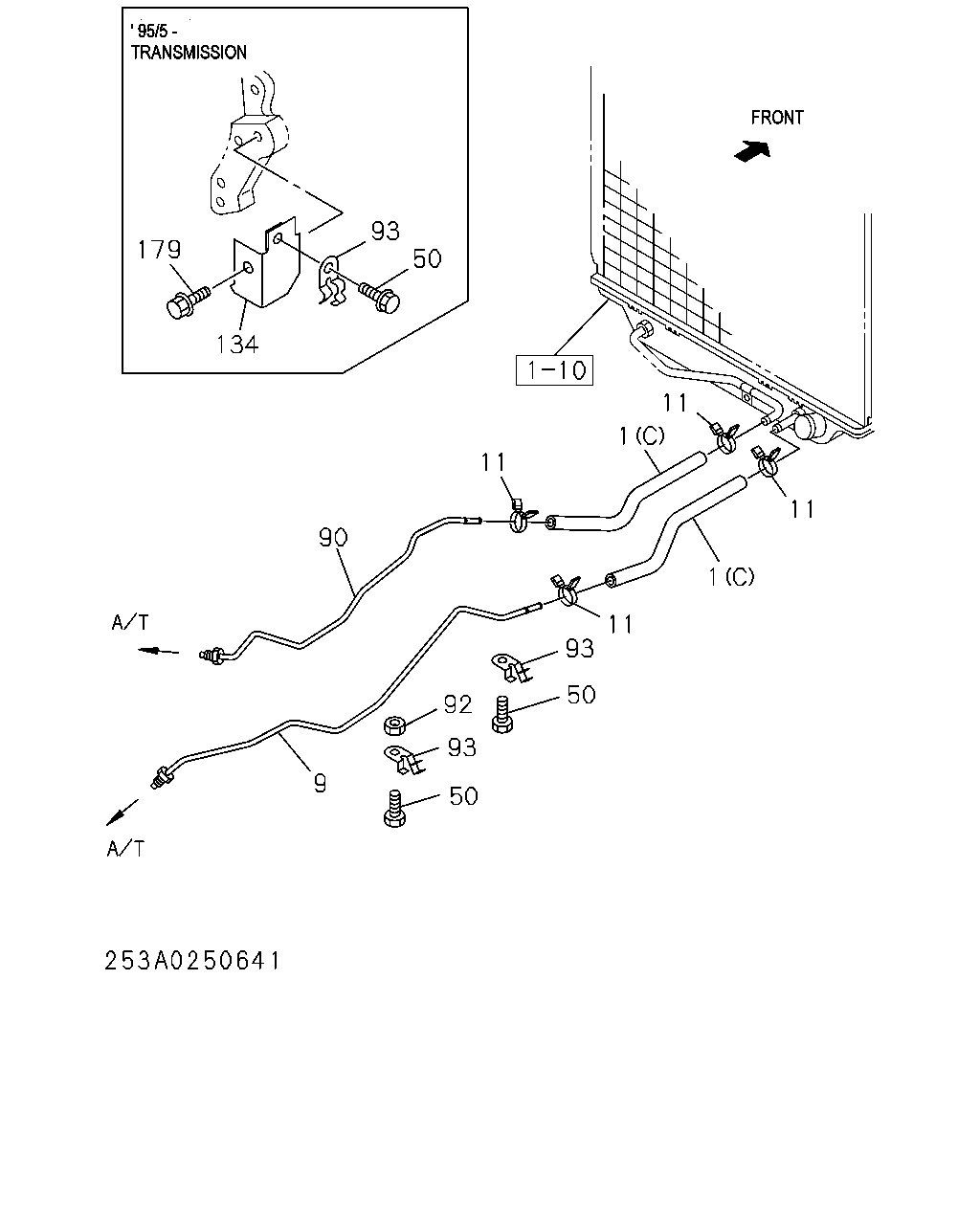

çizim 494274
179 134 93 50 11 90 92 93 50 9 93 50 11 1 11 11 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF
(A) L=250 SERVICED BY L=3000 		0-02259-300-0 02 1 9112-9212 ●
1 HOSE; ATF
(A) L=250 		8-97089-701-0 02 1 9301- ●
1 HOSE; ATF
(B) L=96 		8-97019-868-1 02 1 9112- ●
1 HOSE; ATF
(C) L=340 SERVICED BY L=3000 		0-02259-300-0 02 1 9112-9212 ●
1 HOSE; ATF
(C) L=340 		8-97089-702-0 02 1 9301- ●
9 PIPE; ATF,INL,A/T
(A) 		8-97065-884-1 01 1 9112- ●
9 PIPE; ATF,INL,A/T
(B) 		8-97069-418-1 01 1 9112-9212 ●
9 PIPE; ATF,INL,A/T
(B) 		8-97092-860-0 01 1 9301- ●
9 PIPE; ATF,INL,A/T 8-94375-176-5 01 1 9112-9504 ●
9 PIPE; ATF,INL,A/T 8-97110-819-0 01 1 9505- ●
11 CLIP; PIPE
ID=14 		8-94238-572-0 04 1 9112-9711 ● ●
11 CLIP; PIPE
ID=14 		8-97173-221-0 04 1 9712- ● ●
50 BOLT; CLIP
M8X16 W/LK WASHER 		9-01900-816-0 04 1 9112-9204 ●
50 BOLT; CLIP
M8X16 W/LK WASHER 		0-50040-816-0 04 1 9205- ●
50 BOLT; CLIP
4JG2 ENG(RJC) FRIGID ZONE(YL3) M6X16 		0-28010-616-0 02 1 9112-9204 ●
50 BOLT; CLIP
4JG2 ENG(RJC) FRIGID ZONE(YL3) M6X16 FLANGE 		0-28080-616-0 02 1 9205-9303 ●
50 BOLT; CLIP
M6X16 FLANGE 		0-28080-616-0 02 1 9304- ●
50 BOLT; CLIP
4JG2 ENG(RJC) EXC. FRIGID ZONE(YL3) M6X16 		0-28010-616-0 01 1 9112-9204 ●
50 BOLT; CLIP
4JG2 ENG(RJC) EXC. FRIGID ZONE(YL3) M6X16 FLANGE 		0-28080-616-0 01 1 9205-9303 ●
50 BOLT; CLIP
M8X16 W/LK WASHER 		9-01900-816-0 01 1 9112-9204 ●
50 BOLT; CLIP
M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205- ●
90 PIPE ASM; ATF
(B) 		8-97062-860-2 01 1 9112-9212 ●
90 PIPE ASM; ATF
(B) 		8-97092-861-0 01 1 9301- ●
90 PIPE ASM; ATF
(A) 		8-97065-885-1 01 1 9112- ●
90 PIPE ASM; ATF 8-94375-177-5 01 1 9112-9504 ●
90 PIPE ASM; ATF 8-97110-820-0 01 1 9505- ●
92 NUT; CLIP
M8 W/LK WASHER 		8-94413-537-0 01 1 9305-9504 ●
93 CLIP; BRKT
(A) 		8-94334-345-1 01 1 9112- ●
93 CLIP; BRKT
(B) 		8-97062-040-0 03 1 9112- ●
93 CLIP; BRKT 8-97062-040-0 02 1 9112-9201 ●
93 CLIP; BRKT 8-97072-948-0 02 1 9202- ●
134 BRACKET; ATF HOSE 8-97110-824-0 01 1 9505- ●
179 BOLT; BRKT
M12X20 FLANGE 		0-28181-220-0 01 1 9505- ●
