2-49 — AUTO TRANS INHIBITOR SWITCH (#166892) — 61 parça

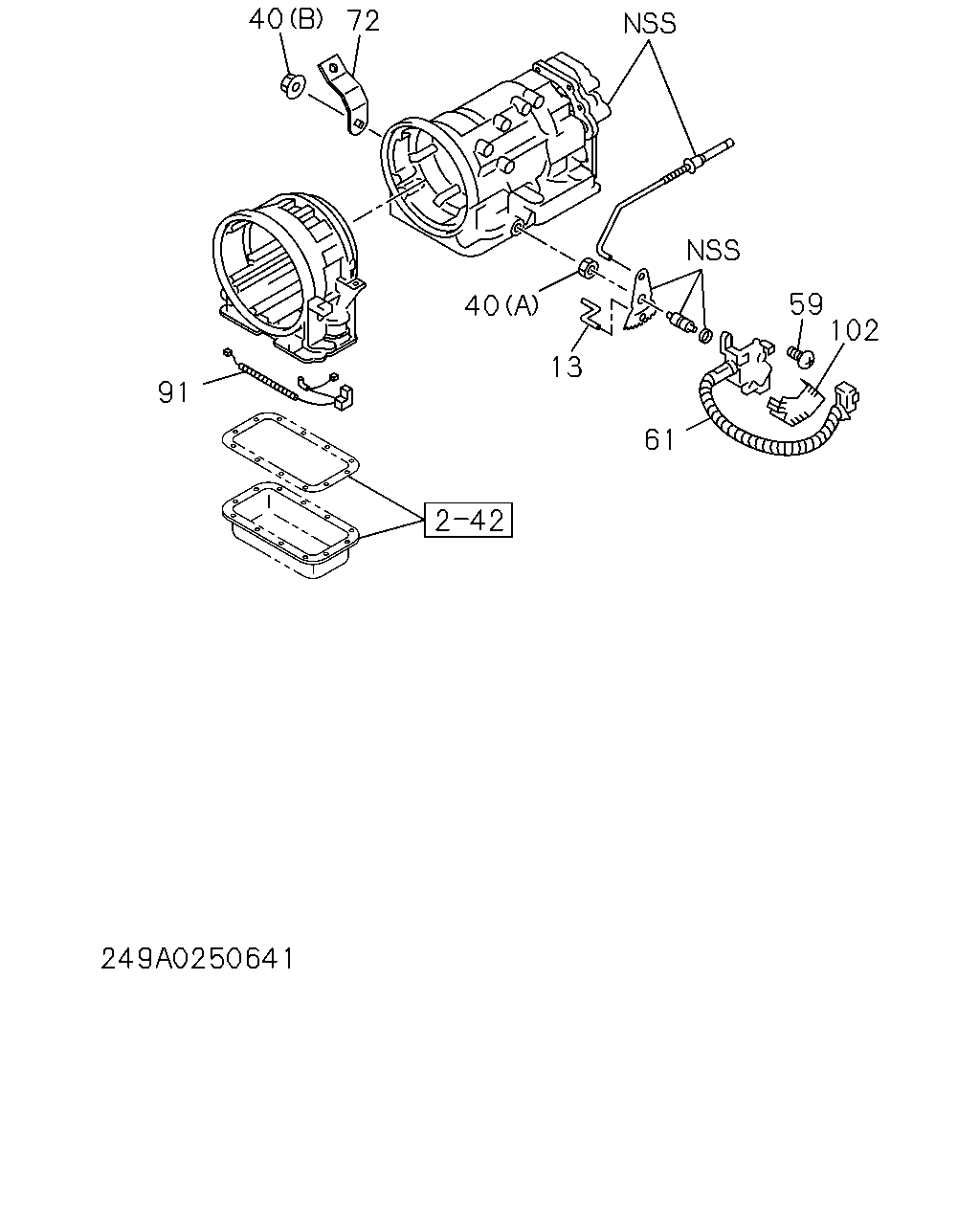

40 72 40 13 61 59 102 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	LEVER; SELECT,MANUAL SHAFT,A/T	8-05258-243-0	01	1	9112-	●
40	NUT; LEVER TO SHAFT M8 FLANGE	0-91150-108-0	01	1	9112-		●
40	NUT; LEVER TO SHAFT (B) M10 FLANGE	0-91250-110-0	01	1	9112-	●
40	NUT; LEVER TO SHAFT (A)	8-11067-223-0	01	1	9112-	●
59	SCREW; SW,A/T	8-96014-453-0	02	1	9112-	●
61	SWITCH ASM; MODE	8-96015-275-0	01	1	9112-9302	●
61	SWITCH ASM; MODE	8-96017-178-0	01	1	9303-9410	●
61	SWITCH ASM; MODE	8-96017-620-0	01	1	9411-	●
72	LEVER; SELECT CONT	8-97019-749-1	01	1	9112-		●
72	LEVER; SELECT CONT	8-97013-518-1	01	1	9112-	●
91	HARNESS ASM; CABLE,A/T CONT	8-96014-184-0	01	1	9112-9302	●
91	HARNESS ASM; CABLE,A/T CONT	8-96017-030-0	01	1	9303-	●
102	SHIELD; MODE SWITCH,A/T	8-96014-454-0	01	1	9112-	●

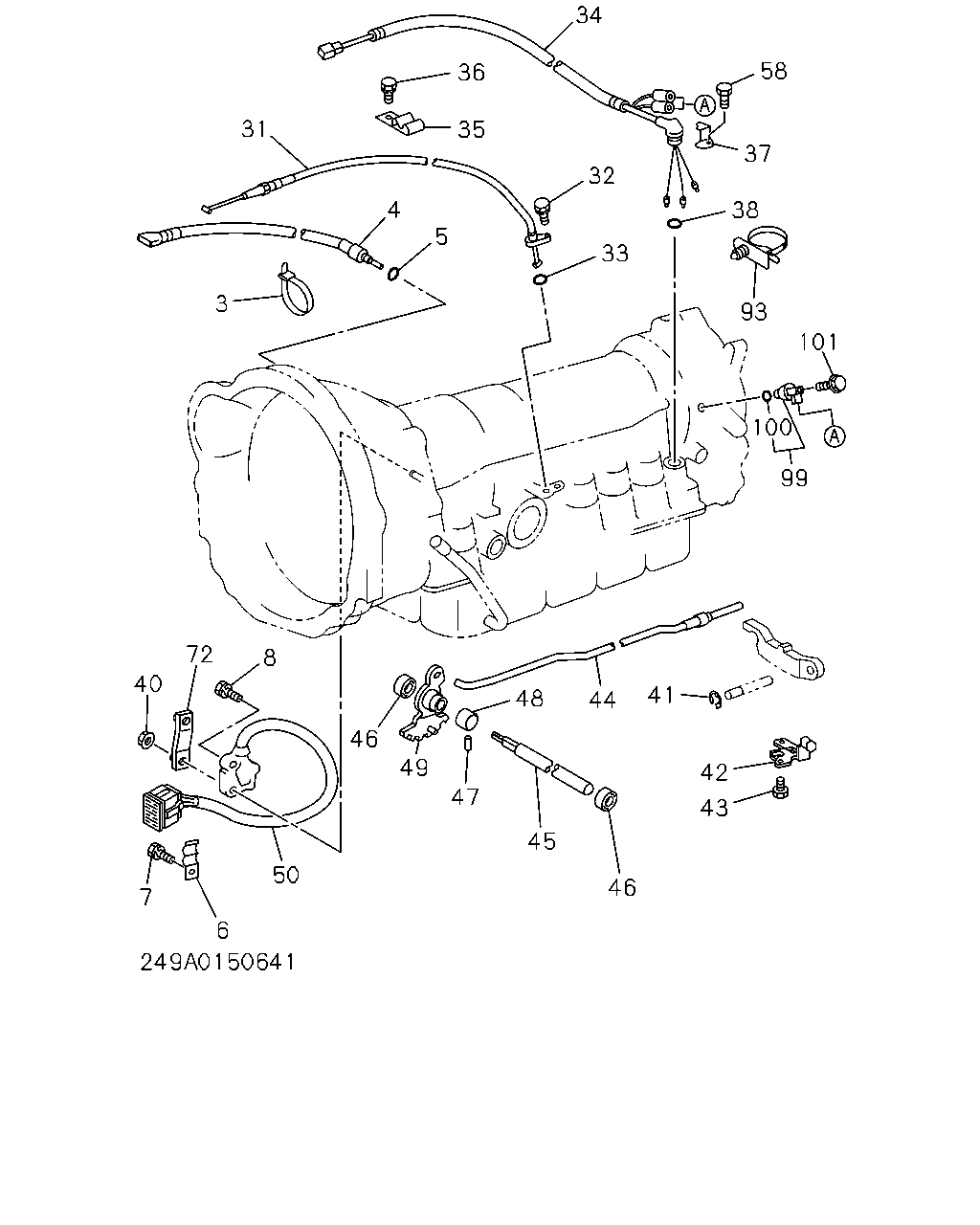

101 100 99 38 37 58 93 32 33 34 36 35 5 4 31 3 43 42 41 44 48 46 45 47 49 46 8 72 40 50 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	CLIP; INHIBITOR SW,A/T	8-94473-565-0	04	1	9112-9707		●
3	CLIP; INHIBITOR SW,A/T	8-94473-565-0	05	1	9708-		●
4	SENSOR; THERMO,A/T OIL	8-97025-852-0	01	1	9112-		●
5	GASKET; OIL THERMO SENSOR,A/T	8-94479-726-0	01	1	9112-		●
6	CLAMP; WIRING HARNESS,A/T	8-97069-460-0	01	1	9112-		●
7	BOLT; CLAMP,WIRING HARNESS M6X10	8-94252-680-0	01	1	9112-		●
8	BOLT; NEUTRAL START SW,A/T	8-94479-715-0	01	1	9112-9504		●
8	BOLT; NEUTRAL START SW,A/T M8X30	8-97130-929-0	01	1	9505-9707		●
8	BOLT; NEUTRAL START SW,A/T	8-97103-929-0	01	1	9708-		●
31	CABLE; THROTTLE,A/T	8-97069-459-0	01	1	9112-9504		●
31	CABLE; THROTTLE,A/T	8-97130-930-0	01	1	9505-9707		●
31	CABLE; THROTTLE,A/T	8-97177-196-0	01	1	9708-		●
32	BOLT; THROTTLE CABLE M6X16	8-94479-712-0	01	1	9112-		●
33	GASKET; THROTTLE CABLE	8-94364-922-0	01	1	9112-		●
34	SOLENOID ASM; A/T	8-97069-461-0	01	1	9112-9504		●
34	SOLENOID ASM; A/T	8-97130-931-0	01	1	9505-		●
35	CLAMP; THROTTLE CABLE	8-97025-850-0	01	1	9112-		●
36	BOLT; CLAMP,THROTTLE CABLE M6X10	8-94252-680-0	01	1	9112-		●
37	CLAMP; SOLENOID,A/T	8-97069-462-0	01	1	9112-		●
38	GASKET; SOLENOID INNER	8-94479-719-0	01	1	9112-		●
40	NUT; LEVER TO SHAFT M8 FLANGE	0-91150-108-0	01	1	9112-		●
40	NUT; LEVER TO SHAFT (B) M10 FLANGE	0-91250-110-0	01	1	9112-	●
40	NUT; LEVER TO SHAFT (A)	8-11067-223-0	01	1	9112-	●
41	RETAINER; SPR,SHAFT	5-34488-002-0	01	1	9112-9307		●
42	BRACKET; PARKING LOCK	8-97027-195-0	01	1	9112-9307		●
43	BOLT; BRKT M6X14	8-94479-978-0	02	1	9112-9307		●
44	ROD ASM; PARKING PAWL	8-97027-194-0	01	1	9112-9307		●
45	SHAFT; VALVE LEVER	8-97025-848-0	01	1	9112-9307		●
46	SEAL; OIL OD=22	8-94479-740-0	02	1	9112-9307		●
47	PIN; ROLL SHAFT D=4	8-94257-081-0	01	1	9112-9307		●
48	COVER; SLEEVE	8-94479-761-0	01	1	9112-9307		●
49	LEVER ASM; CAM	8-94479-760-0	01	1	9112-9307		●
50	SWITCH; NEUTRAL,A/T	8-97025-851-0	01	1	9112-9307		●
50	SWITCH; NEUTRAL,A/T	8-97104-405-0	01	1	9308-		●
58	BOLT; SOLENOID TO A/T M6X16	8-94479-712-0	01	1	9708-		●
72	LEVER; SELECT CONT	8-97019-749-1	01	1	9112-		●
72	LEVER; SELECT CONT	8-97013-518-1	01	1	9112-	●
93	CLIP; A/T CONT HARNESS L=140	8-97122-360-0	01	1	9602-9707		●
99	SENSOR; SPD	8-97027-383-0	01	1	9112-9403		●
99	SENSOR; SPD	8-97027-383-0	01	1	9404-9504		●
99	SENSOR; SPD	8-97027-383-0	01	1	9505-		●
100	GASKET; SPD SENSOR	8-97027-197-0	01	1	9112-9403		●
100	GASKET; SPD SENSOR	8-97027-197-0	01	1	9404-9504		●
100	GASKET; SPD SENSOR	8-97027-197-0	01	1	9505-		●
101	BOLT; SPD SENSOR	8-94244-568-0	01	1	9112-9208		●
101	BOLT; SPD SENSOR	8-94244-568-0	01	1	9209-9403		●
101	BOLT; SPD SENSOR	8-94244-568-0	01	1	9404-9504		●
101	BOLT; SPD SENSOR	8-94244-568-0	01	1	9505-		●
