◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-42 - AUTO TRANS OIL PAN AND OIL CONTROL ▶
2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#166889) — 67 parça

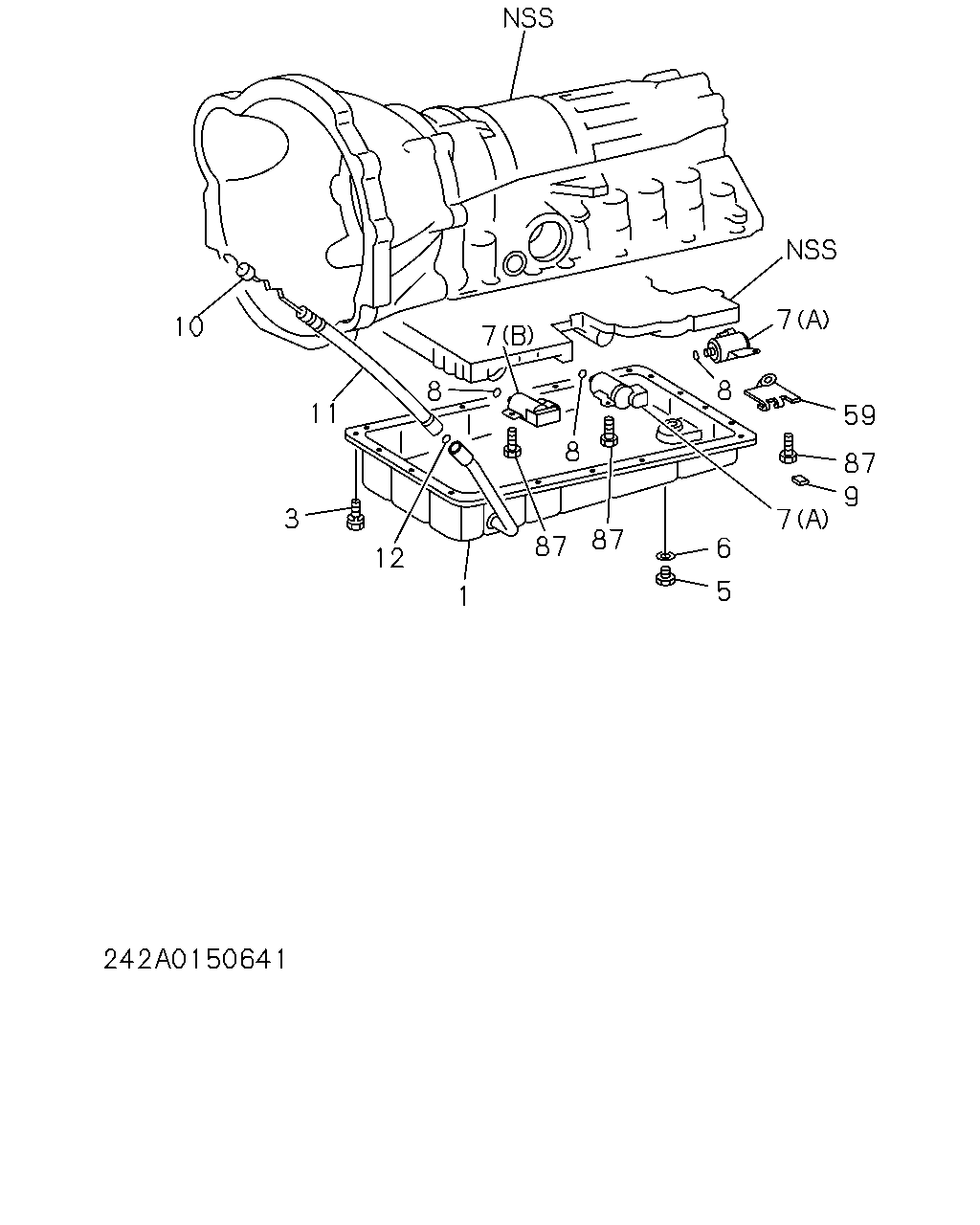

çizim 494141
59 7 87 9 7 6 5 87 87 1 12 3 11 10 7 8 8 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL,A/T 8-97027-212-0 01 1 9112- ●
1 PAN ASM; OIL,A/T 8-96016-554-0 01 1 9112-9605 ●
1 PAN ASM; OIL,A/T 8-96017-876-0 01 1 9606- ●
3 BOLT; OIL PAN TO CASE 8-94364-899-0 19 1 9112-9504 ●
3 BOLT; OIL PAN TO CASE 8-97130-928-0 19 1 9505- ●
3 BOLT; OIL PAN TO CASE 8-96014-452-0 28 1 9112-9302 ●
3 BOLT; OIL PAN TO CASE 8-96017-023-0 28 1 9303- ●
5 PLUG; OIL PAN 5-34132-003-0 01 1 9112- ●
5 PLUG; OIL PAN 8-96015-481-0 01 1 9112-9605 ●
5 PLUG; OIL PAN 8-96015-481-0 02 1 9606- ●
6 GASKET; OIL PAN TO PLUG
ID=12 		5-34132-002-0 01 1 9112- ●
6 GASKET; OIL PAN TO PLUG 8-96014-572-0 01 1 9112-9605 ●
6 GASKET; OIL PAN TO PLUG 8-01638-257-0 02 1 9606- ●
7 SOLENOID; DOWN SHIFT,A/T
(A) 		8-94480-100-0 02 1 9112-9504 ●
7 SOLENOID; DOWN SHIFT,A/T
(A) 		8-97126-803-0 02 1 9505- ●
7 SOLENOID; DOWN SHIFT,A/T
(B) 		8-94480-102-0 01 1 9112-9504 ●
7 SOLENOID; DOWN SHIFT,A/T
(B) 		8-97126-804-0 01 1 9505- ●
8 GASKET; DOWN SHIFT SOLENOID,A/T
ID=6.1 		8-94480-101-0 03 1 9112- ●
9 MAGNET; OIL PAN 5-34138-004-0 06 1 9112-9504 ●
9 MAGNET; OIL PAN 5-34138-004-0 02 1 9505- ●
9 MAGNET; OIL PAN 8-96013-938-0 01 1 9112- ●
10 GAUGE; OIL LEVEL 8-97044-281-3 01 1 9112- ●
10 GAUGE; OIL LEVEL 8-97066-966-4 01 1 9112- ●
11 TUBE; OIL FILLER 8-97061-029-2 01 1 9112- ●
11 TUBE; OIL FILLER 8-97068-802-2 01 1 9112-9403 ●
11 TUBE; OIL FILLER 8-97108-767-0 01 1 9404- ●
12 GASKET; OIL FILLER TUBE TO A/T
ID=9.8 		9-09561-110-0 01 1 9112- ●
59 CLIP; SOLENOID WIRE 8-97126-813-0 01 1 9505- ●
87 BOLT; SOLENOID
M6X12 		8-94479-927-0 03 1 9112- ●

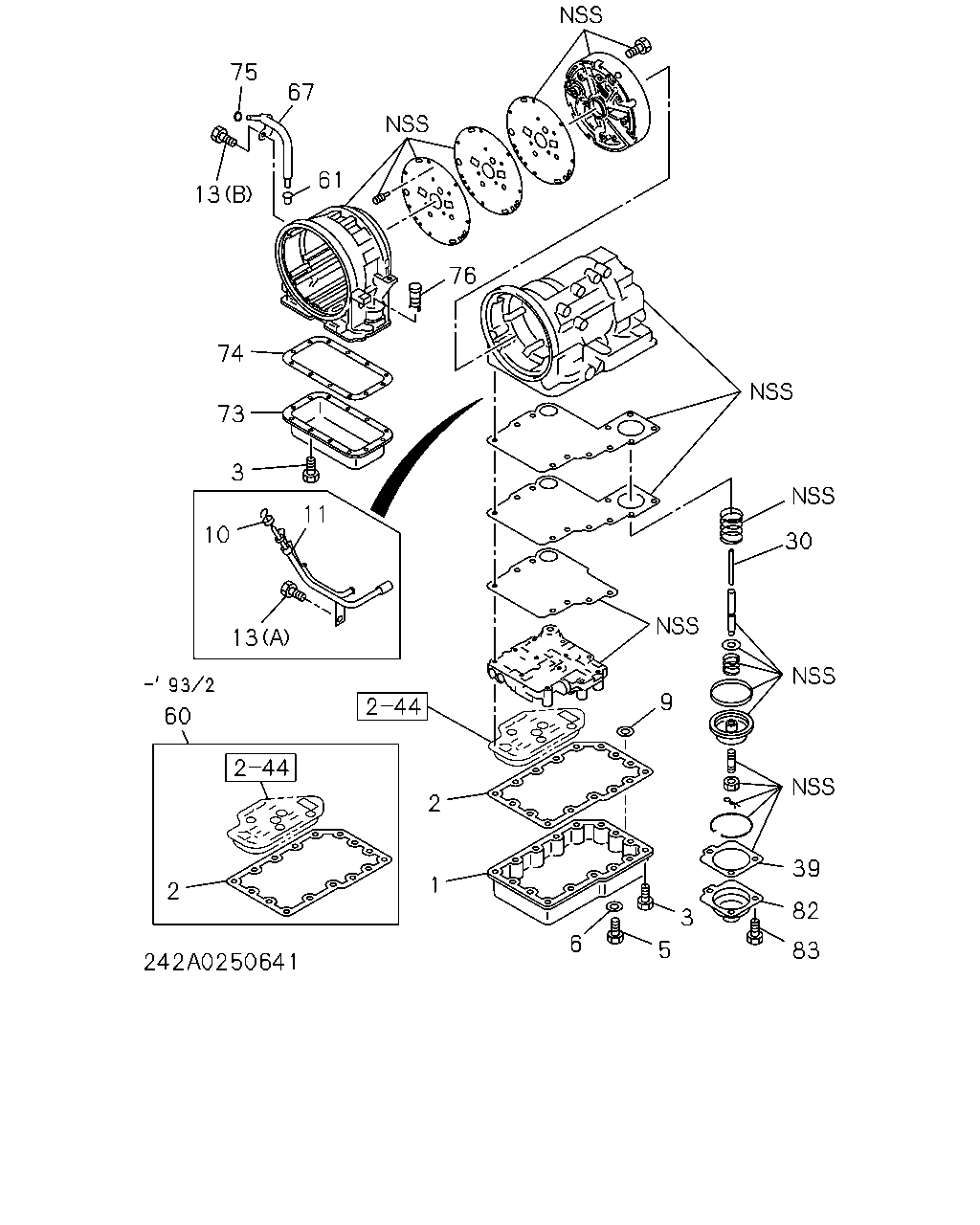

çizim 494172
9 3 5 6 39 82 83 30 2 1 2 11 10 13 3 73 74 61 67 75 13 76 60
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL,A/T 8-97027-212-0 01 1 9112- ●
1 PAN ASM; OIL,A/T 8-96016-554-0 01 1 9112-9605 ●
1 PAN ASM; OIL,A/T 8-96017-876-0 01 1 9606- ●
2 GASKET; OIL PAN,A/T 8-96014-234-0 01 1 9112- ●
3 BOLT; OIL PAN TO CASE 8-94364-899-0 19 1 9112-9504 ●
3 BOLT; OIL PAN TO CASE 8-97130-928-0 19 1 9505- ●
3 BOLT; OIL PAN TO CASE 8-96014-452-0 28 1 9112-9302 ●
3 BOLT; OIL PAN TO CASE 8-96017-023-0 28 1 9303- ●
5 PLUG; OIL PAN 5-34132-003-0 01 1 9112- ●
5 PLUG; OIL PAN 8-96015-481-0 01 1 9112-9605 ●
5 PLUG; OIL PAN 8-96015-481-0 02 1 9606- ●
6 GASKET; OIL PAN TO PLUG
ID=12 		5-34132-002-0 01 1 9112- ●
6 GASKET; OIL PAN TO PLUG 8-96014-572-0 01 1 9112-9605 ●
6 GASKET; OIL PAN TO PLUG 8-01638-257-0 02 1 9606- ●
9 MAGNET; OIL PAN 5-34138-004-0 06 1 9112-9504 ●
9 MAGNET; OIL PAN 5-34138-004-0 02 1 9505- ●
9 MAGNET; OIL PAN 8-96013-938-0 01 1 9112- ●
10 GAUGE; OIL LEVEL 8-97044-281-3 01 1 9112- ●
10 GAUGE; OIL LEVEL 8-97066-966-4 01 1 9112- ●
11 TUBE; OIL FILLER 8-97061-029-2 01 1 9112- ●
11 TUBE; OIL FILLER 8-97068-802-2 01 1 9112-9403 ●
11 TUBE; OIL FILLER 8-97108-767-0 01 1 9404- ●
13 BOLT; OIL FILLER
(A) 		0-28010-816-0 01 1 9112-9204 ●
13 BOLT; OIL FILLER
(A) 		0-28080-816-0 01 1 9205- ●
13 BOLT; OIL FILLER
(B) 		8-96014-452-0 01 1 9112-9302 ●
13 BOLT; OIL FILLER
(B) 		8-96017-023-0 01 1 9303- ●
30 ROD; VAC DIAPH,A/T 8-05258-182-0 01 1 9112- ●
39 GASKET; SERVO COVER 8-96014-414-0 01 1 9112- ●
60 REPAIR KIT; OIL FILTER,A/T 8-96041-011-0 01 1 9112-9302 ●
61 SEAL; OIL FILTER 8-96014-690-0 01 1 9112-9410 ●
61 SEAL; OIL FILTER 8-01259-475-0 01 1 9411- ●
67 TUBE; OIL FILLER,UPR,A/T 8-96015-118-0 01 1 9112- ●
73 PAN ASM; ADAPTER 8-96014-186-0 01 1 9112- ●
74 GASKET; ADAPTER PAN 8-96014-235-0 01 1 9112- ●
75 SEAL; FILTER TUBE 8-96014-673-0 01 1 9112- ●
76 CONNECTOR; ADAPTER CASE 8-96015-408-0 01 1 9112- ●
82 COVER; SERVO PISTON 8-96014-413-0 01 1 9112- ●
83 SCREW; SERVO COVER 8-96013-316-0 04 1 9112- ●
