2-30 — GEAR SHIFTER AND QUADRANT BOX (#166885) — 110 parça

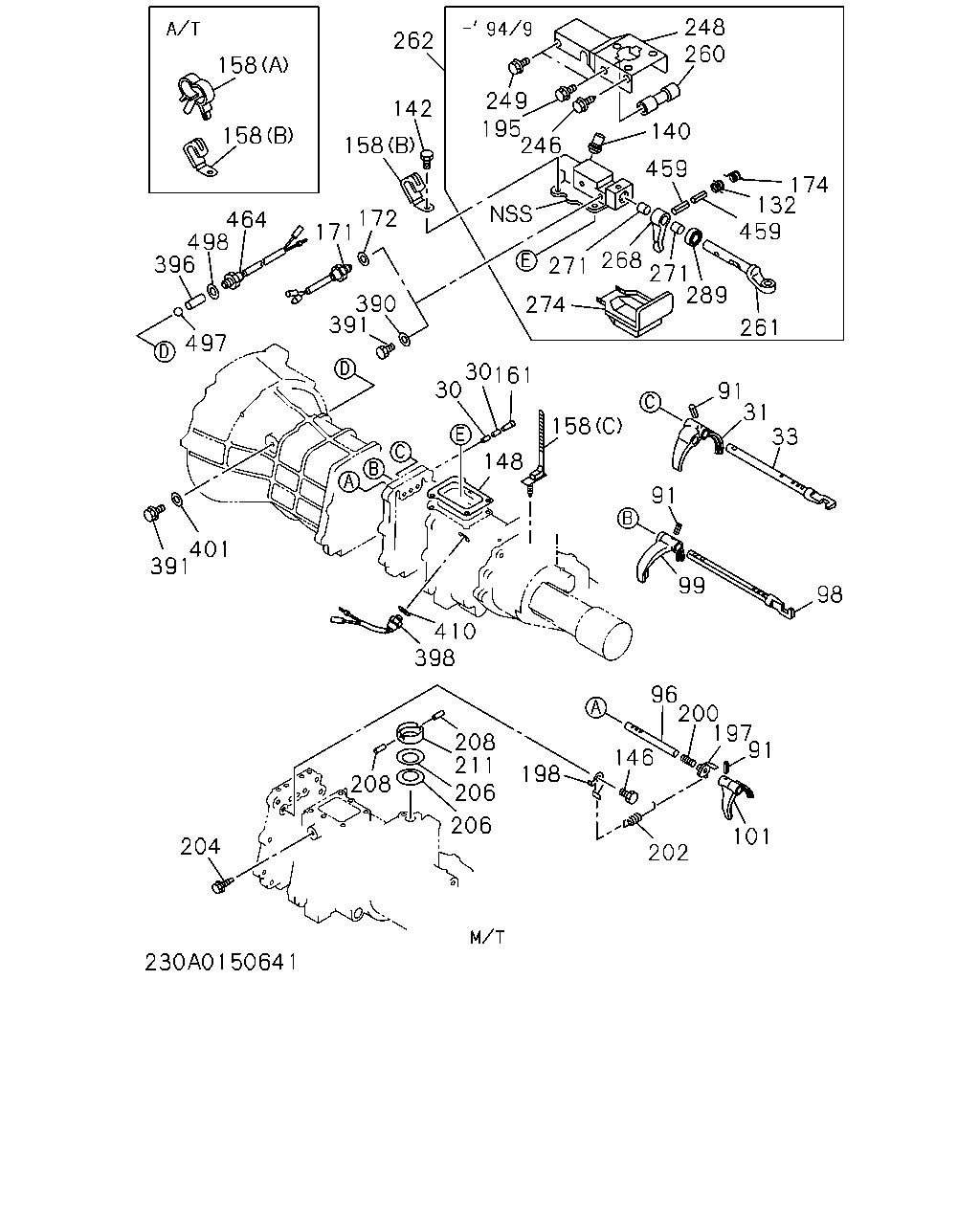

158 158 464 498 396 497 401 391 204 208 206 206 211 208 398 410 148 30 391 390 171 172 158 142 262 249 195 246 271 274 268 271 459 140 260 248 174 132 459 289 261 91 31 33 98 99 91 158 161 30 96 200 197 91 101 202 146 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	9112-	●
31	ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	9112-	●
33	ROD; SHIFT,LOW & 2ND	8-97019-061-1	01	1	9112-	●
91	PIN; SPR,SHIFT ARM D=4.2 L=25	8-94171-541-0	03	1	9112-	●
96	ROD; SHIFT,5TH	8-94440-079-0	01	1	9112-	●
98	ROD; SHIFT,TOP & 3RD	8-97019-060-2	01	1	9112-	●
99	ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	9112-	●
101	ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	9112-	●
132	SPRING; SELECT STOP	8-94473-790-1	01	1	9112-9409	●
132	SPRING; SELECT STOP	8-97103-106-0	01	1	9410-	●
140	BREATHER; AIR,TRANS L=39	8-97035-693-2	01	1	9112-9409	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-94448-815-3	04	1	9112-	●
146	BOLT; REV INHIBITOR M8X22 FLANGE	0-28080-822-0	01	1	9112-9605	●
146	BOLT; REV INHIBITOR M8X20 FLANGE	0-28080-820-0	01	1	9606-9607	●
146	BOLT; REV INHIBITOR M8X22 FLANGE	0-28080-822-0	01	1	9608-9609	●
146	BOLT; REV INHIBITOR M8X20 FLANGE	0-28680-820-0	01	1	9610-	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94473-945-0	01	1	9112-9307	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	9308-	●
158	CLIP; HARNESS (B) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9112-9208	●
158	CLIP; HARNESS (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9112-9208		●	●
158	CLIP; HARNESS (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9209-9504		●	●
158	CLIP; HARNESS (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9209-9504			●
158	CLIP; HARNESS EXC. VARIABLE TORQUE SPRIT<7HA> (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9505-9509		●	●
158	CLIP; HARNESS (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9505-9509			●
158	CLIP; HARNESS EXC. VARIABLE TORQUE SPRIT<7HA> (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9510-		●	●
158	CLIP; HARNESS (A) ID=24	8-97022-568-3	01	1	9112-			●
158	CLIP; HARNESS (C) L=140	8-97122-360-0	01	1	9510-9512			●
161	PLUG; INTER LK HOLE	8-94239-543-1	01	1	9112-	●
171	SWITCH; NEUTRAL 6VD1 DOHC ENG(RLV) AUTO CRUISE CONT<K30>	5-82440-004-1	01	1	9112-9504	●
171	SWITCH; NEUTRAL 4JG2 ENG(RJC)	5-82440-004-1	01	1	9505-9612	●
171	SWITCH; NEUTRAL 4JG2 ENG(RJC)	8-97138-631-0	01	1	9701-	●
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9112-	●
174	SPRING; REV	8-94473-791-1	01	1	9112-9409	●
174	SPRING; REV	8-97103-105-0	01	1	9410-	●
195	BOLT M8X12 FLANGE	8-94479-696-1	01	1	9606-	●
195	BOLT M8X12 FLANGE	0-28080-812-0	02	1	9309-9409	●
197	INHIBITOR; REV SHIFT	8-94448-753-0	01	1	9112-	●
198	BRACKET; REV INHIBITOR	8-94448-199-0	01	1	9112-	●
200	SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	9112-	●
202	SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	9112-	●
204	STOPPER; REV INHIBITOR	8-94479-434-2	01	1	9112-	●
206	SPRING; BALL SEAT	9-33619-632-0	02	1	9112-9707	●
208	PIN; BALL SEAT	8-94204-186-0	02	1	9112-9707	●
211	SEAT; BALL	5-33619-042-0	01	1	9112-9707	●
246	SCREW; DUST COVER M4X10 FLANGE	8-94328-359-1	04	1	9112-9409	●
248	RETAINER; CONT BOX	8-94328-360-2	01	1	9112-9409	●
249	BOLT; RET,CONT BOX M8X12 FLANGE	8-97049-142-0	05	1	9112-9308	●
249	BOLT; RET,CONT BOX M8X12 FLANGE	8-97049-142-0	03	1	9309-9409	●
260	SHAFT; SPRING SET,CONT BOX	8-94473-789-0	01	1	9112-9409	●
261	ROD; GEAR CONT	8-94473-788-3	01	1	9112-9409	●
261	ROD; GEAR CONT	8-97103-090-1	01	1	9410-	●
262	BOX ASM; SHIFT CONT	8-97033-096-3	01	1	9112-9409	●
262	BOX ASM; SHIFT CONT	8-97100-878-3	01	1	9410-	●
268	LEVER; CONT,INTERNAL	8-94473-786-1	01	1	9112-9409	●
268	LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9410-	●
271	BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9112-	●
274	COVER; SHAFT,QUAD BOX	8-94473-785-2	01	1	9112-9409	●
274	COVER; SHAFT,QUAD BOX	8-97103-093-2	01	1	9410-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94221-533-1	01	1	9112-9310	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94478-118-0	01	1	9311-	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 6VD1 DOHC ENG(RLV) ID=14.2 OD=20.0	9-09571-414-0	02	1	9112-9209	●
391	PLUG; SW HOLE 4JG2 ENG(RJC) M14X9	9-99202-314-0	01	1	9112-9307	●
391	PLUG; SW HOLE 6VD1 DOHC ENG(RLV) EXC. AUTO CRUISE CONT<K30> M14X9	9-99202-314-0	01	1	9308-9312	●
391	PLUG; SW HOLE EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M14X9	9-99202-314-0	01	1	9308-9312	●
391	PLUG; SW HOLE M14X9	9-99202-314-0	01	1	9308-9312	●
391	PLUG; SW HOLE 6VD1 DOHC ENG(RLV) EXC. AUTO CRUISE CONT<K30> M14X11	8-94252-142-0	01	1	9401-9504	●
391	PLUG; SW HOLE EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M14X11	8-94252-142-0	01	1	9401-9504	●
391	PLUG; SW HOLE M14X11	8-94252-142-0	01	1	9401-9504	●
391	PLUG; SW HOLE 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M14X11	8-94252-142-0	01	1	9505-9511	●
391	PLUG; SW HOLE 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M14X11	8-94252-142-0	01	1	9511-9511	●
391	PLUG; SW HOLE 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) M14X11	8-94252-142-0	01	1	9606-	●
391	PLUG; SW HOLE 6VD1 DOHC ENG(RLV) M14X11	8-94252-142-0	02	1	9505-	●
391	PLUG; SW HOLE 6VD1 DOHC ENG(RLV) AUTO CRUISE CONT<K30> M14X9	9-99202-314-0	02	1	9112-9205	●
391	PLUG; SW HOLE 6VD1 DOHC ENG(RLV) M14X9	9-99202-314-0	02	1	9206-9307	●
391	PLUG; SW HOLE 6VD1 DOHC ENG(RLV) EXC. AUTO CRUISE CONT<K30> M14X9	9-99202-314-0	03	1	9112-9205	●
396	PLUNGER; SHIFT ROD ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) D=5.5 L=20.7	8-94225-228-0	01	1	9308-	●
398	SWITCH; REV LAMP	8-94464-566-0	01	1	9112-9609	●
398	SWITCH; REV LAMP	8-97138-635-0	01	1	9610-	●
401	GASKET; SWITCH,TOP & 3RD 6VD1 DOHC ENG(RLV) ID=14.2 OD=20.0	9-09571-414-0	01	1	9308-	●
410	GASKET; REV SW ID=14.2 OD=20.0	9-09571-414-0	01	1	9112-	●
459	PIN; SPR,ROD TO ARM OUTER OD=5.4	9-09678-510-0	01	1	9112-	●
459	PIN; SPR,ROD TO ARM INNER OD=3.3	9-09678-519-0	01	1	9112-	●
464	SWITCH; 1ST & 2ND ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-94411-366-1	01	1	9308-	●
497	BALL; SWITCH ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	9-00097-517-0	01	1	9308-	●
498	GASKET; SWITCH,1ST & 2ND ID=14.2 OD=20.0	9-09571-414-0	01	1	9308-	●

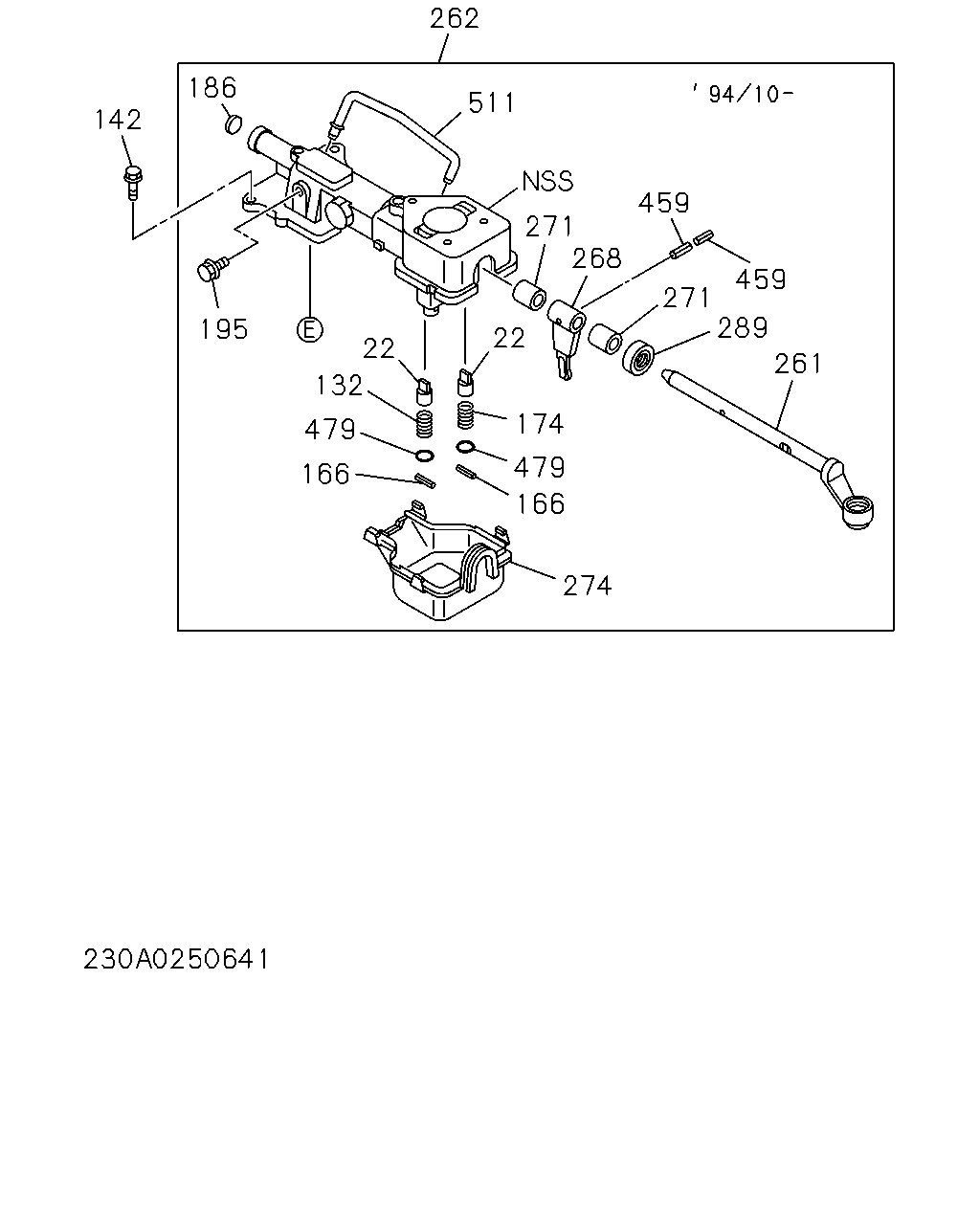

262 511 459 271 268 271 459 289 261 22 174 479 166 274 166 479 132 22 195 186 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
22	CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9410-	●
132	SPRING; SELECT STOP	8-94473-790-1	01	1	9112-9409	●
132	SPRING; SELECT STOP	8-97103-106-0	01	1	9410-	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-94448-815-3	04	1	9112-	●
166	PIN; SPR,SELECT LEVER D=4.2 L=25	8-97103-142-0	02	1	9410-	●
174	SPRING; REV	8-94473-791-1	01	1	9112-9409	●
174	SPRING; REV	8-97103-105-0	01	1	9410-	●
186	PLUG; SHIFTER ROD OD=16	9-11129-081-0	01	1	9410-	●
195	BOLT M8X12 FLANGE	8-94479-696-1	01	1	9606-	●
195	BOLT M8X12 FLANGE	0-28080-812-0	02	1	9309-9409	●
261	ROD; GEAR CONT	8-94473-788-3	01	1	9112-9409	●
261	ROD; GEAR CONT	8-97103-090-1	01	1	9410-	●
262	BOX ASM; SHIFT CONT	8-97033-096-3	01	1	9112-9409	●
262	BOX ASM; SHIFT CONT	8-97100-878-3	01	1	9410-	●
268	LEVER; CONT,INTERNAL	8-94473-786-1	01	1	9112-9409	●
268	LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9410-	●
271	BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9112-	●
274	COVER; SHAFT,QUAD BOX	8-94473-785-2	01	1	9112-9409	●
274	COVER; SHAFT,QUAD BOX	8-97103-093-2	01	1	9410-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94221-533-1	01	1	9112-9310	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94478-118-0	01	1	9311-	●
459	PIN; SPR,ROD TO ARM OUTER OD=5.4	9-09678-510-0	01	1	9112-	●
459	PIN; SPR,ROD TO ARM INNER OD=3.3	9-09678-519-0	01	1	9112-	●
479	PLATE; SELECT D=13	8-97103-110-0	02	1	9410-	●
511	PIPE; AIR	8-97104-725-0	01	1	9410-	●
