Sayfa 2-26 - Isuzu EPC

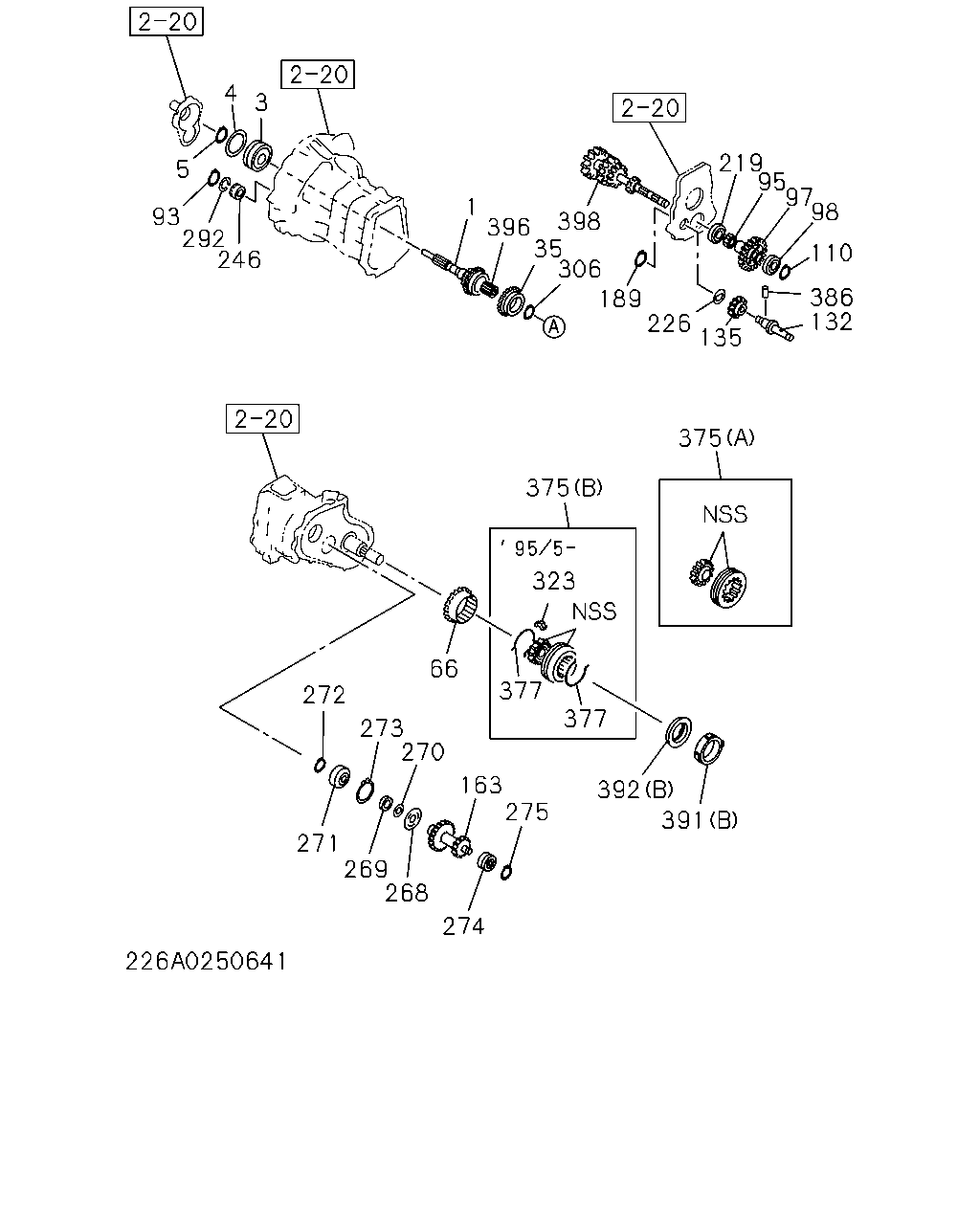

2-26 — MANUAL TRANSMISSION GEAR (#166884) — 320 parça

4 3 5 93 292 246 272 273 270 271 269 268 274 275 163 66 377 377 392 391 323 375 375 135 226 189 306 35 396 1 398 219 95 97 98 110 386 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=25	8-97041-579-3	01	1	9112-9409	●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97100-908-3	01	1	9410-9709	●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	9710-	●
3	BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	9112-	●
3	BEARING; TOP GEAR SHAFT JTEKT	8-94380-016-1	01	1	9112-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	9112-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT JTEKT	8-94422-084-0	01	1	9112-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	9-09180-040-0	01	1	9112-9303	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	8-94422-093-0	01	1	9304-	●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	9112-	●
66	RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97102-296-0	01	1	9505-9506	●
66	RING; BLOCK,SYN SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97102-296-0	01	1	9507-9612	●	●	●
66	RING; BLOCK,SYN SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97169-516-0	01	1	9701-	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	9112-	●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	9112-	●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	9112-	●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	9112-	●
98	BEARING; BALL,COUNTER END JTEKT	8-97028-305-1	01	1	9505-	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	9112-	●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	9112-	●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	9112-	●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	9112-	●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	9112-	●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	9112-	●
132	SHAFT; REV	8-97019-155-0	01	1	9112-	●
135	GEAR; REV IDLER Z=33	8-94377-435-0	01	1	9112-	●
163	GEAR; COUNTER,TRANSFER Z=38-23	8-94367-604-0	01	1	9112-9502	●	●	●
163	GEAR; COUNTER,TRANSFER Z=38-23	8-97120-124-0	01	1	9503-9504	●	●	●
163	GEAR; COUNTER,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> Z=38-23	8-97120-124-0	01	1	9505-9605	●	●	●
163	GEAR; COUNTER,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> Z=37-26	8-97130-057-1	01	1	9606-9606	●	●	●
163	GEAR; COUNTER,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> Z=37-26	8-97165-317-0	01	1	9607-	●	●	●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	9112-	●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	9112-	●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	9112-	●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	9112-	●
219	BEARING; BALL,CLUSTER,RR JTEKT	8-94440-355-0	01	1	9505-	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-0	01	1	9112-	●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-3	01	1	9112-	●
246	BEARING; ROLLER,COUNTER SHAFT FRT JTEKT	8-97029-601-1	01	1	9505-	●
268	PLATE; ANTI LASH,COUNTER	8-94320-567-0	01	1	9112-9504	●	●	●
268	PLATE; ANTI LASH,COUNTER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94320-567-0	01	1	9505-9605	●	●	●
268	PLATE; ANTI LASH,COUNTER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97130-060-1	01	1	9606-9606	●	●	●
268	PLATE; ANTI LASH,COUNTER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97164-348-0	01	1	9607-	●	●	●
269	SPACER; ANTI LASH PLATE,COUNTER	8-94482-469-1	01	1	9112-9504	●	●	●
269	SPACER; ANTI LASH PLATE,COUNTER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94482-469-1	01	1	9505-	●	●	●
270	SPRING; BELLEVILLE,ANTI LASH,TRANSFER	8-94482-498-0	01	1	9112-9504	●	●	●
270	SPRING; BELLEVILLE,ANTI LASH,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94482-498-0	01	1	9505-	●	●	●
271	BEARING; COUNTER GEAR,FRT NSK	8-94422-050-0	01	1	9112-9504	●	●	●
271	BEARING; COUNTER GEAR,FRT EXC. VARIABLE TORQUE SPRIT<7HA> NSK	8-94422-050-0	01	1	9505-	●	●	●
271	BEARING; COUNTER GEAR,FRT EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT	8-94422-051-1	01	1	9505-	●	●	●
272	RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9112-9403	●
272	RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9404-9504	●	●	●
272	RING; SNAP,BRG INNER EXC. VARIABLE TORQUE SPRIT<7HA> T=1.50 WHITE	8-94448-808-0	01	1	9505-	●	●	●
272	RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	9112-	●
272	RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9112-9403	●	●	●
272	RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9404-	●
273	RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9112-9504	●	●	●
273	RING; SNAP,BRG OUTER EXC. VARIABLE TORQUE SPRIT<7HA> OD=77.0	8-94422-092-0	01	1	9505-	●	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-94422-058-1	01	1	9112-9112	●	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97075-338-0	01	1	9201-9203	●	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-183-0	01	1	9204-9210	●	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9211-9405	●	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97113-429-0	01	1	9406-9504	●	●	●
274	BEARING; COUNTER GEAR,RR EXC. VARIABLE TORQUE SPRIT<7HA> NSK	8-97113-429-0	01	1	9505-9706	●	●	●
274	BEARING; COUNTER GEAR,RR EXC. VARIABLE TORQUE SPRIT<7HA> NSK	8-97080-184-0	01	1	9707-	●	●	●
274	BEARING; COUNTER GEAR,RR JTEKT	8-97080-185-0	01	1	9204-9405	●	●	●
274	BEARING; COUNTER GEAR,RR JTEKT	8-97113-430-0	01	1	9406-9504	●	●	●
274	BEARING; COUNTER GEAR,RR EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT	8-97113-430-0	01	1	9505-9706	●	●	●
274	BEARING; COUNTER GEAR,RR EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT	8-97080-185-0	01	1	9707-	●	●	●
275	RING; SNAP,COUNTER GEAR BRG ID=23.2	9-09180-025-0	01	1	9112-9504	●	●	●
275	RING; SNAP,COUNTER GEAR BRG EXC. VARIABLE TORQUE SPRIT<7HA> ID=23.2	9-09180-025-0	01	1	9505-	●	●	●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	9112-	●
292	RING; SNAP,BRG OUTER JTEKT	8-94422-082-0	01	1	9505-	●
306	RING; SNAP,MAINSHAFT T=1.80 WHITE	8-94422-094-0	01	1	9112-9504	●
306	RING; SNAP,MAINSHAFT T=1.80 WHITE	8-97129-617-0	01	1	9505-	●
306	RING; SNAP,MAINSHAFT T=1.85 YELLOW	8-94422-095-0	01	1	9112-9504	●
306	RING; SNAP,MAINSHAFT T=1.85 YELLOW	8-97129-616-0	01	1	9505-	●
306	RING; SNAP,MAINSHAFT T=1.90 BLUE	8-94422-096-0	01	1	9112-9504	●
306	RING; SNAP,MAINSHAFT T=1.90 BLUE	8-97129-615-0	01	1	9505-	●
323	INSERT	8-94448-202-1	03	1	9112-9504	●
323	INSERT SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA>	8-94448-202-1	03	1	9505-	●	●	●
323	INSERT	8-94448-202-1	03	1	9505-	●
375	SYNCHRONIZER ASM; 2ND & 4TH (A)	8-94457-785-1	01	1	9112-9412	●	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH (A)	8-97104-026-0	01	1	9501-9504	●	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH MANUAL LOCKING HUB(ED2) (A)	8-97104-026-0	01	1	9505-9511	●	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX),VARIABLE TORQUE SPRIT<7HA> (A)	8-97104-026-0	01	1	9512-	●	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA> (B)	8-97104-027-0	01	1	9505-	●	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	9112-9504	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA>	8-94422-075-0	02	1	9505-	●	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	9505-	●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	9112-	●
391	RING; INSIDE,SYN (A) OD=95.8	8-94363-056-0	02	1	9112-	●
391	RING; INSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	9505-9506	●
391	RING; INSIDE,SYN SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA> (B)	8-97101-452-0	01	1	9507-	●	●	●
392	RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-0	02	1	9112-	●
392	RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-94455-344-2	01	1	9505-9506	●
392	RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA> (B)	8-94455-344-2	01	1	9507-9612	●	●	●
392	RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA> (B)	8-97169-514-0	01	1	9701-	●	●	●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	9112-	●
396	BEARING; NEEDLE,MAINSHAFT JTEKT	8-94422-069-1	01	1	9505-	●
398	GEAR; COUNTER Z=46-38-27-21	8-97025-871-1	01	1	9112-9409	●
398	GEAR; COUNTER Z=46-38-27-21	8-97100-912-0	01	1	9410-	●

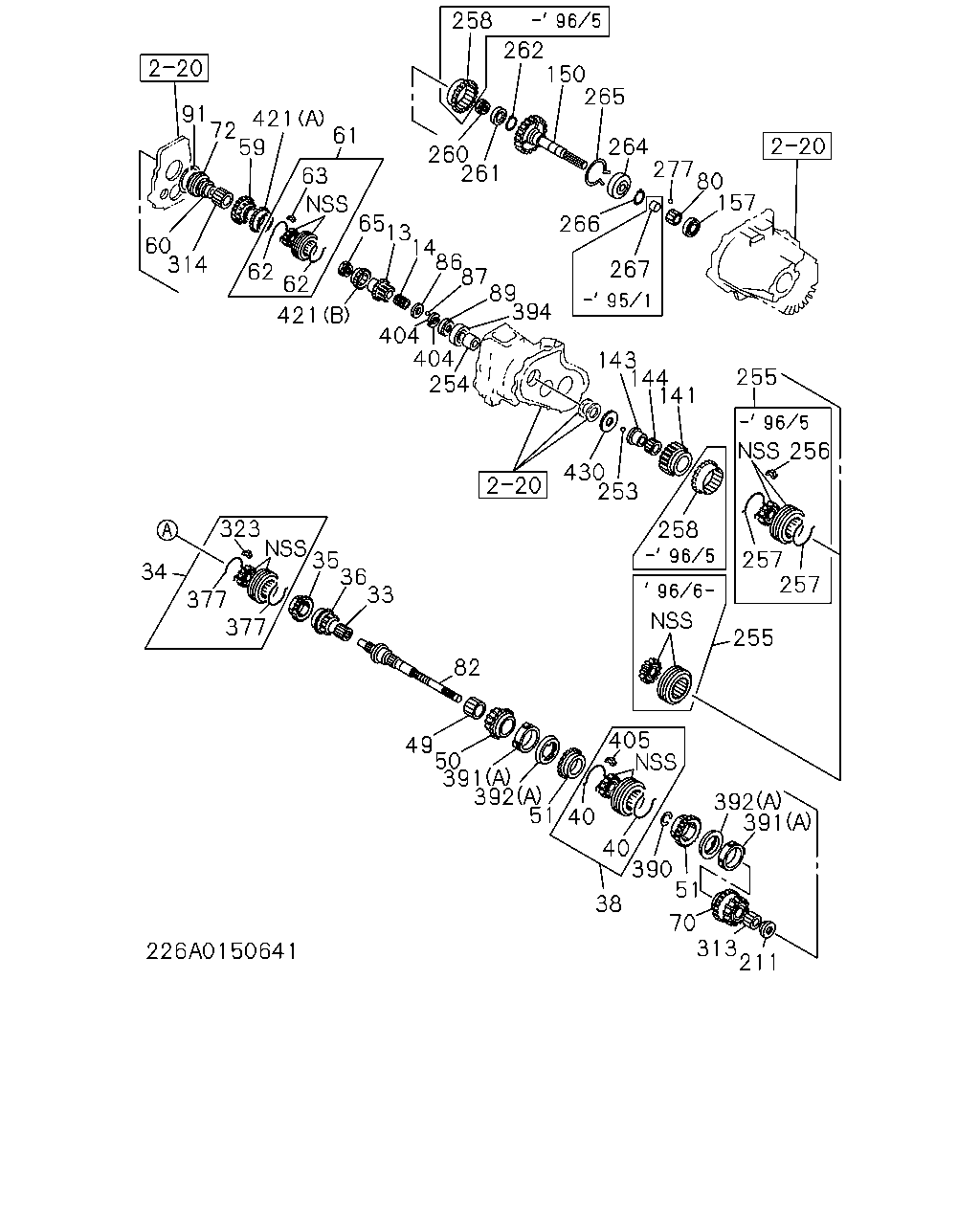

91 72 421 59 61 63 65 13 14 86 87 89 394 143 267 266 261 260 258 262 150 265 264 277 80 157 144 141 255 256 257 257 255 258 253 430 254 404 404 421 62 62 314 60 34 323 377 377 35 36 33 82 49 50 391 392 51 40 40 405 38 390 51 70 313 211 391 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	GEAR; 5TH,MAINSHAFT Z=22	8-94377-431-0	01	1	9112-9206	●
13	GEAR; 5TH,MAINSHAFT Z=22	8-97071-686-0	01	1	9207-9409	●
13	GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	9410-	●
14	BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	9112-	●
14	BEARING; NEEDLE,5TH NTN	8-97029-371-1	01	1	9112-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	9112-	●
34	SYNCHRONIZER; 4TH & 3RD	8-94421-869-2	01	1	9112-9412	●
34	SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	9501-	●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	9112-	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97065-100-0	01	1	9112-9409	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97104-022-2	01	1	9410-	●
38	SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	9112-	●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	9112-	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	9112-	●
50	GEAR; 2ND,MAINSHAFT Z=33	8-97025-872-0	01	1	9112-	●
51	RING; BLOCK,LOW & 2ND Z=48	8-94363-054-0	02	1	9112-	●
59	GEAR; REV MAINSHAFT Z=40	8-94336-492-1	01	1	9112-9206	●
59	GEAR; REV MAINSHAFT Z=40	8-97071-683-0	01	1	9207-9209	●
59	GEAR; REV MAINSHAFT 920921- Z=40	8-94336-492-2	01	1	9209-9409	●
59	GEAR; REV MAINSHAFT Z=40	8-97104-024-2	01	1	9410-	●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	9112-	●
61	SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	9112-	●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	9112-	●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	9112-	●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	9112-	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-94363-057-0	01	1	9112-	●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	9112-	●
72	BEARING; BALL,MAINSHAFT JTEKT	8-94380-018-1	01	1	9505-	●
80	GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9112-9504	●	●	●
80	GEAR; SPD DRIVE EXC. VARIABLE TORQUE SPRIT<7HA> Z=6	8-94333-535-2	01	1	9505-	●	●	●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97029-307-0	01	1	9112-9503	●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97120-039-0	01	1	9504-	●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	9112-	●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	9112-	●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	9112-	●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	9112-	●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	9112-	●
89	RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	9112-	●
91	RING; SNAP,CENTER BRG,MAINSHAFT NSK	8-94322-411-0	01	1	9112-	●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.1	8-94322-412-0	01	1	9505-	●
141	GEAR; INPUT,TRANSFER Z=34	8-97018-362-0	01	1	9112-9502	●	●	●
141	GEAR; INPUT,TRANSFER Z=34	8-97120-121-0	01	1	9503-9504	●	●	●
141	GEAR; INPUT,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> Z=34	8-97120-121-0	01	1	9505-9605	●	●	●
141	GEAR; INPUT,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> Z=34	8-97141-878-0	01	1	9606-	●	●	●
143	COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9112-9504	●	●	●
143	COLLAR; INPUT GEAR BRG,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94482-579-1	01	1	9505-	●	●	●
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-028-1	01	1	9112-9504	●	●	●
144	BEARING; NEEDLE,INPUT GEAR EXC. VARIABLE TORQUE SPRIT<7HA> NSK	1-09811-028-1	01	1	9505-	●	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE	8-97018-363-1	01	1	9112-9501	●	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE	8-97113-405-0	01	1	9502-9502	●	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE	8-97120-122-0	01	1	9503-9504	●	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE EXC. VARIABLE TORQUE SPRIT<7HA> Z=47	8-97120-122-0	01	1	9505-9510	●	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE EXC. VARIABLE TORQUE SPRIT<7HA> Z=47	8-97120-122-0	01	1	9512-9605	●	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE EXC. VARIABLE TORQUE SPRIT<7HA> Z=49	8-97141-879-0	01	1	9606-9703	●	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE EXC. VARIABLE TORQUE SPRIT<7HA> Z=49	8-97166-156-0	01	1	9704-	●	●	●
157	BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-0	01	1	9112-9504	●	●	●
157	BEARING; BALL,OUTPUT SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> NSK	8-94422-050-0	01	1	9505-	●	●	●
157	BEARING; BALL,OUTPUT SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT	8-94422-051-1	01	1	9505-	●	●	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	9112-	●
253	BALL; INPUT	8-94201-356-0	01	1	9112-9504	●	●	●
253	BALL; INPUT EXC. VARIABLE TORQUE SPRIT<7HA>	8-94201-356-0	01	1	9505-	●	●	●
254	COLLAR; TRANSFER	8-94483-030-2	01	1	9112-	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97030-109-0	01	1	9112-9605	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97141-885-1	01	1	9606-	●	●	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97033-098-0	01	1	9112-9504		●	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97033-098-0	01	1	9505-9605		●	●
256	INSERT; SYN,LOW-HIGH,TRANSFER	8-94363-062-0	03	1	9112-9605	●
257	SPRING; INSERT,LOW-HIGH SYN,TRANSFER	8-94448-045-0	02	1	9112-9605	●
258	RING; BLOCK,LOW-HIGH SYN,TRANSFER Z=42	8-97019-042-0	02	1	9112-9605	●
260	NUT; MAINSHAFT END M30	8-94422-072-1	01	1	9112-	●
260	NUT; MAINSHAFT END M27	8-94388-182-0	01	1	9112-9504		●	●
260	NUT; MAINSHAFT END EXC. VARIABLE TORQUE SPRIT<7HA> M27	8-94388-182-1	01	1	9505-		●	●
261	BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9112-9504	●	●	●
261	BEARING; PILOT,OUTPUT SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> NSK	8-94422-176-0	01	1	9505-	●	●	●
261	BEARING; PILOT,OUTPUT SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT	8-94422-177-0	01	1	9505-	●	●	●
262	RING; SNAP,PILOT BRG ID=23.2	9-09180-025-0	01	1	9112-9504	●	●	●
262	RING; SNAP,PILOT BRG EXC. VARIABLE TORQUE SPRIT<7HA> ID=23.2	9-09180-025-0	01	1	9505-	●	●	●
264	BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-0	01	1	9112-9504	●	●	●
264	BEARING; RR OUTPUT SHAFT,FRT EXC. VARIABLE TORQUE SPRIT<7HA> NSK	8-94422-054-0	01	1	9505-	●	●	●
264	BEARING; RR OUTPUT SHAFT,FRT EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT	8-94422-055-1	01	1	9505-	●	●	●
265	RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9112-9504	●	●	●
265	RING; SNAP,BRG OUTER EXC. VARIABLE TORQUE SPRIT<7HA> OD=95.0	8-94422-091-0	01	1	9505-	●	●	●
266	RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9112-9504	●	●	●
266	RING; SNAP,BRG INNER EXC. VARIABLE TORQUE SPRIT<7HA> ID=37.0 OD=53.0	8-94422-093-0	01	1	9505-	●	●	●
267	COLLAR; RR OUTPUT SHAFT,TRANSFER	8-94368-835-1	01	1	9112-9501	●	●	●
277	BALL; SPD DRIVE GEAR	8-94201-356-0	01	1	9112-9504	●	●	●
277	BALL; SPD DRIVE GEAR EXC. VARIABLE TORQUE SPRIT<7HA>	8-94201-356-0	01	1	9505-	●	●	●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	9112-	●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	9112-	●
314	BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	9505-	●
323	INSERT	8-94448-202-1	03	1	9112-9504	●
323	INSERT SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA>	8-94448-202-1	03	1	9505-	●	●	●
323	INSERT	8-94448-202-1	03	1	9505-	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	9112-9504	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA>	8-94422-075-0	02	1	9505-	●	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	9505-	●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	9112-	●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	9112-	●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	9112-	●
391	RING; INSIDE,SYN (A) OD=95.8	8-94363-056-0	02	1	9112-	●
391	RING; INSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	9505-9506	●
391	RING; INSIDE,SYN SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA> (B)	8-97101-452-0	01	1	9507-	●	●	●
392	RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-0	02	1	9112-	●
392	RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-94455-344-2	01	1	9505-9506	●
392	RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA> (B)	8-94455-344-2	01	1	9507-9612	●	●	●
392	RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA> (B)	8-97169-514-0	01	1	9701-	●	●	●
394	BEARING; BALL,MAINSHAFT RR NSK	8-97018-921-1	01	1	9112-	●
394	BEARING; BALL,MAINSHAFT RR JTEKT	8-97018-922-1	01	1	9505-	●
404	PLATE; THRUST	8-94421-892-0	02	1	9112-	●
405	INSERT; SYN,LOW & 2ND	8-94363-062-0	03	1	9112-	●
421	RING; BLOCK,REV & 5TH (A)	8-94377-438-1	01	1	9112-9409	●
421	RING; BLOCK,REV & 5TH (B)	8-94421-888-0	01	1	9112-9207	●
421	RING; BLOCK,REV & 5TH (B) Z=36	8-97071-688-0	01	1	9208-9409	●
421	RING; BLOCK,REV & 5TH (A),(B) Z=36	8-97071-688-0	02	1	9410-	●
430	PLATE; OIL SEAL,TRANSFER	8-94482-379-2	01	1	9209-	●

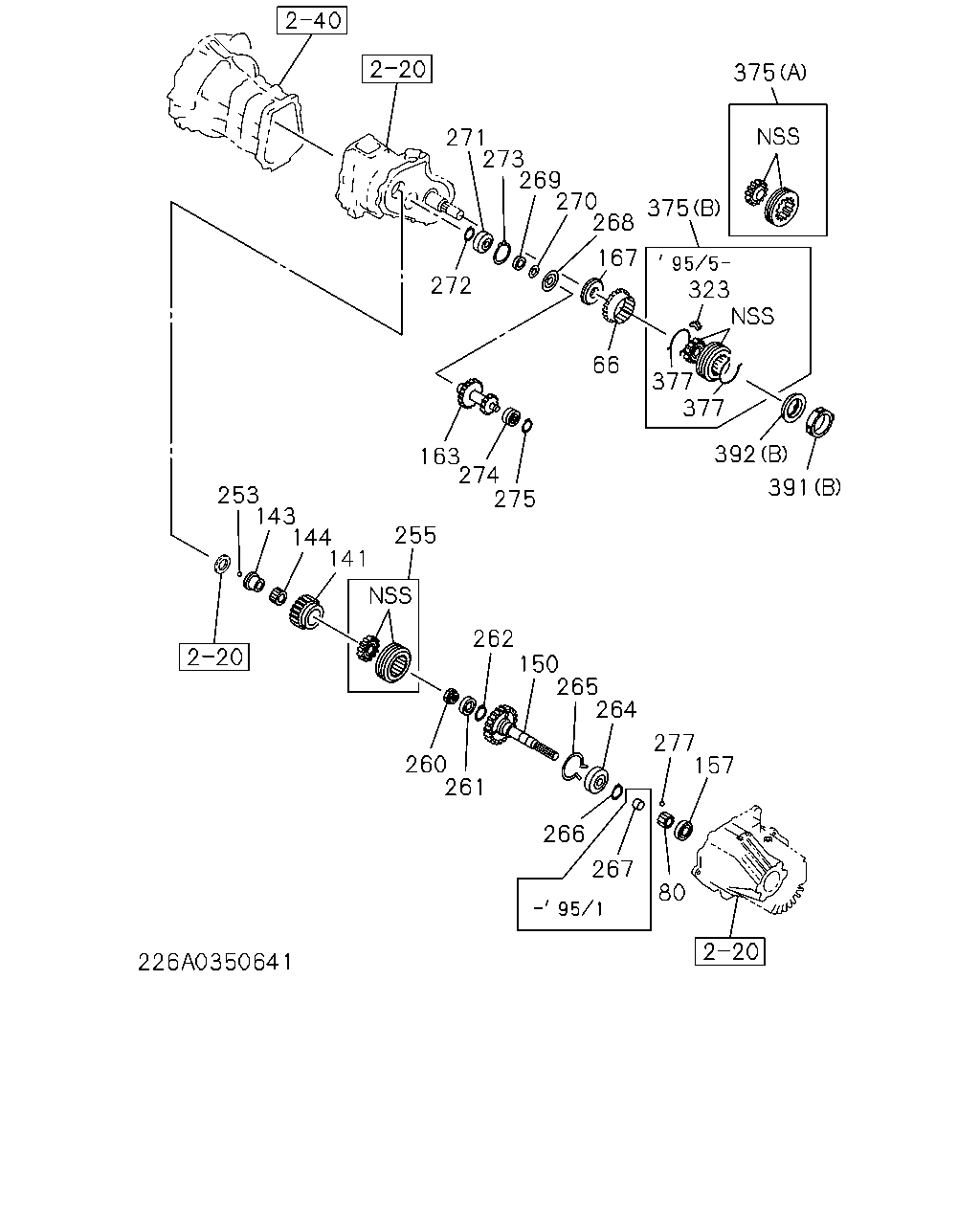

375 375 268 270 269 273 271 272 167 66 323 377 377 392 391 275 274 163 253 143 144 141 255 262 150 265 264 277 157 80 267 266 261 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
66	RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97102-296-0	01	1	9505-9506	●
66	RING; BLOCK,SYN SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97102-296-0	01	1	9507-9612	●	●	●
66	RING; BLOCK,SYN SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97169-516-0	01	1	9701-	●	●	●
80	GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9112-9504	●	●	●
80	GEAR; SPD DRIVE EXC. VARIABLE TORQUE SPRIT<7HA> Z=6	8-94333-535-2	01	1	9505-	●	●	●
141	GEAR; INPUT,TRANSFER Z=34	8-97018-362-0	01	1	9112-9502	●	●	●
141	GEAR; INPUT,TRANSFER Z=34	8-97120-121-0	01	1	9503-9504	●	●	●
141	GEAR; INPUT,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> Z=34	8-97120-121-0	01	1	9505-9605	●	●	●
141	GEAR; INPUT,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> Z=34	8-97141-878-0	01	1	9606-	●	●	●
143	COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9112-9504	●	●	●
143	COLLAR; INPUT GEAR BRG,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94482-579-1	01	1	9505-	●	●	●
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-028-1	01	1	9112-9504	●	●	●
144	BEARING; NEEDLE,INPUT GEAR EXC. VARIABLE TORQUE SPRIT<7HA> NSK	1-09811-028-1	01	1	9505-	●	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE	8-97018-363-1	01	1	9112-9501	●	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE	8-97113-405-0	01	1	9502-9502	●	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE	8-97120-122-0	01	1	9503-9504	●	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE EXC. VARIABLE TORQUE SPRIT<7HA> Z=47	8-97120-122-0	01	1	9505-9510	●	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE EXC. VARIABLE TORQUE SPRIT<7HA> Z=47	8-97120-122-0	01	1	9512-9605	●	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE EXC. VARIABLE TORQUE SPRIT<7HA> Z=49	8-97141-879-0	01	1	9606-9703	●	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE EXC. VARIABLE TORQUE SPRIT<7HA> Z=49	8-97166-156-0	01	1	9704-	●	●	●
157	BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-0	01	1	9112-9504	●	●	●
157	BEARING; BALL,OUTPUT SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> NSK	8-94422-050-0	01	1	9505-	●	●	●
157	BEARING; BALL,OUTPUT SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT	8-94422-051-1	01	1	9505-	●	●	●
163	GEAR; COUNTER,TRANSFER Z=38-23	8-94367-604-0	01	1	9112-9502	●	●	●
163	GEAR; COUNTER,TRANSFER Z=38-23	8-97120-124-0	01	1	9503-9504	●	●	●
163	GEAR; COUNTER,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> Z=38-23	8-97120-124-0	01	1	9505-9605	●	●	●
163	GEAR; COUNTER,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> Z=37-26	8-97130-057-1	01	1	9606-9606	●	●	●
163	GEAR; COUNTER,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA> Z=37-26	8-97165-317-0	01	1	9607-	●	●	●
167	PLATE; LK,COUNTER SHAFT,TRANSFER SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97102-940-0	01	1	9505-		●	●
253	BALL; INPUT	8-94201-356-0	01	1	9112-9504	●	●	●
253	BALL; INPUT EXC. VARIABLE TORQUE SPRIT<7HA>	8-94201-356-0	01	1	9505-	●	●	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97030-109-0	01	1	9112-9605	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97141-885-1	01	1	9606-	●	●	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97033-098-0	01	1	9112-9504		●	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97033-098-0	01	1	9505-9605		●	●
260	NUT; MAINSHAFT END M30	8-94422-072-1	01	1	9112-	●
260	NUT; MAINSHAFT END M27	8-94388-182-0	01	1	9112-9504		●	●
260	NUT; MAINSHAFT END EXC. VARIABLE TORQUE SPRIT<7HA> M27	8-94388-182-1	01	1	9505-		●	●
261	BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9112-9504	●	●	●
261	BEARING; PILOT,OUTPUT SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> NSK	8-94422-176-0	01	1	9505-	●	●	●
261	BEARING; PILOT,OUTPUT SHAFT EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT	8-94422-177-0	01	1	9505-	●	●	●
262	RING; SNAP,PILOT BRG ID=23.2	9-09180-025-0	01	1	9112-9504	●	●	●
262	RING; SNAP,PILOT BRG EXC. VARIABLE TORQUE SPRIT<7HA> ID=23.2	9-09180-025-0	01	1	9505-	●	●	●
264	BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-0	01	1	9112-9504	●	●	●
264	BEARING; RR OUTPUT SHAFT,FRT EXC. VARIABLE TORQUE SPRIT<7HA> NSK	8-94422-054-0	01	1	9505-	●	●	●
264	BEARING; RR OUTPUT SHAFT,FRT EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT	8-94422-055-1	01	1	9505-	●	●	●
265	RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9112-9504	●	●	●
265	RING; SNAP,BRG OUTER EXC. VARIABLE TORQUE SPRIT<7HA> OD=95.0	8-94422-091-0	01	1	9505-	●	●	●
266	RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9112-9504	●	●	●
266	RING; SNAP,BRG INNER EXC. VARIABLE TORQUE SPRIT<7HA> ID=37.0 OD=53.0	8-94422-093-0	01	1	9505-	●	●	●
267	COLLAR; RR OUTPUT SHAFT,TRANSFER	8-94368-835-1	01	1	9112-9501	●	●	●
268	PLATE; ANTI LASH,COUNTER	8-94320-567-0	01	1	9112-9504	●	●	●
268	PLATE; ANTI LASH,COUNTER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94320-567-0	01	1	9505-9605	●	●	●
268	PLATE; ANTI LASH,COUNTER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97130-060-1	01	1	9606-9606	●	●	●
268	PLATE; ANTI LASH,COUNTER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97164-348-0	01	1	9607-	●	●	●
269	SPACER; ANTI LASH PLATE,COUNTER	8-94482-469-1	01	1	9112-9504	●	●	●
269	SPACER; ANTI LASH PLATE,COUNTER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94482-469-1	01	1	9505-	●	●	●
270	SPRING; BELLEVILLE,ANTI LASH,TRANSFER	8-94482-498-0	01	1	9112-9504	●	●	●
270	SPRING; BELLEVILLE,ANTI LASH,TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-94482-498-0	01	1	9505-	●	●	●
271	BEARING; COUNTER GEAR,FRT NSK	8-94422-050-0	01	1	9112-9504	●	●	●
271	BEARING; COUNTER GEAR,FRT EXC. VARIABLE TORQUE SPRIT<7HA> NSK	8-94422-050-0	01	1	9505-	●	●	●
271	BEARING; COUNTER GEAR,FRT EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT	8-94422-051-1	01	1	9505-	●	●	●
272	RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9112-9403	●
272	RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9404-9504	●	●	●
272	RING; SNAP,BRG INNER EXC. VARIABLE TORQUE SPRIT<7HA> T=1.50 WHITE	8-94448-808-0	01	1	9505-	●	●	●
272	RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	9112-	●
272	RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9112-9403	●	●	●
272	RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9404-	●
273	RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9112-9504	●	●	●
273	RING; SNAP,BRG OUTER EXC. VARIABLE TORQUE SPRIT<7HA> OD=77.0	8-94422-092-0	01	1	9505-	●	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-94422-058-1	01	1	9112-9112	●	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97075-338-0	01	1	9201-9203	●	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-183-0	01	1	9204-9210	●	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9211-9405	●	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97113-429-0	01	1	9406-9504	●	●	●
274	BEARING; COUNTER GEAR,RR EXC. VARIABLE TORQUE SPRIT<7HA> NSK	8-97113-429-0	01	1	9505-9706	●	●	●
274	BEARING; COUNTER GEAR,RR EXC. VARIABLE TORQUE SPRIT<7HA> NSK	8-97080-184-0	01	1	9707-	●	●	●
274	BEARING; COUNTER GEAR,RR JTEKT	8-97080-185-0	01	1	9204-9405	●	●	●
274	BEARING; COUNTER GEAR,RR JTEKT	8-97113-430-0	01	1	9406-9504	●	●	●
274	BEARING; COUNTER GEAR,RR EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT	8-97113-430-0	01	1	9505-9706	●	●	●
274	BEARING; COUNTER GEAR,RR EXC. VARIABLE TORQUE SPRIT<7HA> JTEKT	8-97080-185-0	01	1	9707-	●	●	●
275	RING; SNAP,COUNTER GEAR BRG ID=23.2	9-09180-025-0	01	1	9112-9504	●	●	●
275	RING; SNAP,COUNTER GEAR BRG EXC. VARIABLE TORQUE SPRIT<7HA> ID=23.2	9-09180-025-0	01	1	9505-	●	●	●
277	BALL; SPD DRIVE GEAR	8-94201-356-0	01	1	9112-9504	●	●	●
277	BALL; SPD DRIVE GEAR EXC. VARIABLE TORQUE SPRIT<7HA>	8-94201-356-0	01	1	9505-	●	●	●
323	INSERT	8-94448-202-1	03	1	9112-9504	●
323	INSERT SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA>	8-94448-202-1	03	1	9505-	●	●	●
323	INSERT	8-94448-202-1	03	1	9505-	●
375	SYNCHRONIZER ASM; 2ND & 4TH (A)	8-94457-785-1	01	1	9112-9412	●	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH (A)	8-97104-026-0	01	1	9501-9504	●	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH MANUAL LOCKING HUB(ED2) (A)	8-97104-026-0	01	1	9505-9511	●	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX),VARIABLE TORQUE SPRIT<7HA> (A)	8-97104-026-0	01	1	9512-	●	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA> (B)	8-97104-027-0	01	1	9505-	●	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	9112-9504	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA>	8-94422-075-0	02	1	9505-	●	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	9505-	●
391	RING; INSIDE,SYN (A) OD=95.8	8-94363-056-0	02	1	9112-	●
391	RING; INSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	9505-9506	●
391	RING; INSIDE,SYN SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA> (B)	8-97101-452-0	01	1	9507-	●	●	●
392	RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-0	02	1	9112-	●
392	RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-94455-344-2	01	1	9505-9506	●
392	RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA> (B)	8-94455-344-2	01	1	9507-9612	●	●	●
392	RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) EXC. VARIABLE TORQUE SPRIT<7HA> (B)	8-97169-514-0	01	1	9701-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
