Sayfa 2-20 - Isuzu EPC

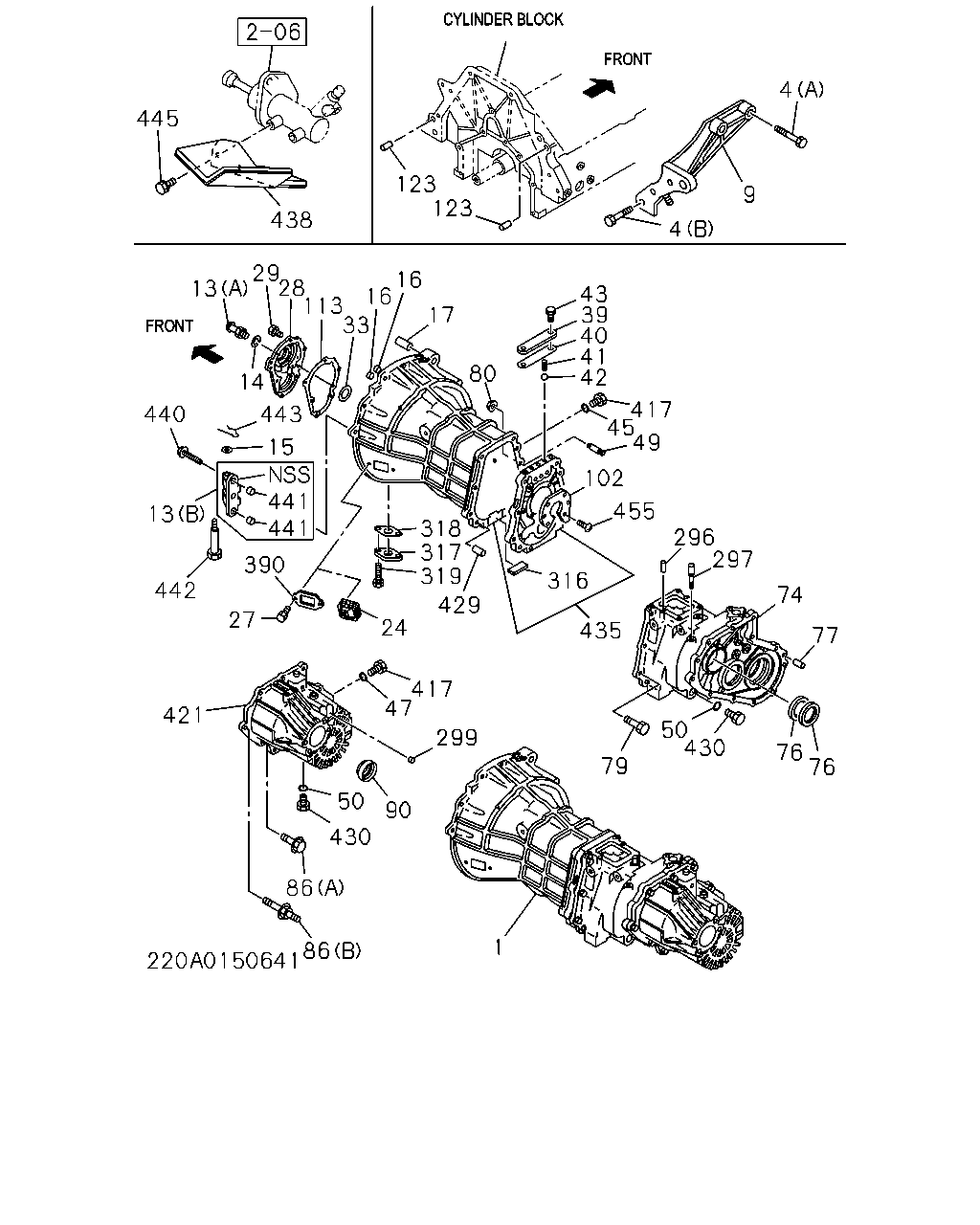

2-20 — MANUAL TRANSMISSION ASM AND CASE (#166882) — 211 parça

445 438 29 28 13 440 13 442 27 421 390 441 441 15 443 14 113 33 16 16 17 123 123 4 9 4 43 39 40 41 42 80 318 317 319 429 24 417 47 50 90 430 86 1 299 79 50 430 76 76 77 74 297 296 455 102 49 45 417 316 435 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC)	8-97077-227-0	01	1	9112-9208	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC)	8-97077-238-0	01	1	9209-9307	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97086-995-0	01	1	9308-9409	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97103-960-0	01	1	9410-9504	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) MANUAL LOCKING HUB(ED2)	8-97117-853-0	01	1	9505-9510	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) MANUAL LOCKING HUB(ED2)	8-97117-855-0	01	1	9511-9605	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) MANUAL LOCKING HUB(ED2)	8-97142-137-0	01	1	9606-	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97086-723-0	01	1	9308-9409	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97103-959-0	01	1	9410-9504	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97117-854-0	01	1	9505-9510	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97117-856-0	01	1	9511-9605	●
1	TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97142-138-0	01	1	9606-	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) AUTO CRUISE CONT<K30>	8-97086-991-0	01	1	9308-9409	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) AUTO CRUISE CONT<K30>	8-97103-982-0	01	1	9410-9504	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) SHIFT ON THE FLY(7EX)	8-97110-349-0	01	1	9505-9511	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) SHIFT ON THE FLY(7EX) 951113-	8-97142-049-0	01	1	9511-9511	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) FINAL GEAR RATIO 43/10(S7C) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) SHIFT ON THE FLY(7EX)	8-97143-642-0	01	1	9512-9605	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) FINAL GEAR RATIO 43/10(S7C) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) SHIFT ON THE FLY(7EX)	8-97142-132-0	01	1	9606-	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. AUTO CRUISE CONT<K30>	8-97086-993-0	01	1	9308-9409	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. AUTO CRUISE CONT<K30>	8-97103-981-0	01	1	9410-9504	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) MANUAL LOCKING HUB(ED2)	8-97103-981-0	01	1	9505-9511	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5),AUTO CRUISE CONT<K30>	8-97086-994-0	01	1	9308-9409	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5),AUTO CRUISE CONT<K30>	8-97103-979-0	01	1	9410-9504	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) MANUAL LOCKING HUB(ED2) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97103-979-0	01	1	9505-9511	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) AUTO CRUISE CONT<K30>	8-97077-220-0	01	1	9112-9208	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) AUTO CRUISE CONT<K30>	8-97077-225-0	01	1	9209-9307	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) AUTO CRUISE CONT<K30> EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97086-992-0	01	1	9308-9409	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) AUTO CRUISE CONT<K30> EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97103-980-0	01	1	9410-9504	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97110-347-0	01	1	9505-9511	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) SHIFT ON THE FLY(7EX) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97142-048-0	01	1	9511-9511	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97143-641-0	01	1	9512-9605	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97142-131-0	01	1	9606-	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) EXC. AUTO CRUISE CONT<K30>	8-97077-221-0	01	1	9112-9208	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) EXC. AUTO CRUISE CONT<K30>	8-97077-226-0	01	1	9209-9307	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) FINAL GEAR RATIO 41/9(HC6) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) SHIFT ON THE FLY(7EX)	8-97142-049-0	01	1	9512-9605	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) FINAL GEAR RATIO 41/9(HC6) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) SHIFT ON THE FLY(7EX)	8-97142-136-0	01	1	9606-	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) FINAL GEAR RATIO 41/9(HC6) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. SHIFT ON THE FLY(7EX)	8-97143-644-0	01	1	9512-9605	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) FINAL GEAR RATIO 41/9(HC6) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. SHIFT ON THE FLY(7EX)	8-97142-134-0	01	1	9606-	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) FINAL GEAR RATIO 41/9(HC6) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5),SHIFT ON THE FLY(7EX)	8-97143-643-0	01	1	9512-9605	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) FINAL GEAR RATIO 41/9(HC6) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5),SHIFT ON THE FLY(7EX)	8-97142-133-0	01	1	9606-	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) FINAL GEAR RATIO 41/9(HC6) SHIFT ON THE FLY(7EX) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97142-048-0	01	1	9512-9605	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) FINAL GEAR RATIO 41/9(HC6) SHIFT ON THE FLY(7EX) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5)	8-97142-135-0	01	1	9606-	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) FINAL GEAR RATIO 43/10(S7C) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. SHIFT ON THE FLY(7EX)	8-97143-640-0	01	1	9512-9605	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) FINAL GEAR RATIO 43/10(S7C) ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) EXC. SHIFT ON THE FLY(7EX)	8-97142-130-0	01	1	9606-	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) FINAL GEAR RATIO 43/10(S7C) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5),SHIFT ON THE FLY(7EX)	8-97143-639-0	01	1	9512-9605	●
1	TRANSMISSION ASM; MANUAL 6VD1 DOHC ENG(RLV) FINAL GEAR RATIO 43/10(S7C) EXC. ANTI-LOCK BRAKE-'93<JE5>'94-(JE5),SHIFT ON THE FLY(7EX)	8-97142-129-0	01	1	9606-	●
4	BOLT; FLYWHEEL HSG 6VD1 DOHC ENG(RLV) (B) M12X45 FLANGE	0-28181-245-0	02	1	9112-	●
4	BOLT; FLYWHEEL HSG 6VD1 DOHC ENG(RLV) (A) M10X40 FLANGE	0-28181-040-0	02	1	9112-	●	●	●
9	STIFFENER; C/BL 6VD1 DOHC ENG(RLV)	8-94389-545-2	01	1	9112-9304	●	●	●
9	STIFFENER; C/BL 6VD1 DOHC ENG(RLV)	8-97088-743-2	01	1	9305-9504	●	●	●
9	STIFFENER; C/BL 6VD1 DOHC ENG(RLV)	8-94389-545-5	01	1	9505-9610	●	●	●
9	STIFFENER; C/BL 6VD1 DOHC ENG(RLV)	8-97139-279-0	01	1	9611-	●	●	●
13	SUPPORT; SHIFT FORK 4JG2 ENG(RJC) (A) L=47.5	5-31345-002-1	01	1	9112-9611	●
13	SUPPORT; SHIFT FORK 4JG2 ENG(RJC) (A) L=47.5	8-97072-827-0	01	1	9612-	●
13	SUPPORT; SHIFT FORK 6VD1 DOHC ENG(RLV) (B)	8-97033-703-1	01	1	9112-	●
14	WASHER; LK,SUPPORT 4JG2 ENG(RJC) ID=12.2	9-09150-512-0	01	1	9112-	●
15	WASHER; PL 6VD1 DOHC ENG(RLV) ID=8.4 OD=22	9-09160-708-0	01	1	9112-	●
16	PLUG; SHIFT ROD OD=14	5-09609-004-0	02	1	9112-	●
17	STUD; STARTER SETTING 4JG2 ENG(RJC) M10X33 L=53	8-94207-236-0	01	1	9308-9409	●
24	COVER; CHECK HOLE,DUST 4JG2 ENG(RJC)	8-94156-700-0	01	1	9112-	●
27	BOLT; COVER TO CLU HSG 6VD1 DOHC ENG(RLV) M6X12 WITH FLANGE	0-28010-612-0	02	1	9112-9204	●
27	BOLT; COVER TO CLU HSG 6VD1 DOHC ENG(RLV) M6X12 FLANGE	0-28080-612-0	02	1	9205-	●
28	COVER; FRT,TRANS CASE 4JG2 ENG(RJC)	8-94421-862-2	01	1	9112-9409	●
28	COVER; FRT,TRANS CASE 4JG2 ENG(RJC)	8-97104-676-0	01	1	9410-	●
28	COVER; FRT,TRANS CASE 6VD1 DOHC ENG(RLV)	8-94377-430-1	01	1	9112-9409	●
28	COVER; FRT,TRANS CASE 6VD1 DOHC ENG(RLV)	8-97104-678-0	01	1	9410-	●
29	BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9112-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	9112-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	9302-	●
39	PLATE; DETENT SPR	8-94373-864-1	01	1	9112-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	9112-9307	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	9308-	●
41	SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	9112-	●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9112-	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	0-28080-822-0	02	1	9112-9409	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-94448-815-3	02	1	9410-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9112-9407	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9408-	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9112-9407	●	●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9408-9504	●	●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. VARIABLE TORQUE SPRIT<7HA> ID=17	8-97115-712-0	01	1	9505-	●	●	●
49	STUD; TRANSFER CASE M10X51.5 L=72	8-97036-714-1	01	1	9112-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	02	1	9112-9407	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	9408-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9112-9407		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9408-9504		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. VARIABLE TORQUE SPRIT<7HA> ID=17	8-97115-712-0	01	1	9505-		●	●
74	CASE ASM; TRANSFER	8-97027-772-5	01	1	9112-9707	●
74	CASE ASM; TRANSFER	8-97149-125-0	01	1	9708-	●
74	CASE ASM; TRANSFER	8-97033-097-0	01	1	9112-9504		●	●
74	CASE ASM; TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97033-097-0	01	1	9505-9612		●	●
74	CASE ASM; TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97164-349-0	01	1	9701-		●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	9112-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	9302-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-0	01	1	9112-9504		●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. VARIABLE TORQUE SPRIT<7HA> NOK	8-97046-701-2	01	1	9505-		●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9302-9504		●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. VARIABLE TORQUE SPRIT<7HA> TKK	8-97046-700-0	01	1	9505-		●	●
77	PIN; KNOCK,TRANSFER CASE OD=10 L=20	9-08161-020-0	02	1	9112-9504	●	●	●
77	PIN; KNOCK,TRANSFER CASE EXC. VARIABLE TORQUE SPRIT<7HA> OD=10 L=20	9-08161-020-0	02	1	9505-9507	●	●	●
77	PIN; KNOCK,TRANSFER CASE EXC. VARIABLE TORQUE SPRIT<7HA> OD=10 L=20	8-97135-423-0	02	1	9508-	●	●	●
79	BOLT; TRANSFER CASE M10X55 FLANGE	8-94473-959-1	07	1	9112-	●
80	NUT; TRANSFER CASE M10 FLANGE	0-91150-210-0	01	1	9112-9301	●
80	NUT; TRANSFER CASE M10 FLANGE	0-91150-110-0	01	1	9302-	●
86	BOLT; RR COVER EXC. VARIABLE TORQUE SPRIT<7HA> (B) M10X18,M10X35 L=63	8-94367-310-1	02	1	9709-	●	●	●
86	BOLT; RR COVER (B) M10X18,M10X35 L=63	8-94367-310-1	01	1	9112-9407	●	●	●
86	BOLT; RR COVER (A) M10X35 FLANGE	8-94448-818-1	10	1	9112-9407	●	●	●
86	BOLT; RR COVER (A) M10X35 FLANGE	8-94448-818-1	11	1	9408-9504	●	●	●
86	BOLT; RR COVER EXC. VARIABLE TORQUE SPRIT<7HA> (A) M10X35 FLANGE	8-94448-818-1	11	1	9505-9708	●	●	●
86	BOLT; RR COVER EXC. VARIABLE TORQUE SPRIT<7HA> (A) M10X35 FLANGE	8-94448-818-1	09	1	9709-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-0	01	1	9112-9504	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. VARIABLE TORQUE SPRIT<7HA> NOK	8-97046-707-2	01	1	9505-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	9302-9504	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. VARIABLE TORQUE SPRIT<7HA> TKK	8-97046-706-0	01	1	9505-	●	●	●
102	RETAINER; BRG UPR,MAINSHAFT	8-94448-042-0	01	1	9112-9601	●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	9602-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-946-0	01	1	9112-9307	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	9308-	●
123	DOWEL; TRANS CASE 6VD1 DOHC ENG(RLV)	8-94134-791-0	02	1	9112-9308	●		●
123	DOWEL; TRANS CASE 6VD1 DOHC ENG(RLV) 930823-	8-94325-506-1	02	1	9308-	●		●
296	PIN; QUAD BOX TO CASE OD=6 L=12	9-08150-612-0	02	1	9112-	●
297	BREATHER; AIR,TRANSFER CASE	8-97035-694-2	01	1	9112-9504	●	●	●
297	BREATHER; AIR,TRANSFER CASE EXC. VARIABLE TORQUE SPRIT<7HA>	8-97035-694-2	01	1	9505-	●	●	●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	03	1	9112-9504	●	●	●
299	PLUG; SHIFTER ROD EXC. VARIABLE TORQUE SPRIT<7HA> OD=14	5-09609-004-0	03	1	9505-	●	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	9112-	●
317	COVER; CASE 6VD1 DOHC ENG(RLV)	8-97034-422-1	01	1	9112-	●
318	GASKET; COVER 6VD1 DOHC ENG(RLV)	8-97035-567-0	01	1	9112-	●
319	BOLT; COVER 6VD1 DOHC ENG(RLV) M6X12 WITH FLANGE	0-28010-612-0	02	1	9112-9204	●
319	BOLT; COVER 6VD1 DOHC ENG(RLV) M6X12 FLANGE	0-28080-612-0	02	1	9205-	●
390	COVER; DUST,CLU SHIFT 6VD1 DOHC ENG(RLV)	8-94380-259-1	01	1	9112-	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	02	1	9112-	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	9112-9504		●	●
417	PLUG; OIL FILLER,TRANS EXC. VARIABLE TORQUE SPRIT<7HA>	8-94310-917-0	01	1	9505-		●	●
421	COVER; RR,TRANS	8-97029-308-2	01	1	9112-9210	●	●	●
421	COVER; RR,TRANS	8-97069-364-3	01	1	9211-9504	●	●	●
421	COVER; RR,TRANS EXC. VARIABLE TORQUE SPRIT<7HA>	8-97069-364-5	01	1	9505-	●	●	●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9112-	●
430	PLUG; OIL DRAIN	9-09662-004-0	02	1	9112-	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	9112-9504		●	●
430	PLUG; OIL DRAIN EXC. VARIABLE TORQUE SPRIT<7HA>	9-09662-004-0	01	1	9505-		●	●
435	CASE; TRANS 4JG2 ENG(RJC)	8-94453-375-0	01	1	9112-9307	●
435	CASE; TRANS 4JG2 ENG(RJC)	8-97087-054-0	01	1	9308-	●
435	CASE; TRANS 6VD1 DOHC ENG(RLV)	8-97019-056-0	01	1	9112-9605	●
435	CASE; TRANS 6VD1 DOHC ENG(RLV)	8-97120-625-0	01	1	9606-9705	●
435	CASE; TRANS 6VD1 DOHC ENG(RLV)	8-97149-234-1	01	1	9706-	●
438	PROTECTOR; HEAT,SLAVE CYL 6VD1 DOHC ENG(RLV)	8-97066-178-1	01	1	9112-9307	●
438	PROTECTOR; HEAT,SLAVE CYL 6VD1 DOHC ENG(RLV)	8-97094-632-0	01	1	9308-9711	●
438	PROTECTOR; HEAT,SLAVE CYL 6VD1 DOHC ENG(RLV)	8-97178-698-0	01	1	9712-	●
440	BOLT; SUPPORT 6VD1 DOHC ENG(RLV) M10X25 FLANGE	0-28181-025-0	03	1	9112-	●
441	DOWEL; SUPPORT 6VD1 DOHC ENG(RLV)	8-97049-712-0	02	1	9112-	●
442	PIN; SHIFT FORK 6VD1 DOHC ENG(RLV)	8-94377-424-1	01	1	9112-	●
443	PIN; SNAP,SHIFT FORK 6VD1 DOHC ENG(RLV) L=27.7	1-09747-005-0	01	1	9112-	●
445	BOLT; HEAT PROTECTOR 6VD1 DOHC ENG(RLV) M6X12 FLANGE	0-28080-612-0	02	1	9112-9604	●
445	BOLT; HEAT PROTECTOR 6VD1 DOHC ENG(RLV) M6X16 FLANGE	0-28680-616-0	02	1	9605-9606	●
445	BOLT; HEAT PROTECTOR 6VD1 DOHC ENG(RLV) M6X12 FLANGE	0-28080-612-0	02	1	9607-	●
455	SCREW; BRG RET M8X22	8-94388-328-1	04	1	9206-9409	●
455	SCREW; BRG RET M8X22	8-97062-754-0	04	1	9410-	●

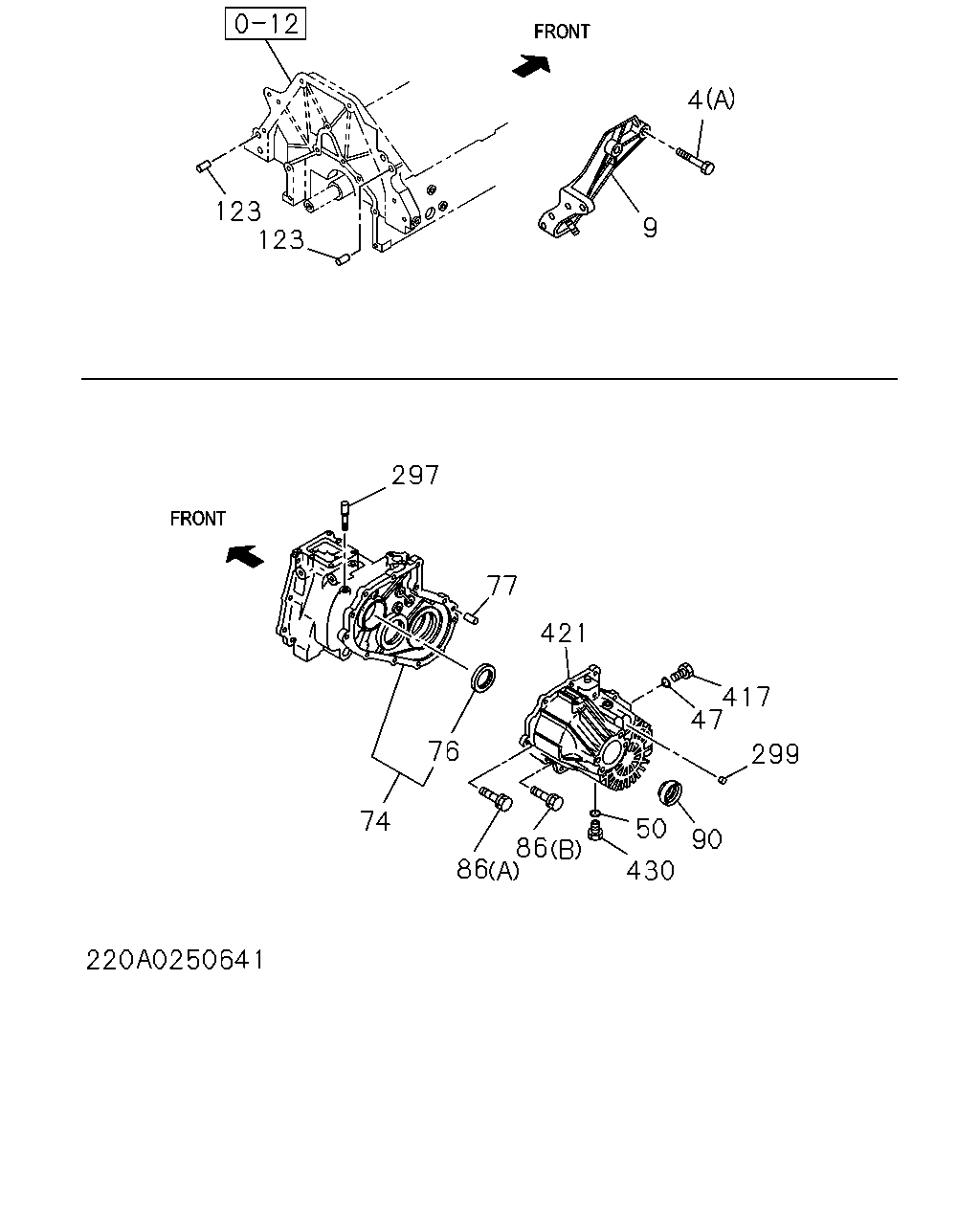

123 123 9 4 297 77 421 417 47 299 90 50 430 86 86 76 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	BOLT; FLYWHEEL HSG 6VD1 DOHC ENG(RLV) (B) M12X45 FLANGE	0-28181-245-0	02	1	9112-	●
4	BOLT; FLYWHEEL HSG 6VD1 DOHC ENG(RLV) (A) M10X40 FLANGE	0-28181-040-0	02	1	9112-	●	●	●
9	STIFFENER; C/BL 6VD1 DOHC ENG(RLV)	8-94389-545-2	01	1	9112-9304	●	●	●
9	STIFFENER; C/BL 6VD1 DOHC ENG(RLV)	8-97088-743-2	01	1	9305-9504	●	●	●
9	STIFFENER; C/BL 6VD1 DOHC ENG(RLV)	8-94389-545-5	01	1	9505-9610	●	●	●
9	STIFFENER; C/BL 6VD1 DOHC ENG(RLV)	8-97139-279-0	01	1	9611-	●	●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9112-9407	●	●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9408-9504	●	●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. VARIABLE TORQUE SPRIT<7HA> ID=17	8-97115-712-0	01	1	9505-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	02	1	9112-9407	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	9408-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9112-9407		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9408-9504		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. VARIABLE TORQUE SPRIT<7HA> ID=17	8-97115-712-0	01	1	9505-		●	●
74	CASE ASM; TRANSFER	8-97027-772-5	01	1	9112-9707	●
74	CASE ASM; TRANSFER	8-97149-125-0	01	1	9708-	●
74	CASE ASM; TRANSFER	8-97033-097-0	01	1	9112-9504		●	●
74	CASE ASM; TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97033-097-0	01	1	9505-9612		●	●
74	CASE ASM; TRANSFER EXC. VARIABLE TORQUE SPRIT<7HA>	8-97164-349-0	01	1	9701-		●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	9112-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	9302-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-0	01	1	9112-9504		●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. VARIABLE TORQUE SPRIT<7HA> NOK	8-97046-701-2	01	1	9505-		●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9302-9504		●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. VARIABLE TORQUE SPRIT<7HA> TKK	8-97046-700-0	01	1	9505-		●	●
77	PIN; KNOCK,TRANSFER CASE OD=10 L=20	9-08161-020-0	02	1	9112-9504	●	●	●
77	PIN; KNOCK,TRANSFER CASE EXC. VARIABLE TORQUE SPRIT<7HA> OD=10 L=20	9-08161-020-0	02	1	9505-9507	●	●	●
77	PIN; KNOCK,TRANSFER CASE EXC. VARIABLE TORQUE SPRIT<7HA> OD=10 L=20	8-97135-423-0	02	1	9508-	●	●	●
86	BOLT; RR COVER EXC. VARIABLE TORQUE SPRIT<7HA> (B) M10X18,M10X35 L=63	8-94367-310-1	02	1	9709-	●	●	●
86	BOLT; RR COVER (B) M10X18,M10X35 L=63	8-94367-310-1	01	1	9112-9407	●	●	●
86	BOLT; RR COVER (A) M10X35 FLANGE	8-94448-818-1	10	1	9112-9407	●	●	●
86	BOLT; RR COVER (A) M10X35 FLANGE	8-94448-818-1	11	1	9408-9504	●	●	●
86	BOLT; RR COVER EXC. VARIABLE TORQUE SPRIT<7HA> (A) M10X35 FLANGE	8-94448-818-1	11	1	9505-9708	●	●	●
86	BOLT; RR COVER EXC. VARIABLE TORQUE SPRIT<7HA> (A) M10X35 FLANGE	8-94448-818-1	09	1	9709-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-0	01	1	9112-9504	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. VARIABLE TORQUE SPRIT<7HA> NOK	8-97046-707-2	01	1	9505-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	9302-9504	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. VARIABLE TORQUE SPRIT<7HA> TKK	8-97046-706-0	01	1	9505-	●	●	●
123	DOWEL; TRANS CASE 6VD1 DOHC ENG(RLV)	8-94134-791-0	02	1	9112-9308	●		●
123	DOWEL; TRANS CASE 6VD1 DOHC ENG(RLV) 930823-	8-94325-506-1	02	1	9308-	●		●
297	BREATHER; AIR,TRANSFER CASE	8-97035-694-2	01	1	9112-9504	●	●	●
297	BREATHER; AIR,TRANSFER CASE EXC. VARIABLE TORQUE SPRIT<7HA>	8-97035-694-2	01	1	9505-	●	●	●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	03	1	9112-9504	●	●	●
299	PLUG; SHIFTER ROD EXC. VARIABLE TORQUE SPRIT<7HA> OD=14	5-09609-004-0	03	1	9505-	●	●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	02	1	9112-	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	9112-9504		●	●
417	PLUG; OIL FILLER,TRANS EXC. VARIABLE TORQUE SPRIT<7HA>	8-94310-917-0	01	1	9505-		●	●
421	COVER; RR,TRANS	8-97029-308-2	01	1	9112-9210	●	●	●
421	COVER; RR,TRANS	8-97069-364-3	01	1	9211-9504	●	●	●
421	COVER; RR,TRANS EXC. VARIABLE TORQUE SPRIT<7HA>	8-97069-364-5	01	1	9505-	●	●	●
430	PLUG; OIL DRAIN	9-09662-004-0	02	1	9112-	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	9112-9504		●	●
430	PLUG; OIL DRAIN EXC. VARIABLE TORQUE SPRIT<7HA>	9-09662-004-0	01	1	9505-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
