2 - Clutch, Transmission, Trans Axle
▶

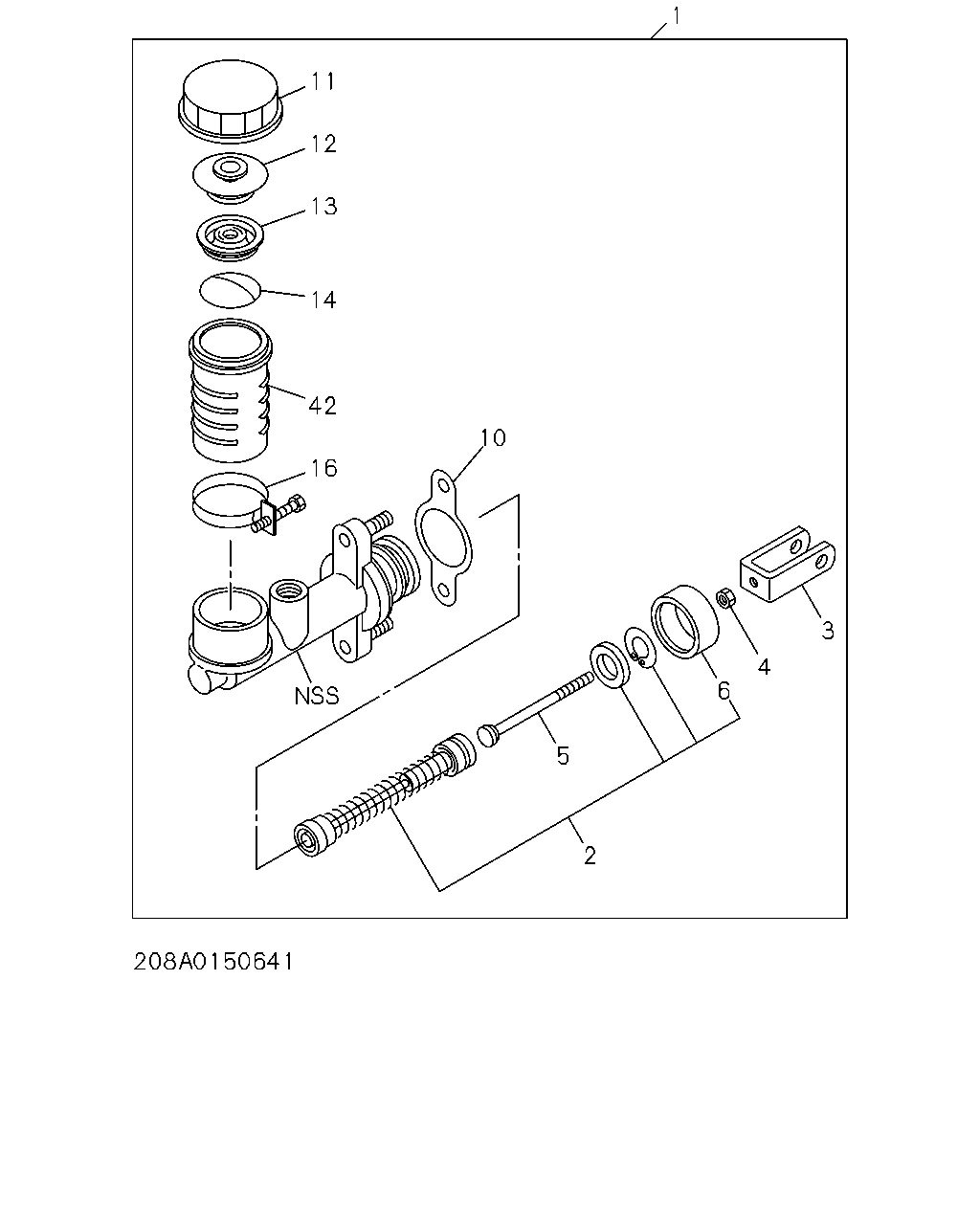

2-08 - CLUTCH MASTER CYLINDER
▶
2-08 — CLUTCH MASTER CYLINDER
(#166880) — 23 parça
Tümü
A - 4JG2 ENG
B - 6VD1 DOHC ENG
11
12
13
14
42
16
10
5
2
6
4
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CYLINDER ASM; CLUTCH MASTER
M/T MUA 5 SPEED(RMN)
8-97066-437-1
01
1
9112-9402
●
1
CYLINDER ASM; CLUTCH MASTER
M/T MUA 5 SPEED(RMN)
8-97110-220-0
01
1
9403-9508
●
1
CYLINDER ASM; CLUTCH MASTER
M/T MUA 5 SPEED(RMN)
8-97136-443-0
01
1
9509-9708
●
1
CYLINDER ASM; CLUTCH MASTER
M/T MUA 5 SPEED(RMN)
8-97185-016-0
01
1
9709-
●
1
CYLINDER ASM; CLUTCH MASTER
M/T MUA 5 SPEED(RMN)
8-97024-940-2
01
1
9112-9402
●
1
CYLINDER ASM; CLUTCH MASTER
M/T MUA 5 SPEED(RMN)
8-97110-221-0
01
1
9403-9508
●
1
CYLINDER ASM; CLUTCH MASTER
M/T MUA 5 SPEED(RMN)
8-97136-444-0
01
1
9509-9708
●
1
CYLINDER ASM; CLUTCH MASTER
M/T MUA 5 SPEED(RMN)
8-97185-017-0
01
1
9709-
●
2
REPAIR KIT; CLU M/CYL
M/T MUA 5 SPEED(RMN)
5-87831-220-0
01
1
9112-9402
●
●
2
REPAIR KIT; CLU M/CYL
M/T MUA 5 SPEED(RMN)
5-87831-486-1
01
1
9403-9708
●
●
2
REPAIR KIT; CLU M/CYL
M/T MUA 5 SPEED(RMN)
5-87831-659-0
01
1
9709-
●
●
3
JOINT; JAW,CLU M/CYL
M/T MUA 5 SPEED(RMN)
8-94412-201-0
01
1
9112-
●
●
4
NUT; JAW JOINT
M/T MUA 5 SPEED(RMN) M8
9-09111-408-0
01
1
9112-
●
●
5
ROD; PUSH,CLU M/CYL
M/T MUA 5 SPEED(RMN)
8-94412-197-2
01
1
9112-9708
●
●
5
ROD; PUSH,CLU M/CYL
M/T MUA 5 SPEED(RMN)
8-97183-495-0
01
1
9709-
●
●
6
BOOT; CLU M/CYL
M/T MUA 5 SPEED(RMN)
8-94412-200-0
01
1
9112-
●
●
10
GASKET; CLU M/CYL
M/T MUA 5 SPEED(RMN)
8-94427-298-0
01
1
9112-
●
●
11
CAP; OUTER,CLU M/CYL
M/T MUA 5 SPEED(RMN)
8-94412-207-0
01
1
9112-
●
●
12
CAP; INNER,OIL TANK,CLU M/CYL
M/T MUA 5 SPEED(RMN)
8-94412-206-0
01
1
9112-
●
●
13
GASKET; OIL TANK
M/T MUA 5 SPEED(RMN)
8-94412-205-0
01
1
9112-
●
●
14
FLOAT; OIL TANK,CLU M/CYL
M/T MUA 5 SPEED(RMN)
8-94412-204-0
01
1
9112-9407
●
●
16
CLIP; OIL TANK,CLU M/CYL
M/T MUA 5 SPEED(RMN)
8-94412-202-0
01
1
9112-
●
●
42
TANK; OIL,CLU
M/T MUA 5 SPEED(RMN)
8-97037-335-0
01
1
9112-
●
●
