Isuzu WW
▶
SUV
▶
UBS
▶
50641 - UBS
▶
2 - Clutch, Transmission, Trans Axle
▶

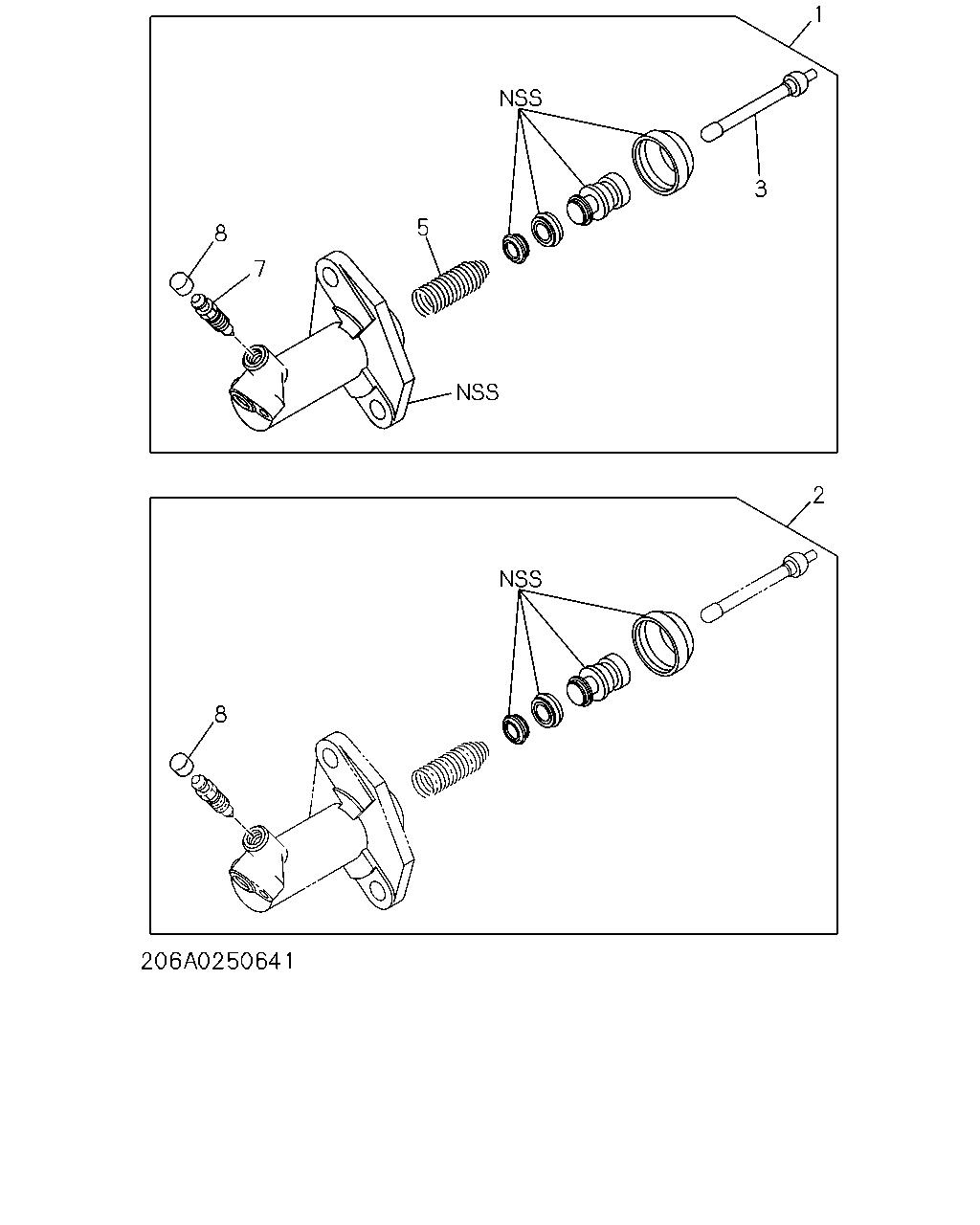

2-06 - CLUTCH SLAVE CYLINDER
▶
2-06 — CLUTCH SLAVE CYLINDER
(#166879) — 22 parça
Tümü
A - 4JG2 ENG
B - 6VD1 DOHC ENG
◀
[206A] 6VD1 DOHC ENGINE (11 parça)
[206A] 4JG2 ENGINE (11 parça)
▶
8
7
5
3
1
2
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED(RMN)
8-94389-195-1
01
1
9112-
●
1
CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED(RMN)
8-97040-866-2
01
1
9112-
●
2
REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED(RMN)
5-87830-813-2
01
1
9112-
●
2
REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED(RMN)
5-87831-221-0
01
1
9112-9407
●
2
REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED(RMN)
5-87831-388-0
01
1
9408-
●
3
ROD; PUSH,SLAVE CYL
M/T MUA 5 SPEED(RMN)
8-94136-252-0
01
1
9112-
●
3
ROD; PUSH,SLAVE CYL
M/T MUA 5 SPEED(RMN)
8-97062-923-0
01
1
9112-
●
5
SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED(RMN)
8-97016-024-0
01
1
9112-
●
5
SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED(RMN)
8-97028-736-0
01
1
9112-
●
7
SCREW; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED(RMN) M8X16.5
8-94115-113-0
01
1
9112-
●
●
8
CAP; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED(RMN) OD=9.5
9-47619-005-0
01
1
9112-
●
●
1
3
5
7
8
2
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED(RMN)
8-94389-195-1
01
1
9112-
●
1
CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED(RMN)
8-97040-866-2
01
1
9112-
●
2
REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED(RMN)
5-87830-813-2
01
1
9112-
●
2
REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED(RMN)
5-87831-221-0
01
1
9112-9407
●
2
REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED(RMN)
5-87831-388-0
01
1
9408-
●
3
ROD; PUSH,SLAVE CYL
M/T MUA 5 SPEED(RMN)
8-94136-252-0
01
1
9112-
●
3
ROD; PUSH,SLAVE CYL
M/T MUA 5 SPEED(RMN)
8-97062-923-0
01
1
9112-
●
5
SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED(RMN)
8-97016-024-0
01
1
9112-
●
5
SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED(RMN)
8-97028-736-0
01
1
9112-
●
7
SCREW; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED(RMN) M8X16.5
8-94115-113-0
01
1
9112-
●
●
8
CAP; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED(RMN) OD=9.5
9-47619-005-0
01
1
9112-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
