Isuzu WW
▶
SUV
▶
UBS
▶
50641 - UBS
▶
2 - Clutch, Transmission, Trans Axle
▶

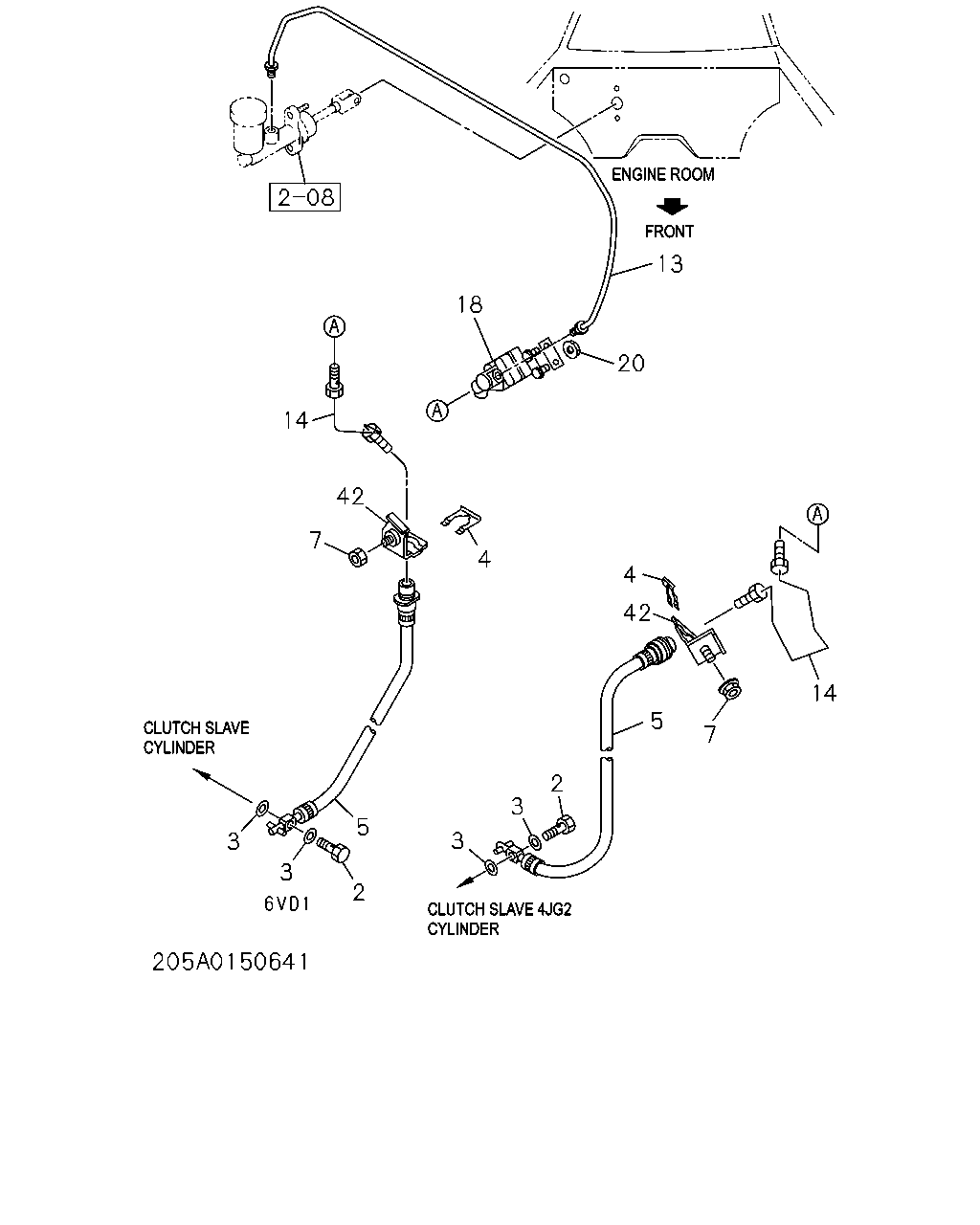

2-05 - CLUTCH PIPING
▶
2-05 — CLUTCH PIPING
(#166878) — 18 parça
Tümü
A - 4JG2 ENG
B - 6VD1 DOHC ENG
13
20
18
14
42
7
4
4
42
5
7
14
2
3
3
5
2
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED(RMN) M10X22
5-09675-017-0
01
1
9112-
●
●
3
GASKET; FLEX HOSE,CLU
M/T MUA 5 SPEED(RMN) ID=10.2 OD=16.0
9-09571-410-0
02
1
9112-
●
●
4
CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN)
8-94436-216-0
01
1
9112-
●
●
5
HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED(RMN)
8-97066-439-0
01
1
9112-
●
5
HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED(RMN)
8-97020-579-1
01
1
9112-
●
7
NUT; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN) M8 FLANGE
0-91150-108-0
01
1
9112-
●
●
13
PIPE; OIL,FLEX HOSE TO CLU M/CYL
M/T MUA 5 SPEED(RMN)
8-97066-881-1
01
1
9112-9504
●
13
PIPE; OIL,FLEX HOSE TO CLU M/CYL
M/T MUA 5 SPEED(RMN)
8-97130-570-3
01
1
9505-
●
13
PIPE; OIL,FLEX HOSE TO CLU M/CYL
M/T MUA 5 SPEED(RMN)
8-94374-846-4
01
1
9112-
●
14
PIPE ASM; OIL,OIL DAMPER TO SLAVE CYL
M/T MUA 5 SPEED(RMN)
8-97066-883-2
01
1
9112-
●
14
PIPE ASM; OIL,OIL DAMPER TO SLAVE CYL
M/T MUA 5 SPEED(RMN)
8-97035-074-3
01
1
9112-
●
18
DAMPER ASM; CLU OIL
M/T MUA 5 SPEED(RMN)
8-97066-444-1
01
1
9112-9506
●
●
18
DAMPER ASM; CLU OIL
M/T MUA 5 SPEED(RMN)
8-97132-841-0
01
1
9507-
●
●
20
NUT; CLU OIL DAMPER
M/T MUA 5 SPEED(RMN) M6 FLANGE
0-91150-106-0
02
1
9112-
●
●
42
BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN)
8-97069-911-0
01
1
9112-9307
●
42
BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN)
8-97092-787-0
01
1
9308-9503
●
42
BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN)
8-97130-249-0
01
1
9504-
●
42
BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN)
8-97040-868-0
01
1
9112-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
