1-57 — EXHAUST THROTTLE BODY (#166875) — 106 parça

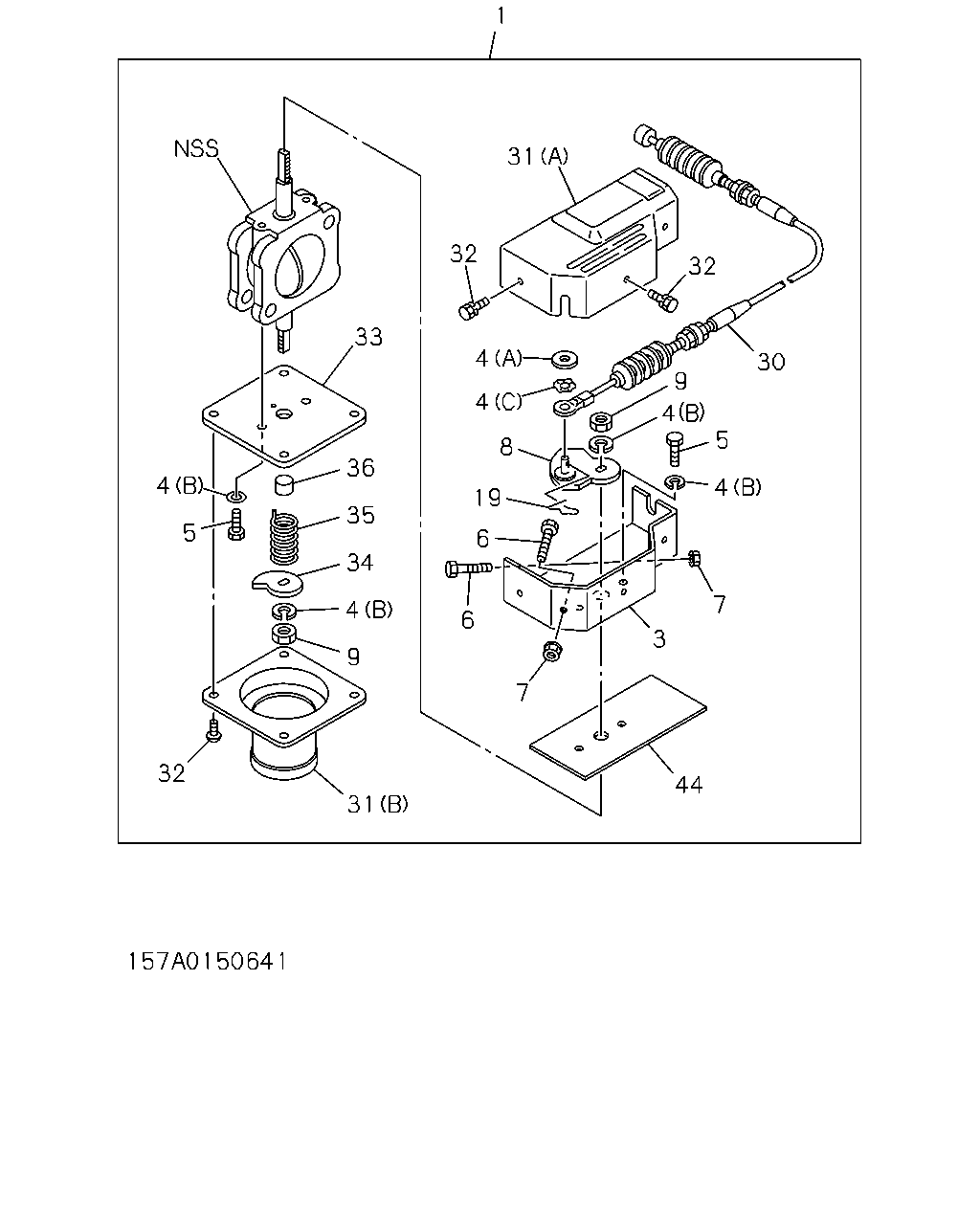

çizim 494237
1 31 32 4 4 8 19 6 6 7 3 44 7 4 4 5 9 30 32 33 36 35 34 4 9 31 32 5 4
BalonParca AdiParca NoAdetTipApplied Date
1 BODY ASM; EXH THROTTLE 8-97043-558-4 01 1 9112-9503
1 BODY ASM; EXH THROTTLE 8-97128-897-0 01 1 9504-9504
1 BODY ASM; EXH THROTTLE 8-97128-896-1 01 1 9505-
3 BRACKET; EXH THROTTLE BODY 8-97065-621-1 01 1 9112-9504
3 BRACKET; EXH THROTTLE BODY 8-97129-578-0 01 1 9505-
4 WASHER; LEVER,EXH THROTTLE BODY
(A) 		8-94311-430-0 01 1 9112-
4 WASHER; LEVER,EXH THROTTLE BODY
(C) 		8-97072-431-0 01 1 9112-9504
4 WASHER; LEVER,EXH THROTTLE BODY
(C) 		8-97112-939-0 01 1 9505-
4 WASHER; LEVER,EXH THROTTLE BODY
(B) ID=8.2 		9-09150-508-0 06 1 9112-9404
5 BOLT; BRKT TO VLV
M8X16 		9-02050-816-0 04 1 9112-9404
5 BOLT; BRKT TO VLV 1-22199-154-0 04 1 9405-9504
5 BOLT; BRKT TO VLV 1-22199-154-0 02 1 9505-
6 BOLT; BRKT,EXH THROTTLE BODY 8-97065-622-0 02 1 9112-
7 NUT; LOCK,BOLT 8-94311-424-0 02 1 9112-9504
7 NUT; LOCK,BOLT 8-94311-441-0 02 1 9505-
8 LEVER; EXH THROTTLE BODY 8-94311-427-0 01 1 9112-9504
8 LEVER; EXH THROTTLE BODY 8-97129-579-0 01 1 9505-
9 NUT; LEVER,EXH THROTTLE BODY 8-94311-428-0 02 1 9112-9404
9 NUT; LEVER,EXH THROTTLE BODY
M8 W/LK WASHER 		8-94279-050-0 02 1 9405-9504
9 NUT; LEVER,EXH THROTTLE BODY
M8 W/LK WASHER 		8-94279-050-0 01 1 9505-
19 PIN; LEVER 8-97010-295-1 01 1 9112-9504
19 PIN; LEVER
(A) 		8-94311-452-0 01 1 9505-
19 PIN; LEVER
(B) 		8-97049-560-0 01 1 9505-
30 CABLE; EXH THROTTLE BODY 8-97065-626-0 01 1 9112-9504
31 COVER; EXH THROTTLE BODY
(A) 		8-97065-627-0 01 1 9112-9504
31 COVER; EXH THROTTLE BODY
(B) 		8-97065-628-0 01 1 9112-9504
31 COVER; EXH THROTTLE BODY 8-97129-577-0 01 1 9505-
32 SCREW; COVER,THROTTLE BODY 8-97065-629-0 08 1 9112-9504
32 SCREW; COVER,THROTTLE BODY 8-97065-629-0 02 1 9505-
33 PLATE; EXH THROTTLE BODY 8-97065-623-0 01 1 9112-9504
34 ARM; EXH THROTTLE BODY 8-97065-625-0 01 1 9112-9504
35 SPRING; EXH THROTTLE BODY 8-97065-624-0 01 1 9112-9504
36 RETAINER; SPRING,THROTTLE BODY 8-94311-425-0 01 1 9112-9504
44 INSULATOR; BRKT 8-97072-432-0 01 1 9204-9504

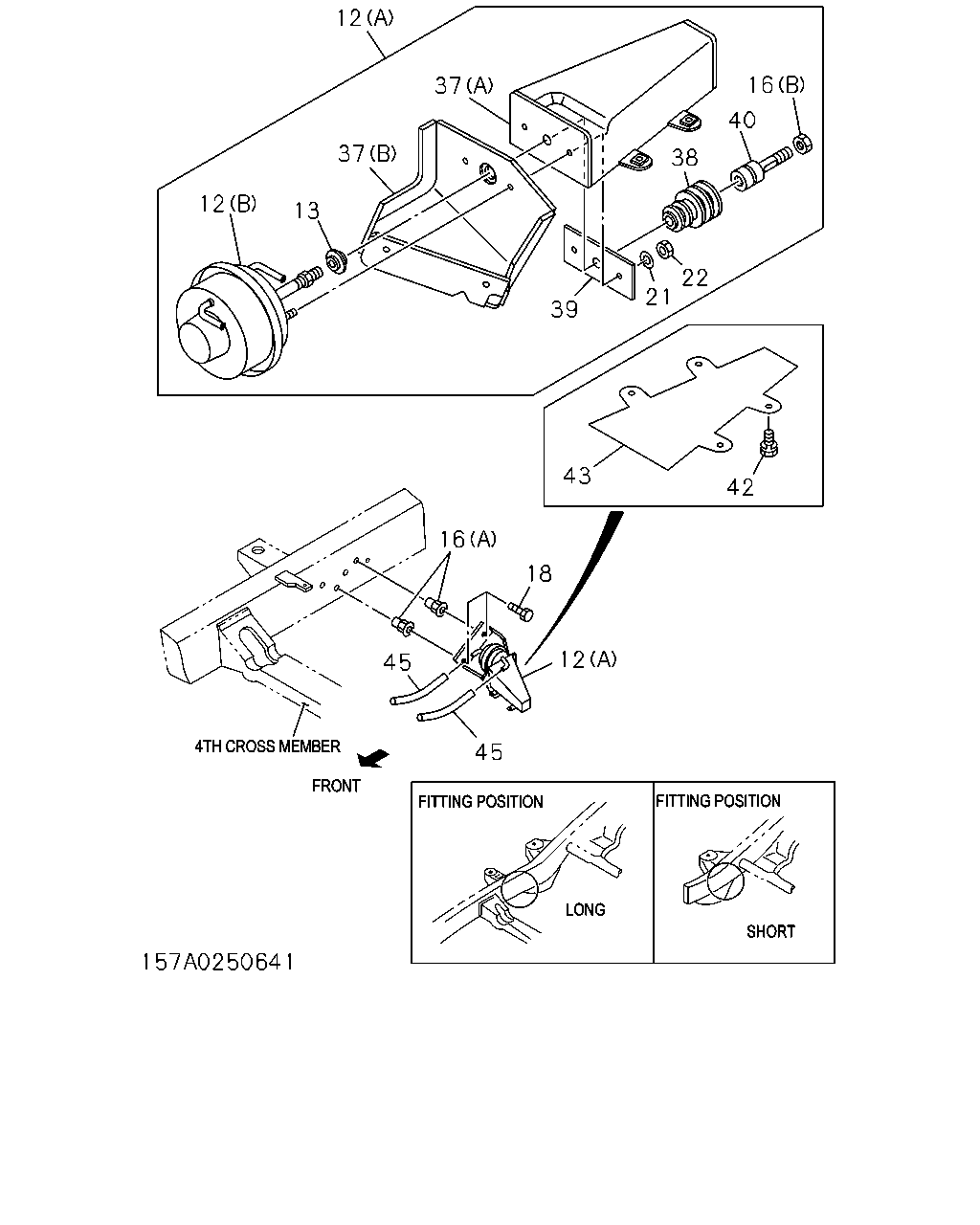

çizim 494271
12 13 37 12 37 38 40 16 22 21 39 43 42 12 18 16 45 45
BalonParca AdiParca NoAdetTipApplied Date
12 CHAMBER; POWER,EXH THROTTLE BODY
(B) 		8-97065-022-0 01 1 9112-9503
12 CHAMBER; POWER,EXH THROTTLE BODY
(B) 		8-97128-390-0 01 1 9504-9504
12 CHAMBER; POWER,EXH THROTTLE BODY
(A) 		8-97069-401-2 01 1 9112-9503
12 CHAMBER; POWER,EXH THROTTLE BODY
(A) 		8-97115-927-0 01 1 9504-9504
12 CHAMBER; POWER,EXH THROTTLE BODY 8-97117-602-0 01 1 9505-
13 BEARING; POWER CHAMBER 8-94383-629-0 01 1 9112-9504
13 BEARING; POWER CHAMBER 8-94311-446-0 01 1 9505-
16 NUT; LK,POWER CHAMBER
(B) 		8-94311-428-0 02 1 9112-9504
16 NUT; LK,POWER CHAMBER 9-88510-009-0 01 1 9505-
16 NUT; LK,POWER CHAMBER
(A) 		8-97039-201-0 02 1 9112-9504
18 BOLT; SET,POWER CHAMBER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9112-9410
18 BOLT; SET,POWER CHAMBER
M8X25 FLANGE 		0-28680-825-0 02 1 9411-9504
21 WASHER; BRKT TO POWER CHAMBER
ID=8.2 		9-09150-508-0 02 1 9112-9504
22 NUT; BRKT TO POWER CHAMBER 8-94311-428-0 02 1 9112-9504
22 NUT; BRKT TO POWER CHAMBER
M8 W/LK WASHER 		8-94279-050-0 02 1 9505-
37 BRACKET; POWER CHAMBER
(A) 		8-97065-023-0 01 1 9112-9504
37 BRACKET; POWER CHAMBER
(B) 		8-97065-027-0 01 1 9112-9504
38 BOOT; POWER CHAMBER 8-97065-024-0 01 1 9112-9503
39 RETAINER; POWER CHAMBER 8-97065-025-0 01 1 9112-9504
40 JOINT; POWER CHAMBER 8-97065-026-0 01 1 9112-9504
42 BOLT; COVER
M6X12 FLANGE 		0-28080-612-0 04 1 9112-9504
43 COVER; POWER CHAMBER 8-97065-028-0 01 1 9112-9504
45 HOSE; CHAMBER TO PIPE
L=180 SERVICED BY L=3000 		0-04730-300-0 02 1 9112-9112
45 HOSE; CHAMBER TO PIPE
L=190 SERVICED BY L=3000 		0-04731-300-0 01 1 9201-9503
45 HOSE; CHAMBER TO PIPE
L=170 SERVICED BY L=3000 		0-04730-300-0 01 1 9201-9503
45 HOSE; CHAMBER TO PIPE
L=190 SERVICED BY L=3000 		0-04731-300-0 01 1 9504-9504

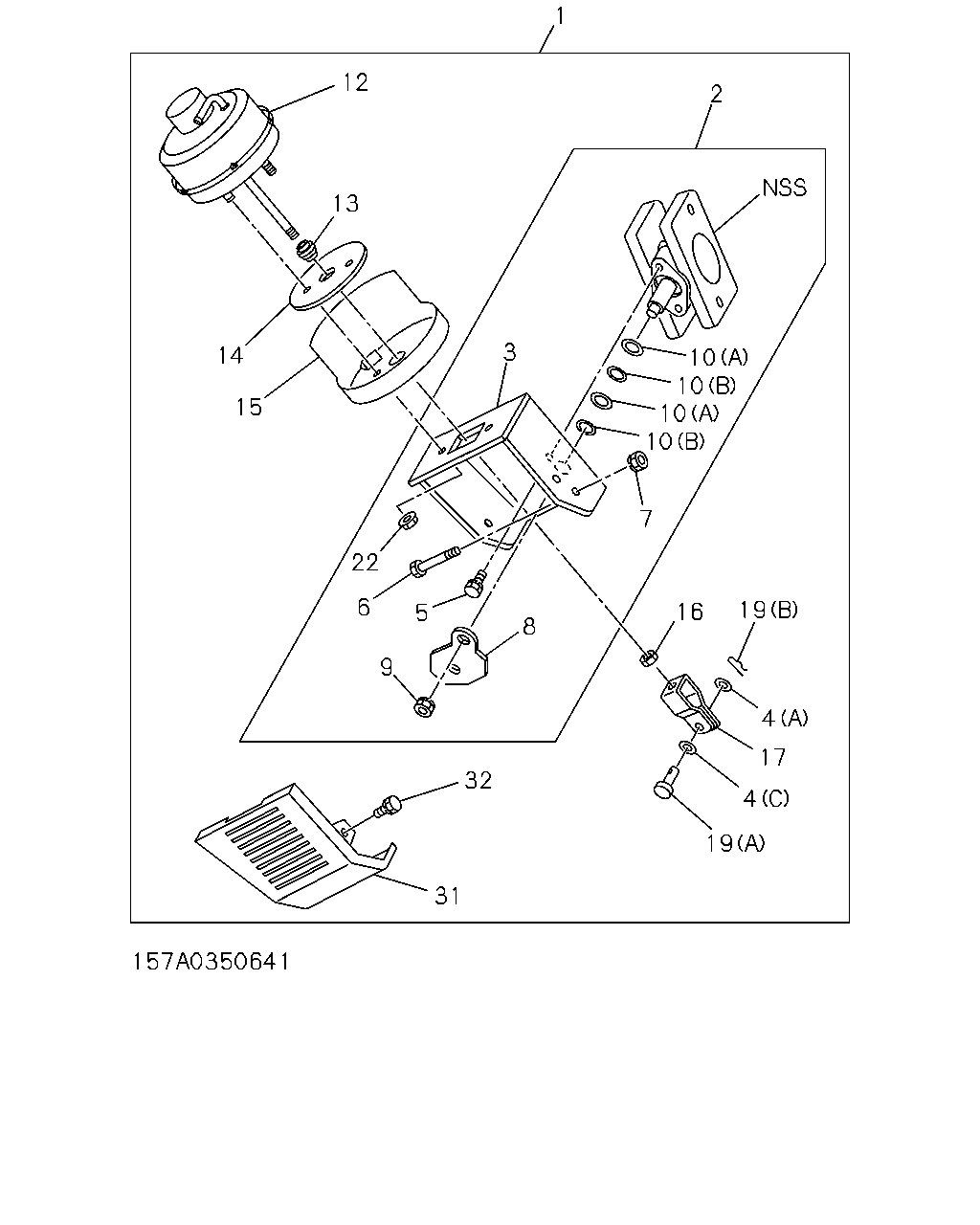

çizim 494272
12 13 14 15 3 8 5 9 6 22 32 31 1 2 10 10 10 10 7 16 19 4 17 4 19
BalonParca AdiParca NoAdetTipApplied Date
1 BODY ASM; EXH THROTTLE 8-97043-558-4 01 1 9112-9503
1 BODY ASM; EXH THROTTLE 8-97128-897-0 01 1 9504-9504
1 BODY ASM; EXH THROTTLE 8-97128-896-1 01 1 9505-
2 BODY; EXH THROTTLE 8-97129-575-1 01 1 9505-
3 BRACKET; EXH THROTTLE BODY 8-97065-621-1 01 1 9112-9504
3 BRACKET; EXH THROTTLE BODY 8-97129-578-0 01 1 9505-
4 WASHER; LEVER,EXH THROTTLE BODY
(A) 		8-94311-430-0 01 1 9112-
4 WASHER; LEVER,EXH THROTTLE BODY
(C) 		8-97072-431-0 01 1 9112-9504
4 WASHER; LEVER,EXH THROTTLE BODY
(C) 		8-97112-939-0 01 1 9505-
4 WASHER; LEVER,EXH THROTTLE BODY
(B) ID=8.2 		9-09150-508-0 06 1 9112-9404
5 BOLT; BRKT TO VLV
M8X16 		9-02050-816-0 04 1 9112-9404
5 BOLT; BRKT TO VLV 1-22199-154-0 04 1 9405-9504
5 BOLT; BRKT TO VLV 1-22199-154-0 02 1 9505-
6 BOLT; BRKT,EXH THROTTLE BODY 8-97065-622-0 02 1 9112-
7 NUT; LOCK,BOLT 8-94311-424-0 02 1 9112-9504
7 NUT; LOCK,BOLT 8-94311-441-0 02 1 9505-
8 LEVER; EXH THROTTLE BODY 8-94311-427-0 01 1 9112-9504
8 LEVER; EXH THROTTLE BODY 8-97129-579-0 01 1 9505-
9 NUT; LEVER,EXH THROTTLE BODY 8-94311-428-0 02 1 9112-9404
9 NUT; LEVER,EXH THROTTLE BODY
M8 W/LK WASHER 		8-94279-050-0 02 1 9405-9504
9 NUT; LEVER,EXH THROTTLE BODY
M8 W/LK WASHER 		8-94279-050-0 01 1 9505-
10 RING; SEAL,EXH THROTTLE BODY
(B) ID=13 		1-22189-009-0 02 1 9505-
10 RING; SEAL,EXH THROTTLE BODY
(A) 		8-97130-338-0 02 1 9505-
12 CHAMBER; POWER,EXH THROTTLE BODY
(B) 		8-97065-022-0 01 1 9112-9503
12 CHAMBER; POWER,EXH THROTTLE BODY
(B) 		8-97128-390-0 01 1 9504-9504
12 CHAMBER; POWER,EXH THROTTLE BODY
(A) 		8-97069-401-2 01 1 9112-9503
12 CHAMBER; POWER,EXH THROTTLE BODY
(A) 		8-97115-927-0 01 1 9504-9504
12 CHAMBER; POWER,EXH THROTTLE BODY 8-97117-602-0 01 1 9505-
13 BEARING; POWER CHAMBER 8-94383-629-0 01 1 9112-9504
13 BEARING; POWER CHAMBER 8-94311-446-0 01 1 9505-
14 GASKET; POWER CHAMBER 8-94328-234-0 01 1 9505-
15 INSULATOR; POWER CHAMBER 8-97129-576-0 01 1 9505-
16 NUT; LK,POWER CHAMBER
(B) 		8-94311-428-0 02 1 9112-9504
16 NUT; LK,POWER CHAMBER 9-88510-009-0 01 1 9505-
16 NUT; LK,POWER CHAMBER
(A) 		8-97039-201-0 02 1 9112-9504
17 CLEVIS; EXH THROTTLE BODY 8-94428-084-0 01 1 9505-
19 PIN; LEVER 8-97010-295-1 01 1 9112-9504
19 PIN; LEVER
(A) 		8-94311-452-0 01 1 9505-
19 PIN; LEVER
(B) 		8-97049-560-0 01 1 9505-
22 NUT; BRKT TO POWER CHAMBER 8-94311-428-0 02 1 9112-9504
22 NUT; BRKT TO POWER CHAMBER
M8 W/LK WASHER 		8-94279-050-0 02 1 9505-
31 COVER; EXH THROTTLE BODY
(A) 		8-97065-627-0 01 1 9112-9504
31 COVER; EXH THROTTLE BODY
(B) 		8-97065-628-0 01 1 9112-9504
31 COVER; EXH THROTTLE BODY 8-97129-577-0 01 1 9505-
32 SCREW; COVER,THROTTLE BODY 8-97065-629-0 08 1 9112-9504
32 SCREW; COVER,THROTTLE BODY 8-97065-629-0 02 1 9505-
