Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#166874) — 503 parça

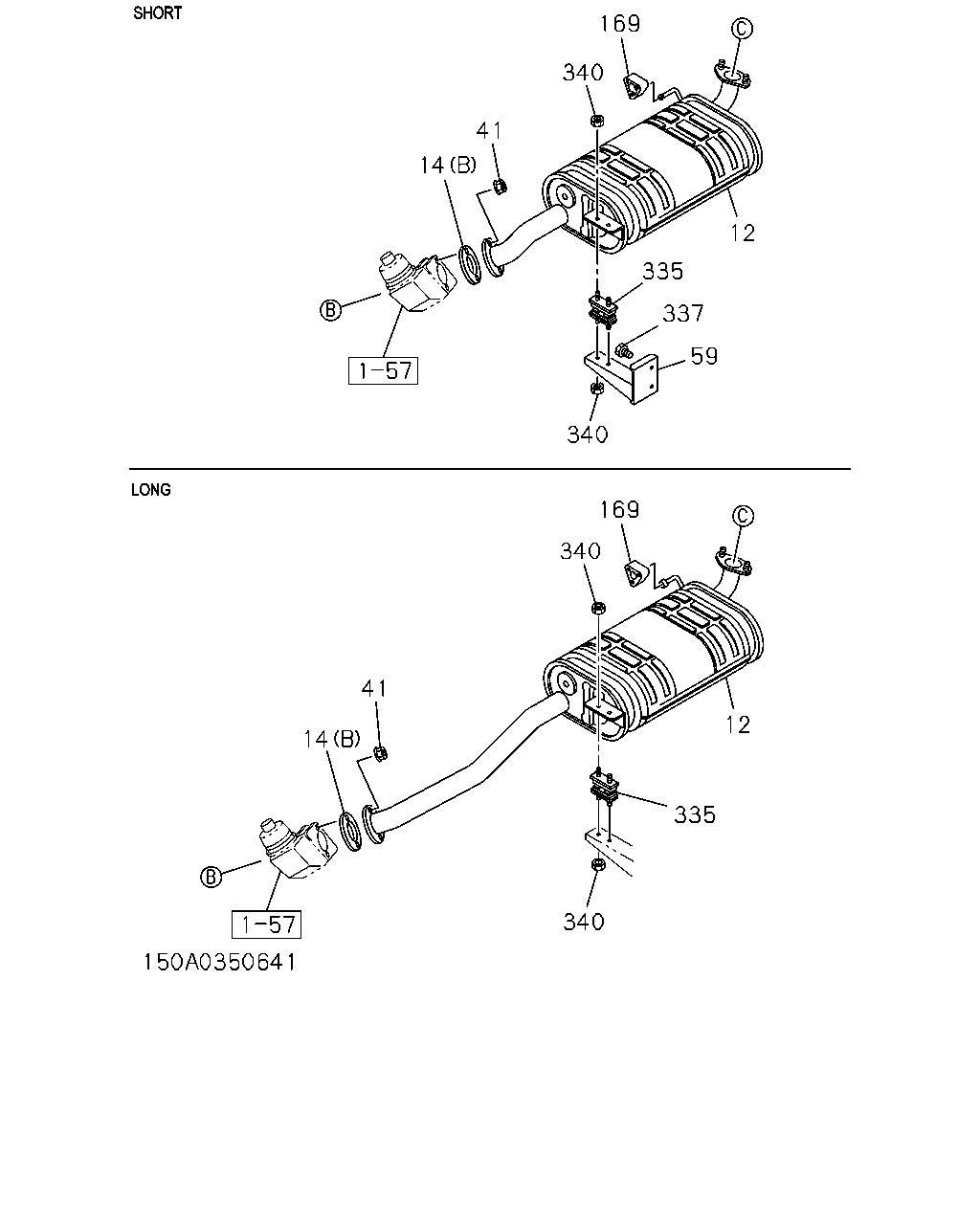

14 41 128 221 221 128 41 14 41 14 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	GASKET; SILENCER TO EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9301	●
14	GASKET; SILENCER TO EXH PIPE (A) ID=55	8-97093-574-0	02	1	9302-9504	●
14	GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=64.7	8-94328-352-0	02	1	9505-	●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9112-9504	●	●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9505-	●	●
14	GASKET; SILENCER TO EXH PIPE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=64.7	8-94328-352-0	01	1	9505-	●
14	GASKET; SILENCER TO EXH PIPE A/T AISIN(RMD) (B) ID=64.7	8-94328-352-0	01	1	9505-	●
41	NUT; EXH PIPE TO EXH SILENCER M10 FLANGE	0-91150-110-0	02	1	9112-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M10 FLANGE	0-91150-110-0	02	1	9112-	●
126	PIPE; EXH,RR A/T AISIN(RMD)	8-97126-080-0	01	1	9505-9608	●
126	PIPE; EXH,RR A/T AISIN(RMD)	8-97165-821-2	01	1	9609-	●
128	PIPE; EXH,RR	8-97047-559-0	01	1	9308-9504	●
128	PIPE; EXH,RR M/T MUA 5 SPEED(RMN)	8-97131-338-1	01	1	9505-9608	●
128	PIPE; EXH,RR M/T MUA 5 SPEED(RMN)	8-97165-817-0	01	1	9609-	●
128	PIPE; EXH,RR A/T AISIN(RMD)	8-97126-079-0	01	1	9505-9608	●
128	PIPE; EXH,RR A/T AISIN(RMD)	8-97165-820-0	01	1	9609-	●
128	PIPE; EXH,RR	8-97047-559-0	01	1	9112-9208	●	●
128	PIPE; EXH,RR	8-97047-559-0	01	1	9209-9307	●
128	PIPE; EXH,RR	8-97070-150-0	01	1	9209-9608		●
128	PIPE; EXH,RR	8-97165-819-1	01	1	9609-		●
221	CLAMP; EXH SILENCER	8-97021-581-0	01	1	9112-9301	●	●
221	CLAMP; EXH SILENCER	8-97080-694-0	01	1	9302-	●	●

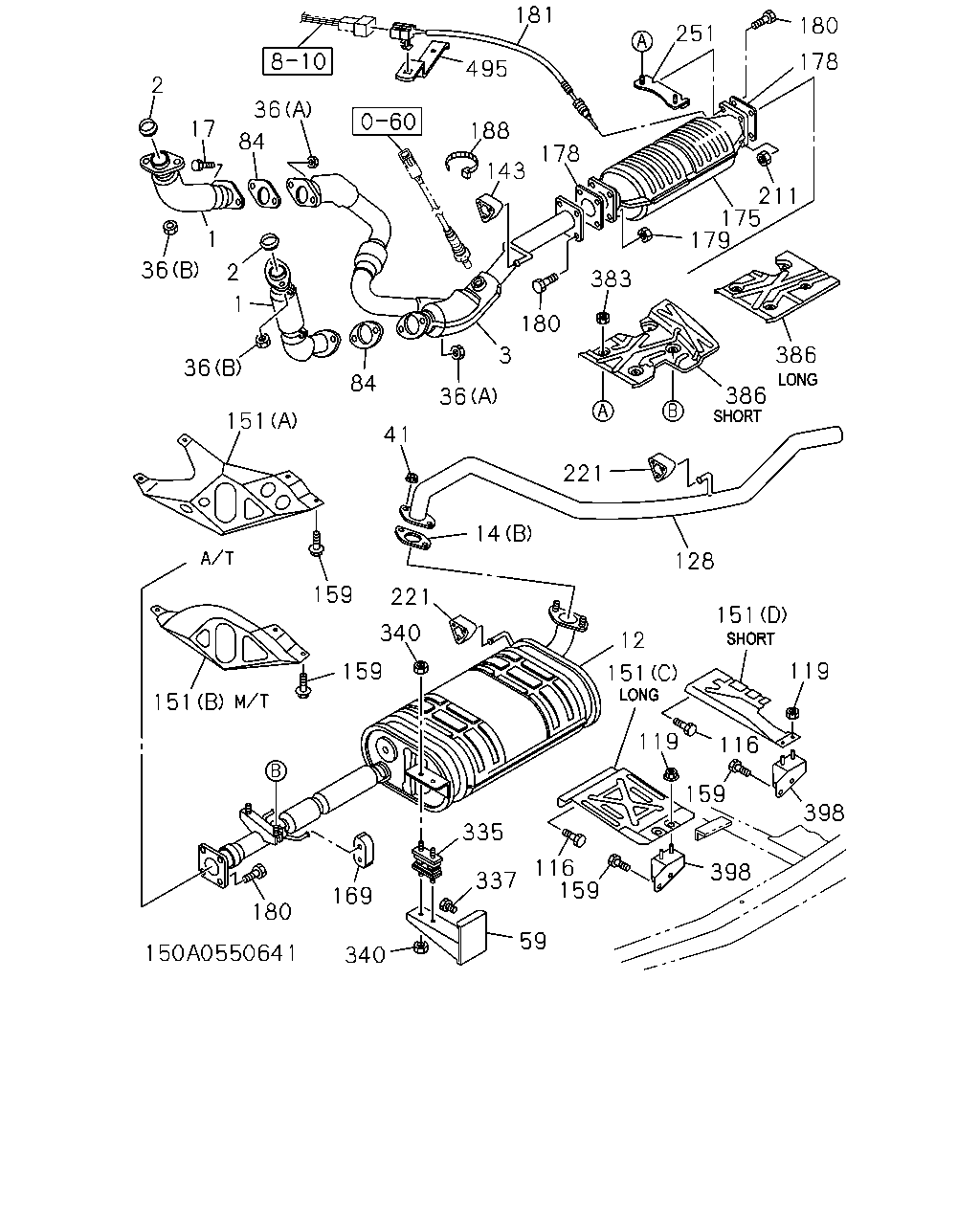

251 180 178 211 175 179 383 180 3 36 84 41 151 36 1 2 1 36 17 2 84 36 188 143 178 181 495 386 386 221 14 128 151 119 12 151 119 116 398 159 398 159 116 335 337 59 169 340 180 151 159 340 221 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (A)	8-97037-890-1	01	1	9112-9307	●
1	PIPE; EXH (A)	8-97037-890-1	01	1	9308-9504	●
1	PIPE; EXH (A)	8-97114-606-0	01	1	9505-	●
1	PIPE; EXH (B)	8-97043-596-4	01	1	9112-9504	●
1	PIPE; EXH A/T AISIN(RMD) ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97114-608-3	01	1	9505-	●
1	PIPE; EXH A/T AISIN(RMD) EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97114-609-2	01	1	9505-	●
1	PIPE; EXH M/T MUA 5 SPEED(RMN) (B)	8-97126-884-1	01	1	9505-	●
1	PIPE; EXH	8-97030-276-1	01	1	9112-9301		●
1	PIPE; EXH	8-97093-319-1	01	1	9302-9510		●
1	PIPE; EXH	8-97127-477-1	01	1	9511-		●
1	PIPE; EXH A/T THM(RMQ)	8-97030-280-1	01	1	9112-9301		●
1	PIPE; EXH A/T THM(RMQ)	8-97093-322-1	01	1	9302-9510		●
1	PIPE; EXH A/T THM(RMQ)	8-97127-479-1	01	1	9511-		●
1	PIPE; EXH M/T MUA 5 SPEED(RMN)	8-97030-277-1	01	1	9112-9301		●
1	PIPE; EXH M/T MUA 5 SPEED(RMN)	8-97093-321-1	01	1	9302-9510		●
1	PIPE; EXH M/T MUA 5 SPEED(RMN)	8-97127-478-1	01	1	9511-		●
2	GASKET; PIPE TO MANIF	8-94329-529-0	01	1	9112-9112	●
2	GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9201-	●
2	GASKET; PIPE TO MANIF	8-94329-529-0	02	1	9112-9112		●
2	GASKET; PIPE TO MANIF	8-97069-287-0	02	1	9201-9510		●
2	GASKET; PIPE TO MANIF	8-97102-031-1	02	1	9511-		●
3	PIPE; EXH,CENTER A/T THM(RMQ)	8-97048-577-0	01	1	9112-9301		●
3	PIPE; EXH,CENTER A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97093-325-0	01	1	9302-		●
3	PIPE; EXH,CENTER A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA>	8-97111-395-0	01	1	9505-		●
3	PIPE; EXH,CENTER M/T MUA 5 SPEED(RMN)	8-97048-579-3	01	1	9112-9301		●
3	PIPE; EXH,CENTER M/T MUA 5 SPEED(RMN)	8-97093-323-0	01	1	9302-		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97043-595-5	01	1	9112-9301	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97092-582-1	01	1	9302-9504	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97114-611-1	01	1	9505-9508	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97133-911-0	01	1	9509-9608	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97165-833-0	01	1	9609-	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97043-594-5	01	1	9112-9301	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97092-580-1	01	1	9302-9504	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97114-610-1	01	1	9505-9508	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97133-910-0	01	1	9509-9608	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97165-834-0	01	1	9609-	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97047-911-3	01	1	9112-9208		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97070-148-1	01	1	9209-9301		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97092-578-1	01	1	9302-9508		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97130-507-0	01	1	9509-9608		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97165-829-0	01	1	9609-		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97047-913-3	01	1	9112-9208		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97070-146-1	01	1	9209-9301		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97092-575-2	01	1	9302-9508		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97130-505-0	01	1	9509-9608		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97165-830-0	01	1	9609-		●
14	GASKET; SILENCER TO EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9301	●
14	GASKET; SILENCER TO EXH PIPE (A) ID=55	8-97093-574-0	02	1	9302-9504	●
14	GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=64.7	8-94328-352-0	02	1	9505-	●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9112-9504	●	●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9505-	●	●
14	GASKET; SILENCER TO EXH PIPE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=64.7	8-94328-352-0	01	1	9505-	●
14	GASKET; SILENCER TO EXH PIPE A/T AISIN(RMD) (B) ID=64.7	8-94328-352-0	01	1	9505-	●
17	BOLT; EXH PIPE A/T THM(RMQ) M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9112-9301		●
17	BOLT; EXH PIPE A/T THM(RMQ) M10X35 FLANGE	0-28081-035-0	04	1	9302-9410		●
17	BOLT; EXH PIPE A/T THM(RMQ) M10X40 FLANGE	0-28681-040-0	04	1	9411-		●
17	BOLT; EXH PIPE M/T MUA 5 SPEED(RMN) M10X30 W/LK&PL WASHER	0-50141-030-0	03	1	9112-9301		●
17	BOLT; EXH PIPE M/T MUA 5 SPEED(RMN) M10X35 FLANGE	0-28081-035-0	03	1	9302-9410		●
17	BOLT; EXH PIPE M/T MUA 5 SPEED(RMN) M10X40 FLANGE	0-28681-040-0	03	1	9411-		●
36	NUT; EXH PIPE (B) M10 LOCK NUT	8-94375-110-0	02	1	9112-9305	●
36	NUT; EXH PIPE (A) M10 FLANGE	0-91150-110-0	02	1	9112-	●
36	NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	02	1	9306-	●
36	NUT; EXH PIPE (A) M10 FLANGE	0-91150-110-0	04	1	9112-		●
36	NUT; EXH PIPE (B) M10 LOCK NUT	8-94375-110-0	04	1	9112-9305		●
36	NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	04	1	9306-9510		●
36	NUT; EXH PIPE (B) M12 LK W/FLANGE	8-97102-030-0	06	1	9511-9702		●
36	NUT; EXH PIPE (B) M12 FLANGE	8-97170-524-1	06	1	9703-		●
41	NUT; EXH PIPE TO EXH SILENCER M10 FLANGE	0-91150-110-0	02	1	9112-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M10 FLANGE	0-91150-110-0	02	1	9112-	●
59	BRACKET; EXH SILENCER,FRT SHORT(UB***C)	8-97043-723-1	01	1	9112-	●	●
84	GASKET; EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9112-9301	●
84	GASKET; EXH PIPE (A) ID=55	8-97093-574-0	01	1	9302-9307	●
84	GASKET; EXH PIPE (A) ID=55	8-97093-574-0	01	1	9308-	●
84	GASKET; EXH PIPE M/T MUA 5 SPEED(RMN) (B) ID=64.7	8-94328-352-0	01	1	9505-	●
84	GASKET; EXH PIPE ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9301		●
84	GASKET; EXH PIPE ID=55	8-97093-574-0	02	1	9302-		●
116	BOLT; BRKT CATALYSIS CONTROL<6MZ> M6X16	0-28010-616-0	02	1	9112-9204		●
116	BOLT; BRKT CATALYSIS CONTROL<6MZ> M6X16 FLANGE	0-28080-616-0	02	1	9205-9504		●
116	BOLT; BRKT M6X16 FLANGE	0-28080-616-0	02	1	9505-9511		●
116	BOLT; BRKT 951113- M6X16 FLANGE	0-28080-616-0	01	1	9511-		●
119	NUT; BRKT CATALYSIS CONTROL<6MZ> M6 FLANGE	0-91150-106-0	02	1	9112-9504		●
119	NUT; BRKT M6 FLANGE	0-91150-106-0	02	1	9505-		●
128	PIPE; EXH,RR	8-97047-559-0	01	1	9308-9504	●
128	PIPE; EXH,RR M/T MUA 5 SPEED(RMN)	8-97131-338-1	01	1	9505-9608	●
128	PIPE; EXH,RR M/T MUA 5 SPEED(RMN)	8-97165-817-0	01	1	9609-	●
128	PIPE; EXH,RR A/T AISIN(RMD)	8-97126-079-0	01	1	9505-9608	●
128	PIPE; EXH,RR A/T AISIN(RMD)	8-97165-820-0	01	1	9609-	●
128	PIPE; EXH,RR	8-97047-559-0	01	1	9112-9208	●	●
128	PIPE; EXH,RR	8-97047-559-0	01	1	9209-9307	●
128	PIPE; EXH,RR	8-97070-150-0	01	1	9209-9608		●
128	PIPE; EXH,RR	8-97165-819-1	01	1	9609-		●
143	RUBBER; SUPPORT	8-97021-581-0	01	1	9112-9301	●	●
143	RUBBER; SUPPORT	8-97080-694-0	01	1	9302-	●	●
151	PROTECTOR; HEAT,EXH PIPE A/T THM(RMQ) (A)	8-97018-375-2	01	1	9112-		●
151	PROTECTOR; HEAT,EXH PIPE M/T MUA 5 SPEED(RMN) (B)	8-97018-374-1	01	1	9112-		●
151	PROTECTOR; HEAT,EXH PIPE SHORT(UB***C) (D)	8-97047-568-3	01	1	9112-		●
151	PROTECTOR; HEAT,EXH PIPE LONG(UB***F) (C)	8-97047-569-1	01	1	9112-		●
159	BOLT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204		●
159	BOLT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410		●
159	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	9411-		●
159	BOLT; HEAT PROTECTOR A/T THM(RMQ) M10X25	8-94492-949-0	03	1	9112-9310		●
159	BOLT; HEAT PROTECTOR A/T THM(RMQ) M10X28 W/LK&PL WASHER	8-97104-788-0	03	1	9311-		●
159	BOLT; HEAT PROTECTOR M/T MUA 5 SPEED(RMN) M10X25	8-94492-949-0	02	1	9112-9310		●
159	BOLT; HEAT PROTECTOR M/T MUA 5 SPEED(RMN) M10X28 W/LK&PL WASHER	8-97104-788-0	02	1	9311-		●
169	RING; DAMPER,EXH PIPE	8-97021-581-0	01	1	9209-9301	●	●
169	RING; DAMPER,EXH PIPE	8-97080-694-0	01	1	9302-	●	●
169	RING; DAMPER,EXH PIPE LONG(UB***F) T=28 55X44(OVAL)	8-94332-331-0	02	1	9112-9301	●	●
175	CONVERTER; CATALYST	8-97018-418-3	01	1	9112-		●
178	GASKET; CONV TO MANIF ID=71	8-94324-194-0	02	1	9112-		●
179	NUT; CONV TO PIPE M10	8-94201-308-1	04	1	9112-		●
180	BOLT; CONV TO PIPE	0-28211-040-0	08	1	9112-9204		●
180	BOLT; CONV TO PIPE M10X40	0-28281-040-0	08	1	9205-9410		●
180	BOLT; CONV TO PIPE M10X40 FLANGE	0-28681-040-0	08	1	9411-9510		●
180	BOLT; CONV TO PIPE M10X40 FLANGE	0-28681-040-0	04	1	9511-		●
181	SENSOR; THERMO	8-97039-005-2	01	1	9112-		●
188	CLIP; OXYGEN SENSOR L=140	5-09707-031-0	01	1	9112-		●
211	NUT; CONV M10	8-94201-308-1	02	1	9112-		●
221	CLAMP; EXH SILENCER	8-97021-581-0	01	1	9112-9301	●	●
221	CLAMP; EXH SILENCER	8-97080-694-0	01	1	9302-	●	●
251	BRACKET; HEAT PROTECTOR	8-97044-896-3	01	1	9112-		●
335	RUBBER; SUPPORT,SILENCER	8-97038-816-1	01	1	9112-9301	●
335	RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	9302-	●	●
335	RUBBER; SUPPORT,SILENCER	8-97023-883-0	01	1	9112-9301		●
337	BOLT; RUBBER,SUPPORT SHORT(UB***C) M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204	●	●
337	BOLT; RUBBER,SUPPORT SHORT(UB***C) M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410	●	●
337	BOLT; RUBBER,SUPPORT SHORT(UB***C) M8X20 FLANGE	0-28680-820-0	02	1	9411-	●	●
340	NUT; RUBBER,SUPPORT M8 FLANGE	0-91150-108-0	04	1	9112-	●	●
383	NUT; PROTECTOR M6 FLANGE	0-91150-106-0	04	1	9112-		●
386	PANEL; HEAT PROTECTOR SHORT(UB***C)	8-97063-965-1	01	1	9112-9601		●
386	PANEL; HEAT PROTECTOR SHORT(UB***C)	8-97134-610-0	01	1	9602-		●
386	PANEL; HEAT PROTECTOR LONG(UB***F) CATALYSIS CONTROL<6MZ>	8-97063-966-1	01	1	9112-9504		●
386	PANEL; HEAT PROTECTOR LONG(UB***F)	8-97063-966-1	01	1	9505-9601		●
386	PANEL; HEAT PROTECTOR LONG(UB***F)	8-97134-609-0	01	1	9602-		●
398	BRACKET; HEAT PROTECTOR SHORT(UB***C) CATALYSIS CONTROL<6MZ>	8-97065-926-0	01	1	9112-9504		●
398	BRACKET; HEAT PROTECTOR SHORT(UB***C)	8-97065-926-0	01	1	9505-		●
398	BRACKET; HEAT PROTECTOR LONG(UB***F) CATALYSIS CONTROL<6MZ>	8-97065-927-0	01	1	9112-9504		●
398	BRACKET; HEAT PROTECTOR LONG(UB***F)	8-97065-927-0	01	1	9505-		●
495	BRACKET; THERMO SENSOR	8-97039-006-3	01	1	9112-		●

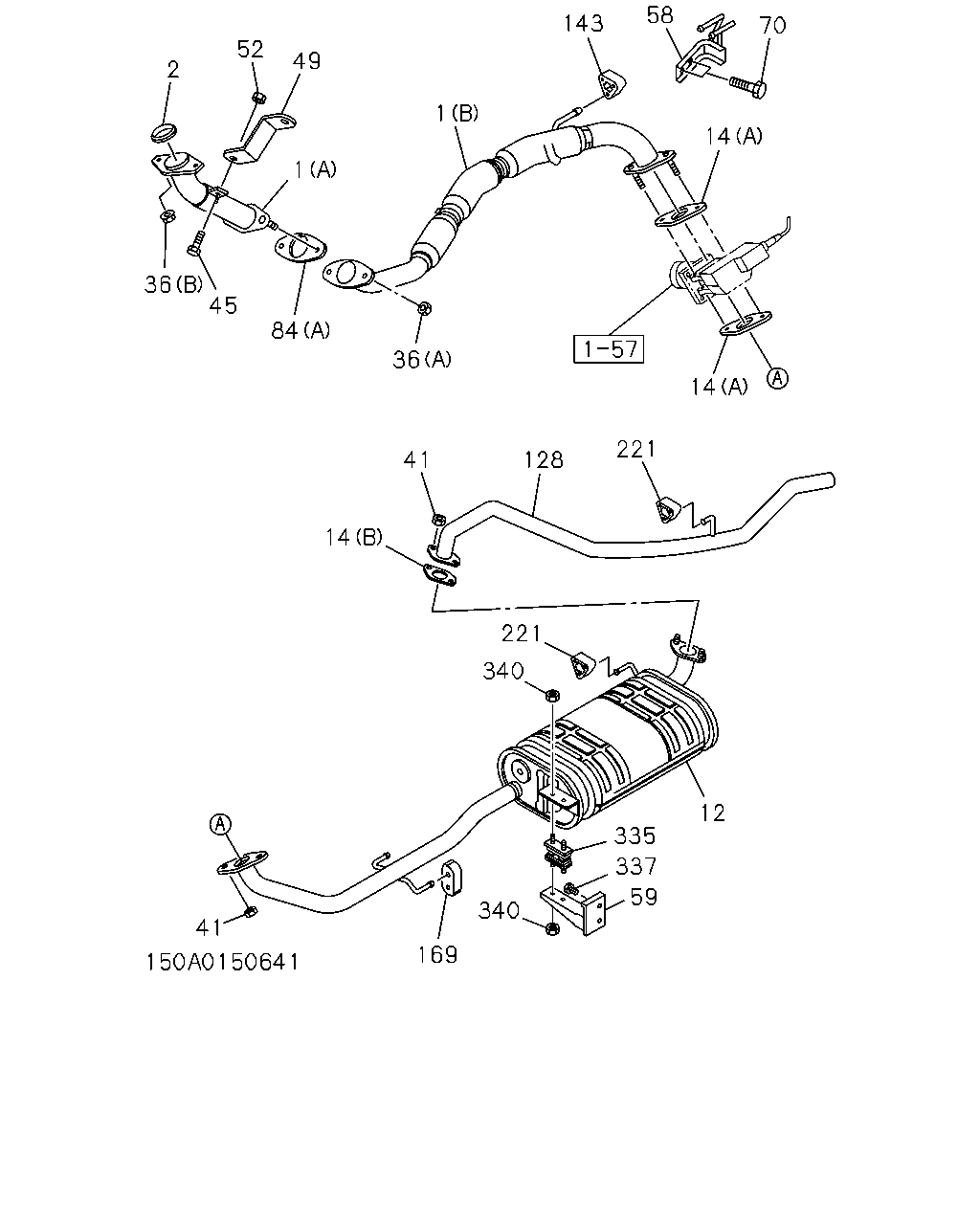

2 52 49 1 36 45 84 36 41 14 128 221 14 14 70 58 143 1 221 340 335 337 59 12 340 169 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (A)	8-97037-890-1	01	1	9112-9307	●
1	PIPE; EXH (A)	8-97037-890-1	01	1	9308-9504	●
1	PIPE; EXH (A)	8-97114-606-0	01	1	9505-	●
1	PIPE; EXH (B)	8-97043-596-4	01	1	9112-9504	●
1	PIPE; EXH A/T AISIN(RMD) ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97114-608-3	01	1	9505-	●
1	PIPE; EXH A/T AISIN(RMD) EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97114-609-2	01	1	9505-	●
1	PIPE; EXH M/T MUA 5 SPEED(RMN) (B)	8-97126-884-1	01	1	9505-	●
1	PIPE; EXH	8-97030-276-1	01	1	9112-9301		●
1	PIPE; EXH	8-97093-319-1	01	1	9302-9510		●
1	PIPE; EXH	8-97127-477-1	01	1	9511-		●
1	PIPE; EXH A/T THM(RMQ)	8-97030-280-1	01	1	9112-9301		●
1	PIPE; EXH A/T THM(RMQ)	8-97093-322-1	01	1	9302-9510		●
1	PIPE; EXH A/T THM(RMQ)	8-97127-479-1	01	1	9511-		●
1	PIPE; EXH M/T MUA 5 SPEED(RMN)	8-97030-277-1	01	1	9112-9301		●
1	PIPE; EXH M/T MUA 5 SPEED(RMN)	8-97093-321-1	01	1	9302-9510		●
1	PIPE; EXH M/T MUA 5 SPEED(RMN)	8-97127-478-1	01	1	9511-		●
2	GASKET; PIPE TO MANIF	8-94329-529-0	01	1	9112-9112	●
2	GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9201-	●
2	GASKET; PIPE TO MANIF	8-94329-529-0	02	1	9112-9112		●
2	GASKET; PIPE TO MANIF	8-97069-287-0	02	1	9201-9510		●
2	GASKET; PIPE TO MANIF	8-97102-031-1	02	1	9511-		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97043-595-5	01	1	9112-9301	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97092-582-1	01	1	9302-9504	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97114-611-1	01	1	9505-9508	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97133-911-0	01	1	9509-9608	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97165-833-0	01	1	9609-	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97043-594-5	01	1	9112-9301	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97092-580-1	01	1	9302-9504	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97114-610-1	01	1	9505-9508	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97133-910-0	01	1	9509-9608	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97165-834-0	01	1	9609-	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97047-911-3	01	1	9112-9208		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97070-148-1	01	1	9209-9301		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97092-578-1	01	1	9302-9508		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97130-507-0	01	1	9509-9608		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97165-829-0	01	1	9609-		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97047-913-3	01	1	9112-9208		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97070-146-1	01	1	9209-9301		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97092-575-2	01	1	9302-9508		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97130-505-0	01	1	9509-9608		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97165-830-0	01	1	9609-		●
14	GASKET; SILENCER TO EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9301	●
14	GASKET; SILENCER TO EXH PIPE (A) ID=55	8-97093-574-0	02	1	9302-9504	●
14	GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=64.7	8-94328-352-0	02	1	9505-	●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9112-9504	●	●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9505-	●	●
14	GASKET; SILENCER TO EXH PIPE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=64.7	8-94328-352-0	01	1	9505-	●
14	GASKET; SILENCER TO EXH PIPE A/T AISIN(RMD) (B) ID=64.7	8-94328-352-0	01	1	9505-	●
36	NUT; EXH PIPE (B) M10 LOCK NUT	8-94375-110-0	02	1	9112-9305	●
36	NUT; EXH PIPE (A) M10 FLANGE	0-91150-110-0	02	1	9112-	●
36	NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	02	1	9306-	●
36	NUT; EXH PIPE (A) M10 FLANGE	0-91150-110-0	04	1	9112-		●
36	NUT; EXH PIPE (B) M10 LOCK NUT	8-94375-110-0	04	1	9112-9305		●
36	NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	04	1	9306-9510		●
36	NUT; EXH PIPE (B) M12 LK W/FLANGE	8-97102-030-0	06	1	9511-9702		●
36	NUT; EXH PIPE (B) M12 FLANGE	8-97170-524-1	06	1	9703-		●
41	NUT; EXH PIPE TO EXH SILENCER M10 FLANGE	0-91150-110-0	02	1	9112-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M10 FLANGE	0-91150-110-0	02	1	9112-	●
45	BOLT; BRKT M8X40 W/LK WASHER	0-50040-840-0	01	1	9112-9410	●
45	BOLT; BRKT M8X40 FLANGE	0-28680-840-0	01	1	9411-9504	●
49	BRACKET; EXH PIPE TO TRANS	8-97037-539-0	01	1	9112-9504	●
52	NUT; BRKT M8 FLANGE	0-91150-208-0	01	1	9112-9504	●
58	BRACKET; EXH PIPE,RR	8-97043-727-1	01	1	9112-9605	●
59	BRACKET; EXH SILENCER,FRT SHORT(UB***C)	8-97043-723-1	01	1	9112-	●	●
70	BOLT; BRKT M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204	●
70	BOLT; BRKT M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410	●
70	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9411-9605	●
84	GASKET; EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9112-9301	●
84	GASKET; EXH PIPE (A) ID=55	8-97093-574-0	01	1	9302-9307	●
84	GASKET; EXH PIPE (A) ID=55	8-97093-574-0	01	1	9308-	●
84	GASKET; EXH PIPE M/T MUA 5 SPEED(RMN) (B) ID=64.7	8-94328-352-0	01	1	9505-	●
84	GASKET; EXH PIPE ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9301		●
84	GASKET; EXH PIPE ID=55	8-97093-574-0	02	1	9302-		●
128	PIPE; EXH,RR	8-97047-559-0	01	1	9308-9504	●
128	PIPE; EXH,RR M/T MUA 5 SPEED(RMN)	8-97131-338-1	01	1	9505-9608	●
128	PIPE; EXH,RR M/T MUA 5 SPEED(RMN)	8-97165-817-0	01	1	9609-	●
128	PIPE; EXH,RR A/T AISIN(RMD)	8-97126-079-0	01	1	9505-9608	●
128	PIPE; EXH,RR A/T AISIN(RMD)	8-97165-820-0	01	1	9609-	●
128	PIPE; EXH,RR	8-97047-559-0	01	1	9112-9208	●	●
128	PIPE; EXH,RR	8-97047-559-0	01	1	9209-9307	●
128	PIPE; EXH,RR	8-97070-150-0	01	1	9209-9608		●
128	PIPE; EXH,RR	8-97165-819-1	01	1	9609-		●
143	RUBBER; SUPPORT	8-97021-581-0	01	1	9112-9301	●	●
143	RUBBER; SUPPORT	8-97080-694-0	01	1	9302-	●	●
169	RING; DAMPER,EXH PIPE	8-97021-581-0	01	1	9209-9301	●	●
169	RING; DAMPER,EXH PIPE	8-97080-694-0	01	1	9302-	●	●
169	RING; DAMPER,EXH PIPE LONG(UB***F) T=28 55X44(OVAL)	8-94332-331-0	02	1	9112-9301	●	●
221	CLAMP; EXH SILENCER	8-97021-581-0	01	1	9112-9301	●	●
221	CLAMP; EXH SILENCER	8-97080-694-0	01	1	9302-	●	●
335	RUBBER; SUPPORT,SILENCER	8-97038-816-1	01	1	9112-9301	●
335	RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	9302-	●	●
335	RUBBER; SUPPORT,SILENCER	8-97023-883-0	01	1	9112-9301		●
337	BOLT; RUBBER,SUPPORT SHORT(UB***C) M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204	●	●
337	BOLT; RUBBER,SUPPORT SHORT(UB***C) M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410	●	●
337	BOLT; RUBBER,SUPPORT SHORT(UB***C) M8X20 FLANGE	0-28680-820-0	02	1	9411-	●	●
340	NUT; RUBBER,SUPPORT M8 FLANGE	0-91150-108-0	04	1	9112-	●	●

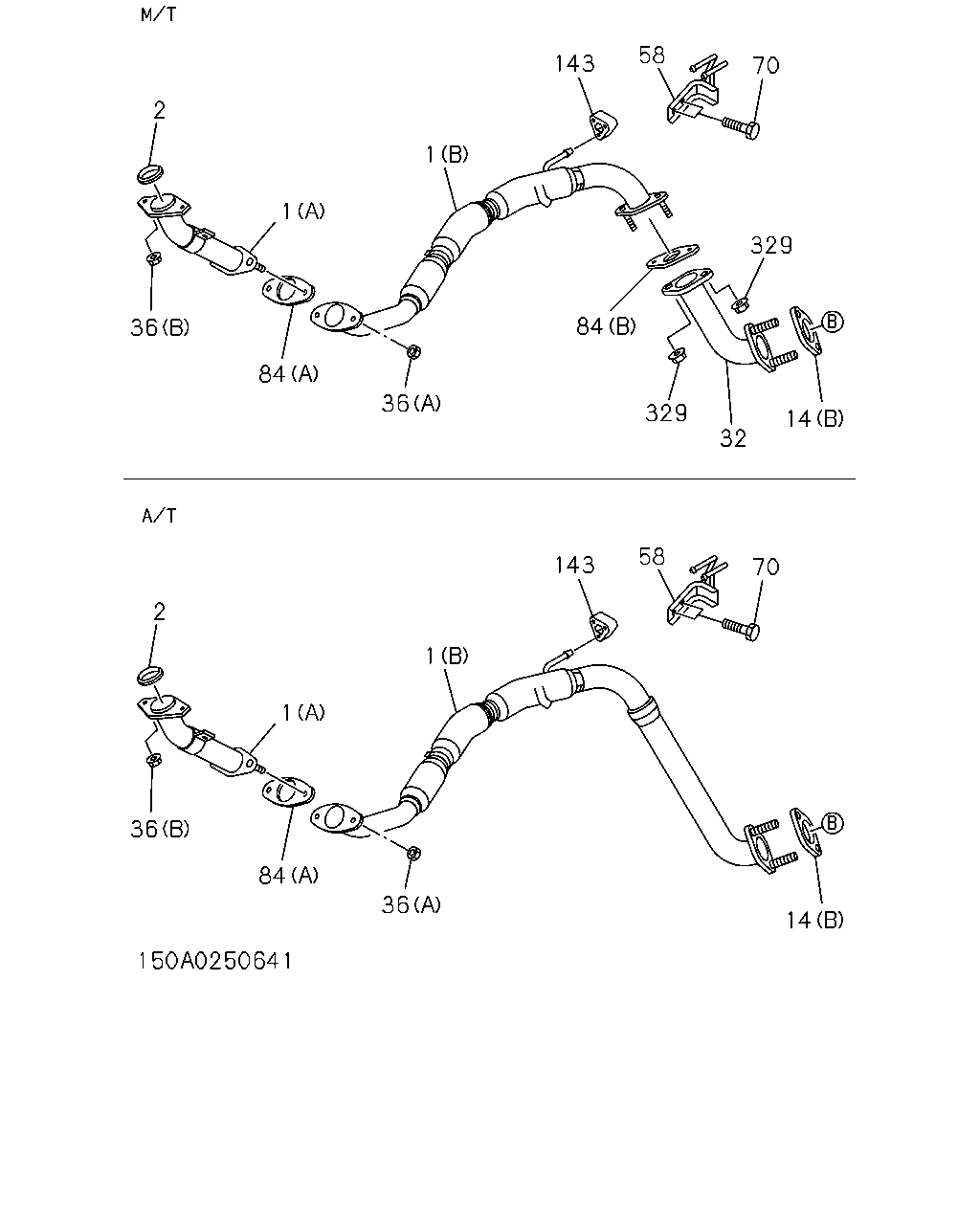

2 36 84 36 1 1 143 58 70 329 84 329 32 14 143 58 70 14 36 84 36 2 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (A)	8-97037-890-1	01	1	9112-9307	●
1	PIPE; EXH (A)	8-97037-890-1	01	1	9308-9504	●
1	PIPE; EXH (A)	8-97114-606-0	01	1	9505-	●
1	PIPE; EXH (B)	8-97043-596-4	01	1	9112-9504	●
1	PIPE; EXH A/T AISIN(RMD) ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97114-608-3	01	1	9505-	●
1	PIPE; EXH A/T AISIN(RMD) EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97114-609-2	01	1	9505-	●
1	PIPE; EXH M/T MUA 5 SPEED(RMN) (B)	8-97126-884-1	01	1	9505-	●
1	PIPE; EXH	8-97030-276-1	01	1	9112-9301		●
1	PIPE; EXH	8-97093-319-1	01	1	9302-9510		●
1	PIPE; EXH	8-97127-477-1	01	1	9511-		●
1	PIPE; EXH A/T THM(RMQ)	8-97030-280-1	01	1	9112-9301		●
1	PIPE; EXH A/T THM(RMQ)	8-97093-322-1	01	1	9302-9510		●
1	PIPE; EXH A/T THM(RMQ)	8-97127-479-1	01	1	9511-		●
1	PIPE; EXH M/T MUA 5 SPEED(RMN)	8-97030-277-1	01	1	9112-9301		●
1	PIPE; EXH M/T MUA 5 SPEED(RMN)	8-97093-321-1	01	1	9302-9510		●
1	PIPE; EXH M/T MUA 5 SPEED(RMN)	8-97127-478-1	01	1	9511-		●
2	GASKET; PIPE TO MANIF	8-94329-529-0	01	1	9112-9112	●
2	GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9201-	●
2	GASKET; PIPE TO MANIF	8-94329-529-0	02	1	9112-9112		●
2	GASKET; PIPE TO MANIF	8-97069-287-0	02	1	9201-9510		●
2	GASKET; PIPE TO MANIF	8-97102-031-1	02	1	9511-		●
14	GASKET; SILENCER TO EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9301	●
14	GASKET; SILENCER TO EXH PIPE (A) ID=55	8-97093-574-0	02	1	9302-9504	●
14	GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=64.7	8-94328-352-0	02	1	9505-	●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9112-9504	●	●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9505-	●	●
14	GASKET; SILENCER TO EXH PIPE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=64.7	8-94328-352-0	01	1	9505-	●
14	GASKET; SILENCER TO EXH PIPE A/T AISIN(RMD) (B) ID=64.7	8-94328-352-0	01	1	9505-	●
32	PIPE; EXH,FRT M/T MUA 5 SPEED(RMN)	8-97126-887-0	01	1	9505-	●
36	NUT; EXH PIPE (B) M10 LOCK NUT	8-94375-110-0	02	1	9112-9305	●
36	NUT; EXH PIPE (A) M10 FLANGE	0-91150-110-0	02	1	9112-	●
36	NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	02	1	9306-	●
36	NUT; EXH PIPE (A) M10 FLANGE	0-91150-110-0	04	1	9112-		●
36	NUT; EXH PIPE (B) M10 LOCK NUT	8-94375-110-0	04	1	9112-9305		●
36	NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	04	1	9306-9510		●
36	NUT; EXH PIPE (B) M12 LK W/FLANGE	8-97102-030-0	06	1	9511-9702		●
36	NUT; EXH PIPE (B) M12 FLANGE	8-97170-524-1	06	1	9703-		●
58	BRACKET; EXH PIPE,RR	8-97043-727-1	01	1	9112-9605	●
70	BOLT; BRKT M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204	●
70	BOLT; BRKT M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410	●
70	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9411-9605	●
84	GASKET; EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9112-9301	●
84	GASKET; EXH PIPE (A) ID=55	8-97093-574-0	01	1	9302-9307	●
84	GASKET; EXH PIPE (A) ID=55	8-97093-574-0	01	1	9308-	●
84	GASKET; EXH PIPE M/T MUA 5 SPEED(RMN) (B) ID=64.7	8-94328-352-0	01	1	9505-	●
84	GASKET; EXH PIPE ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9301		●
84	GASKET; EXH PIPE ID=55	8-97093-574-0	02	1	9302-		●
143	RUBBER; SUPPORT	8-97021-581-0	01	1	9112-9301	●	●
143	RUBBER; SUPPORT	8-97080-694-0	01	1	9302-	●	●
329	NUT; EXH PIPE TO PIPE M/T MUA 5 SPEED(RMN) M10 FLANGE	0-91150-110-0	02	1	9505-	●

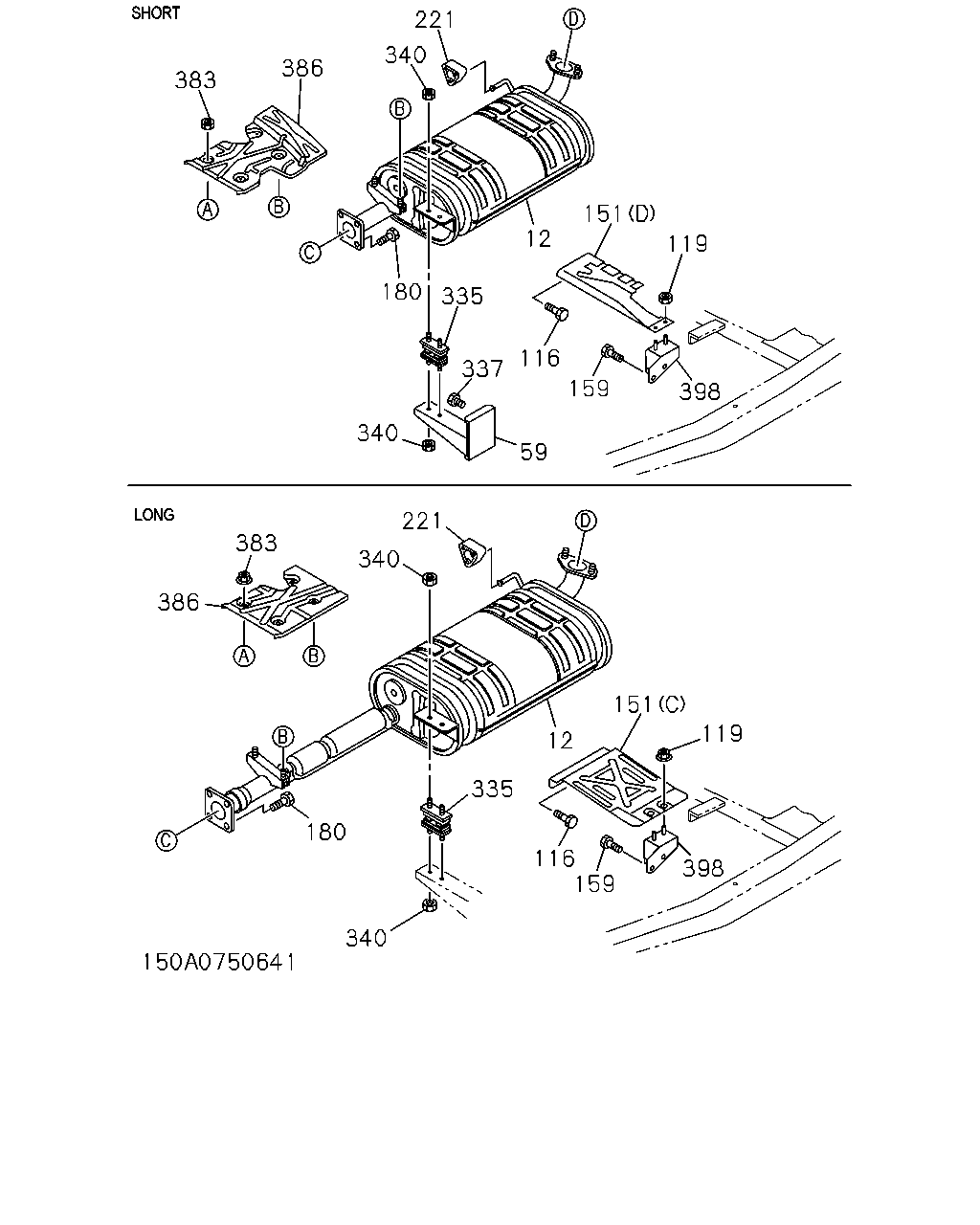

340 169 335 337 59 12 340 169 340 12 335 340 41 14 14 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH SHORT(UB***C)	8-97043-595-5	01	1	9112-9301	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97092-582-1	01	1	9302-9504	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97114-611-1	01	1	9505-9508	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97133-911-0	01	1	9509-9608	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97165-833-0	01	1	9609-	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97043-594-5	01	1	9112-9301	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97092-580-1	01	1	9302-9504	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97114-610-1	01	1	9505-9508	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97133-910-0	01	1	9509-9608	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97165-834-0	01	1	9609-	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97047-911-3	01	1	9112-9208		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97070-148-1	01	1	9209-9301		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97092-578-1	01	1	9302-9508		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97130-507-0	01	1	9509-9608		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97165-829-0	01	1	9609-		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97047-913-3	01	1	9112-9208		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97070-146-1	01	1	9209-9301		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97092-575-2	01	1	9302-9508		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97130-505-0	01	1	9509-9608		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97165-830-0	01	1	9609-		●
14	GASKET; SILENCER TO EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9301	●
14	GASKET; SILENCER TO EXH PIPE (A) ID=55	8-97093-574-0	02	1	9302-9504	●
14	GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=64.7	8-94328-352-0	02	1	9505-	●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9112-9504	●	●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9505-	●	●
14	GASKET; SILENCER TO EXH PIPE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=64.7	8-94328-352-0	01	1	9505-	●
14	GASKET; SILENCER TO EXH PIPE A/T AISIN(RMD) (B) ID=64.7	8-94328-352-0	01	1	9505-	●
41	NUT; EXH PIPE TO EXH SILENCER M10 FLANGE	0-91150-110-0	02	1	9112-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M10 FLANGE	0-91150-110-0	02	1	9112-	●
59	BRACKET; EXH SILENCER,FRT SHORT(UB***C)	8-97043-723-1	01	1	9112-	●	●
169	RING; DAMPER,EXH PIPE	8-97021-581-0	01	1	9209-9301	●	●
169	RING; DAMPER,EXH PIPE	8-97080-694-0	01	1	9302-	●	●
169	RING; DAMPER,EXH PIPE LONG(UB***F) T=28 55X44(OVAL)	8-94332-331-0	02	1	9112-9301	●	●
335	RUBBER; SUPPORT,SILENCER	8-97038-816-1	01	1	9112-9301	●
335	RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	9302-	●	●
335	RUBBER; SUPPORT,SILENCER	8-97023-883-0	01	1	9112-9301		●
337	BOLT; RUBBER,SUPPORT SHORT(UB***C) M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204	●	●
337	BOLT; RUBBER,SUPPORT SHORT(UB***C) M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410	●	●
337	BOLT; RUBBER,SUPPORT SHORT(UB***C) M8X20 FLANGE	0-28680-820-0	02	1	9411-	●	●
340	NUT; RUBBER,SUPPORT M8 FLANGE	0-91150-108-0	04	1	9112-	●	●

36 212 43 212 43 1 2 2 17 84 36 188 143 180 3 36 84 36 43 212 43 212 495 1 181 178 251 180 178 211 175 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (A)	8-97037-890-1	01	1	9112-9307	●
1	PIPE; EXH (A)	8-97037-890-1	01	1	9308-9504	●
1	PIPE; EXH (A)	8-97114-606-0	01	1	9505-	●
1	PIPE; EXH (B)	8-97043-596-4	01	1	9112-9504	●
1	PIPE; EXH A/T AISIN(RMD) ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97114-608-3	01	1	9505-	●
1	PIPE; EXH A/T AISIN(RMD) EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97114-609-2	01	1	9505-	●
1	PIPE; EXH M/T MUA 5 SPEED(RMN) (B)	8-97126-884-1	01	1	9505-	●
1	PIPE; EXH	8-97030-276-1	01	1	9112-9301		●
1	PIPE; EXH	8-97093-319-1	01	1	9302-9510		●
1	PIPE; EXH	8-97127-477-1	01	1	9511-		●
1	PIPE; EXH A/T THM(RMQ)	8-97030-280-1	01	1	9112-9301		●
1	PIPE; EXH A/T THM(RMQ)	8-97093-322-1	01	1	9302-9510		●
1	PIPE; EXH A/T THM(RMQ)	8-97127-479-1	01	1	9511-		●
1	PIPE; EXH M/T MUA 5 SPEED(RMN)	8-97030-277-1	01	1	9112-9301		●
1	PIPE; EXH M/T MUA 5 SPEED(RMN)	8-97093-321-1	01	1	9302-9510		●
1	PIPE; EXH M/T MUA 5 SPEED(RMN)	8-97127-478-1	01	1	9511-		●
2	GASKET; PIPE TO MANIF	8-94329-529-0	01	1	9112-9112	●
2	GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9201-	●
2	GASKET; PIPE TO MANIF	8-94329-529-0	02	1	9112-9112		●
2	GASKET; PIPE TO MANIF	8-97069-287-0	02	1	9201-9510		●
2	GASKET; PIPE TO MANIF	8-97102-031-1	02	1	9511-		●
3	PIPE; EXH,CENTER A/T THM(RMQ)	8-97048-577-0	01	1	9112-9301		●
3	PIPE; EXH,CENTER A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA>	8-97093-325-0	01	1	9302-		●
3	PIPE; EXH,CENTER A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA>	8-97111-395-0	01	1	9505-		●
3	PIPE; EXH,CENTER M/T MUA 5 SPEED(RMN)	8-97048-579-3	01	1	9112-9301		●
3	PIPE; EXH,CENTER M/T MUA 5 SPEED(RMN)	8-97093-323-0	01	1	9302-		●
17	BOLT; EXH PIPE A/T THM(RMQ) M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9112-9301		●
17	BOLT; EXH PIPE A/T THM(RMQ) M10X35 FLANGE	0-28081-035-0	04	1	9302-9410		●
17	BOLT; EXH PIPE A/T THM(RMQ) M10X40 FLANGE	0-28681-040-0	04	1	9411-		●
17	BOLT; EXH PIPE M/T MUA 5 SPEED(RMN) M10X30 W/LK&PL WASHER	0-50141-030-0	03	1	9112-9301		●
17	BOLT; EXH PIPE M/T MUA 5 SPEED(RMN) M10X35 FLANGE	0-28081-035-0	03	1	9302-9410		●
17	BOLT; EXH PIPE M/T MUA 5 SPEED(RMN) M10X40 FLANGE	0-28681-040-0	03	1	9411-		●
36	NUT; EXH PIPE (B) M10 LOCK NUT	8-94375-110-0	02	1	9112-9305	●
36	NUT; EXH PIPE (A) M10 FLANGE	0-91150-110-0	02	1	9112-	●
36	NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	02	1	9306-	●
36	NUT; EXH PIPE (A) M10 FLANGE	0-91150-110-0	04	1	9112-		●
36	NUT; EXH PIPE (B) M10 LOCK NUT	8-94375-110-0	04	1	9112-9305		●
36	NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	04	1	9306-9510		●
36	NUT; EXH PIPE (B) M12 LK W/FLANGE	8-97102-030-0	06	1	9511-9702		●
36	NUT; EXH PIPE (B) M12 FLANGE	8-97170-524-1	06	1	9703-		●
43	CLAMP; EXH PIPE	8-94472-880-0	02	1	9511-		●
43	CLAMP; EXH PIPE M/T MUA 5 SPEED(RMN),A/T THM(RMQ)	8-94472-880-0	02	1	9511-		●
84	GASKET; EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9112-9301	●
84	GASKET; EXH PIPE (A) ID=55	8-97093-574-0	01	1	9302-9307	●
84	GASKET; EXH PIPE (A) ID=55	8-97093-574-0	01	1	9308-	●
84	GASKET; EXH PIPE M/T MUA 5 SPEED(RMN) (B) ID=64.7	8-94328-352-0	01	1	9505-	●
84	GASKET; EXH PIPE ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9301		●
84	GASKET; EXH PIPE ID=55	8-97093-574-0	02	1	9302-		●
143	RUBBER; SUPPORT	8-97021-581-0	01	1	9112-9301	●	●
143	RUBBER; SUPPORT	8-97080-694-0	01	1	9302-	●	●
175	CONVERTER; CATALYST	8-97018-418-3	01	1	9112-		●
178	GASKET; CONV TO MANIF ID=71	8-94324-194-0	02	1	9112-		●
179	NUT; CONV TO PIPE M10	8-94201-308-1	04	1	9112-		●
180	BOLT; CONV TO PIPE	0-28211-040-0	08	1	9112-9204		●
180	BOLT; CONV TO PIPE M10X40	0-28281-040-0	08	1	9205-9410		●
180	BOLT; CONV TO PIPE M10X40 FLANGE	0-28681-040-0	08	1	9411-9510		●
180	BOLT; CONV TO PIPE M10X40 FLANGE	0-28681-040-0	04	1	9511-		●
181	SENSOR; THERMO	8-97039-005-2	01	1	9112-		●
188	CLIP; OXYGEN SENSOR L=140	5-09707-031-0	01	1	9112-		●
211	NUT; CONV M10	8-94201-308-1	02	1	9112-		●
212	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	9511-		●
212	BOLT; BRKT M/T MUA 5 SPEED(RMN),A/T THM(RMQ) M6X16 FLANGE	0-28680-616-0	02	1	9511-		●
251	BRACKET; HEAT PROTECTOR	8-97044-896-3	01	1	9112-		●
495	BRACKET; THERMO SENSOR	8-97039-006-3	01	1	9112-		●

221 340 386 383 180 335 337 340 59 159 116 12 151 119 398 221 340 383 386 180 340 335 12 151 119 398 159 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH SHORT(UB***C)	8-97043-595-5	01	1	9112-9301	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97092-582-1	01	1	9302-9504	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97114-611-1	01	1	9505-9508	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97133-911-0	01	1	9509-9608	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97165-833-0	01	1	9609-	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97043-594-5	01	1	9112-9301	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97092-580-1	01	1	9302-9504	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97114-610-1	01	1	9505-9508	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97133-910-0	01	1	9509-9608	●
12	SILENCER ASM; EXH LONG(UB***F)	8-97165-834-0	01	1	9609-	●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97047-911-3	01	1	9112-9208		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97070-148-1	01	1	9209-9301		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97092-578-1	01	1	9302-9508		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97130-507-0	01	1	9509-9608		●
12	SILENCER ASM; EXH SHORT(UB***C)	8-97165-829-0	01	1	9609-		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97047-913-3	01	1	9112-9208		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97070-146-1	01	1	9209-9301		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97092-575-2	01	1	9302-9508		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97130-505-0	01	1	9509-9608		●
12	SILENCER ASM; EXH LONG(UB***F)	8-97165-830-0	01	1	9609-		●
59	BRACKET; EXH SILENCER,FRT SHORT(UB***C)	8-97043-723-1	01	1	9112-	●	●
116	BOLT; BRKT CATALYSIS CONTROL<6MZ> M6X16	0-28010-616-0	02	1	9112-9204		●
116	BOLT; BRKT CATALYSIS CONTROL<6MZ> M6X16 FLANGE	0-28080-616-0	02	1	9205-9504		●
116	BOLT; BRKT M6X16 FLANGE	0-28080-616-0	02	1	9505-9511		●
116	BOLT; BRKT 951113- M6X16 FLANGE	0-28080-616-0	01	1	9511-		●
119	NUT; BRKT CATALYSIS CONTROL<6MZ> M6 FLANGE	0-91150-106-0	02	1	9112-9504		●
119	NUT; BRKT M6 FLANGE	0-91150-106-0	02	1	9505-		●
151	PROTECTOR; HEAT,EXH PIPE A/T THM(RMQ) (A)	8-97018-375-2	01	1	9112-		●
151	PROTECTOR; HEAT,EXH PIPE M/T MUA 5 SPEED(RMN) (B)	8-97018-374-1	01	1	9112-		●
151	PROTECTOR; HEAT,EXH PIPE SHORT(UB***C) (D)	8-97047-568-3	01	1	9112-		●
151	PROTECTOR; HEAT,EXH PIPE LONG(UB***F) (C)	8-97047-569-1	01	1	9112-		●
159	BOLT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204		●
159	BOLT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410		●
159	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	9411-		●
159	BOLT; HEAT PROTECTOR A/T THM(RMQ) M10X25	8-94492-949-0	03	1	9112-9310		●
159	BOLT; HEAT PROTECTOR A/T THM(RMQ) M10X28 W/LK&PL WASHER	8-97104-788-0	03	1	9311-		●
159	BOLT; HEAT PROTECTOR M/T MUA 5 SPEED(RMN) M10X25	8-94492-949-0	02	1	9112-9310		●
159	BOLT; HEAT PROTECTOR M/T MUA 5 SPEED(RMN) M10X28 W/LK&PL WASHER	8-97104-788-0	02	1	9311-		●
180	BOLT; CONV TO PIPE	0-28211-040-0	08	1	9112-9204		●
180	BOLT; CONV TO PIPE M10X40	0-28281-040-0	08	1	9205-9410		●
180	BOLT; CONV TO PIPE M10X40 FLANGE	0-28681-040-0	08	1	9411-9510		●
180	BOLT; CONV TO PIPE M10X40 FLANGE	0-28681-040-0	04	1	9511-		●
221	CLAMP; EXH SILENCER	8-97021-581-0	01	1	9112-9301	●	●
221	CLAMP; EXH SILENCER	8-97080-694-0	01	1	9302-	●	●
335	RUBBER; SUPPORT,SILENCER	8-97038-816-1	01	1	9112-9301	●
335	RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	9302-	●	●
335	RUBBER; SUPPORT,SILENCER	8-97023-883-0	01	1	9112-9301		●
337	BOLT; RUBBER,SUPPORT SHORT(UB***C) M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204	●	●
337	BOLT; RUBBER,SUPPORT SHORT(UB***C) M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410	●	●
337	BOLT; RUBBER,SUPPORT SHORT(UB***C) M8X20 FLANGE	0-28680-820-0	02	1	9411-	●	●
340	NUT; RUBBER,SUPPORT M8 FLANGE	0-91150-108-0	04	1	9112-	●	●
383	NUT; PROTECTOR M6 FLANGE	0-91150-106-0	04	1	9112-		●
386	PANEL; HEAT PROTECTOR SHORT(UB***C)	8-97063-965-1	01	1	9112-9601		●
386	PANEL; HEAT PROTECTOR SHORT(UB***C)	8-97134-610-0	01	1	9602-		●
386	PANEL; HEAT PROTECTOR LONG(UB***F) CATALYSIS CONTROL<6MZ>	8-97063-966-1	01	1	9112-9504		●
386	PANEL; HEAT PROTECTOR LONG(UB***F)	8-97063-966-1	01	1	9505-9601		●
386	PANEL; HEAT PROTECTOR LONG(UB***F)	8-97134-609-0	01	1	9602-		●
398	BRACKET; HEAT PROTECTOR SHORT(UB***C) CATALYSIS CONTROL<6MZ>	8-97065-926-0	01	1	9112-9504		●
398	BRACKET; HEAT PROTECTOR SHORT(UB***C)	8-97065-926-0	01	1	9505-		●
398	BRACKET; HEAT PROTECTOR LONG(UB***F) CATALYSIS CONTROL<6MZ>	8-97065-927-0	01	1	9112-9504		●
398	BRACKET; HEAT PROTECTOR LONG(UB***F)	8-97065-927-0	01	1	9505-		●

151 151 159 159 169 128 41 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	GASKET; SILENCER TO EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9301	●
14	GASKET; SILENCER TO EXH PIPE (A) ID=55	8-97093-574-0	02	1	9302-9504	●
14	GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=64.7	8-94328-352-0	02	1	9505-	●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9112-9504	●	●
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9505-	●	●
14	GASKET; SILENCER TO EXH PIPE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=64.7	8-94328-352-0	01	1	9505-	●
14	GASKET; SILENCER TO EXH PIPE A/T AISIN(RMD) (B) ID=64.7	8-94328-352-0	01	1	9505-	●
41	NUT; EXH PIPE TO EXH SILENCER M10 FLANGE	0-91150-110-0	02	1	9112-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M10 FLANGE	0-91150-110-0	02	1	9112-	●
128	PIPE; EXH,RR	8-97047-559-0	01	1	9308-9504	●
128	PIPE; EXH,RR M/T MUA 5 SPEED(RMN)	8-97131-338-1	01	1	9505-9608	●
128	PIPE; EXH,RR M/T MUA 5 SPEED(RMN)	8-97165-817-0	01	1	9609-	●
128	PIPE; EXH,RR A/T AISIN(RMD)	8-97126-079-0	01	1	9505-9608	●
128	PIPE; EXH,RR A/T AISIN(RMD)	8-97165-820-0	01	1	9609-	●
128	PIPE; EXH,RR	8-97047-559-0	01	1	9112-9208	●	●
128	PIPE; EXH,RR	8-97047-559-0	01	1	9209-9307	●
128	PIPE; EXH,RR	8-97070-150-0	01	1	9209-9608		●
128	PIPE; EXH,RR	8-97165-819-1	01	1	9609-		●
151	PROTECTOR; HEAT,EXH PIPE A/T THM(RMQ) (A)	8-97018-375-2	01	1	9112-		●
151	PROTECTOR; HEAT,EXH PIPE M/T MUA 5 SPEED(RMN) (B)	8-97018-374-1	01	1	9112-		●
151	PROTECTOR; HEAT,EXH PIPE SHORT(UB***C) (D)	8-97047-568-3	01	1	9112-		●
151	PROTECTOR; HEAT,EXH PIPE LONG(UB***F) (C)	8-97047-569-1	01	1	9112-		●
159	BOLT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204		●
159	BOLT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410		●
159	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	9411-		●
159	BOLT; HEAT PROTECTOR A/T THM(RMQ) M10X25	8-94492-949-0	03	1	9112-9310		●
159	BOLT; HEAT PROTECTOR A/T THM(RMQ) M10X28 W/LK&PL WASHER	8-97104-788-0	03	1	9311-		●
159	BOLT; HEAT PROTECTOR M/T MUA 5 SPEED(RMN) M10X25	8-94492-949-0	02	1	9112-9310		●
159	BOLT; HEAT PROTECTOR M/T MUA 5 SPEED(RMN) M10X28 W/LK&PL WASHER	8-97104-788-0	02	1	9311-		●
169	RING; DAMPER,EXH PIPE	8-97021-581-0	01	1	9209-9301	●	●
169	RING; DAMPER,EXH PIPE	8-97080-694-0	01	1	9302-	●	●
169	RING; DAMPER,EXH PIPE LONG(UB***F) T=28 55X44(OVAL)	8-94332-331-0	02	1	9112-9301	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
