Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#166872) — 291 parça

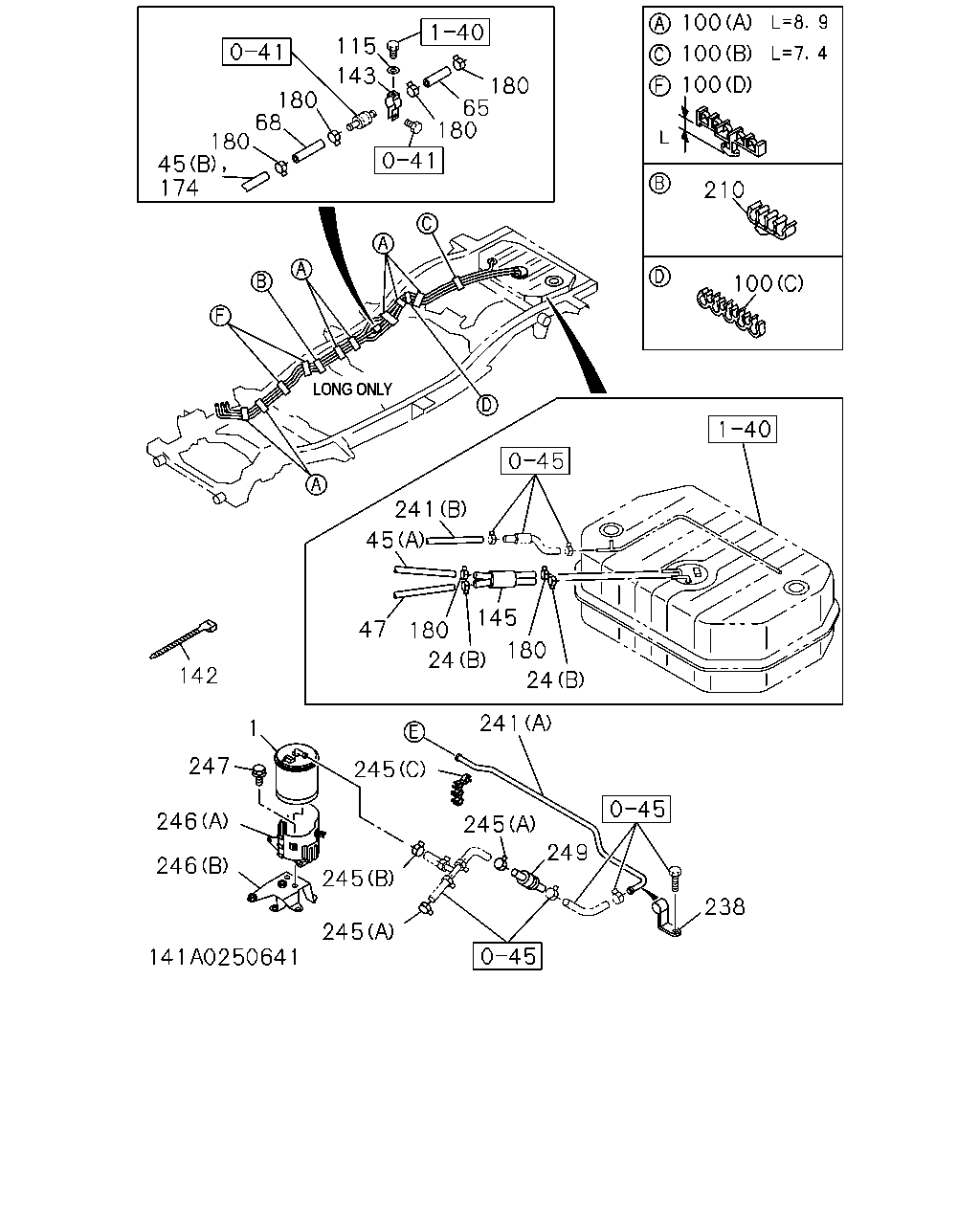

174 45 180 68 180 143 115 180 65 180 142 247 1 246 246 245 245 245 245 241 249 238 47 180 24 145 180 24 241 45 100 100 100 210 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CANISTER; FUEL	8-17087-023-0	01	1	9112-	●
24	CLIP; FUEL HOSE (E) ID=14.2	8-97087-056-0	02	1	9511-		●
24	CLIP; FUEL HOSE (C) ID=12 WO/PVC COATING	8-94123-526-0	02	1	9511-9704	●
24	CLIP; FUEL HOSE (C) ID=12	8-97148-892-0	02	1	9705-	●
24	CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (F) L=212	8-94107-652-0	01	1	9511-9605	●
24	CLIP; FUEL HOSE (F) L=212	8-94107-652-0	01	1	9606-	●
24	CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3>	8-97019-746-0	02	1	9511-9605	●
24	CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (D)	8-97019-746-0	01	1	9511-9605	●
24	CLIP; FUEL HOSE (D)	8-97019-746-0	01	1	9606-	●
24	CLIP; FUEL HOSE (A) ID=14	8-94238-572-0	02	1	9112-9510		●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	04	1	9112-9510	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9511-9511	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9511-9511		●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9512-9605	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9512-9605		●
24	CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> (B) ID=13	8-94238-571-0	02	1	9512-9605	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9606-9704	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9606-9704		●
24	CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	02	1	9705-	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	02	1	9705-		●
24	CLIP; FUEL HOSE (C) ID=12 WO/PVC COATING	8-94123-526-0	02	1	9112-9510	●
24	CLIP; FUEL HOSE (A) ID=11.5	8-97138-011-0	02	1	9511-9511	●
24	CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (A) ID=11.5	8-97138-011-0	02	1	9512-9605	●
24	CLIP; FUEL HOSE (A) ID=11.5	8-97138-011-0	02	1	9606-	●
24	CLIP; FUEL HOSE (D)	8-97063-401-0	02	1	9112-9501	●
24	CLIP; FUEL HOSE (D)	8-97019-746-0	02	1	9502-9510	●
45	PIPE; FUEL,DELIVERY SHORT(UB***C)	8-94374-834-1	01	1	9112-9510		●
45	PIPE; FUEL,DELIVERY SHORT(UB***C)	8-97133-265-1	01	1	9511-		●
45	PIPE; FUEL,DELIVERY LONG(UB***F)	8-94374-835-1	01	1	9112-9410		●
45	PIPE; FUEL,DELIVERY LONG(UB***F)	8-97114-237-0	01	1	9411-9510		●
45	PIPE; FUEL,DELIVERY LONG(UB***F)	8-97133-266-1	01	1	9511-		●
45	PIPE; FUEL,DELIVERY (A)	8-94374-833-1	01	1	9112-9506	●
45	PIPE; FUEL,DELIVERY (A)	8-97109-897-1	01	1	9507-	●
45	PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97083-096-0	01	1	9209-9504	●
45	PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97083-096-0	01	1	9505-9510	●
45	PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97122-277-2	01	1	9511-	●
45	PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-94374-832-1	01	1	9209-9504	●
45	PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-94374-832-1	01	1	9505-9505	●
45	PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97113-024-0	01	1	9506-9510	●
45	PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97122-278-2	01	1	9511-	●
47	PIPE; FUEL,RETURN SHORT(UB***C)	8-94374-838-2	01	1	9112-9510		●
47	PIPE; FUEL,RETURN SHORT(UB***C)	8-97133-267-1	01	1	9511-		●
47	PIPE; FUEL,RETURN LONG(UB***F)	8-94374-839-2	01	1	9112-9410		●
47	PIPE; FUEL,RETURN LONG(UB***F)	8-97113-028-0	01	1	9411-9510		●
47	PIPE; FUEL,RETURN LONG(UB***F)	8-97133-268-1	01	1	9511-		●
47	PIPE; FUEL,RETURN SHORT(UB***C)	8-94375-529-1	01	1	9112-9506	●
47	PIPE; FUEL,RETURN SHORT(UB***C)	8-97113-030-0	01	1	9507-9510	●
47	PIPE; FUEL,RETURN SHORT(UB***C)	8-97122-279-2	01	1	9511-	●
47	PIPE; FUEL,RETURN LONG(UB***F)	8-94375-530-2	01	1	9112-9506	●
47	PIPE; FUEL,RETURN LONG(UB***F)	8-97113-031-0	01	1	9507-9510	●
47	PIPE; FUEL,RETURN LONG(UB***F)	8-97122-280-2	01	1	9511-	●
65	HOSE; FUEL,DELIVERY PIPE L=100 SERVICED BY L=3000	0-01458-300-0	01	1	9112-	●
68	HOSE; FUEL,FILTER TO PIPE SHORT(UB***C) L=110 SERVICED BY L=3000	0-01458-300-0	01	1	9112-9206	●
68	HOSE; FUEL,FILTER TO PIPE SHORT(UB***C) L=100 SERVICED BY L=3000	0-01458-300-0	01	1	9207-	●
68	HOSE; FUEL,FILTER TO PIPE LONG(UB***F) L=170 SERVICED BY L=3000	0-01458-300-0	01	1	9112-9505	●
68	HOSE; FUEL,FILTER TO PIPE LONG(UB***F) L=150 SERVICED BY L=3000	0-01458-300-0	01	1	9506-	●
100	CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	07	1	9505-9510	●	●
100	CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	07	1	9511-		●
100	CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	07	1	9511-	●
100	CLIP; FUEL PIPE LONG(UB***F) (D) L=8.9	8-94435-551-1	09	1	9511-		●
100	CLIP; FUEL PIPE (B) L=7.4	8-94435-550-0	01	1	9112-	●	●
100	CLIP; FUEL PIPE (C)	8-97073-935-0	01	1	9201-	●	●
100	CLIP; FUEL PIPE (D) L=8.9	8-97137-467-0	02	1	9511-	●
100	CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	08	1	9112-9307		●
100	CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	10	1	9112-9504		●
100	CLIP; FUEL PIPE (C)	8-97073-935-0	02	1	9505-9511		●
100	CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	07	1	9112-9504	●
100	CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	09	1	9505-9510	●	●
100	CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	05	1	9511-	●
100	CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	09	1	9112-9504	●
115	WASHER; PL,CLIP ID=6.4 OD=22	9-09164-806-0	01	1	9112-	●
142	CLIP; BAND,FUEL HOSE L=250	5-09707-030-0	01	1	9112-		●
142	CLIP; BAND,FUEL HOSE L=170	5-09707-054-0	01	1	9303-9508	●
143	CLAMP; FUEL FILTER	8-97049-810-1	01	1	9112-	●
145	HOSE; FUEL TANK TO RETURN PIPE	8-97018-368-0	01	1	9112-		●
145	HOSE; FUEL TANK TO RETURN PIPE	8-97018-367-2	01	1	9112-9506	●
145	HOSE; FUEL TANK TO RETURN PIPE	8-97109-841-0	01	1	9507-	●
174	PIPE; FUEL,FEED,FRT SHORT(UB***C)	8-94374-831-0	01	1	9112-9206	●
174	PIPE; FUEL,FEED,FRT SHORT(UB***C)	8-97083-096-0	01	1	9207-9208	●
174	PIPE; FUEL,FEED,FRT LONG(UB***F)	8-94374-832-1	01	1	9112-9208	●
180	CLIP; DELIVERY & RETURN ID=14	8-94238-572-0	02	1	9112-9704		●
180	CLIP; DELIVERY & RETURN ID=14	8-97173-221-0	02	1	9705-		●
180	CLIP; DELIVERY & RETURN ID=12 WO/PVC COATING	8-94123-526-0	06	1	9112-9704	●
180	CLIP; DELIVERY & RETURN ID=12	8-97148-892-0	06	1	9705-	●
210	CLIP; FEED PIPE	8-97069-378-0	01	1	9112-	●	●
238	CLIP; FUEL EVAP PIPE	8-97016-559-0	01	1	9112-	●
241	PIPE; EVAP SHORT(UB***C)	8-94374-842-2	01	1	9112-9510		●
241	PIPE; EVAP SHORT(UB***C)	8-97133-269-1	01	1	9511-		●
241	PIPE; EVAP LONG(UB***F)	8-94374-843-2	01	1	9112-9410		●
241	PIPE; EVAP LONG(UB***F)	8-97114-238-0	01	1	9411-9510		●
241	PIPE; EVAP LONG(UB***F)	8-97133-270-1	01	1	9511-		●
241	PIPE; EVAP (A)	8-94374-844-2	01	1	9112-9207	●
241	PIPE; EVAP (A)	8-97084-571-2	01	1	9208-	●
241	PIPE; EVAP SHORT(UB***C) (B)	8-94374-840-1	01	1	9112-9203	●
241	PIPE; EVAP SHORT(UB***C) (B)	8-97077-508-1	01	1	9204-9510	●
241	PIPE; EVAP SHORT(UB***C) (B)	8-97122-281-2	01	1	9511-	●
241	PIPE; EVAP LONG(UB***F) (B)	8-94374-841-2	01	1	9112-9203	●
241	PIPE; EVAP LONG(UB***F) (B)	8-97077-509-0	01	1	9204-9510	●
241	PIPE; EVAP LONG(UB***F) (B)	8-97122-282-2	01	1	9511-	●
245	CLIP; EVAP HOSE (A) ID=11	8-94238-570-0	02	1	9112-	●
245	CLIP; EVAP HOSE (B) ID=12	8-94238-610-0	01	1	9112-	●
245	CLIP; EVAP HOSE (C) ID=6.4 & 4.8 & 4.8 & 4.8	8-97035-565-2	01	1	9112-9504	●
245	CLIP; EVAP HOSE (C) ID=6.4 & 4.8 & 4.8 & 4.8	8-97035-565-2	01	1	9505-	●
246	BRACKET; CANISTER (B)	8-97049-112-0	01	1	9112-9203	●
246	BRACKET; CANISTER (B)	8-97077-359-0	01	1	9204-	●
246	BRACKET; CANISTER (A)	8-94375-329-2	01	1	9112-9203	●
246	BRACKET; CANISTER (A)	8-97077-358-0	01	1	9204-9307	●
246	BRACKET; CANISTER (A)	8-97089-947-0	01	1	9308-	●
247	BOLT; CANISTER BRKT M6X16 FLANGE	0-28080-616-0	02	1	9112-9203	●
247	BOLT; CANISTER BRKT M6X16 FLANGE	0-28080-616-0	06	1	9204-9208	●
247	BOLT; CANISTER BRKT M8X16 FLANGE	0-28080-816-0	02	1	9112-9203	●
247	BOLT; CANISTER BRKT AS-ROLLED END BOLT M6X16 FLANGE	0-28080-616-0	04	1	9209-	●
247	BOLT; CANISTER BRKT GROOVE DESTINATION BOLT M6X16 FLANGE	0-28480-616-0	02	1	9209-	●
249	VALVE; CONT,EVAP	8-94367-933-0	01	1	9112-		●
249	VALVE; CONT,EVAP	8-94151-559-1	01	1	9112-9307	●
249	VALVE; CONT,EVAP	8-97076-391-0	01	1	9308-	●

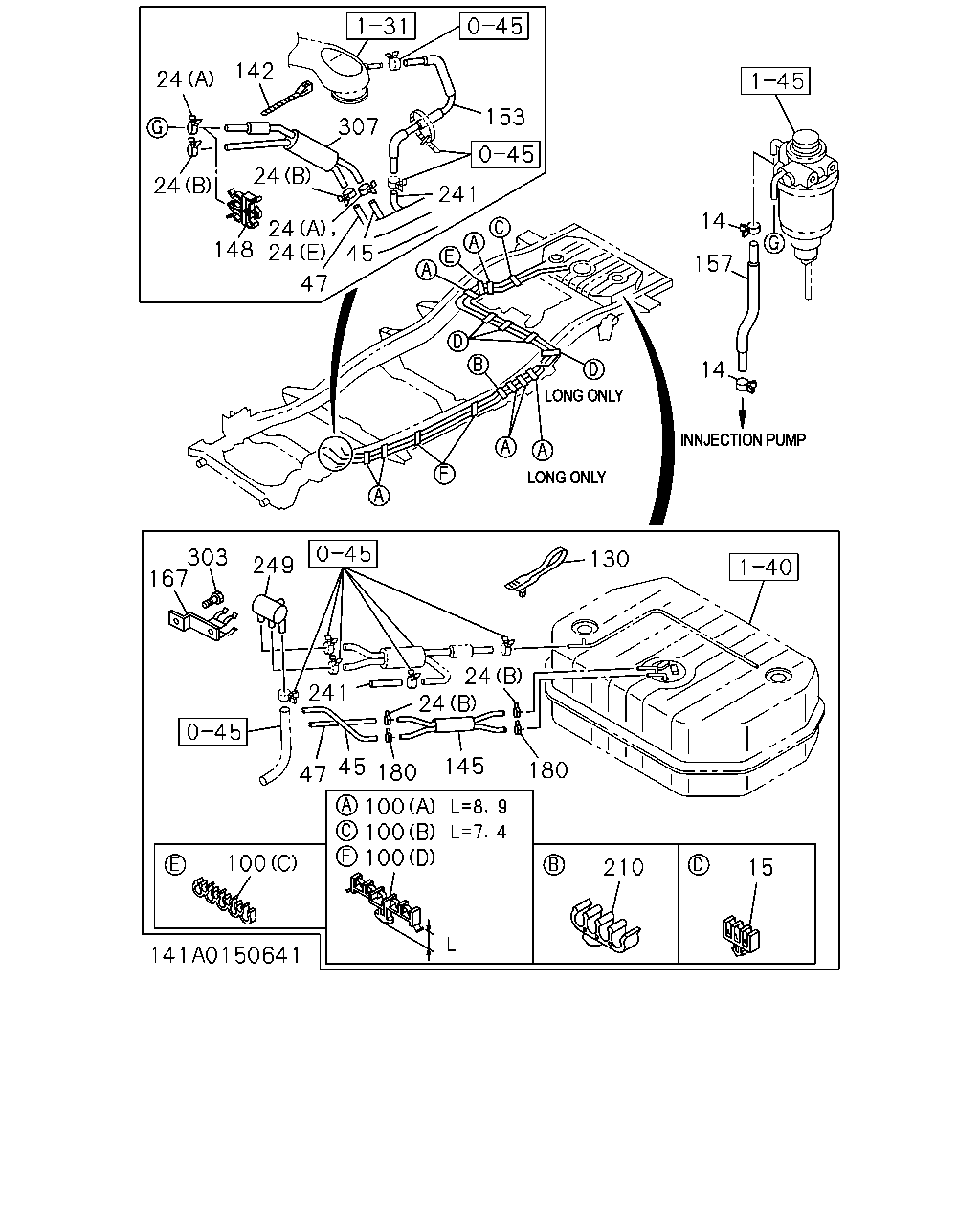

24 142 307 24 148 24 24 47 45 241 153 24 14 157 14 303 249 167 100 47 241 24 24 145 45 180 100 100 100 180 210 15 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; HOSE ID=14	8-94238-572-0	02	1	9112-9510		●
14	CLIP; HOSE ID=14.2	8-97087-056-0	02	1	9511-		●
15	CLIP; FUEL PIPE SHORT(UB***C)	8-97012-498-1	03	1	9112-		●
15	CLIP; FUEL PIPE LONG(UB***F)	8-97012-498-1	04	1	9112-		●
24	CLIP; FUEL HOSE (E) ID=14.2	8-97087-056-0	02	1	9511-		●
24	CLIP; FUEL HOSE (C) ID=12 WO/PVC COATING	8-94123-526-0	02	1	9511-9704	●
24	CLIP; FUEL HOSE (C) ID=12	8-97148-892-0	02	1	9705-	●
24	CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (F) L=212	8-94107-652-0	01	1	9511-9605	●
24	CLIP; FUEL HOSE (F) L=212	8-94107-652-0	01	1	9606-	●
24	CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3>	8-97019-746-0	02	1	9511-9605	●
24	CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (D)	8-97019-746-0	01	1	9511-9605	●
24	CLIP; FUEL HOSE (D)	8-97019-746-0	01	1	9606-	●
24	CLIP; FUEL HOSE (A) ID=14	8-94238-572-0	02	1	9112-9510		●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	04	1	9112-9510	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9511-9511	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9511-9511		●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9512-9605	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9512-9605		●
24	CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> (B) ID=13	8-94238-571-0	02	1	9512-9605	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9606-9704	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9606-9704		●
24	CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	02	1	9705-	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	02	1	9705-		●
24	CLIP; FUEL HOSE (C) ID=12 WO/PVC COATING	8-94123-526-0	02	1	9112-9510	●
24	CLIP; FUEL HOSE (A) ID=11.5	8-97138-011-0	02	1	9511-9511	●
24	CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (A) ID=11.5	8-97138-011-0	02	1	9512-9605	●
24	CLIP; FUEL HOSE (A) ID=11.5	8-97138-011-0	02	1	9606-	●
24	CLIP; FUEL HOSE (D)	8-97063-401-0	02	1	9112-9501	●
24	CLIP; FUEL HOSE (D)	8-97019-746-0	02	1	9502-9510	●
45	PIPE; FUEL,DELIVERY SHORT(UB***C)	8-94374-834-1	01	1	9112-9510		●
45	PIPE; FUEL,DELIVERY SHORT(UB***C)	8-97133-265-1	01	1	9511-		●
45	PIPE; FUEL,DELIVERY LONG(UB***F)	8-94374-835-1	01	1	9112-9410		●
45	PIPE; FUEL,DELIVERY LONG(UB***F)	8-97114-237-0	01	1	9411-9510		●
45	PIPE; FUEL,DELIVERY LONG(UB***F)	8-97133-266-1	01	1	9511-		●
45	PIPE; FUEL,DELIVERY (A)	8-94374-833-1	01	1	9112-9506	●
45	PIPE; FUEL,DELIVERY (A)	8-97109-897-1	01	1	9507-	●
45	PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97083-096-0	01	1	9209-9504	●
45	PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97083-096-0	01	1	9505-9510	●
45	PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97122-277-2	01	1	9511-	●
45	PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-94374-832-1	01	1	9209-9504	●
45	PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-94374-832-1	01	1	9505-9505	●
45	PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97113-024-0	01	1	9506-9510	●
45	PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97122-278-2	01	1	9511-	●
47	PIPE; FUEL,RETURN SHORT(UB***C)	8-94374-838-2	01	1	9112-9510		●
47	PIPE; FUEL,RETURN SHORT(UB***C)	8-97133-267-1	01	1	9511-		●
47	PIPE; FUEL,RETURN LONG(UB***F)	8-94374-839-2	01	1	9112-9410		●
47	PIPE; FUEL,RETURN LONG(UB***F)	8-97113-028-0	01	1	9411-9510		●
47	PIPE; FUEL,RETURN LONG(UB***F)	8-97133-268-1	01	1	9511-		●
47	PIPE; FUEL,RETURN SHORT(UB***C)	8-94375-529-1	01	1	9112-9506	●
47	PIPE; FUEL,RETURN SHORT(UB***C)	8-97113-030-0	01	1	9507-9510	●
47	PIPE; FUEL,RETURN SHORT(UB***C)	8-97122-279-2	01	1	9511-	●
47	PIPE; FUEL,RETURN LONG(UB***F)	8-94375-530-2	01	1	9112-9506	●
47	PIPE; FUEL,RETURN LONG(UB***F)	8-97113-031-0	01	1	9507-9510	●
47	PIPE; FUEL,RETURN LONG(UB***F)	8-97122-280-2	01	1	9511-	●
100	CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	07	1	9505-9510	●	●
100	CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	07	1	9511-		●
100	CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	07	1	9511-	●
100	CLIP; FUEL PIPE LONG(UB***F) (D) L=8.9	8-94435-551-1	09	1	9511-		●
100	CLIP; FUEL PIPE (B) L=7.4	8-94435-550-0	01	1	9112-	●	●
100	CLIP; FUEL PIPE (C)	8-97073-935-0	01	1	9201-	●	●
100	CLIP; FUEL PIPE (D) L=8.9	8-97137-467-0	02	1	9511-	●
100	CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	08	1	9112-9307		●
100	CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	10	1	9112-9504		●
100	CLIP; FUEL PIPE (C)	8-97073-935-0	02	1	9505-9511		●
100	CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	07	1	9112-9504	●
100	CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	09	1	9505-9510	●	●
100	CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	05	1	9511-	●
100	CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	09	1	9112-9504	●
130	CLIP; RUBBER HOSE L=135	8-94473-399-0	01	1	9112-9504		●
130	CLIP; RUBBER HOSE M/T MUA 5 SPEED(RMN) L=135	8-94473-399-0	01	1	9505-		●
142	CLIP; BAND,FUEL HOSE L=250	5-09707-030-0	01	1	9112-		●
142	CLIP; BAND,FUEL HOSE L=170	5-09707-054-0	01	1	9303-9508	●
145	HOSE; FUEL TANK TO RETURN PIPE	8-97018-368-0	01	1	9112-		●
145	HOSE; FUEL TANK TO RETURN PIPE	8-97018-367-2	01	1	9112-9506	●
145	HOSE; FUEL TANK TO RETURN PIPE	8-97109-841-0	01	1	9507-	●
148	CLIP; HOSE,FUEL	8-97019-746-0	01	1	9112-	●
153	HOSE; RUBBER,PIPE TO ACL	8-97043-966-2	01	1	9112-9504		●
153	HOSE; RUBBER,PIPE TO ACL M/T MUA 5 SPEED(RMN)	8-97043-966-2	01	1	9505-9603		●
153	HOSE; RUBBER,PIPE TO ACL M/T MUA 5 SPEED(RMN)	8-97146-258-0	01	1	9604-9605		●
153	HOSE; RUBBER,PIPE TO ACL A/T AISIN(RMD)	8-97130-914-1	01	1	9505-9603		●
153	HOSE; RUBBER,PIPE TO ACL A/T AISIN(RMD)	8-97146-259-0	01	1	9604-9605		●
153	HOSE; RUBBER,PIPE TO ACL	8-97130-914-1	01	1	9606-		●
157	HOSE; FUEL FILTER TO FEED PIPE L=440	8-94133-604-2	01	1	9112-9510		●
157	HOSE; FUEL FILTER TO FEED PIPE EXC. AIR BAG DRIVER<AJ3> L=440	8-94133-604-2	01	1	9511-9605		●
157	HOSE; FUEL FILTER TO FEED PIPE AIR BAG DRIVER<AJ3>	8-97132-542-0	01	1	9511-9605		●
157	HOSE; FUEL FILTER TO FEED PIPE	8-97132-542-0	01	1	9606-		●
167	BRACKET	8-97038-829-0	01	1	9112-		●
167	BRACKET (B)	8-97062-831-0	01	1	9112-9510	●
167	BRACKET EXC. AIR BAG DRIVER<AJ3> (B)	8-97062-831-0	01	1	9511-9605	●
167	BRACKET AIR BAG DRIVER<AJ3> (A)	8-97135-657-0	01	1	9511-9605	●
167	BRACKET (A)	8-97135-657-0	01	1	9606-	●
180	CLIP; DELIVERY & RETURN ID=14	8-94238-572-0	02	1	9112-9704		●
180	CLIP; DELIVERY & RETURN ID=14	8-97173-221-0	02	1	9705-		●
180	CLIP; DELIVERY & RETURN ID=12 WO/PVC COATING	8-94123-526-0	06	1	9112-9704	●
180	CLIP; DELIVERY & RETURN ID=12	8-97148-892-0	06	1	9705-	●
210	CLIP; FEED PIPE	8-97069-378-0	01	1	9112-	●	●
241	PIPE; EVAP SHORT(UB***C)	8-94374-842-2	01	1	9112-9510		●
241	PIPE; EVAP SHORT(UB***C)	8-97133-269-1	01	1	9511-		●
241	PIPE; EVAP LONG(UB***F)	8-94374-843-2	01	1	9112-9410		●
241	PIPE; EVAP LONG(UB***F)	8-97114-238-0	01	1	9411-9510		●
241	PIPE; EVAP LONG(UB***F)	8-97133-270-1	01	1	9511-		●
241	PIPE; EVAP (A)	8-94374-844-2	01	1	9112-9207	●
241	PIPE; EVAP (A)	8-97084-571-2	01	1	9208-	●
241	PIPE; EVAP SHORT(UB***C) (B)	8-94374-840-1	01	1	9112-9203	●
241	PIPE; EVAP SHORT(UB***C) (B)	8-97077-508-1	01	1	9204-9510	●
241	PIPE; EVAP SHORT(UB***C) (B)	8-97122-281-2	01	1	9511-	●
241	PIPE; EVAP LONG(UB***F) (B)	8-94374-841-2	01	1	9112-9203	●
241	PIPE; EVAP LONG(UB***F) (B)	8-97077-509-0	01	1	9204-9510	●
241	PIPE; EVAP LONG(UB***F) (B)	8-97122-282-2	01	1	9511-	●
249	VALVE; CONT,EVAP	8-94367-933-0	01	1	9112-		●
249	VALVE; CONT,EVAP	8-94151-559-1	01	1	9112-9307	●
249	VALVE; CONT,EVAP	8-97076-391-0	01	1	9308-	●
303	BOLT; BRKT M6X16 FLANGE	0-28480-616-0	01	1	9410-		●
307	HOSE ASM; FUEL,DELIVERY & RETURN	8-97038-475-3	01	1	9112-9510		●
307	HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3>	8-97038-475-3	01	1	9511-9603		●
307	HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3>	8-97135-570-0	01	1	9604-9605		●
307	HOSE ASM; FUEL,DELIVERY & RETURN AIR BAG DRIVER<AJ3>	8-97134-374-0	01	1	9511-9605		●
307	HOSE ASM; FUEL,DELIVERY & RETURN	8-97134-374-0	01	1	9606-		●
307	HOSE ASM; FUEL,DELIVERY & RETURN	8-97038-474-3	01	1	9209-9301	●
307	HOSE ASM; FUEL,DELIVERY & RETURN	8-97089-451-0	01	1	9302-9510	●
307	HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3>	8-97134-785-3	01	1	9511-9605	●
307	HOSE ASM; FUEL,DELIVERY & RETURN AIR BAG DRIVER<AJ3>	8-97134-373-3	01	1	9511-9605	●
307	HOSE ASM; FUEL,DELIVERY & RETURN	8-97134-373-4	01	1	9606-	●

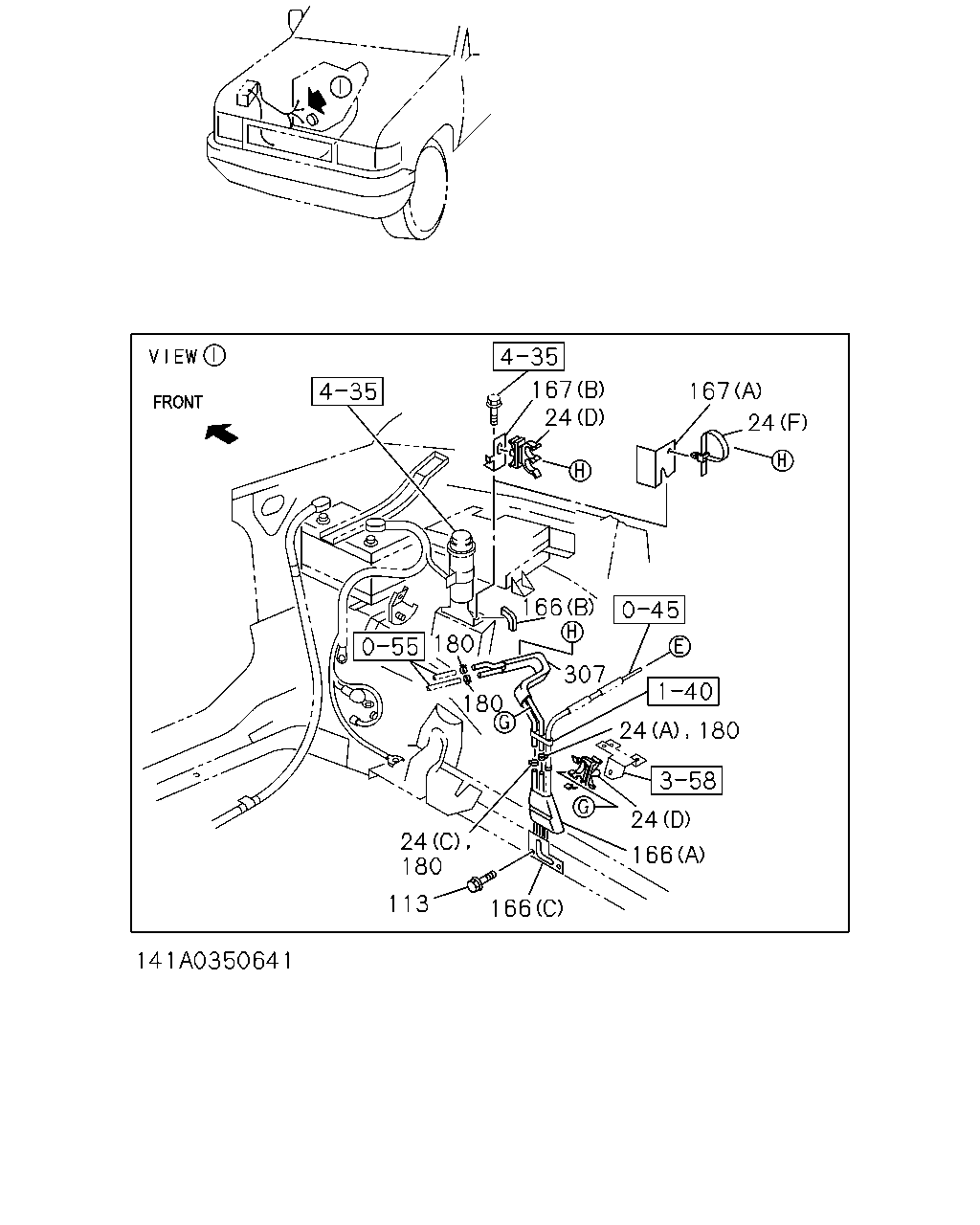

167 24 167 24 166 307 24 24 166 166 113 180 24 180 180 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (E) ID=14.2	8-97087-056-0	02	1	9511-		●
24	CLIP; FUEL HOSE (C) ID=12 WO/PVC COATING	8-94123-526-0	02	1	9511-9704	●
24	CLIP; FUEL HOSE (C) ID=12	8-97148-892-0	02	1	9705-	●
24	CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (F) L=212	8-94107-652-0	01	1	9511-9605	●
24	CLIP; FUEL HOSE (F) L=212	8-94107-652-0	01	1	9606-	●
24	CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3>	8-97019-746-0	02	1	9511-9605	●
24	CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (D)	8-97019-746-0	01	1	9511-9605	●
24	CLIP; FUEL HOSE (D)	8-97019-746-0	01	1	9606-	●
24	CLIP; FUEL HOSE (A) ID=14	8-94238-572-0	02	1	9112-9510		●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	04	1	9112-9510	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9511-9511	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9511-9511		●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9512-9605	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9512-9605		●
24	CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> (B) ID=13	8-94238-571-0	02	1	9512-9605	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9606-9704	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-94238-571-0	02	1	9606-9704		●
24	CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	02	1	9705-	●	●
24	CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	02	1	9705-		●
24	CLIP; FUEL HOSE (C) ID=12 WO/PVC COATING	8-94123-526-0	02	1	9112-9510	●
24	CLIP; FUEL HOSE (A) ID=11.5	8-97138-011-0	02	1	9511-9511	●
24	CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (A) ID=11.5	8-97138-011-0	02	1	9512-9605	●
24	CLIP; FUEL HOSE (A) ID=11.5	8-97138-011-0	02	1	9606-	●
24	CLIP; FUEL HOSE (D)	8-97063-401-0	02	1	9112-9501	●
24	CLIP; FUEL HOSE (D)	8-97019-746-0	02	1	9502-9510	●
113	BOLT; PROTECTOR AIR BAG DRIVER<AJ3> M6X16 FLANGE	0-28480-616-0	02	1	9511-9605	●
113	BOLT; PROTECTOR M6X16 FLANGE	0-28480-616-0	02	1	9606-	●
166	PROTECTOR; FUEL HOSE (B) L=88	8-97069-335-0	01	1	9112-9510	●
166	PROTECTOR; FUEL HOSE AIR BAG DRIVER<AJ3> (C)	8-97122-303-0	01	1	9511-9605	●
166	PROTECTOR; FUEL HOSE (C)	8-97122-303-0	01	1	9606-	●
166	PROTECTOR; FUEL HOSE AIR BAG DRIVER<AJ3> (A)	8-97121-035-4	01	1	9511-9605	●
166	PROTECTOR; FUEL HOSE (A)	8-97121-035-4	01	1	9606-	●
166	PROTECTOR; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> (B) L=88	8-97069-335-0	01	1	9511-9605	●
167	BRACKET	8-97038-829-0	01	1	9112-		●
167	BRACKET (B)	8-97062-831-0	01	1	9112-9510	●
167	BRACKET EXC. AIR BAG DRIVER<AJ3> (B)	8-97062-831-0	01	1	9511-9605	●
167	BRACKET AIR BAG DRIVER<AJ3> (A)	8-97135-657-0	01	1	9511-9605	●
167	BRACKET (A)	8-97135-657-0	01	1	9606-	●
180	CLIP; DELIVERY & RETURN ID=14	8-94238-572-0	02	1	9112-9704		●
180	CLIP; DELIVERY & RETURN ID=14	8-97173-221-0	02	1	9705-		●
180	CLIP; DELIVERY & RETURN ID=12 WO/PVC COATING	8-94123-526-0	06	1	9112-9704	●
180	CLIP; DELIVERY & RETURN ID=12	8-97148-892-0	06	1	9705-	●
307	HOSE ASM; FUEL,DELIVERY & RETURN	8-97038-475-3	01	1	9112-9510		●
307	HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3>	8-97038-475-3	01	1	9511-9603		●
307	HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3>	8-97135-570-0	01	1	9604-9605		●
307	HOSE ASM; FUEL,DELIVERY & RETURN AIR BAG DRIVER<AJ3>	8-97134-374-0	01	1	9511-9605		●
307	HOSE ASM; FUEL,DELIVERY & RETURN	8-97134-374-0	01	1	9606-		●
307	HOSE ASM; FUEL,DELIVERY & RETURN	8-97038-474-3	01	1	9209-9301	●
307	HOSE ASM; FUEL,DELIVERY & RETURN	8-97089-451-0	01	1	9302-9510	●
307	HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3>	8-97134-785-3	01	1	9511-9605	●
307	HOSE ASM; FUEL,DELIVERY & RETURN AIR BAG DRIVER<AJ3>	8-97134-373-3	01	1	9511-9605	●
307	HOSE ASM; FUEL,DELIVERY & RETURN	8-97134-373-4	01	1	9606-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
