1-40 — FUEL TANK (#166871) — 121 parça

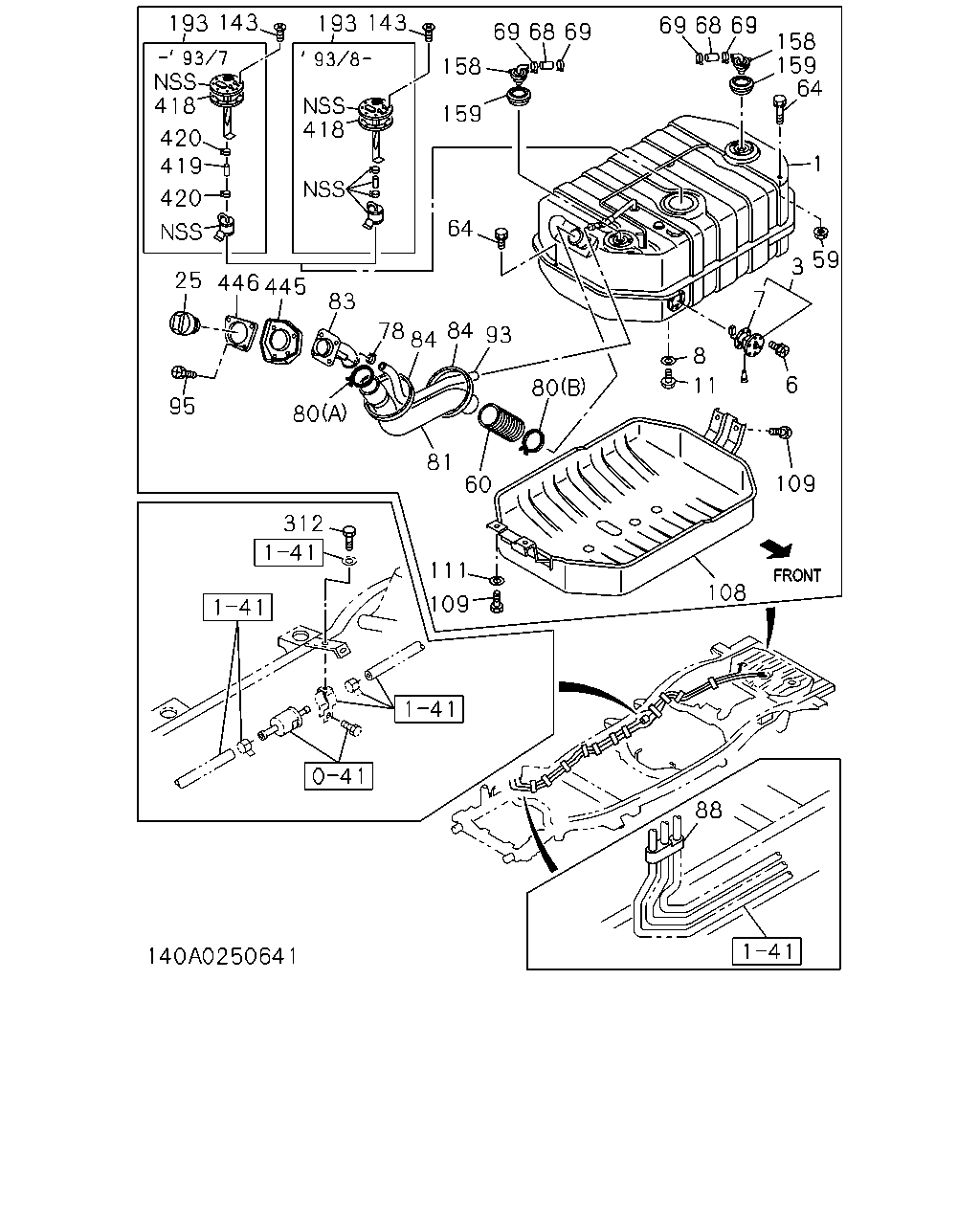

193 143 193 143 418 418 420 419 420 25 446 445 83 78 84 84 93 80 60 81 80 95 312 111 109 8 11 6 109 108 3 7 59 1 159 158 69 68 69 69 68 69 158 159 64 88 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL	8-97049-717-5	01	1	9112-9509	●
1	TANK; FUEL	8-97137-762-0	01	1	9510-9607	●
1	TANK; FUEL	8-97176-263-1	01	1	9608-	●
1	TANK; FUEL	8-97049-716-5	01	1	9112-9407		●
1	TANK; FUEL	8-97116-011-0	01	1	9408-9504		●
1	TANK; FUEL	8-97049-716-6	01	1	9505-9602		●
1	TANK; FUEL	8-97146-442-0	01	1	9603-9607		●
1	TANK; FUEL	8-97176-265-1	01	1	9608-		●
3	UNIT; FUEL TANK,SUB	8-97064-895-0	01	1	9112-9210	●	●
3	UNIT; FUEL TANK,SUB	8-97087-076-0	01	1	9211-9504	●	●
3	UNIT; FUEL TANK,SUB	8-97087-076-0	01	1	9505-9509	●
3	UNIT; FUEL TANK,SUB	8-97129-725-0	01	1	9505-9509		●
3	UNIT; FUEL TANK,SUB	8-97129-725-0	01	1	9510-	●	●
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X12 W/LK WASHER	9-03910-512-0	05	1	9112-	●	●
7	GASKET; TANK UNIT,SUB TANK ID=42 OD=71	5-83148-001-0	01	1	9112-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK	9-09920-624-0	01	1	9112-9407	●	●
8	GASKET; DRAIN PLUG,FUEL TANK	9-09920-624-0	01	1	9408-9408	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=8.2 OD=17	9-09572-008-0	01	1	9408-9408		●
8	GASKET; DRAIN PLUG,FUEL TANK ID=8.2 OD=17	9-09572-008-0	01	1	9409-	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	8-94152-613-0	01	1	9112-9407	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	8-94152-613-0	01	1	9408-9408	●
11	PLUG; DRAIN,FUEL TANK M8X16 FLANGE	0-28080-816-0	01	1	9408-9408		●
11	PLUG; DRAIN,FUEL TANK M8X16 FLANGE	0-28080-816-0	01	1	9409-	●	●
25	CAP; FILLER,FUEL TANK	8-94450-279-1	01	1	9112-	●	●
59	NUT; FUEL TANK M8 FLANGE	8-94328-243-0	03	1	9112-	●	●
60	PROTECTOR; FUEL FILLER	8-94318-424-0	01	1	9112-9612	●	●
60	PROTECTOR; FUEL FILLER	8-97114-063-0	01	1	9701-	●	●
64	BOLT; FUEL TANK M8X24	8-97034-130-0	06	1	9112-	●	●
68	HOSE; RUBBER,FUEL TANK TO EVAP PIPE L=80 SERVICED BY L=3000	8-94128-826-0	02	1	9112-9504		●
68	HOSE; RUBBER,FUEL TANK TO EVAP PIPE L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9505-		●
69	CLIP; FUEL TANK TO EVAP PIPE ID=8.5	8-94166-071-0	04	1	9112-	●	●
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	02	1	9112-9504	●	●
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	01	1	9505-	●	●
80	CLIP; FILLER HOSE (A) ID=59	8-94435-876-0	01	1	9112-9501	●	●
80	CLIP; FILLER HOSE (A) ID=60	9-09915-265-1	01	1	9502-	●	●
80	CLIP; FILLER HOSE (B) ID=54	9-09915-412-1	01	1	9112-	●	●
81	HOSE; FUEL FILLER	8-97012-158-0	01	1	9112-	●	●
83	NECK; FUEL FILLER	8-97017-771-1	01	1	9112-	●	●
84	CLIP; BAND,FILLER PIPE L=330	5-09709-118-0	02	1	9112-9612	●	●
88	CLIP; FUEL HOSE ID=14.5 & 7.5	8-94315-424-0	01	1	9112-9304	●
88	CLIP; FUEL HOSE ID=6.8 & 22.5	8-97081-816-0	01	1	9305-9402	●
88	CLIP; FUEL HOSE ID=25.5 & 8.0	8-94363-538-0	01	1	9403-	●
88	CLIP; FUEL HOSE	8-97131-033-0	01	1	9505-		●
93	HOSE; BREATHER,FUEL TANK L=560 SERVICED BY L=1400	8-94152-003-0	01	1	9112-	●	●
95	SCREW; FILLER NECK M6X16	8-97039-204-0	03	1	9112-9210	●	●
95	SCREW; FILLER NECK M6X16	8-94381-646-0	03	1	9211-	●	●
108	PROTECTOR; FUEL TANK	8-97018-490-4	01	1	9112-	●	●
109	BOLT; HEAT PROTECTOR M8X24	8-97034-130-0	04	1	9112-	●	●
111	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=22	9-09164-708-0	02	1	9112-	●	●
143	SCREW; FUEL PUMP M5X10 W/LK WASHER	9-03910-510-0	08	1	9112-		●
158	VALVE; ROLL OVER & FLOAT	8-94173-276-0	02	1	9112-	●	●
159	SEAL; ROLL OVER & FLOAT VALVE	8-94246-338-2	02	1	9112-	●	●
193	PUMP; FUEL	8-97016-142-1	01	1	9112-9307		●
193	PUMP; FUEL	8-97041-876-3	01	1	9308-9407		●
193	PUMP; FUEL	8-97118-512-0	01	1	9408-		●
312	BOLT; FUEL FILTER CLAMP M6X14 W/LK WASHER	9-01900-614-0	01	1	9112-9204		●
312	BOLT; FUEL FILTER CLAMP M6X14 W/LK WASHER	0-50040-614-0	01	1	9205-9212		●
312	BOLT; FUEL FILTER CLAMP M6X16 W/LK WASHER	0-50040-616-0	01	1	9301-9505		●
312	BOLT; FUEL FILTER CLAMP M6X14 W/PL WASHER	8-94174-953-0	01	1	9506-9704		●
312	BOLT; FUEL FILTER CLAMP M6X16 FLANGE	0-28680-616-0	01	1	9705-		●
418	GASKET; FUEL PUMP	8-94382-906-0	01	1	9112-9307		●
418	GASKET; FUEL PUMP	8-94386-449-0	01	1	9308-		●
419	HOSE; FUEL PUMP	8-97028-981-0	01	1	9112-9307		●
420	CLIP; FUEL PUMP ID=12 PLATED	8-94121-566-0	02	1	9112-9307		●
445	RUBBER; RECEIVER	8-97022-669-2	01	1	9112-	●	●
446	PLATE; FIXING	8-94340-181-0	01	1	9112-	●	●

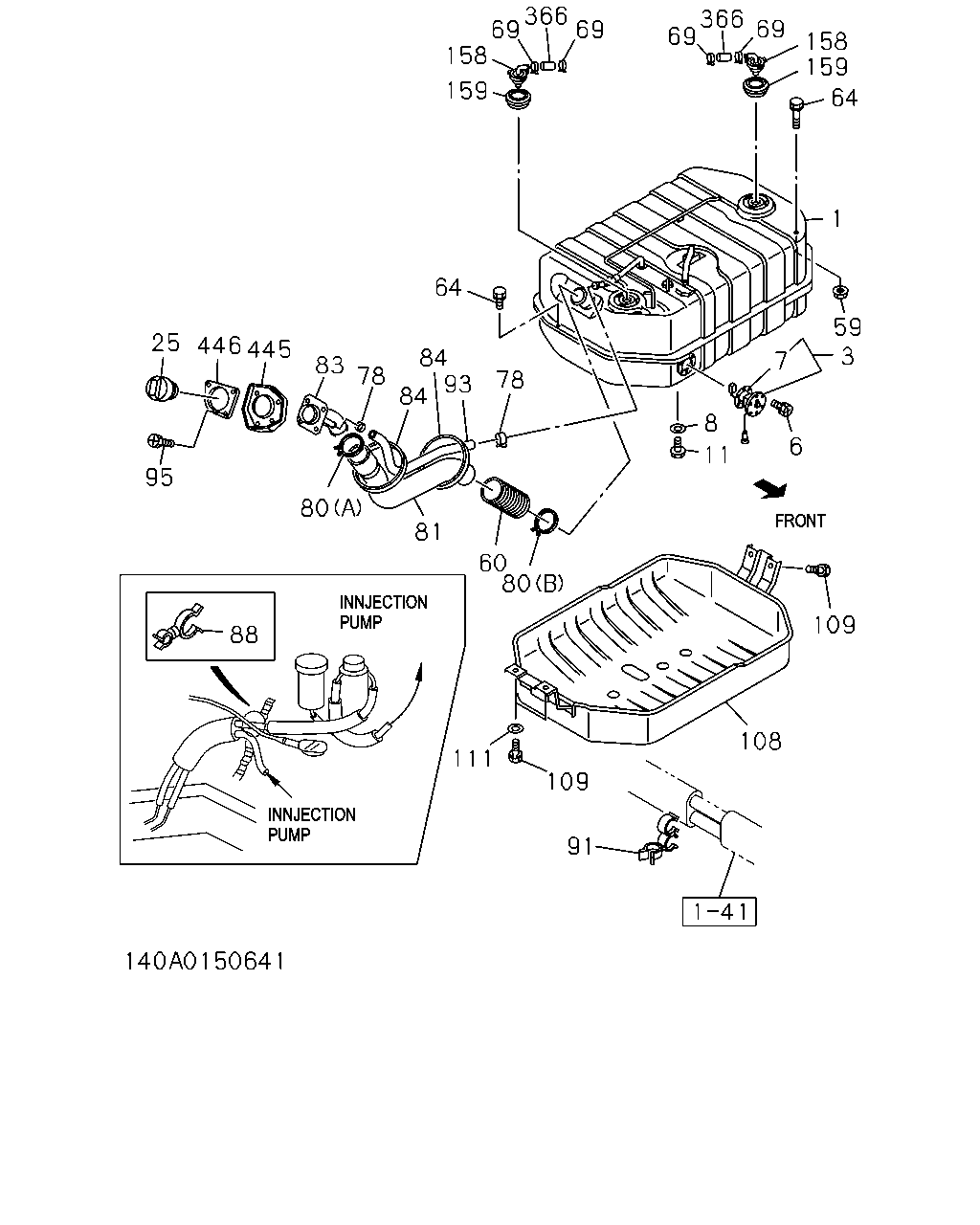

159 158 69 366 69 69 366 69 158 159 64 1 59 3 7 8 11 6 109 108 91 109 111 88 95 25 446 445 83 78 84 93 84 78 60 80 81 80 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL	8-97049-717-5	01	1	9112-9509	●
1	TANK; FUEL	8-97137-762-0	01	1	9510-9607	●
1	TANK; FUEL	8-97176-263-1	01	1	9608-	●
1	TANK; FUEL	8-97049-716-5	01	1	9112-9407		●
1	TANK; FUEL	8-97116-011-0	01	1	9408-9504		●
1	TANK; FUEL	8-97049-716-6	01	1	9505-9602		●
1	TANK; FUEL	8-97146-442-0	01	1	9603-9607		●
1	TANK; FUEL	8-97176-265-1	01	1	9608-		●
3	UNIT; FUEL TANK,SUB	8-97064-895-0	01	1	9112-9210	●	●
3	UNIT; FUEL TANK,SUB	8-97087-076-0	01	1	9211-9504	●	●
3	UNIT; FUEL TANK,SUB	8-97087-076-0	01	1	9505-9509	●
3	UNIT; FUEL TANK,SUB	8-97129-725-0	01	1	9505-9509		●
3	UNIT; FUEL TANK,SUB	8-97129-725-0	01	1	9510-	●	●
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X12 W/LK WASHER	9-03910-512-0	05	1	9112-	●	●
7	GASKET; TANK UNIT,SUB TANK ID=42 OD=71	5-83148-001-0	01	1	9112-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK	9-09920-624-0	01	1	9112-9407	●	●
8	GASKET; DRAIN PLUG,FUEL TANK	9-09920-624-0	01	1	9408-9408	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=8.2 OD=17	9-09572-008-0	01	1	9408-9408		●
8	GASKET; DRAIN PLUG,FUEL TANK ID=8.2 OD=17	9-09572-008-0	01	1	9409-	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	8-94152-613-0	01	1	9112-9407	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	8-94152-613-0	01	1	9408-9408	●
11	PLUG; DRAIN,FUEL TANK M8X16 FLANGE	0-28080-816-0	01	1	9408-9408		●
11	PLUG; DRAIN,FUEL TANK M8X16 FLANGE	0-28080-816-0	01	1	9409-	●	●
25	CAP; FILLER,FUEL TANK	8-94450-279-1	01	1	9112-	●	●
59	NUT; FUEL TANK M8 FLANGE	8-94328-243-0	03	1	9112-	●	●
60	PROTECTOR; FUEL FILLER	8-94318-424-0	01	1	9112-9612	●	●
60	PROTECTOR; FUEL FILLER	8-97114-063-0	01	1	9701-	●	●
64	BOLT; FUEL TANK M8X24	8-97034-130-0	06	1	9112-	●	●
69	CLIP; FUEL TANK TO EVAP PIPE ID=8.5	8-94166-071-0	04	1	9112-	●	●
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	02	1	9112-9504	●	●
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	01	1	9505-	●	●
80	CLIP; FILLER HOSE (A) ID=59	8-94435-876-0	01	1	9112-9501	●	●
80	CLIP; FILLER HOSE (A) ID=60	9-09915-265-1	01	1	9502-	●	●
80	CLIP; FILLER HOSE (B) ID=54	9-09915-412-1	01	1	9112-	●	●
81	HOSE; FUEL FILLER	8-97012-158-0	01	1	9112-	●	●
83	NECK; FUEL FILLER	8-97017-771-1	01	1	9112-	●	●
84	CLIP; BAND,FILLER PIPE L=330	5-09709-118-0	02	1	9112-9612	●	●
88	CLIP; FUEL HOSE ID=14.5 & 7.5	8-94315-424-0	01	1	9112-9304	●
88	CLIP; FUEL HOSE ID=6.8 & 22.5	8-97081-816-0	01	1	9305-9402	●
88	CLIP; FUEL HOSE ID=25.5 & 8.0	8-94363-538-0	01	1	9403-	●
88	CLIP; FUEL HOSE	8-97131-033-0	01	1	9505-		●
91	CLAMP; FUEL HOSE	8-94480-513-0	01	1	9112-9310	●
93	HOSE; BREATHER,FUEL TANK L=560 SERVICED BY L=1400	8-94152-003-0	01	1	9112-	●	●
95	SCREW; FILLER NECK M6X16	8-97039-204-0	03	1	9112-9210	●	●
95	SCREW; FILLER NECK M6X16	8-94381-646-0	03	1	9211-	●	●
108	PROTECTOR; FUEL TANK	8-97018-490-4	01	1	9112-	●	●
109	BOLT; HEAT PROTECTOR M8X24	8-97034-130-0	04	1	9112-	●	●
111	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=22	9-09164-708-0	02	1	9112-	●	●
158	VALVE; ROLL OVER & FLOAT	8-94173-276-0	02	1	9112-	●	●
159	SEAL; ROLL OVER & FLOAT VALVE	8-94246-338-2	02	1	9112-	●	●
366	HOSE; EVAP L=80 SERVICED BY L=3000	8-94128-826-0	02	1	9112-9504	●
366	HOSE; EVAP L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9607	●
366	HOSE; EVAP L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9608-	●
445	RUBBER; RECEIVER	8-97022-669-2	01	1	9112-	●	●
446	PLATE; FIXING	8-94340-181-0	01	1	9112-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
