4-80 — ROAD WHEEL (#16687) — 58 parça

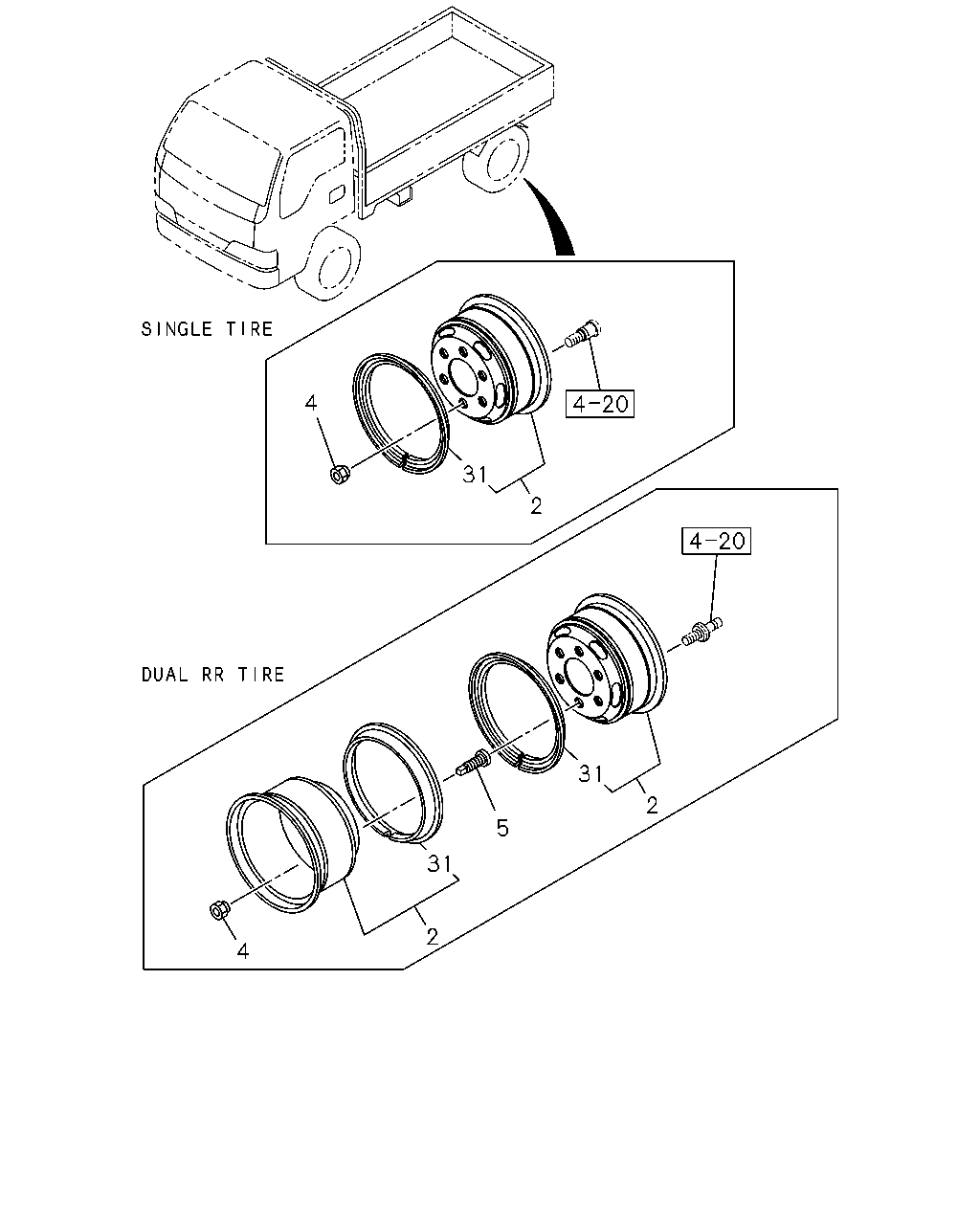

4 31 2 31 2 5 31 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	WHEEL; DISC 5.5FX15 OFFSET=115 BLACK 5-HOLE THA	8-94116-198-0	02	1	0009-	●
2	WHEEL; DISC 5.5FX15 OFFSET=115 BLACK 5-HOLE THA	8-94116-198-0	12	1	0009-	●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-974-0	01	1	0009-		●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-974-0	04	1	0009-		●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-975-0	01	1	0009-	●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-975-0	06	1	0009-	●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97915-709-0	01	1	0009-			●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97915-709-0	06	1	0009-			●
4	NUT; WHEEL,RR AXLE M14 RH THREAD	5-42333-008-0	06	1	0009-		●
4	NUT; WHEEL,RR AXLE M14 LH THREAD	5-42334-002-0	06	1	0009-		●
4	NUT; WHEEL,RR AXLE M27 RH THREAD	8-94365-145-0	05	1	0009-	●		●
4	NUT; WHEEL,RR AXLE M27 LH THREAD	8-94365-146-0	05	1	0009-	●		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-94365-143-1	05	1	0009-	●		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-94365-144-1	05	1	0009-	●		●
31	RING; SIDE,DISC WHEEL 15X5.50F STAMP, BLACK THA	8-94135-599-0	02	1	0009-		●
31	RING; SIDE,DISC WHEEL 16X5.50F STAMP, BLACK THA	8-94135-601-0	01	1	0204-			●
31	RING; SIDE,DISC WHEEL 16X5.50F STAMP, BLACK THA	8-94135-601-0	06	1	0204-			●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> THA	8-97916-781-0	04	1	0009-		●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> THA	8-97916-781-0	01	1	0009-	●	●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> THA	8-97916-781-0	06	1	0009-	●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> THA	8-97916-782-0	01	1	0009-			●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> THA	8-97916-782-0	06	1	0009-			●

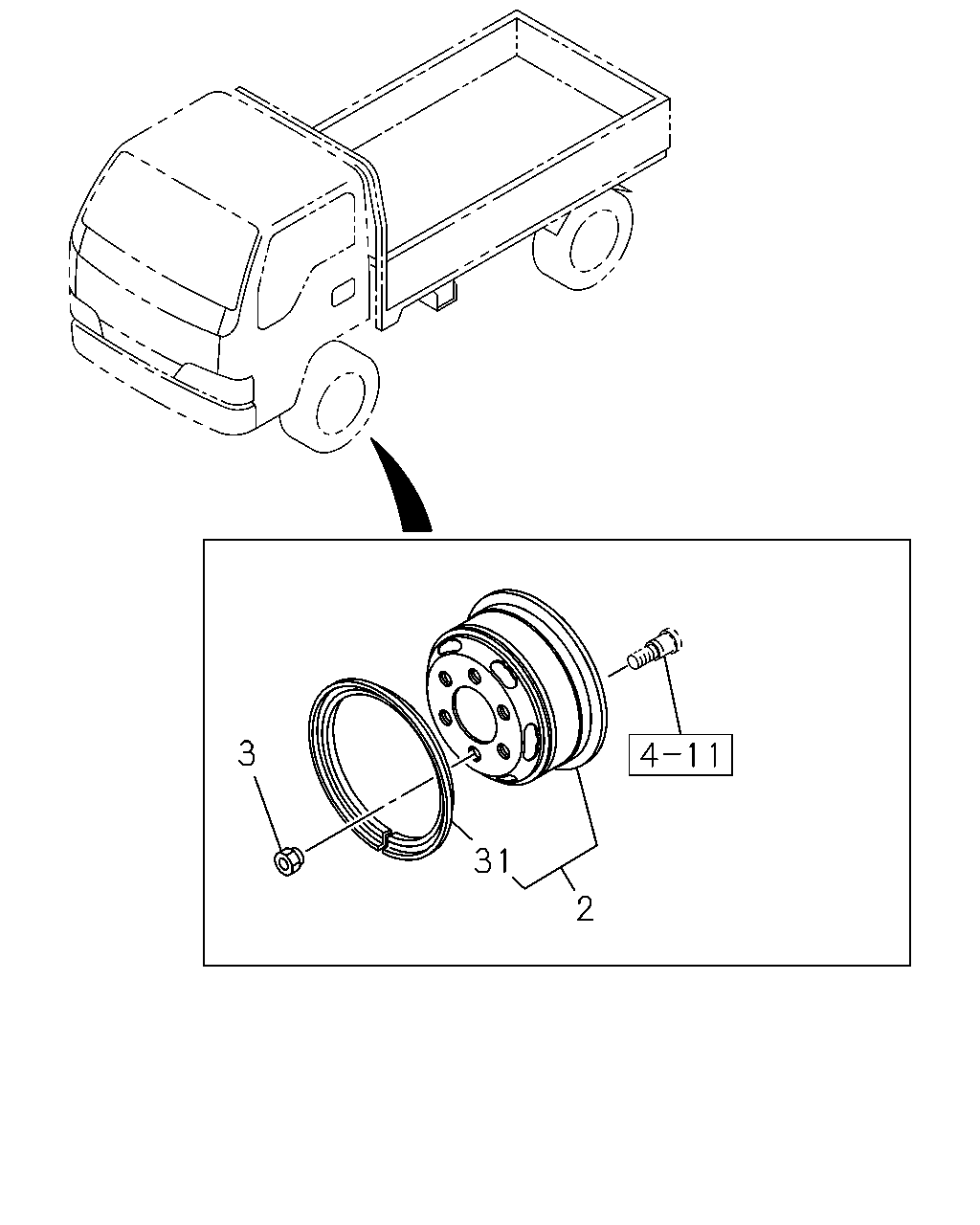

3 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	WHEEL; DISC 5.5FX15 OFFSET=115 BLACK 5-HOLE THA	8-94116-198-0	02	1	0009-	●
2	WHEEL; DISC 5.5FX15 OFFSET=115 BLACK 5-HOLE THA	8-94116-198-0	12	1	0009-	●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-974-0	01	1	0009-		●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-974-0	04	1	0009-		●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-975-0	01	1	0009-	●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-975-0	06	1	0009-	●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97915-709-0	01	1	0009-			●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97915-709-0	06	1	0009-			●
3	NUT; WHEEL,FRT AXLE M14 RH THREAD	5-42333-008-0	06	1	0009-		●
3	NUT; WHEEL,FRT AXLE M14 LH THREAD	5-42334-002-0	06	1	0009-		●
3	NUT; WHEEL,FRT AXLE M18 RH THREAD	8-94365-147-0	05	1	0009-	●		●
3	NUT; WHEEL,FRT AXLE M18 LH THREAD	8-94365-148-0	05	1	0009-	●		●
31	RING; SIDE,DISC WHEEL 15X5.50F STAMP, BLACK THA	8-94135-599-0	02	1	0009-		●
31	RING; SIDE,DISC WHEEL 16X5.50F STAMP, BLACK THA	8-94135-601-0	01	1	0204-			●
31	RING; SIDE,DISC WHEEL 16X5.50F STAMP, BLACK THA	8-94135-601-0	06	1	0204-			●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> THA	8-97916-781-0	04	1	0009-		●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> THA	8-97916-781-0	01	1	0009-	●	●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> THA	8-97916-781-0	06	1	0009-	●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> THA	8-97916-782-0	01	1	0009-			●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> THA	8-97916-782-0	06	1	0009-			●

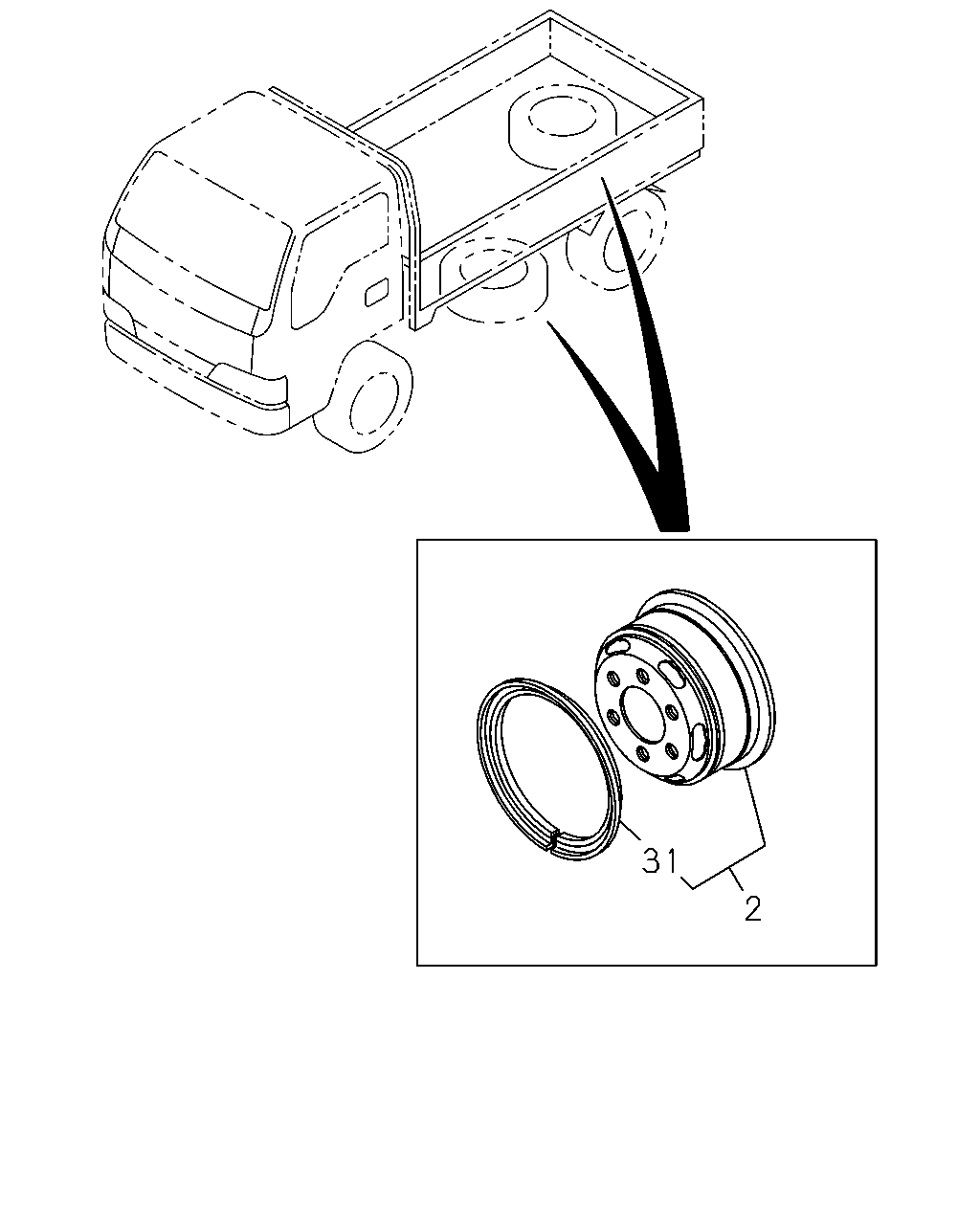

31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	WHEEL; DISC 5.5FX15 OFFSET=115 BLACK 5-HOLE THA	8-94116-198-0	02	1	0009-	●
2	WHEEL; DISC 5.5FX15 OFFSET=115 BLACK 5-HOLE THA	8-94116-198-0	12	1	0009-	●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-974-0	01	1	0009-		●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-974-0	04	1	0009-		●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-975-0	01	1	0009-	●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-975-0	06	1	0009-	●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97915-709-0	01	1	0009-			●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97915-709-0	06	1	0009-			●
31	RING; SIDE,DISC WHEEL 15X5.50F STAMP, BLACK THA	8-94135-599-0	02	1	0009-		●
31	RING; SIDE,DISC WHEEL 16X5.50F STAMP, BLACK THA	8-94135-601-0	01	1	0204-			●
31	RING; SIDE,DISC WHEEL 16X5.50F STAMP, BLACK THA	8-94135-601-0	06	1	0204-			●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> THA	8-97916-781-0	04	1	0009-		●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> THA	8-97916-781-0	01	1	0009-	●	●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> THA	8-97916-781-0	06	1	0009-	●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> THA	8-97916-782-0	01	1	0009-			●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> THA	8-97916-782-0	06	1	0009-			●
