◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#166867) — 30 parça

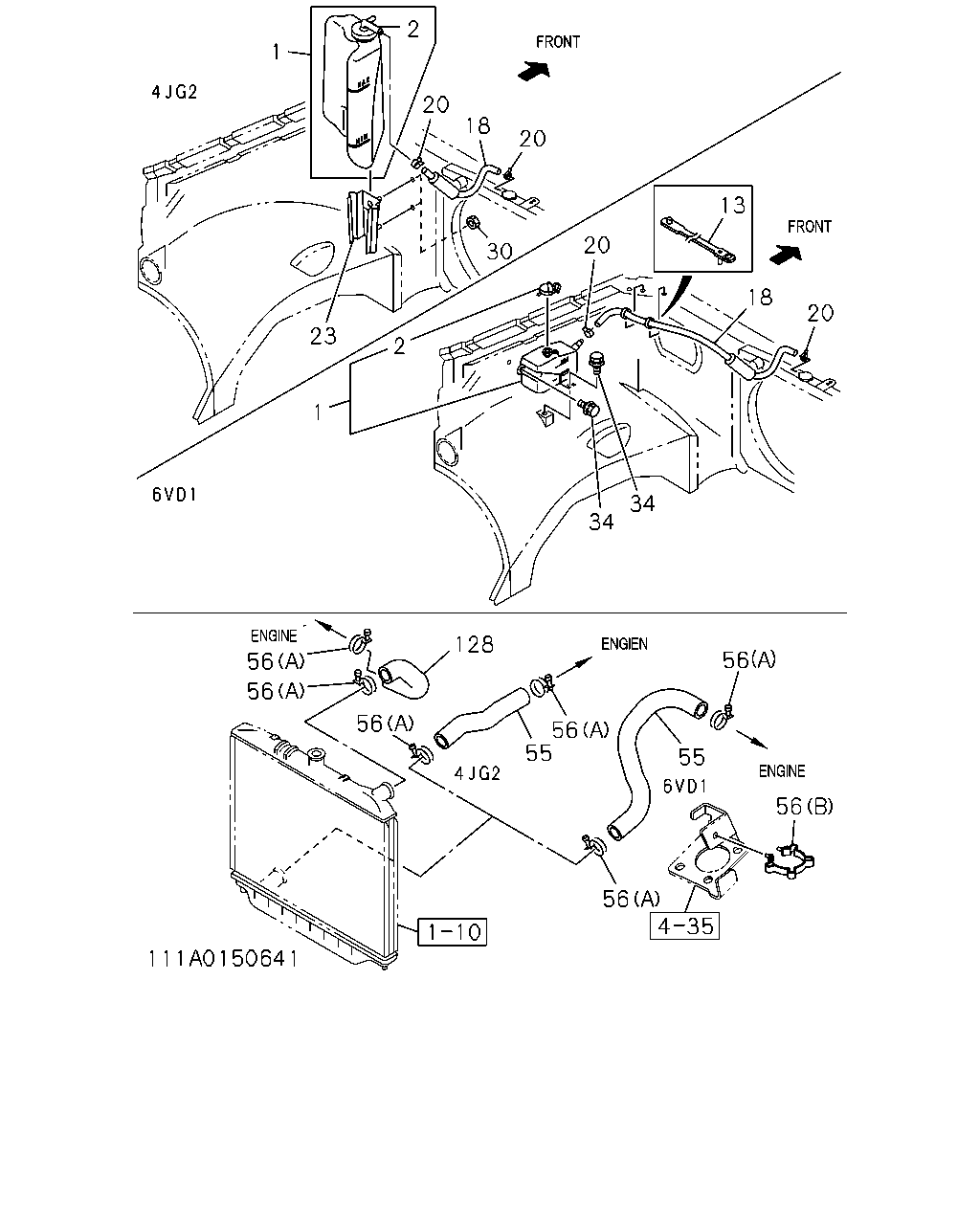

çizim 494169
1 2 20 18 20 20 30 2 23 1 34 34 18 13 20 56 56 128 56 55 56 56 55 56 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; SURGE,RAD 8-97039-036-5 01 1 9112- ●
1 TANK; SURGE,RAD 8-97032-681-1 01 1 9112-9208 ●
1 TANK; SURGE,RAD 8-97079-229-1 01 1 9209-9307 ●
1 TANK; SURGE,RAD 8-97101-189-0 01 1 9308-9410 ●
1 TANK; SURGE,RAD 8-97101-191-1 01 1 9411- ●
2 CAP; SURGE TANK 8-97064-897-0 01 1 9112- ●
2 CAP; SURGE TANK 8-94449-363-0 01 1 9112-9307 ●
2 CAP; SURGE TANK 8-97100-665-0 01 1 9308-9506 ●
2 CAP; SURGE TANK 8-97130-964-0 01 1 9507- ●
13 CLIP; HOSE,SURGE TANK
L=103 		8-94239-339-0 02 1 9112- ●
18 HOSE; RAD TO SURGE TANK
L=350 W/INSULATOR 		8-97039-297-2 01 1 9112- ●
18 HOSE; RAD TO SURGE TANK
L=970 W/INSULATOR 		8-97031-889-2 01 1 9112-9705 ●
18 HOSE; RAD TO SURGE TANK
L=990 W/INSULATOR 		8-97174-766-0 01 1 9706- ●
20 CLIP; HOSE,RAD
ID=12 		8-94238-610-0 02 1 9112- ● ●
23 BRACKET; RESERVE TANK 8-97043-993-1 01 1 9112- ●
30 NUT
M8 FLANGE 		0-91150-108-0 02 1 9112- ●
34 BOLT; RESERVE TANK
M8X25 		8-97017-390-0 02 1 9112-9301 ● ●
34 BOLT; RESERVE TANK
M8X25 		8-97091-076-0 02 1 9302- ●
55 HOSE; WATER,RAD OUTLET 8-94375-170-2 01 1 9112- ●
55 HOSE; WATER,RAD OUTLET 8-94375-171-1 01 1 9112- ●
56 CLIP; WATER HOSE,RAD
(A) ID=48 		5-09704-049-0 03 1 9112-9206 ●
56 CLIP; WATER HOSE,RAD
(A) ID=42 		9-09915-042-1 01 1 9112- ●
56 CLIP; WATER HOSE,RAD
(A) ID=48 		9-09915-512-1 03 1 9207- ●
56 CLIP; WATER HOSE,RAD
(B) ID=46 		8-97023-235-1 01 1 9112- ●
56 CLIP; WATER HOSE,RAD
(A) ID=48 		9-09915-512-1 04 1 9112- ●
128 HOSE; WATER,RAD INL 8-94375-167-1 01 1 9112-9611 ●
128 HOSE; WATER,RAD INL 8-97170-822-0 01 1 9612- ●
128 HOSE; WATER,RAD INL 8-94375-168-2 01 1 9112-9611 ●
128 HOSE; WATER,RAD INL 8-97164-267-0 01 1 9612-9612 ●
128 HOSE; WATER,RAD INL 8-97174-843-0 01 1 9701- ●
