1-10 — RADIATOR (#166866) — 63 parça

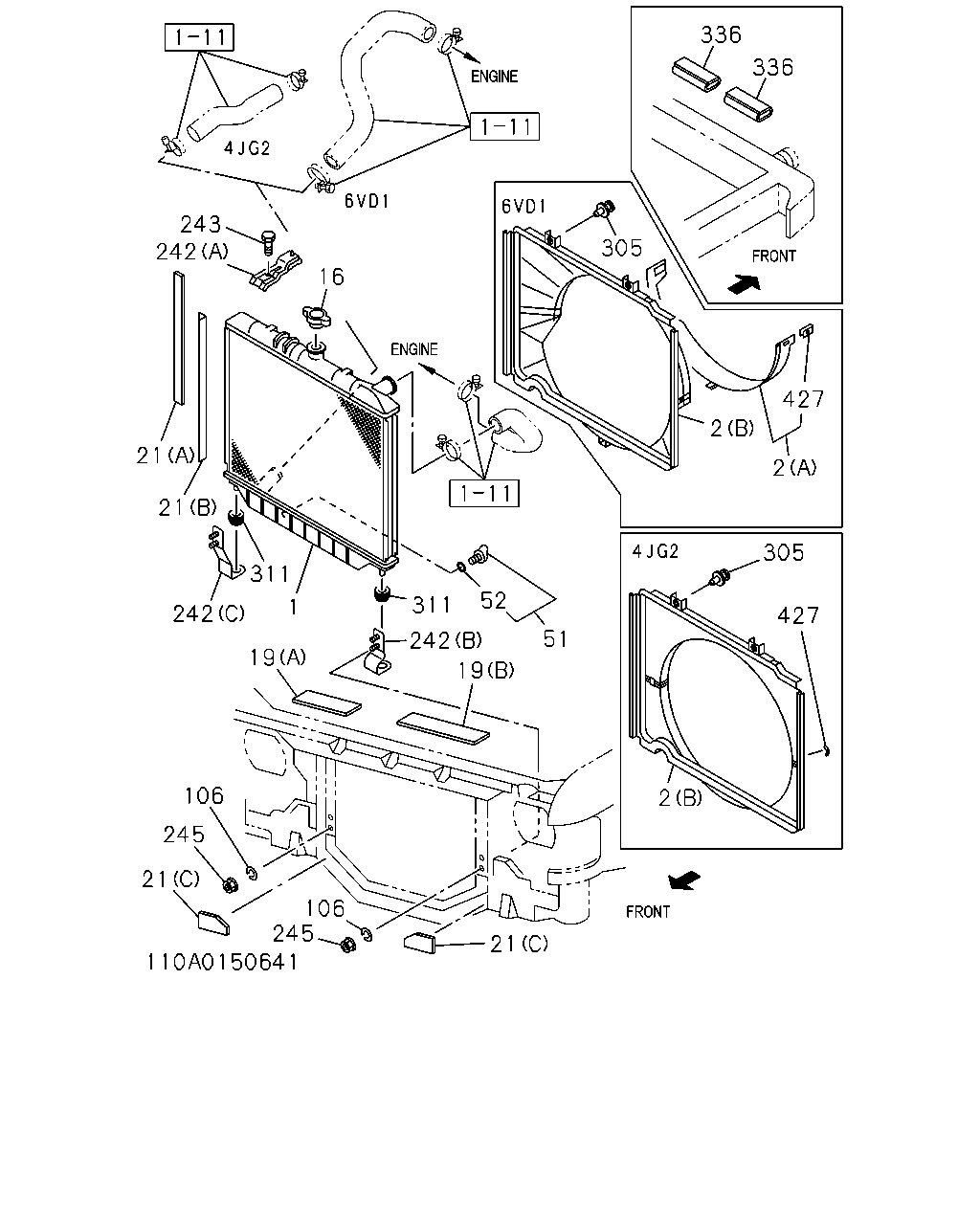

çizim 494045
243 242 16 305 2 2 427 336 336 21 21 242 19 311 1 311 242 19 52 51 305 427 2 21 106 245 21 245 106
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
A/T AISIN(RMD) 		8-97036-936-4 01 1 9112-9504 ●
1 RADIATOR ASM
A/T AISIN(RMD) 		8-97129-190-0 01 1 9505-9611 ●
1 RADIATOR ASM
A/T AISIN(RMD) 		8-97169-025-0 01 1 9612- ●
1 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97036-935-1 01 1 9112-9409 ●
1 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97036-935-1 01 1 9505-9611 ●
1 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97169-024-0 01 1 9612- ●
1 RADIATOR ASM
A/T THM(RMQ) 		8-97036-933-3 01 1 9112-9611 ●
1 RADIATOR ASM
A/T THM(RMQ) 		8-97164-188-0 01 1 9612- ●
1 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97036-932-1 01 1 9112-9409 ●
1 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97036-932-1 01 1 9410-9504 ● ●
1 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97036-932-1 01 1 9505-9611 ●
1 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97164-187-0 01 1 9612- ●
2 GUIDE; FAN
(B) 		8-94375-339-2 01 1 9112-9611 ●
2 GUIDE; FAN
(B) 		8-97168-424-0 01 1 9612- ●
2 GUIDE; FAN
(B) 		8-94375-337-5 01 1 9112-9611 ●
2 GUIDE; FAN
(B) 		8-97166-239-0 01 1 9612- ●
2 GUIDE; FAN
(A) 		8-97033-101-2 01 1 9112-9410 ●
2 GUIDE; FAN
A/T THM(RMQ) (A) 		8-97033-101-2 01 1 9411- ●
16 CAP; RAD 8-94116-916-1 01 1 9112-9309 ● ●
16 CAP; RAD 8-97104-194-0 01 1 9310-9611 ● ●
16 CAP; RAD 8-97171-436-0 01 1 9612- ● ●
19 SEAL; RAD UPR
(B) L=380 		8-97018-493-2 01 1 9112-9302 ● ●
19 SEAL; RAD UPR
(B) L=200 		8-97081-956-2 01 1 9303-9504 ● ●
19 SEAL; RAD UPR
(B) L=300 		8-97110-821-0 01 1 9505-9611 ● ●
19 SEAL; RAD UPR
(B) L=300 		8-97164-207-1 01 1 9612- ● ●
19 SEAL; RAD UPR
(A) L=200 		8-97030-275-2 01 1 9112-9302 ● ●
19 SEAL; RAD UPR
(A) L=380 		8-97081-957-2 01 1 9303-9504 ● ●
19 SEAL; RAD UPR
(A) L=380 		8-97110-822-0 01 1 9505-9611 ● ●
19 SEAL; RAD UPR
(A) L=360 		8-97164-208-0 01 1 9612- ● ●
21 SEAL; RAD
(B) 		8-97036-937-0 02 1 9112-9401 ● ●
21 SEAL; RAD
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) (B) 		8-97036-937-0 02 1 9402-9409 ●
21 SEAL; RAD
A/T THM(RMQ) (B) 		8-97036-937-0 02 1 9402-9409 ●
21 SEAL; RAD
A/T AISIN(RMD) (B) 		8-97036-937-0 02 1 9410-9504 ●
21 SEAL; RAD
A/T THM(RMQ) (B) 		8-97036-937-0 02 1 9410-9504 ●
21 SEAL; RAD
M/T MUA 5 SPEED(RMN) (B) 		8-97036-937-0 02 1 9505-9611 ●
21 SEAL; RAD
A/T THM(RMQ) (B) 		8-97036-937-0 02 1 9505-9611 ●
21 SEAL; RAD
A/T THM(RMQ) (B) 		8-97036-937-0 02 1 9612-9612 ●
21 SEAL; RAD
(C) 		8-97033-102-1 01 1 9112-9403 ●
21 SEAL; RAD
A/T THM(RMQ) (C) 		8-97033-102-3 01 1 9404- ●
21 SEAL; RAD
(C) 		8-97047-002-1 01 1 9112-9403 ●
21 SEAL; RAD
A/T THM(RMQ) (C) 		8-97047-002-3 01 1 9404- ●
21 SEAL; RAD
M/T MUA 5 SPEED(RMN) (A) 		8-97044-210-0 02 1 9112-9309 ●
51 PLUG; DRAIN 8-97036-939-0 01 1 9112-9612 ● ●
51 PLUG; DRAIN
961216- W/GASKET 		8-97171-437-0 01 1 9612- ● ●
52 GASKET; DRAIN PLUG
ID=9.8 		9-09561-110-0 01 1 9112-9612 ● ●
106 WASHER; LK,BRKT 8-94159-029-0 04 1 9204-9402 ● ●
242 BRACKET; RAD
(A) 		8-94375-182-1 01 1 9112-9503 ● ●
242 BRACKET; RAD
(A) 		8-97123-089-1 01 1 9504- ● ●
242 BRACKET; RAD
(B) 		8-97021-802-4 01 1 9112-9301 ● ●
242 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9302- ● ●
242 BRACKET; RAD
(C) 		8-97022-230-4 01 1 9112-9301 ● ●
242 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9302- ● ●
243 BOLT; BRKT
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9112- ● ●
245 NUT; BRKT
M8 FLANGE 		8-94328-243-0 04 1 9112-9402 ● ●
245 NUT; BRKT
M8 FLANGE 		8-97046-127-0 04 1 9403- ● ●
305 CLIP; FAN COVER TO FAN GUIDE 8-97043-862-0 02 1 9112- ● ●
311 RUBBER; MTG,RAD 8-94375-183-1 02 1 9112- ● ●
336 SEAL; LWR,RAD 8-97018-492-2 02 1 9112-9310 ● ●
336 SEAL; LWR,RAD 8-97105-979-0 02 1 9311-9502 ● ●
336 SEAL; LWR,RAD 8-97124-393-0 02 1 9503- ● ●
427 CLIP; FAN GUIDE 8-97064-896-0 02 1 9112-9206 ●
427 CLIP; FAN GUIDE 8-97043-199-0 02 1 9112-9410 ●
427 CLIP; FAN GUIDE
A/T THM(RMQ) 		8-97043-199-0 02 1 9411- ●
