◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-05 - AUTO CRUISE ACTUATOR ▶
1-05 — AUTO CRUISE ACTUATOR (#166865) — 26 parça
çizim 493572
56
BalonParca AdiParca NoAdetTipApplied Date A B
56 PROTECTOR
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) AUTO CRUISE CONT<K30> L=30 		8-94366-689-0 01 1 9201-9307 ● ●
56 PROTECTOR
ANTI-LOCK BRAKE-'93<JE5>'94-(JE5) AUTO CRUISE CONT<K30> L=30 SERVICED BY L=65 		8-94235-856-0 01 1 9308- ● ●

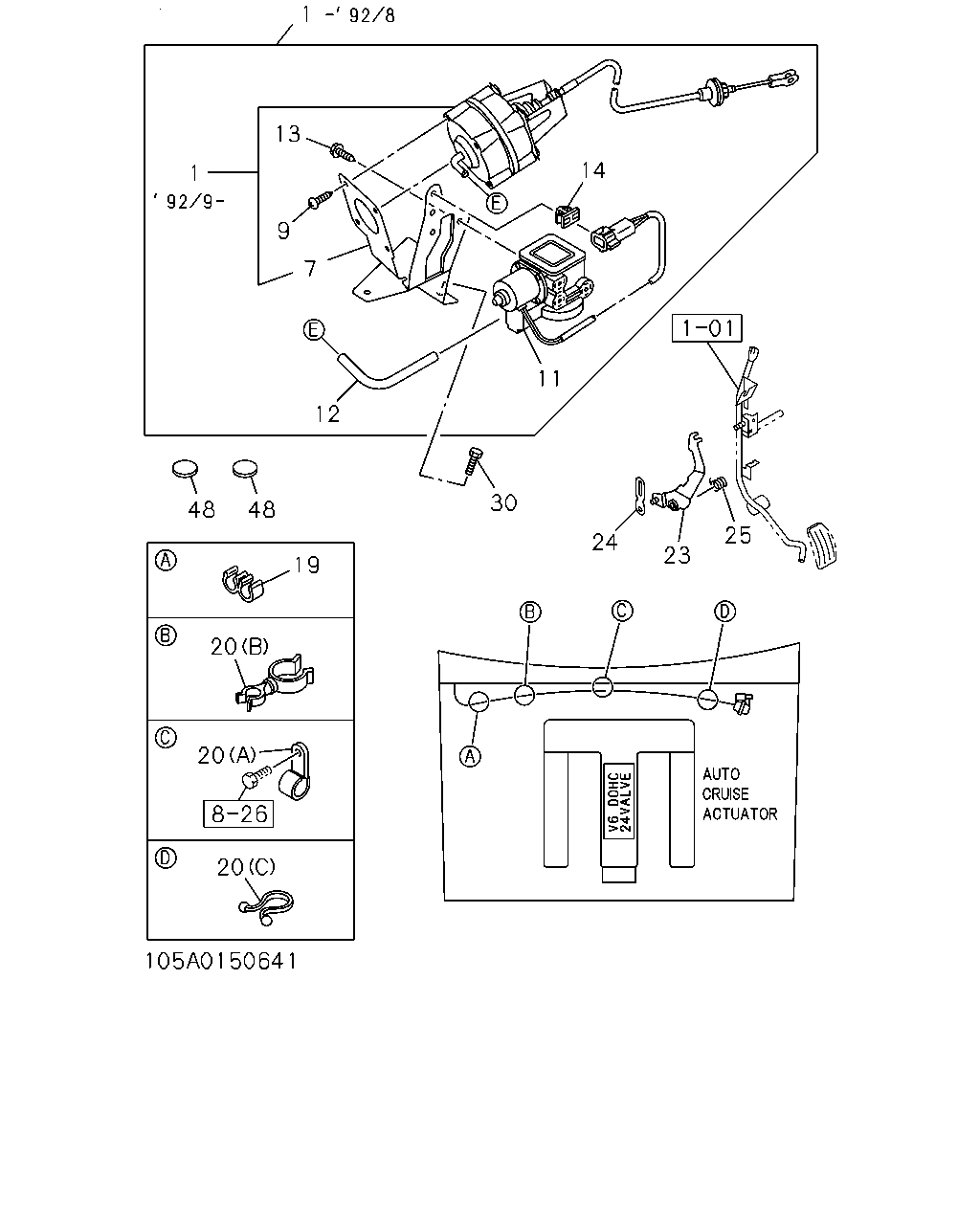

çizim 494044
14 11 30 24 23 25 12 1 13 7 9 1 19 48 48 20 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 ACTUATOR UNIT; CRUISE
AUTO CRUISE CONT<K30> 		8-97064-959-0 01 1 9112-9112 ● ●
1 ACTUATOR UNIT; CRUISE
AUTO CRUISE CONT<K30> 		8-97074-726-0 01 1 9201-9208 ● ●
1 ACTUATOR UNIT; CRUISE
AUTO CRUISE CONT<K30> 		8-97074-725-1 01 1 9209- ● ●
7 BRACKET; C ACTUATOR
AUTO CRUISE CONT<K30> 		8-97064-958-0 01 1 9112- ● ●
9 SCREW; RR BRKT ACTUATOR
AUTO CRUISE CONT<K30> 		8-94376-368-0 07 1 9112-9311 ● ●
9 SCREW; RR BRKT ACTUATOR
AUTO CRUISE CONT<K30> 		8-97100-134-0 07 1 9312- ● ●
11 PUMP; ACTUATOR
AUTO CRUISE CONT<K30> 		8-97013-983-0 01 1 9112- ● ●
12 HOSE; VAC,ACTUATOR
AUTO CRUISE CONT<K30> 		8-97064-960-0 01 1 9112- ● ●
13 SCREW; PUMP TO BRKT
AUTO CRUISE CONT<K30> 		8-94389-392-0 03 1 9112-9311 ● ●
13 SCREW; PUMP TO BRKT
AUTO CRUISE CONT<K30> 		8-97100-131-0 03 1 9312- ● ●
14 CLIP; HOSE
AUTO CRUISE CONT<K30> 		8-94456-949-0 01 1 9112- ● ●
19 CLIP; CABLE & ACCEL
AUTO CRUISE CONT<K30> 		8-94357-499-0 01 1 9112- ● ●
20 CLIP; CRUISE CABLE
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) AUTO CRUISE CONT<K30> (C) ID=20 		1-09709-068-0 01 1 9112- ● ●
20 CLIP; CRUISE CABLE
AUTO CRUISE CONT<K30> (B) ID=6 & 16.5 		8-94165-402-0 01 1 9112- ● ●
20 CLIP; CRUISE CABLE
AUTO CRUISE CONT<K30> (A) ID=7 		9-09524-622-0 01 1 9112- ● ●
23 LEVER; CRUISE
AUTO CRUISE CONT<K30> 		8-97061-865-1 01 1 9112-9502 ●
23 LEVER; CRUISE
AUTO CRUISE CONT<K30> 		8-97117-101-0 01 1 9503- ●
24 LINK; CRUISE
AUTO CRUISE CONT<K30> 		8-94476-217-1 01 1 9112- ●
25 SPRING; RETURN,CRUISE LEVER
AUTO CRUISE CONT<K30> 		8-94478-007-1 01 1 9112- ●
30 BOLT; ACTUATOR
AUTO CRUISE CONT<K30> M6X16 		0-28410-616-0 03 1 9112-9204 ● ●
30 BOLT; ACTUATOR
AUTO CRUISE CONT<K30> M6X16 FLANGE 		0-28480-616-0 03 1 9205- ● ●
48 TAPE; SEALING
A/T AISIN(RMD) OD=16 		8-94111-207-1 01 1 9203- ●
48 TAPE; SEALING
M/T MUA 5 SPEED(RMN) OD=16 		8-94111-207-1 02 1 9203- ●
48 TAPE; SEALING
EXC. AUTO CRUISE CONT<K30> OD=16 		8-94111-207-1 02 1 9203- ●
