1-01 — ACCELERATOR PEDAL AND CONTROL (#166864) — 214 parça

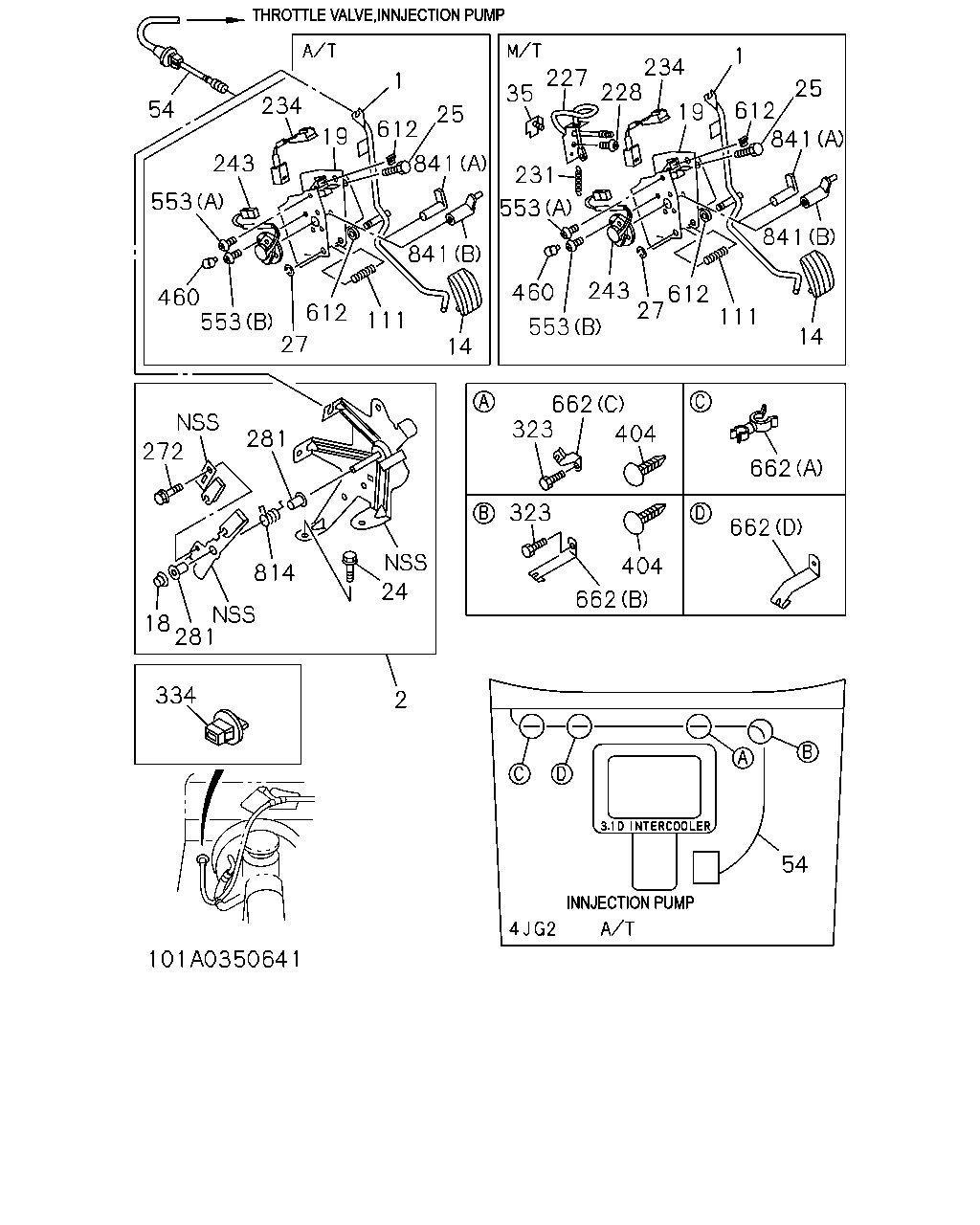

çizim 493632
234 1 612 25 841 841 14 111 612 27 553 460 553 243 54 19 272 281 814 24 2 281 18 334 323 662 323 404 404 662 662 662 54 35 227 234 1 228 231 553 460 553 243 27 612 111 14 841 841 25 612 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; PEDAL SIDE 8-97118-506-2 01 1 9505-9608 ●
1 LEVER; PEDAL SIDE 8-97148-868-0 01 1 9609- ●
1 LEVER; PEDAL SIDE
EXC. AUTO CRUISE CONT<K30> 		8-97070-474-1 01 1 9112-9504 ● ●
1 LEVER; PEDAL SIDE
EXC. AUTO CRUISE CONT<K30> 		8-97070-474-1 01 1 9505- ●
1 LEVER; PEDAL SIDE
AUTO CRUISE CONT<K30> 		8-97070-475-1 01 1 9112- ●
2 LEVER; ENG CONT
A/T AISIN(RMD) 		8-97118-504-4 01 1 9505-9712 ●
2 LEVER; ENG CONT
A/T AISIN(RMD) 		8-97203-509-0 01 1 9801- ●
14 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9505- ●
14 PAD; PEDAL,ACCEL 8-97044-894-0 01 1 9112-9208 ● ●
14 PAD; PEDAL,ACCEL 8-94473-376-0 01 1 9209-9304 ● ●
14 PAD; PEDAL,ACCEL 8-97044-894-1 01 1 9305-9504 ● ●
14 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 9505- ●
18 NUT; JOINT LK
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9112-9208 ● ●
18 NUT; JOINT LK
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9209-9307 ● ●
18 NUT; JOINT LK
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9308-9504 ● ●
18 NUT; JOINT LK
A/T AISIN(RMD) ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9505- ●
18 NUT; JOINT LK
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9505- ●
19 BRACKET; ACCEL PEDAL 8-97118-500-2 01 1 9505-9608 ●
19 BRACKET; ACCEL PEDAL 8-97148-867-1 01 1 9609- ●
19 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97066-120-0 01 1 9112-9302 ● ●
19 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97063-839-2 01 1 9303-9502 ● ●
19 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97117-115-0 01 1 9503-9504 ● ●
19 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97117-115-1 01 1 9505- ●
19 BRACKET; ACCEL PEDAL
AUTO CRUISE CONT<K30> 		8-97066-121-0 01 1 9112-9302 ●
19 BRACKET; ACCEL PEDAL
AUTO CRUISE CONT<K30> 		8-97064-882-2 01 1 9303-9502 ●
19 BRACKET; ACCEL PEDAL
AUTO CRUISE CONT<K30> 		8-97117-116-1 01 1 9503- ●
24 BOLT; BRKT
A/T AISIN(RMD) M6X12 W/PL WASHER 		8-97806-950-0 02 1 9505- ●
25 BOLT; SHAFT SIDE
M6X12 W/LK WASHER 		9-01900-612-0 02 1 9112-9204 ● ●
25 BOLT; SHAFT SIDE
M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205-9710 ● ●
25 BOLT; SHAFT SIDE
M6X10 FLANGE 		0-28080-610-0 02 1 9711- ● ●
27 RETAINER; ACCEL PEDAL
AUTO CRUISE CONT<K30> ID=4 		9-09185-404-0 02 1 9112- ●
27 RETAINER; ACCEL PEDAL
AUTO CRUISE CONT<K30> ID=6 		9-09185-406-0 01 1 9112-9504 ●
27 RETAINER; ACCEL PEDAL
ID=6 		9-09185-406-0 01 1 9505- ●
27 RETAINER; ACCEL PEDAL
AUTO CRUISE CONT<K30> ID=6 		9-09185-406-0 01 1 9505- ●
35 STOPPER; ACCEL PEDAL 8-97857-401-1 01 1 9505- ●
35 STOPPER; ACCEL PEDAL 8-97036-050-0 02 1 9112-9504 ● ●
35 STOPPER; ACCEL PEDAL 8-97036-050-0 02 1 9505- ●
54 CABLE; ENG CONT 8-94374-767-2 01 1 9112-9112 ●
54 CABLE; ENG CONT 8-97072-436-0 01 1 9201-9202 ●
54 CABLE; ENG CONT 8-97078-146-1 01 1 9203-9504 ●
54 CABLE; ENG CONT
A/T AISIN(RMD) 		8-97119-715-1 01 1 9505-9505 ●
54 CABLE; ENG CONT
A/T AISIN(RMD) 		8-97134-869-0 01 1 9506- ●
54 CABLE; ENG CONT 8-97037-662-5 01 1 9112- ●
111 SPRING; RETURN 8-97127-488-1 01 1 9505- ●
227 CABLE ASM; RETURN,ACCEL PEDAL
M/T MUA 5 SPEED(RMN) 		8-94450-858-1 01 1 9505- ●
228 SCREW; RETURN CABLE
M/T MUA 5 SPEED(RMN) M6X14 W/LK WASHER 		9-03910-614-0 01 1 9505- ●
231 SPRING; RETURN CABLE
M/T MUA 5 SPEED(RMN) 		8-97127-489-0 01 1 9505- ●
234 SWITCH; ACCEL 8-97123-590-1 01 1 9505- ●
234 SWITCH; ACCEL
A/T THM(RMQ) 		8-94368-343-0 01 1 9112-9504 ● ●
234 SWITCH; ACCEL
A/T THM(RMQ) 		8-94368-343-0 01 1 9505- ●
243 SENSOR; ACCEL 8-97126-209-2 01 1 9505- ●
272 BOLT; LEVER
A/T AISIN(RMD) M5X11.5 W/WASHER 		8-97019-068-0 01 1 9505- ●
281 BUSHING; LEVER
A/T AISIN(RMD) OD=9.9 		8-94279-701-3 02 1 9505-9510 ●
281 BUSHING; LEVER
A/T AISIN(RMD) OD=9.9 		8-94279-701-3 01 1 9511- ●
323 BOLT; CLIP
M6X14 		8-94153-946-0 02 1 9112-9307 ●
323 BOLT; CLIP
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9308-9504 ●
323 BOLT; CLIP
A/T AISIN(RMD) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9505- ●
334 PLUG; ACCEL CABLE
M/T MUA 5 SPEED(RMN) 		8-94147-164-1 01 1 9505- ●
404 CLIP; CABLE
M/T MUA 5 SPEED(RMN) 		8-94279-922-0 02 1 9505- ●
460 CLIP; CONT CABLE 1-09987-106-0 01 1 9505- ●
553 SCREW; TAP,PEDAL TO SW
(A) M3X16 TAPPING 		0-71280-316-0 02 1 9505- ●
553 SCREW; TAP,PEDAL TO SW
(B) M4X10 TAPPING 		9-07076-410-0 02 1 9505- ●
612 SPACER; ENG CONT 8-94107-605-0 01 1 9505- ●
662 CLIP; ACCEL CONT CABLE
(A) ID=6 & 16.5 		8-94165-402-0 01 1 9112-9504 ●
662 CLIP; ACCEL CONT CABLE
A/T AISIN(RMD) (A) ID=6 & 16.5 		8-94165-402-0 01 1 9505- ●
662 CLIP; ACCEL CONT CABLE
(B) 		8-97038-935-2 01 1 9112-9504 ●
662 CLIP; ACCEL CONT CABLE
A/T AISIN(RMD) (B) 		8-97038-935-2 01 1 9505- ●
662 CLIP; ACCEL CONT CABLE
(C) 		8-97038-936-2 01 1 9112-9504 ●
662 CLIP; ACCEL CONT CABLE
A/T AISIN(RMD) (C) 		8-97038-936-2 01 1 9505- ●
662 CLIP; ACCEL CONT CABLE
(D) 		8-97070-472-2 01 1 9112-9504 ●
662 CLIP; ACCEL CONT CABLE
A/T AISIN(RMD) (D) 		8-97070-472-2 01 1 9505- ●
814 SPRING; CONT LEVER
A/T AISIN(RMD) 		8-97118-904-2 01 1 9505-9610 ●
814 SPRING; CONT LEVER
A/T AISIN(RMD) 		8-97162-998-0 01 1 9611-9712 ●
814 SPRING; CONT LEVER
A/T AISIN(RMD) 		8-97203-390-0 01 1 9801- ●
841 CONNECTOR
(A) 		8-97127-462-1 01 1 9505-9608 ●
841 CONNECTOR
(B) 		8-97148-894-0 01 1 9609- ●
çizim 493693
175 314 323 662 662 662 662 323 659 54 54
BalonParca AdiParca NoAdetTipApplied Date A B
54 CABLE; ENG CONT 8-94374-767-2 01 1 9112-9112 ●
54 CABLE; ENG CONT 8-97072-436-0 01 1 9201-9202 ●
54 CABLE; ENG CONT 8-97078-146-1 01 1 9203-9504 ●
54 CABLE; ENG CONT
A/T AISIN(RMD) 		8-97119-715-1 01 1 9505-9505 ●
54 CABLE; ENG CONT
A/T AISIN(RMD) 		8-97134-869-0 01 1 9506- ●
54 CABLE; ENG CONT 8-97037-662-5 01 1 9112- ●
175 BOLT; BRKT,ACCEL CABLE
M6X14 FLANGE 		0-28080-614-0 02 1 9112-9112 ●
175 BOLT; BRKT,ACCEL CABLE
M6X12 FLANGE 		0-28080-612-0 02 1 9201- ●
314 BRACKET; ACCEL CABLE 8-94376-255-0 01 1 9112- ●
323 BOLT; CLIP
M6X14 		8-94153-946-0 02 1 9112-9307 ●
323 BOLT; CLIP
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9308-9504 ●
323 BOLT; CLIP
A/T AISIN(RMD) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9505- ●
659 CLIP; ACCEL CONT CABLE 8-97039-197-0 01 1 9112- ●
662 CLIP; ACCEL CONT CABLE
(A) ID=6 & 16.5 		8-94165-402-0 01 1 9112-9504 ●
662 CLIP; ACCEL CONT CABLE
A/T AISIN(RMD) (A) ID=6 & 16.5 		8-94165-402-0 01 1 9505- ●
662 CLIP; ACCEL CONT CABLE
(B) 		8-97038-935-2 01 1 9112-9504 ●
662 CLIP; ACCEL CONT CABLE
A/T AISIN(RMD) (B) 		8-97038-935-2 01 1 9505- ●
662 CLIP; ACCEL CONT CABLE
(C) 		8-97038-936-2 01 1 9112-9504 ●
662 CLIP; ACCEL CONT CABLE
A/T AISIN(RMD) (C) 		8-97038-936-2 01 1 9505- ●
662 CLIP; ACCEL CONT CABLE
(D) 		8-97070-472-2 01 1 9112-9504 ●
662 CLIP; ACCEL CONT CABLE
A/T AISIN(RMD) (D) 		8-97070-472-2 01 1 9505- ●

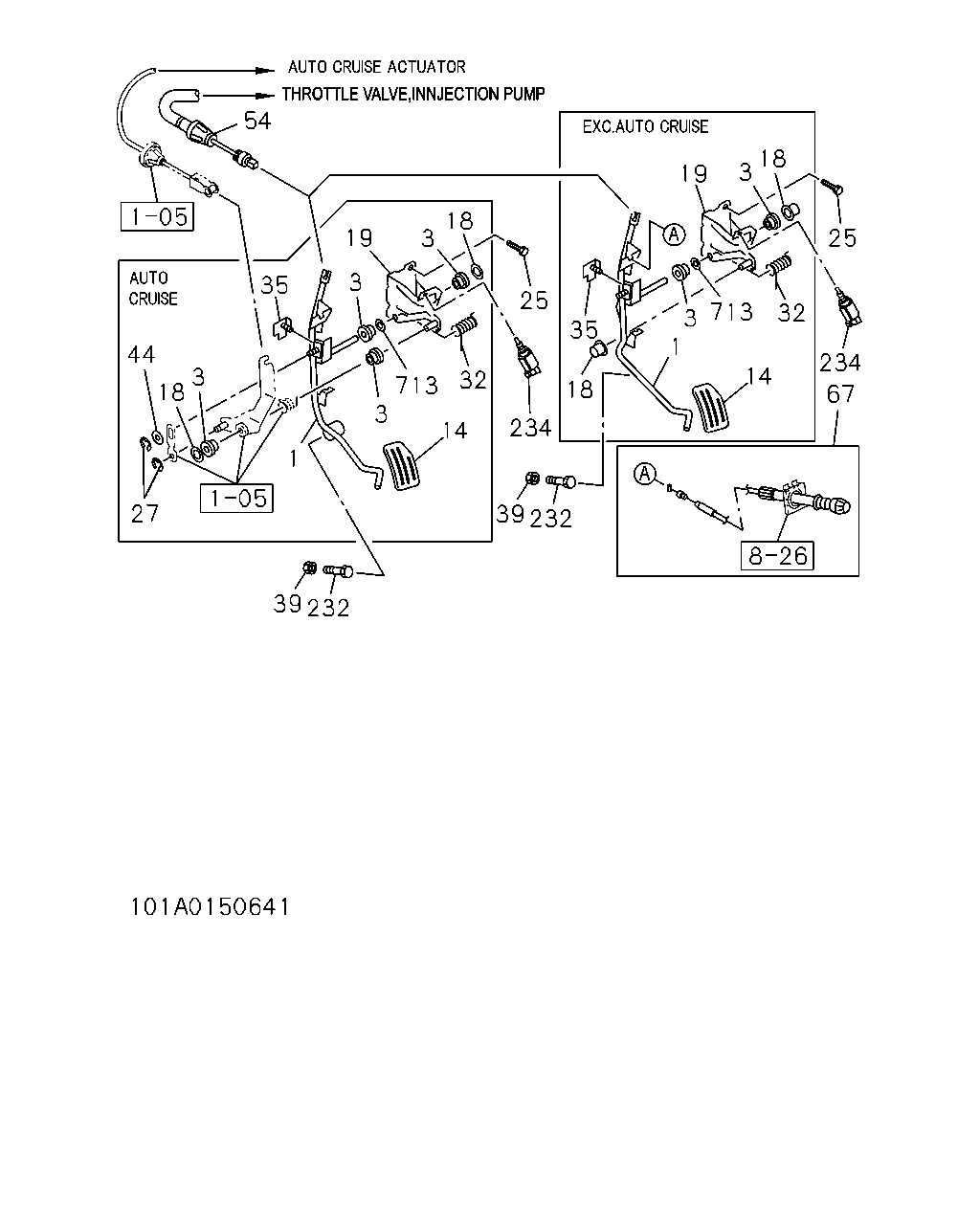

çizim 493726
54 44 3 18 27 39 232 14 32 713 3 1 35 3 19 3 18 25 234 39 232 18 35 19 3 18 25 32 713 3 1 14 234 67
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; PEDAL SIDE 8-97118-506-2 01 1 9505-9608 ●
1 LEVER; PEDAL SIDE 8-97148-868-0 01 1 9609- ●
1 LEVER; PEDAL SIDE
EXC. AUTO CRUISE CONT<K30> 		8-97070-474-1 01 1 9112-9504 ● ●
1 LEVER; PEDAL SIDE
EXC. AUTO CRUISE CONT<K30> 		8-97070-474-1 01 1 9505- ●
1 LEVER; PEDAL SIDE
AUTO CRUISE CONT<K30> 		8-97070-475-1 01 1 9112- ●
3 BUSHING; PEDAL
EXC. AUTO CRUISE CONT<K30> OD=9.9 		8-94279-701-3 02 1 9112-9504 ● ●
3 BUSHING; PEDAL
AUTO CRUISE CONT<K30> OD=9.9 		8-94279-701-3 04 1 9112-9504 ●
14 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9505- ●
14 PAD; PEDAL,ACCEL 8-97044-894-0 01 1 9112-9208 ● ●
14 PAD; PEDAL,ACCEL 8-94473-376-0 01 1 9209-9304 ● ●
14 PAD; PEDAL,ACCEL 8-97044-894-1 01 1 9305-9504 ● ●
14 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 9505- ●
18 NUT; JOINT LK
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9112-9208 ● ●
18 NUT; JOINT LK
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9209-9307 ● ●
18 NUT; JOINT LK
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9308-9504 ● ●
18 NUT; JOINT LK
A/T AISIN(RMD) ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9505- ●
18 NUT; JOINT LK
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9505- ●
19 BRACKET; ACCEL PEDAL 8-97118-500-2 01 1 9505-9608 ●
19 BRACKET; ACCEL PEDAL 8-97148-867-1 01 1 9609- ●
19 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97066-120-0 01 1 9112-9302 ● ●
19 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97063-839-2 01 1 9303-9502 ● ●
19 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97117-115-0 01 1 9503-9504 ● ●
19 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97117-115-1 01 1 9505- ●
19 BRACKET; ACCEL PEDAL
AUTO CRUISE CONT<K30> 		8-97066-121-0 01 1 9112-9302 ●
19 BRACKET; ACCEL PEDAL
AUTO CRUISE CONT<K30> 		8-97064-882-2 01 1 9303-9502 ●
19 BRACKET; ACCEL PEDAL
AUTO CRUISE CONT<K30> 		8-97117-116-1 01 1 9503- ●
25 BOLT; SHAFT SIDE
M6X12 W/LK WASHER 		9-01900-612-0 02 1 9112-9204 ● ●
25 BOLT; SHAFT SIDE
M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205-9710 ● ●
25 BOLT; SHAFT SIDE
M6X10 FLANGE 		0-28080-610-0 02 1 9711- ● ●
27 RETAINER; ACCEL PEDAL
AUTO CRUISE CONT<K30> ID=4 		9-09185-404-0 02 1 9112- ●
27 RETAINER; ACCEL PEDAL
AUTO CRUISE CONT<K30> ID=6 		9-09185-406-0 01 1 9112-9504 ●
27 RETAINER; ACCEL PEDAL
ID=6 		9-09185-406-0 01 1 9505- ●
27 RETAINER; ACCEL PEDAL
AUTO CRUISE CONT<K30> ID=6 		9-09185-406-0 01 1 9505- ●
32 SPRING; RETURN,ACCEL PEDAL 8-97035-035-0 01 1 9112-9310 ● ●
32 SPRING; RETURN,ACCEL PEDAL 8-97107-141-0 01 1 9311- ● ●
35 STOPPER; ACCEL PEDAL 8-97857-401-1 01 1 9505- ●
35 STOPPER; ACCEL PEDAL 8-97036-050-0 02 1 9112-9504 ● ●
35 STOPPER; ACCEL PEDAL 8-97036-050-0 02 1 9505- ●
39 NUT; ACCEL PEDAL STOPPER
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) M10 		9-09111-410-0 01 1 9112-9504 ● ●
39 NUT; ACCEL PEDAL STOPPER
M/T MUA 5 SPEED(RMN) M10 		9-09111-410-0 01 1 9505- ●
44 WASHER; ACCEL CONT PEDAL
AUTO CRUISE CONT<K30> ID=5.3 		9-09160-505-0 01 1 9112- ●
54 CABLE; ENG CONT 8-94374-767-2 01 1 9112-9112 ●
54 CABLE; ENG CONT 8-97072-436-0 01 1 9201-9202 ●
54 CABLE; ENG CONT 8-97078-146-1 01 1 9203-9504 ●
54 CABLE; ENG CONT
A/T AISIN(RMD) 		8-97119-715-1 01 1 9505-9505 ●
54 CABLE; ENG CONT
A/T AISIN(RMD) 		8-97134-869-0 01 1 9506- ●
54 CABLE; ENG CONT 8-97037-662-5 01 1 9112- ●
67 CABLE ASM; IDLE CONT 8-94374-771-3 01 1 9112-9310 ●
67 CABLE ASM; IDLE CONT 8-97100-933-1 01 1 9310-9504 ●
232 BOLT; STOPPER,ACCEL PEDAL
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) M10X30 		9-02041-030-0 01 1 9112-9204 ● ●
232 BOLT; STOPPER,ACCEL PEDAL
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) M10X30 		0-20801-030-0 01 1 9205-9206 ● ●
232 BOLT; STOPPER,ACCEL PEDAL
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) M10X35 		0-20801-035-0 01 1 9207-9504 ● ●
232 BOLT; STOPPER,ACCEL PEDAL
M/T MUA 5 SPEED(RMN) M10X35 		0-20801-035-0 01 1 9505- ●
234 SWITCH; ACCEL 8-97123-590-1 01 1 9505- ●
234 SWITCH; ACCEL
A/T THM(RMQ) 		8-94368-343-0 01 1 9112-9504 ● ●
234 SWITCH; ACCEL
A/T THM(RMQ) 		8-94368-343-0 01 1 9505- ●
713 WASHER; PL
ID=8.4 		9-09160-508-0 01 1 9503-9504 ● ●
713 WASHER; PL
ID=8.4 		9-09160-508-0 01 1 9505- ●

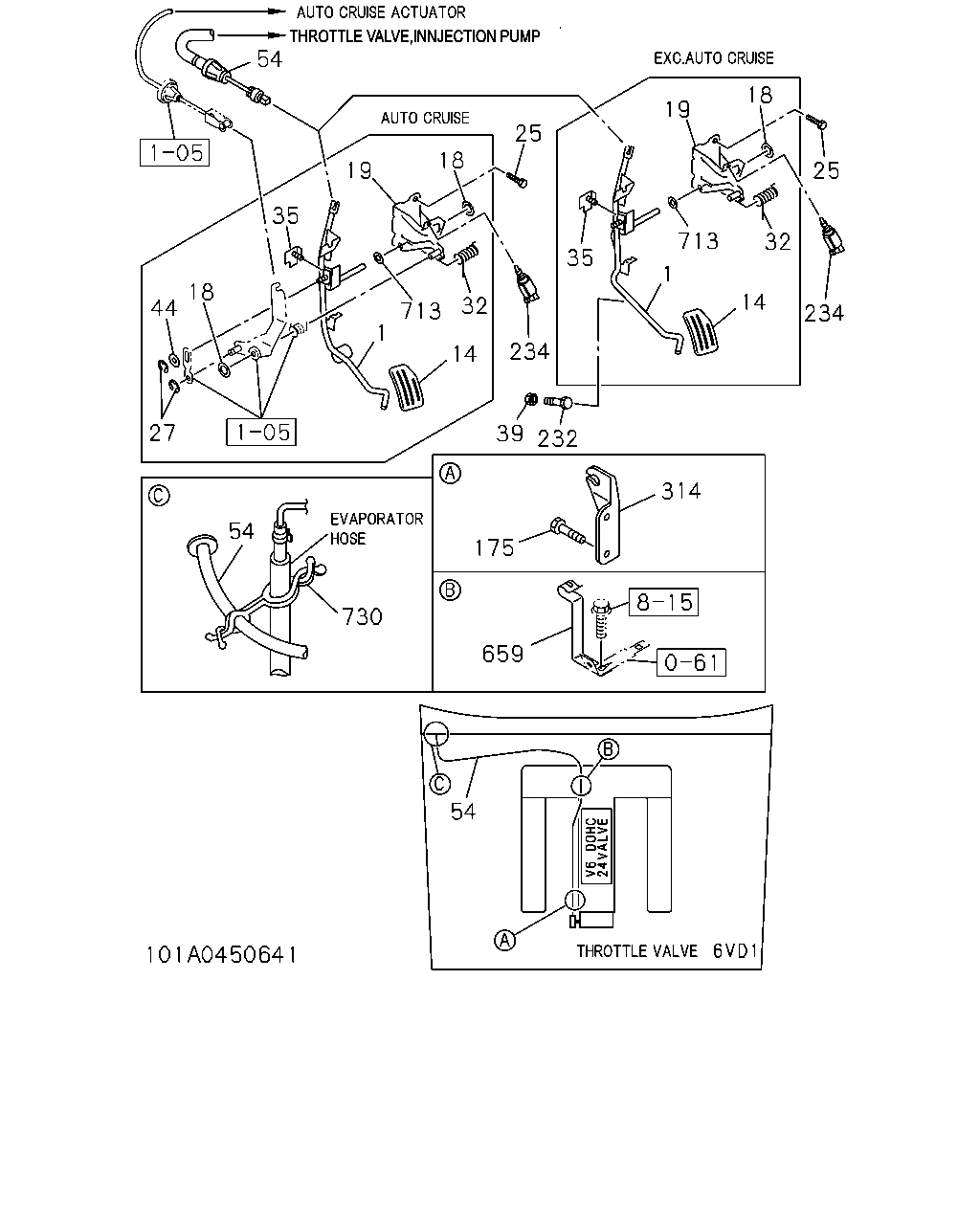

çizim 493978
54 19 18 32 14 713 1 35 18 44 27 54 730 175 314 659 54 234 232 39 1 14 713 32 234 25 18 19 35 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; PEDAL SIDE 8-97118-506-2 01 1 9505-9608 ●
1 LEVER; PEDAL SIDE 8-97148-868-0 01 1 9609- ●
1 LEVER; PEDAL SIDE
EXC. AUTO CRUISE CONT<K30> 		8-97070-474-1 01 1 9112-9504 ● ●
1 LEVER; PEDAL SIDE
EXC. AUTO CRUISE CONT<K30> 		8-97070-474-1 01 1 9505- ●
1 LEVER; PEDAL SIDE
AUTO CRUISE CONT<K30> 		8-97070-475-1 01 1 9112- ●
14 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9505- ●
14 PAD; PEDAL,ACCEL 8-97044-894-0 01 1 9112-9208 ● ●
14 PAD; PEDAL,ACCEL 8-94473-376-0 01 1 9209-9304 ● ●
14 PAD; PEDAL,ACCEL 8-97044-894-1 01 1 9305-9504 ● ●
14 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 9505- ●
18 NUT; JOINT LK
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9112-9208 ● ●
18 NUT; JOINT LK
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9209-9307 ● ●
18 NUT; JOINT LK
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9308-9504 ● ●
18 NUT; JOINT LK
A/T AISIN(RMD) ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9505- ●
18 NUT; JOINT LK
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9505- ●
19 BRACKET; ACCEL PEDAL 8-97118-500-2 01 1 9505-9608 ●
19 BRACKET; ACCEL PEDAL 8-97148-867-1 01 1 9609- ●
19 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97066-120-0 01 1 9112-9302 ● ●
19 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97063-839-2 01 1 9303-9502 ● ●
19 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97117-115-0 01 1 9503-9504 ● ●
19 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97117-115-1 01 1 9505- ●
19 BRACKET; ACCEL PEDAL
AUTO CRUISE CONT<K30> 		8-97066-121-0 01 1 9112-9302 ●
19 BRACKET; ACCEL PEDAL
AUTO CRUISE CONT<K30> 		8-97064-882-2 01 1 9303-9502 ●
19 BRACKET; ACCEL PEDAL
AUTO CRUISE CONT<K30> 		8-97117-116-1 01 1 9503- ●
25 BOLT; SHAFT SIDE
M6X12 W/LK WASHER 		9-01900-612-0 02 1 9112-9204 ● ●
25 BOLT; SHAFT SIDE
M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205-9710 ● ●
25 BOLT; SHAFT SIDE
M6X10 FLANGE 		0-28080-610-0 02 1 9711- ● ●
27 RETAINER; ACCEL PEDAL
AUTO CRUISE CONT<K30> ID=4 		9-09185-404-0 02 1 9112- ●
27 RETAINER; ACCEL PEDAL
AUTO CRUISE CONT<K30> ID=6 		9-09185-406-0 01 1 9112-9504 ●
27 RETAINER; ACCEL PEDAL
ID=6 		9-09185-406-0 01 1 9505- ●
27 RETAINER; ACCEL PEDAL
AUTO CRUISE CONT<K30> ID=6 		9-09185-406-0 01 1 9505- ●
32 SPRING; RETURN,ACCEL PEDAL 8-97035-035-0 01 1 9112-9310 ● ●
32 SPRING; RETURN,ACCEL PEDAL 8-97107-141-0 01 1 9311- ● ●
35 STOPPER; ACCEL PEDAL 8-97857-401-1 01 1 9505- ●
35 STOPPER; ACCEL PEDAL 8-97036-050-0 02 1 9112-9504 ● ●
35 STOPPER; ACCEL PEDAL 8-97036-050-0 02 1 9505- ●
39 NUT; ACCEL PEDAL STOPPER
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) M10 		9-09111-410-0 01 1 9112-9504 ● ●
39 NUT; ACCEL PEDAL STOPPER
M/T MUA 5 SPEED(RMN) M10 		9-09111-410-0 01 1 9505- ●
44 WASHER; ACCEL CONT PEDAL
AUTO CRUISE CONT<K30> ID=5.3 		9-09160-505-0 01 1 9112- ●
54 CABLE; ENG CONT 8-94374-767-2 01 1 9112-9112 ●
54 CABLE; ENG CONT 8-97072-436-0 01 1 9201-9202 ●
54 CABLE; ENG CONT 8-97078-146-1 01 1 9203-9504 ●
54 CABLE; ENG CONT
A/T AISIN(RMD) 		8-97119-715-1 01 1 9505-9505 ●
54 CABLE; ENG CONT
A/T AISIN(RMD) 		8-97134-869-0 01 1 9506- ●
54 CABLE; ENG CONT 8-97037-662-5 01 1 9112- ●
175 BOLT; BRKT,ACCEL CABLE
M6X14 FLANGE 		0-28080-614-0 02 1 9112-9112 ●
175 BOLT; BRKT,ACCEL CABLE
M6X12 FLANGE 		0-28080-612-0 02 1 9201- ●
232 BOLT; STOPPER,ACCEL PEDAL
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) M10X30 		9-02041-030-0 01 1 9112-9204 ● ●
232 BOLT; STOPPER,ACCEL PEDAL
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) M10X30 		0-20801-030-0 01 1 9205-9206 ● ●
232 BOLT; STOPPER,ACCEL PEDAL
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) M10X35 		0-20801-035-0 01 1 9207-9504 ● ●
232 BOLT; STOPPER,ACCEL PEDAL
M/T MUA 5 SPEED(RMN) M10X35 		0-20801-035-0 01 1 9505- ●
234 SWITCH; ACCEL 8-97123-590-1 01 1 9505- ●
234 SWITCH; ACCEL
A/T THM(RMQ) 		8-94368-343-0 01 1 9112-9504 ● ●
234 SWITCH; ACCEL
A/T THM(RMQ) 		8-94368-343-0 01 1 9505- ●
314 BRACKET; ACCEL CABLE 8-94376-255-0 01 1 9112- ●
659 CLIP; ACCEL CONT CABLE 8-97039-197-0 01 1 9112- ●
713 WASHER; PL
ID=8.4 		9-09160-508-0 01 1 9503-9504 ● ●
713 WASHER; PL
ID=8.4 		9-09160-508-0 01 1 9505- ●
730 CLIP
ID=8 & 18.5 		8-94132-792-0 01 1 9606- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
