Sayfa 0-66 - Isuzu EPC

0-66 — GENERATOR (#166863) — 432 parça

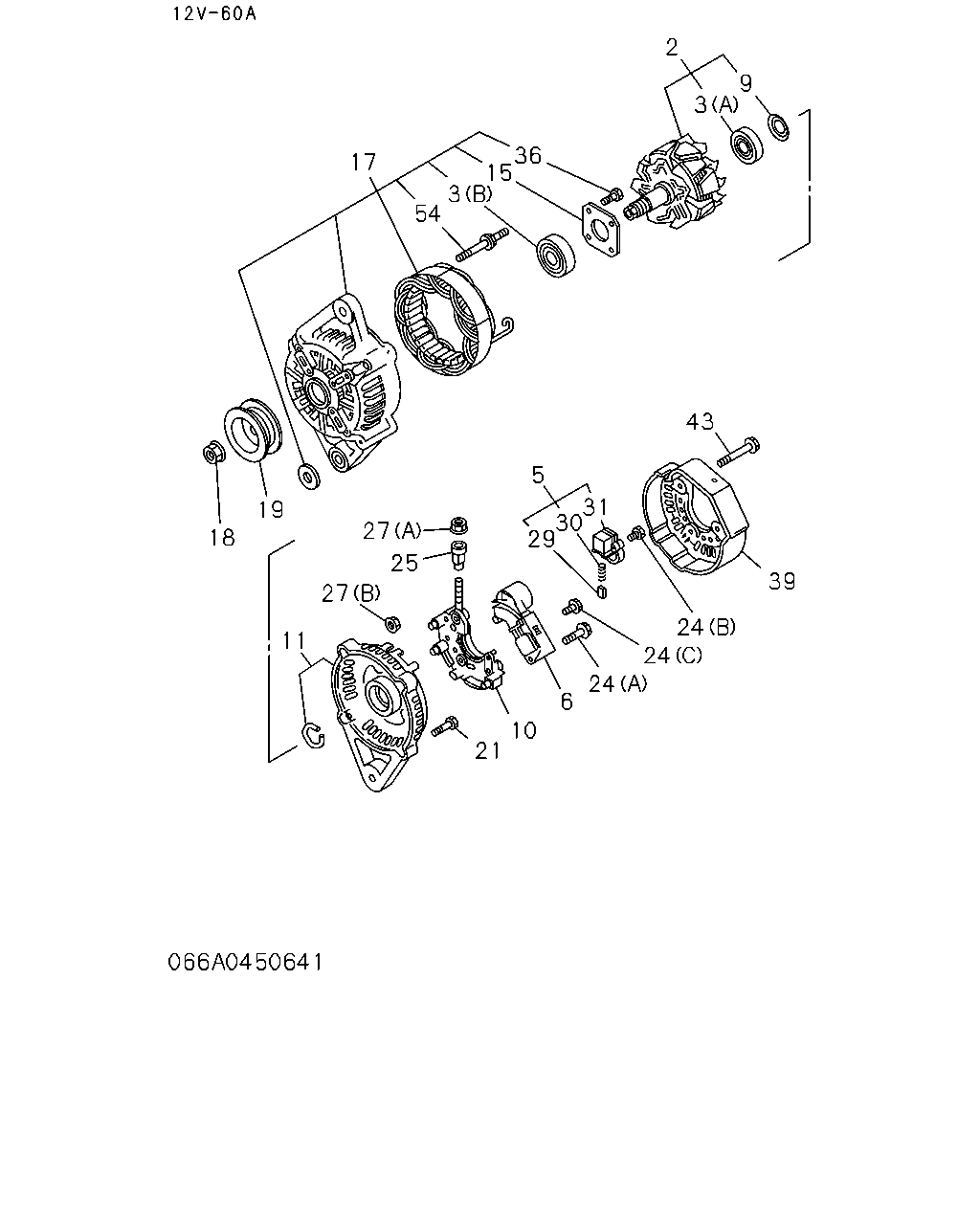

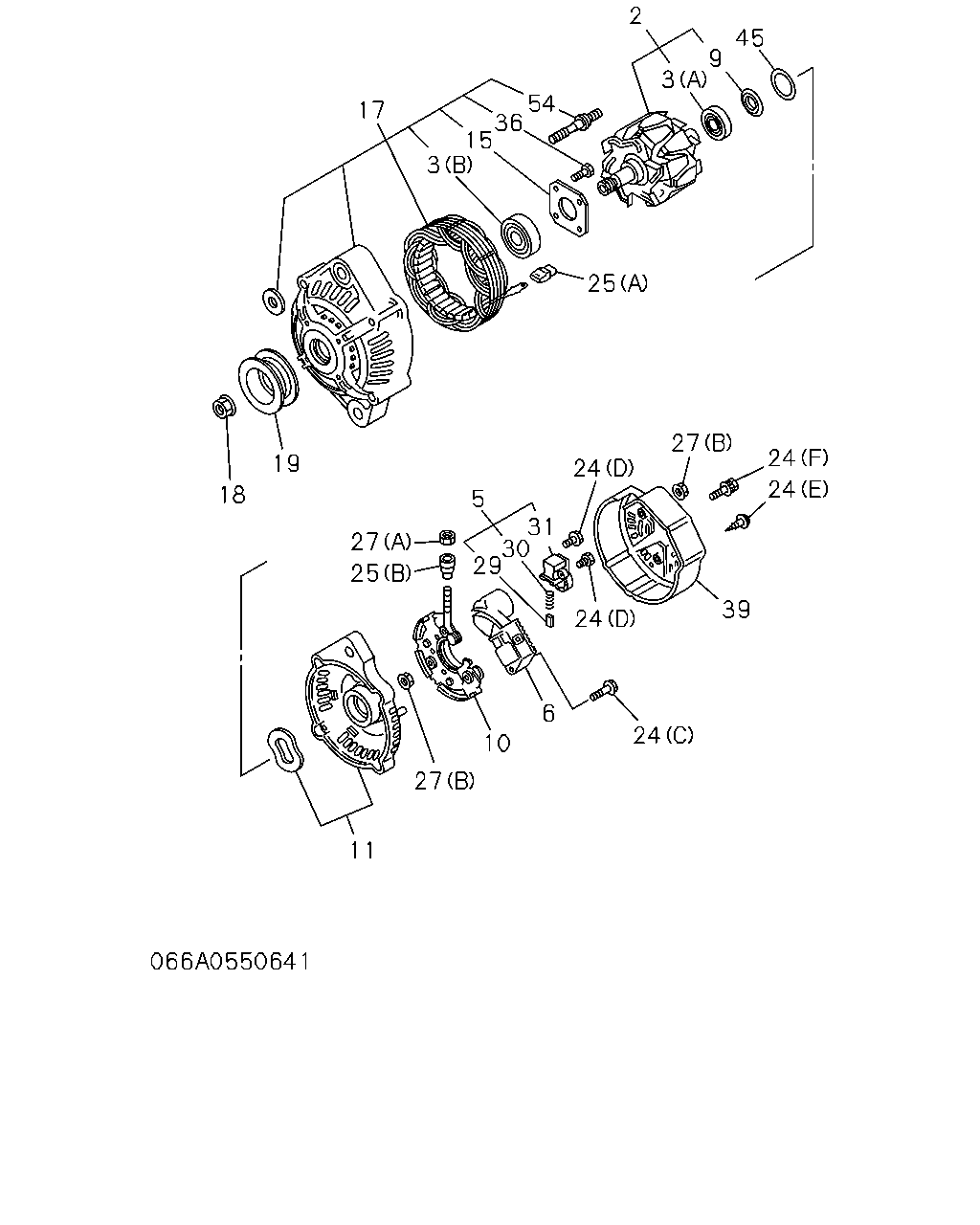

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN (C) ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94123-061-0	02	1	-
24	SCREW; RECTIFIER,GEN (D) ASM PART: H = 8-97121-180-1	8-94123-066-0	07	1	-9512
24	SCREW; RECTIFIER,GEN (D) ASM PART: A = 8-97034-899-2	8-94123-066-0	07	1	-

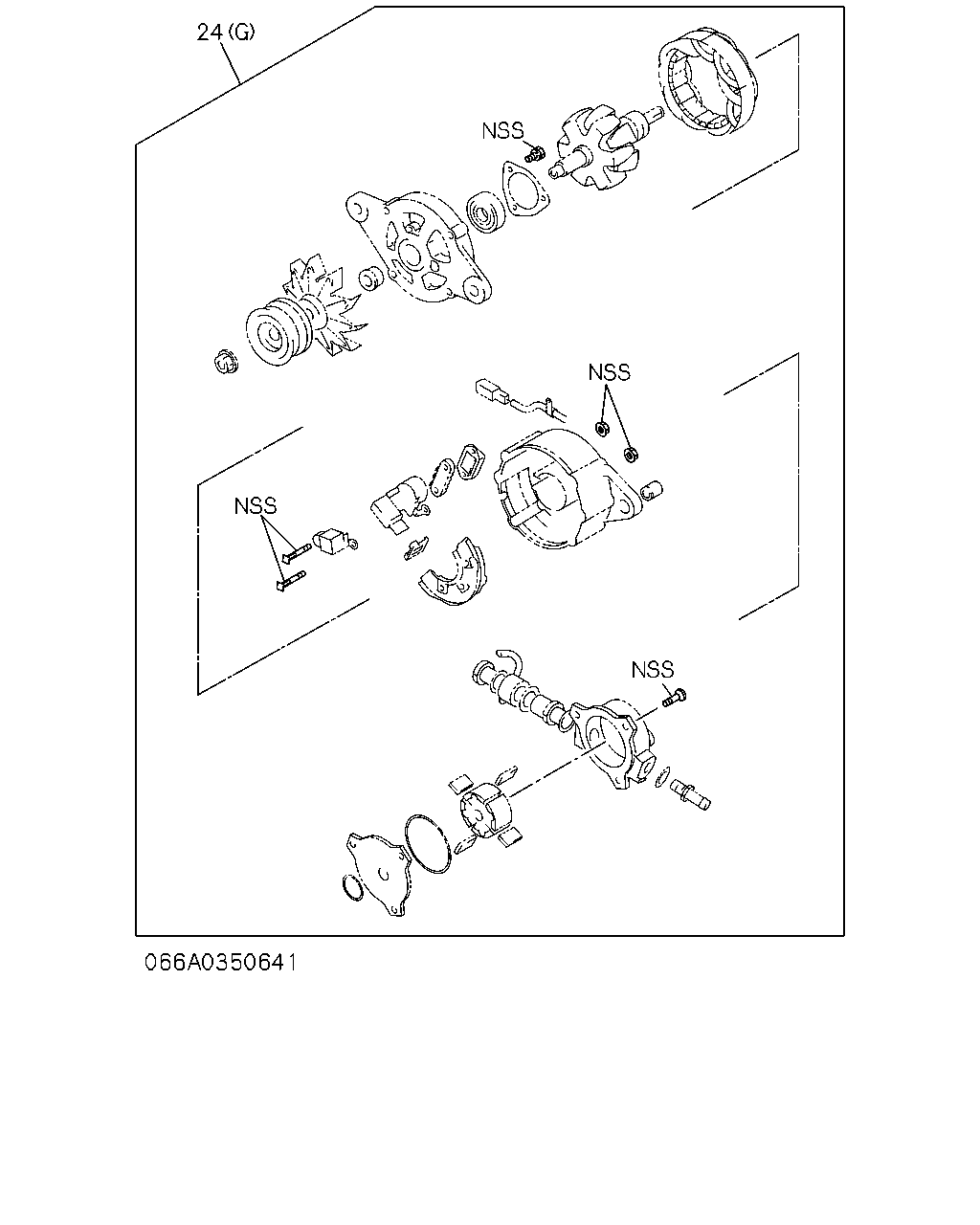

24	SCREW; RECTIFIER,GEN (G) (G) KIT ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN (A) ASM PART: H = 8-97121-180-1	8-94455-161-0	06	1	9601-
24	SCREW; RECTIFIER,GEN (A) ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-161-0	06	1	-
24	SCREW; RECTIFIER,GEN (B) ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-162-0	01	1	-
24	SCREW; RECTIFIER,GEN (G) (G) KIT ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-656-0	01	1	-
24	SCREW; RECTIFIER,GEN (G) (G) KIT ASM PART: G = 8-97113-770-0, L = 8-97134-781-0	8-97109-653-0	01	1	-
24	SCREW; RECTIFIER,GEN (G) (G) KIT ASM PART: J = 8-97133-854-0	8-97142-261-0	01	1	-
24	SCREW; RECTIFIER,GEN (E) ASM PART: H = 8-97121-180-1	8-97142-568-0	01	1	9601-
24	SCREW; RECTIFIER,GEN (F) ASM PART: H = 8-97121-180-1	8-97142-569-0	01	1	9601-

21 22 123 1 3 2 17 3 15 19 18 65 6 5 75 16 65 41 29 65 16 44 10 11 94 93 91 109 109 109 109 104 108 102 104 99 99 99 96 90 100

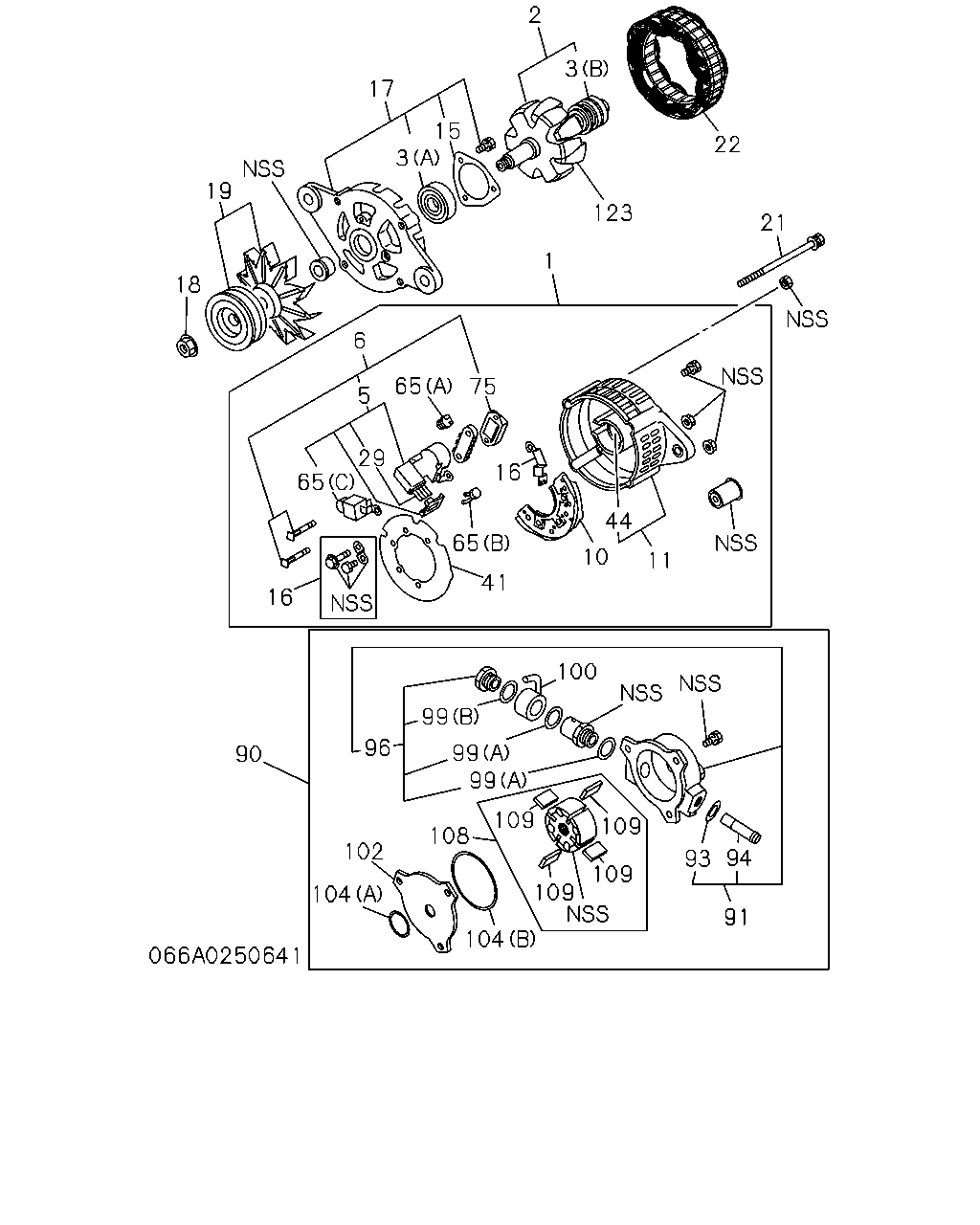

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0	8-94381-023-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-97062-641-0	8-97062-646-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97037-724-1	8-97071-212-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: F = 8-97074-612-0, M = 8-97134-866-0	8-97078-575-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: G = 8-97113-770-0, L = 8-97134-781-0	8-97083-007-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: J = 8-97133-854-0	8-97142-247-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: O = 8-97187-655-0	8-97188-853-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94410-984-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97046-337-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-643-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97037-724-1	8-97071-211-0	01	1	-
2	ROTOR; GEN ASM PART: E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97078-572-0	01	1	-
2	ROTOR; GEN ASM PART: G = 8-97113-770-0, L = 8-97134-781-0	8-97113-754-0	01	1	-
2	ROTOR; GEN ASM PART: J = 8-97133-854-0	8-97142-245-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: O = 8-97187-655-0	8-94121-178-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94123-050-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94135-753-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94406-981-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-153-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97062-654-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: J = 8-97133-854-0	8-97142-259-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0	8-94156-592-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: O = 8-97187-655-0	8-97026-053-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-97040-494-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-649-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: J = 8-97133-854-0	8-97142-251-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97034-899-2	8-94139-012-0	01	1	9209-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0	8-94167-410-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97042-852-2	8-94455-160-0	01	1	9209-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: O = 8-97187-655-0	8-97026-052-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97034-899-2	8-97032-091-0	01	1	-9208
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97042-852-2	8-97046-339-0	01	1	-9208
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-648-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: H = 8-97121-180-1	8-97122-796-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97121-193-0	8-97122-797-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: J = 8-97133-854-0	8-97142-250-0	01	1	-
10	RECTIFIER; GEN ASM PART: H = 8-97121-180-1	8-94160-638-0	01	1	-9512
10	RECTIFIER; GEN ASM PART: A = 8-97034-899-2	8-94160-638-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97037-724-1, G = 8-97113-770-0, L = 8-97134-781-0	8-94408-376-0	01	1	-
10	RECTIFIER; GEN ASM PART: E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94453-149-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97046-338-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-651-0	01	1	-
10	RECTIFIER; GEN ASM PART: J = 8-97133-854-0	8-97142-255-0	01	1	-
10	RECTIFIER; GEN ASM PART: H = 8-97121-180-1	8-97142-564-0	01	1	9601-
11	COVER; RR,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97040-340-0	01	1	-
11	COVER; RR,GEN ASM PART: H = 8-97121-180-1	8-97040-499-0	01	1	-9512
11	COVER; RR,GEN ASM PART: A = 8-97034-899-2	8-97040-499-0	01	1	-
11	COVER; RR,GEN ASM PART: H = 8-97121-180-1	8-97142-565-0	01	1	9601-
15	RETAINER; ROTOR,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94223-974-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94406-982-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-154-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97029-546-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0	8-94156-597-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97029-543-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: G = 8-97113-770-0, L = 8-97134-781-0, O = 8-97187-655-0	8-97111-390-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: J = 8-97133-854-0	8-97142-256-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-97040-498-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97046-336-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-653-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: J = 8-97133-854-0	8-97171-005-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94123-043-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0	8-97016-301-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: O = 8-97187-655-0	8-97203-880-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94468-286-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97029-004-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97046-335-0	01	1	-
19	PULLEY; GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-655-0	01	1	-
19	PULLEY; GEN ASM PART: J = 8-97133-854-0	8-97142-260-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, J = 8-97133-854-0, M = 8-97134-866-0	8-94116-435-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 8-97037-724-1, G = 8-97113-770-0, L = 8-97134-781-0	8-94156-602-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-164-0	02	1	-
21	BOLT; THROUGH,GEN ASM PART: E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97078-574-0	04	1	-
22	STATOR; GEN ASM PART: B = 8-97037-724-1, G = 8-97113-770-0, L = 8-97134-781-0	8-94167-406-0	01	1	-
22	STATOR; GEN ASM PART: O = 8-97187-655-0	8-94408-494-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-645-0	01	1	-
22	STATOR; GEN ASM PART: E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0	8-97078-573-0	01	1	-
22	STATOR; GEN ASM PART: J = 8-97133-854-0	8-97142-246-0	01	1	-
29	BRUSH; GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94123-056-0	02	1	-
29	BRUSH; GEN ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94156-593-0	02	1	-
29	BRUSH; GEN ASM PART: J = 8-97133-854-0	8-97142-252-0	02	1	-
41	GUIDE; FAN,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-745-0	01	1	-
41	GUIDE; FAN,GEN ASM PART: J = 8-97133-854-0	8-97142-257-0	01	1	-
44	SEAL; RR COVER,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94156-589-0	01	1	-
44	SEAL; RR COVER,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97029-534-0	01	1	-
65	CONDENSER; GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94156-594-0	01	1	-
65	CONDENSER; GEN (A) ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97029-537-0	01	1	-
65	CONDENSER; GEN (B) ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97029-538-0	01	1	-
65	CONDENSER; GEN (C) ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97029-539-0	01	1	-
65	CONDENSER; GEN ASM PART: J = 8-97133-854-0	8-97142-253-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94250-964-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-650-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: J = 8-97133-854-0	8-97142-254-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0	8-97062-657-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97134-763-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: J = 8-97133-854-0	8-97142-262-0	01	1	-
91	BODY; VAC PUMP ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97062-660-0	01	1	-
93	GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	5-19679-004-2	01	1	-
94	CONNECTOR; VAC PUMP ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	5-19619-034-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97018-875-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	5-19679-003-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94311-470-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: J = 8-97133-854-0	8-97142-263-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0	8-97062-659-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97134-764-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94462-877-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97062-658-0	01	1	-
109	VANE; VAC PUMP ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94462-883-0	04	1	-
123	GUIDE; BRUSH ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, J = 8-97133-854-0, M = 8-97134-866-0	8-97062-644-0	01	1	-

22 3 2 17 3 15 19 18 6 75 76 48 5 65 29 16 90 96 99 100 99 104 102 104 109 109 109 109 94 93 108 91 11 44 33 21 1 10

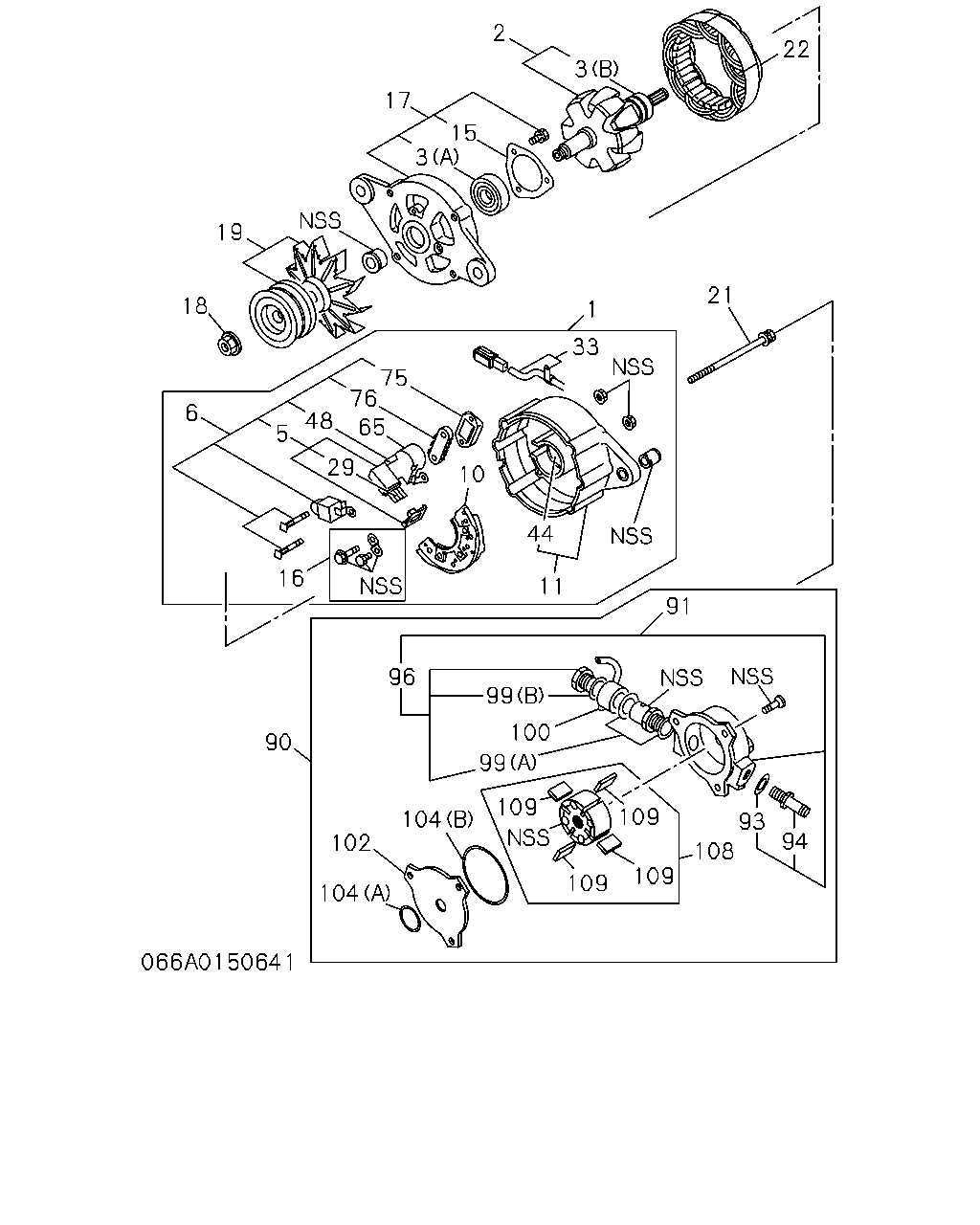

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0	8-94381-023-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-97062-641-0	8-97062-646-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97037-724-1	8-97071-212-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: F = 8-97074-612-0, M = 8-97134-866-0	8-97078-575-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: G = 8-97113-770-0, L = 8-97134-781-0	8-97083-007-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: J = 8-97133-854-0	8-97142-247-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: O = 8-97187-655-0	8-97188-853-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94410-984-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97046-337-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-643-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97037-724-1	8-97071-211-0	01	1	-
2	ROTOR; GEN ASM PART: E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97078-572-0	01	1	-
2	ROTOR; GEN ASM PART: G = 8-97113-770-0, L = 8-97134-781-0	8-97113-754-0	01	1	-
2	ROTOR; GEN ASM PART: J = 8-97133-854-0	8-97142-245-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: O = 8-97187-655-0	8-94121-178-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94123-050-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94135-753-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94406-981-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-153-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97062-654-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: J = 8-97133-854-0	8-97142-259-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0	8-94156-592-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: O = 8-97187-655-0	8-97026-053-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-97040-494-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-649-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: J = 8-97133-854-0	8-97142-251-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97034-899-2	8-94139-012-0	01	1	9209-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0	8-94167-410-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97042-852-2	8-94455-160-0	01	1	9209-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: O = 8-97187-655-0	8-97026-052-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97034-899-2	8-97032-091-0	01	1	-9208
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97042-852-2	8-97046-339-0	01	1	-9208
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-648-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: H = 8-97121-180-1	8-97122-796-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97121-193-0	8-97122-797-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: J = 8-97133-854-0	8-97142-250-0	01	1	-
10	RECTIFIER; GEN ASM PART: H = 8-97121-180-1	8-94160-638-0	01	1	-9512
10	RECTIFIER; GEN ASM PART: A = 8-97034-899-2	8-94160-638-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97037-724-1, G = 8-97113-770-0, L = 8-97134-781-0	8-94408-376-0	01	1	-
10	RECTIFIER; GEN ASM PART: E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94453-149-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97046-338-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-651-0	01	1	-
10	RECTIFIER; GEN ASM PART: J = 8-97133-854-0	8-97142-255-0	01	1	-
10	RECTIFIER; GEN ASM PART: H = 8-97121-180-1	8-97142-564-0	01	1	9601-
11	COVER; RR,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97040-340-0	01	1	-
11	COVER; RR,GEN ASM PART: H = 8-97121-180-1	8-97040-499-0	01	1	-9512
11	COVER; RR,GEN ASM PART: A = 8-97034-899-2	8-97040-499-0	01	1	-
11	COVER; RR,GEN ASM PART: H = 8-97121-180-1	8-97142-565-0	01	1	9601-
15	RETAINER; ROTOR,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94223-974-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94406-982-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-154-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97029-546-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0	8-94156-597-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97029-543-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: G = 8-97113-770-0, L = 8-97134-781-0, O = 8-97187-655-0	8-97111-390-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: J = 8-97133-854-0	8-97142-256-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-97040-498-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97046-336-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-653-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: J = 8-97133-854-0	8-97171-005-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94123-043-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0	8-97016-301-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: O = 8-97187-655-0	8-97203-880-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94468-286-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97029-004-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97046-335-0	01	1	-
19	PULLEY; GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-655-0	01	1	-
19	PULLEY; GEN ASM PART: J = 8-97133-854-0	8-97142-260-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, J = 8-97133-854-0, M = 8-97134-866-0	8-94116-435-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 8-97037-724-1, G = 8-97113-770-0, L = 8-97134-781-0	8-94156-602-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-164-0	02	1	-
21	BOLT; THROUGH,GEN ASM PART: E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97078-574-0	04	1	-
22	STATOR; GEN ASM PART: B = 8-97037-724-1, G = 8-97113-770-0, L = 8-97134-781-0	8-94167-406-0	01	1	-
22	STATOR; GEN ASM PART: O = 8-97187-655-0	8-94408-494-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-645-0	01	1	-
22	STATOR; GEN ASM PART: E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0	8-97078-573-0	01	1	-
22	STATOR; GEN ASM PART: J = 8-97133-854-0	8-97142-246-0	01	1	-
29	BRUSH; GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94123-056-0	02	1	-
29	BRUSH; GEN ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94156-593-0	02	1	-
29	BRUSH; GEN ASM PART: J = 8-97133-854-0	8-97142-252-0	02	1	-
33	WIRE; LEAD,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97071-213-0	01	1	-
44	SEAL; RR COVER,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94156-589-0	01	1	-
44	SEAL; RR COVER,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97029-534-0	01	1	-
48	DIODE; GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94237-727-0	01	1	-
65	CONDENSER; GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94156-594-0	01	1	-
65	CONDENSER; GEN (A) ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97029-537-0	01	1	-
65	CONDENSER; GEN (B) ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97029-538-0	01	1	-
65	CONDENSER; GEN (C) ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97029-539-0	01	1	-
65	CONDENSER; GEN ASM PART: J = 8-97133-854-0	8-97142-253-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94250-964-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-650-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: J = 8-97133-854-0	8-97142-254-0	01	1	-
76	BLOCK; REG,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94156-591-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0	8-97062-657-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97134-763-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: J = 8-97133-854-0	8-97142-262-0	01	1	-
91	BODY; VAC PUMP ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97062-660-0	01	1	-
93	GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	5-19679-004-2	01	1	-
94	CONNECTOR; VAC PUMP ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	5-19619-034-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97018-875-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	5-19679-003-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94311-470-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: J = 8-97133-854-0	8-97142-263-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0	8-97062-659-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97134-764-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94462-877-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97062-658-0	01	1	-
109	VANE; VAC PUMP ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94462-883-0	04	1	-

39 43 9 3 2 36 15 3 54 17 24 24 24 6 10 21 31 30 29 5 27 25 27 11 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ROTOR; GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94410-984-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97046-337-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-643-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97037-724-1	8-97071-211-0	01	1	-
2	ROTOR; GEN ASM PART: E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97078-572-0	01	1	-
2	ROTOR; GEN ASM PART: G = 8-97113-770-0, L = 8-97134-781-0	8-97113-754-0	01	1	-
2	ROTOR; GEN ASM PART: J = 8-97133-854-0	8-97142-245-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: O = 8-97187-655-0	8-94121-178-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94123-050-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94135-753-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94406-981-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-153-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97062-654-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: J = 8-97133-854-0	8-97142-259-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0	8-94156-592-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: O = 8-97187-655-0	8-97026-053-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-97040-494-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-649-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: J = 8-97133-854-0	8-97142-251-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97034-899-2	8-94139-012-0	01	1	9209-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0	8-94167-410-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97042-852-2	8-94455-160-0	01	1	9209-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: O = 8-97187-655-0	8-97026-052-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97034-899-2	8-97032-091-0	01	1	-9208
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97042-852-2	8-97046-339-0	01	1	-9208
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-648-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: H = 8-97121-180-1	8-97122-796-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97121-193-0	8-97122-797-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: J = 8-97133-854-0	8-97142-250-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94123-051-0	01	1	-
10	RECTIFIER; GEN ASM PART: H = 8-97121-180-1	8-94160-638-0	01	1	-9512
10	RECTIFIER; GEN ASM PART: A = 8-97034-899-2	8-94160-638-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97037-724-1, G = 8-97113-770-0, L = 8-97134-781-0	8-94408-376-0	01	1	-
10	RECTIFIER; GEN ASM PART: E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94453-149-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97046-338-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-651-0	01	1	-
10	RECTIFIER; GEN ASM PART: J = 8-97133-854-0	8-97142-255-0	01	1	-
10	RECTIFIER; GEN ASM PART: H = 8-97121-180-1	8-97142-564-0	01	1	9601-
11	COVER; RR,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97040-340-0	01	1	-
11	COVER; RR,GEN ASM PART: H = 8-97121-180-1	8-97040-499-0	01	1	-9512
11	COVER; RR,GEN ASM PART: A = 8-97034-899-2	8-97040-499-0	01	1	-
11	COVER; RR,GEN ASM PART: H = 8-97121-180-1	8-97142-565-0	01	1	9601-
15	RETAINER; ROTOR,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94223-974-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94406-982-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-154-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97029-546-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-97040-498-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97046-336-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-653-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: J = 8-97133-854-0	8-97171-005-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94123-043-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0	8-97016-301-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: O = 8-97187-655-0	8-97203-880-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94468-286-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97029-004-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97046-335-0	01	1	-
19	PULLEY; GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-655-0	01	1	-
19	PULLEY; GEN ASM PART: J = 8-97133-854-0	8-97142-260-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, J = 8-97133-854-0, M = 8-97134-866-0	8-94116-435-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 8-97037-724-1, G = 8-97113-770-0, L = 8-97134-781-0	8-94156-602-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-164-0	02	1	-
21	BOLT; THROUGH,GEN ASM PART: E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97078-574-0	04	1	-
24	SCREW; RECTIFIER,GEN (C) ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94123-061-0	02	1	-
24	SCREW; RECTIFIER,GEN (D) ASM PART: H = 8-97121-180-1	8-94123-066-0	07	1	-9512
24	SCREW; RECTIFIER,GEN (D) ASM PART: A = 8-97034-899-2	8-94123-066-0	07	1	-
24	SCREW; RECTIFIER,GEN (G) (G) KIT ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN (A) ASM PART: H = 8-97121-180-1	8-94455-161-0	06	1	9601-
24	SCREW; RECTIFIER,GEN (A) ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-161-0	06	1	-
24	SCREW; RECTIFIER,GEN (B) ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-162-0	01	1	-
24	SCREW; RECTIFIER,GEN (G) (G) KIT ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-656-0	01	1	-
24	SCREW; RECTIFIER,GEN (G) (G) KIT ASM PART: G = 8-97113-770-0, L = 8-97134-781-0	8-97109-653-0	01	1	-
24	SCREW; RECTIFIER,GEN (G) (G) KIT ASM PART: J = 8-97133-854-0	8-97142-261-0	01	1	-
24	SCREW; RECTIFIER,GEN (E) ASM PART: H = 8-97121-180-1	8-97142-568-0	01	1	9601-
24	SCREW; RECTIFIER,GEN (F) ASM PART: H = 8-97121-180-1	8-97142-569-0	01	1	9601-
25	BUSHING; INSULATION TERMINAL (A) ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94123-059-0	04	1	-
25	BUSHING; INSULATION TERMINAL (B) ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94135-760-0	01	1	-
25	BUSHING; INSULATION TERMINAL ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-166-0	01	1	-
27	NUT; RECTIFIER,GEN (B) ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94123-064-0	02	1	-
27	NUT; RECTIFIER,GEN (B) ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94123-064-0	07	1	-
27	NUT; RECTIFIER,GEN (A), M6 ASM PART: C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94206-186-0	01	1	-
27	NUT; RECTIFIER,GEN (A), M6 ASM PART: A = 8-97034-899-2	8-94206-186-0	01	1	9209-
27	NUT; RECTIFIER,GEN (A), M6 ASM PART: A = 8-97034-899-2	8-94206-186-0	02	1	-9208
29	BRUSH; GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94123-056-0	02	1	-
29	BRUSH; GEN ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94156-593-0	02	1	-
29	BRUSH; GEN ASM PART: J = 8-97133-854-0	8-97142-252-0	02	1	-
30	SPRING; BRUSH,GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94123-057-0	02	1	-
31	SHEET; BRUSH,GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-97040-495-0	01	1	-
36	SCREW; FRT COVER ASM PART: H = 8-97121-180-1	8-94123-047-0	04	1	-9512
36	SCREW; FRT COVER ASM PART: A = 8-97034-899-2	8-94123-047-0	04	1	-
36	SCREW; FRT COVER ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-155-0	04	1	-
36	SCREW; FRT COVER ASM PART: H = 8-97121-180-1	8-97142-562-0	04	1	9601-
39	COVER; END,RR COVER,GEN ASM PART: H = 8-97121-180-1	8-94160-639-0	01	1	-9512
39	COVER; END,RR COVER,GEN ASM PART: A = 8-97034-899-2	8-94160-639-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-165-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: H = 8-97121-180-1	8-97142-571-0	01	1	9601-
43	SCREW; RR END COVER ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-163-0	03	1	-
54	BOLT; RECTIFIER,GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94123-048-0	04	1	-
54	BOLT; RECTIFIER,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-156-0	02	1	-

27 24 31 30 29 5 27 25 19 18 17 2 54 36 15 3 45 9 3 25 24 24 39 24 24 6 10 27 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ROTOR; GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94410-984-0	01	1	-
2	ROTOR; GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97046-337-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-643-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97037-724-1	8-97071-211-0	01	1	-
2	ROTOR; GEN ASM PART: E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97078-572-0	01	1	-
2	ROTOR; GEN ASM PART: G = 8-97113-770-0, L = 8-97134-781-0	8-97113-754-0	01	1	-
2	ROTOR; GEN ASM PART: J = 8-97133-854-0	8-97142-245-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: O = 8-97187-655-0	8-94121-178-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94123-050-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94135-753-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94406-981-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-153-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97062-654-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0	8-97062-744-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: J = 8-97133-854-0	8-97142-259-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0	8-94156-592-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: O = 8-97187-655-0	8-97026-053-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-97040-494-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-649-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: J = 8-97133-854-0	8-97142-251-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97034-899-2	8-94139-012-0	01	1	9209-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0	8-94167-410-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97042-852-2	8-94455-160-0	01	1	9209-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: O = 8-97187-655-0	8-97026-052-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97034-899-2	8-97032-091-0	01	1	-9208
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97042-852-2	8-97046-339-0	01	1	-9208
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-648-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: H = 8-97121-180-1	8-97122-796-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97121-193-0	8-97122-797-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: J = 8-97133-854-0	8-97142-250-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94123-051-0	01	1	-
10	RECTIFIER; GEN ASM PART: H = 8-97121-180-1	8-94160-638-0	01	1	-9512
10	RECTIFIER; GEN ASM PART: A = 8-97034-899-2	8-94160-638-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97037-724-1, G = 8-97113-770-0, L = 8-97134-781-0	8-94408-376-0	01	1	-
10	RECTIFIER; GEN ASM PART: E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94453-149-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97046-338-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-651-0	01	1	-
10	RECTIFIER; GEN ASM PART: J = 8-97133-854-0	8-97142-255-0	01	1	-
10	RECTIFIER; GEN ASM PART: H = 8-97121-180-1	8-97142-564-0	01	1	9601-
11	COVER; RR,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97040-340-0	01	1	-
11	COVER; RR,GEN ASM PART: H = 8-97121-180-1	8-97040-499-0	01	1	-9512
11	COVER; RR,GEN ASM PART: A = 8-97034-899-2	8-97040-499-0	01	1	-
11	COVER; RR,GEN ASM PART: H = 8-97121-180-1	8-97142-565-0	01	1	9601-
15	RETAINER; ROTOR,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94223-974-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94406-982-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-154-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97029-546-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-97040-498-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97046-336-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-653-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: J = 8-97133-854-0	8-97171-005-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94123-043-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, J = 8-97133-854-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0	8-97016-301-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: O = 8-97187-655-0	8-97203-880-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94468-286-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, N = 8-97147-851-0, O = 8-97187-655-0	8-97029-004-0	01	1	-
19	PULLEY; GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-97046-335-0	01	1	-
19	PULLEY; GEN ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-655-0	01	1	-
19	PULLEY; GEN ASM PART: J = 8-97133-854-0	8-97142-260-0	01	1	-
24	SCREW; RECTIFIER,GEN (C) ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94123-061-0	02	1	-
24	SCREW; RECTIFIER,GEN (D) ASM PART: H = 8-97121-180-1	8-94123-066-0	07	1	-9512
24	SCREW; RECTIFIER,GEN (D) ASM PART: A = 8-97034-899-2	8-94123-066-0	07	1	-
24	SCREW; RECTIFIER,GEN (G) (G) KIT ASM PART: B = 8-97037-724-1, E = 8-97074-611-0, K = 8-97134-762-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN (A) ASM PART: H = 8-97121-180-1	8-94455-161-0	06	1	9601-
24	SCREW; RECTIFIER,GEN (A) ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-161-0	06	1	-
24	SCREW; RECTIFIER,GEN (B) ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-162-0	01	1	-
24	SCREW; RECTIFIER,GEN (G) (G) KIT ASM PART: D = 8-97062-641-0, F = 8-97074-612-0, M = 8-97134-866-0	8-97062-656-0	01	1	-
24	SCREW; RECTIFIER,GEN (G) (G) KIT ASM PART: G = 8-97113-770-0, L = 8-97134-781-0	8-97109-653-0	01	1	-
24	SCREW; RECTIFIER,GEN (G) (G) KIT ASM PART: J = 8-97133-854-0	8-97142-261-0	01	1	-
24	SCREW; RECTIFIER,GEN (E) ASM PART: H = 8-97121-180-1	8-97142-568-0	01	1	9601-
24	SCREW; RECTIFIER,GEN (F) ASM PART: H = 8-97121-180-1	8-97142-569-0	01	1	9601-
25	BUSHING; INSULATION TERMINAL (A) ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94123-059-0	04	1	-
25	BUSHING; INSULATION TERMINAL (B) ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94135-760-0	01	1	-
25	BUSHING; INSULATION TERMINAL ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-166-0	01	1	-
27	NUT; RECTIFIER,GEN (B) ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94123-064-0	02	1	-
27	NUT; RECTIFIER,GEN (B) ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94123-064-0	07	1	-
27	NUT; RECTIFIER,GEN (A), M6 ASM PART: C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94206-186-0	01	1	-
27	NUT; RECTIFIER,GEN (A), M6 ASM PART: A = 8-97034-899-2	8-94206-186-0	01	1	9209-
27	NUT; RECTIFIER,GEN (A), M6 ASM PART: A = 8-97034-899-2	8-94206-186-0	02	1	-9208
29	BRUSH; GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94123-056-0	02	1	-
29	BRUSH; GEN ASM PART: B = 8-97037-724-1, D = 8-97062-641-0, E = 8-97074-611-0, F = 8-97074-612-0, G = 8-97113-770-0, K = 8-97134-762-0, L = 8-97134-781-0, M = 8-97134-866-0, N = 8-97147-851-0, O = 8-97187-655-0	8-94156-593-0	02	1	-
29	BRUSH; GEN ASM PART: J = 8-97133-854-0	8-97142-252-0	02	1	-
30	SPRING; BRUSH,GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-94123-057-0	02	1	-
31	SHEET; BRUSH,GEN ASM PART: A = 8-97034-899-2, C = 8-97042-852-2, H = 8-97121-180-1, I = 8-97121-193-0	8-97040-495-0	01	1	-
36	SCREW; FRT COVER ASM PART: H = 8-97121-180-1	8-94123-047-0	04	1	-9512
36	SCREW; FRT COVER ASM PART: A = 8-97034-899-2	8-94123-047-0	04	1	-
36	SCREW; FRT COVER ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-155-0	04	1	-
36	SCREW; FRT COVER ASM PART: H = 8-97121-180-1	8-97142-562-0	04	1	9601-
39	COVER; END,RR COVER,GEN ASM PART: H = 8-97121-180-1	8-94160-639-0	01	1	-9512
39	COVER; END,RR COVER,GEN ASM PART: A = 8-97034-899-2	8-94160-639-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-165-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: H = 8-97121-180-1	8-97142-571-0	01	1	9601-
45	WASHER; INSULATE,RR COVER,GEN ASM PART: H = 8-97121-180-1	8-97142-570-0	01	1	9601-
54	BOLT; RECTIFIER,GEN ASM PART: A = 8-97034-899-2, H = 8-97121-180-1	8-94123-048-0	04	1	-
54	BOLT; RECTIFIER,GEN ASM PART: C = 8-97042-852-2, I = 8-97121-193-0	8-94455-156-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
