0-65 — STARTER (#166862) — 93 parça

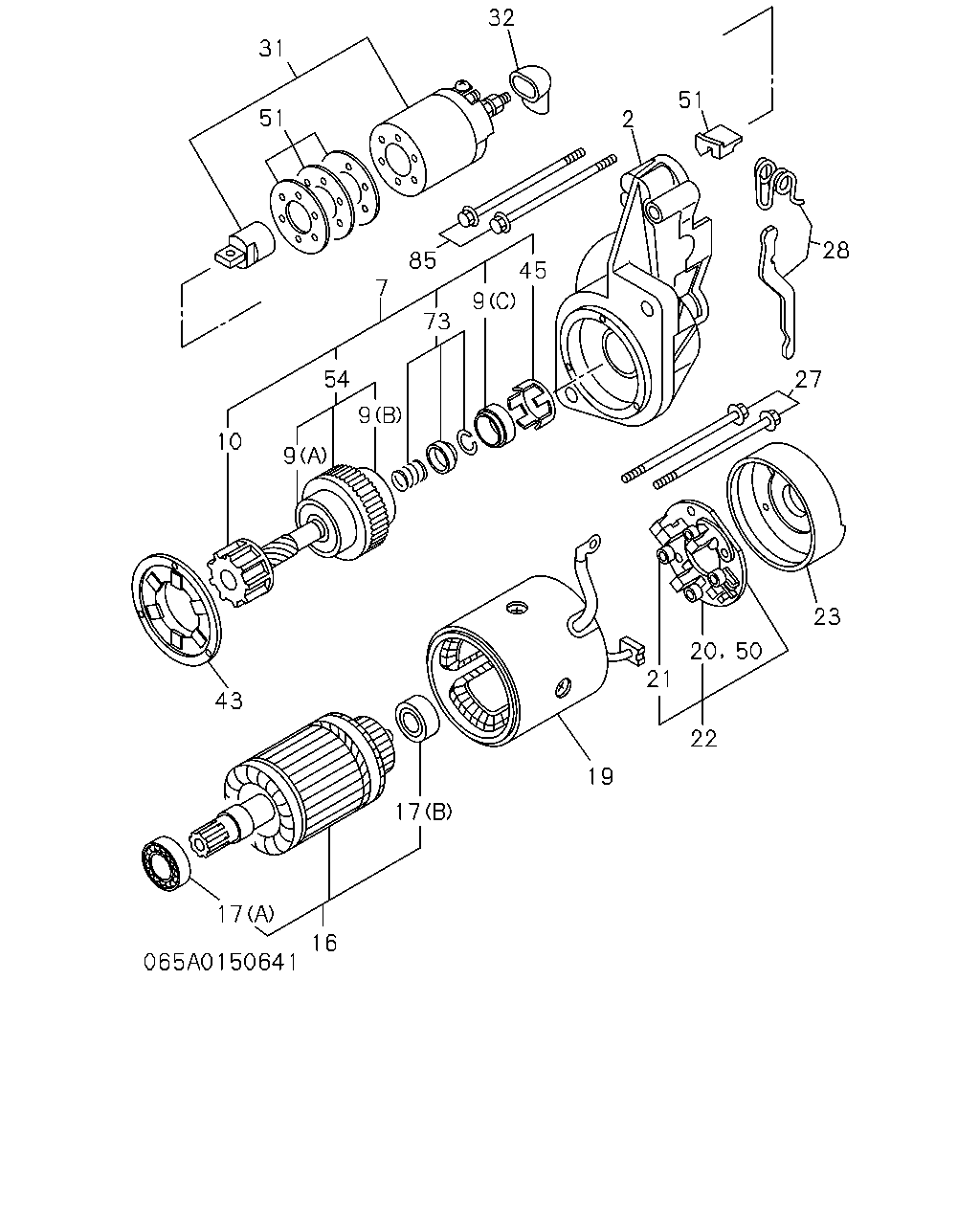

28 27 23 50 20 22 21 19 17 16 17 43 10 54 9 51 31 32 51 2 45 9 73 85 7 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-94384-314-1	8-97041-426-1	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-94387-653-0	8-97047-552-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 8-97112-549-0, D = 8-97136-688-0	8-97112-560-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-97047-547-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A) ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-97047-549-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B) ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-97047-550-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (C) ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-97047-551-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-94324-622-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-94384-314-1	8-94377-253-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-94387-653-0	8-94435-561-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 8-97112-549-0, D = 8-97136-688-0	8-97112-555-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-94228-437-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-94384-314-1	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-94384-314-1	8-94377-241-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: B = 8-94387-653-0	8-97047-544-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: C = 8-97112-549-0	8-97112-556-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: D = 8-97136-688-0	8-97142-596-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: B = 8-94387-653-0	8-94478-862-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: C = 8-97112-549-0	8-97112-557-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: D = 8-97136-688-0	8-97113-286-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-94242-064-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94384-314-1	8-94377-244-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-94387-653-0	8-94478-863-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-94384-314-1	8-97041-424-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 8-97112-549-0	8-97112-559-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-97136-688-0	8-97142-597-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-94384-314-1	8-97041-423-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-94387-653-0	8-97047-546-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: C = 8-97112-549-0, D = 8-97136-688-0	8-97112-558-0	01	1	-
27	BOLT; THROUGH,STARTER ASM PART: B = 8-94387-653-0	8-94242-071-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 8-94384-314-1	8-94377-243-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 8-94384-314-1	8-97041-422-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: C = 8-97112-549-0, D = 8-97136-688-0	8-97112-565-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-94435-571-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-94337-444-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-94384-314-1	8-97041-425-0	01	1	-
32	COVER; RUBBER,STARTER HITACHI ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	5-81129-069-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: A = 8-94384-314-1	8-97041-420-0	01	1	-
43	RETAINER; PINION STARTER ASM PART: A = 8-94384-314-1	8-94377-246-0	01	1	-
43	RETAINER; PINION STARTER ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-94435-570-0	01	1	-
45	RETAINER; BEARING,STARTER ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-94435-567-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: B = 8-94387-653-0	8-94478-862-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: C = 8-97112-549-0	8-97112-557-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: D = 8-97136-688-0	8-97113-286-0	02	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: C = 8-97112-549-0, D = 8-97136-688-0	8-94435-572-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: B = 8-94387-653-0	8-97047-553-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-97047-548-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-94384-314-1	8-97078-002-0	01	1	-
73	STOPPER SET; PINION ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-94228-450-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	5-81129-294-0	02	1	-

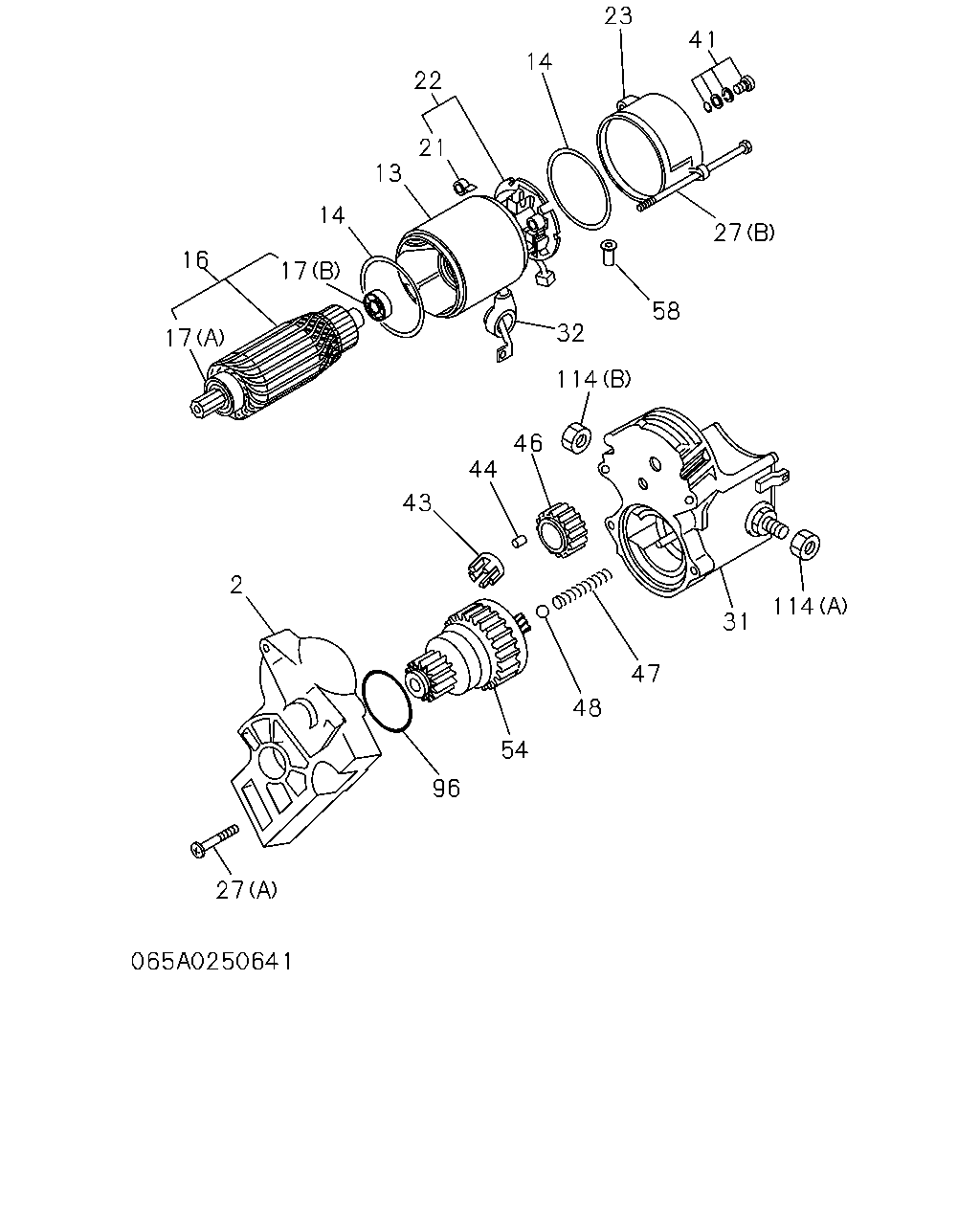

27 41 23 14 22 21 13 14 17 16 17 2 27 96 47 48 54 46 44 43 114 32 58 114 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-94384-314-1	8-97041-426-1	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-94387-653-0	8-97047-552-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 8-97112-549-0, D = 8-97136-688-0	8-97112-560-0	01	1	-
13	YOKE; STARTER ASM PART: A = 8-94384-314-1	8-94377-254-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: A = 8-94384-314-1	8-94170-214-0	02	1	-
16	ARMATURE; STARTER ASM PART: A = 8-94384-314-1	8-94377-253-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-94387-653-0	8-94435-561-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 8-97112-549-0, D = 8-97136-688-0	8-97112-555-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-94228-437-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-94384-314-1	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-94384-314-1	8-94377-241-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-94242-064-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94384-314-1	8-94377-244-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-94387-653-0	8-94478-863-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-94384-314-1	8-97041-424-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 8-97112-549-0	8-97112-559-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-97136-688-0	8-97142-597-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-94384-314-1	8-97041-423-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-94387-653-0	8-97047-546-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: C = 8-97112-549-0, D = 8-97136-688-0	8-97112-558-0	01	1	-
27	BOLT; THROUGH,STARTER ASM PART: B = 8-94387-653-0	8-94242-071-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 8-94384-314-1	8-94377-243-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 8-94384-314-1	8-97041-422-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: C = 8-97112-549-0, D = 8-97136-688-0	8-97112-565-0	02	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-94337-444-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-94384-314-1	8-97041-425-0	01	1	-
32	COVER; RUBBER,STARTER HITACHI ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	5-81129-069-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: A = 8-94384-314-1	8-97041-420-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: A = 8-94384-314-1	8-94170-216-0	02	1	-
43	RETAINER; PINION STARTER ASM PART: A = 8-94384-314-1	8-94377-246-0	01	1	-
43	RETAINER; PINION STARTER ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-94435-570-0	01	1	-
44	ROLLER; PINION STARTER ASM PART: A = 8-94384-314-1	5-81129-099-0	05	1	-
46	GEAR; CLU STARTER ASM PART: A = 8-94384-314-1	8-94377-247-0	01	1	-
47	SPRING; PINION STARTER ASM PART: A = 8-94384-314-1	8-94377-245-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 8-94384-314-1	5-81129-092-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-94387-653-0, C = 8-97112-549-0, D = 8-97136-688-0	8-97047-548-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-94384-314-1	8-97078-002-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: A = 8-94384-314-1	8-97041-421-0	01	1	-
96	GASKET; FRT CASE ASM PART: A = 8-94384-314-1	8-97078-001-0	01	1	-
114	NUT; TERMINAL (B) ASM PART: A = 8-94384-314-1	8-94109-763-0	01	1	-
114	NUT; TERMINAL (A) ASM PART: A = 8-94384-314-1	8-94377-238-0	01	1	-
