0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#166861) — 185 parça
çizim 493817
98 75 75 87 58 73 75 98
BalonParca AdiParca NoAdetTipApplied Date A B
58 BOLT; CABLE,BATTERY
EXC. FRIGID ZONE(YL3) M10X16 		8-97807-251-0 01 1 9112-9204 ●
58 BOLT; CABLE,BATTERY
FRIGID ZONE(YL3) M10X16 		8-97807-251-0 01 1 9112-9505 ●
58 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M10X16 		8-97807-251-0 01 1 9112-9505 ●
58 BOLT; CABLE,BATTERY
FRIGID ZONE(YL3) '950522- M10X16 FLANGE 		0-28081-016-0 01 1 9505- ●
58 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) '950522- M10X16 FLANGE 		0-28081-016-0 01 1 9505- ●
58 BOLT; CABLE,BATTERY
M8X16 FLANGE 		0-28010-816-0 01 1 9112-9204 ●
58 BOLT; CABLE,BATTERY
M8X16 FLANGE 		0-28080-816-0 01 1 9205- ●
73 BRACKET; BATTERY CABLE
FRIGID ZONE(YL3) (F) 		8-97805-900-0 01 1 9112- ●
73 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) (E) 		8-94315-286-0 02 1 9304- ●
73 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) FRIGID ZONE(YL3) (E) 		8-94315-286-0 02 1 9112-9303 ●
73 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) EXC. FRIGID ZONE(YL3) (E) 		8-94315-286-0 01 1 9112-9303 ●
73 BRACKET; BATTERY CABLE
(C) 		8-97803-052-0 02 1 9112-9504 ● ●
73 BRACKET; BATTERY CABLE
(C) 		8-97803-052-0 02 1 9505- ● ●
73 BRACKET; BATTERY CABLE
(A) 		8-97803-308-0 01 1 9112-9208 ●
73 BRACKET; BATTERY CABLE
(B) 		8-97803-330-0 01 1 9112-9208 ●
73 BRACKET; BATTERY CABLE
(D) 		8-97804-787-0 01 1 9112-9504 ●
73 BRACKET; BATTERY CABLE
(A) 		8-97803-308-0 01 1 9209-9307 ●
73 BRACKET; BATTERY CABLE
(B) 		8-97803-330-0 01 1 9209-9307 ●
73 BRACKET; BATTERY CABLE
(A) 		8-97803-308-0 01 1 9308- ●
73 BRACKET; BATTERY CABLE
(B) 		8-97803-330-2 01 1 9308- ●
73 BRACKET; BATTERY CABLE
(D) 		8-97804-787-0 01 1 9505- ●
75 BOLT; BRKT
(D) M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9112-9204 ●
75 BOLT; BRKT
(D) M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205-9212 ●
75 BOLT; BRKT
(D) M6X16 FLANGE 		0-28480-616-0 01 1 9301-9504 ●
75 BOLT; BRKT
(D) M6X16 FLANGE 		0-28480-616-0 01 1 9505- ●
75 BOLT; BRKT
M/T MUA 5 SPEED(RMN) (E) M6X14 W/LK WASHER 		9-01900-614-0 02 1 9112-9204 ●
75 BOLT; BRKT
M/T MUA 5 SPEED(RMN) (E) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9205-9208 ●
75 BOLT; BRKT
M/T MUA 5 SPEED(RMN) (E) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9304-9504 ●
75 BOLT; BRKT
M/T MUA 5 SPEED(RMN) (E) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9505- ●
75 BOLT; BRKT
M/T MUA 5 SPEED(RMN) FRIGID ZONE(YL3) (E) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9209-9303 ●
75 BOLT; BRKT
M/T MUA 5 SPEED(RMN) EXC. FRIGID ZONE(YL3) (E) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9209-9303 ●
75 BOLT; BRKT
(C) M6X14 W/LK WASHER 		9-01900-614-0 01 1 9112-9204 ●
75 BOLT; BRKT
(A) M6X12 		9-02040-612-0 01 1 9112-9204 ●
75 BOLT; BRKT
(A) M6X12 		0-20800-612-0 01 1 9205- ●
75 BOLT; BRKT
(B) M10X16 		9-02341-016-0 01 1 9112-9204 ●
75 BOLT; BRKT
(B) M10X16 		0-23801-016-0 01 1 9205- ●
75 BOLT; BRKT
(C) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9205- ●
87 BRACKET; HARNESS 8-97803-051-1 01 1 9112-9504 ●
87 BRACKET; HARNESS 8-97130-483-1 01 1 9505- ●
98 WASHER; LK,BRKT
ID=6.1 		9-09150-506-0 01 1 9112- ●
98 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9112- ●

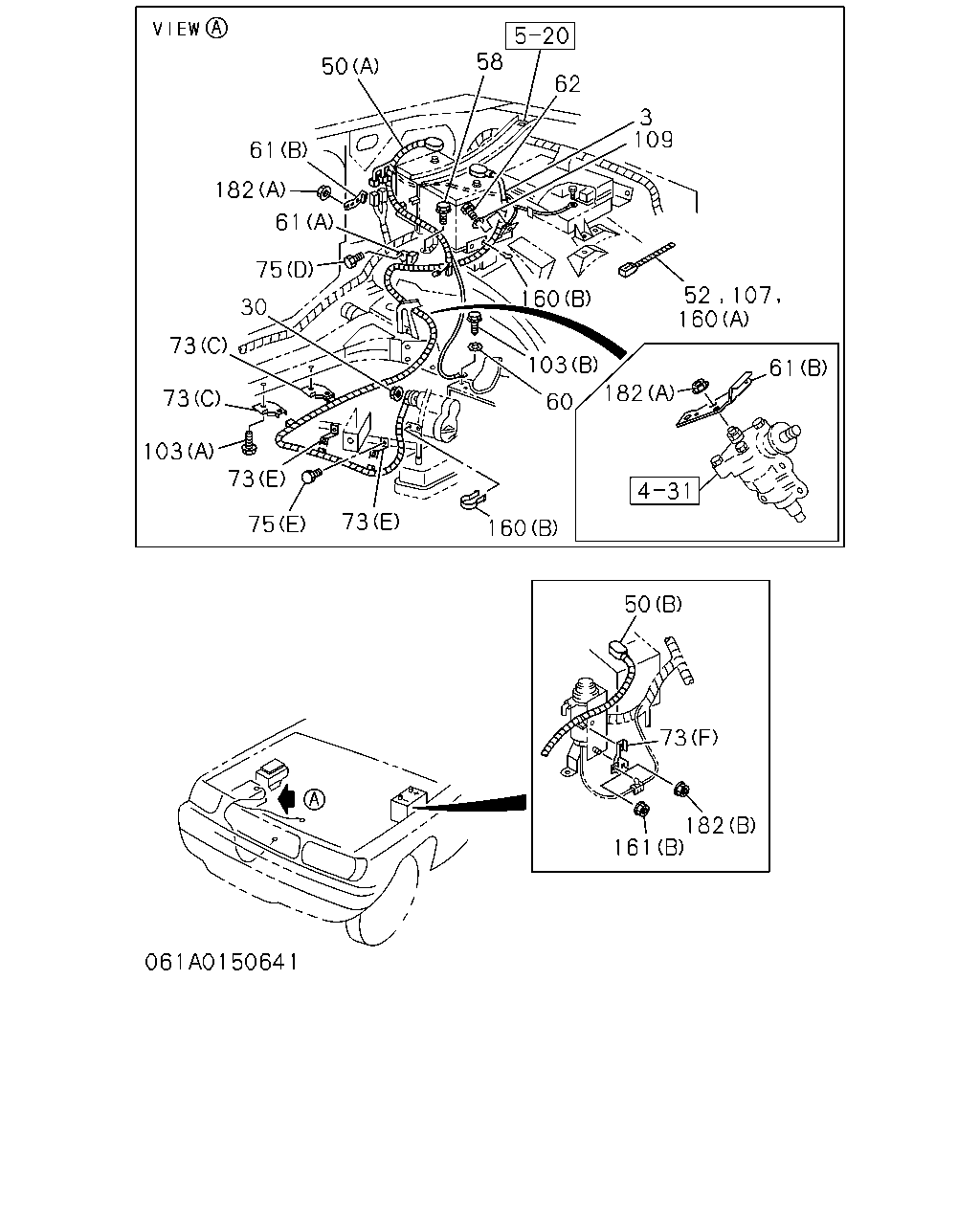

çizim 493941
109 3 62 58 50 61 182 75 30 73 73 103 75 73 73 160 60 103 160 52 107 160 61 182 61 73 50 182 161
BalonParca AdiParca NoAdetTipApplied Date A B
3 HARNESS; CABLE,BATTERY TO STARTER
FRIGID ZONE(YL3) 		8-97805-958-3 01 1 9112-9504 ●
3 HARNESS; CABLE,BATTERY TO STARTER
FRIGID ZONE(YL3) MANUAL LOCKING HUB(ED2) 		8-97805-958-3 01 1 9505- ●
3 HARNESS; CABLE,BATTERY TO STARTER
FRIGID ZONE(YL3) SHIFT ON THE FLY(7EX) 		8-97129-905-2 01 1 9505-9703 ●
3 HARNESS; CABLE,BATTERY TO STARTER
FRIGID ZONE(YL3) SHIFT ON THE FLY(7EX) 		8-97176-974-0 01 1 9704- ●
3 HARNESS; CABLE,BATTERY TO STARTER
EXC. FRIGID ZONE(YL3) 		8-94358-871-2 01 1 9112-9208 ●
3 HARNESS; CABLE,BATTERY TO STARTER
EXC. FRIGID ZONE(YL3) 		8-97808-818-1 01 1 9209-9504 ●
3 HARNESS; CABLE,BATTERY TO STARTER
MANUAL LOCKING HUB(ED2) EXC. FRIGID ZONE(YL3) 		8-97808-818-1 01 1 9505- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SHIFT ON THE FLY(7EX) EXC. FRIGID ZONE(YL3) 		8-97129-908-2 01 1 9505-9704 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SHIFT ON THE FLY(7EX) EXC. FRIGID ZONE(YL3) 		8-97176-977-0 01 1 9705- ●
3 HARNESS; CABLE,BATTERY TO STARTER 8-94358-874-2 01 1 9112-9307 ●
3 HARNESS; CABLE,BATTERY TO STARTER 8-97810-051-1 01 1 9308-9504 ●
3 HARNESS; CABLE,BATTERY TO STARTER 8-97117-673-1 01 1 9505- ●
30 NUT; CABLE,STARTER TO BATTERY
M8 W/LK WASHER 		8-94413-537-0 01 1 9208- ●
50 CABLE; BATTERY TO BODY (-)
FRIGID ZONE(YL3) (B) 		8-97805-969-1 01 1 9112-9307 ●
50 CABLE; BATTERY TO BODY (-)
FRIGID ZONE(YL3) (B) 		8-97810-574-0 01 1 9308- ●
50 CABLE; BATTERY TO BODY (-)
CERAMIC HEATER<6YX> (A) 		8-97808-109-0 01 1 9112-9208 ●
50 CABLE; BATTERY TO BODY (-)
CERAMIC HEATER<6YX> (A) 		8-97808-510-0 01 1 9209-9307 ●
50 CABLE; BATTERY TO BODY (-)
CERAMIC HEATER<6YX> (A) 		8-97810-575-0 01 1 9308-9504 ●
50 CABLE; BATTERY TO BODY (-)
CERAMIC HEATER<6YX> (A) 		8-97124-754-0 01 1 9505- ●
50 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97808-110-0 01 1 9112-9208 ●
50 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97808-511-0 01 1 9209-9307 ●
50 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97810-576-0 01 1 9308-9504 ●
50 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97124-755-0 01 1 9505- ●
50 CABLE; BATTERY TO BODY (-) 8-94358-875-2 01 1 9112-9307 ●
50 CABLE; BATTERY TO BODY (-) 8-97809-858-1 01 1 9308-9504 ●
50 CABLE; BATTERY TO BODY (-) 8-97119-706-0 01 1 9505- ●
52 CLIP; BATTERY CABLE TO BODY
FRIGID ZONE(YL3) L=140 		5-09707-031-0 01 1 9204- ●
58 BOLT; CABLE,BATTERY
EXC. FRIGID ZONE(YL3) M10X16 		8-97807-251-0 01 1 9112-9204 ●
58 BOLT; CABLE,BATTERY
FRIGID ZONE(YL3) M10X16 		8-97807-251-0 01 1 9112-9505 ●
58 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M10X16 		8-97807-251-0 01 1 9112-9505 ●
58 BOLT; CABLE,BATTERY
FRIGID ZONE(YL3) '950522- M10X16 FLANGE 		0-28081-016-0 01 1 9505- ●
58 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) '950522- M10X16 FLANGE 		0-28081-016-0 01 1 9505- ●
58 BOLT; CABLE,BATTERY
M8X16 FLANGE 		0-28010-816-0 01 1 9112-9204 ●
58 BOLT; CABLE,BATTERY
M8X16 FLANGE 		0-28080-816-0 01 1 9205- ●
60 WASHER; LK,BATTERY CABLE
ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 9112-9209 ● ●
61 BRACKET; BATTERY CABLE
(A) 		8-97805-896-0 01 1 9112-9208 ●
61 BRACKET; BATTERY CABLE
(A) 		8-97808-512-0 01 1 9209- ●
61 BRACKET; BATTERY CABLE
(B) 		8-97807-570-2 01 1 9112- ●
62 BOLT; EARTH CABLE FIX
M8X22 		8-94122-771-0 01 1 9112-9209 ● ●
62 BOLT; EARTH CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9210- ● ●
73 BRACKET; BATTERY CABLE
FRIGID ZONE(YL3) (F) 		8-97805-900-0 01 1 9112- ●
73 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) (E) 		8-94315-286-0 02 1 9304- ●
73 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) FRIGID ZONE(YL3) (E) 		8-94315-286-0 02 1 9112-9303 ●
73 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) EXC. FRIGID ZONE(YL3) (E) 		8-94315-286-0 01 1 9112-9303 ●
73 BRACKET; BATTERY CABLE
(C) 		8-97803-052-0 02 1 9112-9504 ● ●
73 BRACKET; BATTERY CABLE
(C) 		8-97803-052-0 02 1 9505- ● ●
73 BRACKET; BATTERY CABLE
(A) 		8-97803-308-0 01 1 9112-9208 ●
73 BRACKET; BATTERY CABLE
(B) 		8-97803-330-0 01 1 9112-9208 ●
73 BRACKET; BATTERY CABLE
(D) 		8-97804-787-0 01 1 9112-9504 ●
73 BRACKET; BATTERY CABLE
(A) 		8-97803-308-0 01 1 9209-9307 ●
73 BRACKET; BATTERY CABLE
(B) 		8-97803-330-0 01 1 9209-9307 ●
73 BRACKET; BATTERY CABLE
(A) 		8-97803-308-0 01 1 9308- ●
73 BRACKET; BATTERY CABLE
(B) 		8-97803-330-2 01 1 9308- ●
73 BRACKET; BATTERY CABLE
(D) 		8-97804-787-0 01 1 9505- ●
75 BOLT; BRKT
(D) M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9112-9204 ●
75 BOLT; BRKT
(D) M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205-9212 ●
75 BOLT; BRKT
(D) M6X16 FLANGE 		0-28480-616-0 01 1 9301-9504 ●
75 BOLT; BRKT
(D) M6X16 FLANGE 		0-28480-616-0 01 1 9505- ●
75 BOLT; BRKT
M/T MUA 5 SPEED(RMN) (E) M6X14 W/LK WASHER 		9-01900-614-0 02 1 9112-9204 ●
75 BOLT; BRKT
M/T MUA 5 SPEED(RMN) (E) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9205-9208 ●
75 BOLT; BRKT
M/T MUA 5 SPEED(RMN) (E) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9304-9504 ●
75 BOLT; BRKT
M/T MUA 5 SPEED(RMN) (E) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9505- ●
75 BOLT; BRKT
M/T MUA 5 SPEED(RMN) FRIGID ZONE(YL3) (E) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9209-9303 ●
75 BOLT; BRKT
M/T MUA 5 SPEED(RMN) EXC. FRIGID ZONE(YL3) (E) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9209-9303 ●
75 BOLT; BRKT
(C) M6X14 W/LK WASHER 		9-01900-614-0 01 1 9112-9204 ●
75 BOLT; BRKT
(A) M6X12 		9-02040-612-0 01 1 9112-9204 ●
75 BOLT; BRKT
(A) M6X12 		0-20800-612-0 01 1 9205- ●
75 BOLT; BRKT
(B) M10X16 		9-02341-016-0 01 1 9112-9204 ●
75 BOLT; BRKT
(B) M10X16 		0-23801-016-0 01 1 9205- ●
75 BOLT; BRKT
(C) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9205- ●
103 BOLT; BATTERY CABLE
(A) M6X16 W/LK&PL WASHER 		9-01960-616-0 02 1 9112-9204 ● ●
103 BOLT; BATTERY CABLE
(A) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9205-9711 ● ●
103 BOLT; BATTERY CABLE
(A) M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ●
103 BOLT; BATTERY CABLE
(B) M6X14 		8-94153-946-0 01 1 9112-9203 ● ●
103 BOLT; BATTERY CABLE
(B) M6X22 W/LK&PL WASHER 		8-94122-769-0 01 1 9204-9209 ● ●
103 BOLT; BATTERY CABLE
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9210-9504 ● ●
103 BOLT; BATTERY CABLE
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9505- ● ●
107 CLIP; BAND
SHIFT ON THE FLY(7EX) L=250 		5-09707-030-0 01 1 9506- ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.4 TOOTH LK INT-EXT 		9-09152-208-0 01 1 9112-9209 ● ●
160 CLIP; BATTERY CABLE
(A) L=100 		5-09707-036-0 01 1 9112- ●
160 CLIP; BATTERY CABLE
(B) ID=20 		8-94410-200-0 01 1 9112- ●
161 NUT; BATTERY CABLE
CERAMIC HEATER<6YX> (B) M6 W/LK WASHER 		8-94424-179-0 01 1 9505- ●
161 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 9505- ●
161 NUT; BATTERY CABLE
(A) M6 FLANGE 		0-91150-106-0 02 1 9112-9504 ●
161 NUT; BATTERY CABLE
(A) M6 FLANGE 		0-91150-106-0 02 1 9505- ●
182 NUT; CLIP
(A) M10 FLANGE 		0-91150-110-0 02 1 9112-9303 ●
182 NUT; CLIP
(A) M10 FLANGE 		0-91150-110-0 01 1 9304-9504 ●
182 NUT; CLIP
(A) M10 FLANGE 		0-91150-110-0 01 1 9505- ●
182 NUT; CLIP
FRIGID ZONE(YL3) (B) M6 FLANGE 		0-91150-106-0 01 1 9112-9504 ●
182 NUT; CLIP
FRIGID ZONE(YL3) (B) M6 FLANGE 		0-91150-106-0 01 1 9505- ●

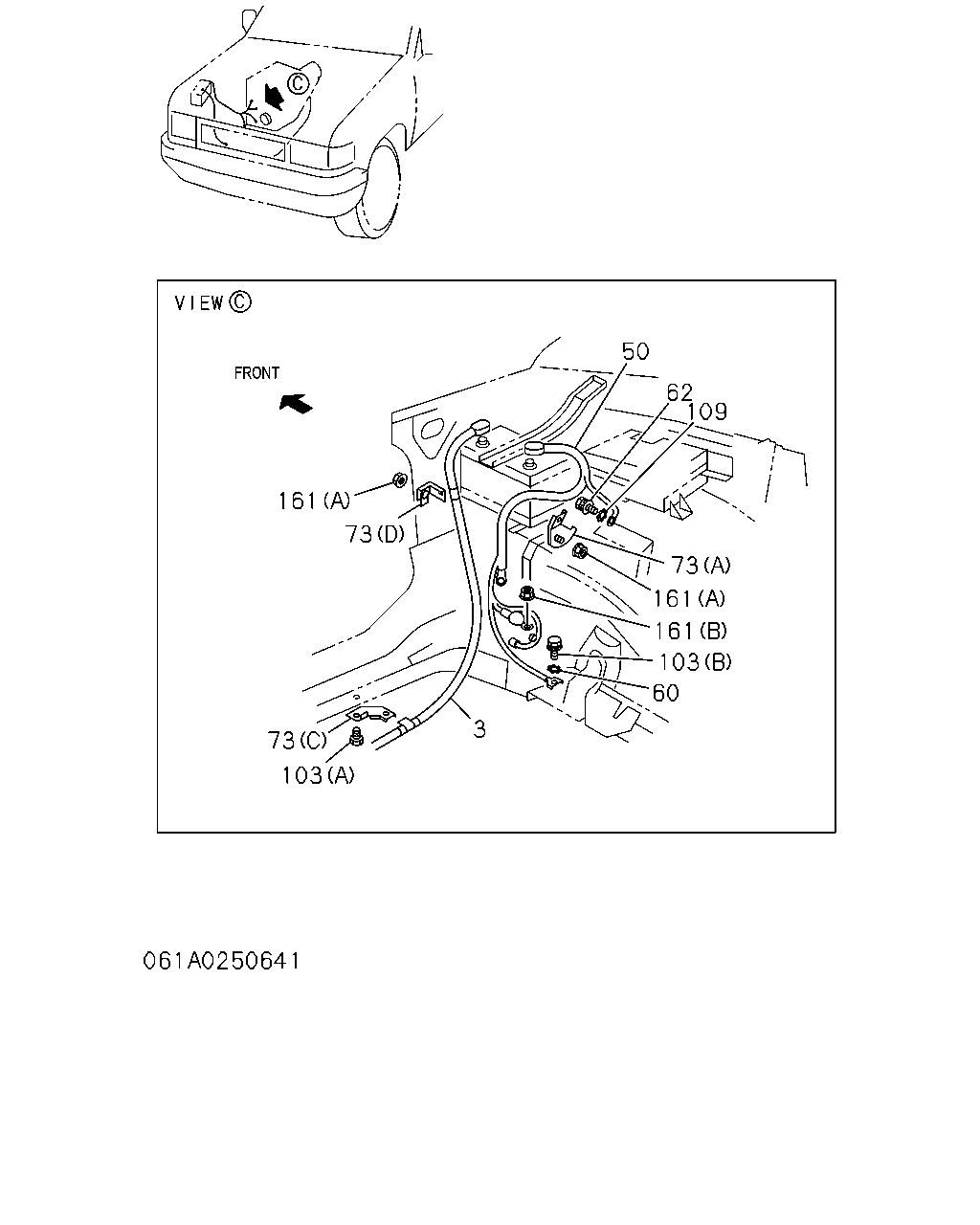

çizim 493975
109 62 50 73 161 161 103 60 3 103 73 73 161
BalonParca AdiParca NoAdetTipApplied Date A B
3 HARNESS; CABLE,BATTERY TO STARTER
FRIGID ZONE(YL3) 		8-97805-958-3 01 1 9112-9504 ●
3 HARNESS; CABLE,BATTERY TO STARTER
FRIGID ZONE(YL3) MANUAL LOCKING HUB(ED2) 		8-97805-958-3 01 1 9505- ●
3 HARNESS; CABLE,BATTERY TO STARTER
FRIGID ZONE(YL3) SHIFT ON THE FLY(7EX) 		8-97129-905-2 01 1 9505-9703 ●
3 HARNESS; CABLE,BATTERY TO STARTER
FRIGID ZONE(YL3) SHIFT ON THE FLY(7EX) 		8-97176-974-0 01 1 9704- ●
3 HARNESS; CABLE,BATTERY TO STARTER
EXC. FRIGID ZONE(YL3) 		8-94358-871-2 01 1 9112-9208 ●
3 HARNESS; CABLE,BATTERY TO STARTER
EXC. FRIGID ZONE(YL3) 		8-97808-818-1 01 1 9209-9504 ●
3 HARNESS; CABLE,BATTERY TO STARTER
MANUAL LOCKING HUB(ED2) EXC. FRIGID ZONE(YL3) 		8-97808-818-1 01 1 9505- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SHIFT ON THE FLY(7EX) EXC. FRIGID ZONE(YL3) 		8-97129-908-2 01 1 9505-9704 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SHIFT ON THE FLY(7EX) EXC. FRIGID ZONE(YL3) 		8-97176-977-0 01 1 9705- ●
3 HARNESS; CABLE,BATTERY TO STARTER 8-94358-874-2 01 1 9112-9307 ●
3 HARNESS; CABLE,BATTERY TO STARTER 8-97810-051-1 01 1 9308-9504 ●
3 HARNESS; CABLE,BATTERY TO STARTER 8-97117-673-1 01 1 9505- ●
50 CABLE; BATTERY TO BODY (-)
FRIGID ZONE(YL3) (B) 		8-97805-969-1 01 1 9112-9307 ●
50 CABLE; BATTERY TO BODY (-)
FRIGID ZONE(YL3) (B) 		8-97810-574-0 01 1 9308- ●
50 CABLE; BATTERY TO BODY (-)
CERAMIC HEATER<6YX> (A) 		8-97808-109-0 01 1 9112-9208 ●
50 CABLE; BATTERY TO BODY (-)
CERAMIC HEATER<6YX> (A) 		8-97808-510-0 01 1 9209-9307 ●
50 CABLE; BATTERY TO BODY (-)
CERAMIC HEATER<6YX> (A) 		8-97810-575-0 01 1 9308-9504 ●
50 CABLE; BATTERY TO BODY (-)
CERAMIC HEATER<6YX> (A) 		8-97124-754-0 01 1 9505- ●
50 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97808-110-0 01 1 9112-9208 ●
50 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97808-511-0 01 1 9209-9307 ●
50 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97810-576-0 01 1 9308-9504 ●
50 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97124-755-0 01 1 9505- ●
50 CABLE; BATTERY TO BODY (-) 8-94358-875-2 01 1 9112-9307 ●
50 CABLE; BATTERY TO BODY (-) 8-97809-858-1 01 1 9308-9504 ●
50 CABLE; BATTERY TO BODY (-) 8-97119-706-0 01 1 9505- ●
60 WASHER; LK,BATTERY CABLE
ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 9112-9209 ● ●
62 BOLT; EARTH CABLE FIX
M8X22 		8-94122-771-0 01 1 9112-9209 ● ●
62 BOLT; EARTH CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9210- ● ●
73 BRACKET; BATTERY CABLE
FRIGID ZONE(YL3) (F) 		8-97805-900-0 01 1 9112- ●
73 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) (E) 		8-94315-286-0 02 1 9304- ●
73 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) FRIGID ZONE(YL3) (E) 		8-94315-286-0 02 1 9112-9303 ●
73 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) EXC. FRIGID ZONE(YL3) (E) 		8-94315-286-0 01 1 9112-9303 ●
73 BRACKET; BATTERY CABLE
(C) 		8-97803-052-0 02 1 9112-9504 ● ●
73 BRACKET; BATTERY CABLE
(C) 		8-97803-052-0 02 1 9505- ● ●
73 BRACKET; BATTERY CABLE
(A) 		8-97803-308-0 01 1 9112-9208 ●
73 BRACKET; BATTERY CABLE
(B) 		8-97803-330-0 01 1 9112-9208 ●
73 BRACKET; BATTERY CABLE
(D) 		8-97804-787-0 01 1 9112-9504 ●
73 BRACKET; BATTERY CABLE
(A) 		8-97803-308-0 01 1 9209-9307 ●
73 BRACKET; BATTERY CABLE
(B) 		8-97803-330-0 01 1 9209-9307 ●
73 BRACKET; BATTERY CABLE
(A) 		8-97803-308-0 01 1 9308- ●
73 BRACKET; BATTERY CABLE
(B) 		8-97803-330-2 01 1 9308- ●
73 BRACKET; BATTERY CABLE
(D) 		8-97804-787-0 01 1 9505- ●
103 BOLT; BATTERY CABLE
(A) M6X16 W/LK&PL WASHER 		9-01960-616-0 02 1 9112-9204 ● ●
103 BOLT; BATTERY CABLE
(A) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9205-9711 ● ●
103 BOLT; BATTERY CABLE
(A) M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ●
103 BOLT; BATTERY CABLE
(B) M6X14 		8-94153-946-0 01 1 9112-9203 ● ●
103 BOLT; BATTERY CABLE
(B) M6X22 W/LK&PL WASHER 		8-94122-769-0 01 1 9204-9209 ● ●
103 BOLT; BATTERY CABLE
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9210-9504 ● ●
103 BOLT; BATTERY CABLE
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9505- ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.4 TOOTH LK INT-EXT 		9-09152-208-0 01 1 9112-9209 ● ●
161 NUT; BATTERY CABLE
CERAMIC HEATER<6YX> (B) M6 W/LK WASHER 		8-94424-179-0 01 1 9505- ●
161 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 9505- ●
161 NUT; BATTERY CABLE
(A) M6 FLANGE 		0-91150-106-0 02 1 9112-9504 ●
161 NUT; BATTERY CABLE
(A) M6 FLANGE 		0-91150-106-0 02 1 9505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
