0-60 — ENGINE ELECTRICAL CONTROL PARTS (#166860) — 192 parça

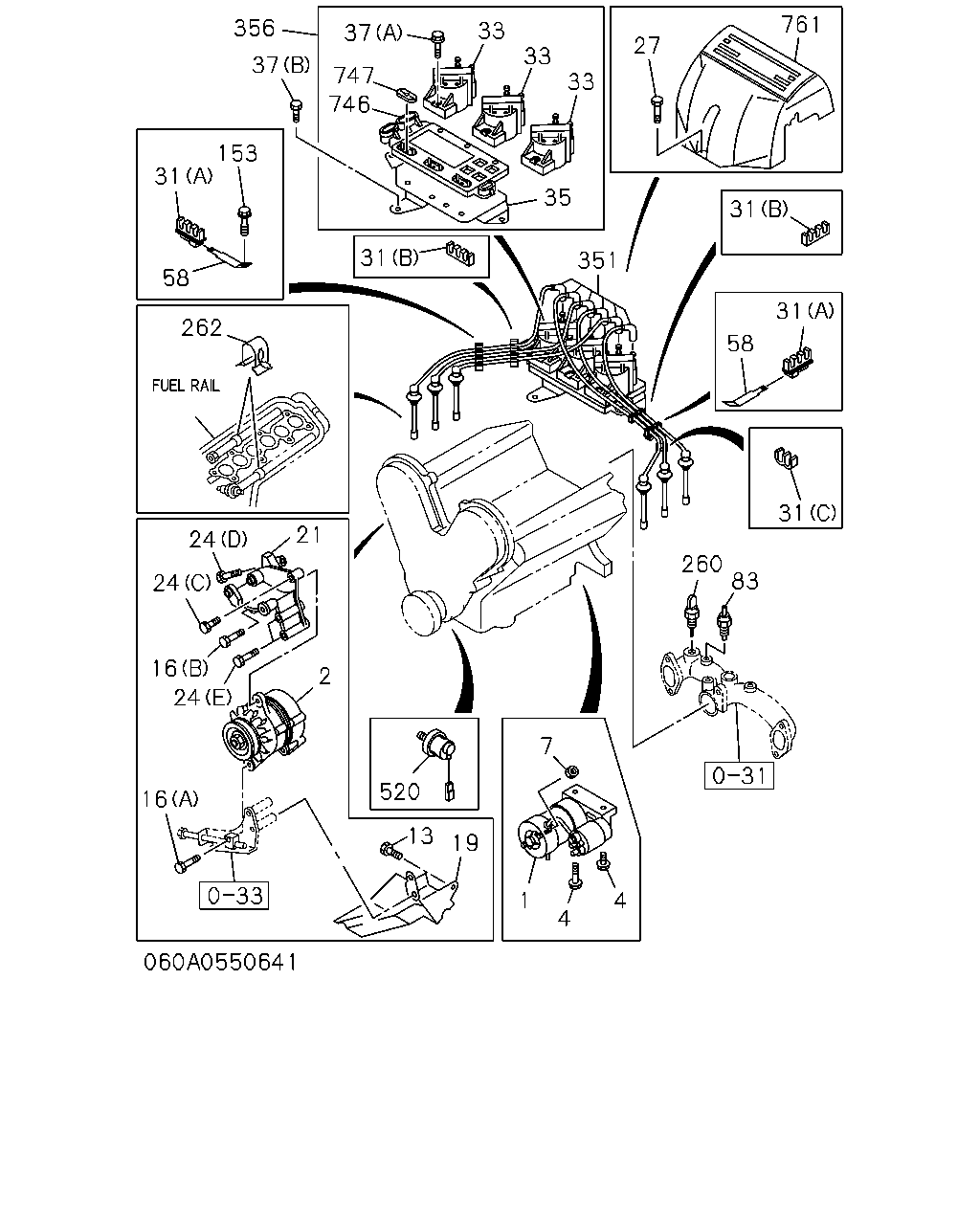

356 153 37 31 58 262 24 24 16 24 16 2 21 520 13 19 1 4 4 7 260 83 31 58 31 31 761 27 33 33 33 37 747 746 35 351 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW	8-94387-653-0	01	1	9112-9410	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW	8-97112-549-0	01	1	9411-9606	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW	8-97136-688-0	01	1	9607-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW	8-94384-314-1	01	1	9112-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97062-641-0	01	1	9112-9202	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97074-612-0	01	1	9203-9508	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97134-866-0	01	1	9509-9603	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97133-854-0	01	1	9604-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97037-724-1	01	1	9112-9202	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97074-611-0	01	1	9203-9406	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97113-770-0	01	1	9407-9508	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97134-762-0	01	1	9509-9605	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 60A	8-97147-851-0	01	1	9606-9801	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 60A	8-97187-655-0	01	1	9802-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. A/T THM(RMQ) 12V 75A	8-97034-899-2	01	1	9112-9410		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. A/T THM(RMQ) 12V 75A	8-97121-180-1	01	1	9411-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED(RMN) 12V 60A	8-97042-852-2	01	1	9112-9410		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED(RMN) 12V 60A	8-97121-193-0	01	1	9411-		●
4	BOLT; STARTER M12X35	9-92041-235-0	02	1	9112-9204	●
4	BOLT; STARTER M12X35	0-20801-235-0	02	1	9205-9402	●
4	BOLT; STARTER M12X50	0-10806-250-0	02	1	9403-	●
4	BOLT; STARTER A/T AISIN(RMD) M12X68 FLANGE	8-94480-344-1	02	1	9112-	●
4	BOLT; STARTER M10X50 FLANGE	0-28181-050-0	01	1	9112-		●
4	BOLT; STARTER M10X75 FLANGE	8-94399-669-1	01	1	9112-		●
7	NUT; STARTER M8	9-09111-408-0	01	1	9112-9207	●
7	NUT; STARTER M12	9-99110-412-0	02	1	9112-	●
7	NUT; STARTER A/T AISIN(RMD) M12 FLANGE	0-91150-112-0	02	1	9112-	●
7	NUT; STARTER M8 W/LK WASHER	8-94413-537-0	01	1	9203-		●
13	BOLT; BRKT M10X20 W/LK&PL WASHER	0-50151-020-0	01	1	9112-9302		●
16	BOLT; GEN M10X125	9-09801-325-0	01	1	9112-9202	●
16	BOLT; GEN M10X130	8-94402-322-1	01	1	9203-9304	●
16	BOLT; GEN M10X133	5-09000-169-1	01	1	9305-9612	●
16	BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9701-	●
16	BOLT; GEN (A) M8X35 FLANGE	0-28080-835-0	01	1	9112-		●
16	BOLT; GEN (B) M10X90 W/LK WASHER	0-50041-090-0	01	1	9112-		●
19	BRACKET; GEN	8-97041-830-3	01	1	9112-9302		●
21	BRACKET; GEN	8-94437-276-2	01	1	9112-	●
21	BRACKET; GEN	8-94379-094-5	01	1	9112-		●
24	BOLT; GEN BRKT (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-	●
24	BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9112-	●
24	BOLT; GEN BRKT (C) M8X30 FLANGE	0-28080-830-0	01	1	9112-		●
24	BOLT; GEN BRKT (D) M8X60 FLANGE	0-28080-860-0	02	1	9112-		●
24	BOLT; GEN BRKT (E) M8X80 FLANGE	0-28080-880-0	02	1	9112-		●
27	BOLT; DISTR M8X25 FLANGE	0-28080-825-0	01	1	9112-9112		●
27	BOLT; DISTR M8X35 FLANGE	0-28080-835-0	01	1	9201-9504		●
31	CLIP; HIGH TENSION CABLE (A) ID=6.8 (X3)	8-97032-586-0	02	1	9112-		●
31	CLIP; HIGH TENSION CABLE (C) ID=6.8X2	8-94126-636-0	01	1	9112-		●
31	CLIP; HIGH TENSION CABLE (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	9112-		●
33	COIL ASM; IGN	8-10468-391-0	03	1	9112-9309		●
33	COIL ASM; IGN	8-10472-401-0	03	1	9310-		●
35	BRACKET; IGN COIL	8-10496-145-0	01	1	9112-		●
37	BOLT; IGN COIL (A) W/LK WASHER	8-10498-731-0	06	1	9112-		●
37	BOLT; IGN COIL (B) M8X16 FLANGE	0-28080-816-0	02	1	9112-9504		●
37	BOLT; IGN COIL (B) M8X16 FLANGE	0-28080-816-0	03	1	9505-		●
58	BRACKET; CLIP	8-97027-398-1	02	1	9112-		●
83	THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9112-	●
83	THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9112-	●
83	THERMOMETER UNIT DENSO	8-94247-437-1	01	1	9112-		●
153	BOLT; BRKT FIX M6X12 FLANGE	0-28080-612-0	02	1	9308-		●
260	SENSOR; WATER TEMP	8-25036-979-0	01	1	9112-		●
262	CLIP; HARNESS	8-94386-489-0	02	1	9308-		●
351	CABLE KIT; HIGH TENSION	8-94376-272-6	01	1	9112-9504		●
351	CABLE KIT; HIGH TENSION	8-97109-063-0	01	1	9505-		●
356	COIL ASM; IGNITION	8-01103-759-0	01	1	9112-9309		●
356	COIL ASM; IGNITION REMY INTERNATIONAL	8-01103-962-0	01	1	9310-9504		●
520	SENSOR; PRESSURE	8-97033-290-0	01	1	9112-9504		●
520	SENSOR; PRESSURE EXC. VARIABLE TORQUE SPRIT<7HA>	8-97106-478-2	01	1	9505-		●
746	MODULE; IGN CONTROL	8-10467-202-0	01	1	9112-		●
747	SEAL; IGN COIL	8-01989-579-0	03	1	9112-		●
761	COVER; DISTR	8-97062-440-1	01	1	9112-9504		●

124

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	124	SENSOR; OXYGEN	8-97062-292-0	01	1	9112-9307		●
	124	SENSOR; OXYGEN	8-97024-256-0	01	1	9308-		●

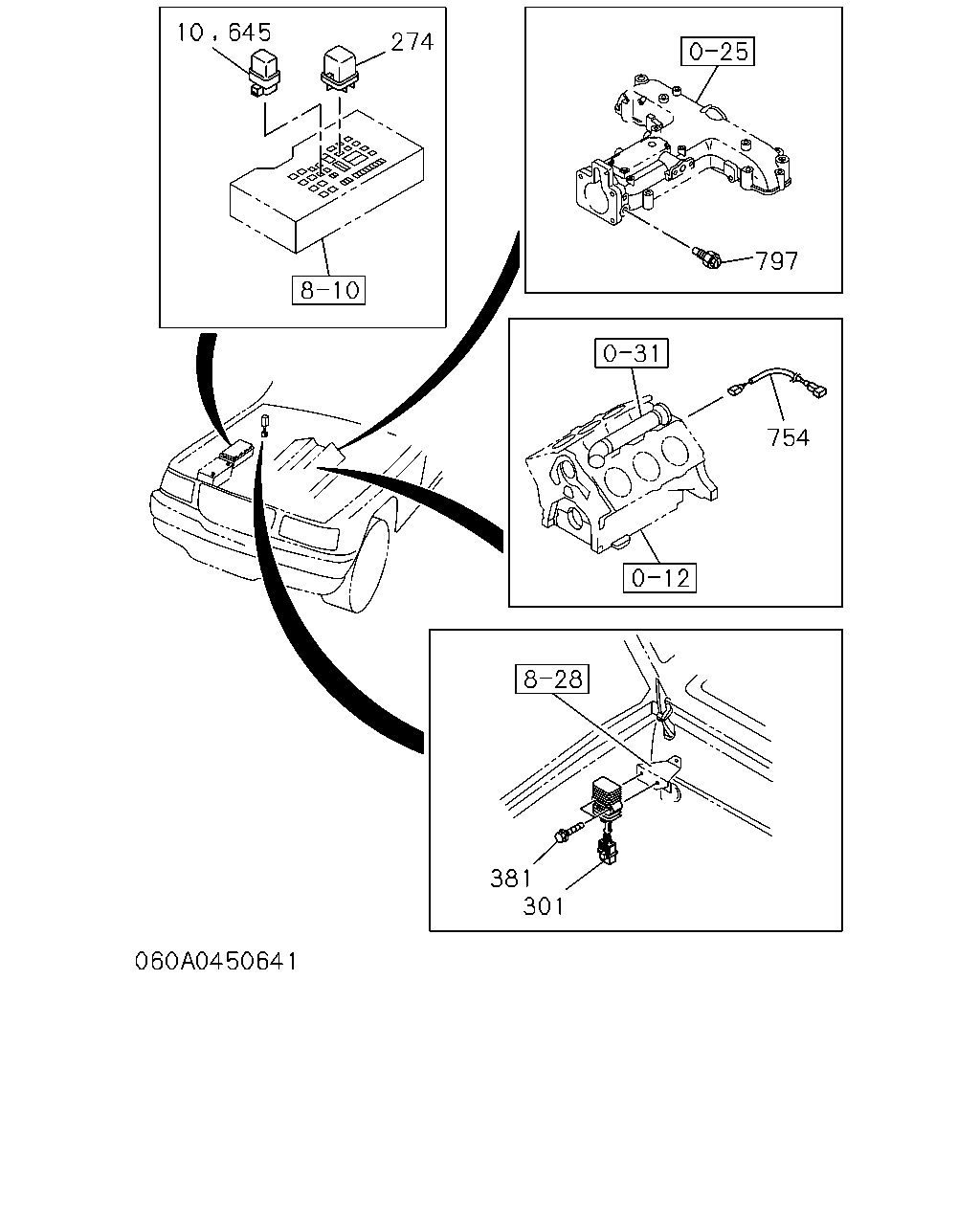

10 645 274 797 754 381 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER 12V 20A	8-97048-665-0	01	1	9112-9303		●
10	RELAY; STARTER 12V 20A	8-97093-910-1	01	1	9304-9504		●
10	RELAY; STARTER 12V 15A	8-94147-095-0	01	1	9505-		●
274	RELAY; ENG RESTART 12V 20A	8-94218-497-0	01	1	9112-9504		●
301	RESISTOR; DROPPING	8-94389-802-1	01	1	9112-	●
301	RESISTOR; DROPPING	8-97018-429-0	01	1	9112-		●
381	BOLT; DROPPING RESISTOR M8X28 FLANGE	0-28010-828-0	02	1	9112-9204		●
381	BOLT; DROPPING RESISTOR M8X28 FLANGE	0-28080-828-0	02	1	9205-9410		●
381	BOLT; DROPPING RESISTOR M8X35 FLANGE	0-28680-835-0	02	1	9411-		●
645	RELAY; ENG CONT 12V 20A	8-97093-910-1	01	1	9505-		●
754	HARNESS; EXT,KNOCK SENSOR	8-97016-347-2	01	1	9112-9604		●
754	HARNESS; EXT,KNOCK SENSOR	8-97144-520-0	01	1	9605-		●
797	SENSOR; MAT	8-12146-830-0	01	1	9505-	●
797	SENSOR; MAT	8-25037-334-0	01	1	9112-		●

782 796 766 782 798 797 565

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
565	HOSE; RUBBER	8-97124-597-1	01	1	9505-	●
766	GASKET; SENSOR	8-97117-164-0	01	1	9505-	●
782	BOLT; SENSOR (B) M6X12 FLANGE	0-28080-612-0	01	1	9505-	●
782	BOLT; SENSOR (A) M5X30 W/PL WASHER	8-97045-438-0	02	1	9505-	●
796	SENSOR; MAP	8-16040-609-0	01	1	9505-	●
797	SENSOR; MAT	8-12146-830-0	01	1	9505-	●
797	SENSOR; MAT	8-25037-334-0	01	1	9112-		●
798	SENSOR; TIMING	8-97117-162-1	01	1	9505-	●

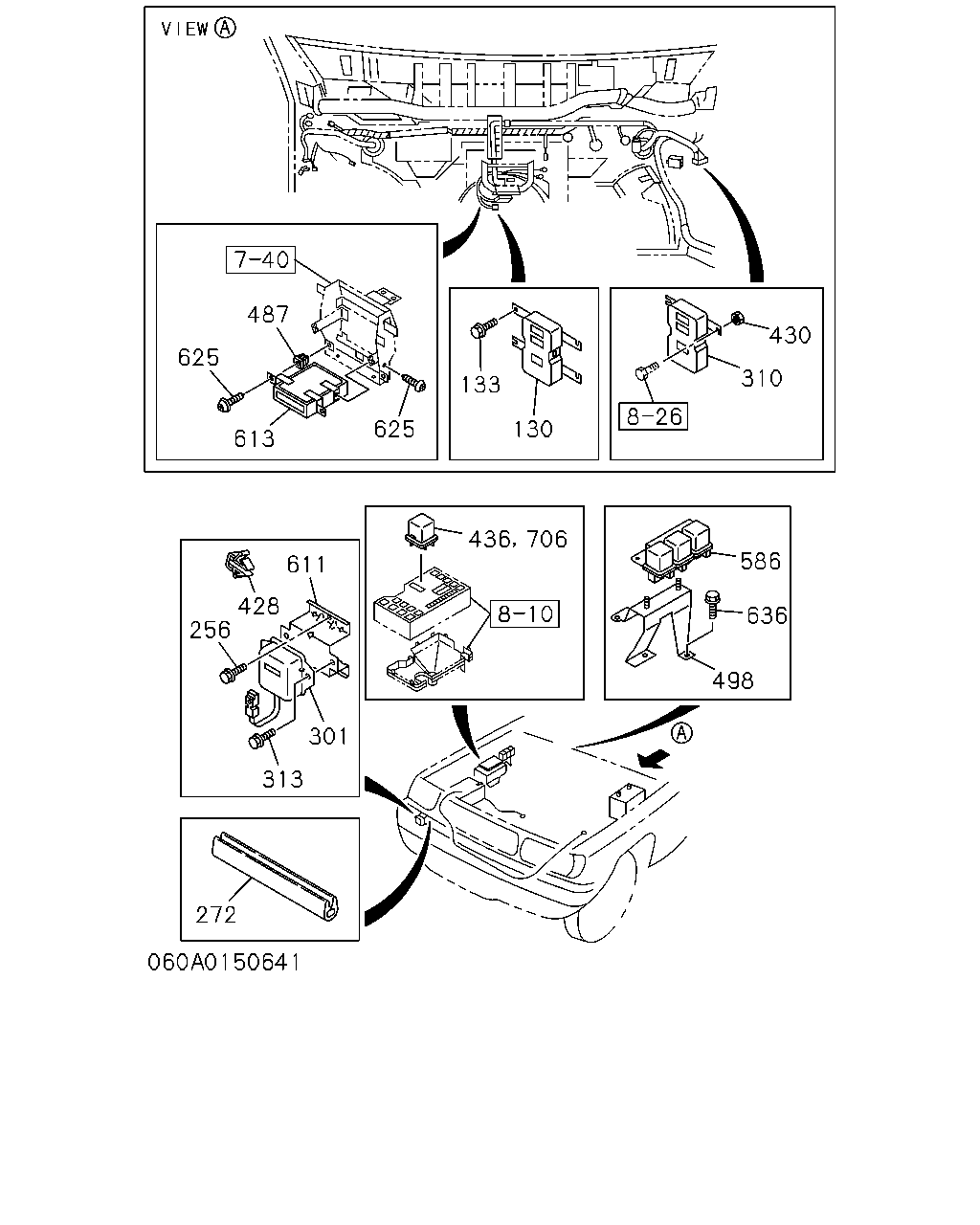

487 625 613 625 611 428 256 301 313 272 436 706 130 133 430 310 586 636 498

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	CONTROLLER; EGR	8-97038-186-4	01	1	9112-9307	●
130	CONTROLLER; EGR	8-97086-800-1	01	1	9308-9409	●
130	CONTROLLER; EGR	8-97119-744-0	01	1	9410-9504	●
133	BOLT; EGR CONTROLLER M6X14	0-28010-614-0	04	1	9112-9204	●
133	BOLT; EGR CONTROLLER M6X14 FLANGE	0-28080-614-0	04	1	9205-9504	●
256	BOLT; BRKT,RESISTOR M6X14 W/LK&PL WASHER	9-01960-614-0	02	1	9112-9204	●
256	BOLT; BRKT,RESISTOR M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9205-	●
272	PROTECTOR; EDGE L=65	8-94235-856-0	01	1	9201-9504	●
301	RESISTOR; DROPPING	8-94389-802-1	01	1	9112-	●
301	RESISTOR; DROPPING	8-97018-429-0	01	1	9112-		●
310	CONTROLLER; QOS	8-94364-590-0	01	1	9112-9208	●
310	CONTROLLER; QOS	8-97068-787-0	01	1	9209-9504	●
313	BOLT; RESISTOR TO BRKT M6X14 W/LK WASHER	9-01900-614-0	02	1	9112-9204	●
313	BOLT; RESISTOR TO BRKT M6X14 W/LK WASHER	0-50040-614-0	02	1	9205-	●
428	CLIP; HARNESS	8-94225-098-0	01	1	9505-	●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	02	1	9112-	●
436	RELAY; FAST IDLE (Q-CONTROL) A/T AISIN(RMD) EXC. FRIGID ZONE(YL3) 12V 20A	8-94218-497-0	01	1	9505-9605	●
436	RELAY; FAST IDLE (Q-CONTROL) A/T AISIN(RMD) EXC. FRIGID ZONE(YL3) 12V 20A	8-94218-497-0	01	1	9606-	●
436	RELAY; FAST IDLE (Q-CONTROL) 12V 20A	8-94218-497-0	01	1	9606-	●
487	NUT D=9.7X9.7 L=8	8-94222-314-0	02	1	9505-	●
498	BRACKET; RELAY	8-94389-761-4	01	1	9112-	●
586	RELAY; QOS	8-94389-760-1	01	1	9112-	●
611	BRACKET; SENSOR	8-97038-641-0	01	1	9112-	●
613	CONTROL UNIT; ENG	8-97127-004-2	01	1	9505-9506	●
613	CONTROL UNIT; ENG	8-97135-443-0	01	1	9507-9507	●
613	CONTROL UNIT; ENG	8-97136-541-0	01	1	9508-9508	●
613	CONTROL UNIT; ENG	8-97137-968-1	01	1	9509-9602	●
613	CONTROL UNIT; ENG	8-97149-621-0	01	1	9603-9605	●
613	CONTROL UNIT; ENG	8-97149-313-0	01	1	9606-9701	●
613	CONTROL UNIT; ENG	8-97175-153-0	01	1	9702-9702	●
613	CONTROL UNIT; ENG	8-97178-751-0	01	1	9703-	●
625	SCREW; CONT UNIT M6X14 W/PL WASHER	9-03900-614-0	03	1	9505-	●
636	BOLT; BRKT M6X16 FLANGE	8-94380-676-1	03	1	9112-9407	●
636	BOLT; BRKT M6X16 FLANGE	0-28480-616-0	03	1	9408-	●
706	RELAY; QWS 12V 20A	8-94218-497-0	01	1	9112-9504	●
706	RELAY; QWS ENG QUICK WARM UP SYSTEM<6JZ> 12V 20A	8-94218-497-0	01	1	9505-	●

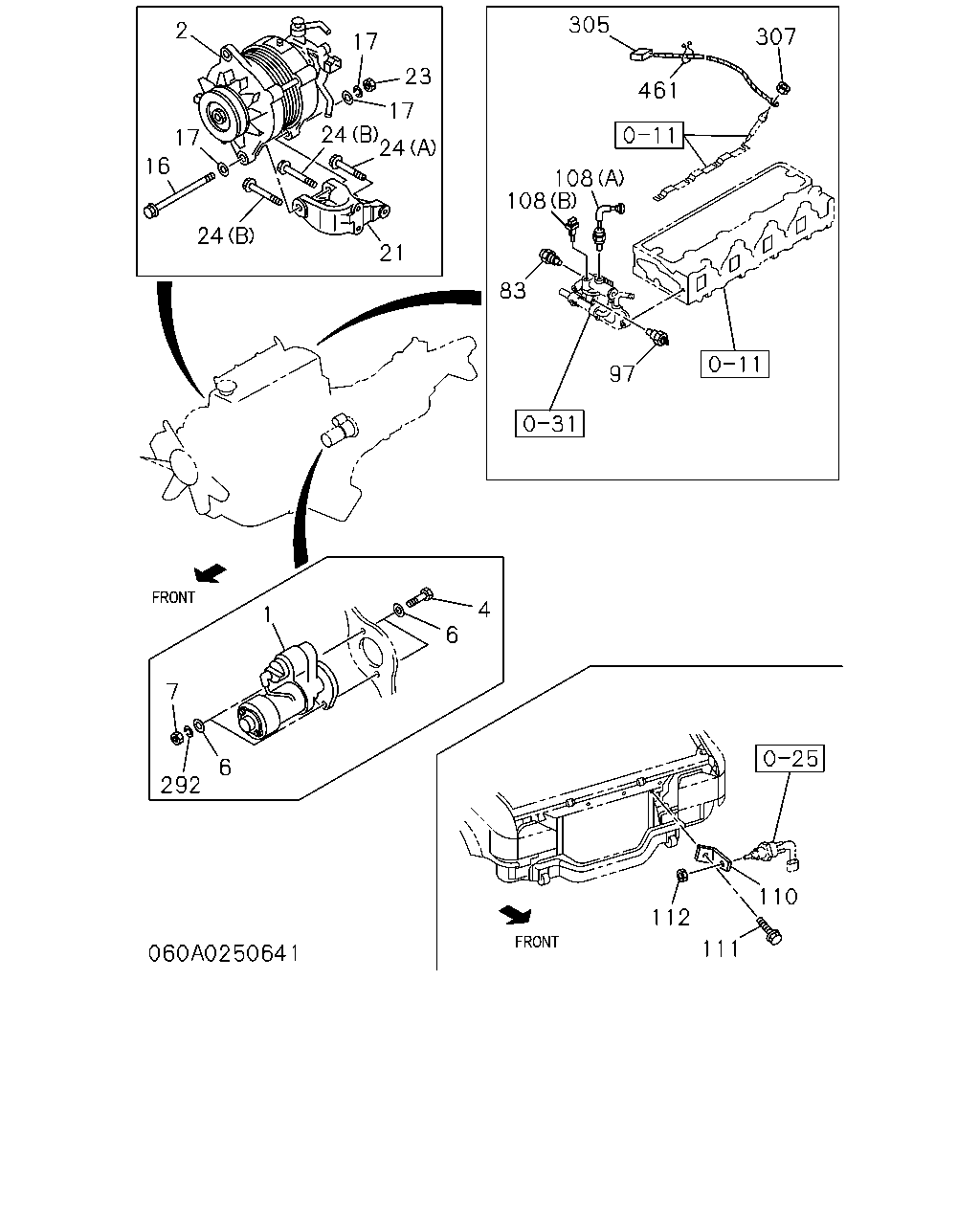

2 17 16 24 21 24 24 17 23 17 1 7 292 6 6 4 112 111 110 97 83 108 108 461 307 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW	8-94387-653-0	01	1	9112-9410	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW	8-97112-549-0	01	1	9411-9606	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW	8-97136-688-0	01	1	9607-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW	8-94384-314-1	01	1	9112-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97062-641-0	01	1	9112-9202	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97074-612-0	01	1	9203-9508	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97134-866-0	01	1	9509-9603	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97133-854-0	01	1	9604-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97037-724-1	01	1	9112-9202	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97074-611-0	01	1	9203-9406	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97113-770-0	01	1	9407-9508	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97134-762-0	01	1	9509-9605	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 60A	8-97147-851-0	01	1	9606-9801	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 60A	8-97187-655-0	01	1	9802-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. A/T THM(RMQ) 12V 75A	8-97034-899-2	01	1	9112-9410		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. A/T THM(RMQ) 12V 75A	8-97121-180-1	01	1	9411-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED(RMN) 12V 60A	8-97042-852-2	01	1	9112-9410		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED(RMN) 12V 60A	8-97121-193-0	01	1	9411-		●
4	BOLT; STARTER M12X35	9-92041-235-0	02	1	9112-9204	●
4	BOLT; STARTER M12X35	0-20801-235-0	02	1	9205-9402	●
4	BOLT; STARTER M12X50	0-10806-250-0	02	1	9403-	●
4	BOLT; STARTER A/T AISIN(RMD) M12X68 FLANGE	8-94480-344-1	02	1	9112-	●
4	BOLT; STARTER M10X50 FLANGE	0-28181-050-0	01	1	9112-		●
4	BOLT; STARTER M10X75 FLANGE	8-94399-669-1	01	1	9112-		●
6	WASHER; PL,STARTER ID=12.5	9-09160-512-0	04	1	9112-9502	●
7	NUT; STARTER M8	9-09111-408-0	01	1	9112-9207	●
7	NUT; STARTER M12	9-99110-412-0	02	1	9112-	●
7	NUT; STARTER A/T AISIN(RMD) M12 FLANGE	0-91150-112-0	02	1	9112-	●
7	NUT; STARTER M8 W/LK WASHER	8-94413-537-0	01	1	9203-		●
16	BOLT; GEN M10X125	9-09801-325-0	01	1	9112-9202	●
16	BOLT; GEN M10X130	8-94402-322-1	01	1	9203-9304	●
16	BOLT; GEN M10X133	5-09000-169-1	01	1	9305-9612	●
16	BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9701-	●
16	BOLT; GEN (A) M8X35 FLANGE	0-28080-835-0	01	1	9112-		●
16	BOLT; GEN (B) M10X90 W/LK WASHER	0-50041-090-0	01	1	9112-		●
17	WASHER; PL,GEN LOCK WASHER ID=10.2	9-09150-510-0	01	1	9112-9612	●
17	WASHER; PL,GEN ID=10.5 OD=22	9-09160-610-0	02	1	9112-9612	●
21	BRACKET; GEN	8-94437-276-2	01	1	9112-	●
21	BRACKET; GEN	8-94379-094-5	01	1	9112-		●
23	NUT; GEN M10	9-09110-510-0	01	1	9112-9612	●
23	NUT; GEN M10 FLANGE	0-91150-210-0	01	1	9701-	●
24	BOLT; GEN BRKT (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-	●
24	BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9112-	●
24	BOLT; GEN BRKT (C) M8X30 FLANGE	0-28080-830-0	01	1	9112-		●
24	BOLT; GEN BRKT (D) M8X60 FLANGE	0-28080-860-0	02	1	9112-		●
24	BOLT; GEN BRKT (E) M8X80 FLANGE	0-28080-880-0	02	1	9112-		●
83	THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9112-	●
83	THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9112-	●
83	THERMOMETER UNIT DENSO	8-94247-437-1	01	1	9112-		●
97	SWITCH; THERMO,EGR CONT	8-94368-591-0	01	1	9112-9504	●
108	SWITCH; THERMO (B)	8-97036-606-0	01	1	9112-9307	●
108	SWITCH; THERMO (B)	8-97069-786-1	01	1	9308-	●
108	SWITCH; THERMO (A)	8-97038-956-0	01	1	9112-9605	●
110	BRACKET; THERMO SW CONNECTOR	8-97043-565-0	01	1	9112-	●
111	BOLT; SWITCH BRKT EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68) M6X12 W/LK WASHER	0-50040-612-0	01	1	9112-	●
112	NUT; SWITCH BRKT M16	9-99111-416-0	01	1	9112-	●
292	WASHER; LK,STARTER ID=8.2	9-09150-508-0	01	1	9112-9207	●
292	WASHER; LK,STARTER ID=12.2	9-09150-512-0	02	1	9112-9502	●
305	HARNESS; EXT,GLOW PLUG	8-97038-742-3	01	1	9112-	●
307	NUT; EXT HARNESS M4 FLANGE	8-94178-698-0	01	1	9112-9511	●
461	CLIP; PURSE LOCK AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=30	8-94315-423-0	02	1	9112-	●
461	CLIP; PURSE LOCK EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIRCONDITIONER(C68) ID=20	1-09709-068-0	02	1	9112-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
