Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#166859) — 448 parça

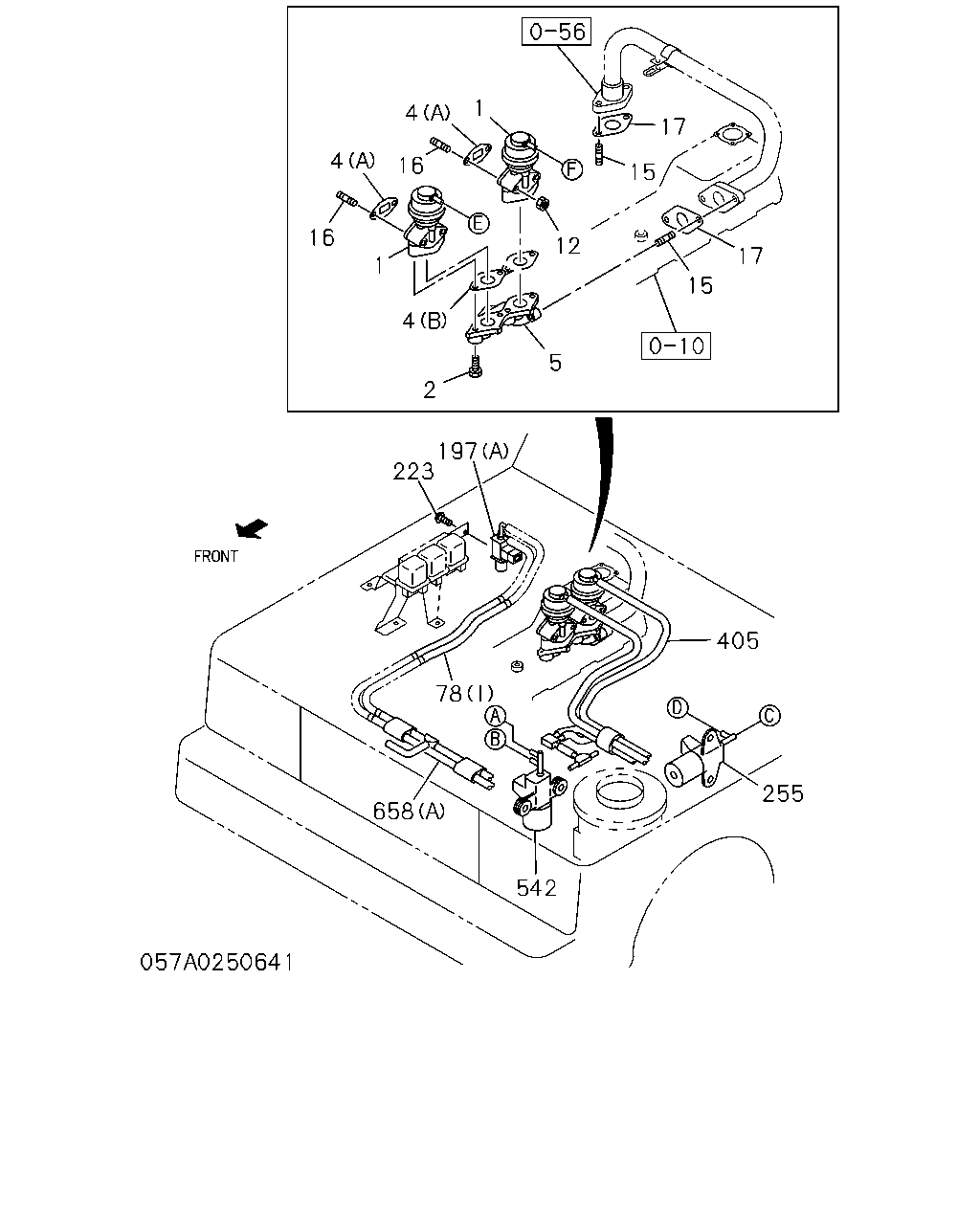

78 98 98 78 78 78 541 575 166 78 166 295 304 223 197 96 485 2 5 4 1 16 4 16 4 1 12 75 75 75 75 15 17 135 17 15 78 49 78 49 49 49 49 49 49 78 166 78 49 103 255 75 102 290 197 75 255 542 343 343 82 343 343 343 185 343 464 464 464 343 185 185 82 185 185 185 343 185 343 343 658 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR	8-97043-021-3	02	1	9112-9504	●
1	VALVE; EGR	8-97124-164-1	02	1	9505-9510	●
1	VALVE; EGR EXC. AIR BAG DRIVER<AJ3>	8-97124-164-1	02	1	9511-9605	●	●
1	VALVE; EGR AIR BAG DRIVER<AJ3>	8-97132-802-0	02	1	9511-9605	●	●
1	VALVE; EGR	8-97132-802-2	02	1	9606-	●
1	VALVE; EGR	8-94364-874-1	01	1	9112-		●
2	BOLT; EGR VLV M8X40 W/LK WASHER	0-50040-840-0	04	1	9112-9605	●
2	BOLT; EGR VLV M8X40 FLANGE	0-28080-840-0	04	1	9606-	●
2	BOLT; EGR VLV M6X20 FLANGE	0-28080-620-0	02	1	9112-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	9112-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	9112-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-195-0	01	1	9112-		●
5	ADAPTER ASM	8-94379-755-2	01	1	9112-9406	●
5	ADAPTER ASM	8-97117-260-0	01	1	9407-9504	●
5	ADAPTER ASM	8-97124-595-0	01	1	9505-	●
12	NUT; EGR VLV M8 FLANGE	5-09440-005-0	04	1	9112-9605	●
12	NUT; EGR VLV M8 FLANGE	0-91150-208-0	04	1	9606-	●
15	STUD; EGR PIPE M8X25 L=36	8-94156-470-2	01	1	9112-9311	●
15	STUD; EGR PIPE M8X25 L=37	9-04110-825-0	02	1	9112-	●
16	STUD; EGR VLV M8X45 L=57	9-04110-845-0	04	1	9112-9605	●
16	STUD; EGR VLV M8X45 L=57	8-94105-162-1	04	1	9606-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	9112-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97060-414-0	01	1	9112-		●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	03	1	9112-9205	●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	02	1	9206-9503	●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	01	1	9504-9504	●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	02	1	9505-9505	●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	01	1	9506-	●
49	CLIP; HOSE (B) 4XID=6.8	8-94132-799-0	01	1	9112-9504	●
49	CLIP; HOSE (E) ID=7	8-94208-596-0	02	1	9112-9208	●
49	CLIP; HOSE (C) 4XID=6.7	8-94315-422-0	02	1	9112-9208	●
49	CLIP; HOSE (D) ID=14.5 & 7X4	8-94368-499-0	02	1	9112-9208	●
49	CLIP; HOSE (E) ID=7	8-94208-596-0	02	1	9209-9307	●
49	CLIP; HOSE (C) 4XID=6.7	8-94315-422-0	02	1	9209-9307	●
49	CLIP; HOSE (D) ID=14.5 & 7X4	8-94368-499-0	02	1	9209-9307	●
49	CLIP; HOSE (F) ID=6 & 13	8-94459-564-0	02	1	9505-	●
49	CLIP; HOSE (E) ID=7	8-94208-596-0	02	1	9308-9504	●
49	CLIP; HOSE (E)	8-94366-035-0	01	1	9505-	●
49	CLIP; HOSE (C) 4XID=6.7	8-94315-422-0	02	1	9308-	●
49	CLIP; HOSE (D) ID=14.5 & 7X4	8-94368-499-0	02	1	9308-9503	●
49	CLIP; HOSE (D) ID=14.5 & 7X4	8-94368-499-0	01	1	9504-9504	●
49	CLIP; HOSE ID=8	5-09700-338-0	01	1	9112-9307		●
49	CLIP; HOSE M/T MUA 5 SPEED(RMN) ID=8	5-09700-338-0	01	1	9308-9504		●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (A) L=410 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9208	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (A) L=410 SERVICED BY L=3000	0-04730-300-0	01	1	9209-9307	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (A) L=410 SERVICED BY L=3000	0-04730-300-0	01	1	9308-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (F) L=50 SERVICED BY L=3000	0-04735-300-0	01	1	9505-	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (C) L=130 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9307	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (D) L=350 SERVICED BY L=3000	0-04733-300-0	01	1	9112-9208	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (B) L=130 SERVICED BY L=3000	0-04734-300-0	02	1	9112-9208	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (E) L=400 SERVICED BY L=3000	0-04735-300-0	01	1	9112-9208	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (D) L=350 SERVICED BY L=3000	0-04733-300-0	01	1	9209-9307	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (B) L=130 SERVICED BY L=3000	0-04734-300-0	02	1	9209-9307	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (E) L=400 SERVICED BY L=3000	0-04735-300-0	01	1	9209-9307	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (C) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	9308-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (C) L=35 SERVICED BY L=3000	0-04730-300-0	01	1	9505-	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (D) L=480 SERVICED BY L=3000	0-04730-300-0	01	1	9308-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (E) L=430 SERVICED BY L=3000	0-04730-300-0	01	1	9308-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (B) L=160 SERVICED BY L=3000	0-04730-300-0	01	1	9308-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (B) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	9308-9504	●
78	HOSE ASM; RUBBER,ASV (F) L=560 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9307	●
78	HOSE ASM; RUBBER,ASV (C) L=200 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (D) L=630 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (B) L=90 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9307	●
78	HOSE ASM; RUBBER,ASV (H) L=90 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9205	●
78	HOSE ASM; RUBBER,ASV (E) L=570 SERVICED BY L=3000	0-04733-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (A) L=640 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (G) L=370 SERVICED BY L=3000	0-04735-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (C) L=200 SERVICED BY L=3000	0-04731-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (D) L=630 SERVICED BY L=3000	0-04731-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (E) L=570 SERVICED BY L=3000	0-04733-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (A) L=640 SERVICED BY L=3000	0-04734-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (G) L=370 SERVICED BY L=3000	0-04735-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (I)	8-97079-425-0	01	1	9308-9503	●
78	HOSE ASM; RUBBER,ASV (I)	8-97115-750-0	01	1	9504-9504	●
78	HOSE ASM; RUBBER,ASV (J) L=560	8-97110-816-1	01	1	9505-	●
78	HOSE ASM; RUBBER,ASV (I)	8-97131-637-1	01	1	9505-	●
82	JOINT; 3 WAY 3WAY	8-94208-695-0	02	1	9112-9504	●
82	JOINT; 3 WAY ENG QUICK WARM UP SYSTEM<6JZ> 3WAY	8-94208-695-0	01	1	9505-	●
96	BRACKET; HOSE	8-97043-563-1	01	1	9112-	●
98	VALVE; DELAY (B) DARK BLUE	8-94412-768-0	01	1	9112-9504	●
98	VALVE; DELAY (A) PINK	8-94145-108-0	01	1	9209-	●
102	JOINT; HOSE 4WAY	8-94429-994-0	01	1	9112-9504	●
102	JOINT; HOSE 3WAY	8-94208-695-0	02	1	9505-9505	●
102	JOINT; HOSE 3WAY	8-94208-695-0	01	1	9506-9510	●
102	JOINT; HOSE AIR BAG DRIVER<AJ3> 3WAY	8-94208-695-0	02	1	9511-9604	●
102	JOINT; HOSE 3WAY	8-94208-695-0	01	1	9605-	●
102	JOINT; HOSE EXC. AIR BAG DRIVER<AJ3> 3WAY	8-94208-695-0	01	1	9511-9604	●
103	VALVE; VAC CONT	8-94436-201-0	01	1	9112-9504	●
135	BRACKET; EGR	8-97061-741-1	01	1	9112-9411	●
166	HOSE; RUBBER (C) L=140 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9504	●
166	HOSE; RUBBER (A) L=30 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER (D) L=270 SERVICED BY L=3000	0-04730-300-0	01	1	9505-9601	●
166	HOSE; RUBBER (D) L=270 SERVICED BY L=3000	0-04740-300-0	01	1	9602-	●
166	HOSE; RUBBER (B) L=40 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER L=40	8-97049-644-0	01	1	9112-9307		●
166	HOSE; RUBBER M/T MUA 5 SPEED(RMN) L=40	8-97049-644-0	01	1	9308-9504		●
166	HOSE; RUBBER L=140	8-97049-645-0	01	1	9112-9307		●
166	HOSE; RUBBER M/T MUA 5 SPEED(RMN) L=140	8-97049-645-0	01	1	9308-9504		●
166	HOSE; RUBBER L=375	8-97049-646-1	01	1	9112-9307		●
166	HOSE; RUBBER M/T MUA 5 SPEED(RMN) L=375	8-97049-646-1	01	1	9308-9504		●
185	HOSE; RUBBER,VSV (A) L=920 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9307	●
185	HOSE; RUBBER,VSV (D) L=440 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9307	●
185	HOSE; RUBBER,VSV (B) L=390 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9307	●
185	HOSE; RUBBER,VSV (G) L=550 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9206	●
185	HOSE; RUBBER,VSV (G) L=520 SERVICED BY L=3000	0-04731-300-0	01	1	9207-9307	●
185	HOSE; RUBBER,VSV (F) L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9504	●
185	HOSE; RUBBER,VSV ENG QUICK WARM UP SYSTEM<6JZ> (F) L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9505-	●
185	HOSE; RUBBER,VSV (E) L=200 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9307	●
185	HOSE; RUBBER,VSV (C)	0-04734-300-0	01	1	9112-9307	●
185	HOSE; RUBBER,VSV	8-97046-014-0	01	1	9112-		●
197	VALVE; VAC SWITCHING (B)	8-94178-888-0	01	1	9112-9504	●
197	VALVE; VAC SWITCHING (A)	8-97043-750-0	01	1	9112-	●
223	SCREW; VSV	9-93490-506-0	01	1	9112-9303	●
223	SCREW; VSV M5X8 W/LK WASHER	9-03910-508-0	01	1	9304-	●
255	VALVE; VAC SW,EGR CONT	8-94340-699-0	01	1	9112-9307	●
255	VALVE; VAC SW,EGR CONT	8-94366-692-0	01	1	9308-	●
290	BOLT; VAC CONT SW VLV M8X12	0-28010-812-0	01	1	9112-9204	●
290	BOLT; VAC CONT SW VLV M8X12 FLANGE	0-28080-812-0	01	1	9205-9504	●
295	BRACKET; DELAY VLV	8-94315-281-1	01	1	9112-9504	●
304	BRACKET; VCV	8-94209-610-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE (B)	8-94126-636-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=6.8X2	8-94126-636-0	02	1	9505-	●
343	CLIP; RUBBER HOSE (D)	8-94208-596-0	06	1	9112-9504	●
343	CLIP; RUBBER HOSE (F) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE (G) ID=23/7.3X2	8-94315-425-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE (A) ID=20 & 7X4	8-94368-500-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=20 & 7X4	8-94368-500-0	01	1	9505-	●
343	CLIP; RUBBER HOSE (E) ID=14.5 & 7X4	8-94368-499-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE ENG QUICK WARM UP SYSTEM<6JZ> (H)	8-94366-035-0	01	1	9505-	●
464	JOINT; RUBBER HOSE 2WAY	8-94313-805-0	03	1	9112-9510	●
464	JOINT; RUBBER HOSE ENG QUICK WARM UP SYSTEM<6JZ> 2WAY	8-94313-805-0	02	1	9511-	●
485	BOLT; VSV M6X12	0-28010-612-0	02	1	9112-9204	●
485	BOLT; VSV M6X12 FLANGE	0-28080-612-0	02	1	9205-9307	●
485	BOLT; VSV M8X12 FLANGE	0-28080-812-0	01	1	9308-	●
541	JOINT; RUBBER HOSE 3WAY	8-94208-695-0	01	1	9112-9504	●
541	JOINT; RUBBER HOSE 2WAY	8-94313-805-0	01	1	9505-	●
542	VALVE; VAC REGULATING	8-97069-803-0	01	1	9308-9504	●
542	VALVE; VAC REGULATING	8-97116-397-0	01	1	9505-	●
575	ORIFICE; HOSE	8-97079-527-0	01	1	9206-9504	●
658	HOSE ASM; VSV TO PIPE (A)	8-97049-570-3	01	1	9308-9504	●
658	HOSE ASM; VSV TO PIPE ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97131-636-1	01	1	9505-	●
658	HOSE ASM; VSV TO PIPE A/T AISIN(RMD) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) CHARGE AIR COOLER<6PL> CERAMIC HEATER<6YX> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97117-273-2	01	1	9505-	●

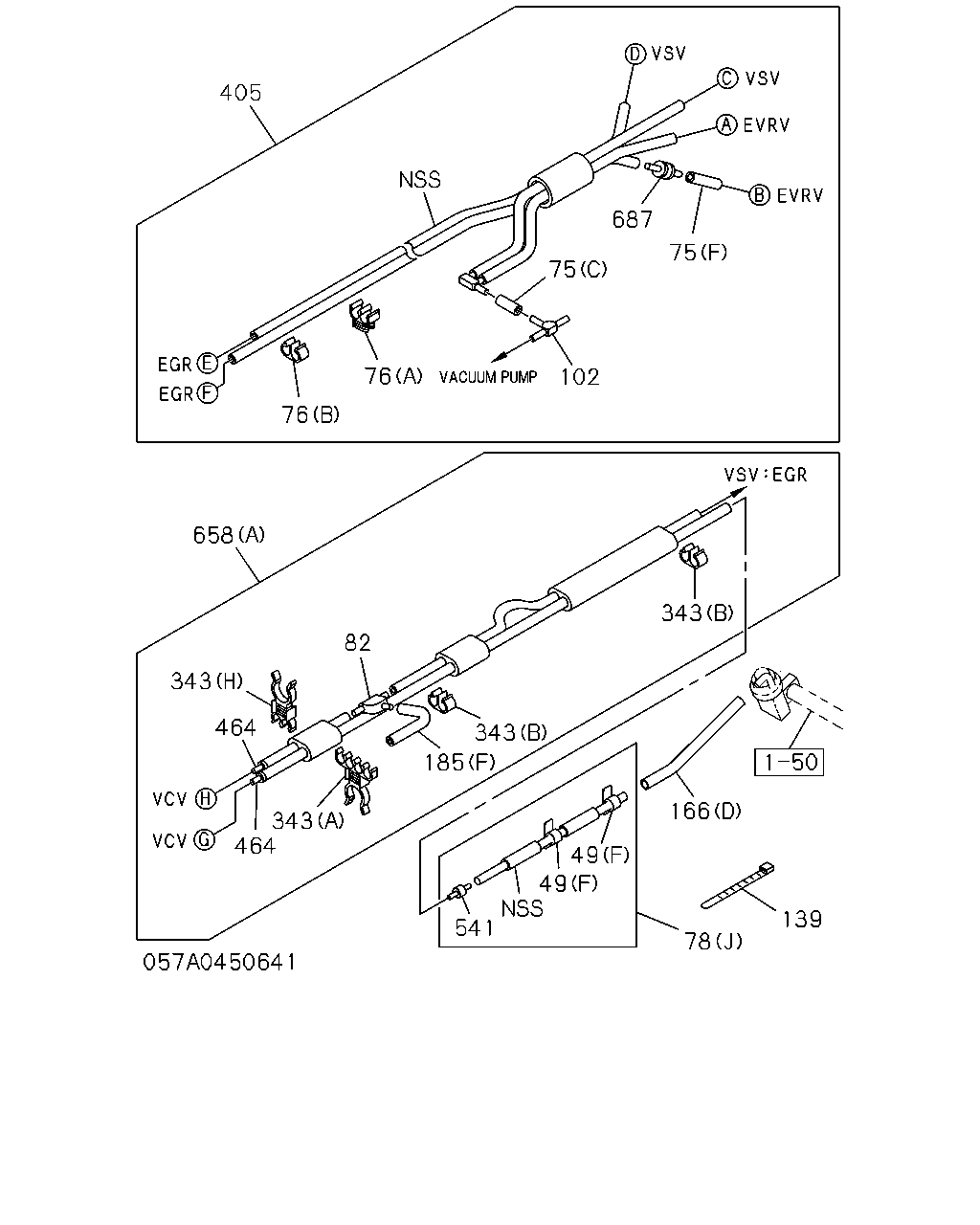

17 15 15 17 12 5 1 4 16 4 16 1 4 2 197 223 78 658 542 255 405

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR	8-97043-021-3	02	1	9112-9504	●
1	VALVE; EGR	8-97124-164-1	02	1	9505-9510	●
1	VALVE; EGR EXC. AIR BAG DRIVER<AJ3>	8-97124-164-1	02	1	9511-9605	●	●
1	VALVE; EGR AIR BAG DRIVER<AJ3>	8-97132-802-0	02	1	9511-9605	●	●
1	VALVE; EGR	8-97132-802-2	02	1	9606-	●
1	VALVE; EGR	8-94364-874-1	01	1	9112-		●
2	BOLT; EGR VLV M8X40 W/LK WASHER	0-50040-840-0	04	1	9112-9605	●
2	BOLT; EGR VLV M8X40 FLANGE	0-28080-840-0	04	1	9606-	●
2	BOLT; EGR VLV M6X20 FLANGE	0-28080-620-0	02	1	9112-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	9112-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	9112-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-195-0	01	1	9112-		●
5	ADAPTER ASM	8-94379-755-2	01	1	9112-9406	●
5	ADAPTER ASM	8-97117-260-0	01	1	9407-9504	●
5	ADAPTER ASM	8-97124-595-0	01	1	9505-	●
12	NUT; EGR VLV M8 FLANGE	5-09440-005-0	04	1	9112-9605	●
12	NUT; EGR VLV M8 FLANGE	0-91150-208-0	04	1	9606-	●
15	STUD; EGR PIPE M8X25 L=36	8-94156-470-2	01	1	9112-9311	●
15	STUD; EGR PIPE M8X25 L=37	9-04110-825-0	02	1	9112-	●
16	STUD; EGR VLV M8X45 L=57	9-04110-845-0	04	1	9112-9605	●
16	STUD; EGR VLV M8X45 L=57	8-94105-162-1	04	1	9606-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	9112-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97060-414-0	01	1	9112-		●
78	HOSE ASM; RUBBER,ASV (F) L=560 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9307	●
78	HOSE ASM; RUBBER,ASV (C) L=200 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (D) L=630 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (B) L=90 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9307	●
78	HOSE ASM; RUBBER,ASV (H) L=90 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9205	●
78	HOSE ASM; RUBBER,ASV (E) L=570 SERVICED BY L=3000	0-04733-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (A) L=640 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (G) L=370 SERVICED BY L=3000	0-04735-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (C) L=200 SERVICED BY L=3000	0-04731-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (D) L=630 SERVICED BY L=3000	0-04731-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (E) L=570 SERVICED BY L=3000	0-04733-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (A) L=640 SERVICED BY L=3000	0-04734-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (G) L=370 SERVICED BY L=3000	0-04735-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (I)	8-97079-425-0	01	1	9308-9503	●
78	HOSE ASM; RUBBER,ASV (I)	8-97115-750-0	01	1	9504-9504	●
78	HOSE ASM; RUBBER,ASV (J) L=560	8-97110-816-1	01	1	9505-	●
78	HOSE ASM; RUBBER,ASV (I)	8-97131-637-1	01	1	9505-	●
197	VALVE; VAC SWITCHING (B)	8-94178-888-0	01	1	9112-9504	●
197	VALVE; VAC SWITCHING (A)	8-97043-750-0	01	1	9112-	●
223	SCREW; VSV	9-93490-506-0	01	1	9112-9303	●
223	SCREW; VSV M5X8 W/LK WASHER	9-03910-508-0	01	1	9304-	●
255	VALVE; VAC SW,EGR CONT	8-94340-699-0	01	1	9112-9307	●
255	VALVE; VAC SW,EGR CONT	8-94366-692-0	01	1	9308-	●
405	HOSE; RUBBER VAC SWITCHING VLV	8-97116-994-4	01	1	9505-9510	●
405	HOSE; RUBBER VAC SWITCHING VLV EXC. AIR BAG DRIVER<AJ3>	8-97116-994-5	01	1	9511-9605	●
405	HOSE; RUBBER VAC SWITCHING VLV AIR BAG DRIVER<AJ3>	8-97136-600-3	01	1	9511-9605	●
405	HOSE; RUBBER VAC SWITCHING VLV	8-97136-600-3	01	1	9606-	●
542	VALVE; VAC REGULATING	8-97069-803-0	01	1	9308-9504	●
542	VALVE; VAC REGULATING	8-97116-397-0	01	1	9505-	●
658	HOSE ASM; VSV TO PIPE (A)	8-97049-570-3	01	1	9308-9504	●
658	HOSE ASM; VSV TO PIPE ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97131-636-1	01	1	9505-	●
658	HOSE ASM; VSV TO PIPE A/T AISIN(RMD) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) CHARGE AIR COOLER<6PL> CERAMIC HEATER<6YX> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97117-273-2	01	1	9505-	●

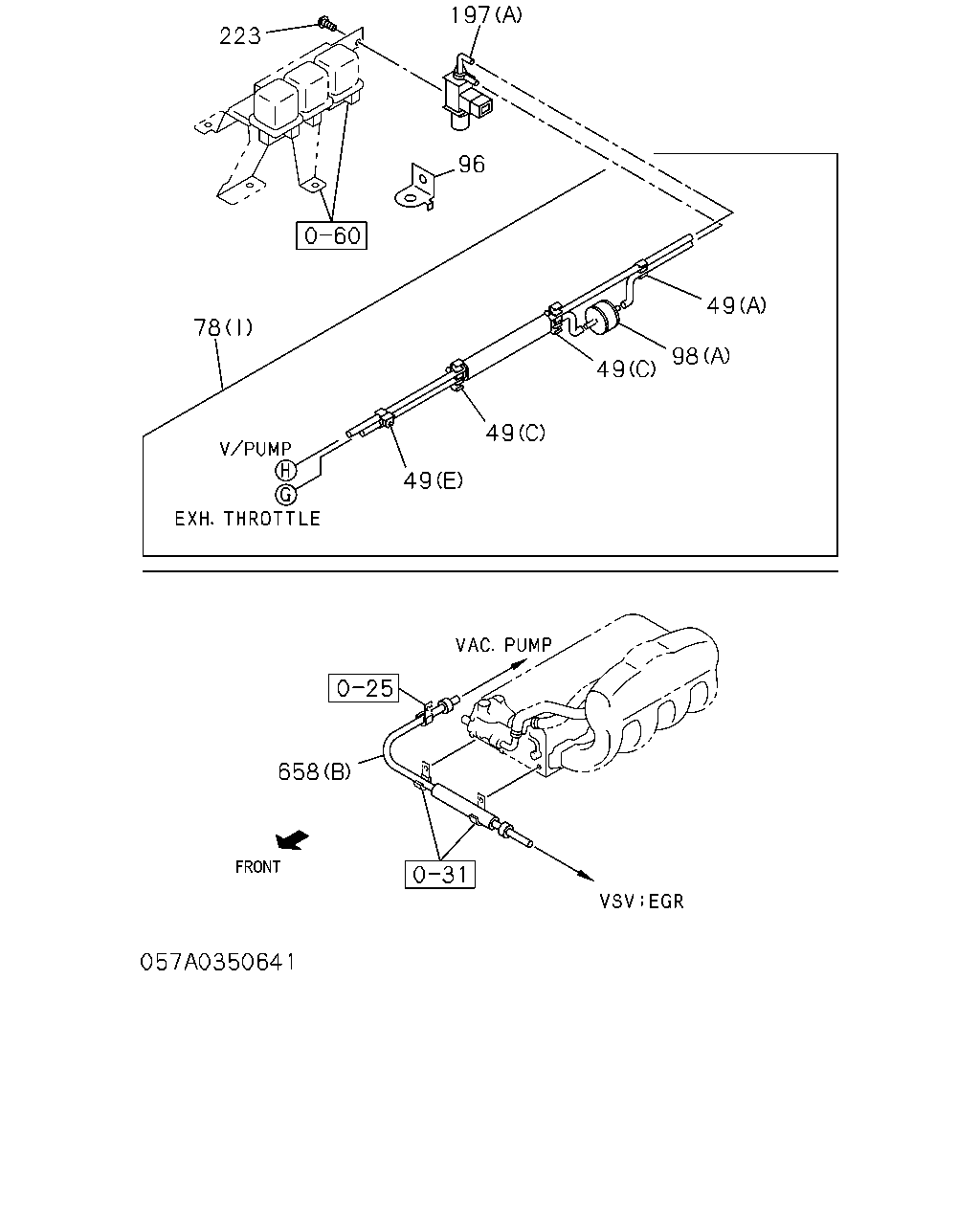

223 96 197 78 49 49 49 98 49 658

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	03	1	9112-9205	●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	02	1	9206-9503	●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	01	1	9504-9504	●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	02	1	9505-9505	●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	01	1	9506-	●
49	CLIP; HOSE (B) 4XID=6.8	8-94132-799-0	01	1	9112-9504	●
49	CLIP; HOSE (E) ID=7	8-94208-596-0	02	1	9112-9208	●
49	CLIP; HOSE (C) 4XID=6.7	8-94315-422-0	02	1	9112-9208	●
49	CLIP; HOSE (D) ID=14.5 & 7X4	8-94368-499-0	02	1	9112-9208	●
49	CLIP; HOSE (E) ID=7	8-94208-596-0	02	1	9209-9307	●
49	CLIP; HOSE (C) 4XID=6.7	8-94315-422-0	02	1	9209-9307	●
49	CLIP; HOSE (D) ID=14.5 & 7X4	8-94368-499-0	02	1	9209-9307	●
49	CLIP; HOSE (F) ID=6 & 13	8-94459-564-0	02	1	9505-	●
49	CLIP; HOSE (E) ID=7	8-94208-596-0	02	1	9308-9504	●
49	CLIP; HOSE (E)	8-94366-035-0	01	1	9505-	●
49	CLIP; HOSE (C) 4XID=6.7	8-94315-422-0	02	1	9308-	●
49	CLIP; HOSE (D) ID=14.5 & 7X4	8-94368-499-0	02	1	9308-9503	●
49	CLIP; HOSE (D) ID=14.5 & 7X4	8-94368-499-0	01	1	9504-9504	●
49	CLIP; HOSE ID=8	5-09700-338-0	01	1	9112-9307		●
49	CLIP; HOSE M/T MUA 5 SPEED(RMN) ID=8	5-09700-338-0	01	1	9308-9504		●
78	HOSE ASM; RUBBER,ASV (F) L=560 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9307	●
78	HOSE ASM; RUBBER,ASV (C) L=200 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (D) L=630 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (B) L=90 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9307	●
78	HOSE ASM; RUBBER,ASV (H) L=90 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9205	●
78	HOSE ASM; RUBBER,ASV (E) L=570 SERVICED BY L=3000	0-04733-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (A) L=640 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (G) L=370 SERVICED BY L=3000	0-04735-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (C) L=200 SERVICED BY L=3000	0-04731-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (D) L=630 SERVICED BY L=3000	0-04731-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (E) L=570 SERVICED BY L=3000	0-04733-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (A) L=640 SERVICED BY L=3000	0-04734-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (G) L=370 SERVICED BY L=3000	0-04735-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (I)	8-97079-425-0	01	1	9308-9503	●
78	HOSE ASM; RUBBER,ASV (I)	8-97115-750-0	01	1	9504-9504	●
78	HOSE ASM; RUBBER,ASV (J) L=560	8-97110-816-1	01	1	9505-	●
78	HOSE ASM; RUBBER,ASV (I)	8-97131-637-1	01	1	9505-	●
96	BRACKET; HOSE	8-97043-563-1	01	1	9112-	●
98	VALVE; DELAY (B) DARK BLUE	8-94412-768-0	01	1	9112-9504	●
98	VALVE; DELAY (A) PINK	8-94145-108-0	01	1	9209-	●
197	VALVE; VAC SWITCHING (B)	8-94178-888-0	01	1	9112-9504	●
197	VALVE; VAC SWITCHING (A)	8-97043-750-0	01	1	9112-	●
223	SCREW; VSV	9-93490-506-0	01	1	9112-9303	●
223	SCREW; VSV M5X8 W/LK WASHER	9-03910-508-0	01	1	9304-	●
658	HOSE ASM; VSV TO PIPE (A)	8-97049-570-3	01	1	9308-9504	●
658	HOSE ASM; VSV TO PIPE ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97131-636-1	01	1	9505-	●
658	HOSE ASM; VSV TO PIPE A/T AISIN(RMD) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) CHARGE AIR COOLER<6PL> CERAMIC HEATER<6YX> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97117-273-2	01	1	9505-	●

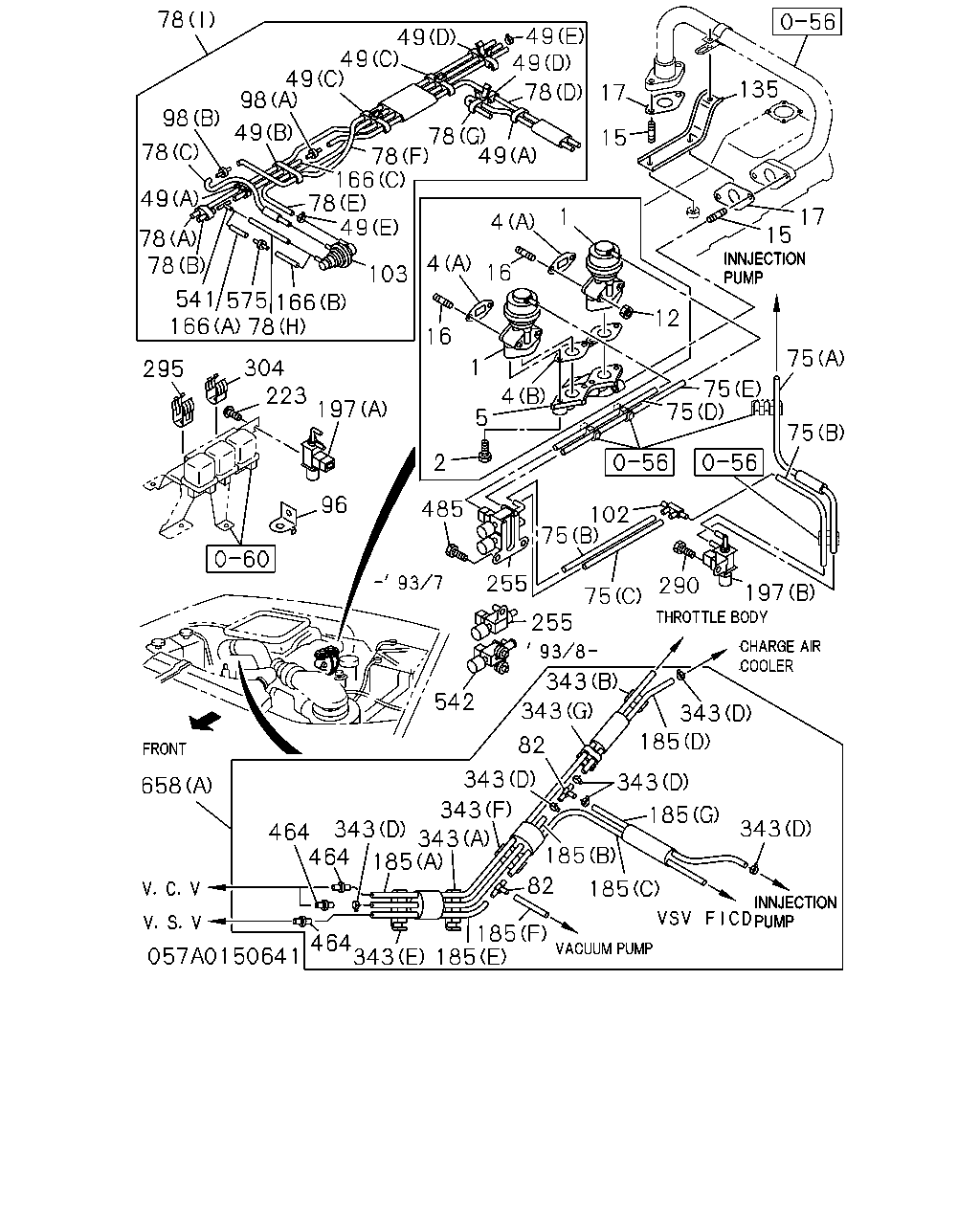

405 76 76 75 102 75 687 658 82 343 464 464 343 185 343 541 49 49 78 139 166 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	03	1	9112-9205	●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	02	1	9206-9503	●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	01	1	9504-9504	●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	02	1	9505-9505	●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	01	1	9506-	●
49	CLIP; HOSE (B) 4XID=6.8	8-94132-799-0	01	1	9112-9504	●
49	CLIP; HOSE (E) ID=7	8-94208-596-0	02	1	9112-9208	●
49	CLIP; HOSE (C) 4XID=6.7	8-94315-422-0	02	1	9112-9208	●
49	CLIP; HOSE (D) ID=14.5 & 7X4	8-94368-499-0	02	1	9112-9208	●
49	CLIP; HOSE (E) ID=7	8-94208-596-0	02	1	9209-9307	●
49	CLIP; HOSE (C) 4XID=6.7	8-94315-422-0	02	1	9209-9307	●
49	CLIP; HOSE (D) ID=14.5 & 7X4	8-94368-499-0	02	1	9209-9307	●
49	CLIP; HOSE (F) ID=6 & 13	8-94459-564-0	02	1	9505-	●
49	CLIP; HOSE (E) ID=7	8-94208-596-0	02	1	9308-9504	●
49	CLIP; HOSE (E)	8-94366-035-0	01	1	9505-	●
49	CLIP; HOSE (C) 4XID=6.7	8-94315-422-0	02	1	9308-	●
49	CLIP; HOSE (D) ID=14.5 & 7X4	8-94368-499-0	02	1	9308-9503	●
49	CLIP; HOSE (D) ID=14.5 & 7X4	8-94368-499-0	01	1	9504-9504	●
49	CLIP; HOSE ID=8	5-09700-338-0	01	1	9112-9307		●
49	CLIP; HOSE M/T MUA 5 SPEED(RMN) ID=8	5-09700-338-0	01	1	9308-9504		●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (A) L=410 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9208	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (A) L=410 SERVICED BY L=3000	0-04730-300-0	01	1	9209-9307	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (A) L=410 SERVICED BY L=3000	0-04730-300-0	01	1	9308-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (F) L=50 SERVICED BY L=3000	0-04735-300-0	01	1	9505-	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (C) L=130 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9307	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (D) L=350 SERVICED BY L=3000	0-04733-300-0	01	1	9112-9208	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (B) L=130 SERVICED BY L=3000	0-04734-300-0	02	1	9112-9208	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (E) L=400 SERVICED BY L=3000	0-04735-300-0	01	1	9112-9208	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (D) L=350 SERVICED BY L=3000	0-04733-300-0	01	1	9209-9307	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (B) L=130 SERVICED BY L=3000	0-04734-300-0	02	1	9209-9307	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (E) L=400 SERVICED BY L=3000	0-04735-300-0	01	1	9209-9307	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (C) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	9308-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (C) L=35 SERVICED BY L=3000	0-04730-300-0	01	1	9505-	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (D) L=480 SERVICED BY L=3000	0-04730-300-0	01	1	9308-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (E) L=430 SERVICED BY L=3000	0-04730-300-0	01	1	9308-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (B) L=160 SERVICED BY L=3000	0-04730-300-0	01	1	9308-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE (B) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	9308-9504	●
76	CLIP; RUBBER HOSE,VSV (A)	8-94366-035-0	02	1	9506-9509	●
76	CLIP; RUBBER HOSE,VSV (A)	8-94366-035-0	01	1	9510-9510	●
76	CLIP; RUBBER HOSE,VSV AIR BAG DRIVER<AJ3> (A)	8-94366-035-0	02	1	9511-9511	●
76	CLIP; RUBBER HOSE,VSV (A)	8-94366-035-0	01	1	9512-	●
76	CLIP; RUBBER HOSE,VSV (B) ID=6.8X2	8-94126-636-0	01	1	9510-9510	●
76	CLIP; RUBBER HOSE,VSV EXC. AIR BAG DRIVER<AJ3> (B) ID=6.8X2	8-94126-636-0	01	1	9511-9605	●
76	CLIP; RUBBER HOSE,VSV EXC. AIR BAG DRIVER<AJ3> (A)	8-94366-035-0	01	1	9511-9511	●
78	HOSE ASM; RUBBER,ASV (F) L=560 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9307	●
78	HOSE ASM; RUBBER,ASV (C) L=200 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (D) L=630 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (B) L=90 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9307	●
78	HOSE ASM; RUBBER,ASV (H) L=90 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9205	●
78	HOSE ASM; RUBBER,ASV (E) L=570 SERVICED BY L=3000	0-04733-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (A) L=640 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (G) L=370 SERVICED BY L=3000	0-04735-300-0	01	1	9112-9208	●
78	HOSE ASM; RUBBER,ASV (C) L=200 SERVICED BY L=3000	0-04731-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (D) L=630 SERVICED BY L=3000	0-04731-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (E) L=570 SERVICED BY L=3000	0-04733-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (A) L=640 SERVICED BY L=3000	0-04734-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (G) L=370 SERVICED BY L=3000	0-04735-300-0	01	1	9209-9307	●
78	HOSE ASM; RUBBER,ASV (I)	8-97079-425-0	01	1	9308-9503	●
78	HOSE ASM; RUBBER,ASV (I)	8-97115-750-0	01	1	9504-9504	●
78	HOSE ASM; RUBBER,ASV (J) L=560	8-97110-816-1	01	1	9505-	●
78	HOSE ASM; RUBBER,ASV (I)	8-97131-637-1	01	1	9505-	●
82	JOINT; 3 WAY 3WAY	8-94208-695-0	02	1	9112-9504	●
82	JOINT; 3 WAY ENG QUICK WARM UP SYSTEM<6JZ> 3WAY	8-94208-695-0	01	1	9505-	●
102	JOINT; HOSE 4WAY	8-94429-994-0	01	1	9112-9504	●
102	JOINT; HOSE 3WAY	8-94208-695-0	02	1	9505-9505	●
102	JOINT; HOSE 3WAY	8-94208-695-0	01	1	9506-9510	●
102	JOINT; HOSE AIR BAG DRIVER<AJ3> 3WAY	8-94208-695-0	02	1	9511-9604	●
102	JOINT; HOSE 3WAY	8-94208-695-0	01	1	9605-	●
102	JOINT; HOSE EXC. AIR BAG DRIVER<AJ3> 3WAY	8-94208-695-0	01	1	9511-9604	●
139	CLIP; HARNESS L=140	5-09707-031-0	01	1	9505-	●
166	HOSE; RUBBER (C) L=140 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9504	●
166	HOSE; RUBBER (A) L=30 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER (D) L=270 SERVICED BY L=3000	0-04730-300-0	01	1	9505-9601	●
166	HOSE; RUBBER (D) L=270 SERVICED BY L=3000	0-04740-300-0	01	1	9602-	●
166	HOSE; RUBBER (B) L=40 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER L=40	8-97049-644-0	01	1	9112-9307		●
166	HOSE; RUBBER M/T MUA 5 SPEED(RMN) L=40	8-97049-644-0	01	1	9308-9504		●
166	HOSE; RUBBER L=140	8-97049-645-0	01	1	9112-9307		●
166	HOSE; RUBBER M/T MUA 5 SPEED(RMN) L=140	8-97049-645-0	01	1	9308-9504		●
166	HOSE; RUBBER L=375	8-97049-646-1	01	1	9112-9307		●
166	HOSE; RUBBER M/T MUA 5 SPEED(RMN) L=375	8-97049-646-1	01	1	9308-9504		●
185	HOSE; RUBBER,VSV (A) L=920 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9307	●
185	HOSE; RUBBER,VSV (D) L=440 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9307	●
185	HOSE; RUBBER,VSV (B) L=390 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9307	●
185	HOSE; RUBBER,VSV (G) L=550 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9206	●
185	HOSE; RUBBER,VSV (G) L=520 SERVICED BY L=3000	0-04731-300-0	01	1	9207-9307	●
185	HOSE; RUBBER,VSV (F) L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9504	●
185	HOSE; RUBBER,VSV ENG QUICK WARM UP SYSTEM<6JZ> (F) L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9505-	●
185	HOSE; RUBBER,VSV (E) L=200 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9307	●
185	HOSE; RUBBER,VSV (C)	0-04734-300-0	01	1	9112-9307	●
185	HOSE; RUBBER,VSV	8-97046-014-0	01	1	9112-		●
343	CLIP; RUBBER HOSE (B)	8-94126-636-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=6.8X2	8-94126-636-0	02	1	9505-	●
343	CLIP; RUBBER HOSE (D)	8-94208-596-0	06	1	9112-9504	●
343	CLIP; RUBBER HOSE (F) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE (G) ID=23/7.3X2	8-94315-425-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE (A) ID=20 & 7X4	8-94368-500-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=20 & 7X4	8-94368-500-0	01	1	9505-	●
343	CLIP; RUBBER HOSE (E) ID=14.5 & 7X4	8-94368-499-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE ENG QUICK WARM UP SYSTEM<6JZ> (H)	8-94366-035-0	01	1	9505-	●
405	HOSE; RUBBER VAC SWITCHING VLV	8-97116-994-4	01	1	9505-9510	●
405	HOSE; RUBBER VAC SWITCHING VLV EXC. AIR BAG DRIVER<AJ3>	8-97116-994-5	01	1	9511-9605	●
405	HOSE; RUBBER VAC SWITCHING VLV AIR BAG DRIVER<AJ3>	8-97136-600-3	01	1	9511-9605	●
405	HOSE; RUBBER VAC SWITCHING VLV	8-97136-600-3	01	1	9606-	●
464	JOINT; RUBBER HOSE 2WAY	8-94313-805-0	03	1	9112-9510	●
464	JOINT; RUBBER HOSE ENG QUICK WARM UP SYSTEM<6JZ> 2WAY	8-94313-805-0	02	1	9511-	●
541	JOINT; RUBBER HOSE 3WAY	8-94208-695-0	01	1	9112-9504	●
541	JOINT; RUBBER HOSE 2WAY	8-94313-805-0	01	1	9505-	●
658	HOSE ASM; VSV TO PIPE (A)	8-97049-570-3	01	1	9308-9504	●
658	HOSE ASM; VSV TO PIPE ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97131-636-1	01	1	9505-	●
658	HOSE ASM; VSV TO PIPE A/T AISIN(RMD) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) CHARGE AIR COOLER<6PL> CERAMIC HEATER<6YX> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97117-273-2	01	1	9505-	●
687	DAMPER; VAC HOSE	8-97086-816-0	01	1	9505-	●

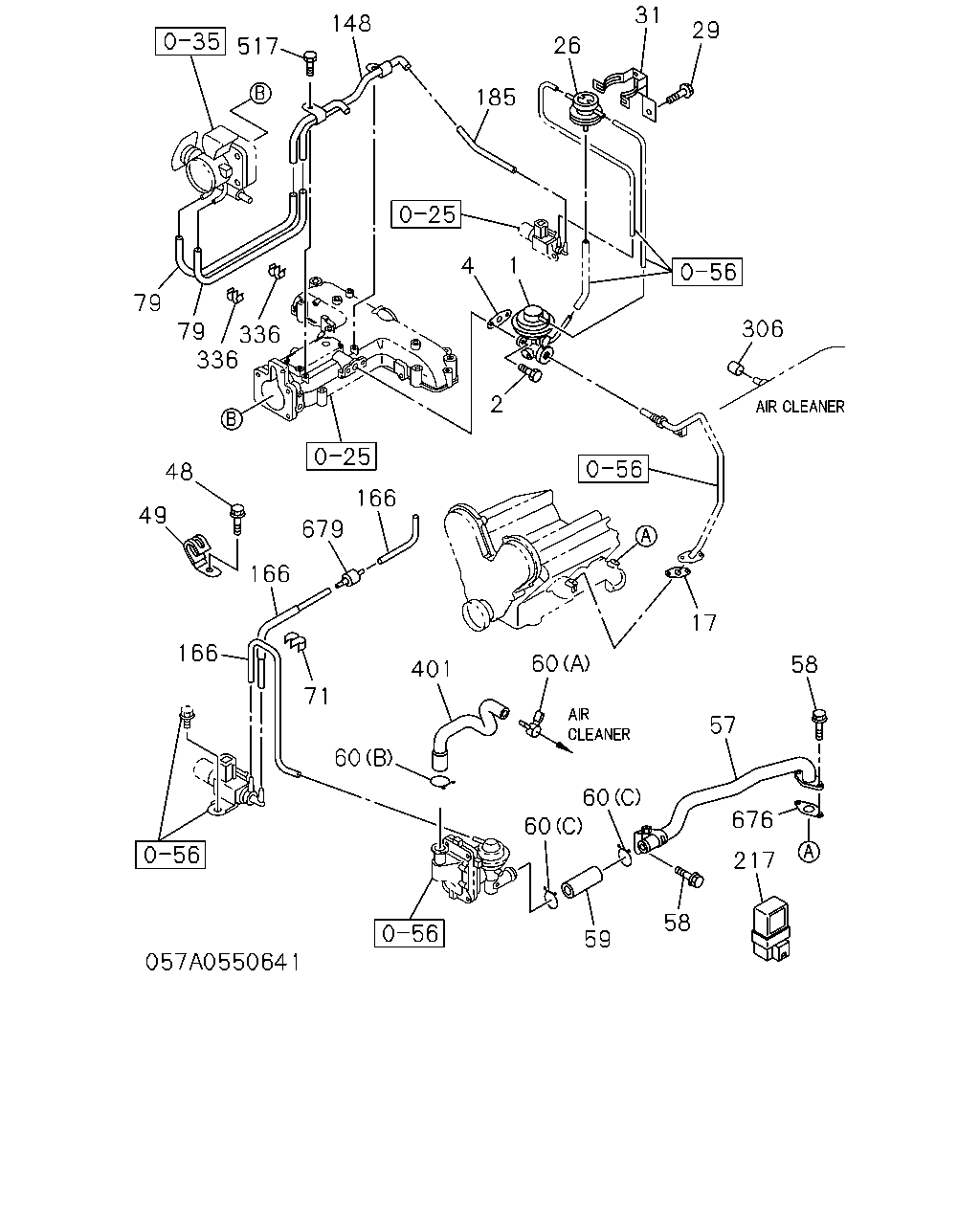

148 185 26 31 29 4 1 2 306 17 58 57 676 217 58 59 60 60 60 401 60 71 166 166 679 166 49 48 336 336 79 79 517

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR	8-97043-021-3	02	1	9112-9504	●
1	VALVE; EGR	8-97124-164-1	02	1	9505-9510	●
1	VALVE; EGR EXC. AIR BAG DRIVER<AJ3>	8-97124-164-1	02	1	9511-9605	●	●
1	VALVE; EGR AIR BAG DRIVER<AJ3>	8-97132-802-0	02	1	9511-9605	●	●
1	VALVE; EGR	8-97132-802-2	02	1	9606-	●
1	VALVE; EGR	8-94364-874-1	01	1	9112-		●
2	BOLT; EGR VLV M8X40 W/LK WASHER	0-50040-840-0	04	1	9112-9605	●
2	BOLT; EGR VLV M8X40 FLANGE	0-28080-840-0	04	1	9606-	●
2	BOLT; EGR VLV M6X20 FLANGE	0-28080-620-0	02	1	9112-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	9112-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	9112-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-195-0	01	1	9112-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	9112-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97060-414-0	01	1	9112-		●
26	TRANSDUCER; BACK PRESSURE	8-94450-811-0	01	1	9112-		●
29	BOLT; BPT BRKT M8X12 FLANGE	0-28080-812-0	01	1	9112-		●
31	BRACKET; BPT	8-97011-267-2	01	1	9112-		●
48	BOLT; CLIP,HOSE M6X12 W/LK WASHER	0-50040-612-0	01	1	9112-9307		●
48	BOLT; CLIP,HOSE M/T MUA 5 SPEED(RMN) M6X12 W/LK WASHER	0-50040-612-0	01	1	9308-9504		●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	03	1	9112-9205	●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	02	1	9206-9503	●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	01	1	9504-9504	●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	02	1	9505-9505	●
49	CLIP; HOSE (A) ID=6.8X2	8-94126-636-0	01	1	9506-	●
49	CLIP; HOSE (B) 4XID=6.8	8-94132-799-0	01	1	9112-9504	●
49	CLIP; HOSE (E) ID=7	8-94208-596-0	02	1	9112-9208	●
49	CLIP; HOSE (C) 4XID=6.7	8-94315-422-0	02	1	9112-9208	●
49	CLIP; HOSE (D) ID=14.5 & 7X4	8-94368-499-0	02	1	9112-9208	●
49	CLIP; HOSE (E) ID=7	8-94208-596-0	02	1	9209-9307	●
49	CLIP; HOSE (C) 4XID=6.7	8-94315-422-0	02	1	9209-9307	●
49	CLIP; HOSE (D) ID=14.5 & 7X4	8-94368-499-0	02	1	9209-9307	●
49	CLIP; HOSE (F) ID=6 & 13	8-94459-564-0	02	1	9505-	●
49	CLIP; HOSE (E) ID=7	8-94208-596-0	02	1	9308-9504	●
49	CLIP; HOSE (E)	8-94366-035-0	01	1	9505-	●
49	CLIP; HOSE (C) 4XID=6.7	8-94315-422-0	02	1	9308-	●
49	CLIP; HOSE (D) ID=14.5 & 7X4	8-94368-499-0	02	1	9308-9503	●
49	CLIP; HOSE (D) ID=14.5 & 7X4	8-94368-499-0	01	1	9504-9504	●
49	CLIP; HOSE ID=8	5-09700-338-0	01	1	9112-9307		●
49	CLIP; HOSE M/T MUA 5 SPEED(RMN) ID=8	5-09700-338-0	01	1	9308-9504		●
57	PIPE; SUCTION,AIR	8-94389-903-1	01	1	9112-9307		●
57	PIPE; SUCTION,AIR M/T MUA 5 SPEED(RMN)	8-94389-903-1	01	1	9308-9504		●
58	BOLT; PIPE M8X12 FLANGE	0-28080-812-0	01	1	9112-9307		●
58	BOLT; PIPE M/T MUA 5 SPEED(RMN) M8X12 FLANGE	0-28080-812-0	01	1	9308-9504		●
58	BOLT; PIPE M8X20	8-97012-321-0	02	1	9112-9307		●
58	BOLT; PIPE M/T MUA 5 SPEED(RMN) M8X20	8-97012-321-1	02	1	9308-9504		●
59	HOSE; AIR	8-97021-243-0	01	1	9112-9307		●
59	HOSE; AIR M/T MUA 5 SPEED(RMN)	8-97021-243-0	01	1	9308-9504		●
60	CLIP; HOSE (A) ID=21	8-94242-034-0	01	1	9112-9307		●
60	CLIP; HOSE M/T MUA 5 SPEED(RMN) (A) ID=21	8-94242-034-0	01	1	9308-9504		●
60	CLIP; HOSE (B) ID=25	8-94330-291-0	01	1	9112-9307		●
60	CLIP; HOSE M/T MUA 5 SPEED(RMN) (B) ID=25	8-94330-291-0	01	1	9308-9504		●
60	CLIP; HOSE (C) ID=27	8-94411-850-0	02	1	9112-9204		●
60	CLIP; HOSE (C) ID=36	1-09704-094-0	02	1	9205-9307		●
60	CLIP; HOSE M/T MUA 5 SPEED(RMN) (C) ID=36	1-09704-094-0	02	1	9308-9504		●
71	CLIP; RUBBER HOSE ID=6.8X2	8-94126-636-0	01	1	9112-9307		●
71	CLIP; RUBBER HOSE M/T MUA 5 SPEED(RMN) ID=6.8X2	8-94126-636-0	01	1	9308-9504		●
79	HOSE; RUBBER,THROTTLE BODY TO PIPE L=200 SERVICED BY L=3000	0-04743-300-0	01	1	9112-		●
79	HOSE; RUBBER,THROTTLE BODY TO PIPE L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9112-		●
148	PIPE; VAC	8-97018-919-0	01	1	9112-		●
166	HOSE; RUBBER (C) L=140 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9504	●
166	HOSE; RUBBER (A) L=30 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER (D) L=270 SERVICED BY L=3000	0-04730-300-0	01	1	9505-9601	●
166	HOSE; RUBBER (D) L=270 SERVICED BY L=3000	0-04740-300-0	01	1	9602-	●
166	HOSE; RUBBER (B) L=40 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER L=40	8-97049-644-0	01	1	9112-9307		●
166	HOSE; RUBBER M/T MUA 5 SPEED(RMN) L=40	8-97049-644-0	01	1	9308-9504		●
166	HOSE; RUBBER L=140	8-97049-645-0	01	1	9112-9307		●
166	HOSE; RUBBER M/T MUA 5 SPEED(RMN) L=140	8-97049-645-0	01	1	9308-9504		●
166	HOSE; RUBBER L=375	8-97049-646-1	01	1	9112-9307		●
166	HOSE; RUBBER M/T MUA 5 SPEED(RMN) L=375	8-97049-646-1	01	1	9308-9504		●
185	HOSE; RUBBER,VSV (A) L=920 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9307	●
185	HOSE; RUBBER,VSV (D) L=440 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9307	●
185	HOSE; RUBBER,VSV (B) L=390 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9307	●
185	HOSE; RUBBER,VSV (G) L=550 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9206	●
185	HOSE; RUBBER,VSV (G) L=520 SERVICED BY L=3000	0-04731-300-0	01	1	9207-9307	●
185	HOSE; RUBBER,VSV (F) L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9504	●
185	HOSE; RUBBER,VSV ENG QUICK WARM UP SYSTEM<6JZ> (F) L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9505-	●
185	HOSE; RUBBER,VSV (E) L=200 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9307	●
185	HOSE; RUBBER,VSV (C)	0-04734-300-0	01	1	9112-9307	●
185	HOSE; RUBBER,VSV	8-97046-014-0	01	1	9112-		●
217	RELAY; EMISSION CONT 12V 20A	8-97048-665-0	01	1	9112-9303		●
217	RELAY; EMISSION CONT 12V 20A	8-97093-910-1	01	1	9304-9504		●
306	CAP; RUBBER	8-94373-247-0	01	1	9308-		●
336	CLIP; RUBBER HOSE	8-94152-396-0	02	1	9112-		●
401	HOSE; REED VLV TO ACL	8-97066-709-0	01	1	9112-9307		●
401	HOSE; REED VLV TO ACL M/T MUA 5 SPEED(RMN)	8-97066-709-0	01	1	9308-9504		●
517	BOLT; VAC PIPE M6X12 FLANGE	0-28080-612-0	02	1	9112-		●
676	GASKET; PIPE	8-97021-242-0	01	1	9112-9307		●
676	GASKET; PIPE M/T MUA 5 SPEED(RMN)	8-97021-242-0	01	1	9308-9504		●
679	VALVE; CHECK	8-97024-129-2	01	1	9112-9307		●
679	VALVE; CHECK M/T MUA 5 SPEED(RMN)	8-97024-129-2	01	1	9308-9504		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
