0-56 — EMISSION SYSTEM (#166858) — 116 parça

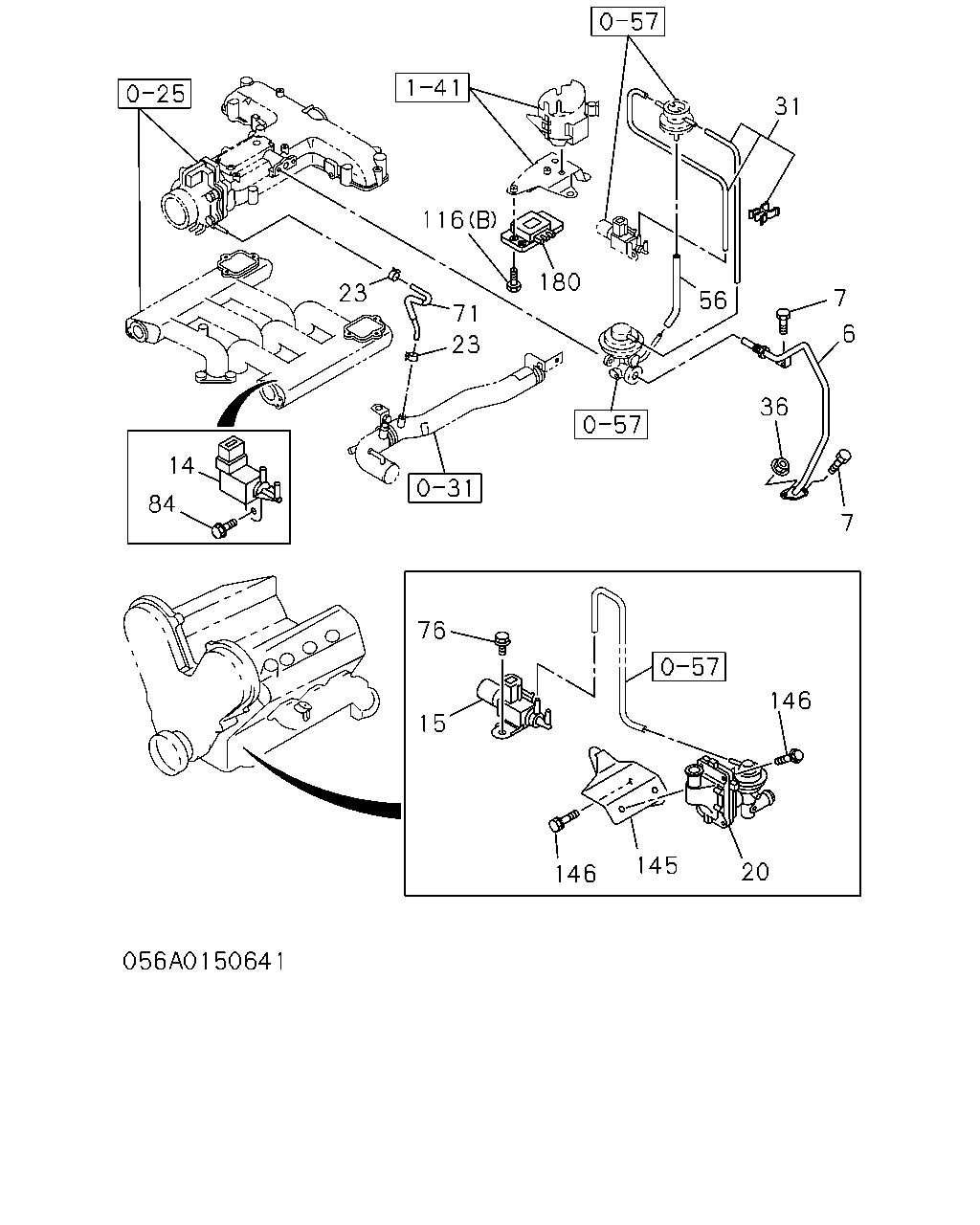

çizim 493939
23 23 71 14 84 76 15 146 145 20 146 116 180 56 31 7 6 36 7
BalonParca AdiParca NoAdetTipApplied Date A B
6 PIPE; EGR 8-97069-626-1 01 1 9112-9411 ●
6 PIPE; EGR 8-97118-378-1 01 1 9412-9504 ●
6 PIPE; EGR 8-97124-594-0 01 1 9505- ●
6 PIPE; EGR 8-97011-264-3 01 1 9112-9510 ●
6 PIPE; EGR 8-97134-241-0 01 1 9511- ●
7 BOLT; BRKT,EGR PIPE
M8X12 W/LK WASHER 		0-50040-812-0 02 1 9112-9411 ●
7 BOLT; BRKT,EGR PIPE
M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9112-9411 ●
7 BOLT; BRKT,EGR PIPE
M8X23 FLANGE 		8-94103-629-0 01 1 9112-9311 ●
7 BOLT; BRKT,EGR PIPE
M8X23 FLANGE 		8-94103-629-2 02 1 9312- ●
7 BOLT; BRKT,EGR PIPE
M8X12 FLANGE 		0-28080-812-0 01 1 9112- ●
7 BOLT; BRKT,EGR PIPE
M8X18 FLANGE 		8-94368-563-1 01 1 9112- ●
14 VALVE; VAC SW 8-97033-107-0 01 1 9112- ●
15 VALVE; VAC SW 8-94375-331-1 01 1 9112-9307 ●
15 VALVE; VAC SW
M/T MUA 5 SPEED(RMN) 		8-94375-331-1 01 1 9308-9504 ●
20 VALVE; REED 8-94388-863-5 01 1 9112-9307 ●
20 VALVE; REED
M/T MUA 5 SPEED(RMN) 		8-94388-863-5 01 1 9308-9504 ●
23 CLIP; RUBBER HOSE,THROTTLE
ID=12.8 		8-94367-943-0 04 1 9112- ●
31 HOSE; EGR VLV 8-97030-762-1 01 1 9112- ●
36 NUT; EGR PIPE
M8 FLANGE 		8-94170-486-0 01 1 9112-9311 ●
36 NUT; EGR PIPE
M8 FLANGE 		5-09440-005-0 02 1 9112-9605 ●
36 NUT; EGR PIPE
M8 FLANGE 		0-91150-208-0 02 1 9606- ●
36 NUT; EGR PIPE
M8 FLANGE 		8-97061-401-0 01 1 9112- ●
56 HOSE; BPT TO SIGNAL PIPE 8-97032-987-3 01 1 9112- ●
71 HOSE; RUBBER,THROTTLE,WATER INL 8-97011-265-2 01 1 9112- ●
76 BOLT; VSV
M8X12 FLANGE 		0-28080-812-0 01 1 9112-9307 ●
76 BOLT; VSV
M/T MUA 5 SPEED(RMN) M8X12 FLANGE 		0-28080-812-0 01 1 9308-9504 ●
84 BOLT; VSV
M8X12 FLANGE 		0-28080-812-0 01 1 9112- ●
116 BOLT; ENG CONT MODULE
(B) M6X25 		0-28010-625-0 02 1 9112-9204 ●
116 BOLT; ENG CONT MODULE
(B) M6X25 FLANGE 		0-28080-625-0 02 1 9205-9504 ●
116 BOLT; ENG CONT MODULE
(B) M6X25 FLANGE 		0-28080-625-0 02 1 9505- ●
116 BOLT; ENG CONT MODULE
(A) M5X12 W/CLIP 		8-94443-197-0 04 1 9112- ●
145 BRACKET; REED VLV 8-94389-902-1 01 1 9112-9307 ●
145 BRACKET; REED VLV
M/T MUA 5 SPEED(RMN) 		8-94389-902-1 01 1 9308-9504 ●
146 BOLT; REED VLV
M8X14 FLANGE 		0-28080-814-0 02 1 9112-9307 ●
146 BOLT; REED VLV
M/T MUA 5 SPEED(RMN) M8X14 FLANGE 		0-28080-814-0 02 1 9308-9504 ●
146 BOLT; REED VLV
M8X25 FLANGE 		0-28080-825-0 02 1 9112-9307 ●
146 BOLT; REED VLV
M/T MUA 5 SPEED(RMN) M8X25 FLANGE 		0-28080-825-0 02 1 9308-9504 ●
180 MODULE; ELEC SPARK CONT 8-16152-339-0 01 1 9112- ●

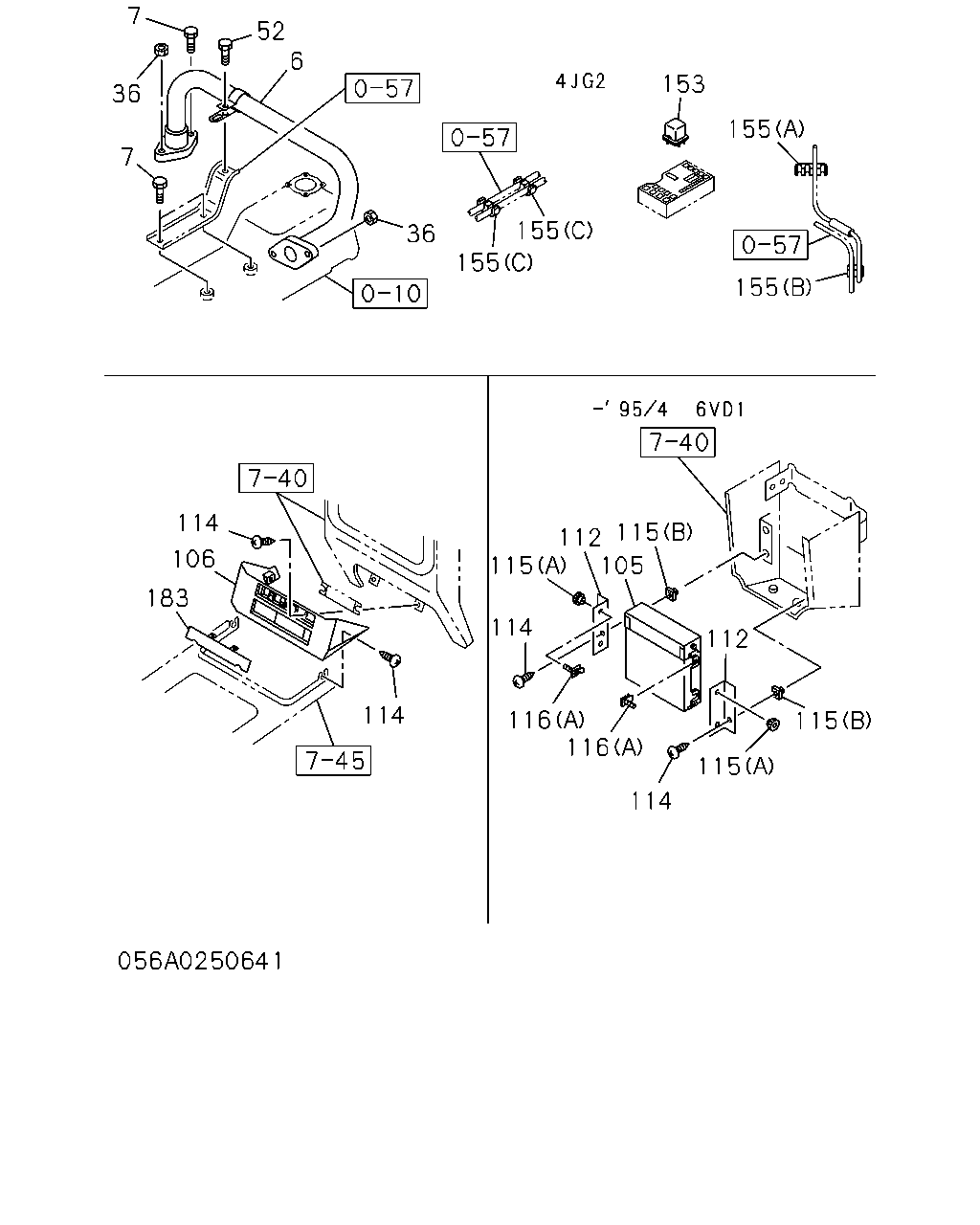

çizim 493973
36 7 7 52 6 36 155 155 153 155 155 115 112 105 115 114 116 116 114 115 115 112 114 106 183 114
BalonParca AdiParca NoAdetTipApplied Date A B
6 PIPE; EGR 8-97069-626-1 01 1 9112-9411 ●
6 PIPE; EGR 8-97118-378-1 01 1 9412-9504 ●
6 PIPE; EGR 8-97124-594-0 01 1 9505- ●
6 PIPE; EGR 8-97011-264-3 01 1 9112-9510 ●
6 PIPE; EGR 8-97134-241-0 01 1 9511- ●
7 BOLT; BRKT,EGR PIPE
M8X12 W/LK WASHER 		0-50040-812-0 02 1 9112-9411 ●
7 BOLT; BRKT,EGR PIPE
M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9112-9411 ●
7 BOLT; BRKT,EGR PIPE
M8X23 FLANGE 		8-94103-629-0 01 1 9112-9311 ●
7 BOLT; BRKT,EGR PIPE
M8X23 FLANGE 		8-94103-629-2 02 1 9312- ●
7 BOLT; BRKT,EGR PIPE
M8X12 FLANGE 		0-28080-812-0 01 1 9112- ●
7 BOLT; BRKT,EGR PIPE
M8X18 FLANGE 		8-94368-563-1 01 1 9112- ●
36 NUT; EGR PIPE
M8 FLANGE 		8-94170-486-0 01 1 9112-9311 ●
36 NUT; EGR PIPE
M8 FLANGE 		5-09440-005-0 02 1 9112-9605 ●
36 NUT; EGR PIPE
M8 FLANGE 		0-91150-208-0 02 1 9606- ●
36 NUT; EGR PIPE
M8 FLANGE 		8-97061-401-0 01 1 9112- ●
52 BOLT; EGR PIPE
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9112-9307 ●
105 CONTROLLER; MODULE,ENGINE
A/T THM(RMQ) 		8-16175-729-0 01 1 9112-9207 ●
105 CONTROLLER; MODULE,ENGINE
A/T THM(RMQ) 		8-16183-989-0 01 1 9208-9208 ●
105 CONTROLLER; MODULE,ENGINE
A/T THM(RMQ) 		8-16178-259-0 01 1 9209-9303 ●
105 CONTROLLER; MODULE,ENGINE
A/T THM(RMQ) 		8-16192-639-0 01 1 9304-9305 ●
105 CONTROLLER; MODULE,ENGINE
A/T THM(RMQ) 		8-16195-089-0 01 1 9306-9307 ●
105 CONTROLLER; MODULE,ENGINE
A/T THM(RMQ) 		8-16196-359-0 01 1 9308-9401 ●
105 CONTROLLER; MODULE,ENGINE
A/T THM(RMQ) 		8-16201-139-0 01 1 9402- ●
105 CONTROLLER; MODULE,ENGINE
M/T MUA 5 SPEED(RMN) 		8-16175-739-0 01 1 9112-9207 ●
105 CONTROLLER; MODULE,ENGINE
M/T MUA 5 SPEED(RMN) 		8-16183-999-0 01 1 9208-9208 ●
105 CONTROLLER; MODULE,ENGINE
M/T MUA 5 SPEED(RMN) 		8-16178-249-0 01 1 9209-9305 ●
105 CONTROLLER; MODULE,ENGINE
M/T MUA 5 SPEED(RMN) 		8-16195-099-0 01 1 9306-9307 ●
105 CONTROLLER; MODULE,ENGINE
M/T MUA 5 SPEED(RMN) 		8-16196-349-0 01 1 9308-9401 ●
105 CONTROLLER; MODULE,ENGINE
M/T MUA 5 SPEED(RMN) 		8-16201-129-0 01 1 9402- ●
106 COVER; ECM
A/T AISIN(RMD),A/T THM(RMQ) BLACK 		8-97805-295-4 01 1 9112-9308 ● ●
106 COVER; ECM
A/T AISIN(RMD),A/T THM(RMQ) BLACK 		8-97805-297-5 01 1 9308-9504 ● ●
106 COVER; ECM
M/T MUA 5 SPEED(RMN) BLACK 		8-97805-296-4 01 1 9112-9504 ● ●
112 BRACKET; ECM 8-94374-949-0 02 1 9112-9504 ●
112 BRACKET; ECM
(A) 		8-97083-023-1 01 1 9505- ●
112 BRACKET; ECM
(B) 		8-97084-959-1 01 1 9505- ●
114 SCREW; ENG CONT
M5X16 TAPPING 		9-09829-323-1 04 1 9112-9112 ● ●
114 SCREW; ENG CONT
M5X16 		8-94384-690-0 04 1 9201-9504 ● ●
114 SCREW; ENG CONT
M6X14 W/PL WASHER 		9-03900-614-0 04 1 9112-9504 ●
114 SCREW; ENG CONT
M6X14 W/PL WASHER 		9-03900-614-0 03 1 9505- ●
115 NUT; ENG CONT MODULE
(A) M5 FLANGE 		5-09440-003-0 04 1 9112- ●
115 NUT; ENG CONT MODULE
(B) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9112-9504 ●
115 NUT; ENG CONT MODULE
(B) D=9.7X9.7 L=8 		8-94222-314-0 03 1 9505- ●
116 BOLT; ENG CONT MODULE
(B) M6X25 		0-28010-625-0 02 1 9112-9204 ●
116 BOLT; ENG CONT MODULE
(B) M6X25 FLANGE 		0-28080-625-0 02 1 9205-9504 ●
116 BOLT; ENG CONT MODULE
(B) M6X25 FLANGE 		0-28080-625-0 02 1 9505- ●
116 BOLT; ENG CONT MODULE
(A) M5X12 W/CLIP 		8-94443-197-0 04 1 9112- ●
153 RELAY; FAST IDLE CONT DEVICE
12V 20A 		8-94218-497-0 01 1 9308-9504 ●
155 CLIP; RUBBER HOSE,VSV
(B) ID=6.8X2 		8-94126-636-0 01 1 9112-9504 ●
155 CLIP; RUBBER HOSE,VSV
(C) 		8-94366-035-0 02 1 9112-9505 ●
155 CLIP; RUBBER HOSE,VSV
(A) ID=20 & 7X4 		8-94368-500-0 01 1 9112-9504 ●
183 COVER; HOLE ECM
BLACK 		8-97805-298-1 01 1 9112-9504 ● ●

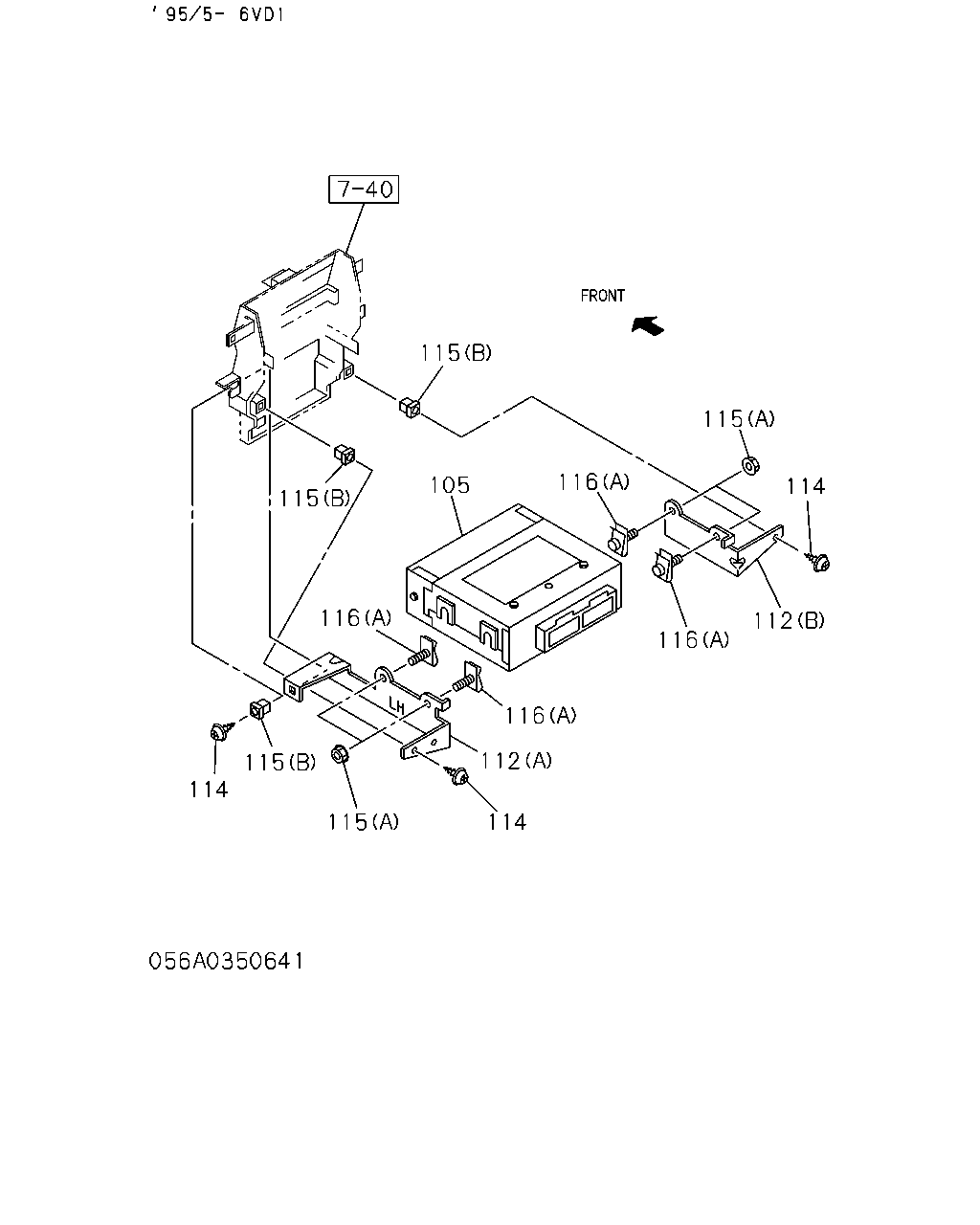

çizim 494007
115 114 112 116 116 115 105 115 116 116 112 114 115 115 114
BalonParca AdiParca NoAdetTipApplied Date A B
105 CONTROLLER; MODULE,ENGINE
A/T THM(RMQ) 		8-16175-729-0 01 1 9112-9207 ●
105 CONTROLLER; MODULE,ENGINE
A/T THM(RMQ) 		8-16183-989-0 01 1 9208-9208 ●
105 CONTROLLER; MODULE,ENGINE
A/T THM(RMQ) 		8-16178-259-0 01 1 9209-9303 ●
105 CONTROLLER; MODULE,ENGINE
A/T THM(RMQ) 		8-16192-639-0 01 1 9304-9305 ●
105 CONTROLLER; MODULE,ENGINE
A/T THM(RMQ) 		8-16195-089-0 01 1 9306-9307 ●
105 CONTROLLER; MODULE,ENGINE
A/T THM(RMQ) 		8-16196-359-0 01 1 9308-9401 ●
105 CONTROLLER; MODULE,ENGINE
A/T THM(RMQ) 		8-16201-139-0 01 1 9402- ●
105 CONTROLLER; MODULE,ENGINE
M/T MUA 5 SPEED(RMN) 		8-16175-739-0 01 1 9112-9207 ●
105 CONTROLLER; MODULE,ENGINE
M/T MUA 5 SPEED(RMN) 		8-16183-999-0 01 1 9208-9208 ●
105 CONTROLLER; MODULE,ENGINE
M/T MUA 5 SPEED(RMN) 		8-16178-249-0 01 1 9209-9305 ●
105 CONTROLLER; MODULE,ENGINE
M/T MUA 5 SPEED(RMN) 		8-16195-099-0 01 1 9306-9307 ●
105 CONTROLLER; MODULE,ENGINE
M/T MUA 5 SPEED(RMN) 		8-16196-349-0 01 1 9308-9401 ●
105 CONTROLLER; MODULE,ENGINE
M/T MUA 5 SPEED(RMN) 		8-16201-129-0 01 1 9402- ●
112 BRACKET; ECM 8-94374-949-0 02 1 9112-9504 ●
112 BRACKET; ECM
(A) 		8-97083-023-1 01 1 9505- ●
112 BRACKET; ECM
(B) 		8-97084-959-1 01 1 9505- ●
114 SCREW; ENG CONT
M5X16 TAPPING 		9-09829-323-1 04 1 9112-9112 ● ●
114 SCREW; ENG CONT
M5X16 		8-94384-690-0 04 1 9201-9504 ● ●
114 SCREW; ENG CONT
M6X14 W/PL WASHER 		9-03900-614-0 04 1 9112-9504 ●
114 SCREW; ENG CONT
M6X14 W/PL WASHER 		9-03900-614-0 03 1 9505- ●
115 NUT; ENG CONT MODULE
(A) M5 FLANGE 		5-09440-003-0 04 1 9112- ●
115 NUT; ENG CONT MODULE
(B) D=9.7X9.7 L=8 		8-94222-314-0 04 1 9112-9504 ●
115 NUT; ENG CONT MODULE
(B) D=9.7X9.7 L=8 		8-94222-314-0 03 1 9505- ●
116 BOLT; ENG CONT MODULE
(B) M6X25 		0-28010-625-0 02 1 9112-9204 ●
116 BOLT; ENG CONT MODULE
(B) M6X25 FLANGE 		0-28080-625-0 02 1 9205-9504 ●
116 BOLT; ENG CONT MODULE
(B) M6X25 FLANGE 		0-28080-625-0 02 1 9505- ●
116 BOLT; ENG CONT MODULE
(A) M5X12 W/CLIP 		8-94443-197-0 04 1 9112- ●
