50641 - UBS
▶
0 - Engine, Emission, Engine Electrical
▶
0-55 - ECGI SYSTEM OR COMMON RAIL
▶

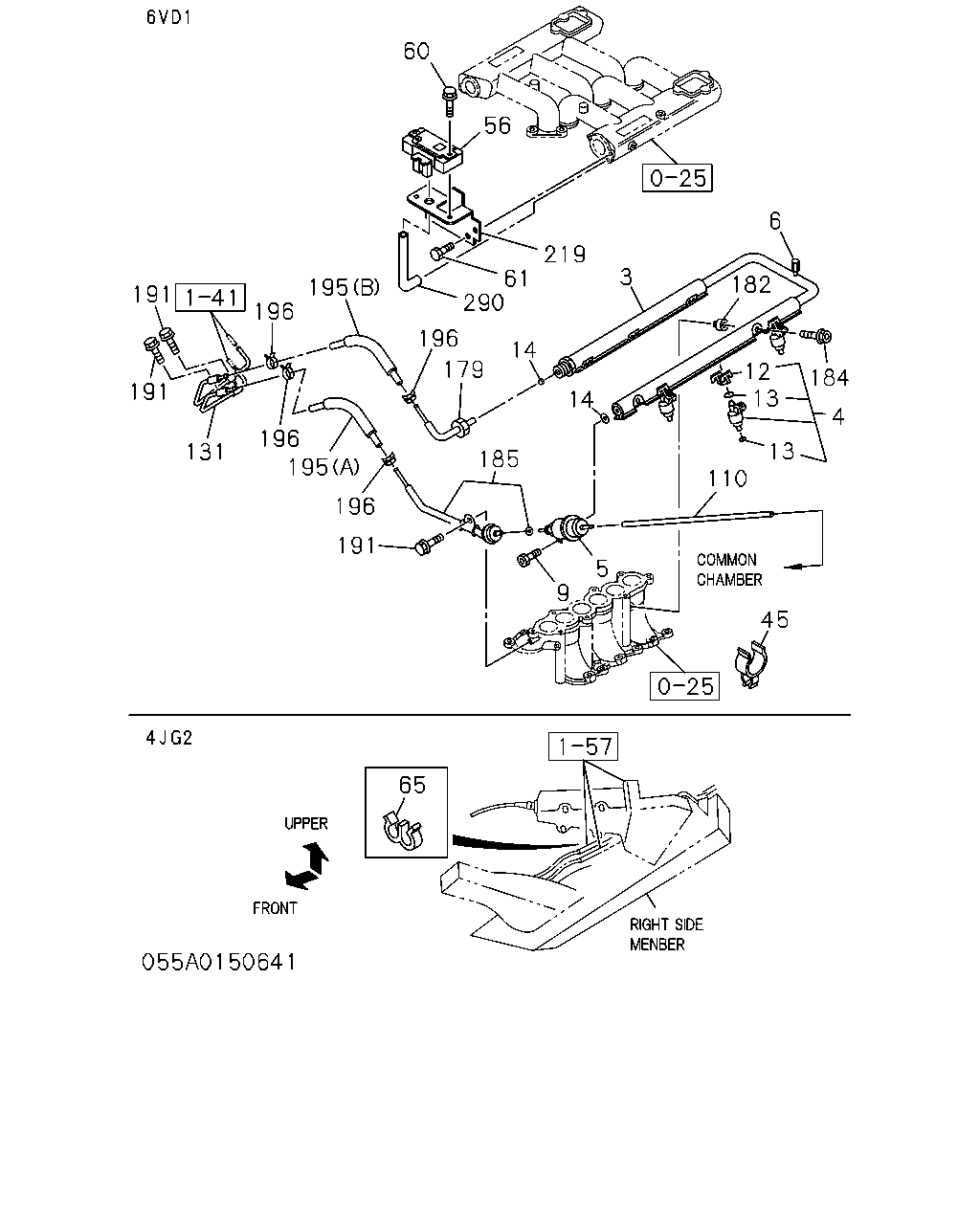

0-55 — ECGI SYSTEM OR COMMON RAIL
(#166857) — 40 parça
Tümü
A - 6VD1 DOHC ENG
B - 4JG2 ENG
60
56
219
61
290
196
179
185
14
14
3
6
182
184
4
12
13
13
110
45
191
196
195
196
131
191
191
196
195
9
5
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
RAIL; FUEL INJECTOR
8-17112-653-0
01
1
9112-9504
●
3
RAIL; FUEL INJECTOR
8-17113-266-0
01
1
9505-9603
●
3
RAIL; FUEL INJECTOR
8-17113-302-0
01
1
9604-
●
4
INJECTOR ASM
8-17105-387-0
06
1
9112-9603
●
4
INJECTOR ASM
8-17122-686-0
06
1
9604-
●
5
REGULATOR; PRESSURE
8-17112-276-0
01
1
9112-9504
●
5
REGULATOR; PRESSURE
8-17107-010-0
01
1
9505-9603
●
5
REGULATOR; PRESSURE
8-17091-410-0
01
1
9604-
●
6
CONNECTOR; PRESSURE
8-17112-556-0
01
1
9112-9504
●
9
SCREW; PRESSURE REG
8-17084-104-0
01
1
9112-9504
●
9
SCREW; PRESSURE REG
8-17122-061-0
01
1
9505-
●
12
CLIP; INJECTOR
8-17111-800-0
06
1
9112-9504
●
12
CLIP; INJECTOR
8-17112-633-0
06
1
9505-
●
13
GASKET; INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-17112-222-0
12
1
9112-9603
●
13
GASKET; INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-17112-981-0
12
1
9604-
●
14
SEAL SET; FUEL RAIL
8-17112-651-0
01
1
9112-9504
●
45
CLIP; RUBBER HOSE
8-94433-987-0
01
1
9112-
●
56
SENSOR; MAP
8-16137-039-0
01
1
9112-
●
60
BOLT; MAP SENSOR
M5X30 W/PL WASHER
8-97045-438-0
02
1
9112-
●
61
BOLT; BRKT
M8X14 FLANGE
0-28080-814-0
02
1
9112-
●
65
CLIP; HOSE
ID=6.8X2
8-94126-636-0
01
1
9112-9503
●
110
HOSE; RUBBER,PRESSURE REG
L=180 SERVICED BY L=3000
0-04744-300-0
01
1
9112-9307
●
110
HOSE; RUBBER,PRESSURE REG
L=180 SERVICED BY L=3000
0-04740-300-0
01
1
9308-
●
131
PIPE; FUEL,INJ
8-97028-292-1
01
1
9112-9504
●
131
PIPE; FUEL,INJ
8-97119-711-0
01
1
9505-9511
●
131
PIPE; FUEL,INJ
8-97117-232-0
01
1
9512-9605
●
131
PIPE; FUEL,INJ
8-97175-781-0
01
1
9606-
●
179
PIPE; DELIVERY
8-94376-252-2
01
1
9112-
●
182
INSULATOR; FUEL RAIL
8-94362-522-0
04
1
9112-
●
184
BOLT; FUEL RAIL
M8X42
8-94101-250-2
04
1
9112-
●
185
PIPE; FUEL RETURN
8-94376-253-0
01
1
9112-
●
191
BOLT; FUEL PIPE
M6X12 FLANGE
0-28080-612-0
03
1
9112-
●
195
HOSE; RUBBER,FUEL
(A)
8-97032-695-0
01
1
9112-9209
●
195
HOSE; RUBBER,FUEL
(A) L=180
8-97078-374-0
01
1
9210-9504
●
195
HOSE; RUBBER,FUEL
(A) L=106 W/PROTECTOR
8-97116-433-0
01
1
9505-
●
195
HOSE; RUBBER,FUEL
(B) L=150 W/PROTECTER
8-97032-696-0
01
1
9112-9605
●
195
HOSE; RUBBER,FUEL
(B) L=138 W/PROTECTER
8-97176-012-0
01
1
9606-
●
196
CLIP; RUBBER HOSE,FUEL
ID=12 WO/PVC COATING
8-94123-526-0
04
1
9112-
●
219
BRACKET; MAP SENSOR
8-97032-367-3
01
1
9112-
●
290
HOSE; MAP SENSOR
8-97031-155-0
01
1
9112-
●
