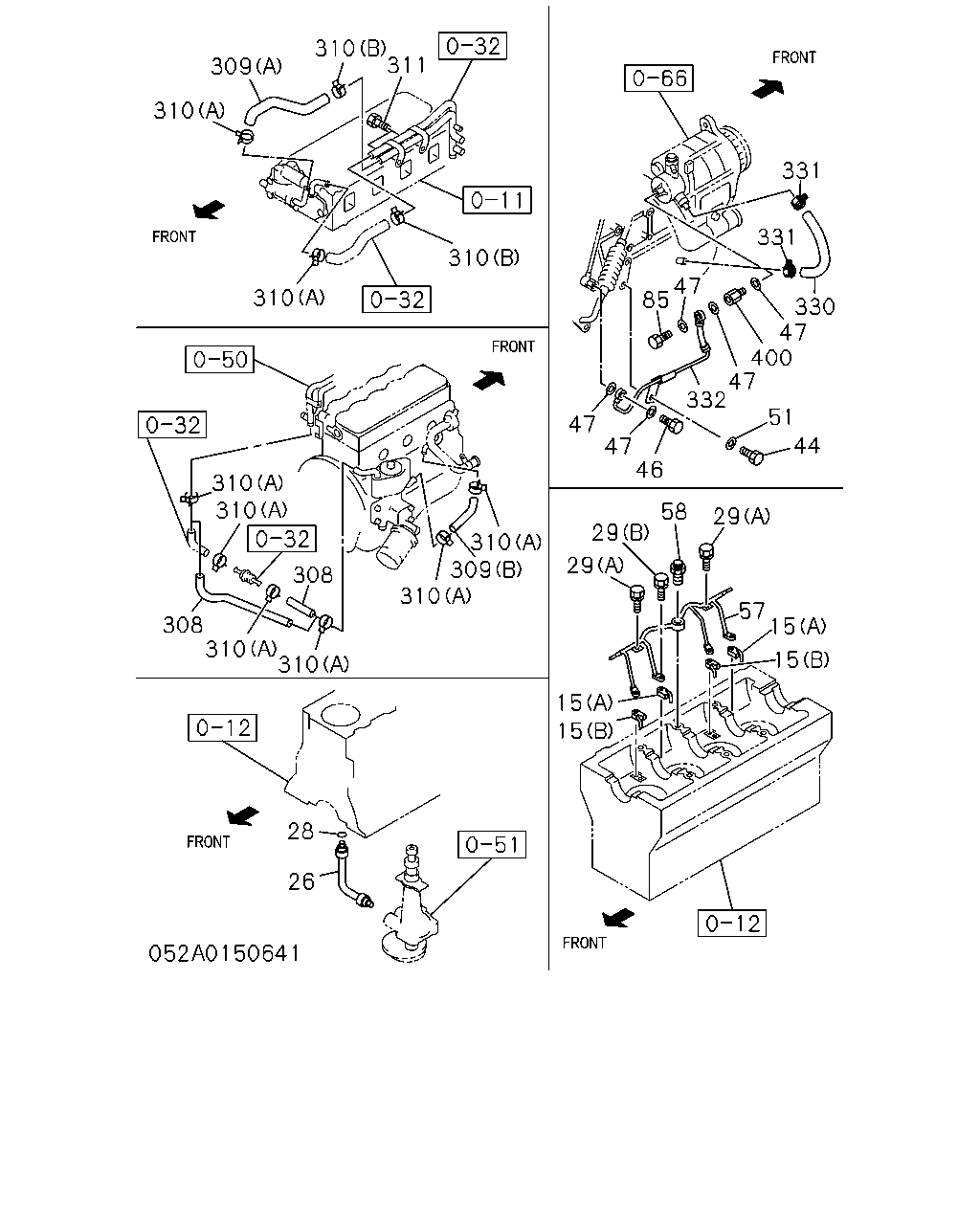

0-52 — OIL AND VACUUM PIPING; ENGINE (#166856) — 60 parça

331 331 330 47 400 47 332 44 46 47 47 47 85 311 310 309 310 310 310 310 309 310 310 310 310 308 310 28 26 15 15 15 57 15 29 58 29 29 51 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	PIPE; OIL JET,PISTON COOLING (B)	8-94372-004-1	02	1	9112-9611	●
15	PIPE; OIL JET,PISTON COOLING (A)	8-94372-005-1	02	1	9112-9611	●
26	PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9112-	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9112-	●
29	BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9112-	●
29	BOLT; OIL PIPE,OIL JET (B) M6X28	8-94372-730-1	04	1	9112-9611	●
29	BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-0	04	1	9612-	●
44	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50040-816-0	01	1	9112-	●
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M8X20 EYE-BOLT	5-09675-018-1	01	1	9112-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9112-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=16.0	9-09571-410-0	03	1	9112-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) W/PLATE ID=18.2	8-94329-964-0	02	1	9112-		●
51	WASHER; PL,OIL PIPE,VAC PUMP ID=8.4 OD=18	9-09164-608-0	01	1	9112-	●
57	PIPE; OIL,OIL JET	8-97030-784-0	01	1	9112-9611	●
57	PIPE; OIL,OIL JET	8-97116-971-0	01	1	9612-	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-94177-189-3	01	1	9112-9603	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97145-612-0	01	1	9604-	●
85	BOLT; EYE,OIL PIPE FIX M10X21 FLANGE	1-09675-078-0	01	1	9112-	●
308	HOSE; OIL COOLER FEED L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9112-9410	●
308	HOSE; OIL COOLER FEED	8-97039-414-0	01	1	9411-9504	●
308	HOSE; OIL COOLER FEED ENG QUICK WARM UP SYSTEM<6JZ>	8-97039-414-0	01	1	9505-	●
308	HOSE; OIL COOLER FEED A/T AISIN(RMD) EXC. ENG QUICK WARM UP SYSTEM<6JZ> L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9505-	●
309	HOSE; OIL COOLER RETURN (A)	8-97049-285-0	01	1	9112-	●
309	HOSE; OIL COOLER RETURN (B)	8-97039-199-2	01	1	9112-9307	●
309	HOSE; OIL COOLER RETURN (B)	8-97069-793-1	01	1	9308-9606	●
309	HOSE; OIL COOLER RETURN (B)	8-97039-199-2	01	1	9607-9612	●
309	HOSE; OIL COOLER RETURN (B)	8-97168-220-0	01	1	9701-	●
310	CLIP; WATER HOSE FIX (A)	8-94125-862-0	08	1	9112-9410	●
310	CLIP; WATER HOSE FIX (A) ID=20.8	8-94125-862-0	06	1	9411-9504	●
310	CLIP; WATER HOSE FIX A/T AISIN(RMD) EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=20.8	8-94125-862-0	08	1	9505-	●
310	CLIP; WATER HOSE FIX (B)	8-97010-605-0	02	1	9112-	●
310	CLIP; WATER HOSE FIX ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=20.8	8-94125-862-0	06	1	9505-	●
311	BOLT; PIPE FIX M8X14 W/LK WASHER	0-50040-814-0	02	1	9112-9605	●
311	BOLT; PIPE FIX M8X12 FLANGE	0-28080-812-0	02	1	9606-9608	●
311	BOLT; PIPE FIX M8X14 W/LK WASHER	0-50040-814-0	02	1	9609-	●
330	HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9112-	●
331	CLAMP; VAC HOSE,PUMP RETURN ID=17	1-09707-158-0	02	1	9112-9402	●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9403-	●
332	PIPE; OIL,C/BL TO VAC PUMP	8-97042-697-0	01	1	9112-	●
400	NIPPLE; VAC PUMP,OIL	8-97061-857-0	01	1	9112-	●

47 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	PIPE; OIL,OIL PUMP	8-94381-146-3	01	1	9112-		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9112-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=16.0	9-09571-410-0	03	1	9112-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) W/PLATE ID=18.2	8-94329-964-0	02	1	9112-		●

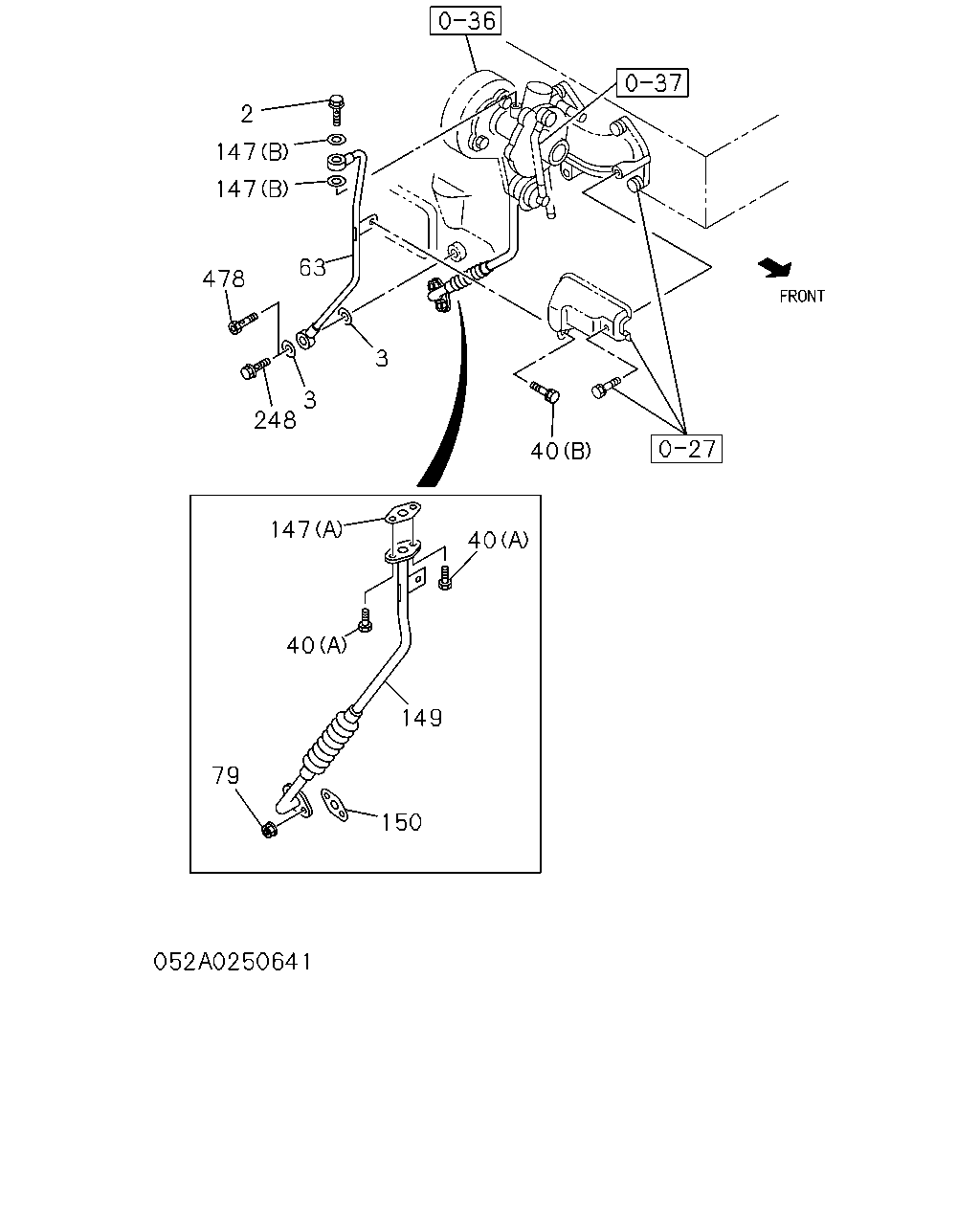

2 147 147 63 3 3 248 478 40 40 149 40 147 79 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
2	BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	9112-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	9112-	●
40	BOLT; OIL PIPE (A)	0-50140-620-0	02	1	9112-	●
40	BOLT; OIL PIPE (B) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9112-9611	●
40	BOLT; OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9612-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97038-130-1	01	1	9112-9307	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97086-341-0	01	1	9308-	●
79	NUT; OIL DRAIN PIPE M8 FLANGE	5-09440-005-0	02	1	9112-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	9112-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9112-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97066-501-0	01	1	9112-9307	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97086-340-1	01	1	9308-9610	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97162-106-0	01	1	9611-	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-0	01	1	9112-	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M14X25	8-94315-336-1	01	1	9112-9504	●
478	FILTER	8-97132-686-0	01	1	9505-	●
