◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#166854) — 48 parça

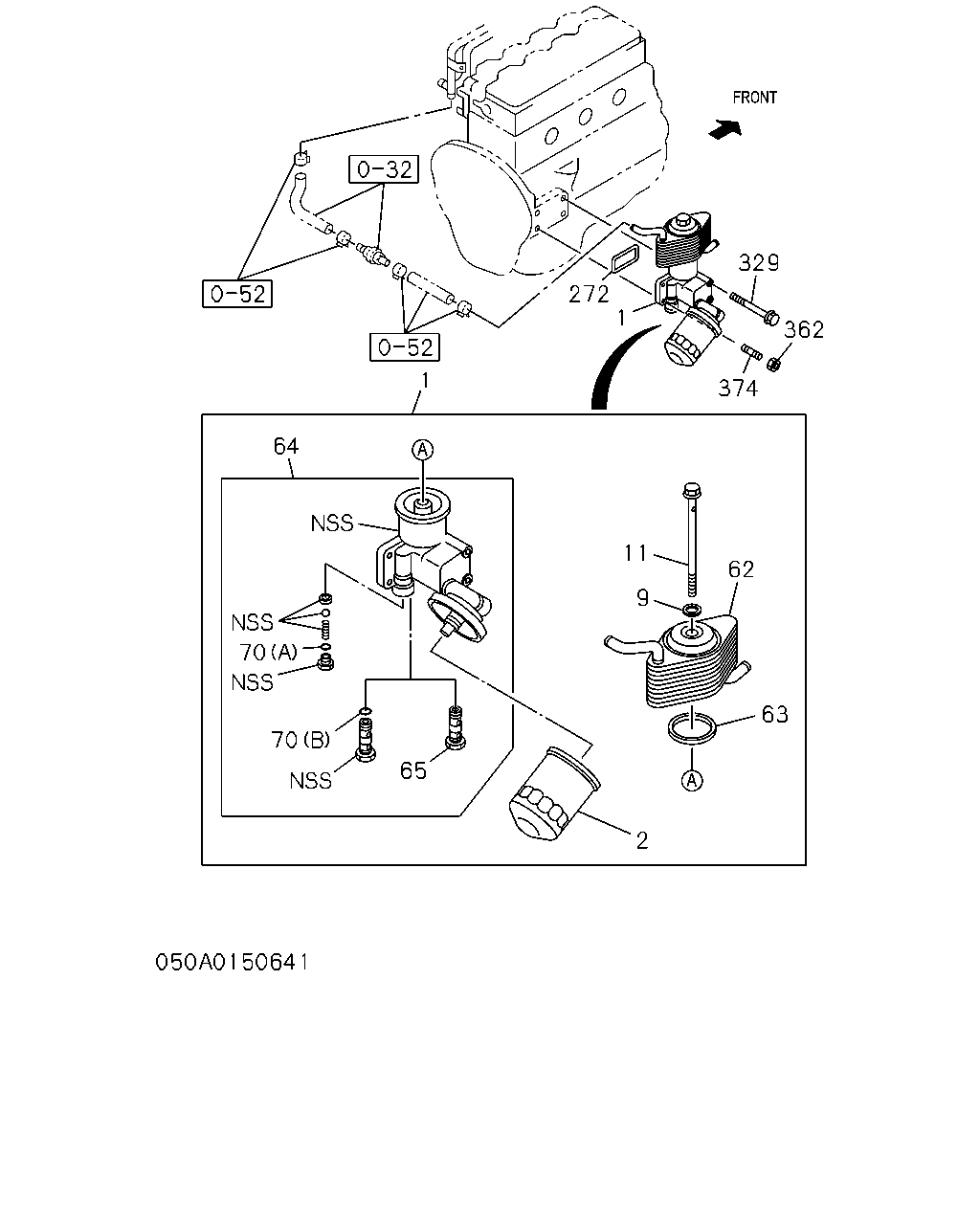

çizim 494195
362 329 374 1 272 62 63 11 9 2 65 70 70 64 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER & COOLER ASM; OIL 8-97021-406-1 01 1 9112-9307 ●
1 FILTER & COOLER ASM; OIL 8-97069-792-0 01 1 9308-9504 ●
1 FILTER & COOLER ASM; OIL 8-97116-664-0 01 1 9505-9606 ●
1 FILTER & COOLER ASM; OIL 8-97147-326-0 01 1 9607-9612 ●
1 FILTER & COOLER ASM; OIL 8-97169-039-1 01 1 9701- ●
2 ELEMENT; OIL FILTER 8-94340-697-0 01 1 9112-9504 ●
2 ELEMENT; OIL FILTER 8-97116-667-0 01 1 9505- ●
2 ELEMENT; OIL FILTER 8-94430-411-1 01 1 9112-9303 ●
2 ELEMENT; OIL FILTER 8-94456-741-2 01 1 9304- ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97047-000-0 01 1 9112- ●
11 BOLT; CENTER 8-97046-999-1 01 1 9112-9606 ●
11 BOLT; CENTER 8-97094-724-1 01 1 9607- ●
62 COOLER ASM; OIL 8-97047-001-1 01 1 9112-9307 ●
62 COOLER ASM; OIL 8-97078-376-0 01 1 9308-9606 ●
62 COOLER ASM; OIL 8-97147-328-0 01 1 9607-9612 ●
62 COOLER ASM; OIL 8-97169-044-1 01 1 9701- ●
63 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 9209- ●
64 BODY; OIL FILTER & OIL COOLER 8-97046-992-0 01 1 9112-9307 ●
64 BODY; OIL FILTER & OIL COOLER 8-97078-377-0 01 1 9308-9504 ●
64 BODY; OIL FILTER & OIL COOLER 8-97116-663-0 01 1 9505-9606 ●
64 BODY; OIL FILTER & OIL COOLER 8-97147-327-0 01 1 9607- ●
65 VALVE; OIL COOLER 8-94450-772-0 01 1 9112- ●
70 GASKET; PLUG,OIL FILTER
(A) 		9-09921-193-0 01 1 9112- ●
70 GASKET; PLUG,OIL FILTER
(B) 		1-09623-133-0 01 1 9607-9612 ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94425-298-0 01 1 9112-9307 ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-0 01 1 9308- ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). W/PLATE ID=18.2 		8-94329-964-0 02 1 9112- ●
329 BOLT; OIL FILTER
M8X100 W/LK WASHER 		0-50040-800-0 02 1 9112- ●
362 NUT; OIL FILTER
M8 FLANGE 		0-91150-108-0 02 1 9112- ●
374 STUD; OIL FILTER
M8X25 L=37 		9-04110-825-0 02 1 9112- ●

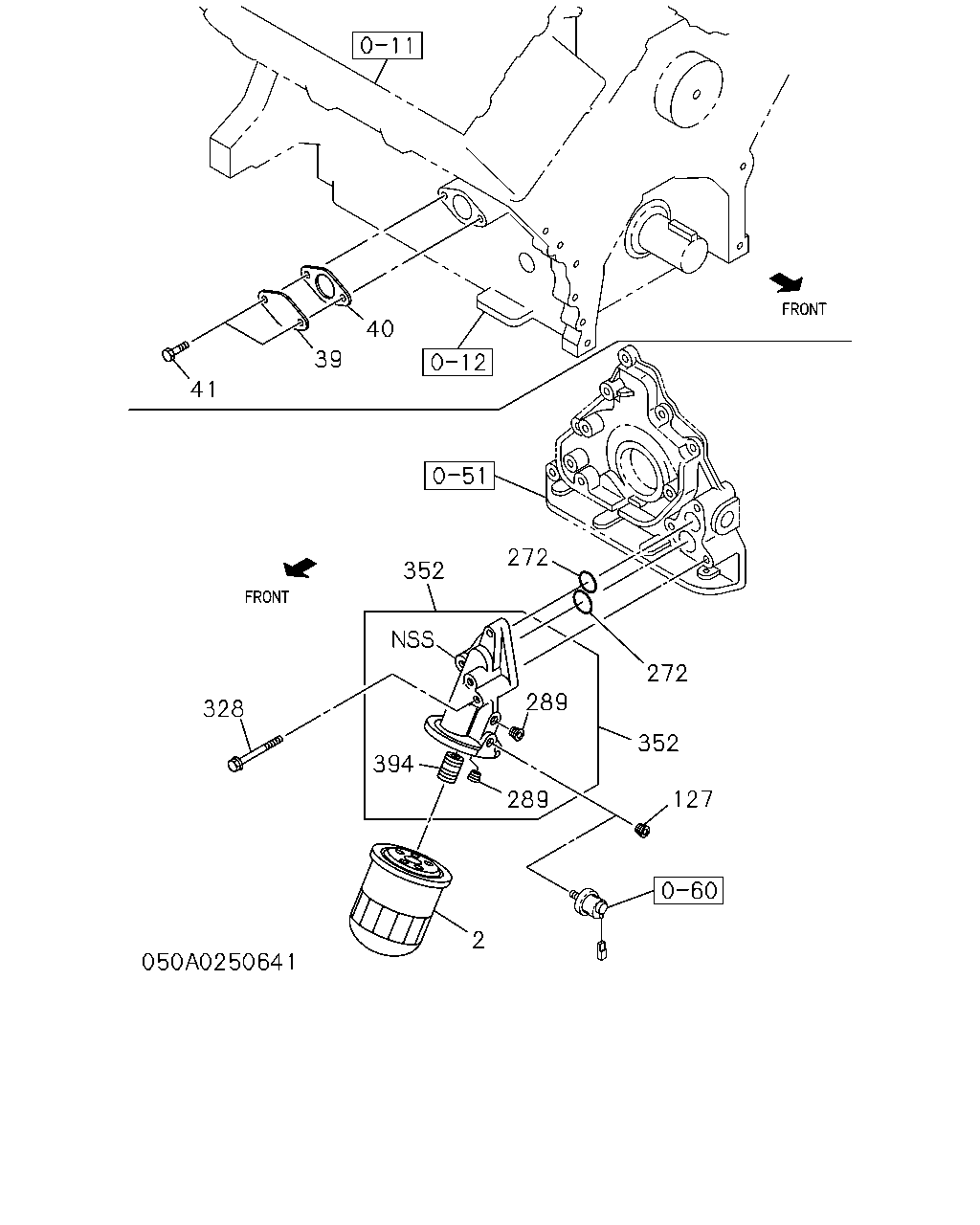

çizim 494229
127 352 272 289 272 352 394 328 2 289 40 39 41
BalonParca AdiParca NoAdetTipApplied Date A B
2 ELEMENT; OIL FILTER 8-94340-697-0 01 1 9112-9504 ●
2 ELEMENT; OIL FILTER 8-97116-667-0 01 1 9505- ●
2 ELEMENT; OIL FILTER 8-94430-411-1 01 1 9112-9303 ●
2 ELEMENT; OIL FILTER 8-94456-741-2 01 1 9304- ●
39 COVER; OIL COOLER 8-97031-507-1 01 1 9112- ●
40 GASKET; COVER TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97031-084-0 01 1 9112- ●
41 BOLT; COVER FIX
M6X16 FLANGE 		0-28080-616-0 02 1 9112- ●
127 PLUG; ADAPTER
VARIABLE TORQUE SPRIT<7HA> PT1/8 		5-09605-019-2 01 1 9505-9705 ●
127 PLUG; ADAPTER
VARIABLE TORQUE SPRIT<7HA> PT1/8 		1-09605-050-0 01 1 9706- ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94425-298-0 01 1 9112-9307 ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-0 01 1 9308- ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). W/PLATE ID=18.2 		8-94329-964-0 02 1 9112- ●
289 PLUG; ADAPTER 8-94130-346-0 02 1 9112- ●
328 BOLT; OIL FILTER
M8X100 FLANGE 		0-28080-800-0 01 1 9112- ●
328 BOLT; OIL FILTER
M8X45 FLANGE 		0-28080-845-0 01 1 9112- ●
328 BOLT; OIL FILTER
M8X70 FLANGE 		0-28080-870-0 01 1 9112- ●
352 ADAPTER; OIL FILTER 8-97027-782-2 01 1 9112- ●
394 STUD; OIL FILTER 8-97022-473-0 01 1 9112- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
