Isuzu WW
▶
SUV
▶
UBS
▶
50641 - UBS
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

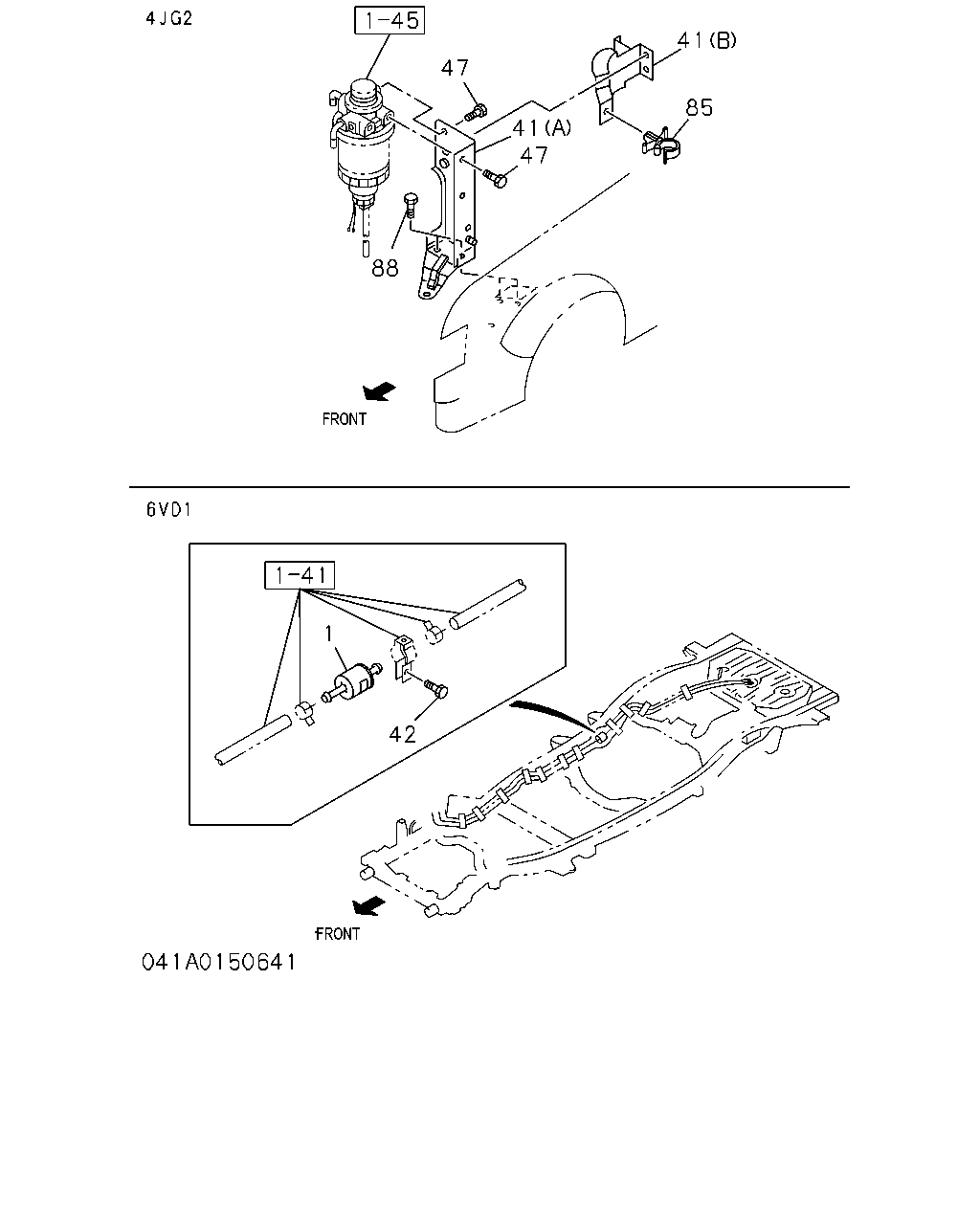

0-41 — FUEL FILTER AND BRACKET
(#166852) — 13 parça
Tümü
A - 6VD1 DOHC ENG
B - 4JG2 ENG
85
41
47
41
47
88
42
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FILTER ASM; FUEL
8-25055-364-0
01
1
9112-
●
41
BRACKET; FUEL FILTER
(A)
8-97038-182-3
01
1
9112-
●
41
BRACKET; FUEL FILTER
AIR BAG DRIVER<AJ3> (B)
8-97132-351-1
01
1
9511-9605
●
41
BRACKET; FUEL FILTER
(B)
8-97132-351-1
01
1
9606-
●
42
BOLT; FUEL FILTER
M6X20 W/LK WASHER
9-01900-620-0
01
1
9112-9204
●
42
BOLT; FUEL FILTER
M6X20 W/LK WASHER
0-50040-620-0
01
1
9205-9212
●
42
BOLT; FUEL FILTER
M6X16 W/LK WASHER
0-50040-616-0
01
1
9301-
●
47
BOLT; BRKT,FUEL FILTER
M8X18 W/LK WASHER
9-01900-818-0
02
1
9112-9204
●
47
BOLT; BRKT,FUEL FILTER
M8X18 W/LK WASHER
0-50040-818-0
02
1
9205-
●
85
CLIP; FUEL
AIR BAG DRIVER<AJ3>
8-97038-800-0
01
1
9511-9605
●
85
CLIP; FUEL
8-97038-800-0
01
1
9606-
●
88
BOLT; BRKT,FUEL FILTER
M8X14 FLANGE
0-28080-814-0
02
1
9112-9302
●
88
BOLT; BRKT,FUEL FILTER
M8X16 FLANGE
0-28480-816-0
02
1
9303-
●
