0-33 — FAN AND FAN BELT (#166847) — 95 parça

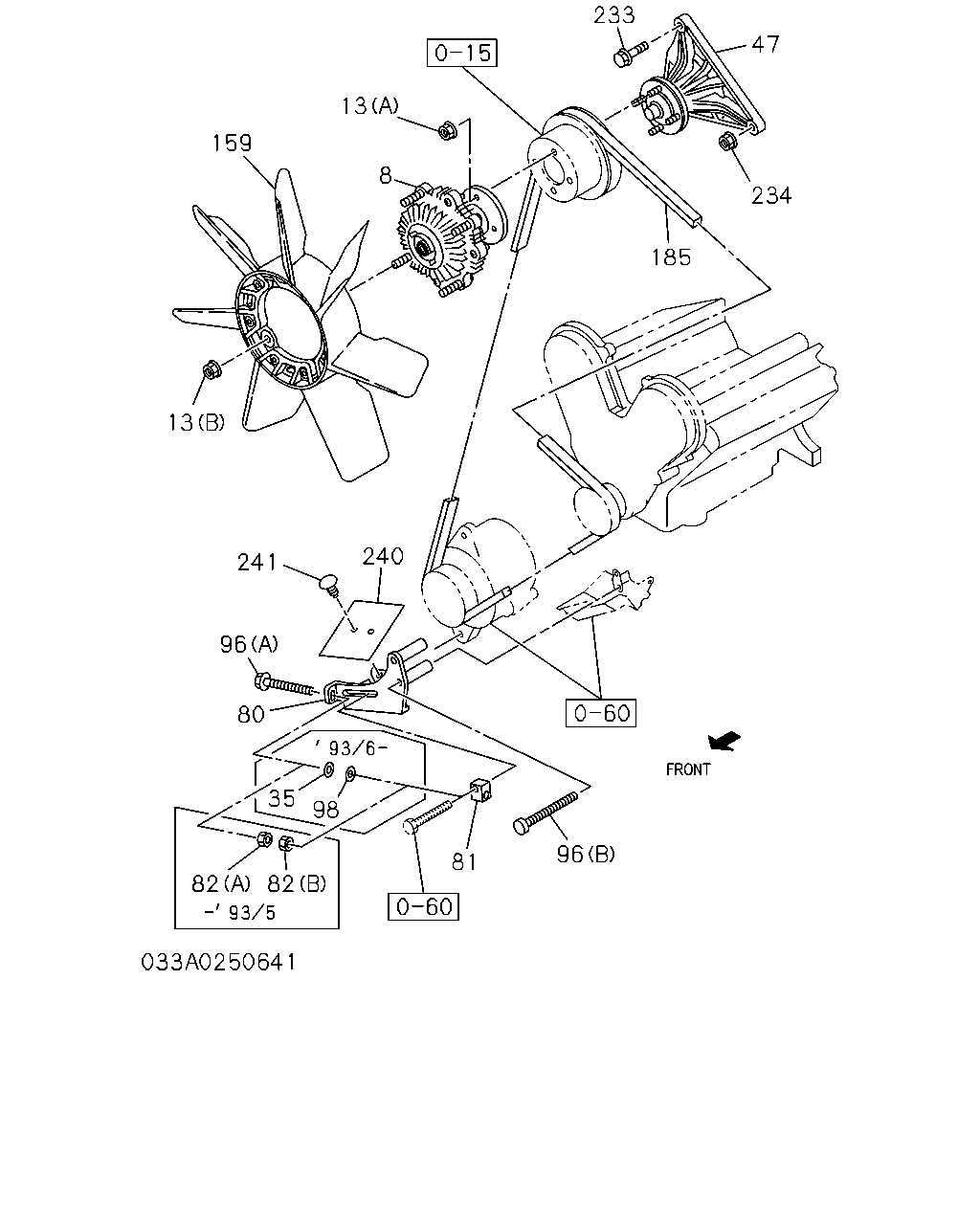

çizim 493867
13 8 159 13 241 240 96 80 35 98 82 82 81 96 185 234 47 233
BalonParca AdiParca NoAdetTipApplied Date A B
8 CLUTCH; COOLING FAN 8-97039-034-0 01 1 9112- ●
8 CLUTCH; COOLING FAN 8-97018-918-1 01 1 9112-9311 ●
8 CLUTCH; COOLING FAN 8-97102-903-0 01 1 9312-9511 ●
8 CLUTCH; COOLING FAN 8-97135-167-0 01 1 9512- ●
13 NUT; COOLING FAN
M6 FLANGE 		5-09440-004-0 08 1 9112- ●
13 NUT; COOLING FAN
(B) M6 FLANGE 		0-91150-106-0 04 1 9112- ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91150-108-0 04 1 9112- ●
35 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 9306- ●
47 BRACKET; FAN 8-97018-655-0 01 1 9112-9311 ●
47 BRACKET; FAN 8-97108-785-0 01 1 9312- ●
80 PLATE; ADJ
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> (A) 		8-94367-300-0 01 1 9112-9512 ●
80 PLATE; ADJ
CERAMIC HEATER<6YX> (A) 		8-97038-402-1 01 1 9112-9603 ●
80 PLATE; ADJ
HEATER & DEFROSTER(C41) EXC. CERAMIC HEATER<6YX> (A) 		8-94438-403-0 01 1 9112-9512 ●
80 PLATE; ADJ
EXC. CERAMIC HEATER<6YX> (B) 		8-97132-049-0 01 1 9601-9603 ●
80 PLATE; ADJ
(B) 		8-97132-049-0 01 1 9604- ●
80 PLATE; ADJ 8-97018-939-2 01 1 9112-9302 ●
80 PLATE; ADJ 8-97087-142-2 01 1 9303- ●
81 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-94453-774-0 01 1 9112-9504 ●
81 PIECE; SLIDING
CERAMIC HEATER<6YX> 		8-94453-774-0 01 1 9112-9504 ●
81 PIECE; SLIDING 8-94453-774-0 01 1 9505-9512 ●
81 PIECE; SLIDING
CERAMIC HEATER<6YX> 		8-94453-774-0 01 1 9601-9603 ●
81 PIECE; SLIDING 8-97031-664-0 01 1 9112- ●
82 NUT; ADJ PLATE
(A) M6 		9-09110-406-0 01 1 9112-9305 ●
82 NUT; ADJ PLATE
(B) M6 		9-09111-406-0 01 1 9112-9305 ●
96 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> M8X45 W/LK WASHER 		0-50040-845-0 02 1 9112-9504 ●
96 BOLT; ADJ PLATE
CERAMIC HEATER<6YX> M8X45 W/LK WASHER 		0-50040-845-0 02 1 9112-9504 ●
96 BOLT; ADJ PLATE
M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41) CERAMIC HEATER<6YX> M8X45 W/LK WASHER 		0-50040-845-0 02 1 9505-9603 ●
96 BOLT; ADJ PLATE
M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X45 W/LK WASHER 		0-50040-845-0 02 1 9505-9603 ●
96 BOLT; ADJ PLATE
A/T AISIN(RMD) M8X45 W/LK WASHER 		0-50040-845-0 02 1 9505-9603 ●
96 BOLT; ADJ PLATE
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9604- ●
96 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9604- ●
96 BOLT; ADJ PLATE
HEATER & DEFROSTER(C41) EXC. CERAMIC HEATER<6YX> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9112-9603 ●
96 BOLT; ADJ PLATE
HEATER & DEFROSTER(C41) ENG QUICK WARM UP SYSTEM<6JZ> CERAMIC HEATER<6YX> EXC. VARIABLE TORQUE SPRIT<7HA> M8X25 W/LK WASHER 		0-50040-825-0 01 1 9604- ●
96 BOLT; ADJ PLATE
(B) M8X70 FLANGE 		0-28080-870-0 02 1 9112-9208 ●
96 BOLT; ADJ PLATE
(B) M8X70 W/LK WASHER 		0-50040-870-0 02 1 9209-9302 ●
96 BOLT; ADJ PLATE
(B) M8X70 FLANGE 		0-28080-870-0 02 1 9303- ●
96 BOLT; ADJ PLATE
(A) M6X75 FLANGE 		8-97028-681-0 01 1 9112- ●
98 RETAINER; ADJ PLATE 8-97101-664-0 01 1 9306- ●
159 BLADE; COOLING FAN
OD=470 7-BLADE 		8-97018-917-0 01 1 9112- ●
185 BELT; GEN DRIVE
L=965 BANDO 		8-94382-106-0 01 1 9112- ●
233 BOLT; FAN BRKT
M8X90 FLANGE 		0-28080-890-0 01 1 9112- ●
234 NUT; FAN BRKT
M8 FLANGE 		0-91150-108-0 02 1 9112- ●
240 COVER; MUD,GEN
100X160 T=1.5 BLACK 		8-97089-940-0 01 1 9303- ●
241 RIVET; COVER
D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 02 1 9303-9303 ●
241 RIVET; COVER
DARK GRAY 		8-97804-484-0 02 1 9304- ●
çizim 494363
97 81 96 96 227 80 80 96 96 247 88 109 36 13 8 38 13 230 36
BalonParca AdiParca NoAdetTipApplied Date A B
8 CLUTCH; COOLING FAN 8-97039-034-0 01 1 9112- ●
8 CLUTCH; COOLING FAN 8-97018-918-1 01 1 9112-9311 ●
8 CLUTCH; COOLING FAN 8-97102-903-0 01 1 9312-9511 ●
8 CLUTCH; COOLING FAN 8-97135-167-0 01 1 9512- ●
13 NUT; COOLING FAN
M6 FLANGE 		5-09440-004-0 08 1 9112- ●
13 NUT; COOLING FAN
(B) M6 FLANGE 		0-91150-106-0 04 1 9112- ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91150-108-0 04 1 9112- ●
36 BELT; COOLING FAN
CERAMIC HEATER<6YX> 		8-97062-913-1 01 1 9112-9711 ●
36 BELT; COOLING FAN
CERAMIC HEATER<6YX> L=1031 MITSUBOSHI 		8-97188-281-0 01 1 9712- ●
36 BELT; COOLING FAN
EXC. CERAMIC HEATER<6YX> 		8-97043-551-0 01 1 9112-9701 ●
36 BELT; COOLING FAN
EXC. CERAMIC HEATER<6YX> L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9702- ●
36 BELT; COOLING FAN
EXC. CERAMIC HEATER<6YX> BESTFIX 		5-86750-011-1 01 1 9702- ●
36 BELT; COOLING FAN
CERAMIC HEATER<6YX> BESTFIX 		5-86750-009-1 01 1 9712- ●
38 SPACER; FAN 8-94441-848-0 01 1 9112- ●
80 PLATE; ADJ
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> (A) 		8-94367-300-0 01 1 9112-9512 ●
80 PLATE; ADJ
CERAMIC HEATER<6YX> (A) 		8-97038-402-1 01 1 9112-9603 ●
80 PLATE; ADJ
HEATER & DEFROSTER(C41) EXC. CERAMIC HEATER<6YX> (A) 		8-94438-403-0 01 1 9112-9512 ●
80 PLATE; ADJ
EXC. CERAMIC HEATER<6YX> (B) 		8-97132-049-0 01 1 9601-9603 ●
80 PLATE; ADJ
(B) 		8-97132-049-0 01 1 9604- ●
80 PLATE; ADJ 8-97018-939-2 01 1 9112-9302 ●
80 PLATE; ADJ 8-97087-142-2 01 1 9303- ●
81 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-94453-774-0 01 1 9112-9504 ●
81 PIECE; SLIDING
CERAMIC HEATER<6YX> 		8-94453-774-0 01 1 9112-9504 ●
81 PIECE; SLIDING 8-94453-774-0 01 1 9505-9512 ●
81 PIECE; SLIDING
CERAMIC HEATER<6YX> 		8-94453-774-0 01 1 9601-9603 ●
81 PIECE; SLIDING 8-97031-664-0 01 1 9112- ●
88 WASHER; PL,ADJ PLATE
HEATER & DEFROSTER(C41) EXC. CERAMIC HEATER<6YX> ID=8.4 OD=22 		9-09164-708-0 01 1 9112-9603 ●
88 WASHER; PL,ADJ PLATE
HEATER & DEFROSTER(C41) ENG QUICK WARM UP SYSTEM<6JZ> CERAMIC HEATER<6YX> EXC. VARIABLE TORQUE SPRIT<7HA> ID=8.4 OD=22 		9-09164-708-0 01 1 9604- ●
96 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> M8X45 W/LK WASHER 		0-50040-845-0 02 1 9112-9504 ●
96 BOLT; ADJ PLATE
CERAMIC HEATER<6YX> M8X45 W/LK WASHER 		0-50040-845-0 02 1 9112-9504 ●
96 BOLT; ADJ PLATE
M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41) CERAMIC HEATER<6YX> M8X45 W/LK WASHER 		0-50040-845-0 02 1 9505-9603 ●
96 BOLT; ADJ PLATE
M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X45 W/LK WASHER 		0-50040-845-0 02 1 9505-9603 ●
96 BOLT; ADJ PLATE
A/T AISIN(RMD) M8X45 W/LK WASHER 		0-50040-845-0 02 1 9505-9603 ●
96 BOLT; ADJ PLATE
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9604- ●
96 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9604- ●
96 BOLT; ADJ PLATE
HEATER & DEFROSTER(C41) EXC. CERAMIC HEATER<6YX> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9112-9603 ●
96 BOLT; ADJ PLATE
HEATER & DEFROSTER(C41) ENG QUICK WARM UP SYSTEM<6JZ> CERAMIC HEATER<6YX> EXC. VARIABLE TORQUE SPRIT<7HA> M8X25 W/LK WASHER 		0-50040-825-0 01 1 9604- ●
96 BOLT; ADJ PLATE
(B) M8X70 FLANGE 		0-28080-870-0 02 1 9112-9208 ●
96 BOLT; ADJ PLATE
(B) M8X70 W/LK WASHER 		0-50040-870-0 02 1 9209-9302 ●
96 BOLT; ADJ PLATE
(B) M8X70 FLANGE 		0-28080-870-0 02 1 9303- ●
96 BOLT; ADJ PLATE
(A) M6X75 FLANGE 		8-97028-681-0 01 1 9112- ●
97 SCREW; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-94126-866-0 01 1 9112-9504 ●
97 SCREW; ADJ PLATE
CERAMIC HEATER<6YX> 		8-94126-866-0 01 1 9112-9504 ●
97 SCREW; ADJ PLATE 8-94126-866-0 01 1 9505-9512 ●
97 SCREW; ADJ PLATE
CERAMIC HEATER<6YX> 		8-94126-866-0 01 1 9601-9603 ●
109 STUD; FAN CLU
M6X25 L=33 		8-94340-628-0 04 1 9112- ●
227 PIECE; DIST
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-94367-309-0 01 1 9112-9512 ●
230 FAN; COOLING
OD=450 8-BLADE 		8-97049-499-0 01 1 9112- ●
247 SLIDER
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. CERAMIC HEATER<6YX> 		8-97132-048-0 01 1 9601-9603 ●
247 SLIDER
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97132-048-0 01 1 9604- ●
