0-32 — WATER PIPING; ENGINE (#166846) — 33 parça

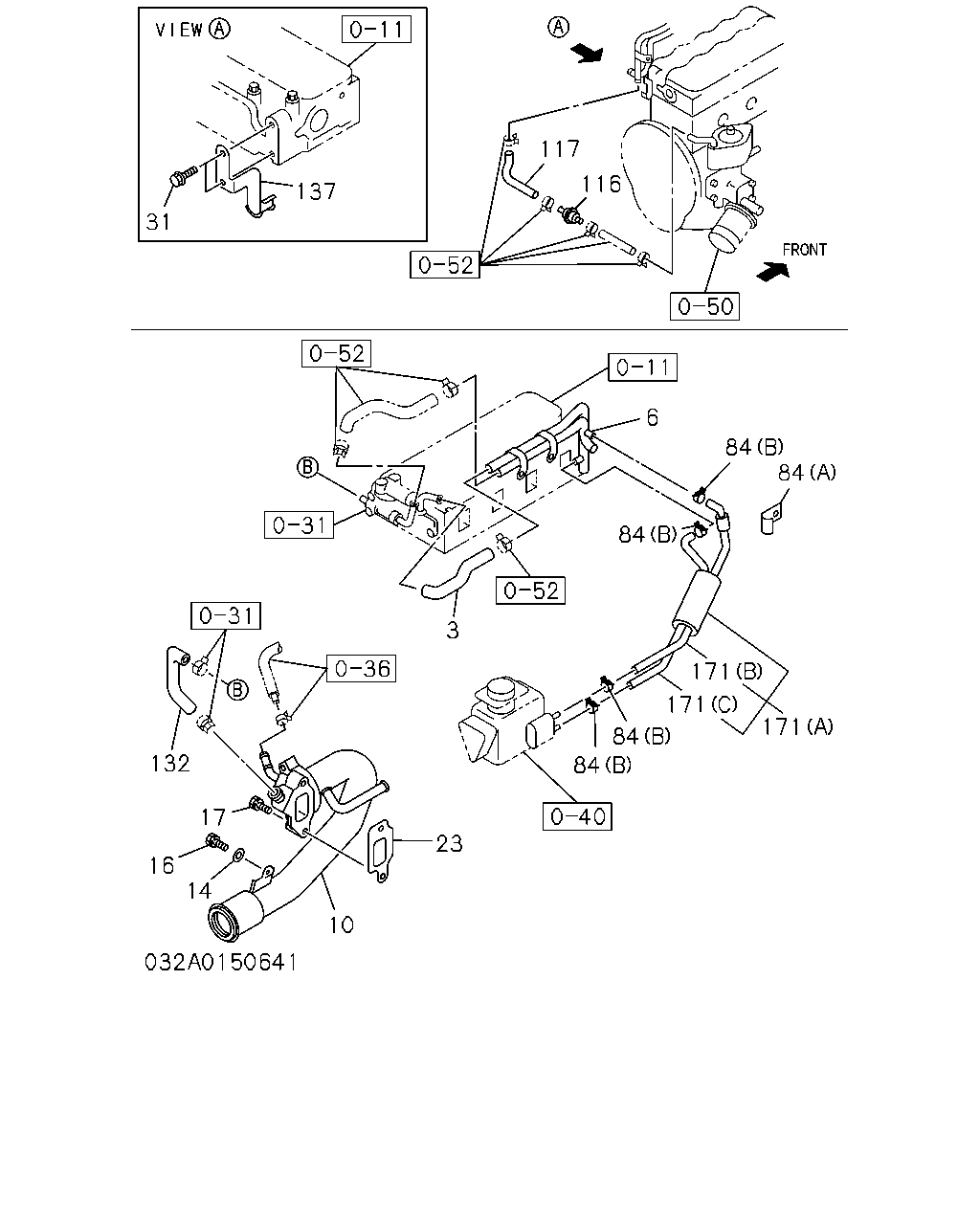

çizim 494296
137 31 117 116 6 84 84 84 171 171 171 84 84 3 23 10 14 16 17 132
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOSE; WATER,OIL COOLER 8-97043-720-1 01 1 9112- ●
6 CONNECTOR; HTR & COOLER HOSE 8-97049-193-4 01 1 9112-9504 ●
6 CONNECTOR; HTR & COOLER HOSE 8-97116-640-0 01 1 9505- ●
10 PIPE; SUCTION 8-97041-039-3 01 1 9112- ●
14 WASHER; PL,INL PIPE TO BRKT
ID=8.4 OD=18 		9-09160-608-0 01 1 9112-9211 ●
14 WASHER; PL,INL PIPE TO BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 9212- ●
16 BOLT; INL PIPE
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9112- ●
17 BOLT; SUCTION PIPE
M8X22 W/LK WASHER 		0-50040-822-0 01 1 9112- ●
17 BOLT; SUCTION PIPE
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9112- ●
23 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-2 01 1 9112- ●
31 BOLT; CLIP
M8X14 W/LK WASHER 		0-50040-814-0 02 1 9112-9507 ●
31 BOLT; CLIP
M8X12 FLANGE 		0-28080-812-0 02 1 9508- ●
84 CLIP; HOSE,W/CSD
(A) ID=12 		5-09700-331-0 01 1 9112- ●
84 CLIP; HOSE,W/CSD
(B) ID=15.5 		8-94221-519-0 04 1 9112-9504 ●
116 VALVE ASM; THERMO,OIL COOLER 5-21770-001-1 01 1 9112-9410 ●
116 VALVE ASM; THERMO,OIL COOLER
A/T AISIN(RMD) EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		5-21770-001-2 01 1 9505- ●
117 HOSE; RUBBER,OIL COOLER TO THERMO VLV 8-97039-420-0 01 1 9112-9410 ●
117 HOSE; RUBBER,OIL COOLER TO THERMO VLV
A/T AISIN(RMD) EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		8-97039-420-0 01 1 9505- ●
132 HOSE; WATER PIPE 8-94382-247-1 01 1 9112- ●
137 CLIP; HOSE,OIL COOLER 8-97039-302-0 01 1 9112-9507 ●
137 CLIP; HOSE,OIL COOLER
A/T AISIN(RMD) EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		8-97039-302-0 01 1 9508- ●
171 HOSE; RUBBER,WAX CSD
(C) 		8-97039-415-3 01 1 9112-9307 ●
171 HOSE; RUBBER,WAX CSD
(B) 		8-97039-417-4 01 1 9112-9307 ●
171 HOSE; RUBBER,WAX CSD
(A) 		8-97048-903-3 01 1 9112-9504 ●

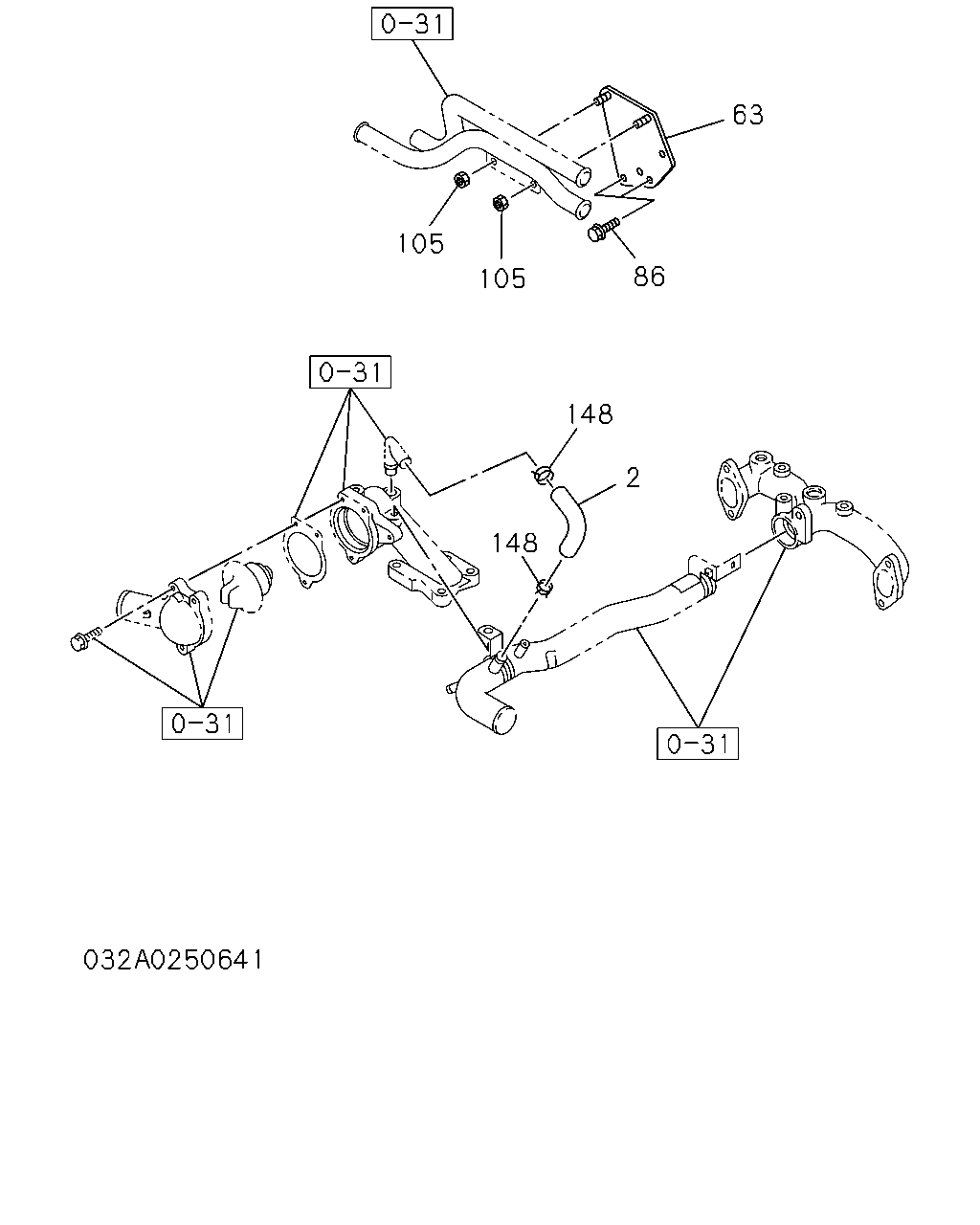

çizim 494332
105 105 86 63 148 2 148
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; WATER,BY-PASS 8-94384-326-3 01 1 9112-9309 ●
2 HOSE; WATER,BY-PASS 8-97088-139-0 01 1 9310- ●
63 BRACKET; WATER PIPE 8-97040-639-1 01 1 9112- ●
86 BOLT; BRKT,HTR PIPE
M8X12 FLANGE 		0-28080-812-0 02 1 9112-9410 ●
86 BOLT; BRKT,HTR PIPE
M8X14 FLANGE 		0-28080-814-0 02 1 9411- ●
105 NUT; PIPE
M8 FLANGE 		0-91150-208-0 02 1 9112-9407 ●
105 NUT; PIPE
M8 FLANGE 		0-91150-108-0 02 1 9408- ●
148 CLIP; BYPASS HOSE
ID=21.7 		8-94413-822-0 02 1 9112-9401 ●
148 CLIP; BYPASS HOSE
ID=20.4 		8-94121-113-0 02 1 9402- ●
