Isuzu WW
▶
SUV
▶
UBS
▶
50641 - UBS
▶
0 - Engine, Emission, Engine Electrical
▶

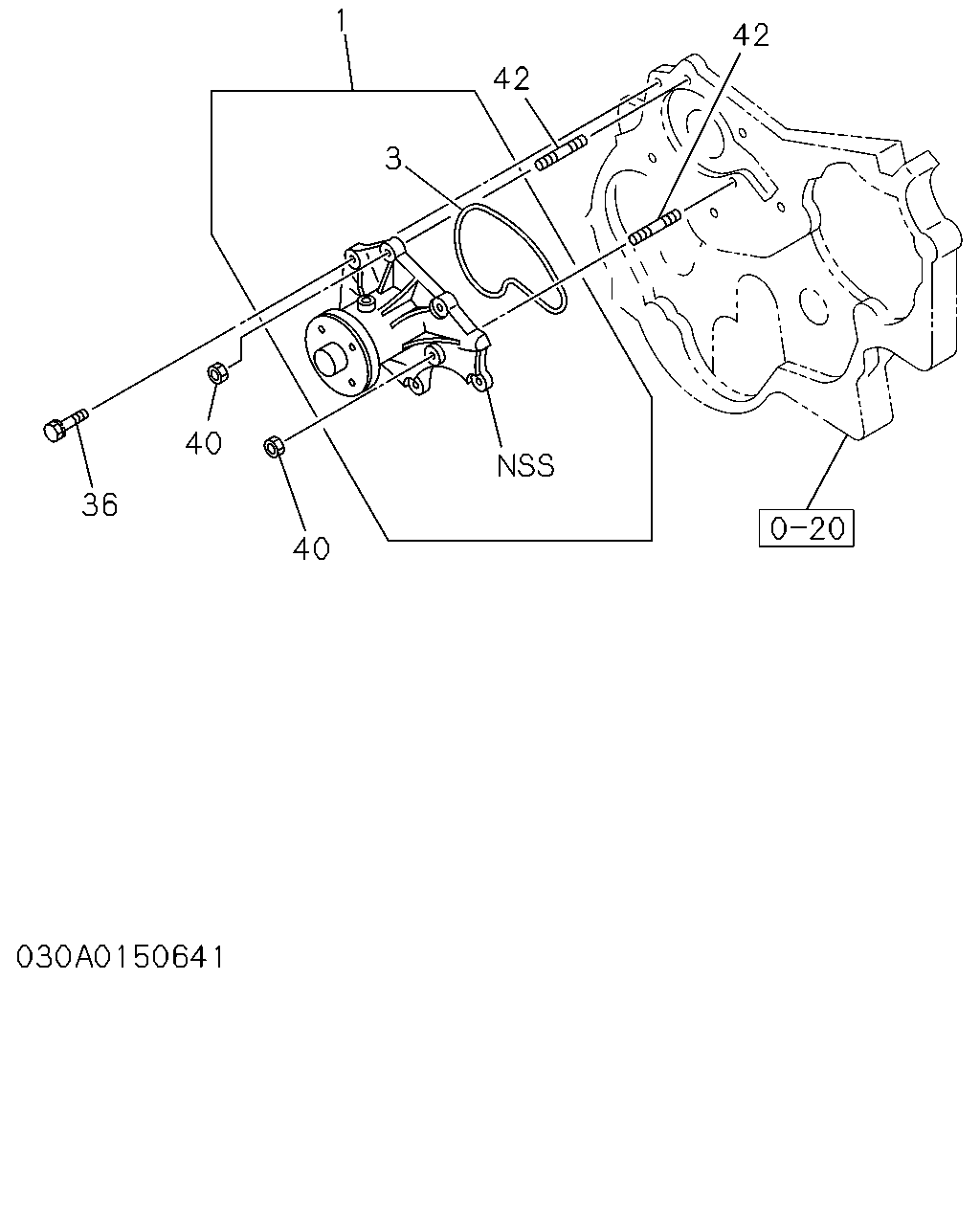

0-30 - WATER PUMP AND CORROSION RESISTOR
▶
0-30 — WATER PUMP AND CORROSION RESISTOR
(#166844) — 29 parça
Tümü
A - 4JG2 ENG
B - 6VD1 DOHC ENG
◀
[030A] 4JG2 ENGINE (15 parça)
[030A] 6VD1 DOHC ENGINE (14 parça)
▶
1
3
36
40
40
42
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; WATER,W/GASKET
8-97062-796-0
01
1
9112-9308
●
1
PUMP ASM; WATER,W/GASKET
8-97105-012-0
01
1
9309-
●
1
PUMP ASM; WATER,W/GASKET
8-97061-280-0
01
1
9112-9412
●
1
PUMP ASM; WATER,W/GASKET
8-97125-975-0
01
1
9501-
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94178-081-0
01
1
9112-
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97014-207-0
01
1
9112-9512
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97135-478-0
01
1
9601-
●
36
BOLT; WATER PUMP TO C/BL
M8X55 W/LK WASHER
5-09000-084-1
05
1
9112-
●
36
BOLT; WATER PUMP TO C/BL
(A),(B) M8X20 FLANGE
0-28080-820-0
09
1
9112-9705
●
36
BOLT; WATER PUMP TO C/BL
(B) M8X20 FLANGE
0-28080-820-0
08
1
9706-
●
36
BOLT; WATER PUMP TO C/BL
(A) M8X20 W/THREAD LOCKING ADHESIVE
8-97021-210-0
01
1
9706-
●
40
NUT; WATER PUMP
M8 FLANGE
0-91150-108-0
02
1
9112-
●
42
STUD; WATER PUMP
9-04110-822-0
02
1
9112-
●
42
STUD; WATER PUMP
8-97019-062-0
01
1
9112-9301
●
42
STUD; WATER PUMP
8-97088-691-0
01
1
9302-
●
1
3
42
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; WATER,W/GASKET
8-97062-796-0
01
1
9112-9308
●
1
PUMP ASM; WATER,W/GASKET
8-97105-012-0
01
1
9309-
●
1
PUMP ASM; WATER,W/GASKET
8-97061-280-0
01
1
9112-9412
●
1
PUMP ASM; WATER,W/GASKET
8-97125-975-0
01
1
9501-
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94178-081-0
01
1
9112-
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97014-207-0
01
1
9112-9512
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97135-478-0
01
1
9601-
●
36
BOLT; WATER PUMP TO C/BL
M8X55 W/LK WASHER
5-09000-084-1
05
1
9112-
●
36
BOLT; WATER PUMP TO C/BL
(A),(B) M8X20 FLANGE
0-28080-820-0
09
1
9112-9705
●
36
BOLT; WATER PUMP TO C/BL
(B) M8X20 FLANGE
0-28080-820-0
08
1
9706-
●
36
BOLT; WATER PUMP TO C/BL
(A) M8X20 W/THREAD LOCKING ADHESIVE
8-97021-210-0
01
1
9706-
●
42
STUD; WATER PUMP
9-04110-822-0
02
1
9112-
●
42
STUD; WATER PUMP
8-97019-062-0
01
1
9112-9301
●
42
STUD; WATER PUMP
8-97088-691-0
01
1
9302-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
