0-27 — EXHAUST MANIFOLD (#166842) — 78 parça

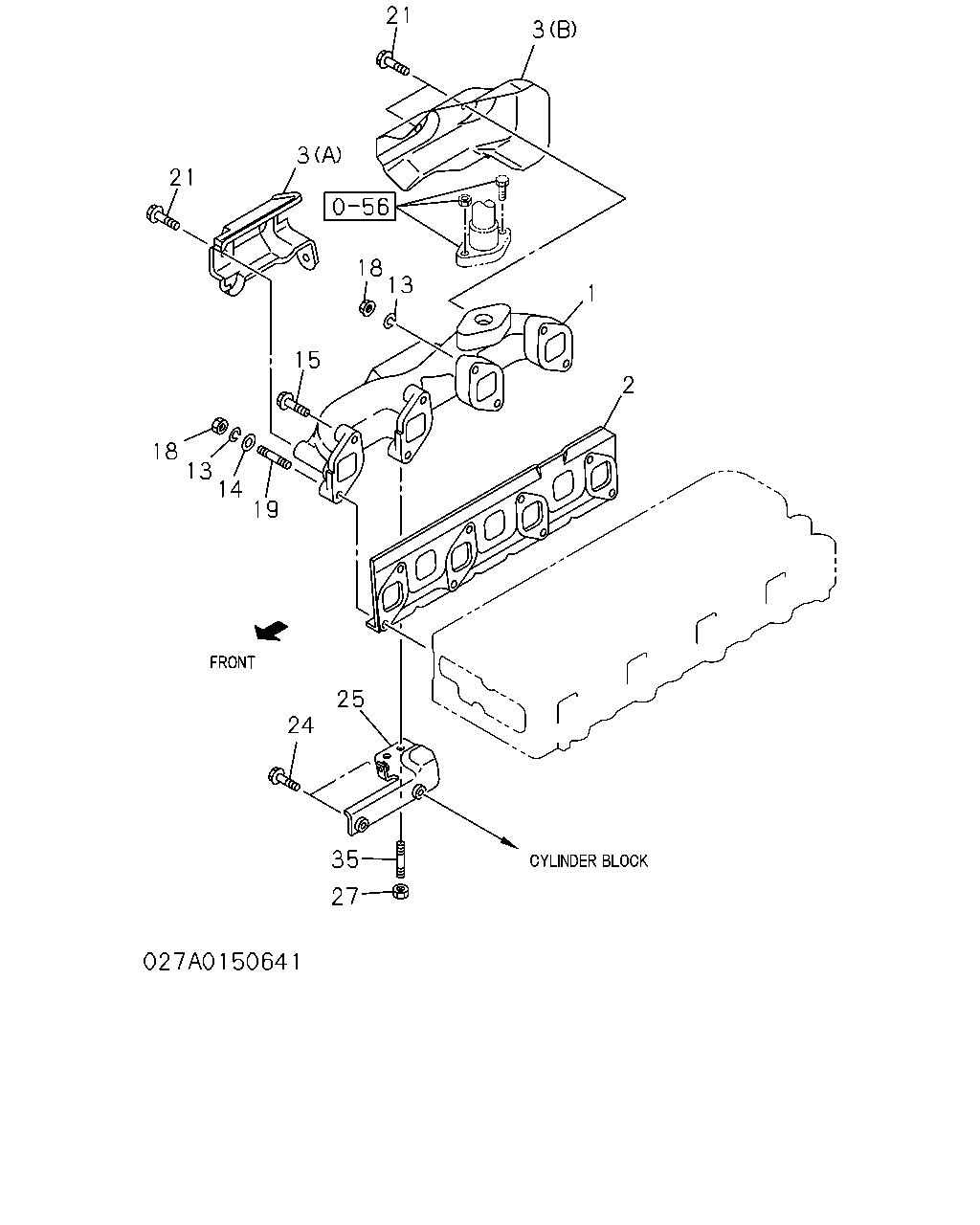

21 3 21 18 13 15 18 13 14 19 24 25 35 27 2 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; EXHAUST	8-97039-474-3	01	1	9112-	●
1	MANIFOLD; EXHAUST	8-94364-775-5	01	1	9112-9307		●
1	MANIFOLD; EXHAUST M/T MUA 5 SPEED(RMN)	8-94364-775-7	01	1	9308-9504		●
1	MANIFOLD; EXHAUST	8-94364-773-6	01	1	9112-9510		●
1	MANIFOLD; EXHAUST	8-97115-618-1	01	1	9511-		●
1	MANIFOLD; EXHAUST A/T THM(RMQ)	8-97081-232-2	01	1	9308-9504		●
1	MANIFOLD; EXHAUST	8-97081-232-2	01	1	9505-9510		●
1	MANIFOLD; EXHAUST	8-97115-611-1	01	1	9511-		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97020-591-0	01	1	9112-9408	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97109-216-1	01	1	9409-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94323-173-0	02	1	9112-9510		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97104-316-0	02	1	9511-		●
3	PROTECTOR; HEAT,EXH MANIF (B)	8-97038-107-1	01	1	9112-	●
3	PROTECTOR; HEAT,EXH MANIF (A)	8-97066-757-1	01	1	9112-9511	●
3	PROTECTOR; HEAT,EXH MANIF (A)	8-97133-936-0	01	1	9512-	●
3	PROTECTOR; HEAT,EXH MANIF	8-94364-943-5	01	1	9112-9510		●
3	PROTECTOR; HEAT,EXH MANIF	8-97101-976-0	01	1	9511-		●
3	PROTECTOR; HEAT,EXH MANIF	8-94364-942-5	01	1	9112-9510		●
3	PROTECTOR; HEAT,EXH MANIF	8-97101-975-1	01	1	9511-		●
13	WASHER; LK,EXH MANIF ID=8.2	9-09150-508-0	02	1	9112-9605	●
14	WASHER; PL,EXH MANIF ID=8.4 OD=18	9-09160-608-0	01	1	9112-9210	●
14	WASHER; PL,EXH MANIF ID=8.4 OD=18	9-09164-608-0	01	1	9211-9605	●
14	WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9606-	●
15	BOLT; EXH MANIF M8X35	8-97045-441-0	06	1	9112-9605	●
15	BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9606-	●
18	NUT; EXH MANIF M8	9-09110-508-0	02	1	9112-9605	●
18	NUT; EXH MANIF M8 FLANGE	0-91150-208-0	02	1	9606-	●
18	NUT; EXH MANIF M10 LOCK NUT	8-94375-110-0	14	1	9112-9510		●
18	NUT; EXH MANIF M10 LOCK NUT	8-94375-110-0	16	1	9511-		●
19	STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9112-	●
21	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	02	1	9112-	●
21	BOLT; HEAT PROTECTOR M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9112-9611	●
21	BOLT; HEAT PROTECTOR M6X12 FLANGE	0-28080-612-0	01	1	9612-	●
21	BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	10	1	9112-9510		●
21	BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9511-		●
24	BOLT; BRKT,EXH MANIF M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9112-	●
24	BOLT; BRKT,EXH MANIF M10X32 W/LK WASHER	0-50141-032-0	01	1	9112-	●
25	BRACKET; EXH MANIF	8-97038-106-2	01	1	9112-9603	●
25	BRACKET; EXH MANIF	8-97145-973-0	01	1	9604-	●
27	NUT; BRKT,EXH MANIF M8 FLANGE	0-91150-208-0	02	1	9112-9603	●
27	NUT; BRKT,EXH MANIF M8 FLANGE	0-91150-208-0	01	1	9604-	●
35	STUD; BRKT M8X20 L=29	5-09300-069-0	02	1	9112-9603	●
35	STUD; BRKT M8X20 L=29	5-09300-069-0	01	1	9604-	●

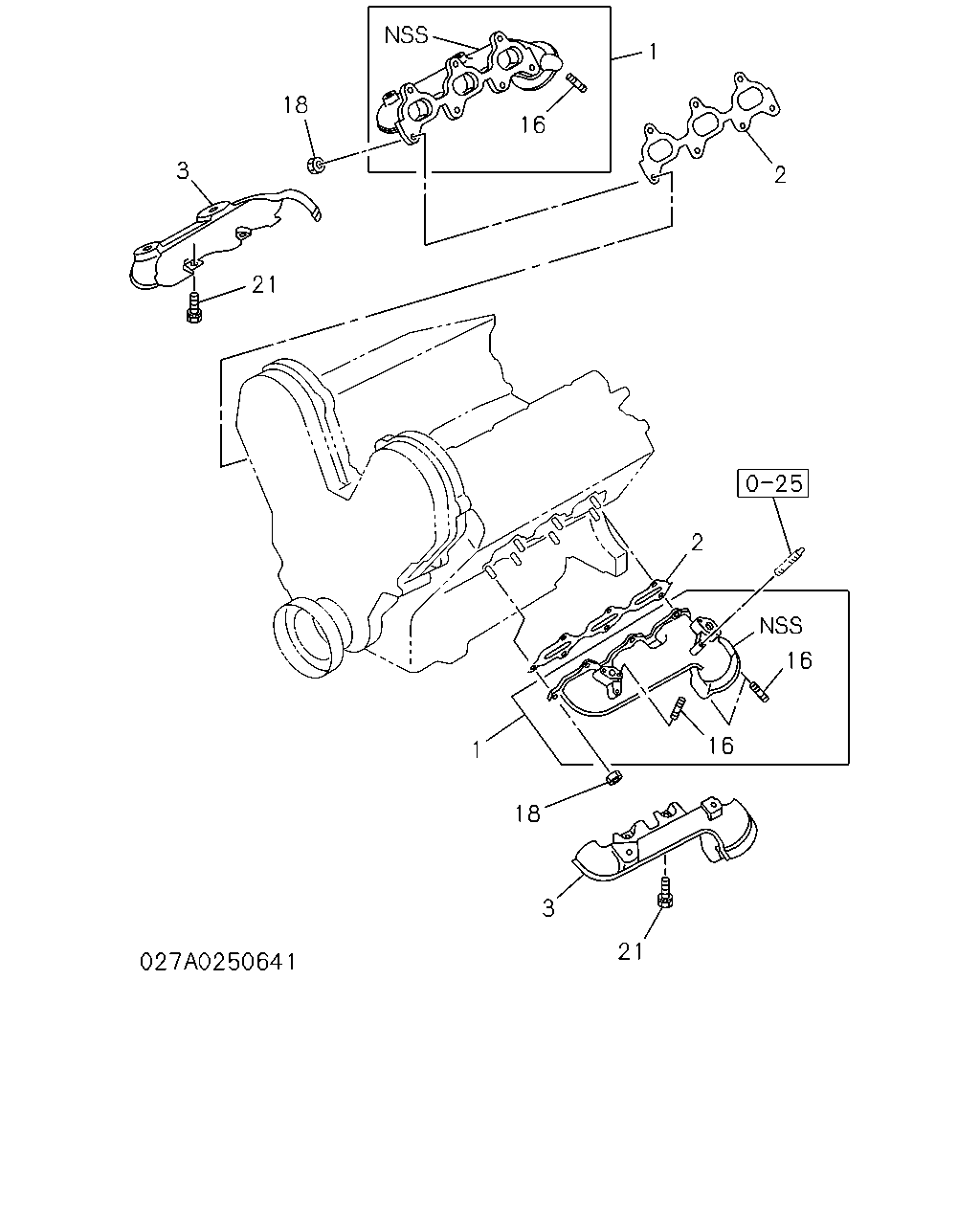

18 3 21 16 1 2 2 16 16 1 18 3 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; EXHAUST	8-97039-474-3	01	1	9112-	●
1	MANIFOLD; EXHAUST	8-94364-775-5	01	1	9112-9307		●
1	MANIFOLD; EXHAUST M/T MUA 5 SPEED(RMN)	8-94364-775-7	01	1	9308-9504		●
1	MANIFOLD; EXHAUST	8-94364-773-6	01	1	9112-9510		●
1	MANIFOLD; EXHAUST	8-97115-618-1	01	1	9511-		●
1	MANIFOLD; EXHAUST A/T THM(RMQ)	8-97081-232-2	01	1	9308-9504		●
1	MANIFOLD; EXHAUST	8-97081-232-2	01	1	9505-9510		●
1	MANIFOLD; EXHAUST	8-97115-611-1	01	1	9511-		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97020-591-0	01	1	9112-9408	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97109-216-1	01	1	9409-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94323-173-0	02	1	9112-9510		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97104-316-0	02	1	9511-		●
3	PROTECTOR; HEAT,EXH MANIF (B)	8-97038-107-1	01	1	9112-	●
3	PROTECTOR; HEAT,EXH MANIF (A)	8-97066-757-1	01	1	9112-9511	●
3	PROTECTOR; HEAT,EXH MANIF (A)	8-97133-936-0	01	1	9512-	●
3	PROTECTOR; HEAT,EXH MANIF	8-94364-943-5	01	1	9112-9510		●
3	PROTECTOR; HEAT,EXH MANIF	8-97101-976-0	01	1	9511-		●
3	PROTECTOR; HEAT,EXH MANIF	8-94364-942-5	01	1	9112-9510		●
3	PROTECTOR; HEAT,EXH MANIF	8-97101-975-1	01	1	9511-		●
16	STUD; EXH PIPE TO MANIF M/T MUA 5 SPEED(RMN),A/T THM(RMQ) M8X18 L=29	8-97061-377-0	01	1	9112-9307		●
16	STUD; EXH PIPE TO MANIF M/T MUA 5 SPEED(RMN),A/T THM(RMQ) M8X18 L=29	8-97061-377-0	01	1	9308-9504		●
16	STUD; EXH PIPE TO MANIF M/T MUA 5 SPEED(RMN),A/T THM(RMQ) M8X18 L=29	8-97061-377-1	01	1	9505-		●
16	STUD; EXH PIPE TO MANIF M/T MUA 5 SPEED(RMN),A/T THM(RMQ) M10X25 L=40	9-04411-025-0	04	1	9112-9307		●
16	STUD; EXH PIPE TO MANIF M/T MUA 5 SPEED(RMN),A/T THM(RMQ) M10X25 L=40	9-04411-025-0	04	1	9308-9504		●
16	STUD; EXH PIPE TO MANIF M/T MUA 5 SPEED(RMN),A/T THM(RMQ) M10X25 L=40	9-04411-025-0	04	1	9505-9510		●
16	STUD; EXH PIPE TO MANIF M/T MUA 5 SPEED(RMN),A/T THM(RMQ) M12X15 L=46.6	8-97115-132-0	06	1	9511-		●
18	NUT; EXH MANIF M8	9-09110-508-0	02	1	9112-9605	●
18	NUT; EXH MANIF M8 FLANGE	0-91150-208-0	02	1	9606-	●
18	NUT; EXH MANIF M10 LOCK NUT	8-94375-110-0	14	1	9112-9510		●
18	NUT; EXH MANIF M10 LOCK NUT	8-94375-110-0	16	1	9511-		●
21	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	02	1	9112-	●
21	BOLT; HEAT PROTECTOR M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9112-9611	●
21	BOLT; HEAT PROTECTOR M6X12 FLANGE	0-28080-612-0	01	1	9612-	●
21	BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	10	1	9112-9510		●
21	BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9511-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
