0-25 — INLET MANIFOLD (#166841) — 107 parça

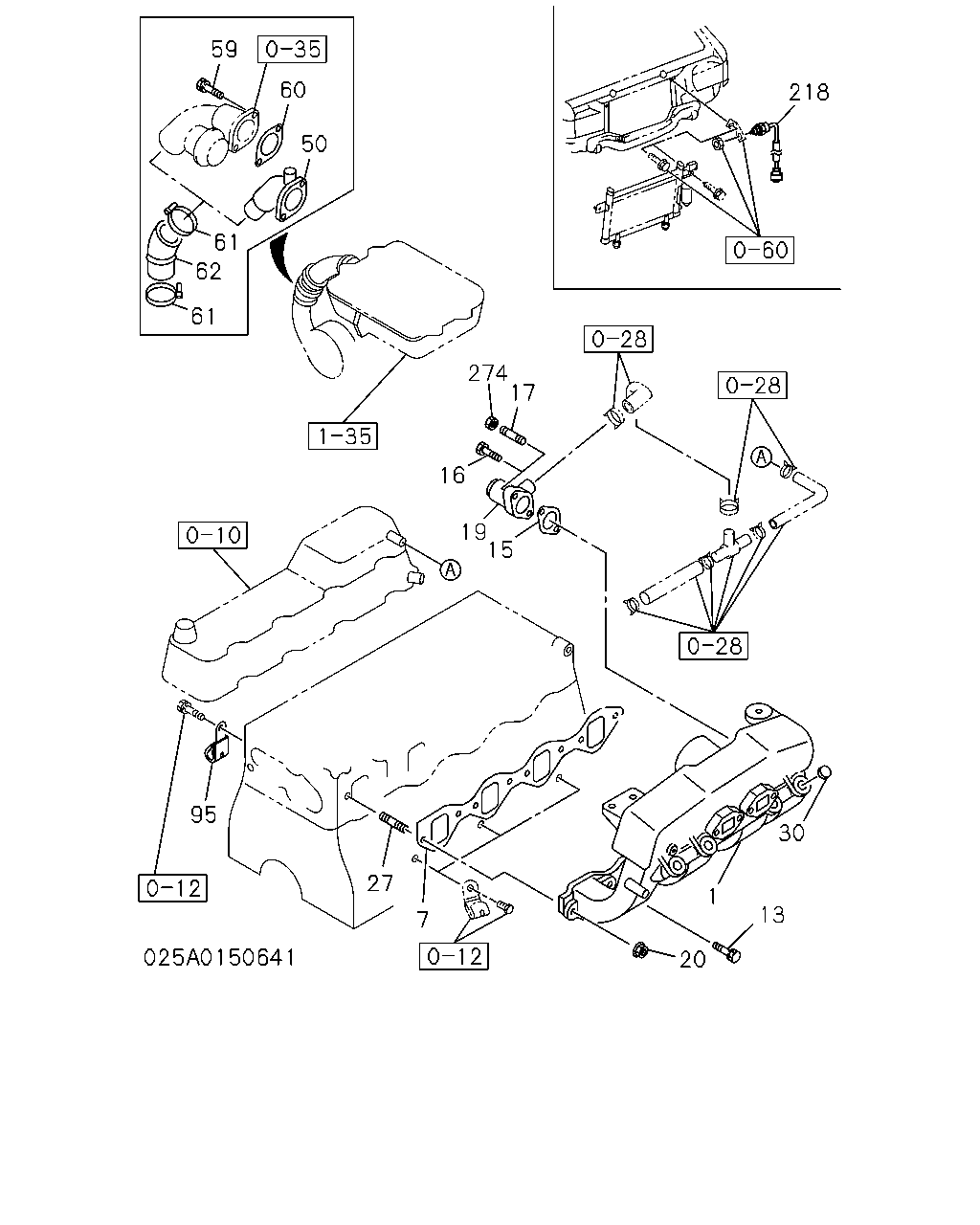

59 50 60 61 62 61 274 17 16 19 15 218 30 13 1 20 7 27 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; INL	8-94340-616-3	01	1	9112-9502	●
1	MANIFOLD; INL	8-97118-883-0	01	1	9503-9504	●
1	MANIFOLD; INL	8-97124-596-3	01	1	9505-	●
1	MANIFOLD; INL	8-94388-853-1	01	1	9112-9603		●
1	MANIFOLD; INL	8-97134-242-0	01	1	9604-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9112-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94364-579-0	02	1	9112-9408		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97095-861-0	02	1	9409-		●
13	BOLT; INL MANIF M8X30 W/LK WASHER	0-50040-830-0	06	1	9112-9209	●
13	BOLT; INL MANIF M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9210-9612	●
13	BOLT; INL MANIF M8X25 FLANGE	0-28080-825-0	06	1	9701-	●
13	BOLT; INL MANIF M8X28 FLANGE	0-28080-828-0	02	1	9112-		●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-361-0	01	1	9112-9209	●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97086-759-0	01	1	9210-9502	●
16	BOLT; VLV,BOOST RELIEF M6X22 W/LK WASHER	0-50040-622-0	02	1	9206-9502	●
17	STUD; VLV M6X20 L=29	9-04110-620-0	02	1	9112-9205	●
19	VALVE; RELIEF,TURBOCHARGER BOOST	8-94155-545-1	01	1	9112-9502	●
20	NUT; INL MANIF M8 FLANGE	5-09440-005-0	02	1	9112-	●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	06	1	9112-		●
27	STUD; INL MANIF M8X25 L=37	9-04110-825-0	02	1	9112-	●
27	STUD; INL MANIF M8X35 L=47	0-49540-828-0	02	1	9112-9406		●
27	STUD; INL MANIF M8X28 L=46	0-49740-828-0	02	1	9407-		●
30	CUP; SEALING,INL MANIF OD=16	5-11129-006-0	04	1	9112-9502	●
30	CUP; SEALING,INL MANIF OD=35	8-94229-853-0	04	1	9112-9208		●
50	PIPE; INL	8-97038-185-0	01	1	9505-9609	●
50	PIPE; INL	8-97139-402-0	01	1	9610-	●
59	BOLT; INL PIPE TO MANIF M10X30 W/LK WASHER	0-50041-030-0	02	1	9112-	●
60	GASKET; INL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97045-364-0	01	1	9112-9210	●
60	GASKET; INL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97086-961-0	01	1	9211-	●
61	CLIP; CONNECTOR HOSE ID=44-60	8-94175-940-0	02	1	9112-9403	●
61	CLIP; CONNECTOR HOSE ID=44-60	8-94126-770-0	02	1	9404-9508	●
61	CLIP; CONNECTOR HOSE ID=45.5-56.5	8-97131-943-0	02	1	9509-	●
62	HOSE; CONNECTOR	8-94340-603-1	01	1	9112-9412	●
62	HOSE; CONNECTOR	8-97120-496-0	01	1	9501-	●
95	CLIP; RUBBER HOSE	8-94406-478-0	01	1	9112-	●
218	SWITCH; THERMO,AIR TEMP	8-97043-749-0	01	1	9112-	●
274	NUT; RELIEF VLV M6 FLANGE	5-09440-004-0	02	1	9112-9205	●

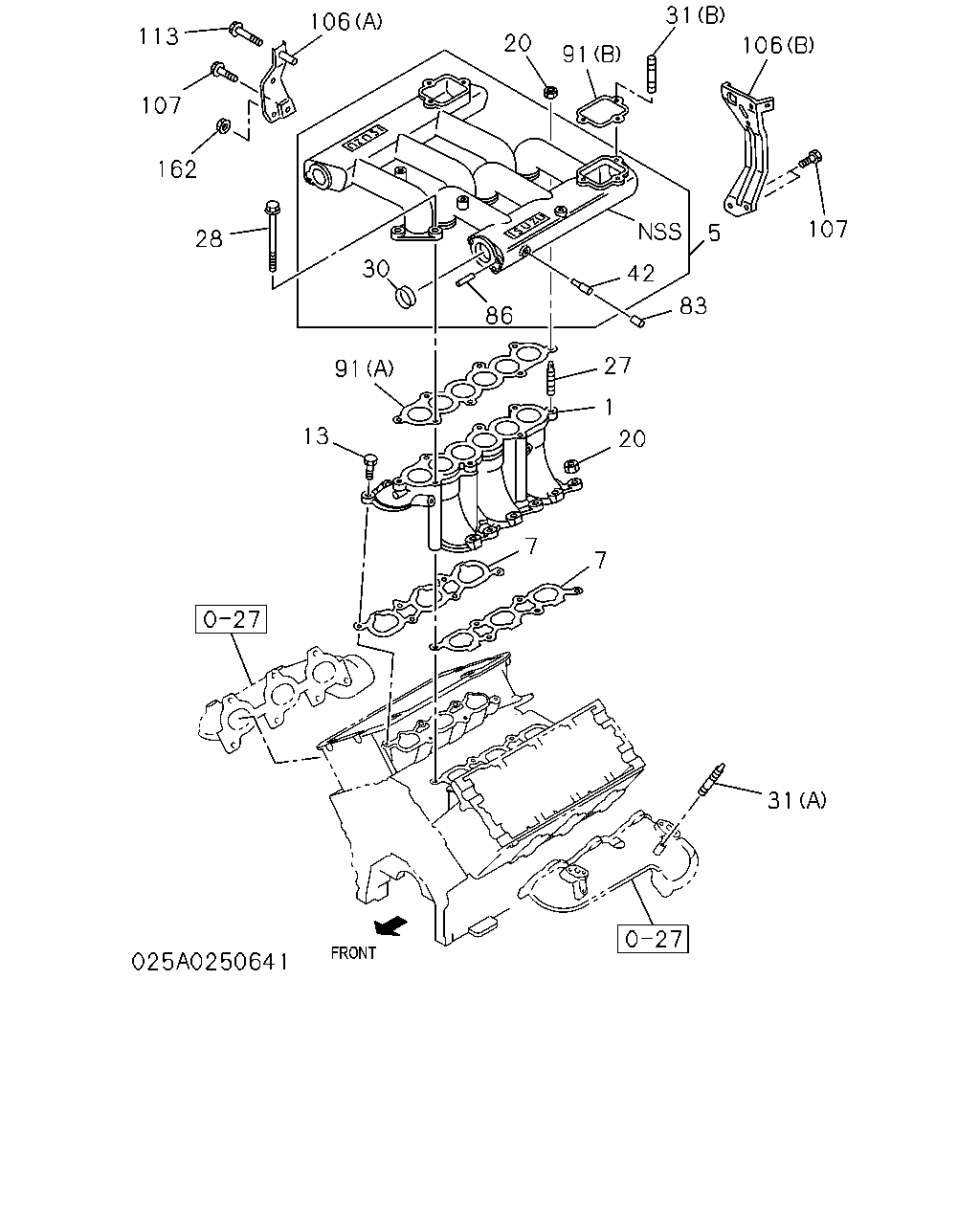

113 107 162 28 30 91 13 20 1 27 86 7 7 31 107 5 83 42 91 20 31 106 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; INL	8-94340-616-3	01	1	9112-9502	●
1	MANIFOLD; INL	8-97118-883-0	01	1	9503-9504	●
1	MANIFOLD; INL	8-97124-596-3	01	1	9505-	●
1	MANIFOLD; INL	8-94388-853-1	01	1	9112-9603		●
1	MANIFOLD; INL	8-97134-242-0	01	1	9604-		●
5	CHAMBER; COMMON	8-97042-080-2	01	1	9112-9307		●
5	CHAMBER; COMMON	8-97101-458-0	01	1	9308-9505		●
5	CHAMBER; COMMON	8-97122-209-0	01	1	9506-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9112-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94364-579-0	02	1	9112-9408		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97095-861-0	02	1	9409-		●
13	BOLT; INL MANIF M8X30 W/LK WASHER	0-50040-830-0	06	1	9112-9209	●
13	BOLT; INL MANIF M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9210-9612	●
13	BOLT; INL MANIF M8X25 FLANGE	0-28080-825-0	06	1	9701-	●
13	BOLT; INL MANIF M8X28 FLANGE	0-28080-828-0	02	1	9112-		●
20	NUT; INL MANIF M8 FLANGE	5-09440-005-0	02	1	9112-	●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	06	1	9112-		●
27	STUD; INL MANIF M8X25 L=37	9-04110-825-0	02	1	9112-	●
27	STUD; INL MANIF M8X35 L=47	0-49540-828-0	02	1	9112-9406		●
27	STUD; INL MANIF M8X28 L=46	0-49740-828-0	02	1	9407-		●
28	BOLT; CHAMBER M8X126	8-94128-482-1	06	1	9112-		●
30	CUP; SEALING,INL MANIF OD=16	5-11129-006-0	04	1	9112-9502	●
30	CUP; SEALING,INL MANIF OD=35	8-94229-853-0	04	1	9112-9208		●
31	STUD; COMMON CHAMBER (B) M8X60 L=72	0-49540-860-0	04	1	9112-9406		●
31	STUD; COMMON CHAMBER (B) M8X60 L=72	0-49740-860-0	04	1	9407-		●
31	STUD; COMMON CHAMBER (A) M10X35 L=50	8-97015-835-0	02	1	9112-		●
42	PIPE; VAC,COMMON CHAMBER	8-97064-962-0	01	1	9112-9208		●
83	PLUG; COMMON CHAMBER ID=4	8-94217-809-0	01	1	9112-9204		●
86	PIPE; CANISTER PURGE L=33	8-94251-451-0	01	1	9112-		●
91	GASKET; COMMON CHAMBER TO INL MANIF (A)	8-97011-674-0	01	1	9112-		●
91	GASKET; COMMON CHAMBER TO INL MANIF (B)	8-97012-469-0	02	1	9112-		●
106	STAY; COMMON CHAMBER (A)	8-94376-251-4	01	1	9112-9510		●
106	STAY; COMMON CHAMBER (A)	8-97103-830-1	01	1	9511-		●
106	STAY; COMMON CHAMBER (B)	8-94376-905-4	01	1	9112-		●
107	BOLT; STAY,COMMON CHAMBER M8X14 FLANGE	0-28080-814-0	04	1	9112-		●
113	BOLT; STAY M8X16 FLANGE	0-28080-816-0	01	1	9112-9510		●
113	BOLT; STAY M8X55 FLANGE	8-97015-522-0	01	1	9112-9301		●
113	BOLT; STAY M8X60 W/LK WASHER	0-50040-860-0	01	1	9302-		●
162	NUT; STAY M10 LOCK NUT	8-94375-110-0	01	1	9112-9510		●
162	NUT; STAY M10 LOCK NUT	8-94375-110-0	02	1	9511-		●

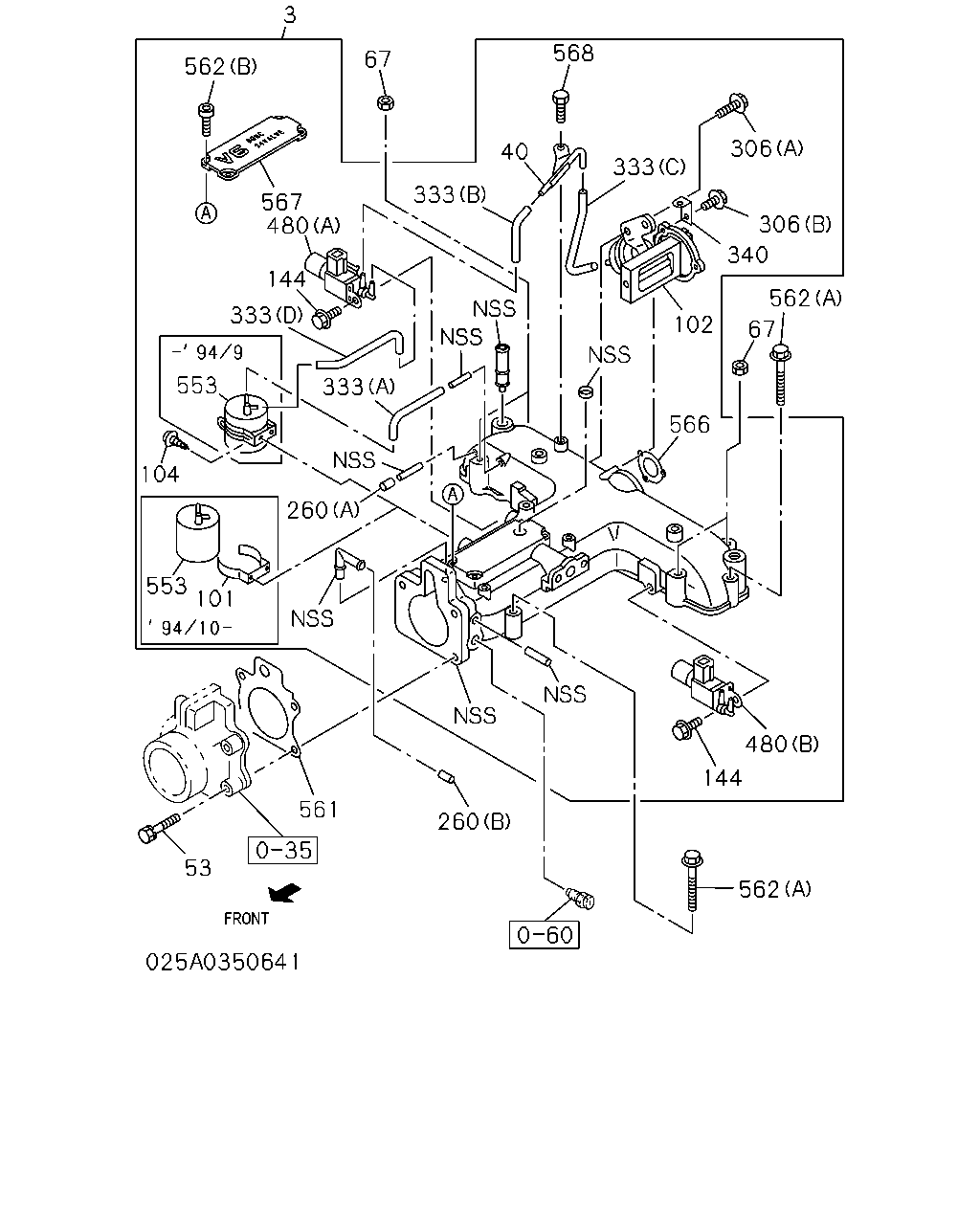

3 67 562 567 480 144 333 553 104 553 101 53 561 260 562 144 480 566 102 67 562 340 306 306 333 40 568 333 333 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
3	DUCT; INT	8-97036-820-4	01	1	9112-9307	●
3	DUCT; INT	8-97101-456-2	01	1	9308-	●
40	PIPE; VAC LINE,INL MANIF	8-97045-604-1	01	1	9112-	●
53	BOLT; INL PIPE M8X40 FLANGE	0-28080-840-0	04	1	9112-	●
67	NUT; INL DUCT M8 FLANGE	0-91150-108-0	04	1	9112-	●
101	BRACKET; VAC TANK	8-97109-189-0	01	1	9410-	●
102	VALVE ASM; INDUCTION CONT	8-94388-858-0	01	1	9112-	●
104	SCREW M3X6	9-93490-306-0	02	1	9410-	●
144	BOLT; BRKT FIX	8-97036-815-0	02	1	9112-	●
260	CAP; RUBBER (A)	8-97029-378-0	01	1	9112-9401	●
260	CAP; RUBBER A/T THM(RMQ) (B) OD=7	8-94206-392-0	01	1	9308-9504	●
260	CAP; RUBBER (B) OD=7	8-94206-392-0	01	1	9505-	●
306	BOLT; VLV (A) M8X12 FLANGE	0-28080-812-0	02	1	9112-	●
306	BOLT; VLV (B) M8X16	8-97036-816-0	03	1	9112-	●
333	HOSE; RUBBER,INL PIPE (A)	8-97036-812-2	01	1	9112-	●
333	HOSE; RUBBER,INL PIPE (B)	8-97045-602-0	01	1	9112-	●
333	HOSE; RUBBER,INL PIPE (C)	8-97045-603-0	01	1	9112-	●
333	HOSE; RUBBER,INL PIPE (D)	8-97045-908-0	01	1	9112-	●
340	BRACKET; HARNESS INL MANIF	8-97063-390-0	01	1	9112-	●
480	VALVE ASM; VAC SW (A)	8-97036-819-0	01	1	9112-	●
480	VALVE ASM; VAC SW (B)	8-97037-907-0	01	1	9112-	●
553	TANK; VAC	8-97036-818-0	01	1	9112-9409	●
553	TANK; VAC	8-97109-083-0	01	1	9410-	●
561	GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE).	8-94389-939-0	01	1	9112-	●
562	BOLT; INL DUCT (A) M8X45 FLANGE	0-28080-845-0	04	1	9112-	●
562	BOLT; INL DUCT (B)	8-97036-817-1	04	1	9112-9409	●
566	GASKET; VLV	8-97014-213-0	01	1	9112-	●
567	PLATE; INL DUCT	8-97036-822-0	01	1	9112-9307	●
567	PLATE; INL DUCT	8-97049-019-0	01	1	9308-9409	●
568	BOLT; PIPE	8-97036-815-0	01	1	9410-	●
