◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50641 - UBS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#166840) — 98 parça

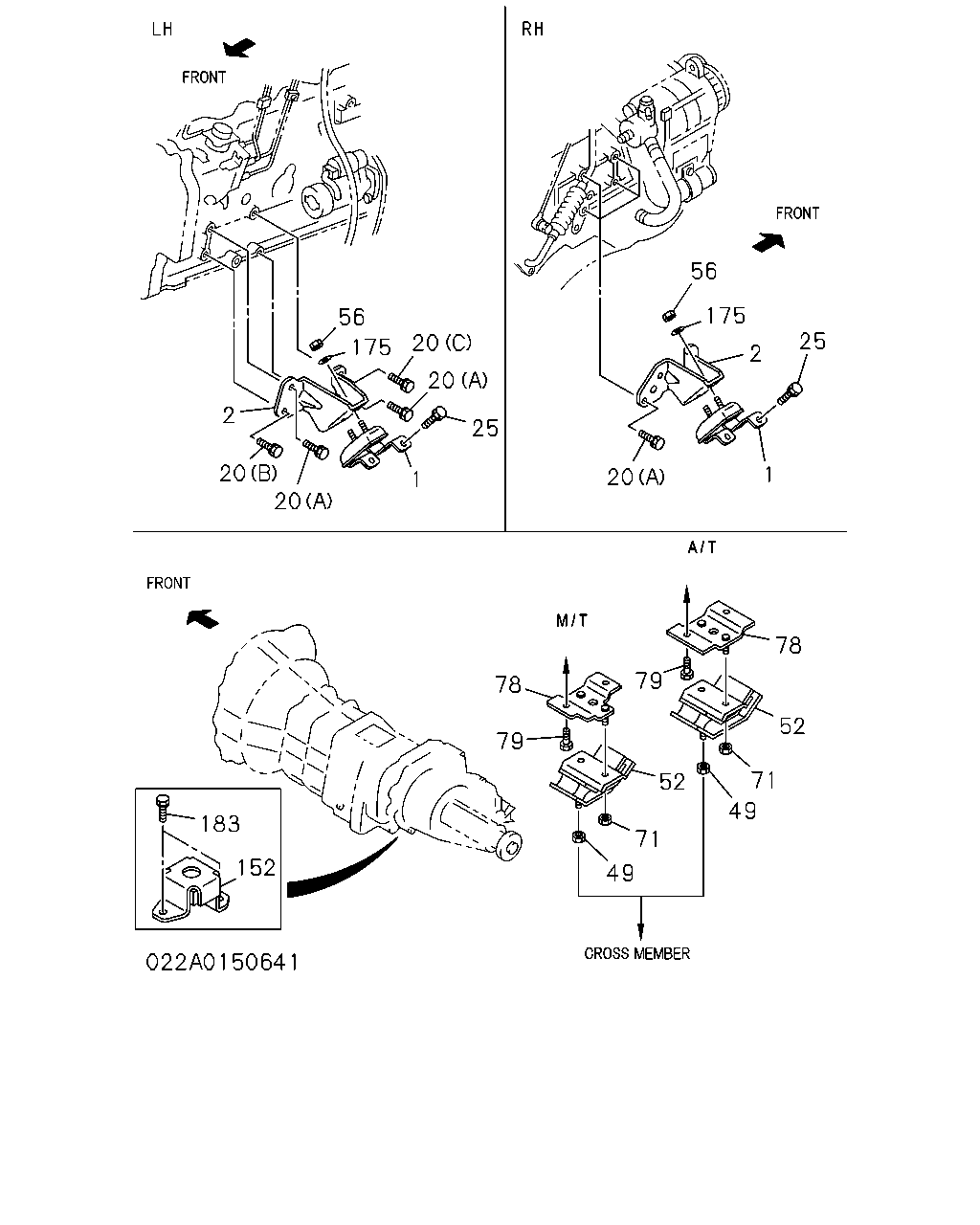

çizim 493837
56 175 20 20 25 1 20 20 2 152 183 79 78 78 79 52 71 49 49 71 52 2 1 25 175 56 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 8-97039-190-3 01 1 9112- ●
1 RUBBER; ENG FOOT,FRT 8-97039-189-3 01 1 9112- ●
1 RUBBER; ENG FOOT,FRT 8-94375-283-2 01 1 9112-9510 ●
1 RUBBER; ENG FOOT,FRT
EXC. AIR BAG DRIVER<AJ3> 		8-94375-283-2 01 1 9511-9605 ●
1 RUBBER; ENG FOOT,FRT 8-94375-282-5 01 1 9112-9510 ●
1 RUBBER; ENG FOOT,FRT
EXC. AIR BAG DRIVER<AJ3> 		8-94375-282-5 01 1 9511-9605 ●
1 RUBBER; ENG FOOT,FRT
AIR BAG DRIVER<AJ3> 		8-97104-158-1 01 1 9511-9605 ●
1 RUBBER; ENG FOOT,FRT 8-97104-158-1 01 1 9606- ●
1 RUBBER; ENG FOOT,FRT
AIR BAG DRIVER<AJ3> 		8-97104-157-1 01 1 9511-9605 ●
1 RUBBER; ENG FOOT,FRT 8-97104-157-1 01 1 9606- ●
2 FOOT; ENG 8-97038-196-1 01 1 9112- ●
2 FOOT; ENG 8-97038-195-1 01 1 9112- ●
2 FOOT; ENG 8-94374-504-0 01 1 9112-9301 ●
2 FOOT; ENG 8-97088-678-0 01 1 9302-9510 ●
2 FOOT; ENG
EXC. AIR BAG DRIVER<AJ3> 		8-97088-678-0 01 1 9511- ●
2 FOOT; ENG 8-94374-503-1 01 1 9112-9301 ●
2 FOOT; ENG 8-97088-677-0 01 1 9302-9510 ●
2 FOOT; ENG
EXC. AIR BAG DRIVER<AJ3> 		8-97088-677-0 01 1 9511- ●
2 FOOT; ENG
AIR BAG DRIVER<AJ3> 		8-97110-078-0 01 1 9511- ●
2 FOOT; ENG
AIR BAG DRIVER<AJ3> 		8-97110-077-0 01 1 9511- ●
20 BOLT; ENG FOOT
(A) M10X22 W/LK WASHER 		0-50041-022-0 06 1 9112- ●
20 BOLT; ENG FOOT
(C) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9112- ●
20 BOLT; ENG FOOT
(B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 9112- ●
20 BOLT; ENG FOOT
(A) M10X22 FLANGE 		0-28181-022-0 07 1 9112-9301 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28181-020-0 07 1 9302- ●
20 BOLT; ENG FOOT
(B) M10X40 FLANGE 		0-28181-040-0 01 1 9112- ●
25 BOLT; CUSHION RUBBER TO BRKT
M10X28 W/LK WASHER 		8-97035-564-0 04 1 9112- ● ●
49 NUT; CUSHION RUBBER TO FRAME
M10 FLANGE 		8-94126-973-0 02 1 9112- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
A/T AISIN(RMD) 		8-97039-195-6 01 1 9112- ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED(RMN) 		8-97039-196-6 01 1 9112- ●
52 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ) 		8-94375-288-1 01 1 9112-9504 ●
52 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94375-288-1 01 1 9505- ●
52 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA> 		8-97123-069-0 01 1 9505- ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED(RMN) 		8-94386-486-1 01 1 9112-9510 ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED(RMN) 		8-97123-260-0 01 1 9511- ●
56 NUT; ENG MTG
M10 		9-09110-510-0 04 1 9112-9504 ●
56 NUT; ENG MTG
M10 		9-09110-410-0 04 1 9505-9710 ●
56 NUT; ENG MTG
M10 FLANGE 		0-91150-110-0 04 1 9711-9712 ●
56 NUT; ENG MTG
M10 FLANGE 		0-91150-210-0 04 1 9801- ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 02 1 9112- ●
78 BRACKET; ENG MTG,RR
A/T AISIN(RMD) 		8-97063-020-3 01 1 9112- ●
78 BRACKET; ENG MTG,RR
M/T MUA 5 SPEED(RMN) 		8-97063-019-3 01 1 9112- ●
79 BOLT; SUPPORT RUBBER TO TRANS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9112-9509 ● ●
79 BOLT; SUPPORT RUBBER TO TRANS
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) M10X25 W/LK WASHER 		0-50041-025-0 02 1 9510- ● ●
152 DAMPER; DYNAMIC,ENG MTG 8-97061-853-0 01 1 9112-9410 ●
175 WASHER; PL,HEAT PROTECTOR
ID=10.2 		9-09150-810-0 04 1 9112-9710 ●
183 BOLT; DAMPER
M10X16 FLANGE 		0-28081-016-0 02 1 9112-9410 ●

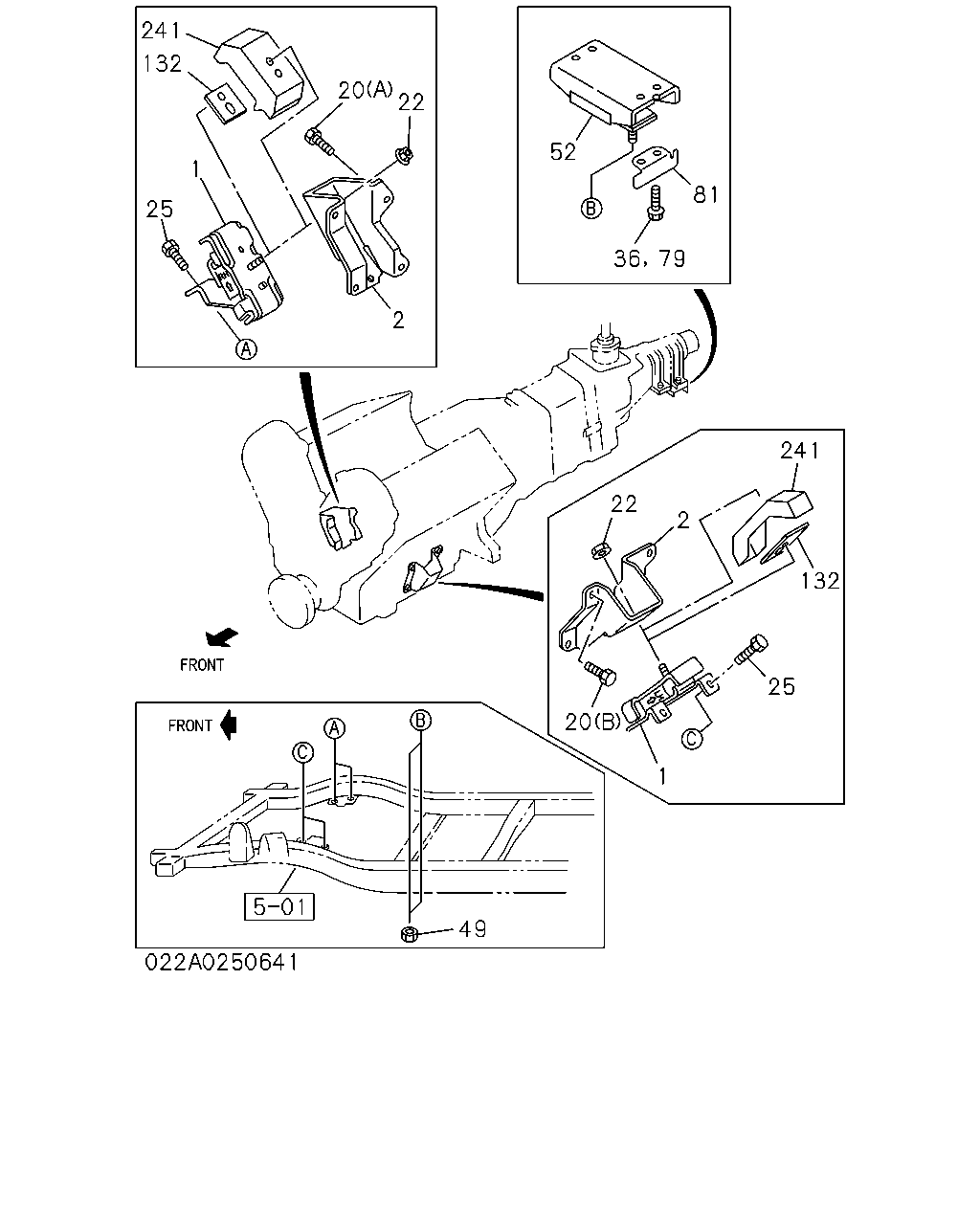

çizim 493898
132 241 20 22 2 25 1 52 36 81 79 241 132 25 2 22 20 1 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 8-97039-190-3 01 1 9112- ●
1 RUBBER; ENG FOOT,FRT 8-97039-189-3 01 1 9112- ●
1 RUBBER; ENG FOOT,FRT 8-94375-283-2 01 1 9112-9510 ●
1 RUBBER; ENG FOOT,FRT
EXC. AIR BAG DRIVER<AJ3> 		8-94375-283-2 01 1 9511-9605 ●
1 RUBBER; ENG FOOT,FRT 8-94375-282-5 01 1 9112-9510 ●
1 RUBBER; ENG FOOT,FRT
EXC. AIR BAG DRIVER<AJ3> 		8-94375-282-5 01 1 9511-9605 ●
1 RUBBER; ENG FOOT,FRT
AIR BAG DRIVER<AJ3> 		8-97104-158-1 01 1 9511-9605 ●
1 RUBBER; ENG FOOT,FRT 8-97104-158-1 01 1 9606- ●
1 RUBBER; ENG FOOT,FRT
AIR BAG DRIVER<AJ3> 		8-97104-157-1 01 1 9511-9605 ●
1 RUBBER; ENG FOOT,FRT 8-97104-157-1 01 1 9606- ●
2 FOOT; ENG 8-97038-196-1 01 1 9112- ●
2 FOOT; ENG 8-97038-195-1 01 1 9112- ●
2 FOOT; ENG 8-94374-504-0 01 1 9112-9301 ●
2 FOOT; ENG 8-97088-678-0 01 1 9302-9510 ●
2 FOOT; ENG
EXC. AIR BAG DRIVER<AJ3> 		8-97088-678-0 01 1 9511- ●
2 FOOT; ENG 8-94374-503-1 01 1 9112-9301 ●
2 FOOT; ENG 8-97088-677-0 01 1 9302-9510 ●
2 FOOT; ENG
EXC. AIR BAG DRIVER<AJ3> 		8-97088-677-0 01 1 9511- ●
2 FOOT; ENG
AIR BAG DRIVER<AJ3> 		8-97110-078-0 01 1 9511- ●
2 FOOT; ENG
AIR BAG DRIVER<AJ3> 		8-97110-077-0 01 1 9511- ●
20 BOLT; ENG FOOT
(A) M10X22 W/LK WASHER 		0-50041-022-0 06 1 9112- ●
20 BOLT; ENG FOOT
(C) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9112- ●
20 BOLT; ENG FOOT
(B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 9112- ●
20 BOLT; ENG FOOT
(A) M10X22 FLANGE 		0-28181-022-0 07 1 9112-9301 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28181-020-0 07 1 9302- ●
20 BOLT; ENG FOOT
(B) M10X40 FLANGE 		0-28181-040-0 01 1 9112- ●
22 NUT; CUSHION RUBBER TO BRKT
M12 FLANGE 		0-91150-112-0 02 1 9112-9510 ●
22 NUT; CUSHION RUBBER TO BRKT
EXC. AIR BAG DRIVER<AJ3> M12 FLANGE 		0-91150-112-0 02 1 9511-9605 ●
22 NUT; CUSHION RUBBER TO BRKT
AIR BAG DRIVER<AJ3> M10 FLANGE 		0-91150-110-0 04 1 9511-9605 ●
22 NUT; CUSHION RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9606- ●
25 BOLT; CUSHION RUBBER TO BRKT
M10X28 W/LK WASHER 		8-97035-564-0 04 1 9112- ● ●
36 BOLT; MTG RUBBER
A/T THM(RMQ) M10X35 FLANGE 		0-28681-035-0 02 1 9510- ●
49 NUT; CUSHION RUBBER TO FRAME
M10 FLANGE 		8-94126-973-0 02 1 9112- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
A/T AISIN(RMD) 		8-97039-195-6 01 1 9112- ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED(RMN) 		8-97039-196-6 01 1 9112- ●
52 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ) 		8-94375-288-1 01 1 9112-9504 ●
52 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ) EXC. VARIABLE TORQUE SPRIT<7HA> 		8-94375-288-1 01 1 9505- ●
52 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ) VARIABLE TORQUE SPRIT<7HA> 		8-97123-069-0 01 1 9505- ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED(RMN) 		8-94386-486-1 01 1 9112-9510 ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED(RMN) 		8-97123-260-0 01 1 9511- ●
79 BOLT; SUPPORT RUBBER TO TRANS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9112-9509 ● ●
79 BOLT; SUPPORT RUBBER TO TRANS
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) M10X25 W/LK WASHER 		0-50041-025-0 02 1 9510- ● ●
81 PROTECTOR; HEAT,ENG MTG
A/T THM(RMQ) 		8-97022-766-0 01 1 9112-9510 ●
81 PROTECTOR; HEAT,ENG MTG 8-97022-766-0 01 1 9511- ●
81 PROTECTOR; HEAT,ENG MTG
M/T MUA 5 SPEED(RMN) 		8-97022-765-0 01 1 9112-9510 ●
132 PLATE; ENG MTG
AIR BAG DRIVER<AJ3> 		8-97139-639-0 02 1 9511-9605 ●
132 PLATE; ENG MTG 8-97139-639-0 02 1 9606- ●
241 COVER; ENG MTG
AIR BAG DRIVER<AJ3> 		8-97137-834-0 01 1 9511-9605 ●
241 COVER; ENG MTG 8-97137-834-0 01 1 9606- ●
241 COVER; ENG MTG
AIR BAG DRIVER<AJ3> 		8-97137-833-0 01 1 9511-9605 ●
241 COVER; ENG MTG 8-97137-833-0 01 1 9606- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
