0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#166838) — 151 parça

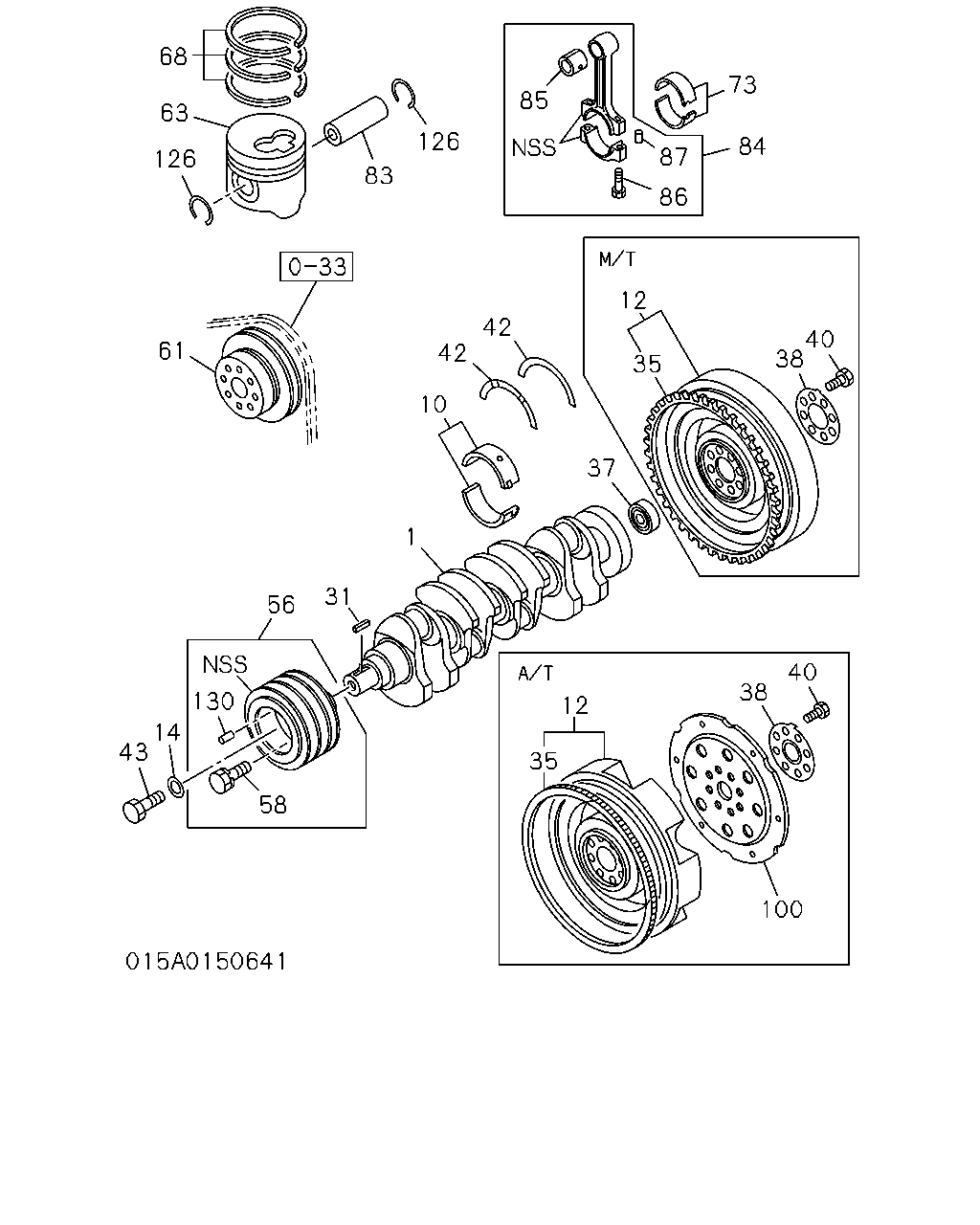

68 63 126 83 126 85 73 84 87 86 40 38 12 35 42 42 10 1 37 40 38 100 12 35 31 56 130 58 14 43 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-97023-182-1	01	1	9112-	●
1	CRANKSHAFT	8-97063-242-0	01	1	9112-9506		●
1	CRANKSHAFT	8-97112-580-2	01	1	9507-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9112-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9112-	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9112-	●
10	METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 YELLOW	8-97072-978-0	02	1	9112-		●
10	METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 GREEN	8-97072-979-0	02	1	9112-		●
10	METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 BROWN	8-97072-980-0	02	1	9112-		●
10	METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 PINK	8-97072-981-0	02	1	9112-		●
10	METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 BROWN	8-97072-982-0	02	1	9112-		●
10	METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 GREEN	8-97072-983-0	02	1	9112-		●
10	METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 YELLOW	8-97072-984-0	02	1	9112-		●
10	METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 PINK	8-97072-985-0	02	1	9112-		●
12	FLYWHEEL A/T AISIN(RMD)	8-97013-961-4	01	1	9112-9305	●
12	FLYWHEEL A/T AISIN(RMD)	8-97042-998-0	01	1	9306-9406	●
12	FLYWHEEL A/T AISIN(RMD)	8-97110-515-0	01	1	9407-	●
12	FLYWHEEL M/T MUA 5 SPEED(RMN) W/RING GEAR	8-97021-401-2	01	1	9112-	●
12	FLYWHEEL M/T MUA 5 SPEED(RMN) W/RING GEAR	8-94374-957-3	01	1	9112-		●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9401-	●
31	KEY; FEATHER,CR/SHF	9-08030-743-0	01	1	9112-	●
35	GEAR; RING Z=108	8-94419-602-0	01	1	9112-9406	●
35	GEAR; RING M/T MUA 5 SPEED(RMN) Z=108	8-94419-602-0	01	1	9407-9502	●
35	GEAR; RING Z=108	8-94419-602-0	01	1	9503-	●
35	GEAR; RING A/T THM(RMQ) W/DRIVE PLATE	8-94374-968-2	01	1	9112-		●
35	GEAR; RING M/T MUA 5 SPEED(RMN) ID=281	8-94374-959-0	01	1	9112-		●
37	BEARING; PILOT,TOP GEAR SHAFT NSK	9-00090-679-0	01	1	9112-9312	●
37	BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED(RMN) NSK	9-00090-679-0	01	1	9401-	●
37	BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED(RMN)	8-97031-741-0	01	1	9112-		●
38	WASHER; FLYWHEEL A/T AISIN(RMD)	8-97038-939-0	01	1	9112-	●
38	WASHER; FLYWHEEL M/T MUA 5 SPEED(RMN)	8-94133-970-0	01	1	9112-	●
38	WASHER; FLYWHEEL T=0.8	8-94235-325-1	01	1	9112-		●
40	BOLT; FLYWHEEL A/T AISIN(RMD) M13X78	8-97013-973-0	08	1	9112-9312	●
40	BOLT; FLYWHEEL A/T AISIN(RMD) M13X78	8-97080-561-1	08	1	9401-	●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN) M13X36.5	8-94433-991-0	08	1	9112-9312	●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN) M13X36	8-97065-984-1	08	1	9401-	●
40	BOLT; FLYWHEEL A/T THM(RMQ) M10X17	8-97015-187-0	08	1	9112-		●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN) M10X31	8-94379-616-0	08	1	9112-		●
42	WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9112-	●
42	WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	9112-		●
43	BOLT; CR/SHF PULLEY M16X29 FLANGE	8-94433-406-0	01	1	9112-9312	●
43	BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9401-	●
43	BOLT; CR/SHF PULLEY M16X30	8-94108-479-0	01	1	9112-		●
56	PULLEY; CR/SHF DAMPER 3-GROOVE	8-94460-623-1	01	1	9112-9707	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9708-	●
58	BOLT; CR/SHF PULLEY M8X18 W/LK WASHER	0-50040-818-0	04	1	9112-	●
61	PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9112-	●
61	PULLEY; FAN DRIVE 4-GROOVE OD=127	8-97018-941-0	01	1	9112-		●
63	PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-620-0	04	1	9112-9307	●
63	PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-621-0	04	1	9112-9307	●
63	PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-622-0	04	1	9308-9504	●
63	PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-623-0	04	1	9308-9504	●
63	PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-624-0	04	1	9505-	●
63	PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-625-0	04	1	9505-	●
63	PISTON GRADE=A	8-97176-817-0	06	1	9112-		●
63	PISTON GRADE=B	8-97176-818-0	06	1	9112-		●
63	PISTON GRADE=C	8-97176-819-0	06	1	9112-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94370-449-0	04	1	9112-9307	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9308-9708	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9709-	●
68	RING SET; PISTON,STANDARD	8-94319-223-0	06	1	9112-9501		●
68	RING SET; PISTON,STANDARD	8-97127-562-0	06	1	9502-9606		●
68	RING SET; PISTON,STANDARD	8-97162-198-0	06	1	9607-		●
73	METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9112-	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97072-986-0	06	1	9112-		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97072-987-0	06	1	9112-		●
73	METAL SET; CONN ROD,STANDARD PINK	8-97072-988-0	06	1	9112-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-0	04	1	9112-	●
83	PIN; PISTON	9-12211-034-1	06	1	9112-		●
84	ROD ASM; CONN	8-97062-300-0	04	1	9112-	●
84	ROD ASM; CONN	8-94319-046-3	06	1	9112-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9112-	●
86	BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9112-	●
86	BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	9112-		●
87	PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9112-	●
100	PLATE; FLEX A/T AISIN(RMD)	8-97013-963-4	01	1	9112-9409	●
100	PLATE; FLEX A/T AISIN(RMD)	8-97118-308-0	01	1	9410-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	9112-	●
130	PIN; STRAIGHT OD=4 L=12	9-08160-412-0	01	1	9112-	●

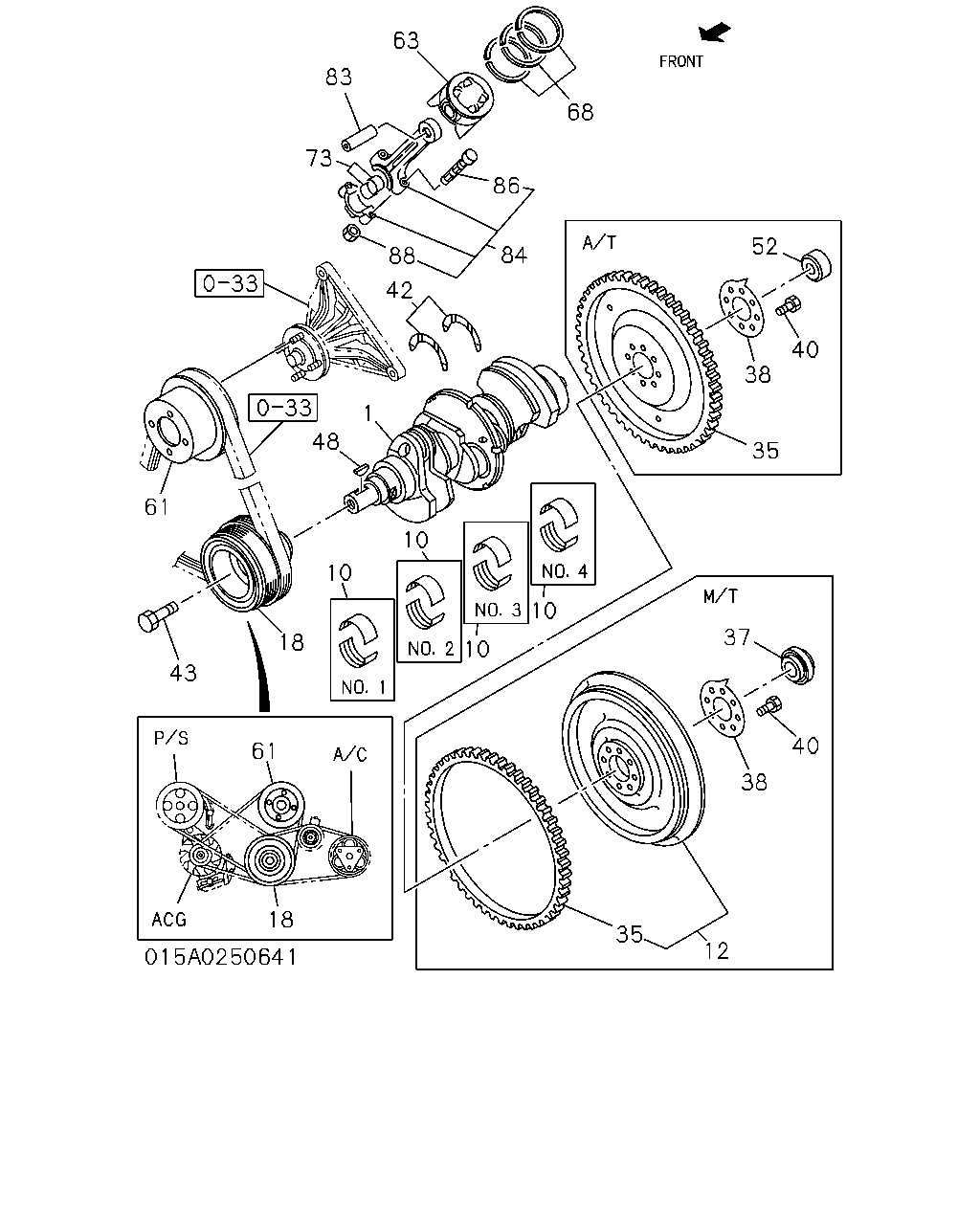

63 83 73 88 42 86 68 84 52 40 38 35 37 40 38 35 12 10 10 10 10 18 43 18 61 61 48 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-97023-182-1	01	1	9112-	●
1	CRANKSHAFT	8-97063-242-0	01	1	9112-9506		●
1	CRANKSHAFT	8-97112-580-2	01	1	9507-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9112-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9112-	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9112-	●
10	METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 YELLOW	8-97072-978-0	02	1	9112-		●
10	METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 GREEN	8-97072-979-0	02	1	9112-		●
10	METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 BROWN	8-97072-980-0	02	1	9112-		●
10	METAL SET; CRANKSHAFT,STANDARD NO.2 NO.3 PINK	8-97072-981-0	02	1	9112-		●
10	METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 BROWN	8-97072-982-0	02	1	9112-		●
10	METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 GREEN	8-97072-983-0	02	1	9112-		●
10	METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 YELLOW	8-97072-984-0	02	1	9112-		●
10	METAL SET; CRANKSHAFT,STANDARD NO.1 NO.4 PINK	8-97072-985-0	02	1	9112-		●
12	FLYWHEEL A/T AISIN(RMD)	8-97013-961-4	01	1	9112-9305	●
12	FLYWHEEL A/T AISIN(RMD)	8-97042-998-0	01	1	9306-9406	●
12	FLYWHEEL A/T AISIN(RMD)	8-97110-515-0	01	1	9407-	●
12	FLYWHEEL M/T MUA 5 SPEED(RMN) W/RING GEAR	8-97021-401-2	01	1	9112-	●
12	FLYWHEEL M/T MUA 5 SPEED(RMN) W/RING GEAR	8-94374-957-3	01	1	9112-		●
18	PULLEY; CR/SHF 3-GROOVE	8-97045-330-3	01	1	9112-		●
35	GEAR; RING Z=108	8-94419-602-0	01	1	9112-9406	●
35	GEAR; RING M/T MUA 5 SPEED(RMN) Z=108	8-94419-602-0	01	1	9407-9502	●
35	GEAR; RING Z=108	8-94419-602-0	01	1	9503-	●
35	GEAR; RING A/T THM(RMQ) W/DRIVE PLATE	8-94374-968-2	01	1	9112-		●
35	GEAR; RING M/T MUA 5 SPEED(RMN) ID=281	8-94374-959-0	01	1	9112-		●
37	BEARING; PILOT,TOP GEAR SHAFT NSK	9-00090-679-0	01	1	9112-9312	●
37	BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED(RMN) NSK	9-00090-679-0	01	1	9401-	●
37	BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED(RMN)	8-97031-741-0	01	1	9112-		●
38	WASHER; FLYWHEEL A/T AISIN(RMD)	8-97038-939-0	01	1	9112-	●
38	WASHER; FLYWHEEL M/T MUA 5 SPEED(RMN)	8-94133-970-0	01	1	9112-	●
38	WASHER; FLYWHEEL T=0.8	8-94235-325-1	01	1	9112-		●
40	BOLT; FLYWHEEL A/T AISIN(RMD) M13X78	8-97013-973-0	08	1	9112-9312	●
40	BOLT; FLYWHEEL A/T AISIN(RMD) M13X78	8-97080-561-1	08	1	9401-	●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN) M13X36.5	8-94433-991-0	08	1	9112-9312	●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN) M13X36	8-97065-984-1	08	1	9401-	●
40	BOLT; FLYWHEEL A/T THM(RMQ) M10X17	8-97015-187-0	08	1	9112-		●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN) M10X31	8-94379-616-0	08	1	9112-		●
42	WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9112-	●
42	WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	9112-		●
43	BOLT; CR/SHF PULLEY M16X29 FLANGE	8-94433-406-0	01	1	9112-9312	●
43	BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9401-	●
43	BOLT; CR/SHF PULLEY M16X30	8-94108-479-0	01	1	9112-		●
48	KEY; WOODRUFF,CR/SHF	5-09737-003-0	01	1	9112-		●
52	SLEEVE; CONV PILOT A/T THM(RMQ)	8-94384-695-0	01	1	9112-		●
61	PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9112-	●
61	PULLEY; FAN DRIVE 4-GROOVE OD=127	8-97018-941-0	01	1	9112-		●
63	PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-620-0	04	1	9112-9307	●
63	PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-621-0	04	1	9112-9307	●
63	PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-622-0	04	1	9308-9504	●
63	PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-623-0	04	1	9308-9504	●
63	PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-624-0	04	1	9505-	●
63	PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-625-0	04	1	9505-	●
63	PISTON GRADE=A	8-97176-817-0	06	1	9112-		●
63	PISTON GRADE=B	8-97176-818-0	06	1	9112-		●
63	PISTON GRADE=C	8-97176-819-0	06	1	9112-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94370-449-0	04	1	9112-9307	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97080-215-0	04	1	9308-9708	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9709-	●
68	RING SET; PISTON,STANDARD	8-94319-223-0	06	1	9112-9501		●
68	RING SET; PISTON,STANDARD	8-97127-562-0	06	1	9502-9606		●
68	RING SET; PISTON,STANDARD	8-97162-198-0	06	1	9607-		●
73	METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9112-	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97072-986-0	06	1	9112-		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97072-987-0	06	1	9112-		●
73	METAL SET; CONN ROD,STANDARD PINK	8-97072-988-0	06	1	9112-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-0	04	1	9112-	●
83	PIN; PISTON	9-12211-034-1	06	1	9112-		●
84	ROD ASM; CONN	8-97062-300-0	04	1	9112-	●
84	ROD ASM; CONN	8-94319-046-3	06	1	9112-		●
86	BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9112-	●
86	BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	9112-		●
88	NUT; CONNROD 3/8-24 UNF	8-94377-785-0	12	1	9112-		●
