0-14 — CAMSHAFT AND VALVE (#166837) — 143 parça

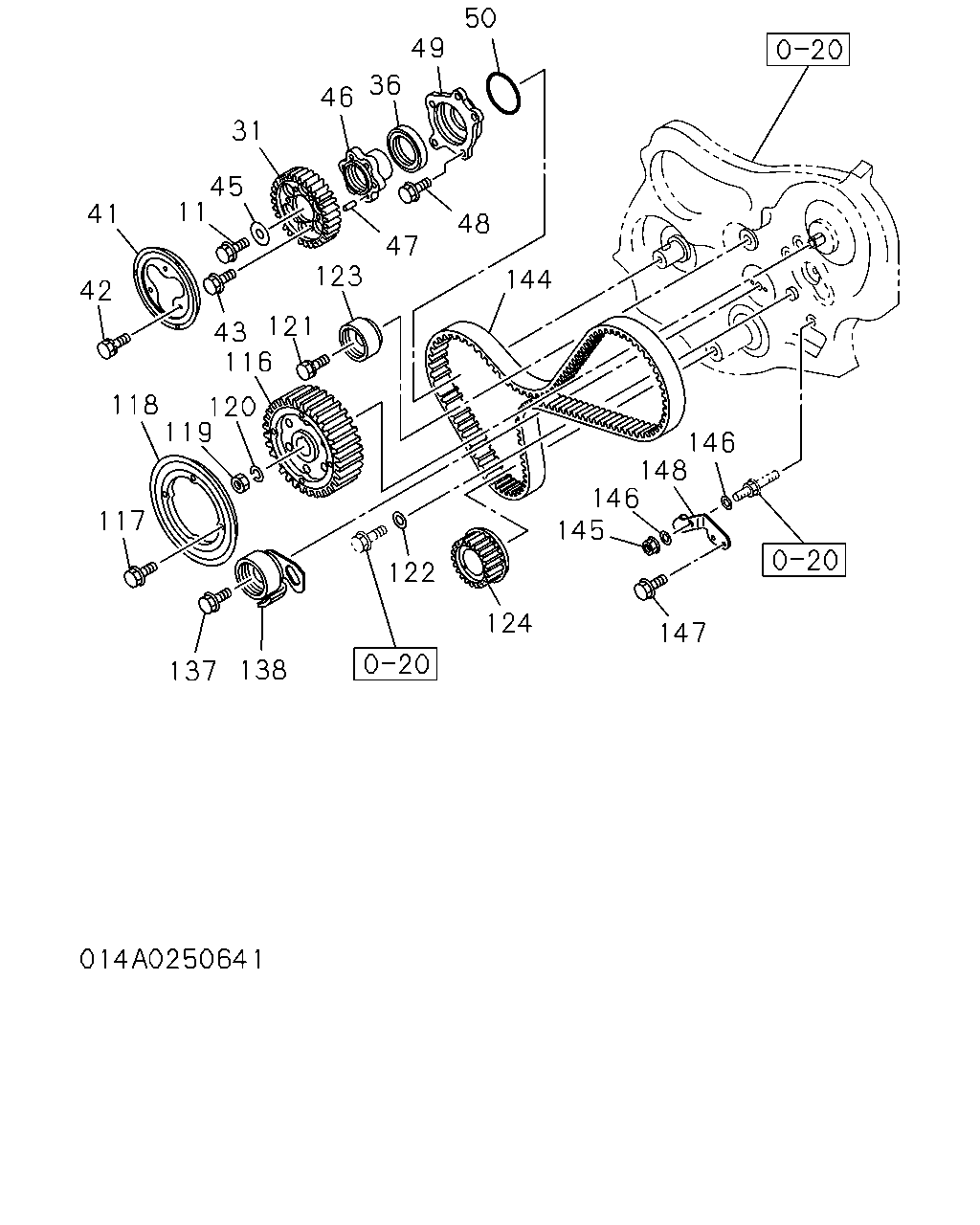

46 36 49 50 31 45 11 41 42 118 119 120 43 121 123 47 48 144 146 148 146 145 122 124 147 138 137 117 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9112-	●
31	SPROCKET; CM/SHF Z=44	8-94133-510-2	01	1	9112-9210	●
31	SPROCKET; CM/SHF Z=44	8-97043-288-0	01	1	9211-9503	●
31	SPROCKET; CM/SHF Z=44	8-97116-059-0	01	1	9504-9607	●
31	SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	9608-	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56 T=7.0	8-94214-912-0	01	1	9112-9305	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56 T=7.0	8-97080-562-0	01	1	9306-	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94389-593-1	02	1	9112-		●
41	FLANGE; CAM PULLEY	8-94157-492-0	01	1	9112-	●
42	BOLT; FLANGE CAM M8X16 W/LK WASHER	0-50040-816-0	03	1	9112-9308	●
42	BOLT; FLANGE CAM M8X18 W/LK WASHER	0-50040-818-0	03	1	9308-	●
43	BOLT; PULLEY M6X16 W/LK WASHER	0-50040-616-0	03	1	9112-	●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9112-	●
46	CENTER ASM; TIMING PULLEY	8-94133-513-1	01	1	9112-9501	●
46	CENTER ASM; TIMING PULLEY	8-97118-491-0	01	1	9502-	●
47	PIN; STRAIGHT,CENTER OD=4 L=12	9-08160-412-0	01	1	9112-	●
48	BOLT; RET M8X35 W/LK WASHER	0-50040-835-0	05	1	9112-	●
49	RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	9112-	●
50	GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09561-250-0	01	1	9112-9305	●
50	GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97080-893-0	01	1	9306-	●
116	PULLEY; TIMING,INJ PUMP	8-94387-652-0	01	1	9112-9211	●
116	PULLEY; TIMING,INJ PUMP Z=44 B=37.7	8-97043-289-0	01	1	9212-	●
117	BOLT; FLANGE M6X12 W/LK WASHER	0-50040-612-0	04	1	9112-9607	●
118	FLANGE; INJ PUMP PULLEY	5-12539-020-0	01	1	9112-9607	●
119	NUT; PULLEY M14	8-94226-565-0	01	1	9112-	●
120	WASHER; LK,PULLEY,INJ PUMP	8-94226-554-0	01	1	9112-	●
121	BOLT; IDLE PULLEY M12X60	0-10811-260-0	01	1	9112-9206	●
121	BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-0	01	1	9207-	●
121	BOLT; IDLE PULLEY M10X60 FLANGE	0-28191-060-0	01	1	9112-		●
122	WASHER; IDLE,TIMING BELT ID=12.5	9-09164-512-0	01	1	9112-9206	●
123	PULLEY; IDLE,TIMING	8-94382-215-0	01	1	9112-	●
123	PULLEY; IDLE,TIMING	8-94386-488-3	01	1	9112-		●
124	PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	9112-	●
124	PULLEY; TIMING,CR/SHF Z=26	8-94344-559-3	01	1	9112-		●
137	BOLT; TENSIONER M12X57 FLANGE	8-94433-408-0	01	1	9112-	●
138	TENSIONER; TIMING BELT	8-94382-214-0	01	1	9112-	●
144	BELT; TIMING BLUE	8-94380-679-0	01	1	9112-9304	●
144	BELT; TIMING BLUE	8-97065-986-0	01	1	9305-9503	●
144	BELT; TIMING BLUE	8-94380-679-0	01	1	9504-	●
144	BELT; TIMING	8-94386-497-0	01	1	9112-		●
145	NUT; FLANGE M8	8-94224-829-0	01	1	9112-9606	●
145	NUT; FLANGE M8 FLANGE	0-91150-208-0	01	1	9607-	●
146	WASHER; PL,TENSION LEVER ID=8.4 OD=22	9-09164-708-0	02	1	9112-	●
147	BOLT; TENSION LEVER M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9112-9605	●
147	BOLT; TENSION LEVER M6X12 FLANGE	0-28080-612-0	01	1	9606-	●
148	LEVER; TENSION,TIMING BELT	8-94167-317-0	01	1	9112-9605	●
148	LEVER; TENSION,TIMING BELT	8-97146-370-0	01	1	9606-	●

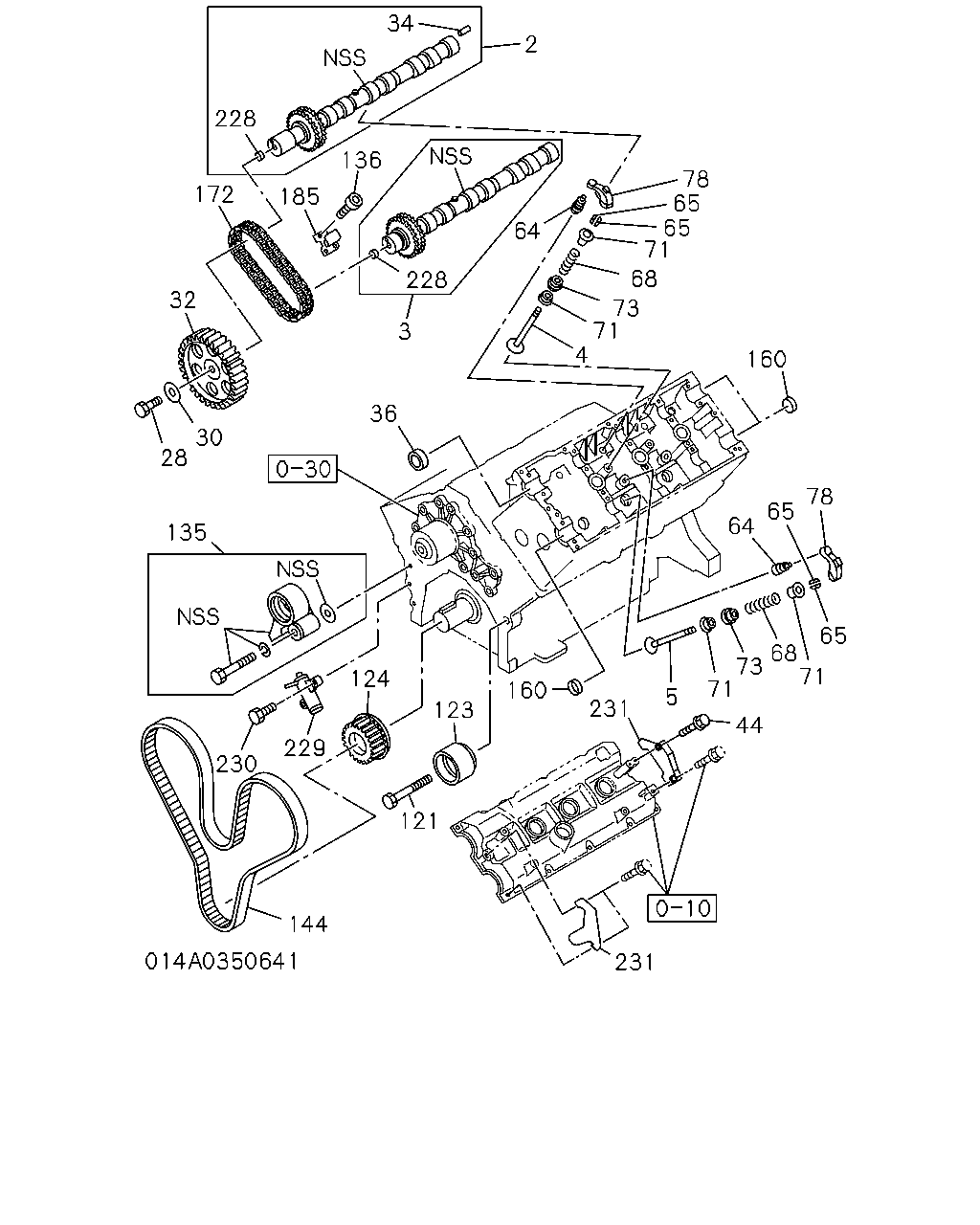

34 2 228 185 136 172 32 30 28 135 230 229 124 123 121 144 231 231 160 5 71 44 73 68 71 65 78 65 64 160 4 36 3 228 64 71 73 68 71 65 65 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CAMSHAFT; INL	8-97027-954-1	01	1	9112-		●
2	CAMSHAFT; INL	8-97027-953-1	01	1	9112-		●
3	CAMSHAFT; EXH	8-97027-956-1	01	1	9112-		●
3	CAMSHAFT; EXH	8-97027-955-1	01	1	9112-		●
4	VALVE; INL	8-94363-134-0	04	1	9112-9307	●
4	VALVE; INL	8-97080-214-1	04	1	9308-9504	●
4	VALVE; INL	8-97131-729-0	04	1	9505-	●
4	VALVE; INL	8-97027-499-2	12	1	9112-		●
5	VALVE; EXH	8-97043-861-1	04	1	9112-	●
5	VALVE; EXH	8-97014-174-1	12	1	9112-		●
28	BOLT; CAM PULLEY M10X32	9-02061-032-0	02	1	9112-9401		●
28	BOLT; CAM PULLEY M10X32	8-97109-673-0	02	1	9402-		●
30	WASHER; PULLEY	8-94232-045-0	02	1	9112-		●
32	SPROCKET; CM/SHF INL	8-97016-141-2	01	1	9112-9411		●
32	SPROCKET; CM/SHF INL	8-97065-823-2	02	1	9412-		●
32	SPROCKET; CM/SHF INL	8-97066-480-2	01	1	9112-9411		●
34	PIN; CM/SHF OD=5 L=10	9-08160-510-0	02	1	9112-		●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56 T=7.0	8-94214-912-0	01	1	9112-9305	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56 T=7.0	8-97080-562-0	01	1	9306-	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94389-593-1	02	1	9112-		●
44	BOLT M6X12 FLANGE	0-28080-612-0	02	1	9112-		●
64	ADJUSTER; VLV LASH	8-94470-951-0	24	1	9112-		●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9112-	●
65	COLLAR; SPLIT	8-94429-487-0	48	1	9112-		●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	9112-	●
68	SPRING; VLV	8-97023-108-1	24	1	9112-		●
71	SEAT; SPR LOWER OD=34	5-12563-001-0	08	1	9112-	●
71	SEAT; SPR UPPER OD=32.8	8-94133-731-2	08	1	9112-	●
71	SEAT; SPR LOWER OD=30.5	8-94316-354-0	24	1	9112-		●
71	SEAT; SPR UPPER OD=29	8-94370-633-1	24	1	9112-		●
73	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94324-158-1	24	1	9112-		●
78	ARM; ROCKER	8-94152-344-0	08	1	9112-	●
78	ARM; ROCKER	8-97017-556-0	24	1	9112-		●
121	BOLT; IDLE PULLEY M12X60	0-10811-260-0	01	1	9112-9206	●
121	BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-0	01	1	9207-	●
121	BOLT; IDLE PULLEY M10X60 FLANGE	0-28191-060-0	01	1	9112-		●
123	PULLEY; IDLE,TIMING	8-94382-215-0	01	1	9112-	●
123	PULLEY; IDLE,TIMING	8-94386-488-3	01	1	9112-		●
124	PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	9112-	●
124	PULLEY; TIMING,CR/SHF Z=26	8-94344-559-3	01	1	9112-		●
135	PULLEY; TENSIONER	8-94364-816-1	01	1	9112-9408		●
135	PULLEY; TENSIONER	8-97116-001-0	01	1	9409-		●
136	BOLT; TENSIONER M8X22 W/LK WASHER	0-50040-822-0	06	1	9112-		●
144	BELT; TIMING BLUE	8-94380-679-0	01	1	9112-9304	●
144	BELT; TIMING BLUE	8-97065-986-0	01	1	9305-9503	●
144	BELT; TIMING BLUE	8-94380-679-0	01	1	9504-	●
144	BELT; TIMING	8-94386-497-0	01	1	9112-		●
160	PLUG; CM/SHF END NOK OD=45	8-94471-941-2	06	1	9112-		●
172	CHAIN; TIMING,CM/SHF	8-97016-563-0	02	1	9112-		●
185	TENSIONER; CHAIN	8-97032-205-4	01	1	9112-		●
185	TENSIONER; CHAIN	8-97032-204-3	01	1	9112-		●
228	CUP; SEALING,CAMSHAFT OD=8	8-97039-526-0	04	1	9112-		●
229	ROD ASM; PUSH,TENSIONER	8-94364-817-0	01	1	9112-9408		●
229	ROD ASM; PUSH,TENSIONER	8-97116-003-1	01	1	9409-		●
230	BOLT; PUSH ROD M8X25 FLANGE	0-28080-825-0	02	1	9112-		●
231	PLATE; CAP REAR	8-97113-997-0	01	1	9112-9405		●
231	PLATE; CAP REAR	8-97116-085-0	01	1	9406-		●
231	PLATE; CAP REAR	8-97113-998-0	01	1	9112-9405		●
231	PLATE; CAP REAR	8-97116-084-0	01	1	9406-		●
231	PLATE; CAP FRONT	8-97116-087-0	01	1	9112-		●
231	PLATE; CAP FRONT	8-97116-086-0	01	1	9112-		●

83 81 55 56 78 84 78 95 54 85 53 86 87 86 84 55 78 78 78 78 78 78 65 65 71 68 72 71 88 4 89 5 14 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-94127-797-4	01	1	9112-	●
4	VALVE; INL	8-94363-134-0	04	1	9112-9307	●
4	VALVE; INL	8-97080-214-1	04	1	9308-9504	●
4	VALVE; INL	8-97131-729-0	04	1	9505-	●
4	VALVE; INL	8-97027-499-2	12	1	9112-		●
5	VALVE; EXH	8-97043-861-1	04	1	9112-	●
5	VALVE; EXH	8-97014-174-1	12	1	9112-		●
14	KEY; CM/SHF	9-08000-718-0	01	1	9112-	●
53	SHAFT; ROCKER ARM	8-94343-205-0	01	1	9112-	●
54	WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9112-	●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9112-	●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9112-	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9112-	●
65	COLLAR; SPLIT	8-94429-487-0	48	1	9112-		●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	9112-	●
68	SPRING; VLV	8-97023-108-1	24	1	9112-		●
71	SEAT; SPR LOWER OD=34	5-12563-001-0	08	1	9112-	●
71	SEAT; SPR UPPER OD=32.8	8-94133-731-2	08	1	9112-	●
71	SEAT; SPR LOWER OD=30.5	8-94316-354-0	24	1	9112-		●
71	SEAT; SPR UPPER OD=29	8-94370-633-1	24	1	9112-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	5-12569-006-0	08	1	9112-9604	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9605-	●
78	ARM; ROCKER	8-94152-344-0	08	1	9112-	●
78	ARM; ROCKER	8-97017-556-0	24	1	9112-		●
81	SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9112-	●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	9112-	●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9112-	●
85	BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	02	1	9112-	●
85	BOLT; BRKT M8X37 & M10X60 L=104	8-94437-493-1	01	1	9112-	●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9112-	●
87	BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9112-	●
88	ROD; PUSH	8-94143-202-0	08	1	9112-9307	●
88	ROD; PUSH	8-97071-673-0	08	1	9308-	●
89	TAPPET; VLV	8-94438-305-0	08	1	9112-	●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9112-	●
