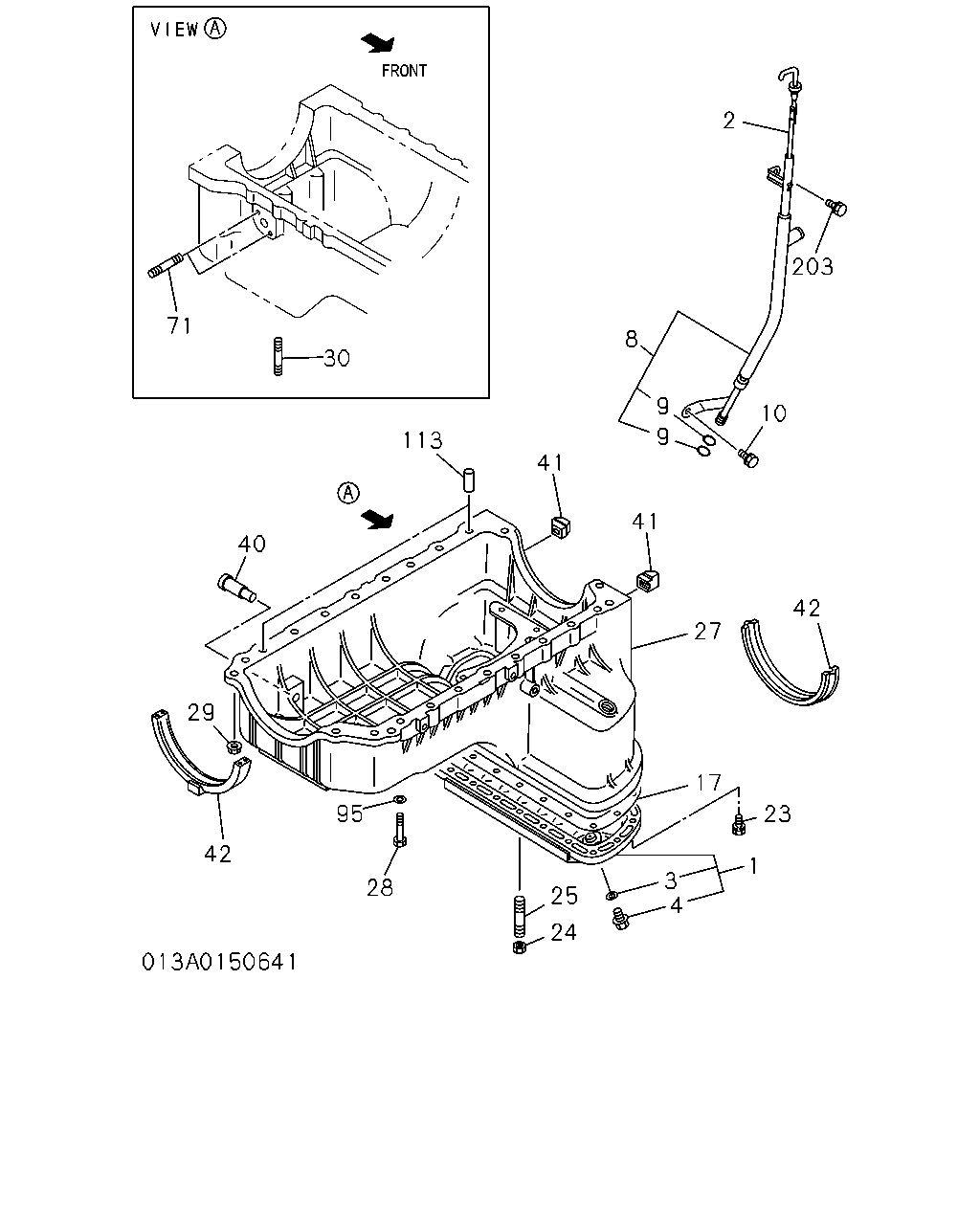

1 |
PAN ASM; OIL
|
8-97048-959-1 |
01 |
1 |
9112-9501 |
● |
|
| |
1 |
PAN ASM; OIL
|
8-97122-570-1 |
01 |
1 |
9502-9512 |
● |
|
| |
1 |
PAN ASM; OIL
|
8-97137-919-0 |
01 |
1 |
9601- |
● |
|
| |
1 |
PAN ASM; OIL
|
8-94389-542-3 |
01 |
1 |
9112- |
|
● |
| |
2 |
GAUGE; OIL LEVEL
|
8-94363-215-1 |
01 |
1 |
9112-9209 |
● |
|
| |
2 |
GAUGE; OIL LEVEL
920914-
|
8-97085-167-0 |
01 |
1 |
9209- |
● |
|
| |
2 |
GAUGE; OIL LEVEL
|
8-97021-930-3 |
01 |
1 |
9112- |
|
● |
| |
3 |
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=14.2 OD=24
|
8-94158-328-0 |
01 |
1 |
9112- |
● |
|
| |
3 |
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=14.2 OD=20.0
|
9-09571-414-0 |
01 |
1 |
9112- |
|
● |
| |
4 |
PLUG; DRAIN,OIL
M14X14
|
8-94152-613-0 |
01 |
1 |
9112- |
● |
|
| |
4 |
PLUG; DRAIN,OIL
M14X14
|
9-09862-156-0 |
01 |
1 |
9112- |
|
● |
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
|
8-97038-960-2 |
01 |
1 |
9112- |
● |
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
|
8-97020-646-3 |
01 |
1 |
9112-9408 |
|
● |
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
|
8-97109-941-1 |
01 |
1 |
9409-9510 |
|
● |
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
|
8-97104-312-1 |
01 |
1 |
9511- |
|
● |
| |
9 |
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=11
|
5-09623-002-0 |
02 |
1 |
9112- |
● |
● |
| |
10 |
BOLT; GUIDE TUBE
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9112-9603 |
● |
|
| |
10 |
BOLT; GUIDE TUBE
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9604- |
● |
|
| |
10 |
BOLT; GUIDE TUBE
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9112- |
|
● |
| |
17 |
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-97047-397-0 |
01 |
1 |
9112-9405 |
● |
|
| |
17 |
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-97113-069-0 |
01 |
1 |
9406-9501 |
● |
|
| |
23 |
BOLT; OIL PAN
M6X12 FLANGE
|
0-28080-612-0 |
17 |
1 |
9112-9501 |
● |
|
| |
23 |
BOLT; OIL PAN
M6X12 FLANGE
|
0-28080-612-0 |
15 |
1 |
9502-9502 |
● |
|
| |
23 |
BOLT; OIL PAN
M6X12 FLANGE
|
0-28080-612-0 |
17 |
1 |
9503-9505 |
● |
|
| |
23 |
BOLT; OIL PAN
M6X13 W/PL WASHER
|
8-97135-141-0 |
17 |
1 |
9506-9509 |
● |
|
| |
23 |
BOLT; OIL PAN
M6X13 W/PL WASHER
|
8-97135-141-0 |
15 |
1 |
9510- |
● |
|
| |
23 |
BOLT; OIL PAN
M6X12 HEX SOCKET
|
9-05820-612-0 |
16 |
1 |
9112-9308 |
|
● |
| |
23 |
BOLT; OIL PAN
930823-
M6X12 HEX SOCKET
|
9-05820-612-0 |
17 |
1 |
9308-9310 |
|
● |
| |
23 |
BOLT; OIL PAN
M6X12 HEX SOCKET
|
9-05820-612-0 |
18 |
1 |
9311- |
|
● |
| |
24 |
NUT; OIL PAN
M6 W/LK WASHER
|
8-97137-836-0 |
02 |
1 |
9510- |
● |
|
| |
24 |
NUT; OIL PAN
M6 FLANGE
|
0-91150-106-0 |
04 |
1 |
9112-9307 |
|
● |
| |
24 |
NUT; OIL PAN
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
9308-9310 |
|
● |
| |
24 |
NUT; OIL PAN
M6 FLANGE
|
0-91150-106-0 |
02 |
1 |
9311- |
|
● |
| |
25 |
STUD; OIL PAN
M6X12 L=21
|
9-04110-612-0 |
02 |
1 |
9502- |
● |
|
| |
25 |
STUD; OIL PAN
|
8-94158-035-0 |
02 |
1 |
9112-9307 |
|
● |
| |
25 |
STUD; OIL PAN
M6X19 L=27
|
8-94343-896-0 |
01 |
1 |
9308- |
|
● |
| |
27 |
CRANKCASE
|
8-97021-408-4 |
01 |
1 |
9112-9410 |
● |
|
| |
27 |
CRANKCASE
W/BAFFLE-PLATE & PIPE
|
8-97120-920-1 |
01 |
1 |
9411- |
● |
|
| |
28 |
BOLT; CRANKCASE TO C/BL
M8X32 W/LK WASHER
|
0-50040-832-0 |
19 |
1 |
9112- |
● |
|
| |
28 |
BOLT; CRANKCASE TO C/BL
M8X125 W/LK WASHER
|
8-94142-256-1 |
01 |
1 |
9112-9612 |
● |
|
| |
28 |
BOLT; CRANKCASE TO C/BL
M8X120 FLANGE
|
0-28085-812-0 |
01 |
1 |
9701- |
● |
|
| |
29 |
NUT; CRANKCASE
M8 FLANGE
|
5-09440-010-0 |
02 |
1 |
9112-9303 |
● |
|
| |
29 |
NUT; CRANKCASE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9304- |
● |
|
| |
30 |
STUD; CRANKCASE
M8X35 L=47
|
9-04110-835-0 |
02 |
1 |
9112- |
● |
|
| |
40 |
NIPPLE; OIL RETURN HOSE VAC PUMP
|
5-11369-038-0 |
01 |
1 |
9112- |
● |
|
| |
41 |
RUBBER; SPACE
|
8-97123-362-0 |
01 |
1 |
9505-9605 |
● |
|
| |
41 |
RUBBER; SPACE
|
8-97123-363-0 |
01 |
1 |
9505-9605 |
● |
|
| |
42 |
GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
FRONT
|
8-94174-939-1 |
01 |
1 |
9112-9205 |
● |
|
| |
42 |
GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
FRONT
|
8-97074-727-0 |
01 |
1 |
9206-9412 |
● |
|
| |
42 |
GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
FRONT
|
8-97120-933-0 |
01 |
1 |
9501- |
● |
|
| |
42 |
GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
REAR
|
8-97014-416-0 |
01 |
1 |
9112-9207 |
● |
|
| |
42 |
GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
REAR
|
8-97074-728-1 |
01 |
1 |
9208-9411 |
● |
|
| |
42 |
GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
REAR
|
8-97123-342-0 |
01 |
1 |
9412- |
● |
|
| |
71 |
STUD; OIL DRAIN PIPE
M8X18 L=30
|
9-04110-818-0 |
02 |
1 |
9112- |
● |
|
| |
95 |
WASHER; PL,CRANKCASE
A/T AISIN(RMD)
ID=12.5 OD=26
|
9-09164-612-0 |
02 |
1 |
9112-9705 |
● |
● |
| |
113 |
PIN; STRAIGHT
L=31
|
9-09878-597-0 |
02 |
1 |
9112- |
● |
|
| |
203 |
BOLT; CLIP
M8X16 W/LK WASHER
|
0-50040-816-0 |
01 |
1 |
9112-9603 |
● |
|
| |
203 |
BOLT; CLIP
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9604- |
● |
|
