0-12 — CYLINDER BLOCK (#166835) — 97 parça

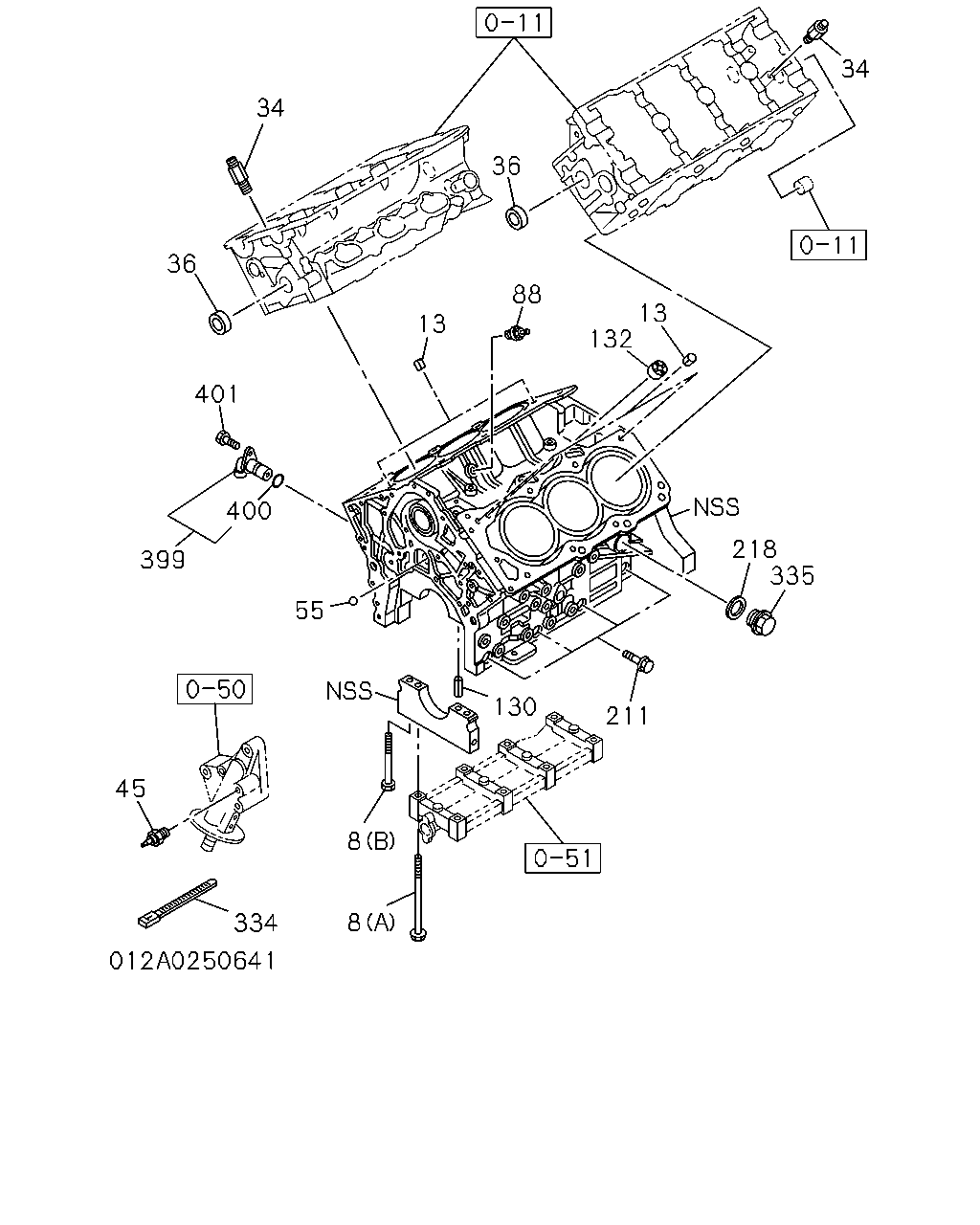

34 36 401 400 55 399 8 8 334 45 130 211 218 335 132 13 88 13 36 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9112-	●
8	BOLT; BRG CAP (A) M11X143 FLANGE	8-94363-095-1	08	1	9112-		●
8	BOLT; BRG CAP (B) M9X85 FLANGE	8-94363-224-1	08	1	9112-		●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9112-	●
13	DOWEL; C/BL TO HD OD=15.25	8-94200-819-0	04	1	9112-		●
34	VALVE; OIL RELIEF	8-94384-311-0	02	1	9112-		●
36	CUP; SEALING,WATER JACKET OD=30	8-94241-638-0	02	1	9112-		●
45	SWITCH; OIL PRESSURE	8-94312-940-0	01	1	9112-		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	9112-		●
88	SENSOR; KNOCK CONT	8-10456-085-0	01	1	9112-		●
130	DOWEL; BRG CAP	8-94382-070-0	08	1	9112-		●
132	VALVE; CHECK,OIL	8-97025-439-1	02	1	9112-		●
211	BOLT; CRANKCASE M10X31 FLANGE	8-94363-094-1	08	1	9112-		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97028-304-0	01	1	9112-9310		●
334	CLIP; BAND,OIL PRESS UNIT L=140	5-09707-031-0	01	1	9112-9505	●	●
334	CLIP; BAND,OIL PRESS UNIT EXC. VARIABLE TORQUE SPRIT<7HA> L=140	5-09707-031-0	01	1	9506-	●	●
335	PLUG; C/BL,SIDE M28X16 FLANGE	8-97028-246-2	01	1	9112-		●
399	SENSOR; CRANKSHAFT POSITION	8-01103-661-0	01	1	9112-9305		●
399	SENSOR; CRANKSHAFT POSITION	8-10456-043-0	01	1	9306-		●
400	GASKET; CRANKSHAFT POSITION SENSOR	8-97049-451-0	01	1	9112-9305		●
400	GASKET; CRANKSHAFT POSITION SENSOR	8-01989-866-0	01	1	9306-		●
401	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9112-		●

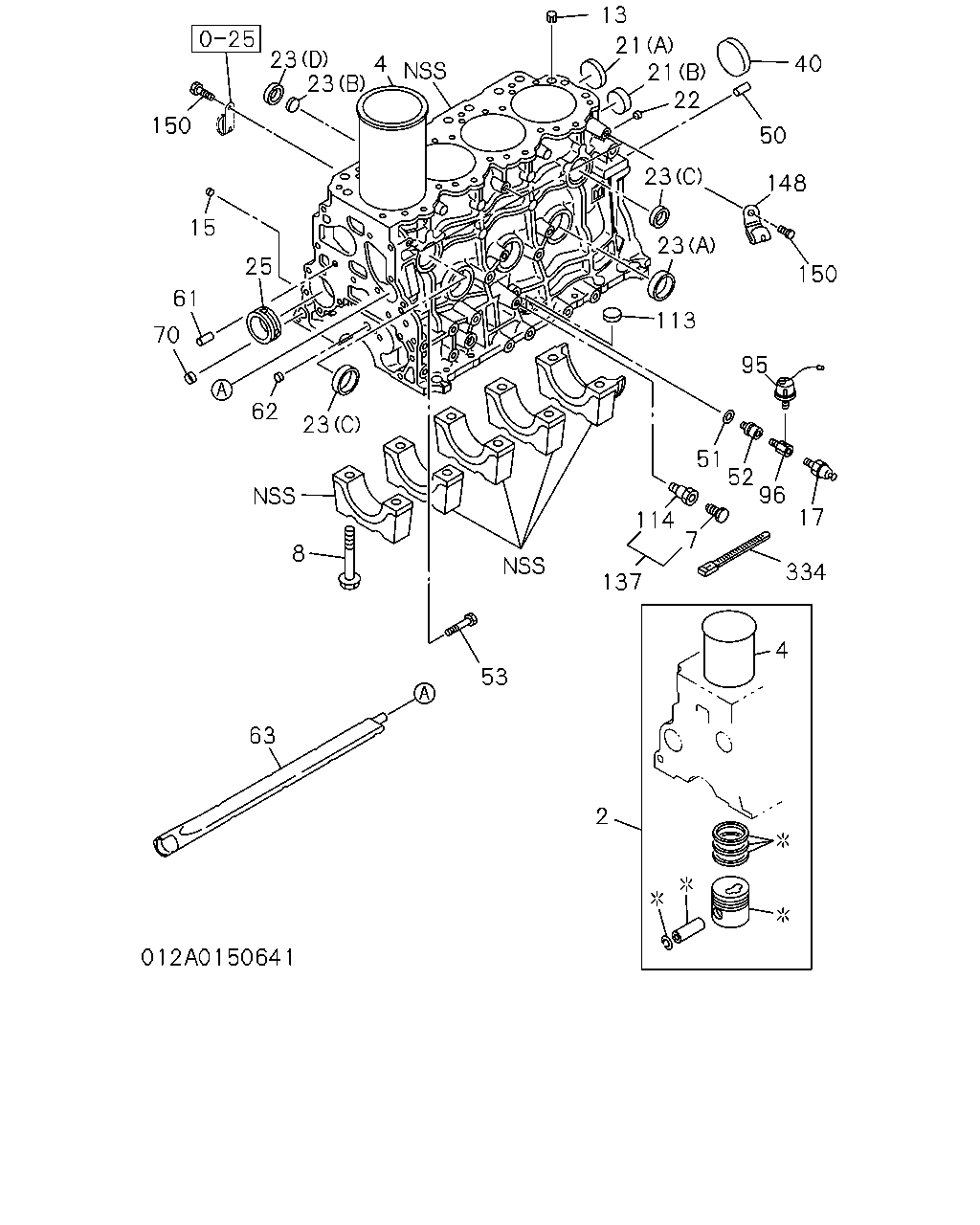

23 150 15 25 61 70 62 23 8 63 53 137 114 7 51 52 96 17 334 4 2 23 23 113 150 95 148 50 40 21 22 21 13 4 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINER SET; ENG CYL GRADE=1	5-87814-495-0	04	1	9112-9307	●
2	LINER SET; ENG CYL GRADE=2	5-87814-496-0	04	1	9112-9307	●
2	LINER SET; ENG CYL GRADE=3	5-87814-497-0	04	1	9112-9307	●
2	LINER SET; ENG CYL GRADE=4	5-87814-498-0	04	1	9112-9307	●
2	LINER SET; ENG CYL GRADE=1	5-87814-491-0	04	1	9308-9504	●
2	LINER SET; ENG CYL GRADE=2	5-87814-492-0	04	1	9308-9504	●
2	LINER SET; ENG CYL GRADE=3	5-87814-493-0	04	1	9308-9504	●
2	LINER SET; ENG CYL GRADE=4	5-87814-494-0	04	1	9308-9504	●
2	LINER SET; ENG CYL GRADE=1	5-87814-499-0	04	1	9505-	●
2	LINER SET; ENG CYL GRADE=2	5-87814-500-0	04	1	9505-	●
2	LINER SET; ENG CYL GRADE=3	5-87814-501-0	04	1	9505-	●
2	LINER SET; ENG CYL GRADE=4	5-87814-502-0	04	1	9505-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9112-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9112-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9112-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9112-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9112-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9112-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9112-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9112-	●
7	PLUG; WATER DRAIN M10X30	9-09809-097-0	01	1	9112-9502	●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9503-	●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9112-	●
8	BOLT; BRG CAP (A) M11X143 FLANGE	8-94363-095-1	08	1	9112-		●
8	BOLT; BRG CAP (B) M9X85 FLANGE	8-94363-224-1	08	1	9112-		●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9112-	●
13	DOWEL; C/BL TO HD OD=15.25	8-94200-819-0	04	1	9112-		●
15	PLUG; OIL GALLERY PT1/8	5-09605-019-2	03	1	9112-9205	●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9206-	●
17	SWITCH; OIL PRESSURE	9-82720-209-2	01	1	9112-	●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9112-9303	●
21	CUP; SEALING,RR (A) OD=38	8-97036-549-0	01	1	9304-9305	●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9306-	●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9112-9303	●
21	CUP; SEALING,RR (B) OD=36	8-97036-548-0	01	1	9304-9305	●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9306-	●
22	CUP; SEALING,DUCT HOLE OD=12.3	5-09600-013-0	01	1	9112-9303	●
22	CUP; SEALING,DUCT HOLE OD=12	8-97036-335-0	01	1	9304-9305	●
22	CUP; SEALING,DUCT HOLE OD=12.3	5-09600-013-0	01	1	9306-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=45	1-09600-005-1	03	1	9112-9303	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-0	03	1	9304-9305	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=45	1-09600-005-1	03	1	9306-	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18	5-11219-008-0	03	1	9112-9303	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18	8-97036-337-0	03	1	9304-9305	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18	5-11219-008-0	03	1	9306-	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	9112-9303	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	8-97036-339-0	02	1	9304-9305	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	9306-	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	03	1	9112-	●
25	METAL; CM/SHF REAR,CENTER	8-94427-201-2	02	1	9112-	●
25	METAL; CM/SHF FRONT	8-94427-206-2	01	1	9112-	●
40	CUP; SEALING,C/BL RR OD=56	8-94250-514-0	01	1	9112-	●
50	PIN; STRAIGHT,RR PLATE OD=10 L=32	9-08161-032-0	01	1	9112-	●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9112-	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-750-2	01	1	9112-	●
53	BOLT; REAMER M10X52	9-09806-020-0	01	1	9112-	●
61	PIN; STRAIGHT OD=10 L=20	9-08151-020-0	02	1	9112-	●
62	CUP; SEALING,C/BL FRT OD=14	5-11219-011-0	01	1	9112-	●
63	DUCT; WATER,C/BL	8-94456-794-2	01	1	9112-	●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	9112-	●
95	PRESSURE UNIT; OIL	8-94232-115-2	01	1	9112-9504	●
95	PRESSURE UNIT; OIL EXC. VARIABLE TORQUE SPRIT<7HA>	8-97106-478-2	01	1	9505-	●
96	ADAPTER; PRESS UNIT & SW PT1/8 & 2-PS1/8	8-94419-858-0	01	1	9112-9504	●
96	ADAPTER; PRESS UNIT & SW EXC. VARIABLE TORQUE SPRIT<7HA> PT1/8 & 2-PS1/8	8-94419-858-1	01	1	9505-	●
113	CUP; SEALING OD=15.6	5-11129-003-0	01	1	9112-	●
114	NIPPLE; WATER DRAIN	8-94133-968-1	01	1	9112-9502	●
137	COCK; DRAIN,WATER	8-94422-600-0	01	1	9112-9502	●
148	CLIP; HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9112-9203	●
148	CLIP; HARNESS ID=18 L=44	8-94225-185-0	03	1	9204-	●
150	BOLT; CLIP M8X12 W/LK WASHER	0-50040-812-0	04	1	9112-9402	●
150	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	03	1	9403-	●
150	BOLT; CLIP M8X12 W/LK&PL WASHER	0-50140-812-0	01	1	9403-9612	●
150	BOLT; CLIP M8X10 FLANGE	0-28080-810-0	01	1	9701-	●
334	CLIP; BAND,OIL PRESS UNIT L=140	5-09707-031-0	01	1	9112-9505	●	●
334	CLIP; BAND,OIL PRESS UNIT EXC. VARIABLE TORQUE SPRIT<7HA> L=140	5-09707-031-0	01	1	9506-	●	●
