0-11 — CYLINDER HEAD (#166834) — 97 parça

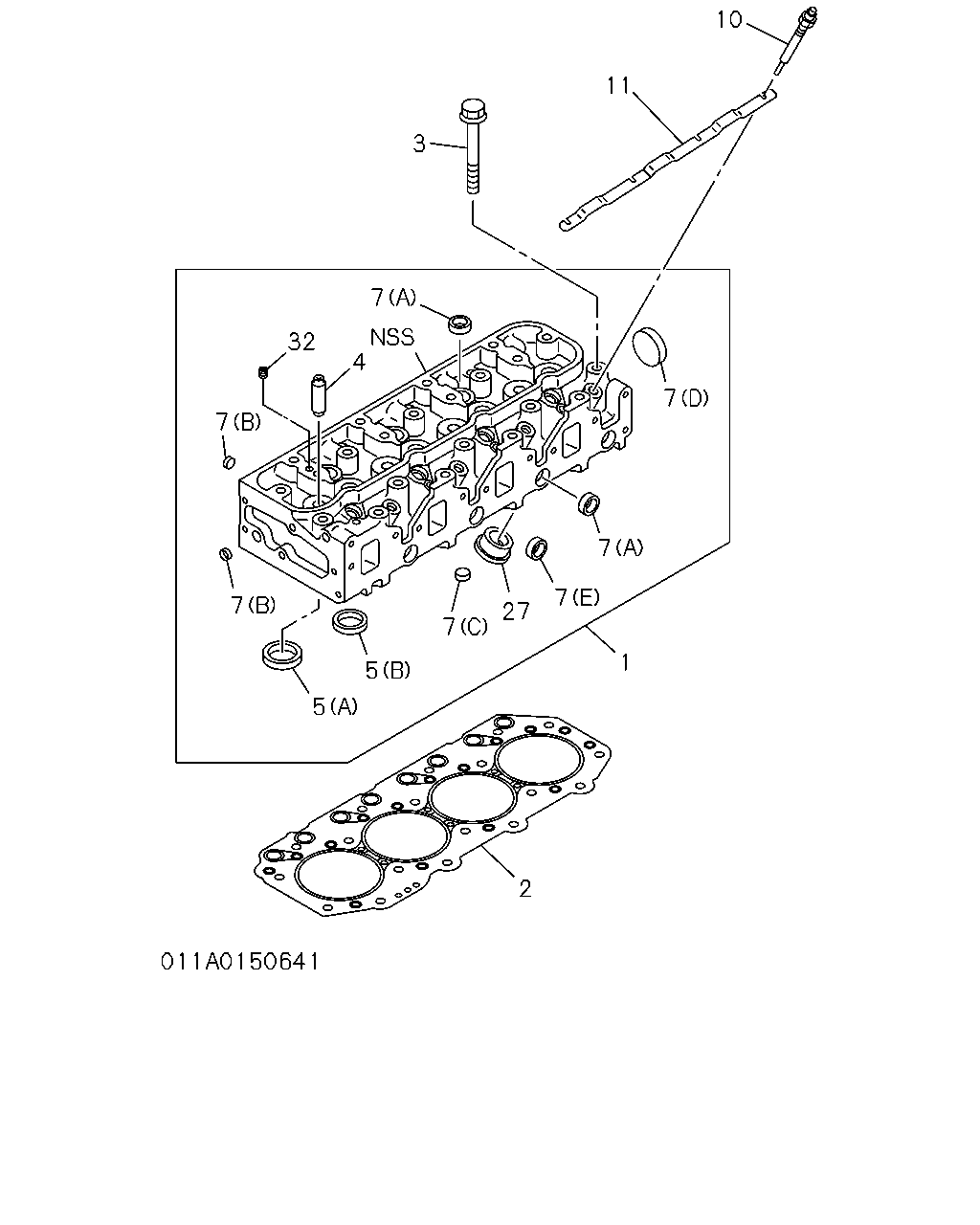

çizim 492598
11 10 3 7 7 7 1 27 7 5 5 2 7 7 32 4 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-97016-504-6 01 1 9112-9307 ●
1 HEAD ASM; CYL 8-97086-338-2 01 1 9308-9504 ●
1 HEAD ASM; CYL 8-97114-399-1 01 1 9505- ●
1 HEAD ASM; CYL 8-97026-726-6 02 1 9112-9505 ●
1 HEAD ASM; CYL 8-97127-640-0 02 1 9506-9510 ●
1 HEAD ASM; CYL 8-97114-433-0 02 1 9511- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-HOLE 		8-97066-196-0 01 1 9112- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-HOLE 		8-97066-197-0 01 1 9112- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-HOLE 		8-97066-198-0 01 1 9112- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97019-361-1 02 1 9112- ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9112-9701 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9702- ●
3 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9112- ●
3 BOLT; CYL HD TO BLOCK
M8X90 		9-05820-890-0 04 1 9112- ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9112- ●
4 GUIDE; VLV 8-94316-157-0 24 1 9112- ●
5 SEAT; VLV INSERT
(A) INLET 		8-94431-521-0 04 1 9112-9307 ●
5 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9308- ●
5 SEAT; VLV INSERT
(B) EXHAUST 		8-94431-522-0 04 1 9112- ●
5 SEAT; VLV INSERT
(C) INLET 		8-97015-610-0 12 1 9112- ●
5 SEAT; VLV INSERT
(D) EXHAUST 		8-97015-611-0 12 1 9112- ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9112-9303 ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97036-550-0 01 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9306- ●
7 CUP; SEALING,CYL HEAD
(A) OD=22 		1-09600-011-2 07 1 9112-9303 ●
7 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97036-338-0 07 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(A) OD=22 		1-09600-011-2 07 1 9306- ●
7 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 9112-9303 ●
7 CUP; SEALING,CYL HEAD
(B) OD=12 		8-97036-335-0 05 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 9306- ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9112-9303 ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 		8-97036-336-0 03 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9306- ●
7 CUP; SEALING,CYL HEAD
(E) OD=32 		5-11219-015-0 02 1 9112-9303 ●
7 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 04 1 9112- ●
10 PLUG; GLOW
NGK 		8-97044-037-1 04 1 9112- ●
11 CONNECTOR; GLOW PLUG 8-94368-252-0 01 1 9112-9602 ●
11 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9603- ●
27 PLUG; HOT 8-97041-496-1 04 1 9112-9307 ●
27 PLUG; HOT 8-97086-450-0 04 1 9308-9504 ●
27 PLUG; HOT 8-97117-253-0 04 1 9505- ●
32 ORIFICE 8-97190-639-0 01 1 9711- ●
32 ORIFICE 8-97127-570-0 02 1 9506- ●

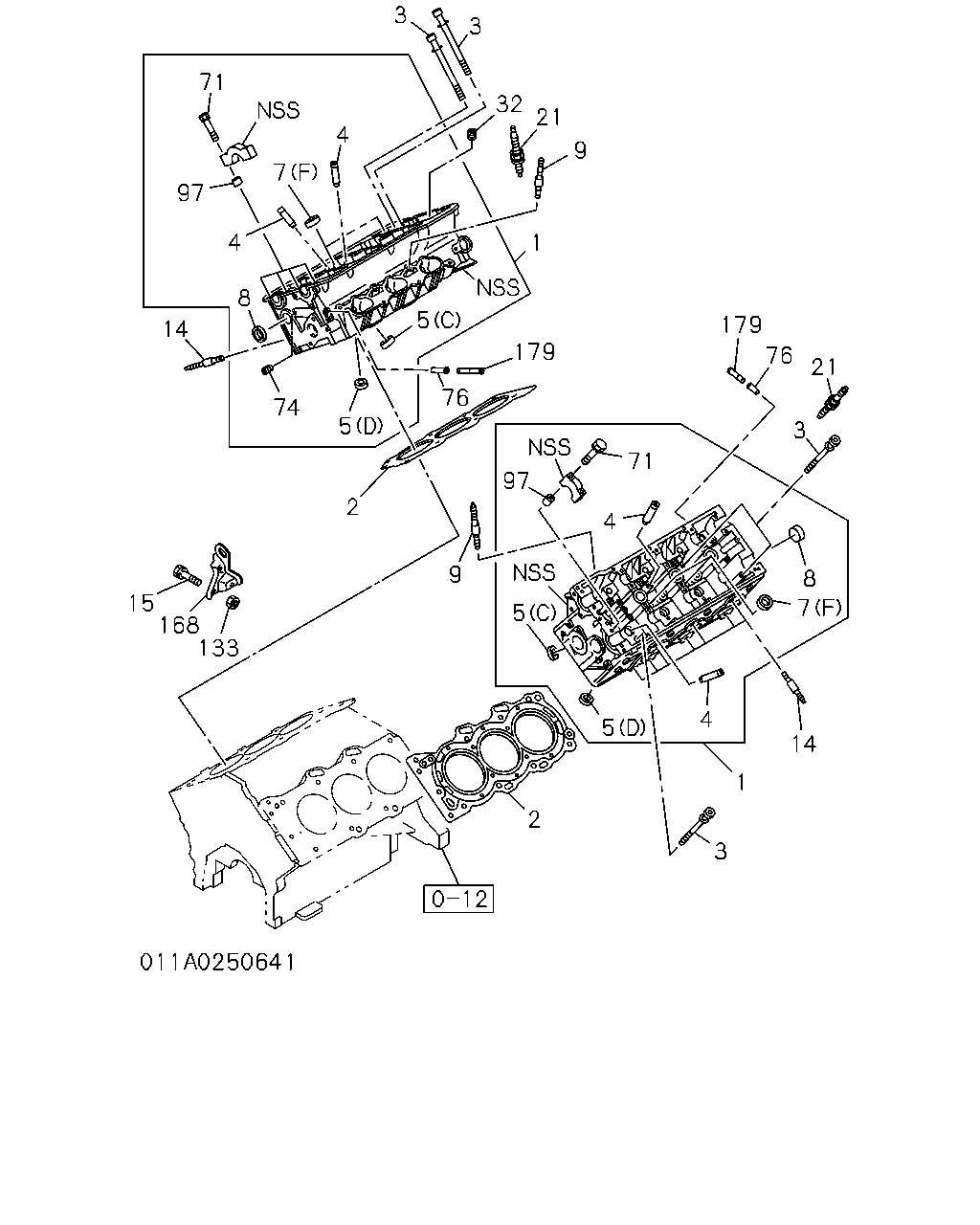

çizim 493731
3 3 32 21 9 1 179 76 5 5 4 7 71 97 4 8 74 14 15 168 133 2 9 97 71 4 5 5 2 4 1 3 14 7 8 3 21 76 179
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-97016-504-6 01 1 9112-9307 ●
1 HEAD ASM; CYL 8-97086-338-2 01 1 9308-9504 ●
1 HEAD ASM; CYL 8-97114-399-1 01 1 9505- ●
1 HEAD ASM; CYL 8-97026-726-6 02 1 9112-9505 ●
1 HEAD ASM; CYL 8-97127-640-0 02 1 9506-9510 ●
1 HEAD ASM; CYL 8-97114-433-0 02 1 9511- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-HOLE 		8-97066-196-0 01 1 9112- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-HOLE 		8-97066-197-0 01 1 9112- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-HOLE 		8-97066-198-0 01 1 9112- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97019-361-1 02 1 9112- ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9112-9701 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9702- ●
3 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9112- ●
3 BOLT; CYL HD TO BLOCK
M8X90 		9-05820-890-0 04 1 9112- ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9112- ●
4 GUIDE; VLV 8-94316-157-0 24 1 9112- ●
5 SEAT; VLV INSERT
(A) INLET 		8-94431-521-0 04 1 9112-9307 ●
5 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9308- ●
5 SEAT; VLV INSERT
(B) EXHAUST 		8-94431-522-0 04 1 9112- ●
5 SEAT; VLV INSERT
(C) INLET 		8-97015-610-0 12 1 9112- ●
5 SEAT; VLV INSERT
(D) EXHAUST 		8-97015-611-0 12 1 9112- ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9112-9303 ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97036-550-0 01 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9306- ●
7 CUP; SEALING,CYL HEAD
(A) OD=22 		1-09600-011-2 07 1 9112-9303 ●
7 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97036-338-0 07 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(A) OD=22 		1-09600-011-2 07 1 9306- ●
7 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 9112-9303 ●
7 CUP; SEALING,CYL HEAD
(B) OD=12 		8-97036-335-0 05 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 9306- ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9112-9303 ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 		8-97036-336-0 03 1 9304-9305 ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9306- ●
7 CUP; SEALING,CYL HEAD
(E) OD=32 		5-11219-015-0 02 1 9112-9303 ●
7 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 04 1 9112- ●
8 CUP; SEALING,WATER JACKET
OD=30 		8-94241-638-0 04 1 9112- ●
9 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 9112- ●
14 STUD; EXH MANIF
M10X25 L=40 		0-49641-025-0 12 1 9112- ●
15 BOLT; HANGER,FRT
M8X20 FLANGE 		0-28080-820-0 01 1 9112-9510 ●
21 PLUG; SPARK
AC SPARK PLUG 		8-25108-074-0 06 1 9112-9506 ●
21 PLUG; SPARK
DENSO 		8-94328-374-0 06 1 9507- ●
32 ORIFICE 8-97190-639-0 01 1 9711- ●
32 ORIFICE 8-97127-570-0 02 1 9506- ●
71 BOLT; CAM BRKT
M6X35 		8-94407-874-1 40 1 9112- ●
74 PLUG; OIL GALLERY
PT1/8 		5-09605-019-2 16 1 9112-9505 ●
74 PLUG; OIL GALLERY
PT1/8 		5-09605-019-2 14 1 9506-9707 ●
74 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 14 1 9708- ●
76 PLUG; CYL HD
D=8 TAPER 1/24 		5-11119-009-0 02 1 9112- ●
97 DOWEL; CAM BRKT SET 8-97014-295-1 16 1 9112- ●
133 NUT; HANGER
M10 LOCK NUT 		8-94375-110-0 01 1 9112-9510 ●
133 NUT; HANGER
M10 LOCK NUT 		8-94375-110-0 02 1 9511- ●
168 HANGER; ENG,FRT 8-94386-757-4 01 1 9112-9510 ●
168 HANGER; ENG,FRT 8-97104-310-0 01 1 9511- ●
179 PIPE; VENT 8-94107-531-0 02 1 9112- ●
