Isuzu WW
▶
TRUCKS
▶
NKR
▶
50814 - NKR(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶
4-60 — REAR SUSPENSION
(#16683) — 29 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
◀
[460A] (NO.2) (13 parça)
[460A] (NO.1) (16 parça)
▶
4
157
1
6
5
227
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF THA
8-97910-223-0
02
1
0009-
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF THA
8-97910-222-0
02
1
0009-
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF THA
8-97912-813-0
02
1
0009-
●
4
U-BOLT; RR SPR
L=235 THA
8-97916-751-0
04
1
0009-
●
4
U-BOLT; RR SPR
L=265 THA
8-97916-753-0
04
1
0009-
●
4
U-BOLT; RR SPR
L=285 THA
8-97916-746-0
04
1
0009-
●
5
NUT; U-BOLT,RR SPR
M16
8-94107-767-0
08
1
0009-
●
●
●
6
WASHER; PL,U-BOLT
ID=16.4
8-94137-482-1
08
1
0009-
●
●
●
157
CLAMP; UPR,RR SPR
L=130 T=4.5
8-94119-069-2
02
1
0009-
●
●
157
CLAMP; UPR,RR SPR
L=140 T=4.5
8-94118-509-1
02
1
0009-
●
225
RUBBER; CUSHION,RR SPR
THA
8-97916-767-0
04
1
0009-
●
225
RUBBER; CUSHION,RR SPR
THA
8-97916-766-0
02
1
0009-
●
●
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91150-112-0
02
1
0009-
●
●
●

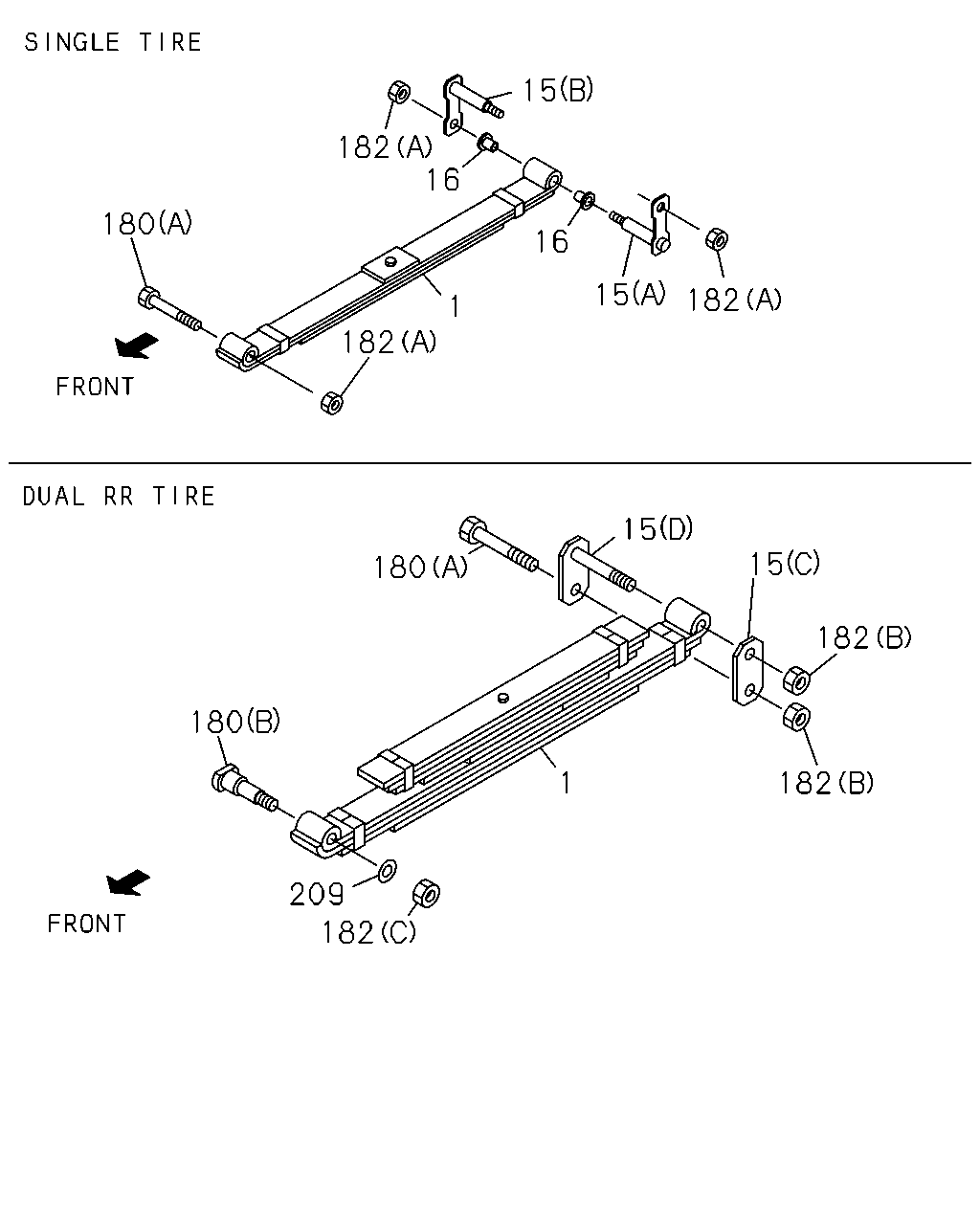

15
182
16
180
16
15
182
1
182
15
15
180
182
180
1
182
209
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF THA
8-97910-223-0
02
1
0009-
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF THA
8-97910-222-0
02
1
0009-
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF THA
8-97912-813-0
02
1
0009-
●
15
SHACKLE; RR SPR
(A) OUTSIDE THA
8-97916-651-0
02
1
0009-
●
15
SHACKLE; RR SPR
(B) INSIDE THA
8-97916-756-0
02
1
0009-
●
15
SHACKLE; RR SPR
(C) THA
8-97916-534-0
02
1
0009-
●
●
15
SHACKLE; RR SPR
(D) W/PIN THA
8-97916-652-0
02
1
0009-
●
●
16
BUSHING; SHACKLE,RR SPR
8-94113-323-2
04
1
0009-
●
180
PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE
8-97076-850-2
02
1
0009-
●
●
●
180
PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE
8-97076-848-0
02
1
0009-
●
●
180
PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) L=122 THA
8-97916-533-0
02
1
0009-
●
●
●
180
PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) L=130 THA
8-97916-757-0
02
1
0009-
●
●
182
NUT; PIN,RR SPR
(A) M16 FLANGE
8-97147-389-0
06
1
0009-
●
182
NUT; PIN,RR SPR
(B) M16 FLANGE
8-97147-389-0
04
1
0009-
●
●
182
NUT; PIN,RR SPR
(C) M18
9-99110-518-0
02
1
0009-
●
●
209
WASHER; PL
ID=19
8-97073-435-1
02
1
0009-
●
●
