Sayfa 9-86 - Isuzu EPC

9-86 — CHASSIS "RPO" (#166829) — 98 parça

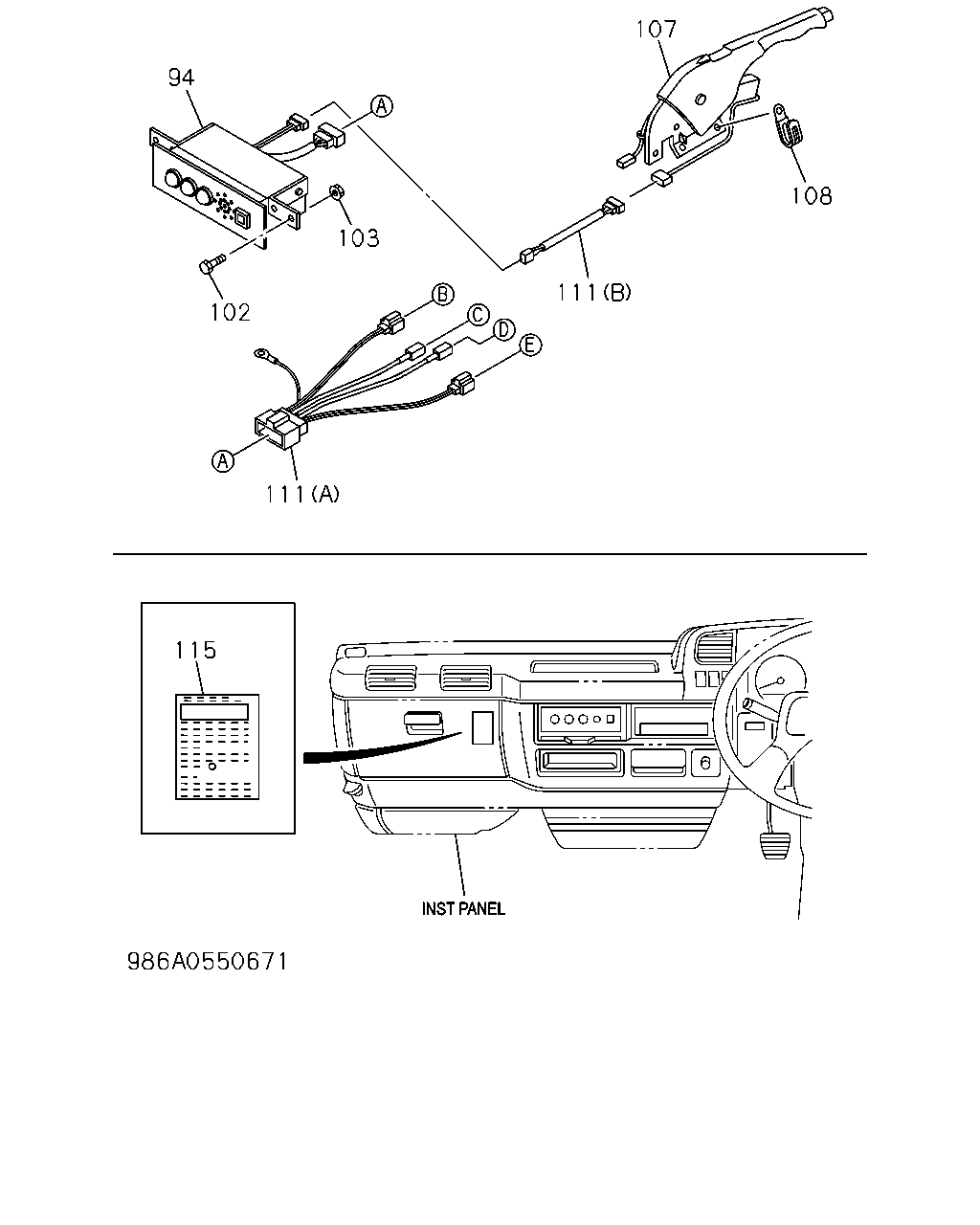

94 107 108 111 103 102 111 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
94	CONTROL UNIT; BRAKE LOCK PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97103-253-1	01	1	9704-	●	●	●	●	●	●
102	BOLT; CONT UNIT TO REINF PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) M6X12 FLANGE	0-28080-612-0	04	1	9704-	●	●	●	●	●	●
103	NUT; CONT UNIT TO REINF PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) M6 FLANGE	0-91150-106-0	02	1	9704-	●	●	●	●	●	●
107	LEVER ASM; HAND BRAKE PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97869-095-0	01	1	9704-9802	●	●	●	●	●	●
107	LEVER ASM; HAND BRAKE PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97892-179-0	01	1	9803-	●	●	●	●	●	●
108	CLIP; HARNESS PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=18 L=44	8-94225-185-0	01	1	9704-	●	●	●	●	●	●
111	HARNESS PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97103-256-0	01	1	9704-	●	●	●	●	●	●
111	HARNESS PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97103-257-0	01	1	9704-	●	●	●	●	●	●
115	PLATE; CAUTION PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94459-125-0	01	1	9704-	●	●	●	●	●	●

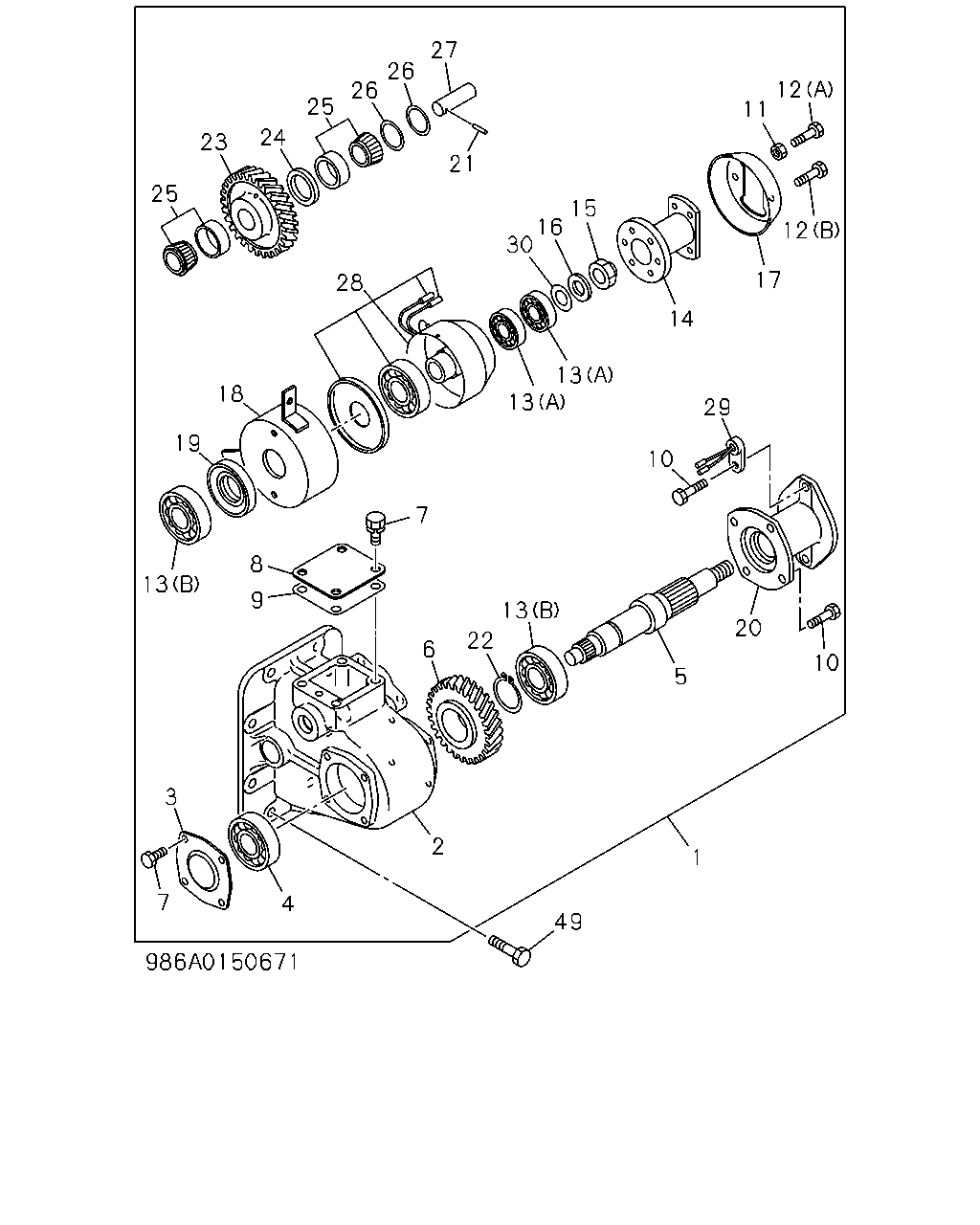

25 23 24 25 26 26 27 21 28 18 19 13 9 8 7 13 13 14 17 12 11 12 15 16 30 6 22 13 10 29 20 10 5 2 4 7 3 49 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	POWER TAKE OFF ASM; TRANS SIDE PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97178-515-0	01	1	9704-	●	●	●	●	●	●
2	CASE; GEAR,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97178-516-0	01	1	9704-	●	●	●	●	●	●
3	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	9-38151-604-0	01	1	9704-	●	●	●	●	●	●
4	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) ID=25 OD=62	8-94343-031-0	01	1	9704-	●	●	●	●	●	●
5	SHAFT; OUTPUT,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97160-275-0	01	1	9704-	●	●	●	●	●	●
6	GEAR; OUTPUT,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97160-276-0	01	1	9704-	●	●	●	●	●	●
7	BOLT; COVER,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) M8X16 W/LK WASHER	0-50040-816-0	08	1	9704-	●	●	●	●	●	●
8	COVER; UPR,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97106-718-0	01	1	9704-	●	●	●	●	●	●
9	GASKET; UPR COVER,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97077-326-0	01	1	9704-	●	●	●	●	●	●
10	BOLT; ADAPTER PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) M8X25 FLANGE	0-28080-825-0	06	1	9704-	●	●	●	●	●	●
11	NUT; OUTPUT SHAFT COVER,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) M12	9-99110-412-0	02	1	9704-	●	●	●	●	●	●
12	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) (B) M10X25 FLANGE	0-28181-025-0	04	1	9704-	●	●	●	●	●	●
12	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) (A)	1-38519-006-0	02	1	9704-	●	●	●	●	●	●
13	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) (A)	1-09800-240-0	02	1	9704-	●	●	●	●	●	●
13	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) (B) ID=35 OD=62	8-94361-937-0	02	1	9704-	●	●	●	●	●	●
14	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	1-38512-012-0	01	1	9704-	●	●	●	●	●	●
15	NUT; FLANGE FIX,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) M24	5-09409-021-0	01	1	9704-	●	●	●	●	●	●
16	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	1-38226-048-0	01	1	9704-	●	●	●	●	●	●
17	COVER; DUST,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	1-38182-007-0	01	1	9704-	●	●	●	●	●	●
18	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97160-277-0	01	1	9704-	●	●	●	●	●	●
19	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	5-09625-089-0	01	1	9704-	●	●	●	●	●	●
20	ADAPTER; PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97160-278-0	01	1	9704-	●	●	●	●	●	●
21	PIN; SPR,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) L=16	9-09878-613-0	01	1	9704-	●	●	●	●	●	●
22	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) ID=32.2	9-09180-435-0	01	1	9704-	●	●	●	●	●	●
23	GEAR; IDLE,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) Z=32	8-97106-719-0	01	1	9704-	●	●	●	●	●	●
24	RING; SNAP,IDLE GEAR,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97106-730-0	01	1	9704-	●	●	●	●	●	●
25	BEARING; IDLE GEAR,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) NSK	8-97106-734-0	02	1	9704-	●	●	●	●	●	●
25	BEARING; IDLE GEAR,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) JTEKT	8-97106-735-0	02	1	9704-	●	●	●	●	●	●
26	SHIM; IDLE GEAR PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) T=1.50	8-97106-724-0	AR	1	9704-	●	●	●	●	●	●
26	SHIM; IDLE GEAR PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) T=1.60	8-97106-725-0	AR	1	9704-	●	●	●	●	●	●
26	SHIM; IDLE GEAR PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) T=1.65	8-97106-726-0	AR	1	9704-	●	●	●	●	●	●
26	SHIM; IDLE GEAR PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) T=1.70	8-97106-727-0	AR	1	9704-	●	●	●	●	●	●
26	SHIM; IDLE GEAR PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) T=1.80	8-97106-728-0	AR	1	9704-	●	●	●	●	●	●
26	SHIM; IDLE GEAR PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) T=1.85	8-97106-729-0	AR	1	9704-	●	●	●	●	●	●
27	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	9-38211-606-0	01	1	9704-	●	●	●	●	●	●
28	CLUTCH; MAG,W/TERMINAL,PTO CONT PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	1-38519-016-0	01	1	9704-	●	●	●	●	●	●
29	DIODE ASM; MAG CLU,PTO CONT PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97160-280-0	01	1	9704-	●	●	●	●	●	●
30	SHIM; OUTPUT SHAFT PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) T=0.1	5-33156-022-0	AR	1	9704-	●	●	●	●	●	●
30	SHIM; OUTPUT SHAFT PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) T=0.2	5-33156-024-0	AR	1	9704-	●	●	●	●	●	●
49	BOLT; PTO TO TRANSMISSION PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) M10X25 W/LK WASHER	0-50041-025-0	06	1	9704-	●	●	●	●	●	●

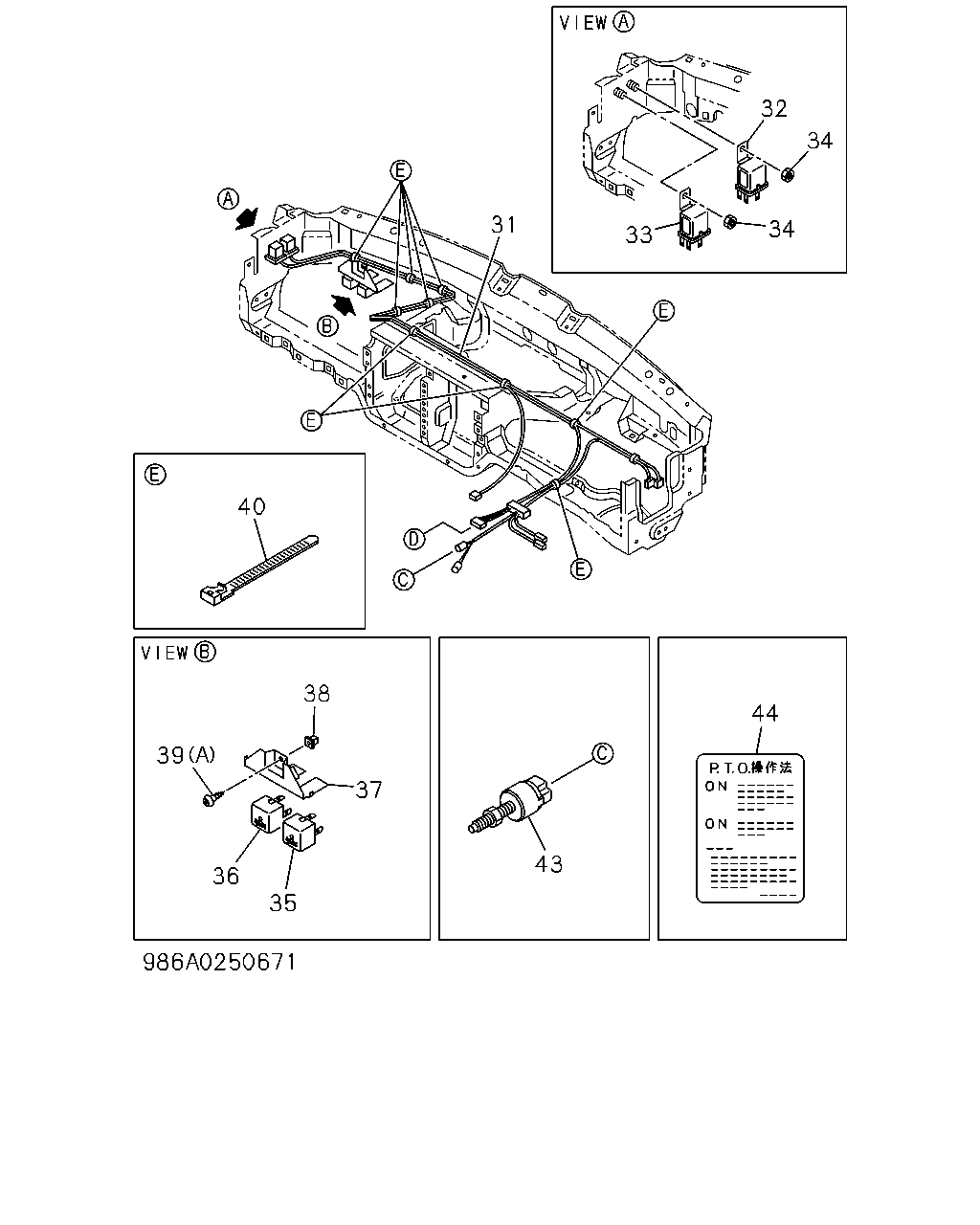

32 34 34 33 31 40 38 37 36 39 35 43 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
31	HARNESS; EXT,PTO BODY PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97147-588-0	01	1	9704-9802	●	●	●	●	●	●
31	HARNESS; EXT,PTO BODY PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97207-789-0	01	1	9803-	●	●	●	●	●	●
32	RELAY; PTO IND LAMP PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) BLACK	5-82550-030-0	01	1	9704-	●	●	●	●	●	●
33	RELAY; PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) BLACK	5-82550-030-0	01	1	9704-	●	●	●	●	●	●
34	NUT; RELAY PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) M6 FLANGE	0-91150-106-0	02	1	9704-	●	●	●	●	●	●
35	RELAY; CLUTCH PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) 24V 12.5A MITUBA	8-97062-815-1	01	1	9704-	●	●	●	●	●	●
36	RELAY; PTO CUT PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) 24V 12.5A MITUBA	8-97062-815-1	01	1	9704-	●	●	●	●	●	●
37	BRACKET; PTO RELAY PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97859-391-1	01	1	9704-	●	●	●	●	●	●
38	GROMMET; SCREW PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) D=8.6X7.7 L=7.5	8-94279-078-0	01	1	9704-9802	●	●	●	●	●	●
38	GROMMET; SCREW PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-94279-732-0	01	1	9803-	●	●	●	●	●	●
39	SCREW; TAP PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9704-	●	●	●	●	●	●
39	SCREW; TAP PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) (B) M5X12 TAPPING W/PL WASHER	0-74110-512-0	01	1	9803-	●	●	●	●	●	●
40	CLIP; BAND PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) L=250	5-09707-030-0	02	1	9704-	●	●	●	●	●	●
40	CLIP; BAND PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) L=140	5-09707-031-0	24	1	9704-	●	●	●	●	●	●
43	SWITCH; CLU PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-94337-761-0	01	1	9704-9802	●	●	●	●	●	●
43	SWITCH; CLU PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-94109-863-0	01	1	9803-	●	●	●	●	●	●
44	PLATE; CAUTION,PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97149-907-0	01	1	9704-	●	●	●	●	●	●

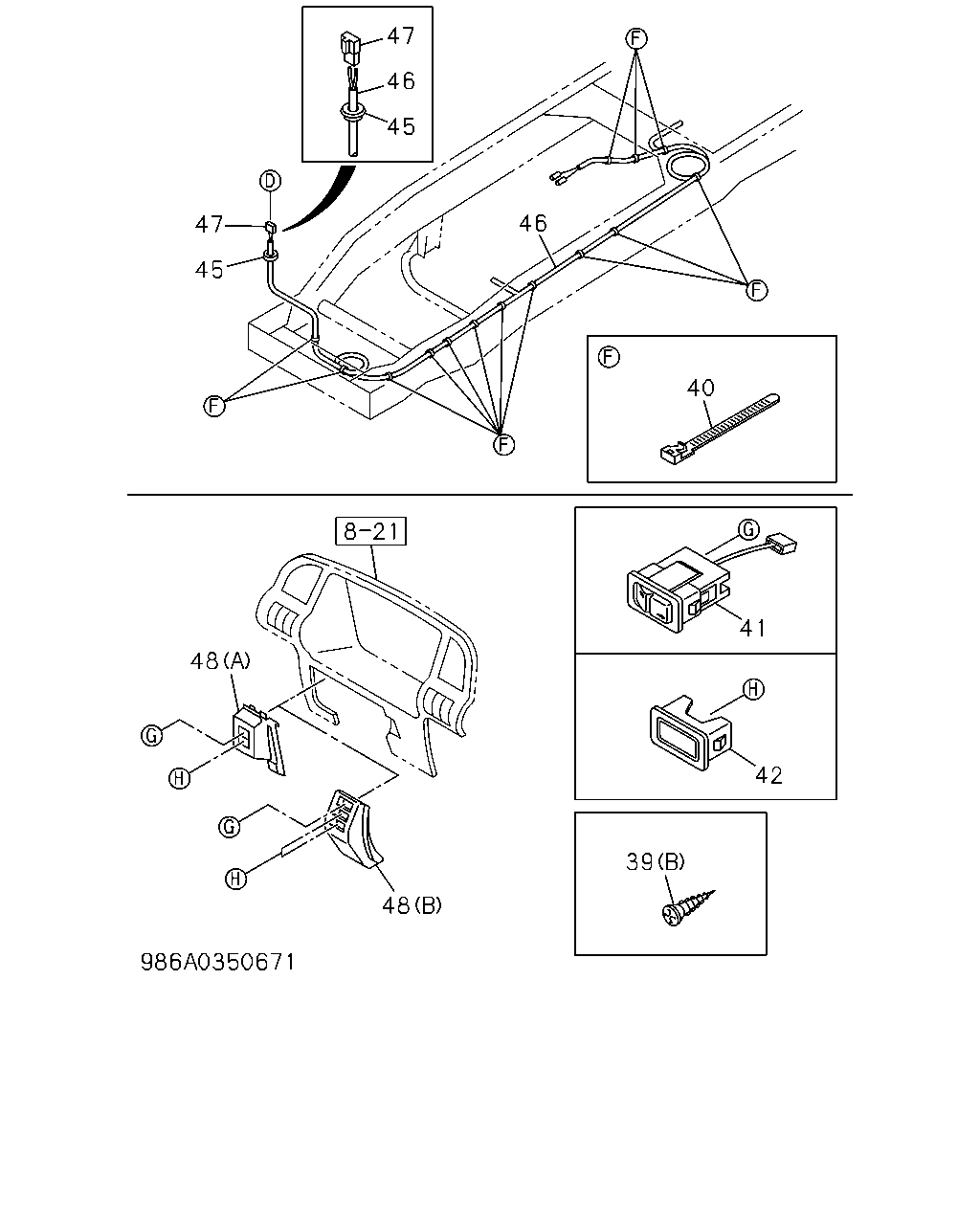

47 45 46 46 40 45 47 48 48 39 42 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
39	SCREW; TAP PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9704-	●	●	●	●	●	●
39	SCREW; TAP PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) (B) M5X12 TAPPING W/PL WASHER	0-74110-512-0	01	1	9803-	●	●	●	●	●	●
40	CLIP; BAND PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) L=250	5-09707-030-0	02	1	9704-	●	●	●	●	●	●
40	CLIP; BAND PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) L=140	5-09707-031-0	24	1	9704-	●	●	●	●	●	●
41	SWITCH; PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97133-972-0	01	1	9704-9802	●	●	●	●	●	●
41	SWITCH; PTO PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97192-625-0	01	1	9803-	●	●	●	●	●	●
42	COVER; HOLE,SW PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-94310-890-0	01	1	9704-9802	●	●	●	●	●	●
42	COVER; HOLE,SW PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-94310-890-0	02	1	9803-	●	●	●	●	●	●
45	GROMMET PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) OD=36	1-09983-092-0	01	1	9704-	●	●	●	●	●	●
46	HARNESS; CABLE,CHASSIS PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-97147-589-0	01	1	9704-	●	●	●	●	●	●
47	CONNECTOR PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G)	8-94363-395-0	01	1	9704-	●	●	●	●	●	●
48	BEZEL; SW PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) (A) BLACK	8-97867-072-4	01	1	9704-9802	●	●	●	●	●	●
48	BEZEL; SW PTO SIDE FLANGE TYPE W/ELEC CLUTCH(7QX) GARBAGE/VACUUM CHASSIS(V4G) (B) BLACK	8-97868-307-1	01	1	9803-	●	●	●	●	●	●

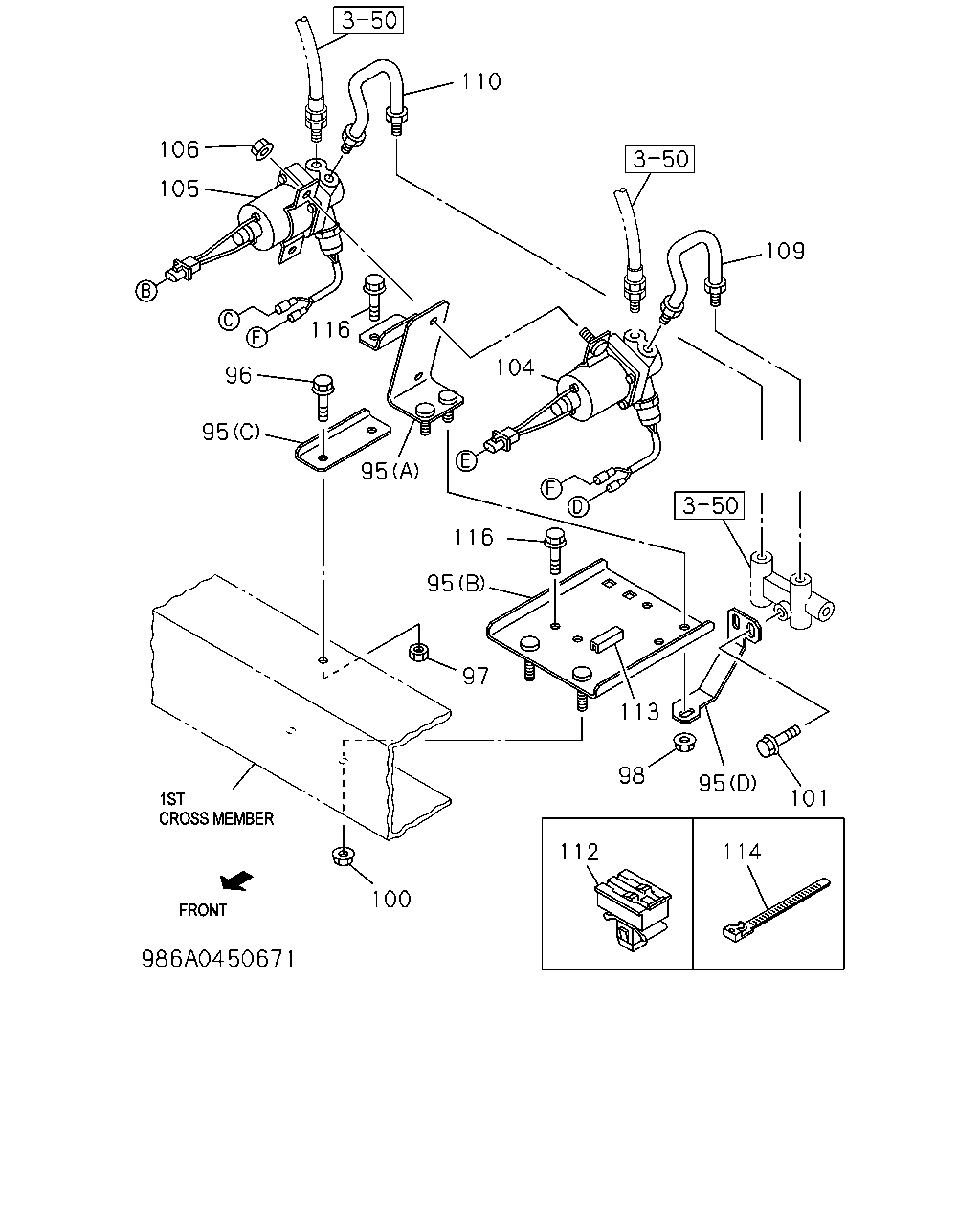

106 105 110 116 96 95 95 104 109 116 95 97 113 98 95 101 114 112 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
95	BRACKET; BRAKE LOCK PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97101-284-2	01	1	9704-	●	●	●	●	●	●
95	BRACKET; BRAKE LOCK PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97101-285-1	01	1	9704-9802	●	●	●	●	●	●
95	BRACKET; BRAKE LOCK PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97101-286-1	01	1	9704-	●	●	●	●	●	●
95	BRACKET; BRAKE LOCK PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97104-376-1	01	1	9704-	●	●	●	●	●	●
95	BRACKET; BRAKE LOCK PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97209-200-0	01	1	9803-	●	●	●	●	●	●
96	BOLT; BRKT TO FRAME PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X20 W/LK WASHER	0-50041-020-0	01	1	9704-	●	●	●	●	●	●
97	NUT; BRKT TO FRAME PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) M10 FLANGE	0-91150-210-0	01	1	9704-	●	●	●	●	●	●
98	NUT; BRKT TO BRKT PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE	0-91150-208-0	02	1	9704-	●	●	●	●	●	●
100	NUT; BRKT TO FRAME PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE	0-91150-208-0	02	1	9704-	●	●	●	●	●	●
101	BOLT; 5WAY FIX PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) M6X40 FLANGE	0-28080-640-0	01	1	9704-	●	●	●	●	●	●
104	VALVE; HSA FRT PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97103-254-0	01	1	9704-	●	●	●	●	●	●
105	VALVE; HSA RR PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97103-255-0	01	1	9704-	●	●	●	●	●	●
106	NUT; VALVE TO BRKT PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8 FLANGE	0-91150-208-0	02	1	9704-	●	●	●	●	●	●
109	PIPE; BRAKE,VALVE TO 5WAY,FRT PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97101-339-0	01	1	9704-	●	●	●	●	●	●
110	PIPE; BRAKE,VALVE TO 5WAY,RR PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97101-342-0	01	1	9704-	●	●	●	●	●	●
112	HOLDER; CONNECTOR PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94459-973-1	02	1	9704-	●	●	●	●	●	●
113	PROTECTOR; EDGE PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=30	8-94169-542-0	01	1	9704-	●	●	●	●	●	●
114	CLIP; CONT WIRE PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=140	5-09707-031-0	05	1	9704-	●	●	●	●	●	●
116	BOLT; BRKT TO BRKT PARKING BRAKE - BRAKE LOCK<6LL> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X20 FLANGE	0-28680-820-0	02	1	9704-	●	●	●	●	●	●
