◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 9 - Tools ▶ 9-85 - CAB "RPO" ▶
9-85 — CAB "RPO" (#166828) — 25 parça

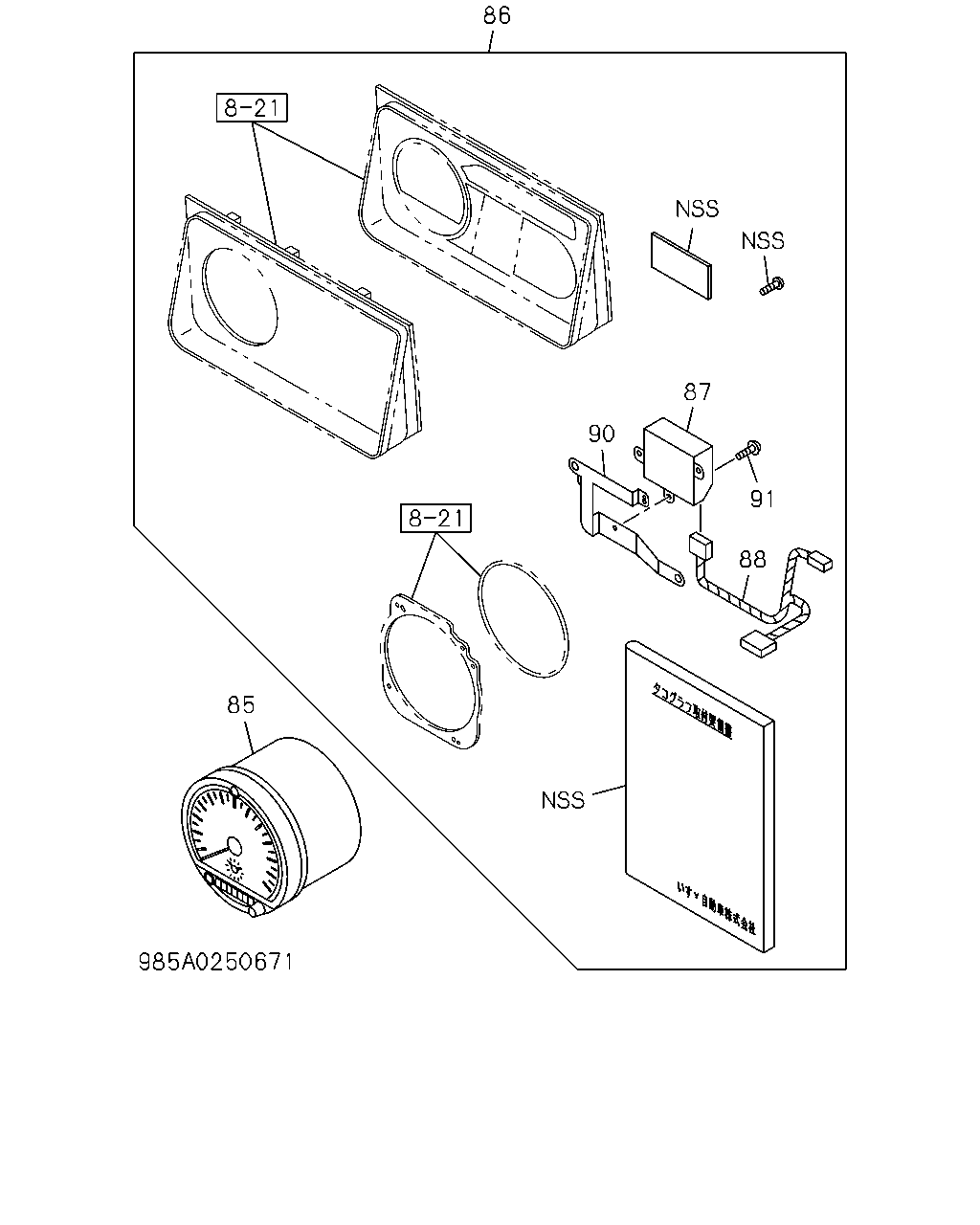

çizim 493472
86 87 90 91 88 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
85 TACHOGRAPH
TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. H.S.A SYSTEM<6EP>,VOLTAGE 24V<7AE> 		8-97102-299-1 01 1 9803- ● ● ● ● ● ●
85 TACHOGRAPH
TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. VOLTAGE 24V<7AE> 		8-97118-123-0 01 1 9704-9802 ● ● ● ● ● ●
85 TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> EXC. H.S.A SYSTEM<6EP>,VOLTAGE 24V<7AE> 		8-97096-331-1 01 1 9803- ● ● ● ● ● ●
85 TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> EXC. VOLTAGE 24V<7AE> 		8-97118-125-0 01 1 9704-9802 ● ● ● ● ● ●
86 BEZEL KIT
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> TACHOMETER<U16> EXC. VOLTAGE 24V<7AE> 		8-97121-220-0 01 1 9704-9802 ● ● ● ● ● ●
86 BEZEL KIT
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. TACHOMETER<U16>,VOLTAGE 24V<7AE> 		8-97121-221-0 01 1 9704-9802 ● ● ● ● ● ●
86 BEZEL KIT
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. H.S.A SYSTEM<6EP>,VOLTAGE 24V<7AE> 		8-97192-635-0 01 1 9803- ● ● ● ● ● ●
87 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. H.S.A SYSTEM<6EP>,VOLTAGE 24V<7AE> 		8-97192-652-0 01 1 9803- ● ● ● ● ● ●
87 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. VOLTAGE 24V<7AE> 		8-97096-208-0 01 1 9704-9802 ● ● ● ● ● ●
88 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"1DAY"<7HM>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> 		8-97096-210-0 01 1 9704-9802 ● ● ● ● ● ●
88 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. H.S.A SYSTEM<6EP>,VOLTAGE 24V<7AE> 		8-97185-104-0 01 1 9803- ● ● ● ● ● ●
90 BRACKET
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. H.S.A SYSTEM<6EP>,VOLTAGE 24V<7AE> 		8-97189-571-0 01 1 9803- ● ● ● ● ● ●
91 SCREW
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. H.S.A SYSTEM<6EP>,VOLTAGE 24V<7AE> 		8-97192-633-0 03 1 9803- ● ● ● ● ● ●

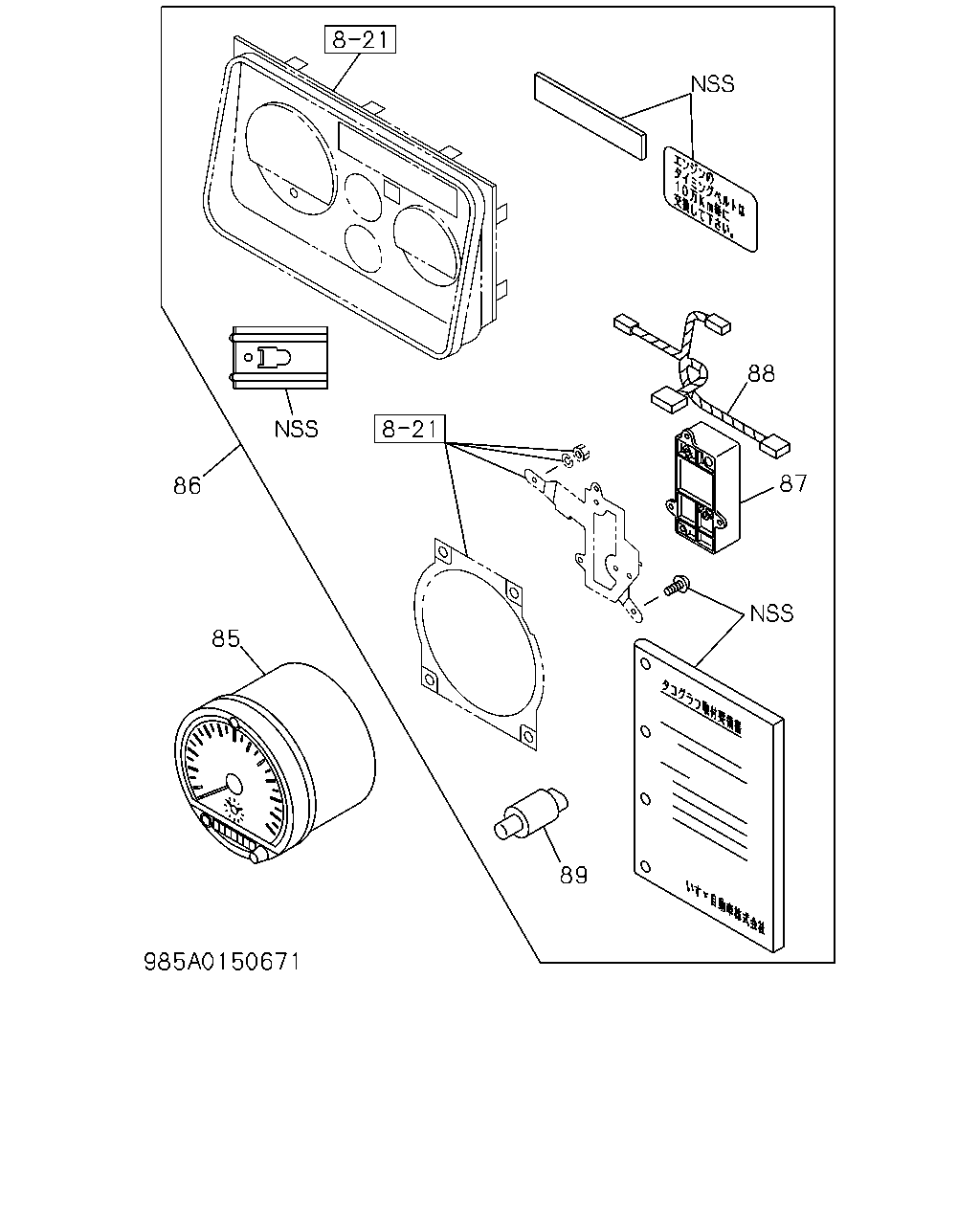

çizim 493494
86 85 89 87 88
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
85 TACHOGRAPH
TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. H.S.A SYSTEM<6EP>,VOLTAGE 24V<7AE> 		8-97102-299-1 01 1 9803- ● ● ● ● ● ●
85 TACHOGRAPH
TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. VOLTAGE 24V<7AE> 		8-97118-123-0 01 1 9704-9802 ● ● ● ● ● ●
85 TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> EXC. H.S.A SYSTEM<6EP>,VOLTAGE 24V<7AE> 		8-97096-331-1 01 1 9803- ● ● ● ● ● ●
85 TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> EXC. VOLTAGE 24V<7AE> 		8-97118-125-0 01 1 9704-9802 ● ● ● ● ● ●
86 BEZEL KIT
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> TACHOMETER<U16> EXC. VOLTAGE 24V<7AE> 		8-97121-220-0 01 1 9704-9802 ● ● ● ● ● ●
86 BEZEL KIT
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. TACHOMETER<U16>,VOLTAGE 24V<7AE> 		8-97121-221-0 01 1 9704-9802 ● ● ● ● ● ●
86 BEZEL KIT
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. H.S.A SYSTEM<6EP>,VOLTAGE 24V<7AE> 		8-97192-635-0 01 1 9803- ● ● ● ● ● ●
87 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. H.S.A SYSTEM<6EP>,VOLTAGE 24V<7AE> 		8-97192-652-0 01 1 9803- ● ● ● ● ● ●
87 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. VOLTAGE 24V<7AE> 		8-97096-208-0 01 1 9704-9802 ● ● ● ● ● ●
88 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"1DAY"<7HM>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> 		8-97096-210-0 01 1 9704-9802 ● ● ● ● ● ●
88 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. H.S.A SYSTEM<6EP>,VOLTAGE 24V<7AE> 		8-97185-104-0 01 1 9803- ● ● ● ● ● ●
89 SENSOR; CAR SPEED
TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH - 120 KILOMETER PER HOUR"7DAY"<7HN> EXC. VOLTAGE 24V<7AE> 8 PULSE PPS RESIN WHITE 		8-97130-485-0 01 1 9704-9802 ● ● ● ● ● ●
