Sayfa 9-32 - Isuzu EPC

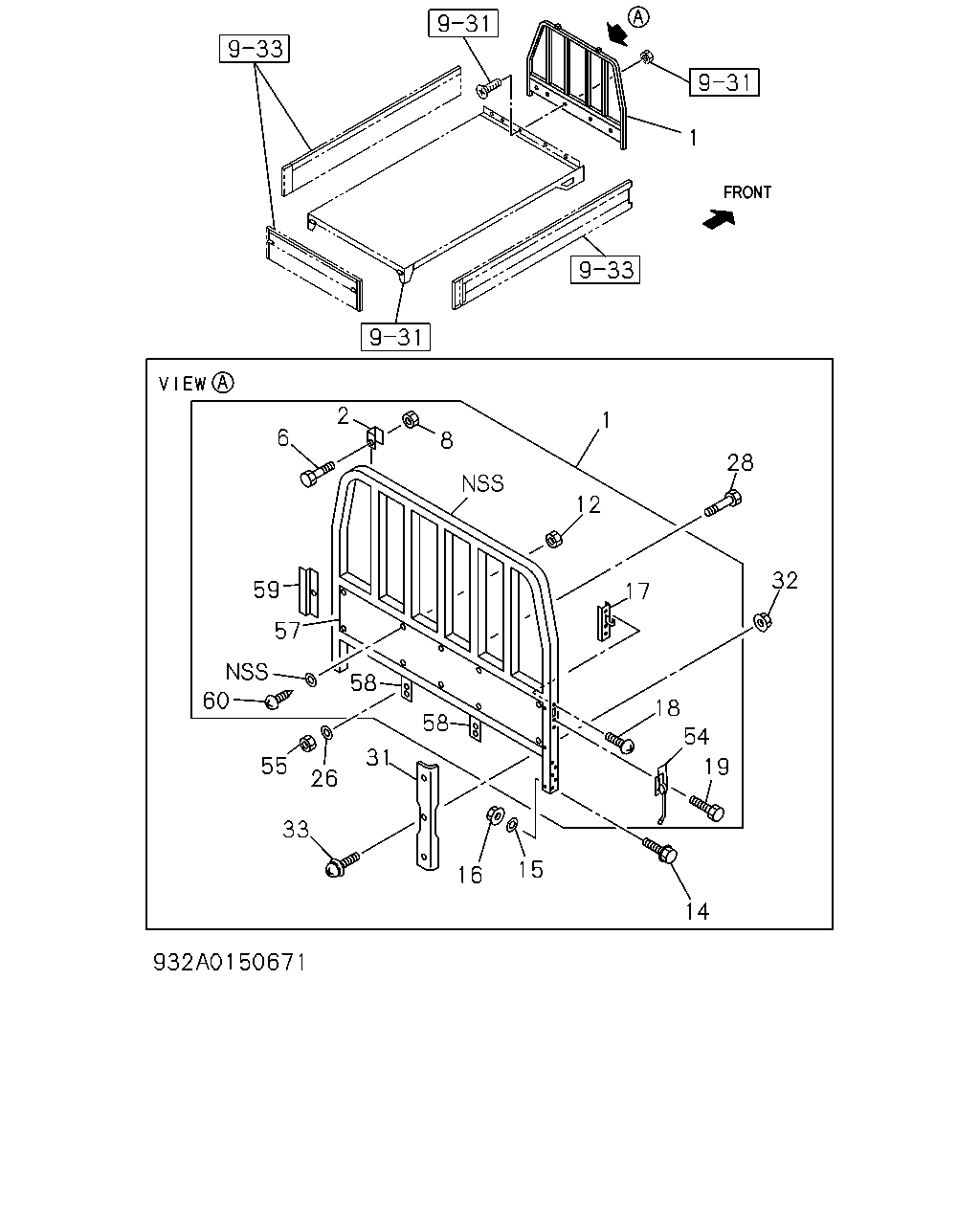

9-32 — REAR BODY; GUARD FRAME (#166826) — 236 parça

2 6 8 1 28 1 32 12 17 18 54 19 14 15 16 58 58 57 59 60 55 26 31 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FRAME; GUARD,RR BODY REAR BODY - DROP SIDE ALMINUM(RP2)	8-94196-089-0	01	1	9802-	●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> REAR BODY GATE - ALUMINUM<7PE> EXC. CAB-LOW ROOF<6XQ>	8-94196-099-0	01	1	9804-		●
1	FRAME; GUARD,RR BODY REAR BODY - DROP SIDE ALMINUM(RP2)	8-94196-088-0	01	1	9802-			●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> REAR BODY GATE - ALUMINUM<7PE> EXC. CAB-LOW ROOF<6XQ>	8-94196-102-0	01	1	9802-				●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3500 KG<RPL> RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> REAR BODY GATE - ALUMINUM<7PE> EXC. CAB-LOW ROOF<6XQ>	8-94196-103-0	01	1	9802-				●
1	FRAME; GUARD,RR BODY RR BODY NON FLAT BED(RS5)	8-94197-133-0	01	1	9304-9501					●
1	FRAME; GUARD,RR BODY RR BODY NON FLAT BED(RS5)	8-94197-228-0	01	1	9502-					●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94193-905-0	01	1	9304-9502					●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94194-586-0	01	1	9503-9606					●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94194-586-0	01	1	9607-9803					●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> EXC. FULL FLATLOW<6GL>	8-94194-586-0	01	1	9607-9803	●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94196-085-0	01	1	9804-					●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> EXC. FULL FLATLOW<6GL>	8-94196-085-0	01	1	9804-	●
1	FRAME; GUARD,RR BODY REAR BODY - DROP SIDE ALMINUM(RP2)	8-94193-977-0	01	1	9304-9502	●
1	FRAME; GUARD,RR BODY REAR BODY - DROP SIDE ALMINUM(RP2)	8-94194-590-0	01	1	9503-9606	●
1	FRAME; GUARD,RR BODY REAR BODY - DROP SIDE ALMINUM(RP2)	8-94195-059-1	01	1	9607-9801	●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE> RR BODY FLAT BED<RS6> EXC. FULL FLATLOW<6GL>	8-94193-781-0	01	1	9304-9502	●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> EXC. FULL FLATLOW<6GL>	8-94194-589-0	01	1	9503-9606	●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> EXC. CAB-LOW ROOF<6XQ>	8-94194-593-0	01	1	9503-9803	●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> EXC. CAB-LOW ROOF<6XQ>	8-94196-091-0	01	1	9804-	●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> CAB-LOW ROOF<6XQ>	8-94194-972-0	01	1	9503-9606	●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> CAB-LOW ROOF<6XQ>	8-94195-069-0	01	1	9607-9803	●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> CAB-LOW ROOF<6XQ>	8-94196-092-0	01	1	9804-	●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> EXC. FULL FLATLOW<6GL>	8-94193-981-1	01	1	9304-9502	●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> FULL FLATLOW<6GL>	8-94194-009-1	01	1	9304-9502	●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> EXC. FRAME-KICK UP<7EW>	8-94194-591-0	01	1	9503-9703	●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> EXC. FRAME-KICK UP<7EW>	8-94195-401-0	01	1	9704-9803	●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> EXC. FRAME-KICK UP<7EW>	8-94196-086-0	01	1	9804-	●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> EXC. FULL FLATLOW<6GL>	8-94194-595-0	01	1	9503-9606						●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ>	8-94194-595-0	01	1	9503-9606		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> EXC. FULL FLATLOW<6GL>	8-94195-308-0	01	1	9607-9703						●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ>	8-94195-308-0	01	1	9607-9703		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> EXC. FULL FLATLOW<6GL>,REAR BODY GATE - ALUMINUM<7PE>	8-94195-080-0	01	1	9704-9803		●				●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> EXC. FULL FLATLOW<6GL>,REAR BODY GATE - ALUMINUM<7PE>	8-94196-096-0	01	1	9804-		●				●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> CAB-LOW ROOF<6XQ>	8-94194-920-0	01	1	9503-9703						●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3500 KG<RPL> RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> CAB-LOW ROOF<6XQ> EXC. REAR BODY GATE - ALUMINUM<7PE>	8-94195-084-0	01	1	9704-9803				●		●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3500 KG<RPL> RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> CAB-LOW ROOF<6XQ> EXC. REAR BODY GATE - ALUMINUM<7PE>	8-94196-097-0	01	1	9804-				●		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> EXC. CAB-LOW ROOF<6XQ>	8-94194-998-0	01	1	9503-9703						●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3500 KG<RPL> RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> EXC. CAB-LOW ROOF<6XQ>,REAR BODY GATE - ALUMINUM<7PE>	8-94195-086-0	01	1	9704-9803				●		●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3500 KG<RPL> RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> EXC. CAB-LOW ROOF<6XQ>,REAR BODY GATE - ALUMINUM<7PE>	8-94196-098-0	01	1	9804-				●		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ>	8-94193-792-0	01	1	9304-9502		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>	8-94193-875-0	01	1	9304-9502		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>	8-94194-596-0	01	1	9503-9606		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>	8-94195-304-0	01	1	9607-9703		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY GATE - ALUMINUM<7PE>	8-94195-092-0	01	1	9704-9803		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY GATE - ALUMINUM<7PE>	8-94196-095-0	01	1	9804-		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> REAR BODY GATE - ALUMINUM<7PE> EXC. CAB-LOW ROOF<6XQ>	8-94195-137-1	01	1	9704-9801		●
1	FRAME; GUARD,RR BODY REAR BODY - DROP SIDE ALMINUM(RP2)	8-94193-973-1	01	1	9304-9502			●
1	FRAME; GUARD,RR BODY REAR BODY - DROP SIDE ALMINUM(RP2)	8-94194-588-2	01	1	9503-9801			●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94193-774-0	01	1	9304-9502			●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94194-587-0	01	1	9503-9703			●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94194-587-1	01	1	9704-9803			●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94196-087-0	01	1	9804-			●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> EXC. REAR BODY GATE - ALUMINUM<7PE>	8-94195-102-0	01	1	9704-9803				●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> EXC. REAR BODY GATE - ALUMINUM<7PE>	8-94196-100-0	01	1	9804-				●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY GATE - ALUMINUM<7PE>	8-94195-105-0	01	1	9704-9803				●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY GATE - ALUMINUM<7PE>	8-94196-101-0	01	1	9804-				●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> REAR BODY GATE - ALUMINUM<7PE> EXC. CAB-LOW ROOF<6XQ>	8-94195-138-1	01	1	9704-9801				●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3500 KG<RPL> RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> REAR BODY GATE - ALUMINUM<7PE> EXC. CAB-LOW ROOF<6XQ>	8-94195-450-1	01	1	9704-9801				●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94193-785-0	01	1	9304-9502				●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ>	8-94194-869-0	01	1	9503-9703				●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>	8-94194-597-0	01	1	9503-9703				●
2	STOPPER; GUARD FRAME RR BODY NON FLAT BED(RS5) TAKADA	8-94197-135-0	02	1	9304-9501					●
2	STOPPER; GUARD FRAME REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> TAKADA	8-94193-798-0	02	1	9304-	●	●	●	●	●	●
6	BOLT; STOPPER TO GUARD FRAME RR BODY NON FLAT BED(RS5) TAKADA	8-94197-154-0	02	1	9304-9501					●
6	BOLT; STOPPER TO GUARD FRAME REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> TAKADA	8-94193-950-0	02	1	9304-	●	●	●	●	●	●
8	NUT; STOPPER BOLT REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> M10 TAKADA	8-94193-951-0	02	1	9304-	●	●	●	●	●	●
12	NUT; GUARD FRAME REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> M8 FLANGE	8-94193-939-0	04	1	9304-	●	●	●	●	●	●
14	BOLT; GUARD FRAME TO GUSSET RR BODY NON FLAT BED(RS5) M10X22 FLANGE	8-97065-440-0	04	1	9502-					●
14	BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	10	1	9304-					●
14	BOLT; GUARD FRAME TO GUSSET REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	10	1	9304-	●		●
14	BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	12	1	9304-9502		●		●
14	BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	12	1	9503-		●		●		●
15	WASHER; PL,GUARD FRAME TO GUSSET RR BODY NON FLAT BED(RS5)	8-97065-438-0	04	1	9502-					●
15	WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	10	1	9304-					●
15	WASHER; PL,GUARD FRAME TO GUSSET REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6>	8-97065-438-0	10	1	9304-	●		●
15	WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	12	1	9304-9502		●		●
15	WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	12	1	9503-		●		●		●
16	NUT; GUARD FRAME TO GUSSET RR BODY NON FLAT BED(RS5) M10 FLANGE	8-97065-439-0	02	1	9502-					●
16	NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	10	1	9304-					●
16	NUT; GUARD FRAME TO GUSSET REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	10	1	9304-	●		●
16	NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	12	1	9304-9502		●		●
16	NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	12	1	9503-		●		●		●
17	HOOK; GUARD FRAME REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6>	8-94193-937-0	02	1	9304-9502	●	●	●	●	●	●
17	HOOK; GUARD FRAME REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6>	8-94194-628-0	02	1	9503-	●	●	●	●	●	●
18	SCREW; HOOK TO GUARD FRAME REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> M8X30 TAKADA	8-94193-938-0	02	1	9304-	●	●	●	●	●	●
19	BOLT; HANDLE TO GUARD FRAME REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> M8X20	8-94193-942-0	04	1	9304-9502	●	●	●	●	●	●
19	BOLT; HANDLE TO GUARD FRAME RR BODY FLAT BED<RS6> M8X20	8-94193-942-0	04	1	9503-	●	●	●	●	●	●
19	BOLT; HANDLE TO GUARD FRAME REAR BODY - DROP SIDE ALMINUM(RP2) M8X25	8-94194-111-0	04	1	9503-	●		●
26	WASHER; LK,GUARD FRAME TO BOLSTER RR BODY FLAT BED<RS6> ID=8.4 OD=22	9-09160-708-0	04	1	9304-9502		●
26	WASHER; LK,GUARD FRAME TO BOLSTER RR BODY FLAT BED<RS6> EXC. FULL FLATLOW<6GL> ID=8.4 OD=22	9-09160-708-0	04	1	9503-9606						●
26	WASHER; LK,GUARD FRAME TO BOLSTER RR BODY FLAT BED<RS6> ID=8.4 OD=22	9-09160-708-0	04	1	9503-9606		●
26	WASHER; LK,GUARD FRAME TO BOLSTER RR BODY FLAT BED<RS6> EXC. FULL FLATLOW<6GL> ID=8.4 OD=22	9-09160-708-0	02	1	9607-						●
26	WASHER; LK,GUARD FRAME TO BOLSTER RR BODY FLAT BED<RS6> ID=8.4 OD=22	9-09160-708-0	02	1	9607-		●
28	BOLT; MEMBER TO BOLSTER RR BODY FLAT BED<RS6> M8X100	8-97090-620-0	04	1	9304-9502		●
28	BOLT; MEMBER TO BOLSTER RR BODY FLAT BED<RS6> EXC. FULL FLATLOW<6GL> M8X100	8-97090-620-0	04	1	9503-9606						●
28	BOLT; MEMBER TO BOLSTER RR BODY FLAT BED<RS6> M8X100	8-97090-620-0	04	1	9503-9606		●
28	BOLT; MEMBER TO BOLSTER RR BODY FLAT BED<RS6> EXC. FULL FLATLOW<6GL> M8X100	8-97090-620-0	02	1	9607-						●
28	BOLT; MEMBER TO BOLSTER RR BODY FLAT BED<RS6> M8X100	8-97090-620-0	02	1	9607-		●
31	PROTECTOR; GUARD FRAME RR BODY FLAT BED<RS6> PRIMER	8-94192-023-2	02	1	9304-9703		●		●		●
31	PROTECTOR; GUARD FRAME RR BODY FLAT BED<RS6> EXC. REAR BODY GATE - ALUMINUM<7PE> PRIMER	8-94192-023-2	02	1	9704-		●		●		●
31	PROTECTOR; GUARD FRAME RR BODY FLAT BED<RS6> REAR BODY GATE - ALUMINUM<7PE>	8-94195-150-0	02	1	9704-		●		●
32	NUT; PROTECTOR RR BODY FLAT BED<RS6> M5	8-97065-433-0	06	1	9304-9502		●		●
32	NUT; PROTECTOR RR BODY FLAT BED<RS6> M5	8-97065-433-0	06	1	9503-		●		●		●
33	SCREW; PROTECTOR RR BODY FLAT BED<RS6>	8-97065-434-0	06	1	9304-9502		●		●
33	SCREW; PROTECTOR RR BODY FLAT BED<RS6>	8-97065-434-0	06	1	9503-		●		●		●
54	HANDLE; LOCK,GATE,FRT REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6>	8-94193-936-0	02	1	9304-	●	●	●	●	●	●
55	NUT; MEMBER RR BODY FLAT BED<RS6> M8 W/LK WASHER	8-97065-435-0	04	1	9304-9502		●
55	NUT; MEMBER RR BODY FLAT BED<RS6> EXC. FULL FLATLOW<6GL> M8 W/LK WASHER	8-97065-435-0	04	1	9503-9606						●
55	NUT; MEMBER RR BODY FLAT BED<RS6> M8 W/LK WASHER	8-97065-435-0	04	1	9503-9606		●
55	NUT; MEMBER RR BODY FLAT BED<RS6> EXC. FULL FLATLOW<6GL> M8 W/LK WASHER	8-97065-435-0	02	1	9607-						●
55	NUT; MEMBER RR BODY FLAT BED<RS6> M8 W/LK WASHER	8-97065-435-0	02	1	9607-		●
57	BOARD; HEADER REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6>	8-94194-455-0	01	1	9503-9703	●				●
57	BOARD; HEADER RR BODY FLAT BED<RS6>	8-94194-455-0	01	1	9704-9801					●
57	BOARD; HEADER REAR BODY - DROP SIDE ALMINUM(RP2)	8-94194-455-0	01	1	9704-9801	●
57	BOARD; HEADER LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> EXC. CAB-LOW ROOF<6XQ>	8-94194-455-0	01	1	9704-9801	●
57	BOARD; HEADER LOADING CAPACITY - 2000 KG<RPE> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> EXC. FULL FLATLOW<6GL>	8-94194-455-0	01	1	9704-9801	●
57	BOARD; HEADER RR BODY FLAT BED<RS6>	8-94194-455-0	01	1	9802-					●
57	BOARD; HEADER REAR BODY - DROP SIDE ALMINUM(RP2)	8-94194-455-0	01	1	9802-	●
57	BOARD; HEADER LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW>	8-94194-455-0	01	1	9802-	●
57	BOARD; HEADER LOADING CAPACITY - 2000 KG<RPE> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> EXC. FULL FLATLOW<6GL>	8-94194-455-0	01	1	9802-	●
57	BOARD; HEADER RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> EXC. FRAME-KICK UP<7EW>	8-94194-455-0	01	1	9802-	●
57	BOARD; HEADER RR BODY FLAT BED<RS6> REAR BODY GATE - ALUMINUM<7PE> EXC. CAB-LOW ROOF<6XQ>	8-94194-459-0	01	1	9704-9708		●
57	BOARD; HEADER LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> REAR BODY GATE - ALUMINUM<7PE> EXC. CAB-LOW ROOF<6XQ>	8-94194-459-0	01	1	9704-9708				●
57	BOARD; HEADER LOADING CAPACITY - 3500 KG<RPL> RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> REAR BODY GATE - ALUMINUM<7PE> EXC. CAB-LOW ROOF<6XQ>	8-94194-459-0	01	1	9704-9708				●
57	BOARD; HEADER RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>	8-94194-459-0	01	1	9709-9801		●		●
57	BOARD; HEADER RR BODY FLAT BED<RS6>	8-94194-459-0	01	1	9802-		●		●		●
57	BOARD; HEADER REAR BODY - DROP SIDE ALMINUM(RP2)	8-94194-456-0	01	1	9503-9703			●
57	BOARD; HEADER REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6>	8-94194-456-0	01	1	9704-			●
57	BOARD; HEADER RR BODY FLAT BED<RS6>	8-94194-459-0	01	1	9503-9703		●		●		●
58	MEMBER; HEADER BOARD REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> TAKADA	8-94194-452-0	02	1	9503-	●			●	●
58	MEMBER; HEADER BOARD RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> TAKADA	8-94194-452-0	02	1	9503-						●
58	MEMBER; HEADER BOARD RR BODY FLAT BED<RS6> REAR BODY GATE - ALUMINUM<7PE> EXC. CAB-LOW ROOF<6XQ>	8-94195-457-0	02	1	9704-9708		●
58	MEMBER; HEADER BOARD RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>	8-94195-457-0	02	1	9709-9801		●
58	MEMBER; HEADER BOARD RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> EXC. FULL FLATLOW<6GL>	8-94195-457-0	02	1	9802-						●
58	MEMBER; HEADER BOARD RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>	8-94195-457-0	02	1	9802-		●
58	MEMBER; HEADER BOARD REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6>	8-94195-023-0	02	1	9503-9703			●
58	MEMBER; HEADER BOARD REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6>	8-94195-023-0	02	1	9704-			●
58	MEMBER; HEADER BOARD RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> EXC. FULL FLATLOW<6GL>	8-94194-460-0	01	1	9503-9606						●
58	MEMBER; HEADER BOARD RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ>	8-94194-460-0	01	1	9503-9606		●
58	MEMBER; HEADER BOARD RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> EXC. FULL FLATLOW<6GL>	8-94195-457-0	01	1	9607-9703						●
58	MEMBER; HEADER BOARD RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ>	8-94195-457-0	01	1	9607-9703		●
59	REINFORCEMENT; HEADER BOARD REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> TAKADA	8-94194-454-0	01	1	9503-9703	●	●	●	●
59	REINFORCEMENT; HEADER BOARD REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> TAKADA	8-94194-454-0	01	1	9704-9801	●	●	●	●	●
59	REINFORCEMENT; HEADER BOARD REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> TAKADA	8-94194-454-0	01	1	9802-	●	●	●	●	●	●
59	REINFORCEMENT; HEADER BOARD REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> TAKADA	8-94194-453-0	01	1	9503-9703	●	●	●	●
59	REINFORCEMENT; HEADER BOARD REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> TAKADA	8-94194-453-0	01	1	9704-9801	●	●	●	●	●
59	REINFORCEMENT; HEADER BOARD REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> TAKADA	8-94194-453-0	01	1	9802-	●	●	●	●	●	●
60	SCREW; BOARD RR BODY FLAT BED<RS6> M8X35	8-94193-941-0	05	1	9304-		●		●		●
60	SCREW; BOARD REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> M8X30 TAKADA	8-94193-938-0	04	1	9304-	●		●		●

1 1 10 2 6 37 42 16 15 14 37 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FRAME; GUARD,RR BODY REAR BODY - DROP SIDE ALMINUM(RP2)	8-94196-089-0	01	1	9802-	●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> REAR BODY GATE - ALUMINUM<7PE> EXC. CAB-LOW ROOF<6XQ>	8-94196-099-0	01	1	9804-		●
1	FRAME; GUARD,RR BODY REAR BODY - DROP SIDE ALMINUM(RP2)	8-94196-088-0	01	1	9802-			●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> REAR BODY GATE - ALUMINUM<7PE> EXC. CAB-LOW ROOF<6XQ>	8-94196-102-0	01	1	9802-				●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3500 KG<RPL> RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> REAR BODY GATE - ALUMINUM<7PE> EXC. CAB-LOW ROOF<6XQ>	8-94196-103-0	01	1	9802-				●
1	FRAME; GUARD,RR BODY RR BODY NON FLAT BED(RS5)	8-94197-133-0	01	1	9304-9501					●
1	FRAME; GUARD,RR BODY RR BODY NON FLAT BED(RS5)	8-94197-228-0	01	1	9502-					●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94193-905-0	01	1	9304-9502					●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94194-586-0	01	1	9503-9606					●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94194-586-0	01	1	9607-9803					●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> EXC. FULL FLATLOW<6GL>	8-94194-586-0	01	1	9607-9803	●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94196-085-0	01	1	9804-					●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> EXC. FULL FLATLOW<6GL>	8-94196-085-0	01	1	9804-	●
1	FRAME; GUARD,RR BODY REAR BODY - DROP SIDE ALMINUM(RP2)	8-94193-977-0	01	1	9304-9502	●
1	FRAME; GUARD,RR BODY REAR BODY - DROP SIDE ALMINUM(RP2)	8-94194-590-0	01	1	9503-9606	●
1	FRAME; GUARD,RR BODY REAR BODY - DROP SIDE ALMINUM(RP2)	8-94195-059-1	01	1	9607-9801	●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE> RR BODY FLAT BED<RS6> EXC. FULL FLATLOW<6GL>	8-94193-781-0	01	1	9304-9502	●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> EXC. FULL FLATLOW<6GL>	8-94194-589-0	01	1	9503-9606	●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> EXC. CAB-LOW ROOF<6XQ>	8-94194-593-0	01	1	9503-9803	●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> EXC. CAB-LOW ROOF<6XQ>	8-94196-091-0	01	1	9804-	●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> CAB-LOW ROOF<6XQ>	8-94194-972-0	01	1	9503-9606	●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> CAB-LOW ROOF<6XQ>	8-94195-069-0	01	1	9607-9803	●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> FRAME-KICK UP<7EW> CAB-LOW ROOF<6XQ>	8-94196-092-0	01	1	9804-	●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> EXC. FULL FLATLOW<6GL>	8-94193-981-1	01	1	9304-9502	●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> FULL FLATLOW<6GL>	8-94194-009-1	01	1	9304-9502	●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> EXC. FRAME-KICK UP<7EW>	8-94194-591-0	01	1	9503-9703	●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> EXC. FRAME-KICK UP<7EW>	8-94195-401-0	01	1	9704-9803	●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> EXC. FRAME-KICK UP<7EW>	8-94196-086-0	01	1	9804-	●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> EXC. FULL FLATLOW<6GL>	8-94194-595-0	01	1	9503-9606						●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ>	8-94194-595-0	01	1	9503-9606		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> EXC. FULL FLATLOW<6GL>	8-94195-308-0	01	1	9607-9703						●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ>	8-94195-308-0	01	1	9607-9703		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> EXC. FULL FLATLOW<6GL>,REAR BODY GATE - ALUMINUM<7PE>	8-94195-080-0	01	1	9704-9803		●				●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> EXC. FULL FLATLOW<6GL>,REAR BODY GATE - ALUMINUM<7PE>	8-94196-096-0	01	1	9804-		●				●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> CAB-LOW ROOF<6XQ>	8-94194-920-0	01	1	9503-9703						●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3500 KG<RPL> RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> CAB-LOW ROOF<6XQ> EXC. REAR BODY GATE - ALUMINUM<7PE>	8-94195-084-0	01	1	9704-9803				●		●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3500 KG<RPL> RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> CAB-LOW ROOF<6XQ> EXC. REAR BODY GATE - ALUMINUM<7PE>	8-94196-097-0	01	1	9804-				●		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> EXC. CAB-LOW ROOF<6XQ>	8-94194-998-0	01	1	9503-9703						●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3500 KG<RPL> RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> EXC. CAB-LOW ROOF<6XQ>,REAR BODY GATE - ALUMINUM<7PE>	8-94195-086-0	01	1	9704-9803				●		●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3500 KG<RPL> RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> EXC. CAB-LOW ROOF<6XQ>,REAR BODY GATE - ALUMINUM<7PE>	8-94196-098-0	01	1	9804-				●		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ>	8-94193-792-0	01	1	9304-9502		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>	8-94193-875-0	01	1	9304-9502		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>	8-94194-596-0	01	1	9503-9606		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>	8-94195-304-0	01	1	9607-9703		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY GATE - ALUMINUM<7PE>	8-94195-092-0	01	1	9704-9803		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY GATE - ALUMINUM<7PE>	8-94196-095-0	01	1	9804-		●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> REAR BODY GATE - ALUMINUM<7PE> EXC. CAB-LOW ROOF<6XQ>	8-94195-137-1	01	1	9704-9801		●
1	FRAME; GUARD,RR BODY REAR BODY - DROP SIDE ALMINUM(RP2)	8-94193-973-1	01	1	9304-9502			●
1	FRAME; GUARD,RR BODY REAR BODY - DROP SIDE ALMINUM(RP2)	8-94194-588-2	01	1	9503-9801			●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94193-774-0	01	1	9304-9502			●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94194-587-0	01	1	9503-9703			●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94194-587-1	01	1	9704-9803			●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94196-087-0	01	1	9804-			●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> EXC. REAR BODY GATE - ALUMINUM<7PE>	8-94195-102-0	01	1	9704-9803				●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ> EXC. REAR BODY GATE - ALUMINUM<7PE>	8-94196-100-0	01	1	9804-				●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY GATE - ALUMINUM<7PE>	8-94195-105-0	01	1	9704-9803				●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>,REAR BODY GATE - ALUMINUM<7PE>	8-94196-101-0	01	1	9804-				●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> RR BODY FLAT BED<RS6> REAR BODY GATE - ALUMINUM<7PE> EXC. CAB-LOW ROOF<6XQ>	8-94195-138-1	01	1	9704-9801				●
1	FRAME; GUARD,RR BODY LOADING CAPACITY - 3500 KG<RPL> RR BODY FLAT BED<RS6> FULL FLATLOW<6GL> REAR BODY GATE - ALUMINUM<7PE> EXC. CAB-LOW ROOF<6XQ>	8-94195-450-1	01	1	9704-9801				●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6>	8-94193-785-0	01	1	9304-9502				●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> CAB-LOW ROOF<6XQ>	8-94194-869-0	01	1	9503-9703				●
1	FRAME; GUARD,RR BODY RR BODY FLAT BED<RS6> EXC. CAB-LOW ROOF<6XQ>	8-94194-597-0	01	1	9503-9703				●
2	STOPPER; GUARD FRAME RR BODY NON FLAT BED(RS5) TAKADA	8-94197-135-0	02	1	9304-9501					●
2	STOPPER; GUARD FRAME REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> TAKADA	8-94193-798-0	02	1	9304-	●	●	●	●	●	●
6	BOLT; STOPPER TO GUARD FRAME RR BODY NON FLAT BED(RS5) TAKADA	8-94197-154-0	02	1	9304-9501					●
6	BOLT; STOPPER TO GUARD FRAME REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> TAKADA	8-94193-950-0	02	1	9304-	●	●	●	●	●	●
10	NUT; GUARD FRAME STOPPER RR BODY NON FLAT BED(RS5) TAKADA	8-94197-155-0	02	1	9304-9501					●
14	BOLT; GUARD FRAME TO GUSSET RR BODY NON FLAT BED(RS5) M10X22 FLANGE	8-97065-440-0	04	1	9502-					●
14	BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	10	1	9304-					●
14	BOLT; GUARD FRAME TO GUSSET REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	10	1	9304-	●		●
14	BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	12	1	9304-9502		●		●
14	BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10X22 FLANGE	8-97065-440-0	12	1	9503-		●		●		●
15	WASHER; PL,GUARD FRAME TO GUSSET RR BODY NON FLAT BED(RS5)	8-97065-438-0	04	1	9502-					●
15	WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	10	1	9304-					●
15	WASHER; PL,GUARD FRAME TO GUSSET REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6>	8-97065-438-0	10	1	9304-	●		●
15	WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	12	1	9304-9502		●		●
15	WASHER; PL,GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6>	8-97065-438-0	12	1	9503-		●		●		●
16	NUT; GUARD FRAME TO GUSSET RR BODY NON FLAT BED(RS5) M10 FLANGE	8-97065-439-0	02	1	9502-					●
16	NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	10	1	9304-					●
16	NUT; GUARD FRAME TO GUSSET REAR BODY - DROP SIDE ALMINUM(RP2),RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	10	1	9304-	●		●
16	NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	12	1	9304-9502		●		●
16	NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED<RS6> M10 FLANGE	8-97065-439-0	12	1	9503-		●		●		●
37	BOLT; GUARD FRAME RR BODY NON FLAT BED(RS5) (A) M8X25 FLANGE	0-28680-825-0	04	1	9502-					●
37	BOLT; GUARD FRAME RR BODY NON FLAT BED(RS5) (B) M10X22 FLANGE	8-97065-440-0	06	1	9502-					●
42	WASHER; PL RR BODY NON FLAT BED(RS5) (B)	8-97065-438-0	06	1	9502-					●
42	WASHER; PL RR BODY NON FLAT BED(RS5) (A) ID=8.4 OD=22	9-09160-708-0	04	1	9502-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
