◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50671 - NKR ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#166823) — 335 parça

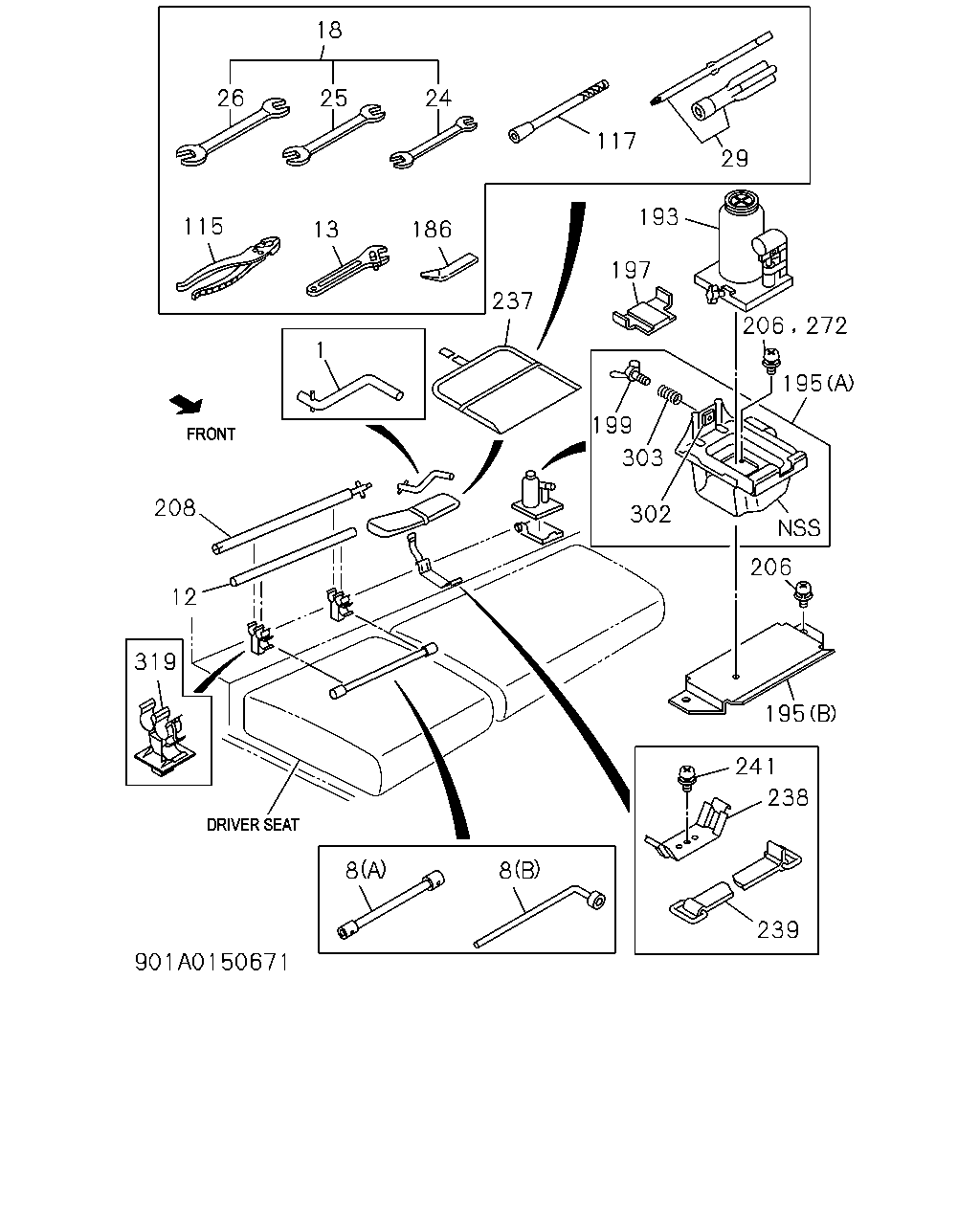

çizim 494472
18 25 26 24 186 13 115 237 117 29 193 197 199 1 208 12 319 303 302 206 272 195 206 195 241 238 239 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HANDLE; SPARE TIRE CARRIER 9-85512-608-0 01 1 9304-9502 ● ● ● ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER<P10> 		9-85512-608-0 01 1 9304-9502 ●
1 HANDLE; SPARE TIRE CARRIER
FRT INDEPENDENT SUSPENSION(6PP) 		9-85512-608-0 01 1 9304-9502 ●
1 HANDLE; SPARE TIRE CARRIER 9-85512-608-0 01 1 9503-9507 ● ● ● ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER<P10> 		9-85512-608-0 01 1 9503-9507 ●
1 HANDLE; SPARE TIRE CARRIER
LOADING CAPACITY - 2750 KG<RPH> EXC. CRANE CHASSIS(V4C),FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		9-85512-608-0 01 1 9503-9507 ●
1 HANDLE; SPARE TIRE CARRIER
CRANE CHASSIS(V4C) EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		9-85512-608-0 01 1 9503-9507 ●
1 HANDLE; SPARE TIRE CARRIER
FULL FLATLOW<6GL> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		9-85512-608-0 01 1 9503-9507 ●
1 HANDLE; SPARE TIRE CARRIER
FRT INDEPENDENT SUSPENSION(6PP) 		9-85512-608-0 01 1 9503-9507 ●
1 HANDLE; SPARE TIRE CARRIER 9-85512-608-0 01 1 9508- ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER<P10> EXC. SEINOU UNYU PACKAGE(6NP) 		9-85512-608-0 01 1 9508- ●
1 HANDLE; SPARE TIRE CARRIER
LOADING CAPACITY - 2750 KG<RPH> EXC. CRANE CHASSIS(V4C),FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		9-85512-608-0 01 1 9508- ●
1 HANDLE; SPARE TIRE CARRIER
CRANE CHASSIS(V4C) EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		9-85512-608-0 01 1 9508- ●
1 HANDLE; SPARE TIRE CARRIER
FULL FLATLOW<6GL> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		9-85512-608-0 01 1 9508- ●
1 HANDLE; SPARE TIRE CARRIER
FRT INDEPENDENT SUSPENSION(6PP) 		9-85512-608-0 01 1 9508- ●
1 HANDLE; SPARE TIRE CARRIER
EXC. SEINOU UNYU PACKAGE(6NP) 		9-85512-608-0 01 1 9508- ● ● ●
8 WRENCH; WHEEL
(B) B=27 L=280 		5-85115-002-1 01 1 9304-9502 ● ●
8 WRENCH; WHEEL
(B) B=27 L=280 		5-85115-002-1 01 1 9503-9506 ●
8 WRENCH; WHEEL
EXC. DUMP CHASSIS(V4D) (B) B=27 L=280 		5-85115-002-1 01 1 9503-9506 ●
8 WRENCH; WHEEL
(B) B=27 L=280 		5-85115-002-1 01 1 9507-9507 ●
8 WRENCH; WHEEL
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D) (B) B=27 L=280 		5-85115-002-1 01 1 9507-9507 ●
8 WRENCH; WHEEL
(B) B=27 L=280 		5-85115-002-1 01 1 9508-9803 ●
8 WRENCH; WHEEL
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) (B) B=27 L=280 		5-85115-002-1 01 1 9508-9803 ●
8 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 9804- ●
8 WRENCH; WHEEL
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) (B) B=23 L=300 		9-85113-935-0 01 1 9804- ●
8 WRENCH; WHEEL
(A) B=41X19 L=330 		8-94386-490-1 01 1 9304-9502 ● ● ●
8 WRENCH; WHEEL
FULL FLATLOW<6GL> (A) B=41X19 L=330 		8-94386-490-1 01 1 9304-9502 ●
8 WRENCH; WHEEL
(A) B=41X19 L=330 		8-94386-490-1 01 1 9503-9507 ● ● ●
8 WRENCH; WHEEL
A/T 4 SPEED-JATCO(RMK) LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL> (A) B=41X19 L=330 		8-94386-490-1 01 1 9503-9507 ●
8 WRENCH; WHEEL
FLOOR REMOTE SHIFT<M11> LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) (A) B=41X19 L=330 		8-94386-490-1 01 1 9503-9507 ●
8 WRENCH; WHEEL
LOADING CAPACITY - 3000 KG<RPJ> EXC. FULL FLATLOW<6GL> (A) B=41X19 L=330 		8-94386-490-1 01 1 9503-9507 ●
8 WRENCH; WHEEL
FULL FLATLOW<6GL> (A) B=41X19 L=330 		8-94386-490-1 01 1 9503-9507 ●
8 WRENCH; WHEEL
EXC. SEINOU UNYU PACKAGE(6NP) (A) B=41X19 L=330 		8-94386-490-1 01 1 9508-9709 ● ● ●
8 WRENCH; WHEEL
A/T 4 SPEED-JATCO(RMK) LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) (A) B=41X19 L=330 		8-94386-490-1 01 1 9508-9709 ●
8 WRENCH; WHEEL
FLOOR REMOTE SHIFT<M11> LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) (A) B=41X19 L=330 		8-94386-490-1 01 1 9508-9709 ●
8 WRENCH; WHEEL
LOADING CAPACITY - 3000 KG<RPJ> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) (A) B=41X19 L=330 		8-94386-490-1 01 1 9508-9709 ●
8 WRENCH; WHEEL
FULL FLATLOW<6GL> EXC. SEINOU UNYU PACKAGE(6NP) (A) B=41X19 L=330 		8-94386-490-1 01 1 9508-9709 ●
8 WRENCH; WHEEL
EXC. SEINOU UNYU PACKAGE(6NP) (A) B=41X19 L=330 		8-94386-490-1 01 1 9710- ● ●
8 WRENCH; WHEEL
(A) B=41X19 L=330 		8-94386-490-1 01 1 9710- ●
8 WRENCH; WHEEL
LOADING CAPACITY - 3000 KG<RPJ> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) (A) B=41X19 L=330 		8-94386-490-1 01 1 9710- ●
8 WRENCH; WHEEL
FULL FLATLOW<6GL> EXC. SEINOU UNYU PACKAGE(6NP) (A) B=41X19 L=330 		8-94386-490-1 01 1 9710- ●
8 WRENCH; WHEEL
(A) B=35X17 L=300 		8-94341-283-1 01 1 9304-9502 ●
8 WRENCH; WHEEL
LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL> (A) B=35X17 L=300 		8-94341-283-1 01 1 9304-9502 ●
8 WRENCH; WHEEL
(A) B=35X17 L=300 		8-94341-283-1 01 1 9503-9506 ●
8 WRENCH; WHEEL
FLOOR REMOTE SHIFT<M11> LOADING CAPACITY - 2000 KG<RPE> FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL> (A) B=35X17 L=300 		8-94341-283-1 01 1 9503-9506 ●
8 WRENCH; WHEEL
DUMP CHASSIS(V4D) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) B=35X17 L=300 		8-94341-283-1 01 1 9507-9507 ●
8 WRENCH; WHEEL
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D) (A) B=35X17 L=300 		8-94341-283-1 01 1 9507-9507 ●
8 WRENCH; WHEEL
FLOOR REMOTE SHIFT<M11> LOADING CAPACITY - 2000 KG<RPE> FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL> (A) B=35X17 L=300 		8-94341-283-1 01 1 9507-9507 ●
8 WRENCH; WHEEL
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) (A) B=35X17 L=300 		8-94341-283-1 01 1 9508-9709 ●
8 WRENCH; WHEEL
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) (A) B=35X17 L=300 		8-94341-283-1 01 1 9508-9709 ●
8 WRENCH; WHEEL
FLOOR REMOTE SHIFT<M11> LOADING CAPACITY - 2000 KG<RPE> FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) (A) B=35X17 L=300 		8-94341-283-1 01 1 9508-9709 ●
8 WRENCH; WHEEL
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) (A) B=35X17 L=300 		8-94341-283-1 01 1 9710- ●
8 WRENCH; WHEEL
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) (A) B=35X17 L=300 		8-94341-283-1 01 1 9710- ●
8 WRENCH; WHEEL
LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) (A) B=35X17 L=300 		8-94341-283-1 01 1 9710- ●
8 WRENCH; WHEEL
LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL> (A) B=41X21 L=440 		1-85113-015-0 01 1 9304-9502 ●
8 WRENCH; WHEEL
DUMP CHASSIS(V4D) (A) B=41X21 L=440 		1-85113-015-0 01 1 9503-9506 ●
8 WRENCH; WHEEL
FLOOR REMOTE SHIFT<M11> LOADING CAPACITY - 2000 KG<RPE> FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL> (A) B=41X21 L=440 		1-85113-015-0 01 1 9503-9506 ●
8 WRENCH; WHEEL
DUMP CHASSIS(V4D) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) B=41X21 L=440 		1-85113-015-0 01 1 9507-9507 ●
8 WRENCH; WHEEL
FLOOR REMOTE SHIFT<M11> LOADING CAPACITY - 2000 KG<RPE> FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL> (A) B=41X21 L=440 		1-85113-015-0 01 1 9507-9507 ●
8 WRENCH; WHEEL
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) (A) B=41X21 L=440 		1-85113-015-1 01 1 9508-9709 ●
8 WRENCH; WHEEL
FLOOR REMOTE SHIFT<M11> LOADING CAPACITY - 2000 KG<RPE> FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) (A) B=41X21 L=440 		1-85113-015-1 01 1 9508-9709 ●
8 WRENCH; WHEEL
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) (A) B=41X21 L=440 		1-85113-015-1 01 1 9710- ●
8 WRENCH; WHEEL
LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) (A) B=41X21 L=440 		1-85113-015-1 01 1 9710- ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-94430-092-0 01 1 9304-9502 ● ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL> OD=25 L=590 		8-94430-092-0 01 1 9304-9502 ●
12 HANDLE; WRENCH,WHEEL PIN
FULL FLATLOW<6GL> OD=25 L=590 		8-94430-092-0 01 1 9304-9502 ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-94430-092-0 01 1 9503-9507 ● ● ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
EXC. SEINOU UNYU PACKAGE(6NP) OD=25 L=590 		8-94430-092-0 01 1 9508- ● ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-94430-092-0 01 1 9508- ●
13 WRENCH; MONKEY 8-94310-178-0 01 1 9304-9407 ● ● ● ● ● ●
18 WRENCH KIT 9-85161-902-0 01 1 9304-9506 ● ● ● ● ● ●
18 WRENCH KIT 9-85161-902-0 01 1 9507-9507 ● ● ● ● ●
18 WRENCH KIT
DUMP CHASSIS(V4D) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		9-85161-902-0 01 1 9507-9507 ●
18 WRENCH KIT
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D) 		9-85161-902-0 01 1 9507-9507 ●
18 WRENCH KIT 9-85161-902-0 01 1 9508-9704 ● ● ● ● ●
18 WRENCH KIT
SEINOU UNYU PACKAGE(6NP) 		9-85161-902-0 01 1 9508-9704 ●
18 WRENCH KIT
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 		9-85161-902-0 01 1 9508-9704 ●
18 WRENCH KIT
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) 		9-85161-902-0 01 1 9508-9704 ●
18 WRENCH KIT 8-97180-830-0 01 1 9705-9705 ● ● ● ● ●
18 WRENCH KIT
SEINOU UNYU PACKAGE(6NP) 		8-97180-830-0 01 1 9705-9705 ●
18 WRENCH KIT
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 		8-97180-830-0 01 1 9705-9705 ●
18 WRENCH KIT
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) 		8-97180-830-0 01 1 9705-9705 ●
18 WRENCH KIT 8-97115-905-1 01 1 9706-9709 ● ● ● ● ●
18 WRENCH KIT
SEINOU UNYU PACKAGE(6NP) 		8-97115-905-1 01 1 9706-9709 ●
18 WRENCH KIT
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 		8-97115-905-1 01 1 9706-9709 ●
18 WRENCH KIT
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) 		8-97115-905-1 01 1 9706-9709 ●
18 WRENCH KIT 8-97115-905-1 01 1 9710-9801 ● ● ● ●
18 WRENCH KIT
SEINOU UNYU PACKAGE(6NP) 		8-97115-905-1 01 1 9710-9801 ● ●
18 WRENCH KIT
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) 		8-97115-905-1 01 1 9710-9801 ●
18 WRENCH KIT
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 		8-97115-905-1 01 1 9710-9801 ●
18 WRENCH KIT
FULL FLATLOW<6GL> EXC. SEINOU UNYU PACKAGE(6NP) 		8-97115-905-1 01 1 9710-9801 ●
18 WRENCH KIT
LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) 		8-97115-905-1 01 1 9710-9801 ●
24 WRENCH; 8X10
8X10 		9-99592-108-0 01 1 9304-9506 ● ● ● ● ● ●
24 WRENCH; 8X10
8X10 		9-99592-108-0 01 1 9705-9709 ● ● ● ● ●
24 WRENCH; 8X10
SEINOU UNYU PACKAGE(6NP) 8X10 		9-99592-108-0 01 1 9705-9709 ●
24 WRENCH; 8X10
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 8X10 		9-99592-108-0 01 1 9705-9709 ●
24 WRENCH; 8X10
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) 8X10 		9-99592-108-0 01 1 9705-9709 ●
24 WRENCH; 8X10
8X10 		9-99592-108-0 01 1 9710-9801 ● ● ● ●
24 WRENCH; 8X10
SEINOU UNYU PACKAGE(6NP) 8X10 		9-99592-108-0 01 1 9710-9801 ● ●
24 WRENCH; 8X10
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) 8X10 		9-99592-108-0 01 1 9710-9801 ●
24 WRENCH; 8X10
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 8X10 		9-99592-108-0 01 1 9710-9801 ●
24 WRENCH; 8X10
FULL FLATLOW<6GL> EXC. SEINOU UNYU PACKAGE(6NP) 8X10 		9-99592-108-0 01 1 9710-9801 ●
24 WRENCH; 8X10
LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) 8X10 		9-99592-108-0 01 1 9710-9801 ●
25 WRENCH; 12X14
12X14 		9-09592-112-0 01 1 9304-9506 ● ● ● ● ● ●
25 WRENCH; 12X14
12X14 		9-09592-112-0 01 1 9705-9709 ● ● ● ● ●
25 WRENCH; 12X14
SEINOU UNYU PACKAGE(6NP) 12X14 		9-09592-112-0 01 1 9705-9709 ●
25 WRENCH; 12X14
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 12X14 		9-09592-112-0 01 1 9705-9709 ●
25 WRENCH; 12X14
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) 12X14 		9-09592-112-0 01 1 9705-9709 ●
25 WRENCH; 12X14
12X14 		9-09592-112-0 01 1 9710-9801 ● ● ● ●
25 WRENCH; 12X14
SEINOU UNYU PACKAGE(6NP) 12X14 		9-09592-112-0 01 1 9710-9801 ● ●
25 WRENCH; 12X14
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) 12X14 		9-09592-112-0 01 1 9710-9801 ●
25 WRENCH; 12X14
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 12X14 		9-09592-112-0 01 1 9710-9801 ●
25 WRENCH; 12X14
FULL FLATLOW<6GL> EXC. SEINOU UNYU PACKAGE(6NP) 12X14 		9-09592-112-0 01 1 9710-9801 ●
25 WRENCH; 12X14
LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) 12X14 		9-09592-112-0 01 1 9710-9801 ●
26 WRENCH; 22X17
22X17 		9-85162-101-0 01 1 9304-9506 ● ● ● ● ● ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9304-9506 ● ● ● ● ● ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9507-9507 ● ● ● ● ●
29 DRIVER; SCREW
DUMP CHASSIS(V4D) EXC. FRT INDEPENDENT SUSPENSION(6PP) <+>,<-> L=160 		8-94242-798-1 01 1 9507-9507 ●
29 DRIVER; SCREW
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D) <+>,<-> L=160 		8-94242-798-1 01 1 9507-9507 ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9508-9709 ● ● ● ● ●
29 DRIVER; SCREW
SEINOU UNYU PACKAGE(6NP) <+>,<-> L=160 		8-94242-798-1 01 1 9508-9709 ●
29 DRIVER; SCREW
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) <+>,<-> L=160 		8-94242-798-1 01 1 9508-9709 ●
29 DRIVER; SCREW
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) <+>,<-> L=160 		8-94242-798-1 01 1 9508-9709 ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9710- ● ● ● ●
29 DRIVER; SCREW
SEINOU UNYU PACKAGE(6NP) <+>,<-> L=160 		8-94242-798-1 01 1 9710- ● ●
29 DRIVER; SCREW
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) <+>,<-> L=160 		8-94242-798-1 01 1 9710- ●
29 DRIVER; SCREW
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) <+>,<-> L=160 		8-94242-798-1 01 1 9710- ●
29 DRIVER; SCREW
FULL FLATLOW<6GL> EXC. SEINOU UNYU PACKAGE(6NP) <+>,<-> L=160 		8-94242-798-1 01 1 9710- ●
29 DRIVER; SCREW
LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) <+>,<-> L=160 		8-94242-798-1 01 1 9710- ●
115 PLIER 5-85171-002-0 01 1 9304-9506 ● ● ● ● ● ●
115 PLIER 5-85171-002-0 01 1 9507-9507 ● ● ● ● ●
115 PLIER
DUMP CHASSIS(V4D) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		5-85171-002-0 01 1 9507-9507 ●
115 PLIER
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D) 		5-85171-002-0 01 1 9507-9507 ●
115 PLIER 5-85171-002-0 01 1 9508-9709 ● ● ● ● ●
115 PLIER
SEINOU UNYU PACKAGE(6NP) 		5-85171-002-0 01 1 9508-9709 ●
115 PLIER
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 		5-85171-002-0 01 1 9508-9709 ●
115 PLIER
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) 		5-85171-002-0 01 1 9508-9709 ●
115 PLIER 5-85171-002-0 01 1 9710-9801 ● ● ● ●
115 PLIER
SEINOU UNYU PACKAGE(6NP) 		5-85171-002-0 01 1 9710-9801 ● ●
115 PLIER
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) 		5-85171-002-0 01 1 9710-9801 ●
115 PLIER
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 		5-85171-002-0 01 1 9710-9801 ●
115 PLIER
FULL FLATLOW<6GL> EXC. SEINOU UNYU PACKAGE(6NP) 		5-85171-002-0 01 1 9710-9801 ●
115 PLIER
LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) 		5-85171-002-0 01 1 9710-9801 ●
117 WRENCH; VALVE CAP 9-85163-906-1 01 1 9304-9506 ● ● ● ● ●
117 WRENCH; VALVE CAP 9-85163-906-1 01 1 9507-9507 ● ● ● ●
117 WRENCH; VALVE CAP
DUMP CHASSIS(V4D) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		9-85163-906-1 01 1 9507-9507 ●
117 WRENCH; VALVE CAP
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D) 		9-85163-906-1 01 1 9507-9507 ●
117 WRENCH; VALVE CAP 9-85163-906-1 01 1 9508-9709 ● ● ● ●
117 WRENCH; VALVE CAP
SEINOU UNYU PACKAGE(6NP) 		9-85163-906-1 01 1 9508-9709 ●
117 WRENCH; VALVE CAP
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 		9-85163-906-1 01 1 9508-9709 ●
117 WRENCH; VALVE CAP
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) 		9-85163-906-1 01 1 9508-9709 ●
117 WRENCH; VALVE CAP 9-85163-906-1 01 1 9710-9801 ● ● ●
117 WRENCH; VALVE CAP
SEINOU UNYU PACKAGE(6NP) 		9-85163-906-1 01 1 9710-9801 ● ●
117 WRENCH; VALVE CAP
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) 		9-85163-906-1 01 1 9710-9801 ●
117 WRENCH; VALVE CAP
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 		9-85163-906-1 01 1 9710-9801 ●
117 WRENCH; VALVE CAP
FULL FLATLOW<6GL> EXC. SEINOU UNYU PACKAGE(6NP) 		9-85163-906-1 01 1 9710-9801 ●
117 WRENCH; VALVE CAP
LOADING CAPACITY - 2000 KG<RPE>,LOADING CAPACITY - 3000 KG<RPJ> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) 		9-85163-906-1 01 1 9710-9801 ●
186 ADJUSTER; BRAKE
EXC. DISC BRAKE FRT<J52> 		5-85269-001-0 01 1 9304-9502 ●
186 ADJUSTER; BRAKE
EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		5-85269-001-0 01 1 9503-9506 ●
193 JACK ASM 8-97048-422-1 01 1 9304-9501 ●
193 JACK ASM
FRT INDEPENDENT SUSPENSION(6PP) 		8-97048-422-1 01 1 9304-9501 ● ● ● ● ●
193 JACK ASM
REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97048-422-1 01 1 9304-9501 ●
193 JACK ASM
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97048-422-1 01 1 9304-9501 ●
193 JACK ASM
FRT INDEPENDENT SUSPENSION(6PP) 		8-97048-422-1 01 1 9502-9505 ● ● ● ● ● ●
193 JACK ASM
4TON 		8-97131-074-0 01 1 9506-9507 ●
193 JACK ASM
FRT INDEPENDENT SUSPENSION(6PP) FRAME-KICK UP<7EW> EXC. FULL FLATLOW<6GL> 4TON 		8-97131-074-0 01 1 9506-9507 ●
193 JACK ASM
FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL> 4TON 		8-97131-074-0 01 1 9506-9507 ● ●
193 JACK ASM
4TON 		8-97131-074-1 01 1 9508- ●
193 JACK ASM
FRT INDEPENDENT SUSPENSION(6PP) FRAME-KICK UP<7EW> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) 4TON 		8-97131-074-1 01 1 9508- ●
193 JACK ASM
FRT INDEPENDENT SUSPENSION(6PP) EXC. SEINOU UNYU PACKAGE(6NP) 4TON 		8-97131-074-1 01 1 9508- ●
193 JACK ASM
FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) 4TON 		8-97131-074-1 01 1 9508- ●
193 JACK ASM
FULL FLATLOW<6GL> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97048-423-0 01 1 9502-9505 ●
193 JACK ASM
FRAME-KICK UP<7EW> EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97048-423-0 01 1 9502-9505 ●
193 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97048-423-0 01 1 9502-9505 ● ● ●
193 JACK ASM
FULL FLATLOW<6GL> 3TON 		8-97131-073-0 01 1 9506-9507 ● ●
193 JACK ASM
FRAME-KICK UP<7EW> EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 3TON 		8-97131-073-0 01 1 9506-9507 ●
193 JACK ASM
FULL FLATLOW<6GL> FRT INDEPENDENT SUSPENSION(6PP) 3TON 		8-97131-073-0 01 1 9506-9507 ●
193 JACK ASM
EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 3TON 		8-97131-073-0 01 1 9506-9507 ● ●
193 JACK ASM
FULL FLATLOW<6GL> EXC. SEINOU UNYU PACKAGE(6NP) 3TON 		8-97131-073-1 01 1 9508- ● ●
193 JACK ASM
FRAME-KICK UP<7EW> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 3TON 		8-97131-073-1 01 1 9508- ●
193 JACK ASM
FULL FLATLOW<6GL> FRT INDEPENDENT SUSPENSION(6PP) 3TON 		8-97131-073-1 01 1 9508- ●
193 JACK ASM
EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 3TON 		8-97131-073-1 01 1 9508- ●
193 JACK ASM
EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 3TON 		8-97131-073-1 01 1 9508- ●
193 JACK ASM
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97048-424-1 01 1 9304-9501 ●
193 JACK ASM
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97048-424-1 01 1 9304-9501 ●
193 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97048-424-1 01 1 9304-9501 ● ● ● ●
193 JACK ASM
EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 		8-97048-424-1 01 1 9502-9502 ● ●
193 JACK ASM
EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 		8-97048-424-1 01 1 9503-9505 ●
193 JACK ASM
EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97048-424-1 01 1 9503-9505 ●
193 JACK ASM
EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 4TON 		8-97131-075-0 01 1 9506-9507 ● ● ●
193 JACK ASM
EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 4TON 		8-97131-075-2 01 1 9508- ●
193 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(6PP) 4TON 		8-97131-075-2 01 1 9508- ●
193 JACK ASM
EXC. SEINOU UNYU PACKAGE(6NP) 4TON 		8-97131-075-2 01 1 9508- ●
195 BRACKET; JACK
EXC. SLIDE DOOR<6NE> (A) 		8-94273-287-5 01 1 9310-9310 ● ● ●
195 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(6PP) EXC. SLIDE DOOR<6NE> (A) 		8-94273-287-5 01 1 9310-9310 ● ● ●
195 BRACKET; JACK
REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U>,SLIDE DOOR<6NE>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94273-287-5 01 1 9310-9310 ●
195 BRACKET; JACK
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SLIDE DOOR<6NE>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94273-287-5 01 1 9310-9310 ●
195 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(6PP) EXC. SLIDE DOOR<6NE> (A) 		8-94273-287-5 01 1 9311-9403 ● ● ● ● ● ●
195 BRACKET; JACK
REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U>,SLIDE DOOR<6NE>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94273-287-5 01 1 9311-9403 ●
195 BRACKET; JACK
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SLIDE DOOR<6NE>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94273-287-5 01 1 9311-9403 ●
195 BRACKET; JACK
(A) 		8-94273-287-6 01 1 9404-9501 ●
195 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94273-287-6 01 1 9404-9501 ● ● ● ● ●
195 BRACKET; JACK
REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94273-287-6 01 1 9404-9501 ●
195 BRACKET; JACK
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94273-287-6 01 1 9404-9501 ●
195 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94273-287-6 01 1 9502-9505 ● ● ● ● ● ●
195 BRACKET; JACK
(A) 		8-94273-287-6 01 1 9506- ●
195 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(6PP) FRAME-KICK UP<7EW> (A) 		8-94273-287-6 01 1 9506- ●
195 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL> (A) 		8-94273-287-6 01 1 9506- ● ●
195 BRACKET; JACK
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL>,SLIDE DOOR<6NE>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94262-068-0 01 1 9310-9310 ●
195 BRACKET; JACK
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL>,SLIDE DOOR<6NE> ,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94262-068-0 01 1 9310-9310 ● ● ● ●
195 BRACKET; JACK
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,SLIDE DOOR<6NE>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94262-068-0 01 1 9311-9403 ● ● ● ● ●
195 BRACKET; JACK
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL>,SLIDE DOOR<6NE>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94262-068-0 01 1 9311-9403 ●
195 BRACKET; JACK
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94262-068-1 01 1 9404-9501 ●
195 BRACKET; JACK
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94262-068-1 01 1 9404-9501 ●
195 BRACKET; JACK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94262-068-1 01 1 9404-9501 ● ● ● ●
195 BRACKET; JACK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94262-068-2 01 1 9502-9505 ● ● ● ● ● ●
195 BRACKET; JACK
EXC. FRAME-KICK UP<7EW> (A) 		8-94262-068-2 01 1 9506- ● ● ●
195 BRACKET; JACK
FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94262-068-2 01 1 9506- ●
195 BRACKET; JACK
EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94262-068-2 01 1 9506- ● ●
195 BRACKET; JACK
FULL FLATLOW<6GL> (A) 		8-94262-068-2 01 1 9506- ●
195 BRACKET; JACK
SLIDE DOOR<6NE> (B) 		8-97850-654-0 01 1 9404- ● ●
197 ADAPTER; JACK
REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-97081-949-0 01 1 9304-9502 ●
197 ADAPTER; JACK
SUSPENSION - RR UNDER SLUNG<V4U> 		8-97081-949-0 01 1 9304-9502 ●
199 BOLT; JACK
EXC. SLIDE DOOR<6NE> M8X30 WING 		8-94279-018-1 01 1 9310-9310 ● ● ●
199 BOLT; JACK
FRT INDEPENDENT SUSPENSION(6PP) EXC. SLIDE DOOR<6NE> M8X30 WING 		8-94279-018-1 01 1 9310-9310 ● ● ●
199 BOLT; JACK
REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U>,SLIDE DOOR<6NE>,FRT INDEPENDENT SUSPENSION(6PP) M8X30 WING 		8-94279-018-1 01 1 9310-9310 ●
199 BOLT; JACK
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SLIDE DOOR<6NE>,FRT INDEPENDENT SUSPENSION(6PP) M8X30 WING 		8-94279-018-1 01 1 9310-9310 ●
199 BOLT; JACK
FRT INDEPENDENT SUSPENSION(6PP) EXC. SLIDE DOOR<6NE> M8X30 WING 		8-94279-018-1 01 1 9311-9403 ● ● ● ● ● ●
199 BOLT; JACK
REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U>,SLIDE DOOR<6NE>,FRT INDEPENDENT SUSPENSION(6PP) M8X30 WING 		8-94279-018-1 01 1 9311-9403 ●
199 BOLT; JACK
SUSPENSION - RR UNDER SLUNG<V4U> EXC. SLIDE DOOR<6NE>,FRT INDEPENDENT SUSPENSION(6PP) M8X30 WING 		8-94279-018-1 01 1 9311-9403 ●
199 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 9404-9501 ●
199 BOLT; JACK
FRT INDEPENDENT SUSPENSION(6PP) M8X30 WING 		8-94279-018-1 01 1 9404-9501 ● ● ● ● ●
199 BOLT; JACK
REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X30 WING 		8-94279-018-1 01 1 9404-9501 ●
199 BOLT; JACK
SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X30 WING 		8-94279-018-1 01 1 9404-9501 ●
199 BOLT; JACK
FRT INDEPENDENT SUSPENSION(6PP) M8X30 WING 		8-94279-018-1 01 1 9502-9505 ● ● ● ● ● ●
199 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 9506- ●
199 BOLT; JACK
FRT INDEPENDENT SUSPENSION(6PP) FRAME-KICK UP<7EW> M8X30 WING 		8-94279-018-1 01 1 9506- ●
199 BOLT; JACK
FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL> M8X30 WING 		8-94279-018-1 01 1 9506- ● ●
199 BOLT; JACK
EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL>,SLIDE DOOR<6NE>,FRT INDEPENDENT SUSPENSION(6PP) M8X50 WING 		8-94279-136-0 01 1 9310-9310 ●
199 BOLT; JACK
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL>,SLIDE DOOR<6NE> ,FRT INDEPENDENT SUSPENSION(6PP) M8X50 WING 		8-94279-136-0 01 1 9310-9310 ● ● ● ●
199 BOLT; JACK
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,SLIDE DOOR<6NE>,FRT INDEPENDENT SUSPENSION(6PP) M8X50 WING 		8-94279-136-0 01 1 9311-9403 ● ● ● ● ●
199 BOLT; JACK
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL>,SLIDE DOOR<6NE>,FRT INDEPENDENT SUSPENSION(6PP) M8X50 WING 		8-94279-136-0 01 1 9311-9403 ●
199 BOLT; JACK
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) M8X50 WING 		8-94279-136-0 01 1 9404-9501 ●
199 BOLT; JACK
EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U>,FRT INDEPENDENT SUSPENSION(6PP) M8X50 WING 		8-94279-136-0 01 1 9404-9501 ●
199 BOLT; JACK
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X50 WING 		8-94279-136-0 01 1 9404-9501 ● ● ● ●
199 BOLT; JACK
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X50 WING 		8-94279-136-0 01 1 9502-9505 ● ● ● ● ● ●
199 BOLT; JACK
EXC. FRAME-KICK UP<7EW> M8X50 WING 		8-94279-136-0 01 1 9506- ● ● ●
199 BOLT; JACK
FRAME-KICK UP<7EW> EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X50 WING 		8-94279-136-0 01 1 9506- ●
199 BOLT; JACK
EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) M8X50 WING 		8-94279-136-0 01 1 9506- ● ●
199 BOLT; JACK
FULL FLATLOW<6GL> M8X50 WING 		8-94279-136-0 01 1 9506- ●
206 SCREW; OIL JACK BRKT
M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9304-9406 ● ● ● ● ● ●
206 SCREW; OIL JACK BRKT
M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9407- ● ● ● ● ● ●
206 SCREW; OIL JACK BRKT
SLIDE DOOR<6NE> M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9407- ● ●
208 HANDLE; JACK 9-85512-607-0 01 1 9304-9507 ● ● ● ● ● ●
208 HANDLE; JACK 9-85512-607-0 01 1 9508- ● ●
208 HANDLE; JACK
EXC. SEINOU UNYU PACKAGE(6NP) 		9-85512-607-0 01 1 9508- ● ● ● ●
237 BAG; TOOL 8-94367-102-0 01 1 9304-9502 ● ● ● ● ●
237 BAG; TOOL
FULL FLATLOW<6GL> 		8-94367-102-0 01 1 9304-9502 ●
237 BAG; TOOL 8-94367-102-0 01 1 9503-9506 ● ● ● ●
237 BAG; TOOL
EXC. DUMP CHASSIS(V4D) 		8-94367-102-0 01 1 9503-9506 ●
237 BAG; TOOL
A/T 4 SPEED-JATCO(RMK) LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL> 		8-94367-102-0 01 1 9503-9506 ●
237 BAG; TOOL
FLOOR REMOTE SHIFT<M11> LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94367-102-0 01 1 9503-9506 ●
237 BAG; TOOL
LOADING CAPACITY - 3000 KG<RPJ> EXC. FULL FLATLOW<6GL> 		8-94367-102-0 01 1 9503-9506 ●
237 BAG; TOOL
FULL FLATLOW<6GL> 		8-94367-102-0 01 1 9503-9506 ●
237 BAG; TOOL 8-94367-102-0 01 1 9507-9507 ● ● ● ●
237 BAG; TOOL
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D) 		8-94367-102-0 01 1 9507-9507 ●
237 BAG; TOOL
A/T 4 SPEED-JATCO(RMK) LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL> 		8-94367-102-0 01 1 9507-9507 ●
237 BAG; TOOL
FLOOR REMOTE SHIFT<M11> LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,FRT INDEPENDENT SUSPENSION(6PP) 		8-94367-102-0 01 1 9507-9507 ●
237 BAG; TOOL
LOADING CAPACITY - 3000 KG<RPJ> EXC. FULL FLATLOW<6GL> 		8-94367-102-0 01 1 9507-9507 ●
237 BAG; TOOL
FULL FLATLOW<6GL> 		8-94367-102-0 01 1 9507-9507 ●
237 BAG; TOOL 8-94367-102-0 01 1 9508-9509 ● ●
237 BAG; TOOL
EXC. SEINOU UNYU PACKAGE(6NP) 		8-94367-102-0 01 1 9508-9509 ● ●
237 BAG; TOOL
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) 		8-94367-102-0 01 1 9508-9509 ●
237 BAG; TOOL
A/T 4 SPEED-JATCO(RMK) LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) 		8-94367-102-0 01 1 9508-9509 ●
237 BAG; TOOL
FLOOR REMOTE SHIFT<M11> LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 		8-94367-102-0 01 1 9508-9509 ●
237 BAG; TOOL
LOADING CAPACITY - 3000 KG<RPJ> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) 		8-94367-102-0 01 1 9508-9509 ●
237 BAG; TOOL
FULL FLATLOW<6GL> EXC. SEINOU UNYU PACKAGE(6NP) 		8-94367-102-0 01 1 9508-9509 ●
237 BAG; TOOL
SEINOU UNYU PACKAGE(6NP) 		8-97130-902-0 01 1 9508-9509 ● ● ● ●
237 BAG; TOOL 8-97130-902-0 01 1 9510-9709 ● ● ● ●
237 BAG; TOOL
SEINOU UNYU PACKAGE(6NP) 		8-97130-902-0 01 1 9510-9709 ● ●
237 BAG; TOOL
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) 		8-97130-902-0 01 1 9510-9709 ●
237 BAG; TOOL
A/T 4 SPEED-JATCO(RMK) LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) 		8-97130-902-0 01 1 9510-9709 ●
237 BAG; TOOL
FLOOR REMOTE SHIFT<M11> LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-902-0 01 1 9510-9709 ●
237 BAG; TOOL
LOADING CAPACITY - 3000 KG<RPJ> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) 		8-97130-902-0 01 1 9510-9709 ●
237 BAG; TOOL
FULL FLATLOW<6GL> EXC. SEINOU UNYU PACKAGE(6NP) 		8-97130-902-0 01 1 9510-9709 ●
237 BAG; TOOL 8-97130-902-0 01 1 9710- ● ● ● ●
237 BAG; TOOL
SEINOU UNYU PACKAGE(6NP) 		8-97130-902-0 01 1 9710- ● ●
237 BAG; TOOL
FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D),SEINOU UNYU PACKAGE(6NP) 		8-97130-902-0 01 1 9710- ●
237 BAG; TOOL
LOADING CAPACITY - 3000 KG<RPJ> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) 		8-97130-902-0 01 1 9710- ●
237 BAG; TOOL
FULL FLATLOW<6GL> EXC. SEINOU UNYU PACKAGE(6NP) 		8-97130-902-0 01 1 9710- ●
237 BAG; TOOL
LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL> 		1-85565-012-0 01 1 9304-9502 ●
237 BAG; TOOL
DUMP CHASSIS(V4D) 		1-85565-012-0 01 1 9503-9506 ●
237 BAG; TOOL
FLOOR REMOTE SHIFT<M11> LOADING CAPACITY - 2000 KG<RPE> FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL> 		1-85565-012-0 01 1 9503-9506 ●
237 BAG; TOOL
DUMP CHASSIS(V4D) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		1-85565-012-0 01 1 9507-9507 ●
237 BAG; TOOL
FLOOR REMOTE SHIFT<M11> LOADING CAPACITY - 2000 KG<RPE> FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL> 		1-85565-012-0 01 1 9507-9507 ●
237 BAG; TOOL
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 		1-85565-012-0 01 1 9508-9509 ●
237 BAG; TOOL
FLOOR REMOTE SHIFT<M11> LOADING CAPACITY - 2000 KG<RPE> FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) 		1-85565-012-0 01 1 9508-9509 ●
237 BAG; TOOL
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-903-0 01 1 9510-9709 ●
237 BAG; TOOL
FLOOR REMOTE SHIFT<M11> LOADING CAPACITY - 2000 KG<RPE> FRT INDEPENDENT SUSPENSION(6PP) EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) 		8-97130-903-0 01 1 9510-9709 ●
237 BAG; TOOL
DUMP CHASSIS(V4D) EXC. SEINOU UNYU PACKAGE(6NP),FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-903-0 01 1 9710- ●
237 BAG; TOOL
LOADING CAPACITY - 2000 KG<RPE> EXC. FULL FLATLOW<6GL>,SEINOU UNYU PACKAGE(6NP) 		8-97130-903-0 01 1 9710- ●
238 SUPPORT; TOOL BAG 8-94273-001-0 01 1 9304-9510 ● ● ● ● ● ●
238 SUPPORT; TOOL BAG 8-97866-879-0 01 1 9511- ● ● ● ● ● ●
239 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 9304- ● ● ● ● ● ●
241 SCREW; TOOL BAG SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9304- ● ● ● ● ● ●
272 SCREW; BRKT
SLIDE DOOR<6NE> M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9404-9406 ● ●
302 NUT; JACK BRKT
EXC. SLIDE DOOR<6NE> 		8-94279-522-0 01 1 9310-9403 ● ● ● ● ● ●
302 NUT; JACK BRKT 8-94279-522-0 01 1 9404- ● ● ● ● ● ●
303 SPRING; WING BOLT
EXC. SLIDE DOOR<6NE> 		8-94279-944-0 01 1 9310-9403 ● ● ● ● ● ●
303 SPRING; WING BOLT 8-94279-944-0 01 1 9404-9409 ● ● ● ● ● ●
319 CLIP; TOOL BAR 8-97853-077-2 02 1 9304- ● ● ● ● ● ●
çizim 494482
318 317 285 280 284 284 280 281
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> (B) 		8-94101-528-1 01 1 9304-9606 ● ● ●
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> DUMP CHASSIS(V4D) (B) 		8-94101-528-1 01 1 9304-9606 ●
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> (A) 		8-97161-497-0 01 1 9607- ● ● ●
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> DUMP CHASSIS(V4D) (A) 		8-97161-497-0 01 1 9607- ●
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D) (B) 		8-94151-238-0 01 1 9304- ●
281 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> DUMP CHASSIS(V4D) 		8-94258-872-0 01 1 9304- ●
281 BRACKET; TOOL BOX
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BATTERY 115E41R<6XD> 		8-94258-872-0 02 1 9304-9502 ● ●
281 BRACKET; TOOL BOX
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BATTERY 115E41R<6XD> 		8-94258-872-0 02 1 9503- ● ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D) M8X25 FLANGE 		0-28080-825-0 04 1 9304-9505 ● ● ● ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D) M8X25 FLANGE 		0-28680-825-0 04 1 9506- ● ● ● ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> DUMP CHASSIS(V4D) M8X25 FLANGE 		0-28080-825-0 06 1 9304-9505 ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> DUMP CHASSIS(V4D) M8X25 FLANGE 		0-28680-825-0 06 1 9506- ●
285 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8 FLANGE 		0-91150-208-0 04 1 9304-9304 ● ● ●
285 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D) M8 FLANGE 		0-91150-208-0 04 1 9304-9304 ●
285 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8 FLANGE 		0-91150-108-0 04 1 9305- ● ● ●
285 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> FRT INDEPENDENT SUSPENSION(6PP) EXC. DUMP CHASSIS(V4D) M8 FLANGE 		0-91150-108-0 04 1 9305- ●
285 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> DUMP CHASSIS(V4D) M8 FLANGE 		0-91150-108-0 03 1 9304- ●
317 BOLT; BRKT TO FRAME
TOOL & STORAGE BOX<VK2> DUMP CHASSIS(V4D) M10X25 FLANGE 		0-28081-025-0 04 1 9304- ●
317 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28080-825-0 04 1 9304-9502 ● ●
317 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28080-825-0 04 1 9503-9505 ● ●
317 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 04 1 9506- ● ●
318 NUT; BRKT TO FRAME
TOOL & STORAGE BOX<VK2> DUMP CHASSIS(V4D) M10 FLANGE 		0-91150-210-0 04 1 9304- ●
318 NUT; BRKT TO FRAME
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BATTERY 115E41R<6XD> M8 FLANGE 		0-91150-108-0 04 1 9304-9502 ● ●
318 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BATTERY 115E41R<6XD> M8 FLANGE 		0-91150-108-0 04 1 9503- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
