8-90 — RADIO AND TV (#166822) — 244 parça

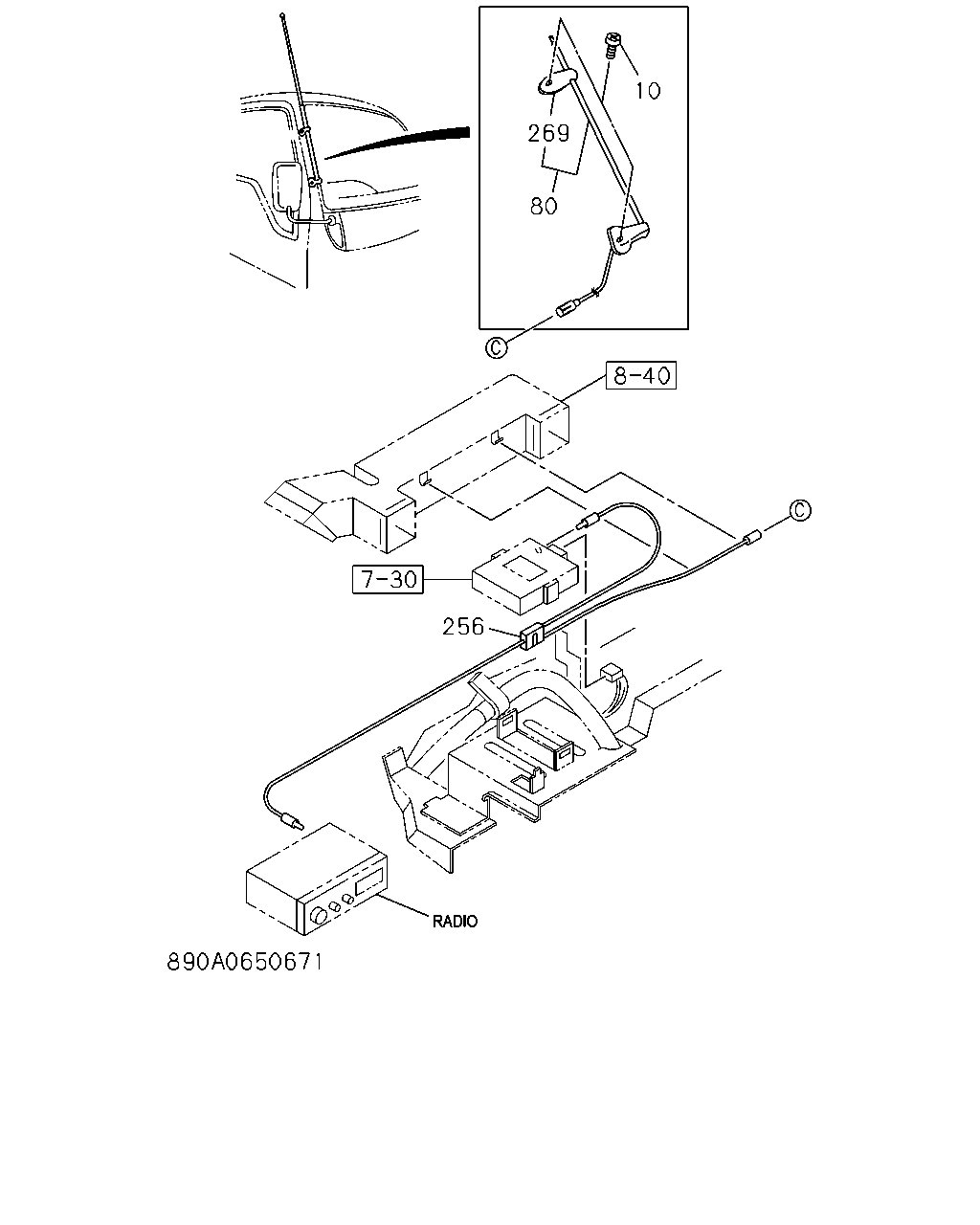

çizim 493571
269 10 80 256
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 SCREW; ANTENNA CABLE
M6X20 		8-97068-547-1 02 1 9304-9405 ● ● ● ● ● ●
10 SCREW; ANTENNA CABLE
M6X20 		8-97068-547-2 01 1 9406-9411 ● ● ● ● ● ●
10 SCREW; ANTENNA CABLE
M6X20 		8-97120-686-0 01 1 9412- ● ● ● ● ● ●
10 SCREW; ANTENNA CABLE
M6X16 		9-03486-616-0 01 1 9406-9411 ● ● ● ● ● ●
10 SCREW; ANTENNA CABLE
M6X16 		8-97123-696-0 01 1 9412- ● ● ● ● ● ●
80 ANTENNA 8-97070-022-2 01 1 9304-9809 ● ● ● ● ● ●
80 ANTENNA 8-97210-546-0 01 1 9810- ● ● ● ● ● ●
256 DISTRIBUTOR UNIT; FEEDER
REMOTE CONT DOOR LOCK<6NF> 		8-97140-580-1 01 1 9704- ● ● ● ● ● ●
269 SUPPORT KIT; ANTENNA 8-97108-183-0 01 1 9802- ● ● ● ● ● ●
çizim 493721
2 2 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 RADIO & CASSETTE DECK ASM
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> FUJITSU AM/FM CASSETTE 24V 		8-97048-673-0 01 1 9304-9305 ● ● ● ● ● ●
2 RADIO & CASSETTE DECK ASM
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> FUJITSU AM/FM CASSETTE 24V 		8-97048-673-0 01 1 9306-9308 ● ● ● ● ● ●
2 RADIO & CASSETTE DECK ASM
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> FUJITSU AM/FM CASSETTE 24V 		8-97048-673-0 01 1 9309-9502 ● ● ● ● ● ●
2 RADIO & CASSETTE DECK ASM
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> FUJITSU AM/FM CASSETTE 24V 		8-97120-651-0 01 1 9503- ● ● ● ● ● ●
2 RADIO & CASSETTE DECK ASM
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> FUJITSU AM/FM CASSETTE 12V 		8-97048-674-0 01 1 9304-9312 ● ●
2 RADIO & CASSETTE DECK ASM
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,VOLTAGE 24V<7AE> FUJITSU AM/FM CASSETTE 12V 		8-97048-674-0 01 1 9401-9502 ● ●
2 RADIO & CASSETTE DECK ASM
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> FUJITSU AM/FM CASSETTE 12V 		8-97120-652-0 01 1 9503-9703 ● ● ● ● ●
2 RADIO & CASSETTE DECK ASM
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> FUJITSU AM/FM CASSETTE 12V 		8-97120-652-0 01 1 9704- ● ● ●
25 ATTACH KIT; CASSETTE DECK
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97093-560-0 01 1 9304-9305 ● ● ● ● ● ●
25 ATTACH KIT; CASSETTE DECK
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. SLIDE DOOR<6NE> 		8-97093-560-0 01 1 9306-9308 ● ● ● ● ● ●
25 ATTACH KIT; CASSETTE DECK
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> 		8-97093-560-0 01 1 9309-9502 ● ● ● ● ● ●
25 ATTACH KIT; CASSETTE DECK
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97093-560-0 01 1 9503- ● ● ● ● ● ●
çizim 494452
1 1 6 7 225 7 6 226 3 1 1 225 3 226
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RADIO
VOLTAGE 24V<7AE> EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) CLARION AM/FM RADIO 		8-97048-667-1 01 1 9304-9305 ● ● ● ● ● ●
1 RADIO
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE>,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) CLARION AM/FM RADIO 		8-97048-667-1 01 1 9306-9308 ● ● ● ● ● ●
1 RADIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) CLARION AM/FM RADIO 		8-97048-667-1 01 1 9309-9502 ● ● ● ● ● ●
1 RADIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) CLARION AM/FM RADIO 		8-97120-645-0 01 1 9503- ● ● ● ● ● ●
1 RADIO
VOLTAGE 24V<7AE> EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) SANYO AM/FM RADIO 		8-97071-896-1 01 1 9304-9305 ● ● ● ● ● ●
1 RADIO
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE>,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) SANYO AM/FM RADIO 		8-97071-896-1 01 1 9306-9308 ● ● ● ● ● ●
1 RADIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) SANYO AM/FM RADIO 		8-97071-896-1 01 1 9309-9502 ● ● ● ● ● ●
1 RADIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) SANYO AM/FM RADIO 		8-97120-646-0 01 1 9503- ● ● ● ● ● ●
1 RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL), VOLTAGE 24V<7AE> (D) SANYO AM-RADIO W/SPEAKER 		8-97036-647-0 01 1 9304-9502 ● ●
1 RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL), VOLTAGE 24V<7AE> (D) SANYO AM-RADIO W/SPEAKER 		8-97036-647-0 01 1 9503-9703 ● ● ● ● ●
1 RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL), VOLTAGE 24V<7AE> (D) SANYO AM-RADIO W/SPEAKER 		8-97036-647-0 01 1 9704-9801 ● ● ●
1 RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL), VOLTAGE 24V<7AE> (D) SANYO AM-RADIO W/SPEAKER 		8-97036-647-0 01 1 9802- ● ● ● ● ●
1 RADIO
SLIDE DOOR<6NE> (C) CLARION AM-RADIO W/SPEAKER 		8-97102-763-0 01 1 9306-9308 ● ●
1 RADIO
SLIDE DOOR<6NE> (C) CLARION AM-RADIO W/SPEAKER 		8-97102-763-0 01 1 9309-9311 ● ●
1 RADIO
ECONOMY PACKAGE<6LD> EXC. SLIDE DOOR<6NE> (C) CLARION AM-RADIO W/SPEAKER 		8-97102-763-0 01 1 9309-9311 ●
1 RADIO
ECONOMY PACKAGE<6LD> VOLTAGE 24V<7AE> (C) CLARION AM-RADIO W/SPEAKER 		8-97102-763-0 01 1 9312-9502 ● ●
1 RADIO
ECONOMY PACKAGE<6LD> EXC. SLIDE DOOR<6NE> (C) CLARION AM-RADIO W/SPEAKER 		8-97102-763-0 01 1 9312-9502 ● ●
1 RADIO
SLIDE DOOR<6NE> (C) CLARION AM-RADIO W/SPEAKER 		8-97102-763-0 01 1 9312-9502 ● ●
1 RADIO
ECONOMY PACKAGE<6LD> (C) CLARION AM-RADIO W/SPEAKER 		8-97102-763-0 01 1 9312-9502 ● ●
1 RADIO
ECONOMY PACKAGE<6LD> VOLTAGE 24V<7AE> (B) CLARION AM-RADIO W/SPEAKER 		8-97121-245-0 01 1 9503-9703 ● ● ● ● ●
1 RADIO
SLIDE DOOR<6NE> VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD> (B) CLARION AM-RADIO W/SPEAKER 		8-97121-245-0 01 1 9503-9703 ●
1 RADIO
ECONOMY PACKAGE<6LD> (B) CLARION AM-RADIO W/SPEAKER 		8-97121-245-0 01 1 9503-9703 ●
1 RADIO
SLIDE DOOR<6NE> EXC. ECONOMY PACKAGE<6LD> (B) CLARION AM-RADIO W/SPEAKER 		8-97121-245-0 01 1 9503-9703 ●
1 RADIO
ECONOMY PACKAGE<6LD> VOLTAGE 24V<7AE> (B) CLARION AM-RADIO W/SPEAKER 		8-97121-245-0 01 1 9704- ● ● ●
1 RADIO
SLIDE DOOR<6NE> VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD> (B) CLARION AM-RADIO W/SPEAKER 		8-97121-245-0 01 1 9704- ●
1 RADIO
ECONOMY PACKAGE<6LD> (B) CLARION AM-RADIO W/SPEAKER 		8-97121-245-0 01 1 9704- ● ● ●
1 RADIO
SLIDE DOOR<6NE> EXC. ECONOMY PACKAGE<6LD> (B) CLARION AM-RADIO W/SPEAKER 		8-97121-245-0 01 1 9704- ●
3 ATTACH KIT; AM/FM RADIO
VOLTAGE 24V<7AE> EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) SANYO 		8-97093-558-0 01 1 9304-9305 ● ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE>,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) SANYO 		8-97093-558-0 01 1 9306-9308 ● ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) SANYO 		8-97093-558-0 01 1 9309- ● ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
VOLTAGE 24V<7AE> EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) CLARION 		8-97093-559-0 01 1 9304-9305 ● ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE>,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) CLARION 		8-97093-559-0 01 1 9306-9308 ● ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) CLARION 		8-97093-559-0 01 1 9309- ● ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL), VOLTAGE 24V<7AE> (B) SANYO 		8-97093-557-0 01 1 9304-9502 ● ●
3 ATTACH KIT; AM/FM RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL), VOLTAGE 24V<7AE> (B) SANYO 		8-97093-557-0 01 1 9503-9703 ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL), VOLTAGE 24V<7AE> (B) SANYO 		8-97093-557-0 01 1 9704-9801 ● ● ●
3 ATTACH KIT; AM/FM RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL), VOLTAGE 24V<7AE> (B) SANYO 		8-97093-557-0 01 1 9802- ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
SLIDE DOOR<6NE> (C) CLARION 		8-97105-256-0 01 1 9306-9308 ● ●
3 ATTACH KIT; AM/FM RADIO
SLIDE DOOR<6NE> (C) CLARION 		8-97105-256-0 01 1 9309-9311 ● ●
3 ATTACH KIT; AM/FM RADIO
ECONOMY PACKAGE<6LD> EXC. SLIDE DOOR<6NE> (C) CLARION 		8-97105-256-0 01 1 9309-9311 ●
3 ATTACH KIT; AM/FM RADIO
ECONOMY PACKAGE<6LD> VOLTAGE 24V<7AE> (C) CLARION 		8-97105-256-0 01 1 9312-9502 ● ●
3 ATTACH KIT; AM/FM RADIO
ECONOMY PACKAGE<6LD> EXC. SLIDE DOOR<6NE> (C) CLARION 		8-97105-256-0 01 1 9312-9502 ● ●
3 ATTACH KIT; AM/FM RADIO
SLIDE DOOR<6NE> (C) CLARION 		8-97105-256-0 01 1 9312-9502 ● ●
3 ATTACH KIT; AM/FM RADIO
ECONOMY PACKAGE<6LD> (C) CLARION 		8-97105-256-0 01 1 9312-9502 ● ●
3 ATTACH KIT; AM/FM RADIO
ECONOMY PACKAGE<6LD> VOLTAGE 24V<7AE> (B) CLARION 		8-97124-261-0 01 1 9503- ● ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
SLIDE DOOR<6NE> VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD> (B) CLARION 		8-97124-261-0 01 1 9503- ● ●
6 BRACKET; RADIO TO PANEL 8-97853-615-2 01 1 9304-9307 ● ● ● ● ● ●
6 BRACKET; RADIO TO PANEL
EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> 		8-97853-615-2 01 1 9308- ● ● ● ● ● ●
6 BRACKET; RADIO TO PANEL 8-97853-614-2 01 1 9304-9307 ● ● ● ● ● ●
6 BRACKET; RADIO TO PANEL
EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> 		8-97853-614-2 01 1 9308- ● ● ● ● ● ●
7 SCREW; RADIO 8-94279-350-0 04 1 9304-9304 ● ● ● ● ● ●
7 SCREW; RADIO
M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9305-9307 ● ● ● ● ● ●
7 SCREW; RADIO
EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9308- ● ● ● ● ● ●
225 SPACER; RADIO
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97853-937-1 01 1 9304-9703 ● ● ● ● ● ●
225 SPACER; RADIO
FULLAUTO AIR CONDITIONER(C68) 		8-97853-937-1 01 1 9704- ● ● ● ● ● ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9304-9603 ● ● ● ● ● ●
226 BOLT; BRKT
M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9604- ● ● ● ● ● ●
çizim 494453
1 3 1 226 1 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RADIO
VOLTAGE 24V<7AE> EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) CLARION AM/FM RADIO 		8-97048-667-1 01 1 9304-9305 ● ● ● ● ● ●
1 RADIO
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE>,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) CLARION AM/FM RADIO 		8-97048-667-1 01 1 9306-9308 ● ● ● ● ● ●
1 RADIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) CLARION AM/FM RADIO 		8-97048-667-1 01 1 9309-9502 ● ● ● ● ● ●
1 RADIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) CLARION AM/FM RADIO 		8-97120-645-0 01 1 9503- ● ● ● ● ● ●
1 RADIO
VOLTAGE 24V<7AE> EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) SANYO AM/FM RADIO 		8-97071-896-1 01 1 9304-9305 ● ● ● ● ● ●
1 RADIO
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE>,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) SANYO AM/FM RADIO 		8-97071-896-1 01 1 9306-9308 ● ● ● ● ● ●
1 RADIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) SANYO AM/FM RADIO 		8-97071-896-1 01 1 9309-9502 ● ● ● ● ● ●
1 RADIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) SANYO AM/FM RADIO 		8-97120-646-0 01 1 9503- ● ● ● ● ● ●
1 RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL), VOLTAGE 24V<7AE> (D) SANYO AM-RADIO W/SPEAKER 		8-97036-647-0 01 1 9304-9502 ● ●
1 RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL), VOLTAGE 24V<7AE> (D) SANYO AM-RADIO W/SPEAKER 		8-97036-647-0 01 1 9503-9703 ● ● ● ● ●
1 RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL), VOLTAGE 24V<7AE> (D) SANYO AM-RADIO W/SPEAKER 		8-97036-647-0 01 1 9704-9801 ● ● ●
1 RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL), VOLTAGE 24V<7AE> (D) SANYO AM-RADIO W/SPEAKER 		8-97036-647-0 01 1 9802- ● ● ● ● ●
1 RADIO
SLIDE DOOR<6NE> (C) CLARION AM-RADIO W/SPEAKER 		8-97102-763-0 01 1 9306-9308 ● ●
1 RADIO
SLIDE DOOR<6NE> (C) CLARION AM-RADIO W/SPEAKER 		8-97102-763-0 01 1 9309-9311 ● ●
1 RADIO
ECONOMY PACKAGE<6LD> EXC. SLIDE DOOR<6NE> (C) CLARION AM-RADIO W/SPEAKER 		8-97102-763-0 01 1 9309-9311 ●
1 RADIO
ECONOMY PACKAGE<6LD> VOLTAGE 24V<7AE> (C) CLARION AM-RADIO W/SPEAKER 		8-97102-763-0 01 1 9312-9502 ● ●
1 RADIO
ECONOMY PACKAGE<6LD> EXC. SLIDE DOOR<6NE> (C) CLARION AM-RADIO W/SPEAKER 		8-97102-763-0 01 1 9312-9502 ● ●
1 RADIO
SLIDE DOOR<6NE> (C) CLARION AM-RADIO W/SPEAKER 		8-97102-763-0 01 1 9312-9502 ● ●
1 RADIO
ECONOMY PACKAGE<6LD> (C) CLARION AM-RADIO W/SPEAKER 		8-97102-763-0 01 1 9312-9502 ● ●
1 RADIO
ECONOMY PACKAGE<6LD> VOLTAGE 24V<7AE> (B) CLARION AM-RADIO W/SPEAKER 		8-97121-245-0 01 1 9503-9703 ● ● ● ● ●
1 RADIO
SLIDE DOOR<6NE> VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD> (B) CLARION AM-RADIO W/SPEAKER 		8-97121-245-0 01 1 9503-9703 ●
1 RADIO
ECONOMY PACKAGE<6LD> (B) CLARION AM-RADIO W/SPEAKER 		8-97121-245-0 01 1 9503-9703 ●
1 RADIO
SLIDE DOOR<6NE> EXC. ECONOMY PACKAGE<6LD> (B) CLARION AM-RADIO W/SPEAKER 		8-97121-245-0 01 1 9503-9703 ●
1 RADIO
ECONOMY PACKAGE<6LD> VOLTAGE 24V<7AE> (B) CLARION AM-RADIO W/SPEAKER 		8-97121-245-0 01 1 9704- ● ● ●
1 RADIO
SLIDE DOOR<6NE> VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD> (B) CLARION AM-RADIO W/SPEAKER 		8-97121-245-0 01 1 9704- ●
1 RADIO
ECONOMY PACKAGE<6LD> (B) CLARION AM-RADIO W/SPEAKER 		8-97121-245-0 01 1 9704- ● ● ●
1 RADIO
SLIDE DOOR<6NE> EXC. ECONOMY PACKAGE<6LD> (B) CLARION AM-RADIO W/SPEAKER 		8-97121-245-0 01 1 9704- ●
3 ATTACH KIT; AM/FM RADIO
VOLTAGE 24V<7AE> EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) SANYO 		8-97093-558-0 01 1 9304-9305 ● ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE>,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) SANYO 		8-97093-558-0 01 1 9306-9308 ● ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) SANYO 		8-97093-558-0 01 1 9309- ● ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
VOLTAGE 24V<7AE> EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) CLARION 		8-97093-559-0 01 1 9304-9305 ● ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE>,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) CLARION 		8-97093-559-0 01 1 9306-9308 ● ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) CLARION 		8-97093-559-0 01 1 9309- ● ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL), VOLTAGE 24V<7AE> (B) SANYO 		8-97093-557-0 01 1 9304-9502 ● ●
3 ATTACH KIT; AM/FM RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL), VOLTAGE 24V<7AE> (B) SANYO 		8-97093-557-0 01 1 9503-9703 ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL), VOLTAGE 24V<7AE> (B) SANYO 		8-97093-557-0 01 1 9704-9801 ● ● ●
3 ATTACH KIT; AM/FM RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL), VOLTAGE 24V<7AE> (B) SANYO 		8-97093-557-0 01 1 9802- ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
SLIDE DOOR<6NE> (C) CLARION 		8-97105-256-0 01 1 9306-9308 ● ●
3 ATTACH KIT; AM/FM RADIO
SLIDE DOOR<6NE> (C) CLARION 		8-97105-256-0 01 1 9309-9311 ● ●
3 ATTACH KIT; AM/FM RADIO
ECONOMY PACKAGE<6LD> EXC. SLIDE DOOR<6NE> (C) CLARION 		8-97105-256-0 01 1 9309-9311 ●
3 ATTACH KIT; AM/FM RADIO
ECONOMY PACKAGE<6LD> VOLTAGE 24V<7AE> (C) CLARION 		8-97105-256-0 01 1 9312-9502 ● ●
3 ATTACH KIT; AM/FM RADIO
ECONOMY PACKAGE<6LD> EXC. SLIDE DOOR<6NE> (C) CLARION 		8-97105-256-0 01 1 9312-9502 ● ●
3 ATTACH KIT; AM/FM RADIO
SLIDE DOOR<6NE> (C) CLARION 		8-97105-256-0 01 1 9312-9502 ● ●
3 ATTACH KIT; AM/FM RADIO
ECONOMY PACKAGE<6LD> (C) CLARION 		8-97105-256-0 01 1 9312-9502 ● ●
3 ATTACH KIT; AM/FM RADIO
ECONOMY PACKAGE<6LD> VOLTAGE 24V<7AE> (B) CLARION 		8-97124-261-0 01 1 9503- ● ● ● ● ● ●
3 ATTACH KIT; AM/FM RADIO
SLIDE DOOR<6NE> VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD> (B) CLARION 		8-97124-261-0 01 1 9503- ● ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9304-9603 ● ● ● ● ● ●
226 BOLT; BRKT
M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9604- ● ● ● ● ● ●

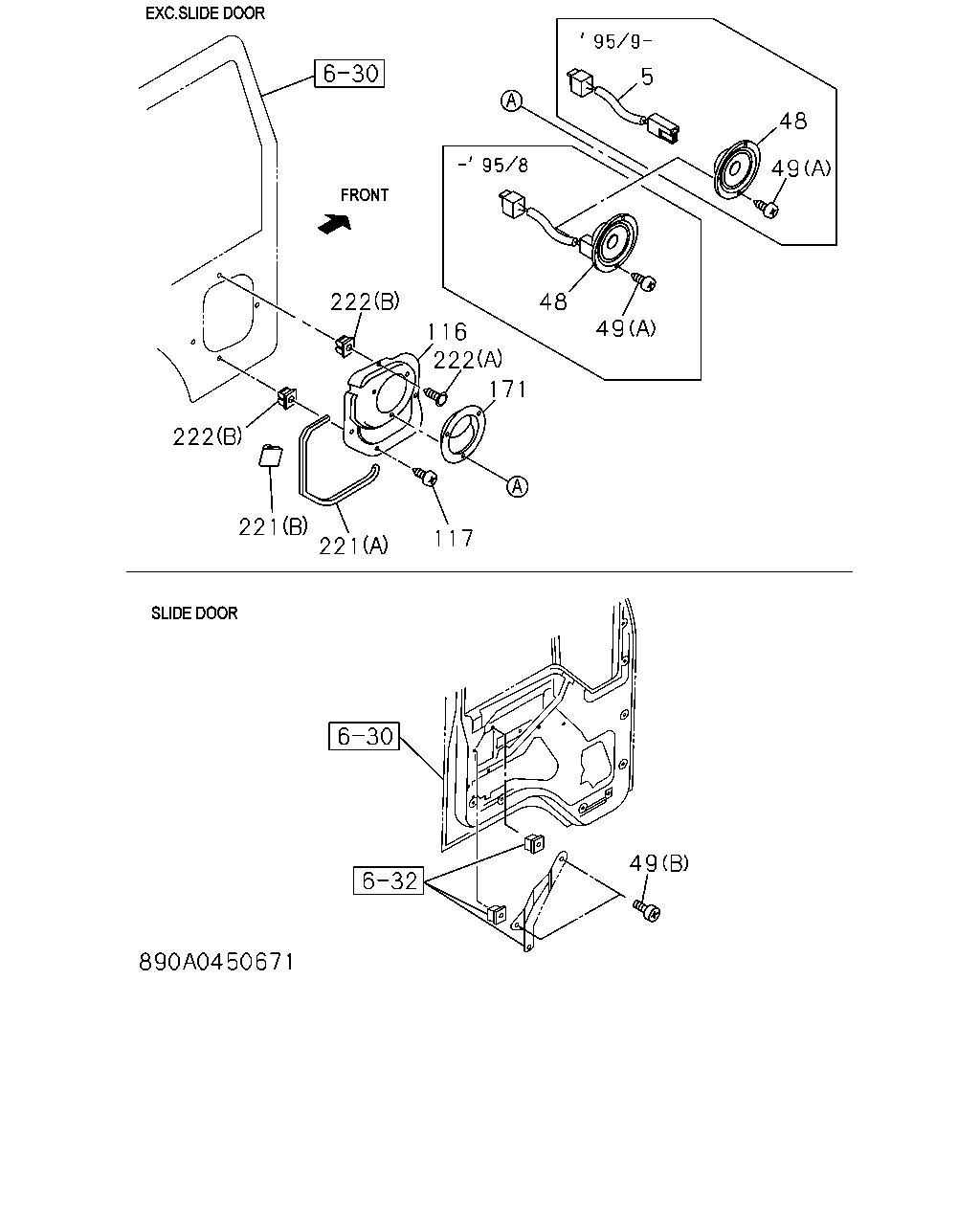

çizim 494464
48 5 48 49 49 171 222 116 222 222 221 221 117 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 HARNESS; EXT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD> 		8-97131-327-0 02 1 9509-9703 ● ● ● ● ● ●
5 HARNESS; EXT
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97131-327-0 02 1 9509-9703 ● ● ● ● ● ●
5 HARNESS; EXT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97131-327-0 02 1 9704- ● ● ● ● ● ●
5 HARNESS; EXT
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97131-327-0 02 1 9704- ● ● ● ● ● ●
48 SPEAKER; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> 		8-97077-756-0 02 1 9304-9312 ● ● ● ● ● ●
48 SPEAKER; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD> 		8-97077-756-0 02 1 9401-9502 ● ● ● ● ● ●
48 SPEAKER; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> 		8-97077-756-0 02 1 9503-9508 ● ● ● ● ● ●
48 SPEAKER; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> 		8-97130-576-0 02 1 9509-9612 ● ● ● ● ● ●
48 SPEAKER; AUDIO
VOLTAGE 24V<7AE> EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97048-670-0 02 1 9304-9305 ● ● ● ● ● ●
48 SPEAKER; AUDIO
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE>,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97048-670-0 02 1 9306-9308 ● ● ● ● ● ●
48 SPEAKER; AUDIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97048-670-0 02 1 9309-9508 ● ● ● ● ● ●
48 SPEAKER; AUDIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97130-574-0 02 1 9509-9612 ● ● ● ● ● ●
48 SPEAKER; AUDIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> 		8-97169-451-0 02 1 9701-9809 ● ● ● ● ● ●
48 SPEAKER; AUDIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> 		8-97207-695-0 02 1 9810-9902 ● ● ● ● ● ●
48 SPEAKER; AUDIO
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> 		8-97223-098-0 02 1 9903- ● ● ● ● ● ●
48 SPEAKER; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> 		8-97048-675-0 02 1 9304-9312 ● ●
48 SPEAKER; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,VOLTAGE 24V<7AE> 		8-97048-675-0 02 1 9401-9502 ● ●
48 SPEAKER; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> 		8-97048-675-0 02 1 9503-9508 ● ● ● ● ●
48 SPEAKER; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> 		8-97130-575-0 02 1 9509-9703 ● ● ● ● ●
48 SPEAKER; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> 		8-97130-575-0 02 1 9704-9809 ● ● ●
48 SPEAKER; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> 		8-97207-696-0 02 1 9810-9901 ● ● ●
48 SPEAKER; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> 		8-97223-099-0 02 1 9902- ● ● ●
49 SCREW; SPEAKER
(A) M5X16 TAPPING 		9-09829-323-1 06 1 9304-9305 ● ● ● ● ● ●
49 SCREW; SPEAKER
EXC. SLIDE DOOR<6NE> (A) M5X16 TAPPING 		9-09829-323-1 06 1 9306-9307 ● ● ● ● ● ●
49 SCREW; SPEAKER
EXC. SLIDE DOOR<6NE> (A) M5X14 		8-94279-325-0 06 1 9308-9308 ● ● ● ● ● ●
49 SCREW; SPEAKER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) M5X14 		8-94279-325-0 06 1 9309-9703 ● ● ● ● ● ●
49 SCREW; SPEAKER
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) M5X14 		8-94279-325-0 06 1 9309-9703 ● ● ● ● ● ●
49 SCREW; SPEAKER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) M5X14 		8-94279-325-0 06 1 9704- ● ● ● ● ● ●
49 SCREW; SPEAKER
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) M5X14 		8-94279-325-0 06 1 9704- ● ● ● ● ● ●
49 SCREW; SPEAKER
SLIDE DOOR<6NE> (B) M5X14 		8-94279-325-0 02 1 9306-9309 ● ●
49 SCREW; SPEAKER
SLIDE DOOR<6NE> (B) 		1-09981-451-0 02 1 9310-9404 ● ●
49 SCREW; SPEAKER
SLIDE DOOR<6NE> (B) M6X16 W/PL WASHER 		1-09981-505-0 02 1 9405-9502 ● ●
116 PANEL; SPEAKER,FRT DOOR
VOLTAGE 24V<7AE> 		8-97852-325-2 01 1 9304-9305 ● ● ● ● ● ●
116 PANEL; SPEAKER,FRT DOOR
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> 		8-97852-325-2 01 1 9304-9305 ● ●
116 PANEL; SPEAKER,FRT DOOR
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> 		8-97852-325-2 01 1 9306-9308 ● ● ● ● ● ●
116 PANEL; SPEAKER,FRT DOOR
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> 		8-97852-325-2 01 1 9306-9308 ● ●
116 PANEL; SPEAKER,FRT DOOR
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> 		8-97852-325-3 01 1 9309-9703 ● ● ● ● ● ●
116 PANEL; SPEAKER,FRT DOOR
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,VOLTAGE 24V<7AE> 		8-97852-325-3 01 1 9309-9703 ● ●
116 PANEL; SPEAKER,FRT DOOR
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> 		8-97852-325-3 01 1 9704- ● ● ● ● ● ●
116 PANEL; SPEAKER,FRT DOOR
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, VOLTAGE 24V<7AE> 		8-97852-325-3 01 1 9704- ● ●
116 PANEL; SPEAKER,FRT DOOR
VOLTAGE 24V<7AE> 		8-97852-324-2 01 1 9304-9305 ● ● ● ● ● ●
116 PANEL; SPEAKER,FRT DOOR
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> 		8-97852-324-2 01 1 9304-9305 ● ●
116 PANEL; SPEAKER,FRT DOOR
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> 		8-97852-324-2 01 1 9306-9308 ● ● ● ● ● ●
116 PANEL; SPEAKER,FRT DOOR
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> 		8-97852-324-2 01 1 9306-9308 ● ●
116 PANEL; SPEAKER,FRT DOOR
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> 		8-97852-324-3 01 1 9309-9703 ● ● ● ● ● ●
116 PANEL; SPEAKER,FRT DOOR
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,VOLTAGE 24V<7AE> 		8-97852-324-3 01 1 9309-9703 ● ●
116 PANEL; SPEAKER,FRT DOOR
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> 		8-97852-324-3 01 1 9704- ● ● ● ● ● ●
116 PANEL; SPEAKER,FRT DOOR
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, VOLTAGE 24V<7AE> 		8-97852-324-3 01 1 9704- ● ●
117 SCREW; SPEAKER PANEL
VOLTAGE 24V<7AE> M5X14 		8-94279-325-0 06 1 9304-9305 ● ● ● ● ● ●
117 SCREW; SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> M5X14 		8-94279-325-0 06 1 9304-9305 ● ●
117 SCREW; SPEAKER PANEL
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> M5X14 		8-94279-325-0 06 1 9306-9308 ● ● ● ● ● ●
117 SCREW; SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> M5X14 		8-94279-325-0 06 1 9306-9308 ● ●
117 SCREW; SPEAKER PANEL
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> M5X14 		8-94279-325-0 06 1 9309-9703 ● ● ● ● ● ●
117 SCREW; SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,VOLTAGE 24V<7AE> M5X14 		8-94279-325-0 06 1 9309-9703 ● ●
117 SCREW; SPEAKER PANEL
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> M5X14 		8-94279-325-0 06 1 9704- ● ● ● ● ● ●
117 SCREW; SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, VOLTAGE 24V<7AE> M5X14 		8-94279-325-0 06 1 9704- ● ●
171 COVER; SPEAKER
VOLTAGE 24V<7AE> 		8-97852-331-2 02 1 9304-9305 ● ● ● ● ● ●
171 COVER; SPEAKER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> 		8-97852-331-2 02 1 9304-9305 ● ●
171 COVER; SPEAKER
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> 		8-97852-331-2 02 1 9306-9308 ● ● ● ● ● ●
171 COVER; SPEAKER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> 		8-97852-331-2 02 1 9306-9308 ● ●
171 COVER; SPEAKER
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> 		8-97852-331-3 02 1 9309-9703 ● ● ● ● ● ●
171 COVER; SPEAKER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,VOLTAGE 24V<7AE> 		8-97852-331-3 02 1 9309-9703 ● ●
171 COVER; SPEAKER
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> 		8-97852-331-4 02 1 9704- ● ● ● ● ● ●
171 COVER; SPEAKER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, VOLTAGE 24V<7AE> 		8-97852-331-4 02 1 9704- ● ●
221 SEAL; SPEAKER PANEL
VOLTAGE 24V<7AE> (A) 		8-97852-327-2 02 1 9304-9305 ● ● ● ● ● ●
221 SEAL; SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) 		8-97852-327-2 02 1 9304-9305 ● ●
221 SEAL; SPEAKER PANEL
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> (A) 		8-97852-327-2 02 1 9306-9308 ● ● ● ● ● ●
221 SEAL; SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) 		8-97852-327-2 02 1 9306-9308 ● ●
221 SEAL; SPEAKER PANEL
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> (A) 		8-97852-327-3 02 1 9309-9703 ● ● ● ● ● ●
221 SEAL; SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,VOLTAGE 24V<7AE> (A) 		8-97852-327-3 02 1 9309-9703 ● ●
221 SEAL; SPEAKER PANEL
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> (A) 		8-97852-327-4 02 1 9704- ● ● ● ● ● ●
221 SEAL; SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, VOLTAGE 24V<7AE> (A) 		8-97852-327-4 02 1 9704- ● ●
221 SEAL; SPEAKER PANEL
VOLTAGE 24V<7AE> (B) 		8-97852-601-0 02 1 9304-9305 ● ● ● ● ● ●
221 SEAL; SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (B) 		8-97852-601-0 02 1 9304-9305 ● ●
221 SEAL; SPEAKER PANEL
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> (B) 		8-97852-601-0 02 1 9306-9308 ● ● ● ● ● ●
221 SEAL; SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (B) 		8-97852-601-0 02 1 9306-9308 ● ●
221 SEAL; SPEAKER PANEL
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> (B) 		8-97852-601-1 02 1 9309-9703 ● ● ● ● ● ●
221 SEAL; SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,VOLTAGE 24V<7AE> (B) 		8-97852-601-1 02 1 9309-9703 ● ●
221 SEAL; SPEAKER PANEL
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> (B) 		8-97852-601-1 02 1 9704- ● ● ● ● ● ●
221 SEAL; SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, VOLTAGE 24V<7AE> (B) 		8-97852-601-1 02 1 9704- ● ●
222 GROMMET; SCREW,SPEAKER PANEL
VOLTAGE 24V<7AE> (A) 		1-09987-144-0 02 1 9304-9305 ● ● ● ● ● ●
222 GROMMET; SCREW,SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) 		1-09987-144-0 02 1 9304-9305 ● ●
222 GROMMET; SCREW,SPEAKER PANEL
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> (A) 		1-09987-144-0 02 1 9306-9308 ● ● ● ● ● ●
222 GROMMET; SCREW,SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) 		1-09987-144-0 02 1 9306-9308 ● ●
222 GROMMET; SCREW,SPEAKER PANEL
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> (A) 		1-09987-144-0 02 1 9309-9703 ● ● ● ● ● ●
222 GROMMET; SCREW,SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,VOLTAGE 24V<7AE> (A) 		1-09987-144-0 02 1 9309-9703 ● ●
222 GROMMET; SCREW,SPEAKER PANEL
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> (A) 		1-09987-144-0 02 1 9704- ● ● ● ● ● ●
222 GROMMET; SCREW,SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, VOLTAGE 24V<7AE> (A) 		1-09987-144-0 02 1 9704- ● ●
222 GROMMET; SCREW,SPEAKER PANEL
VOLTAGE 24V<7AE> (B) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 06 1 9304-9305 ● ● ● ● ● ●
222 GROMMET; SCREW,SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (B) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 06 1 9304-9305 ● ●
222 GROMMET; SCREW,SPEAKER PANEL
VOLTAGE 24V<7AE> EXC. SLIDE DOOR<6NE> (B) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 06 1 9306-9308 ● ● ● ● ● ●
222 GROMMET; SCREW,SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (B) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 06 1 9306-9308 ● ●
222 GROMMET; SCREW,SPEAKER PANEL
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> (B) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 06 1 9309-9703 ● ● ● ● ● ●
222 GROMMET; SCREW,SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,VOLTAGE 24V<7AE> (B) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 06 1 9309-9703 ● ●
222 GROMMET; SCREW,SPEAKER PANEL
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> (B) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 06 1 9704-9705 ● ● ● ● ● ●
222 GROMMET; SCREW,SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, VOLTAGE 24V<7AE> (B) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 06 1 9704-9705 ● ●
222 GROMMET; SCREW,SPEAKER PANEL
VOLTAGE 24V<7AE> EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE> (B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 9706- ● ● ● ● ● ●
222 GROMMET; SCREW,SPEAKER PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ECONOMY PACKAGE<6LD>,SLIDE DOOR<6NE>, VOLTAGE 24V<7AE> (B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 9706- ● ●

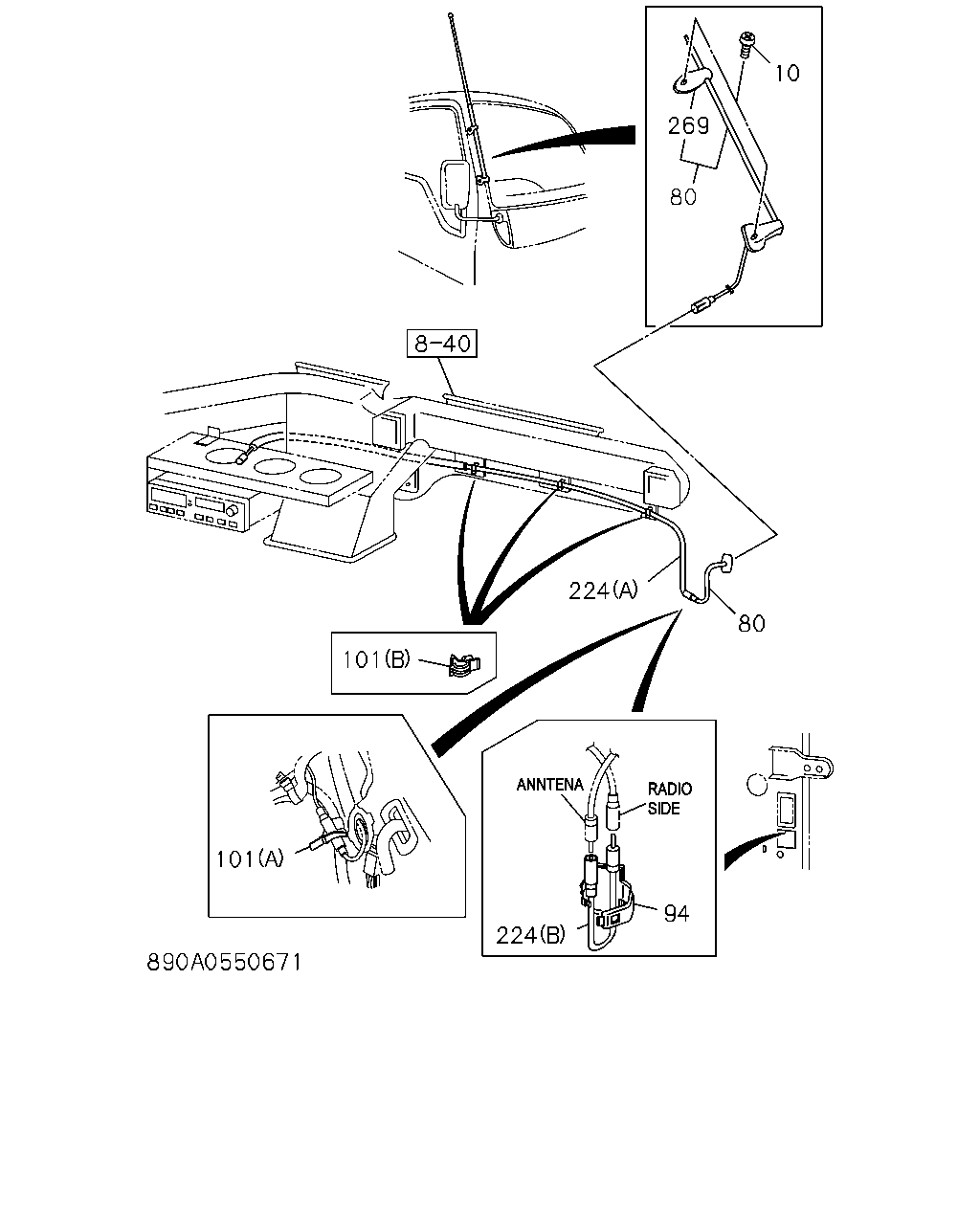

çizim 494465
269 10 80 224 101 101 224 94 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 SCREW; ANTENNA CABLE
M6X20 		8-97068-547-1 02 1 9304-9405 ● ● ● ● ● ●
10 SCREW; ANTENNA CABLE
M6X20 		8-97068-547-2 01 1 9406-9411 ● ● ● ● ● ●
10 SCREW; ANTENNA CABLE
M6X20 		8-97120-686-0 01 1 9412- ● ● ● ● ● ●
10 SCREW; ANTENNA CABLE
M6X16 		9-03486-616-0 01 1 9406-9411 ● ● ● ● ● ●
10 SCREW; ANTENNA CABLE
M6X16 		8-97123-696-0 01 1 9412- ● ● ● ● ● ●
80 ANTENNA 8-97070-022-2 01 1 9304-9809 ● ● ● ● ● ●
80 ANTENNA 8-97210-546-0 01 1 9810- ● ● ● ● ● ●
94 CLIP; ANTENNA FEEDER
DUMP CHASSIS(V4D) 		1-09987-155-0 01 1 9304-9412 ●
94 CLIP; ANTENNA FEEDER 1-09987-155-1 01 1 9501- ● ● ● ● ● ●
101 CLIP; FEEDER TO BRKT
(B) ID=7 		8-97085-207-0 03 1 9304-9503 ● ● ● ● ● ●
101 CLIP; FEEDER TO BRKT
(B) ID=7 		5-09707-053-0 03 1 9504-9703 ● ● ● ● ● ●
101 CLIP; FEEDER TO BRKT
REMOTE CONT DOOR LOCK<6NF> (B) ID=7 		5-09707-053-0 02 1 9704- ● ● ● ● ● ●
101 CLIP; FEEDER TO BRKT
EXC. DUMP CHASSIS(V4D) (A) L=170 		5-09707-054-0 01 1 9308-9412 ● ● ● ● ● ●
101 CLIP; FEEDER TO BRKT
EXC. REMOTE CONT DOOR LOCK<6NF> (B) ID=7 		5-09707-053-0 03 1 9704- ● ● ● ● ● ●
224 CABLE; EXT,FEEDER
(A) 		8-97041-980-1 01 1 9304-9412 ● ● ● ● ● ●
224 CABLE; EXT,FEEDER
(A) 		8-97118-847-0 01 1 9501-9703 ● ● ● ● ● ●
224 CABLE; EXT,FEEDER
EXC. REMOTE CONT DOOR LOCK<6NF> (A) 		8-97118-847-0 01 1 9704-9811 ● ● ● ● ● ●
224 CABLE; EXT,FEEDER
EXC. REMOTE CONT DOOR LOCK<6NF> (A) 		8-97213-766-0 01 1 9812- ● ● ● ● ● ●
224 CABLE; EXT,FEEDER
DUMP CHASSIS(V4D) (B) 		8-97094-476-0 01 1 9304-9412 ●
269 SUPPORT KIT; ANTENNA 8-97108-183-0 01 1 9802- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
