8-73 — BLOWER UNIT (#166818) — 75 parça

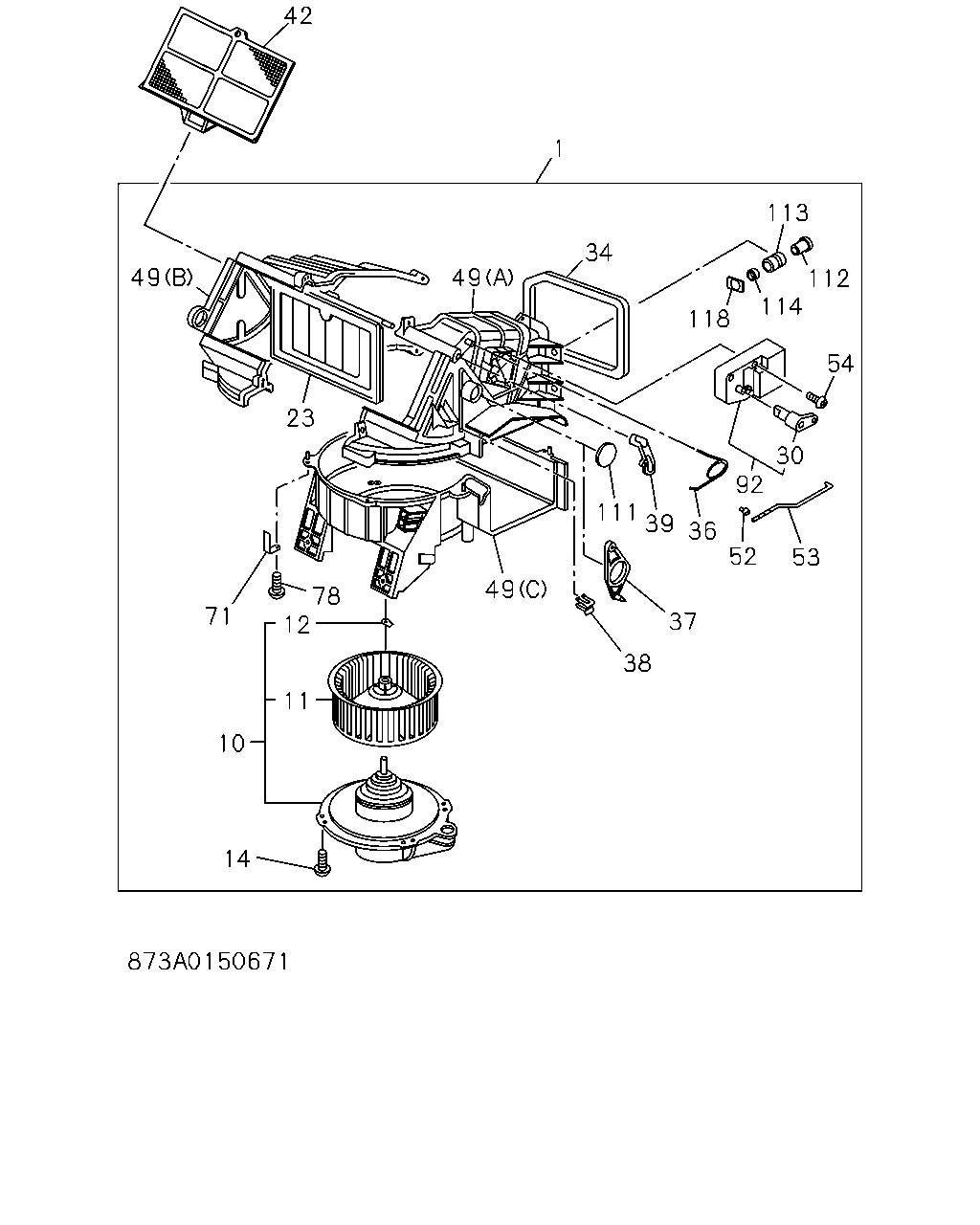

çizim 494502
42 1 49 49 34 113 112 114 118 54 30 92 52 53 36 39 111 37 38 49 14 10 11 12 78 71 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> 		8-97043-494-2 01 1 9304-9309 ● ● ● ● ● ●
1 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> 		8-97106-317-2 01 1 9310-9703 ● ● ● ● ● ●
1 BLOWER ASM
FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> 		8-97139-575-1 01 1 9704-9902 ● ● ● ● ● ●
1 BLOWER ASM
FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> 		8-97227-480-0 01 1 9903- ● ● ● ● ● ●
1 BLOWER ASM
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97035-222-2 01 1 9304-9309 ● ● ● ● ● ●
1 BLOWER ASM
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97106-316-2 01 1 9310-9703 ● ● ● ● ● ●
1 BLOWER ASM
VOLTAGE 24V<7AE> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-97106-316-3 01 1 9704-9902 ● ● ● ● ● ●
1 BLOWER ASM
VOLTAGE 24V<7AE> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-97227-479-0 01 1 9903- ● ● ● ● ● ●
1 BLOWER ASM
EXC. VOLTAGE 24V<7AE> 		8-97035-221-2 01 1 9304-9309 ● ●
1 BLOWER ASM
EXC. VOLTAGE 24V<7AE> 		8-97106-315-1 01 1 9310-9502 ● ●
1 BLOWER ASM
EXC. VOLTAGE 24V<7AE> 		8-97106-315-2 01 1 9503-9703 ● ● ● ● ●
1 BLOWER ASM
EXC. VOLTAGE 24V<7AE> 		8-97106-315-3 01 1 9704-9902 ● ● ●
1 BLOWER ASM
EXC. VOLTAGE 24V<7AE> 		8-97227-478-0 01 1 9903- ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
VOLTAGE 24V<7AE> 		8-97085-607-3 01 1 9304-9809 ● ● ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
VOLTAGE 24V<7AE> 		8-97211-950-0 01 1 9810- ● ● ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-97085-614-3 01 1 9304-9502 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-97085-614-3 01 1 9503-9703 ● ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-97085-614-3 01 1 9704-9809 ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-97211-952-0 01 1 9810- ● ● ●
11 IMPELLER; FAN MOTOR 8-97089-700-0 01 1 9304- ● ● ● ● ● ●
12 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 9304- ● ● ● ● ● ●
14 SCREW; COVER TO CASE
M5X16 		8-94248-820-0 04 1 9304-9506 ● ● ● ● ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 04 1 9507- ● ● ● ● ● ●
23 SHUTTER; BLOWER UNIT 8-97096-640-3 01 1 9304- ● ● ● ● ● ●
30 LEVER; ACTUATOR
FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> 		8-97218-501-0 01 1 9810- ● ● ● ● ● ●
34 LINING; BLOWER UNIT 8-97085-612-1 01 1 9304- ● ● ● ● ● ●
36 SPRING; BLOWER UNIT 8-94233-123-0 01 1 9304-9309 ● ● ● ● ● ●
36 SPRING; BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 		8-94233-123-0 01 1 9310-9502 ● ● ● ● ● ●
36 SPRING; BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-94233-123-0 01 1 9310-9502 ● ●
36 SPRING; BLOWER UNIT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 		8-94233-123-0 01 1 9503-9703 ● ● ● ● ● ●
36 SPRING; BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-94233-123-0 01 1 9503-9703 ● ● ● ● ●
36 SPRING; BLOWER UNIT
VOLTAGE 24V<7AE> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-94233-123-0 01 1 9704-9809 ● ● ● ● ● ●
36 SPRING; BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-94233-123-0 01 1 9704-9809 ● ● ●
37 LEVER; MODE LEVER
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97085-610-2 01 1 9304-9502 ● ● ● ● ● ●
37 LEVER; MODE LEVER
EXC. VOLTAGE 24V<7AE> 		8-97085-610-2 01 1 9304-9502 ● ●
37 LEVER; MODE LEVER
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97085-610-2 01 1 9503-9703 ● ● ● ● ● ●
37 LEVER; MODE LEVER
EXC. VOLTAGE 24V<7AE> 		8-97085-610-2 01 1 9503-9703 ● ● ● ● ●
37 LEVER; MODE LEVER
VOLTAGE 24V<7AE> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-97085-610-2 01 1 9704- ● ● ● ● ● ●
37 LEVER; MODE LEVER
EXC. VOLTAGE 24V<7AE> 		8-97085-610-2 01 1 9704- ● ● ●
38 CLIP; BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 		8-94337-654-0 01 1 9304-9502 ● ● ● ● ● ●
38 CLIP; BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-94337-654-0 01 1 9304-9502 ● ●
38 CLIP; BLOWER UNIT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 		8-94337-654-0 01 1 9503-9703 ● ● ● ● ● ●
38 CLIP; BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-94337-654-0 01 1 9503-9703 ● ● ● ● ●
38 CLIP; BLOWER UNIT
VOLTAGE 24V<7AE> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-94337-654-0 01 1 9704- ● ● ● ● ● ●
38 CLIP; BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-94337-654-0 01 1 9704- ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT 8-97085-609-3 01 1 9304- ● ● ● ● ● ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97085-611-1 01 1 9304-9703 ● ● ● ● ● ●
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97085-611-1 01 1 9704- ● ● ● ● ● ●
49 CASE; BLOWER UNIT
(C) 		8-97085-606-0 01 1 9304- ● ● ● ● ● ●
49 CASE; BLOWER UNIT
(A) 		8-97089-698-4 01 1 9304- ● ● ● ● ● ●
49 CASE; BLOWER UNIT
(B) 		8-97089-699-3 01 1 9304- ● ● ● ● ● ●
52 CLIP; LEVER TO CASE
AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> 		1-83574-136-0 01 1 9304-9703 ● ● ● ● ● ●
52 CLIP; LEVER TO CASE
FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> 		1-83574-136-0 01 1 9704- ● ● ● ● ● ●
53 ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> 		8-97085-615-4 01 1 9304-9703 ● ● ● ● ● ●
53 ROD; ACTUATOR,BLOWER UNIT
FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> 		8-97085-615-4 01 1 9704- ● ● ● ● ● ●
54 SCREW; ACTUATOR TO CASE
AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> 		8-94348-809-0 03 1 9304-9406 ● ● ● ● ● ●
54 SCREW; ACTUATOR TO CASE
AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> 		8-94348-809-0 02 1 9407-9703 ● ● ● ● ● ●
54 SCREW; ACTUATOR TO CASE
FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> 		8-94348-809-0 02 1 9704- ● ● ● ● ● ●
71 CLIP; HARNESS 8-97061-837-0 01 1 9304-9506 ● ● ● ● ● ●
71 CLIP; HARNESS 1-83574-080-0 01 1 9507-9902 ● ● ● ● ● ●
71 CLIP; HARNESS 8-94158-260-0 01 1 9903- ● ● ● ● ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 11 1 9304-9406 ● ● ● ● ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 09 1 9407-9506 ● ● ● ● ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 08 1 9507- ● ● ● ● ● ●
92 ACTUATOR; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> 		8-97085-616-2 01 1 9304-9703 ● ● ● ● ● ●
92 ACTUATOR; BLOWER UNIT
FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> 		8-97142-836-1 01 1 9704- ● ● ● ● ● ●
111 PLUG; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> 		8-94387-703-0 01 1 9304-9703 ● ● ● ● ● ●
111 PLUG; BLOWER UNIT
FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> 		8-94387-703-0 01 1 9704- ● ● ● ● ● ●
111 PLUG; BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 		8-97085-610-2 01 1 9407-9407 ● ● ● ● ● ●
111 PLUG; BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-97085-610-2 01 1 9407-9407 ● ●
112 ISOLATOR; CASE 8-97096-641-0 02 1 9304- ● ● ● ● ● ●
113 BUSHING; ISOLATOR 8-97096-642-0 02 1 9304- ● ● ● ● ● ●
114 NUT; ISOLATOR
M8 FLANGE 		0-91150-208-0 02 1 9304-9309 ● ● ● ● ● ●
114 NUT; ISOLATOR
M8 FLANGE 		5-09440-005-0 02 1 9310- ● ● ● ● ● ●
118 BRACKET; BUSHING 8-97107-979-0 02 1 9310- ● ● ● ● ● ●
