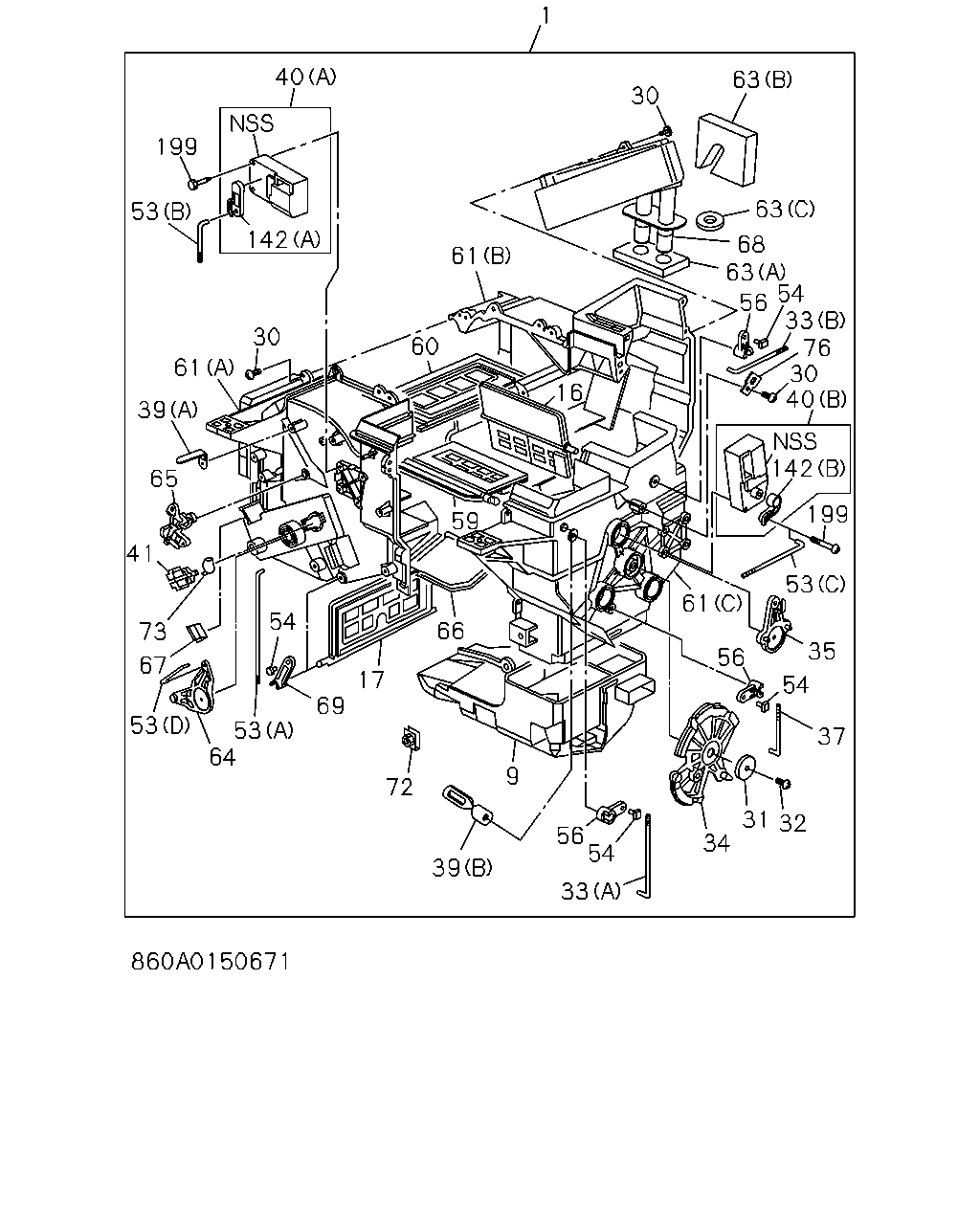

8-60 — HEATER UNIT; FRONT (#166815) — 88 parça

40 1 30 63 63 68 63 33 54 56 30 76 142 40 199 53 61 56 54 37 35 32 31 34 54 56 33 39 9 72 64 69 53 54 53 67 41 73 17 66 59 60 61 30 61 39 65 142 53 199 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE>	8-97043-493-2	01	1	9304-9406	●	●	●	●	●	●
1	HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE>	8-97115-673-0	01	1	9407-9609	●	●	●	●	●	●
1	HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE>	8-97166-609-0	01	1	9610-9701	●	●	●	●	●	●
1	HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE>	8-97174-730-0	01	1	9702-9703	●	●	●	●	●	●
1	HEATER UNIT FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE>	8-97174-826-3	01	1	9704-9902	●	●	●	●	●	●
1	HEATER UNIT FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE>	8-97224-288-2	01	1	9903-	●	●	●	●	●	●
1	HEATER UNIT EXC. AIR CONDITIONER AUTOMATIC CONT(C61)	8-97035-220-2	01	1	9304-9406	●	●	●	●	●	●
1	HEATER UNIT EXC. AIR CONDITIONER AUTOMATIC CONT(C61)	8-97114-426-0	01	1	9407-9609	●	●	●	●	●	●
1	HEATER UNIT EXC. AIR CONDITIONER AUTOMATIC CONT(C61)	8-97166-606-0	01	1	9610-9701	●	●	●	●	●	●
1	HEATER UNIT EXC. AIR CONDITIONER AUTOMATIC CONT(C61)	8-97174-729-0	01	1	9702-9703	●	●	●	●	●	●
1	HEATER UNIT EXC. FULLAUTO AIR CONDITIONER(C68)	8-97174-729-4	01	1	9704-9902	●	●	●	●	●	●
1	HEATER UNIT EXC. FULLAUTO AIR CONDITIONER(C68)	8-97224-286-2	01	1	9903-	●	●	●	●	●	●
9	DUCT; HTR UNIT	8-97087-555-0	01	1	9304-	●	●	●	●	●	●
16	SHUTTER; HTR UNIT,CENTER UPR	8-97087-559-2	01	1	9304-	●	●	●	●	●	●
17	SHUTTER; HTR UNIT,CENTER	8-97087-557-1	01	1	9304-	●	●	●	●	●	●
30	SCREW; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> M4X16	8-94324-850-0	14	1	9304-9703	●	●	●	●	●	●
30	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> M4X16	8-94324-850-0	13	1	9704-	●	●	●	●	●	●
30	SCREW; HTR UNIT EXC. AIR CONDITIONER AUTOMATIC CONT(C61) M4X16	8-94324-850-0	11	1	9304-9703	●	●	●	●	●	●
30	SCREW; HTR UNIT EXC. FULLAUTO AIR CONDITIONER(C68) M4X16	8-94324-850-0	11	1	9704-	●	●	●	●	●	●
31	WASHER; HTR UNIT	8-94129-950-0	01	1	9304-	●	●	●	●	●	●
32	SCREW; HTR UNIT M5X16	8-94248-820-0	01	1	9304-9609	●	●	●	●	●	●
32	SCREW; HTR UNIT M5X20	9-09829-324-1	01	1	9610-	●	●	●	●	●	●
33	ROD; SHUTTER LEVER (A)	8-97087-568-1	01	1	9304-	●	●	●	●	●	●
33	ROD; SHUTTER LEVER (B)	8-97087-569-1	01	1	9304-	●	●	●	●	●	●
34	LEVER; SHUTTER,HTR UNIT	8-97087-561-1	01	1	9304-9609	●	●	●	●	●	●
34	LEVER; SHUTTER,HTR UNIT	8-97166-657-0	01	1	9610-	●	●	●	●	●	●
35	LEVER; SHUTTER,HTR UNIT	8-97087-565-0	03	1	9304-	●	●	●	●	●	●
37	ROD; LEVER	8-97087-570-1	01	1	9304-	●	●	●	●	●	●
39	CLIP; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> (A)	8-97096-145-0	02	1	9304-9703	●	●	●	●	●	●
39	CLIP; HTR UNIT FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> (A)	8-97096-145-0	01	1	9704-	●	●	●	●	●	●
39	CLIP; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> (B)	8-97096-147-0	01	1	9304-9703	●	●	●	●	●	●
39	CLIP; HTR UNIT FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> (B)	8-97096-147-0	01	1	9704-	●	●	●	●	●	●
40	ACTUATOR; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> (A)	8-97087-573-0	01	1	9304-9703	●	●	●	●	●	●
40	ACTUATOR; HTR UNIT FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> (A)	8-97087-573-1	01	1	9704-	●	●	●	●	●	●
40	ACTUATOR; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> (B)	8-97087-574-0	01	1	9304-9703	●	●	●	●	●	●
40	ACTUATOR; HTR UNIT FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> (B)	8-97087-574-0	01	1	9704-	●	●	●	●	●	●
41	THERMOSTAT; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE>	8-97028-239-0	01	1	9304-9703	●	●	●	●	●	●
53	ROD; SHUTTER LEVER (A)	8-97087-567-1	01	1	9304-	●	●	●	●	●	●
53	ROD; SHUTTER LEVER AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> (B)	8-97087-572-1	01	1	9304-9703	●	●	●	●	●	●
53	ROD; SHUTTER LEVER FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> (B)	8-97087-572-1	01	1	9704-	●	●	●	●	●	●
53	ROD; SHUTTER LEVER AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> (C)	8-97087-575-1	01	1	9304-9703	●	●	●	●	●	●
53	ROD; SHUTTER LEVER FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> (C)	8-97087-575-1	01	1	9704-	●	●	●	●	●	●
53	ROD; SHUTTER LEVER EXC. AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97087-566-0	01	1	9304-9703	●	●	●	●	●	●
53	ROD; SHUTTER LEVER EXC. FULLAUTO AIR CONDITIONER(C68) (D)	8-97087-566-0	01	1	9704-	●	●	●	●	●	●
54	CLIP; SHUTTER LEVER AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE>	1-83574-136-0	05	1	9304-9703	●	●	●	●	●	●
54	CLIP; SHUTTER LEVER FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE>	1-83574-136-0	05	1	9704-	●	●	●	●	●	●
54	CLIP; SHUTTER LEVER EXC. AIR CONDITIONER AUTOMATIC CONT(C61)	1-83574-136-0	03	1	9304-9703	●	●	●	●	●	●
54	CLIP; SHUTTER LEVER EXC. FULLAUTO AIR CONDITIONER(C68)	1-83574-136-0	03	1	9704-	●	●	●	●	●	●
56	LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	9304-	●	●	●	●	●	●
59	SHUTTER; HTR UNIT,SIDE	8-97087-558-2	01	1	9304-9701	●	●	●	●	●	●
59	SHUTTER; HTR UNIT,SIDE AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE>	8-97087-558-2	01	1	9702-9703	●	●	●	●	●	●
59	SHUTTER; HTR UNIT,SIDE EXC. FULLAUTO AIR CONDITIONER(C68)	8-97087-558-2	01	1	9704-	●	●			●
59	SHUTTER; HTR UNIT,SIDE FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE>	8-97087-558-2	01	1	9704-	●	●			●
59	SHUTTER; HTR UNIT,SIDE	8-97087-558-2	01	1	9704-			●	●		●
60	DOOR; MIX,HTR UNIT	8-97087-556-1	01	1	9304-	●	●	●	●	●	●
61	CASE; HTR UNIT (A)	8-97087-551-3	01	1	9304-	●	●	●	●	●	●
61	CASE; HTR UNIT (B)	8-97087-552-0	01	1	9304-	●	●	●	●	●	●
61	CASE; HTR UNIT (C)	8-97087-553-0	01	1	9304-	●	●	●	●	●	●
63	LINING; HTR UNIT (A)	8-97087-571-0	01	1	9304-9609	●	●	●	●	●	●
63	LINING; HTR UNIT (A)	8-97131-580-0	01	1	9610-	●	●	●	●	●	●
63	LINING; HTR UNIT (B)	8-97093-678-0	01	1	9304-9406	●	●	●	●	●	●
63	LINING; HTR UNIT (C)	8-97093-679-0	01	1	9304-9406	●	●	●	●	●	●
64	LEVER; MIX,DOOR EXC. AIR CONDITIONER AUTOMATIC CONT(C61)	8-97087-562-0	01	1	9304-9703	●	●	●	●	●	●
64	LEVER; MIX,DOOR EXC. FULLAUTO AIR CONDITIONER(C68)	8-97087-562-1	01	1	9704-	●	●	●	●	●	●
65	LEVER; MIX,DOOR	8-97087-564-1	01	1	9304-	●	●	●	●	●	●
66	SHUTTER; HTR UNIT,CENTER LWR	8-97087-560-2	01	1	9304-	●	●	●	●	●	●
67	CLIP; HTR UNIT EXC. AIR CONDITIONER AUTOMATIC CONT(C61)	8-94337-654-0	02	1	9304-9703	●	●	●	●	●	●
67	CLIP; HTR UNIT EXC. FULLAUTO AIR CONDITIONER(C68)	8-94337-654-0	02	1	9704-	●	●	●	●	●	●
68	CORE; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE>	8-97087-554-2	01	1	9304-9406	●	●	●	●	●	●
68	CORE; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE>	8-97114-633-0	01	1	9407-9701	●	●	●	●	●	●
68	CORE; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE>	8-97174-829-0	01	1	9702-9703	●	●	●	●	●	●
68	CORE; HTR UNIT	8-97174-734-0	01	1	9704-9902	●	●	●	●	●	●
68	CORE; HTR UNIT	8-97224-293-0	01	1	9903-	●	●	●	●	●	●
68	CORE; HTR UNIT EXC. AIR CONDITIONER AUTOMATIC CONT(C61)	8-97096-140-0	01	1	9304-9406	●	●	●	●	●	●
68	CORE; HTR UNIT EXC. AIR CONDITIONER AUTOMATIC CONT(C61)	8-97114-499-0	01	1	9407-9701	●	●	●	●	●	●
68	CORE; HTR UNIT EXC. AIR CONDITIONER AUTOMATIC CONT(C61)	8-97174-734-0	01	1	9702-9703	●	●	●	●	●	●
69	LEVER; SHUTTER,HTR UNIT	8-97087-563-1	01	1	9304-	●	●	●	●	●	●
72	NUT; CASE,HTR UNIT	8-97085-613-0	02	1	9304-	●	●	●	●	●	●
73	PLATE; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE>	8-97028-240-1	01	1	9304-9703	●	●	●	●	●	●
76	BRACKET; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE>	8-97087-576-0	01	1	9304-9703	●	●	●	●	●	●
76	BRACKET; HTR UNIT FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE>	8-97087-576-0	01	1	9704-	●	●	●	●	●	●
142	LEVER; ACTUATOR AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> (B)	1-83564-385-0	01	1	9702-9703	●	●	●	●	●	●
142	LEVER; ACTUATOR FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> (B)	1-83564-385-0	01	1	9704-	●	●	●	●	●	●
142	LEVER; ACTUATOR AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE> (A)	8-97142-811-0	01	1	9702-9703	●	●	●	●	●	●
142	LEVER; ACTUATOR FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE> (A)	8-97142-811-0	01	1	9704-	●	●	●	●	●	●
199	SCREW; ACTUATOR AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE>	8-94348-809-0	06	1	9304-9406	●	●	●	●	●	●
199	SCREW; ACTUATOR AIR CONDITIONER AUTOMATIC CONT(C61) VOLTAGE 24V<7AE>	8-94348-809-0	04	1	9407-9703	●	●	●	●	●	●
199	SCREW; ACTUATOR FULLAUTO AIR CONDITIONER(C68) VOLTAGE 24V<7AE>	8-94348-809-0	04	1	9704-	●	●	●	●	●	●
