Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#166813) — 1150 parça

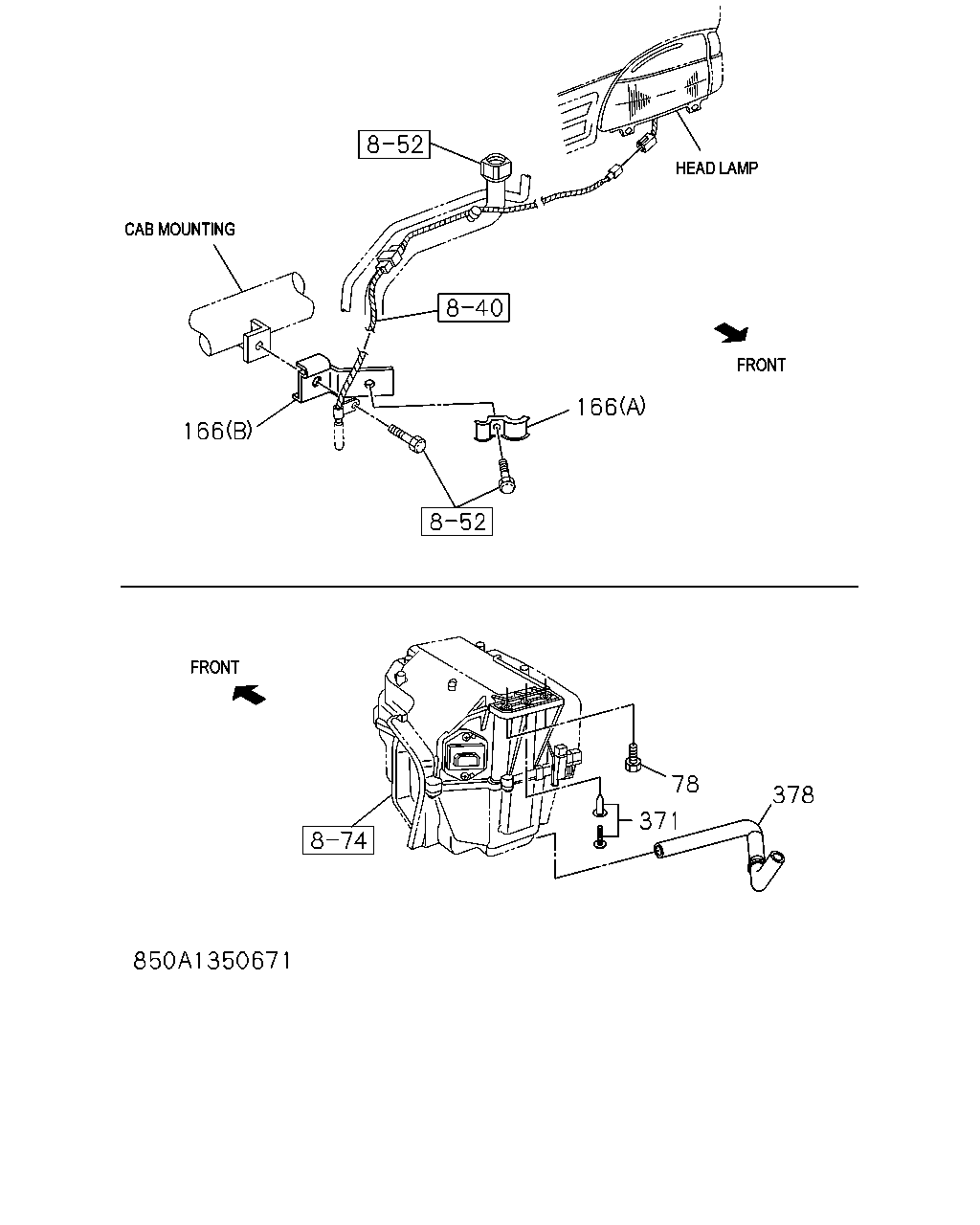

166 78 371 378 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

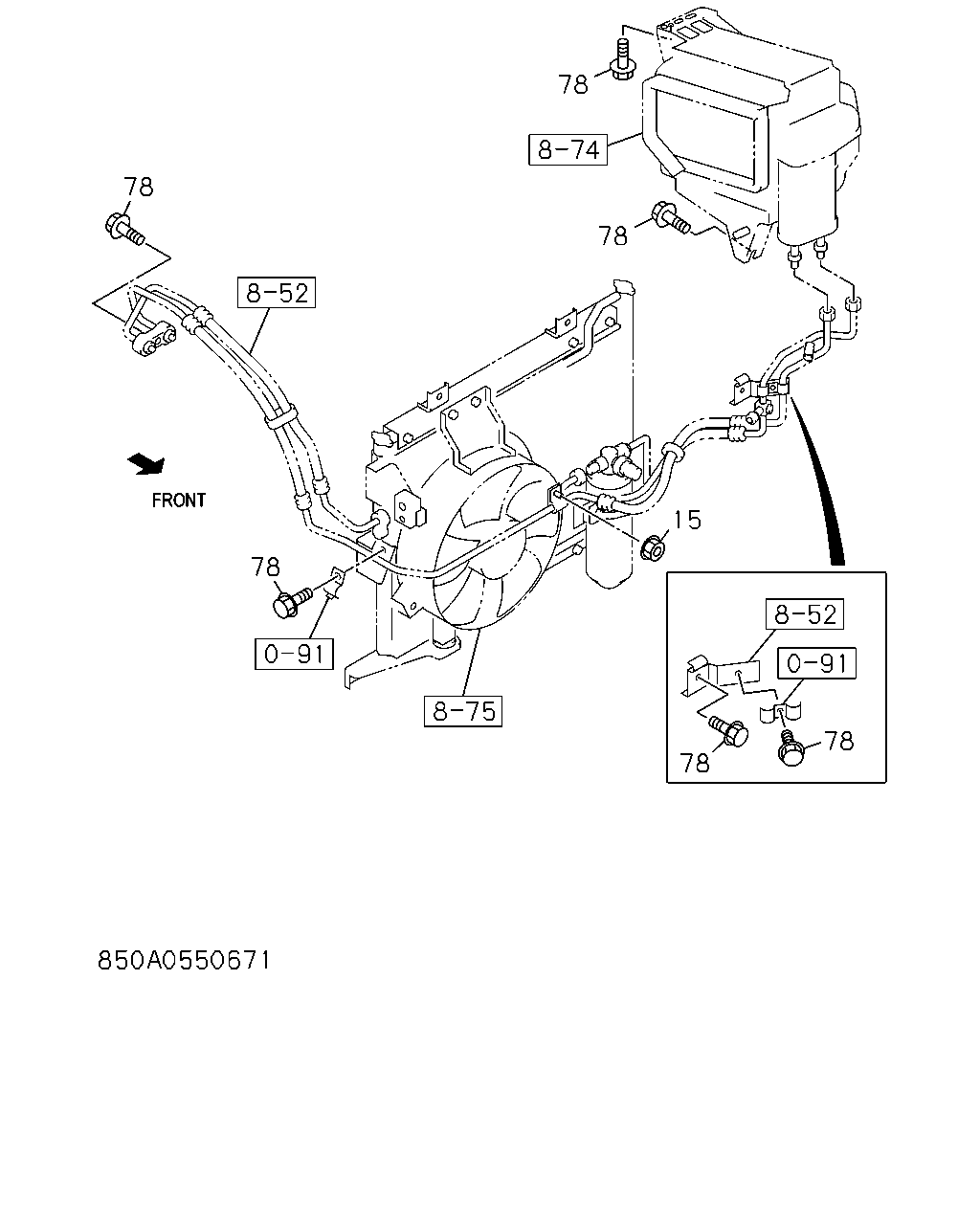

78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M6X20	0-28280-620-0	02	1	9304-9405	●	●	●	●	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M6X20	0-28280-620-0	02	1	9406-9502	●	●	●	●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X20	0-28280-620-0	02	1	9406-9502	●				●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M6X20	0-28280-620-0	02	1	9503-9605	●	●	●	●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X20	0-28280-620-0	02	1	9503-9605	●	●		●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X20	0-28280-620-0	02	1	9606-9703	●	●		●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X20	0-28280-620-0	02	1	9704-9801	●	●			●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X25 FLANGE	0-28280-825-0	01	1	9304-9311	●	●	●	●	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X20 FLANGE	0-28280-820-0	01	1	9312-9404	●	●	●	●	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X20 FLANGE	0-28080-820-0	01	1	9405-9605	●	●	●	●	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M6X20 FLANGE	0-28680-620-0	02	1	9606-9703	●	●	●	●	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6X20 FLANGE	0-28680-620-0	02	1	9704-	●	●	●	●	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X20 FLANGE	0-28680-820-0	01	1	9606-9703	●	●	●	●	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE	0-28680-820-0	01	1	9704-	●	●	●	●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X16 FLANGE	0-28080-616-0	04	1	9304-9502	●				●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X16 FLANGE	0-28080-616-0	04	1	9503-9703	●	●		●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X16 FLANGE	0-28080-616-0	04	1	9704-9801	●	●			●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28280-820-0	01	1	9304-9502	●				●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28280-820-0	01	1	9503-9703	●	●		●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28280-820-0	01	1	9704-9801	●	●			●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9304-9502	●				●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9503-9703	●	●		●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9704-9801	●	●			●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9304-9502	●				●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9503-9703	●	●		●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9704-9801	●	●			●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9304-9502	●				●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9503-9703	●	●		●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9704-9801	●	●			●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9304-9502	●				●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9503-9703	●	●		●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9704-9801	●	●			●
166	BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-97090-310-1	01	1	9304-9703	●	●	●	●	●	●
166	BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97090-310-1	01	1	9704-	●	●	●	●	●	●
166	BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-97093-944-0	01	1	9304-9703	●	●	●	●	●	●
166	BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97093-944-0	01	1	9704-9810	●	●	●	●	●	●
166	BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97212-901-0	01	1	9811-	●	●	●	●	●	●
371	CLIP; EVAPORATOR GRAY	8-94350-828-0	01	1	9304-9504	●	●	●	●	●	●
378	HOSE; DRAIN,EVAPORATOR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-97036-017-1	01	1	9304-9502	●	●	●	●	●	●
378	HOSE; DRAIN,EVAPORATOR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-97036-017-1	01	1	9503-9509	●	●	●	●	●	●
378	HOSE; DRAIN,EVAPORATOR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-97036-017-1	01	1	9510-9703	●	●	●	●	●	●
378	HOSE; DRAIN,EVAPORATOR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) CHASSIS PARTS FOR 2-COMP<6NG>	8-97036-017-1	01	1	9510-9703	●	●		●	●	●
378	HOSE; DRAIN,EVAPORATOR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97036-017-1	01	1	9704-	●	●	●	●	●	●
378	HOSE; DRAIN,EVAPORATOR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97043-419-1	01	1	9304-9502	●				●
378	HOSE; DRAIN,EVAPORATOR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97043-419-1	01	1	9503-9509	●	●		●	●	●
378	HOSE; DRAIN,EVAPORATOR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) EXC. CHASSIS PARTS FOR 2-COMP<6NG>	8-97043-419-1	01	1	9510-9703	●	●		●	●	●
378	HOSE; DRAIN,EVAPORATOR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97043-419-1	01	1	9704-	●	●			●

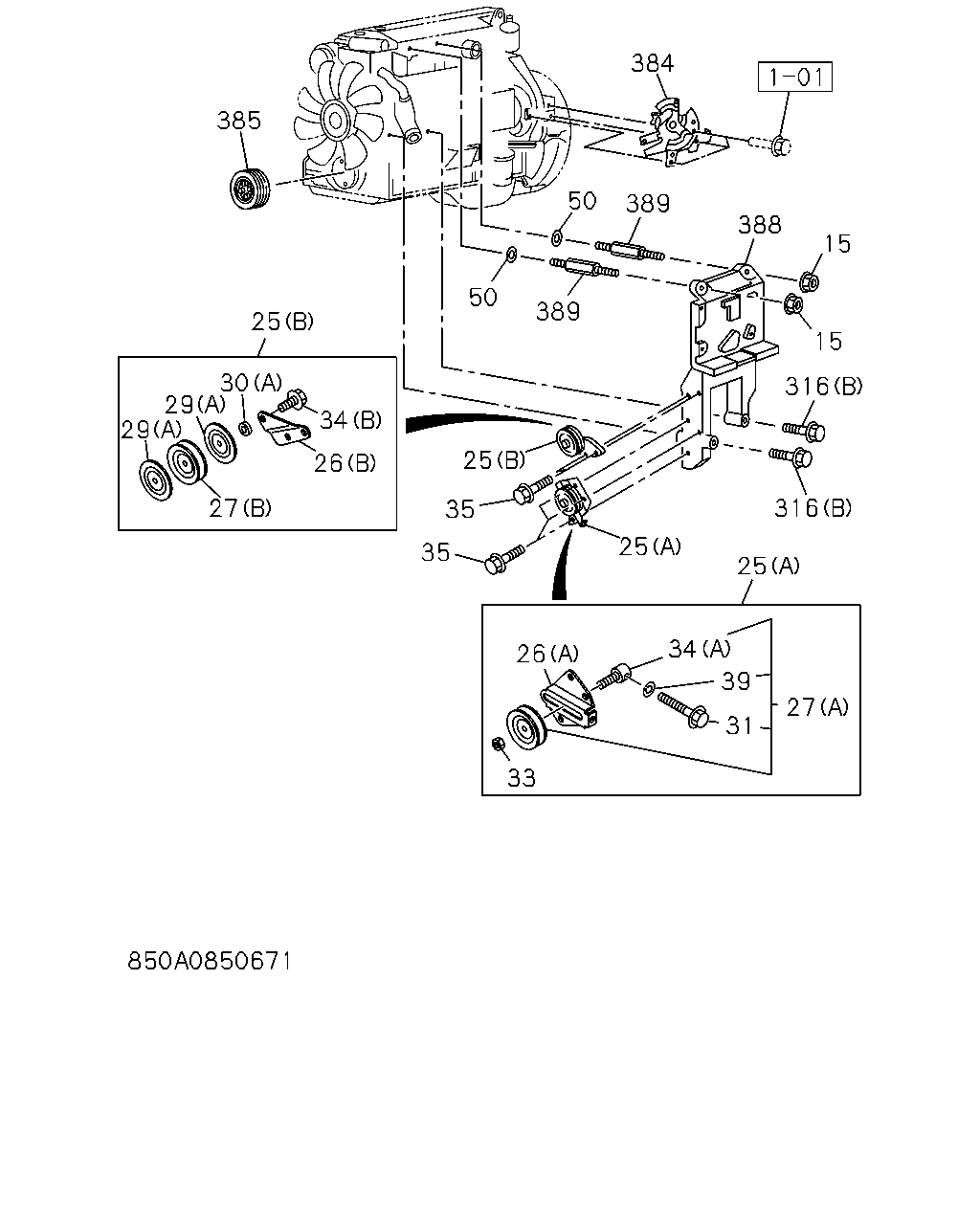

66 25 26 30 27 29 33 29 34 31 316 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

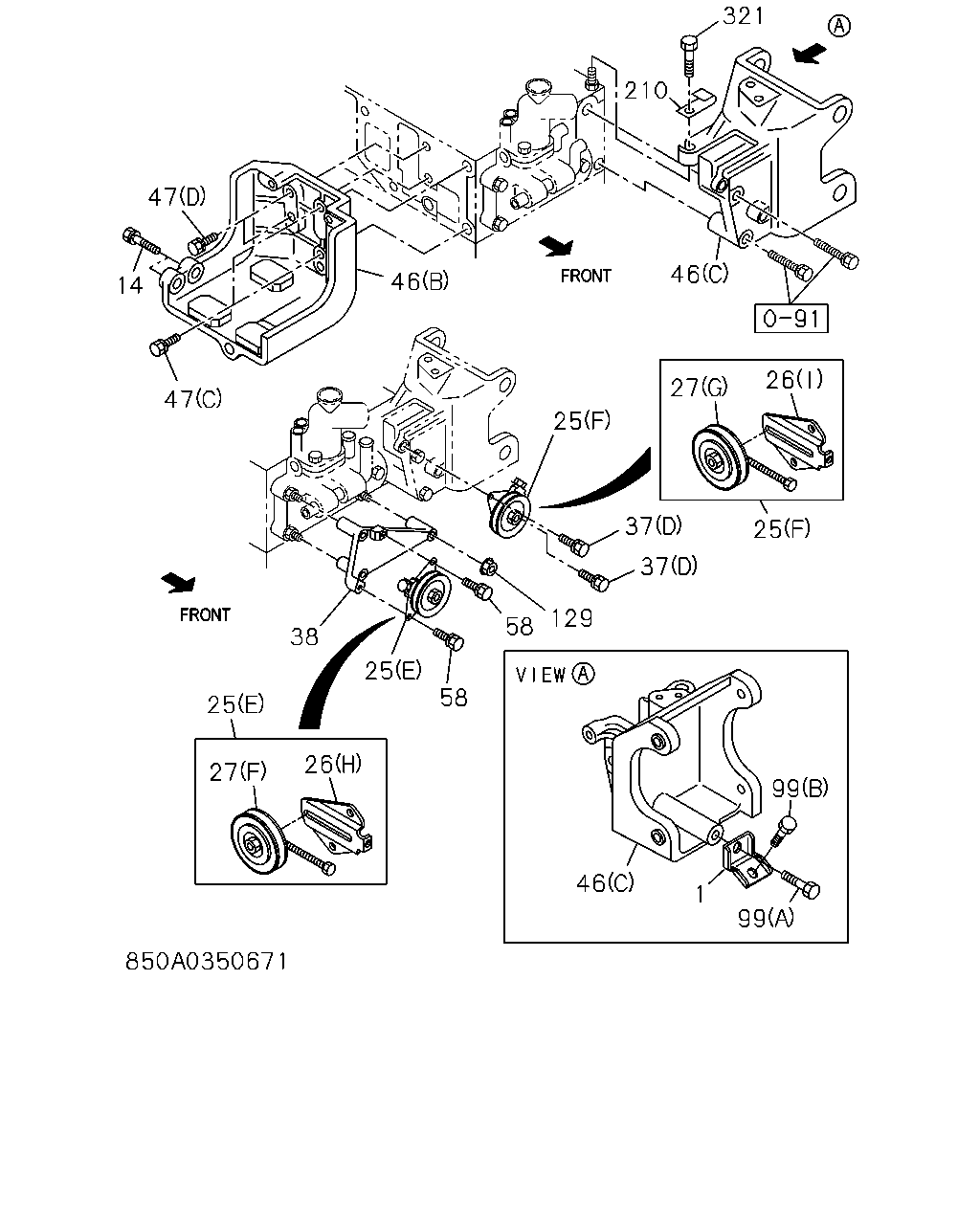

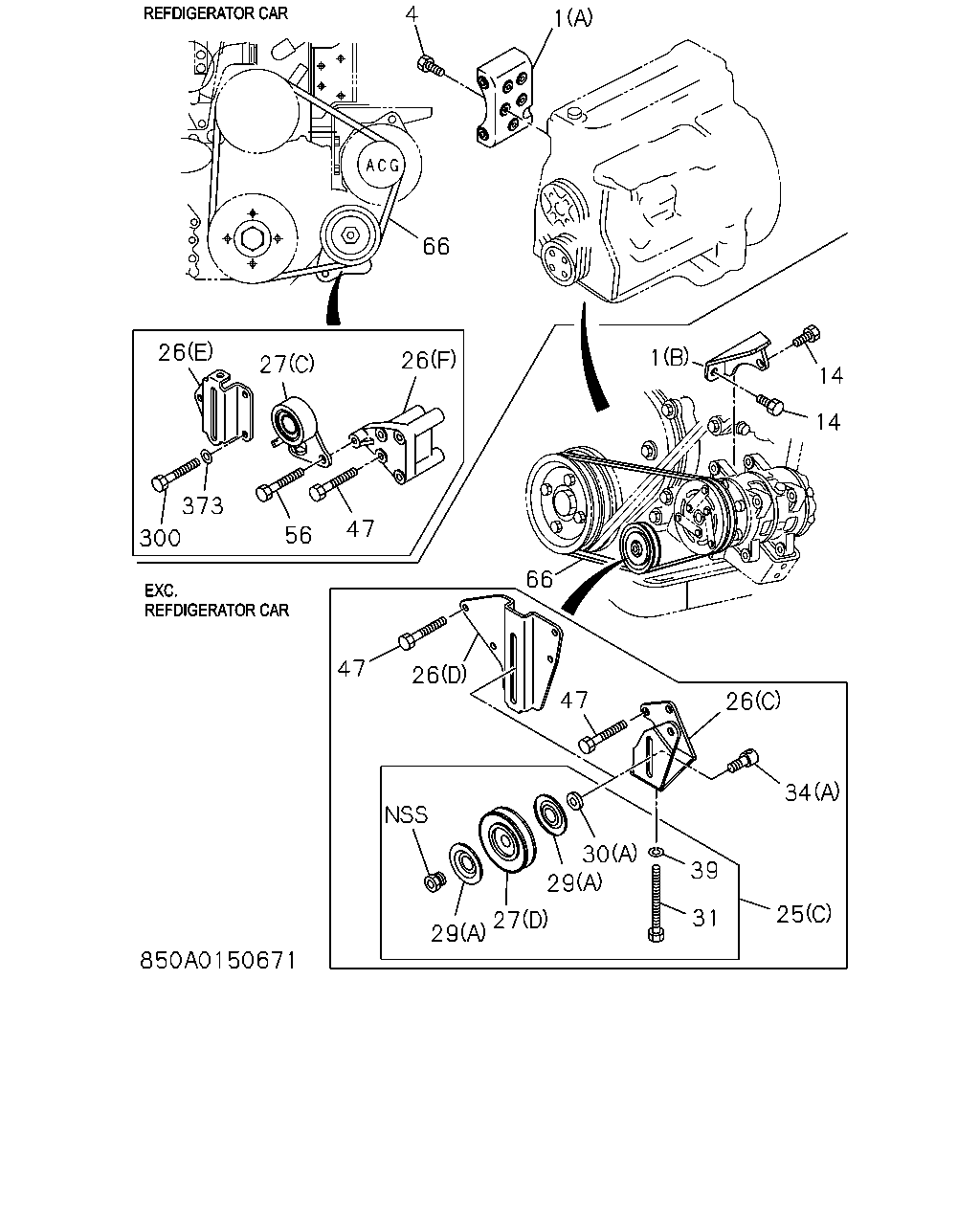

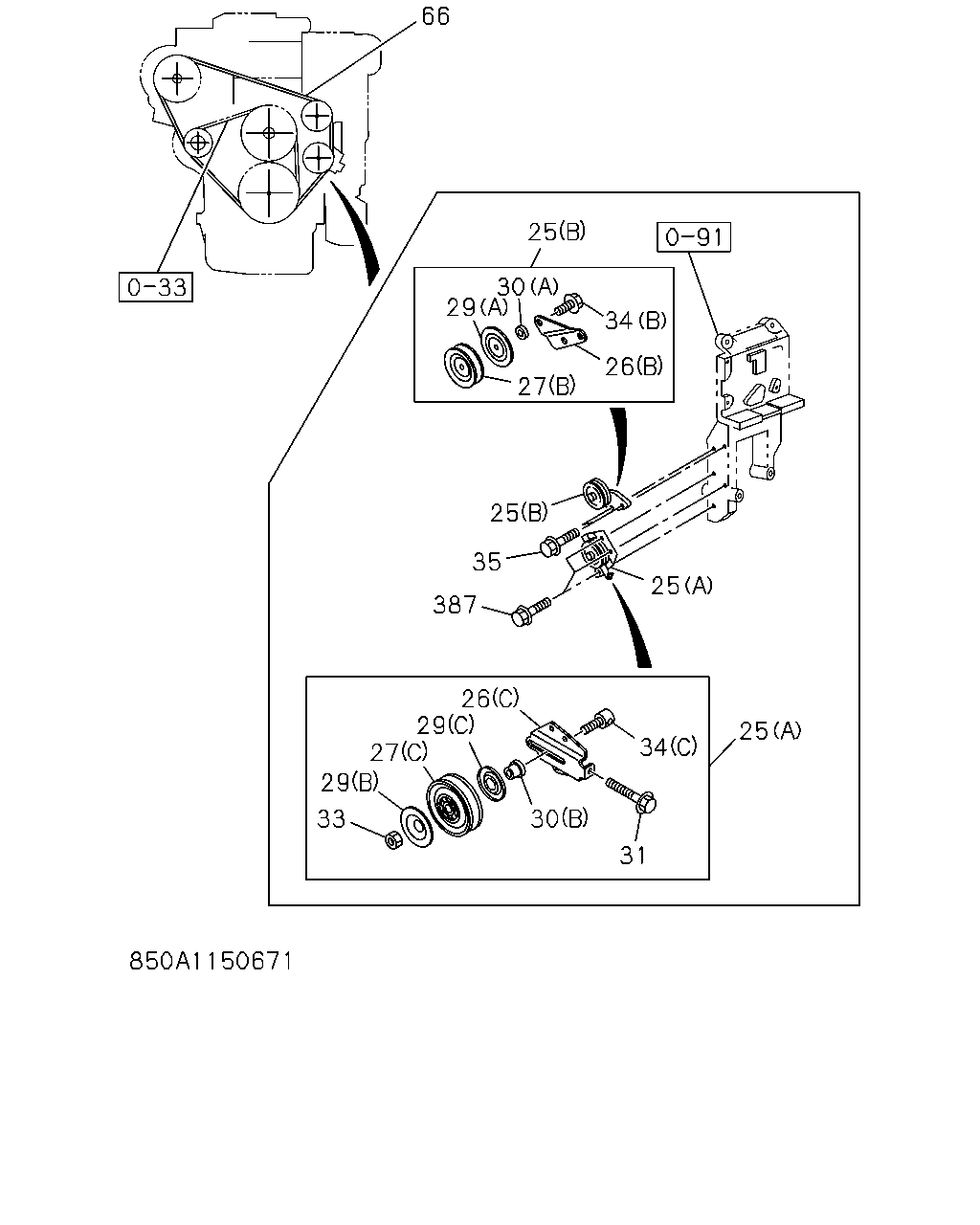

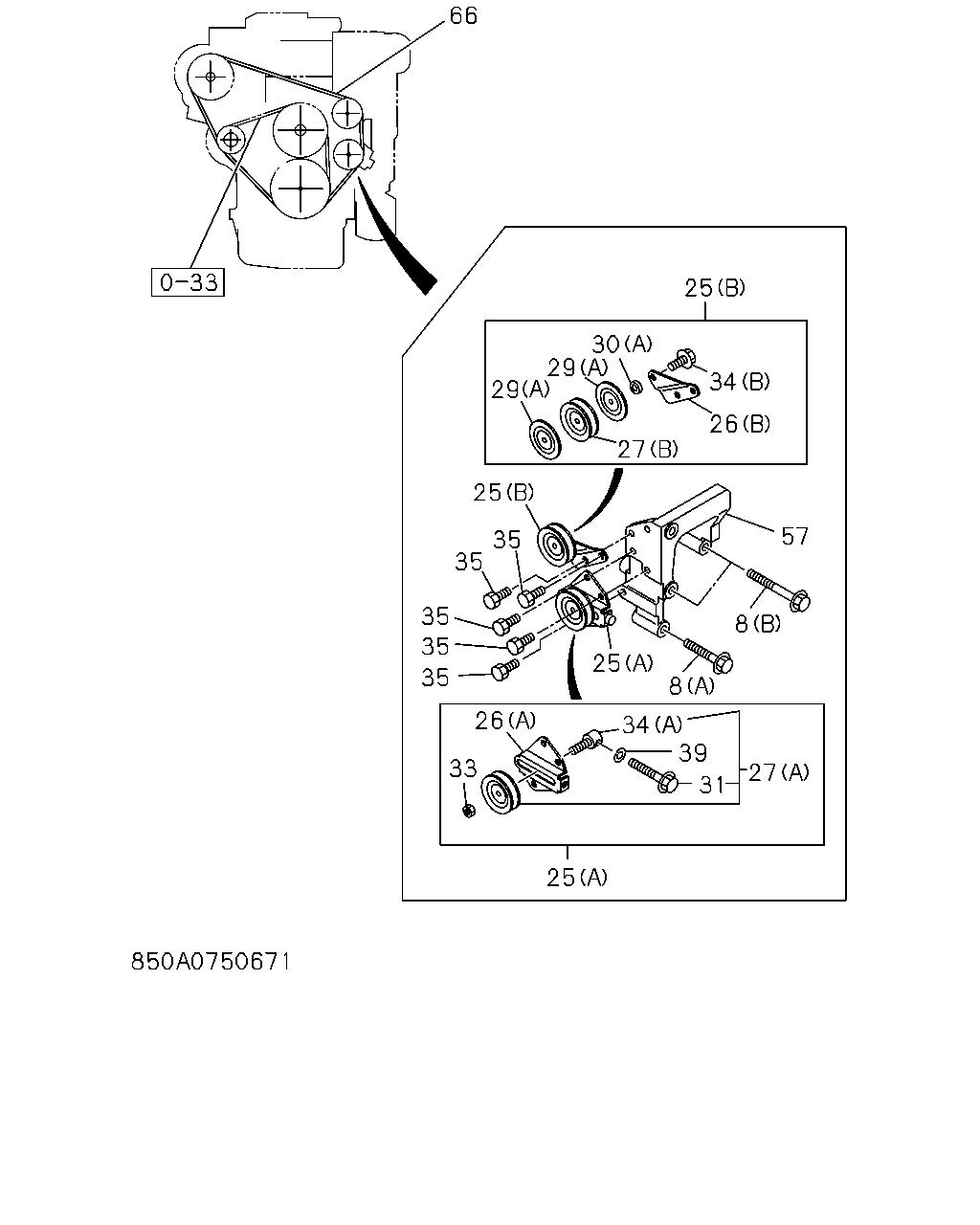

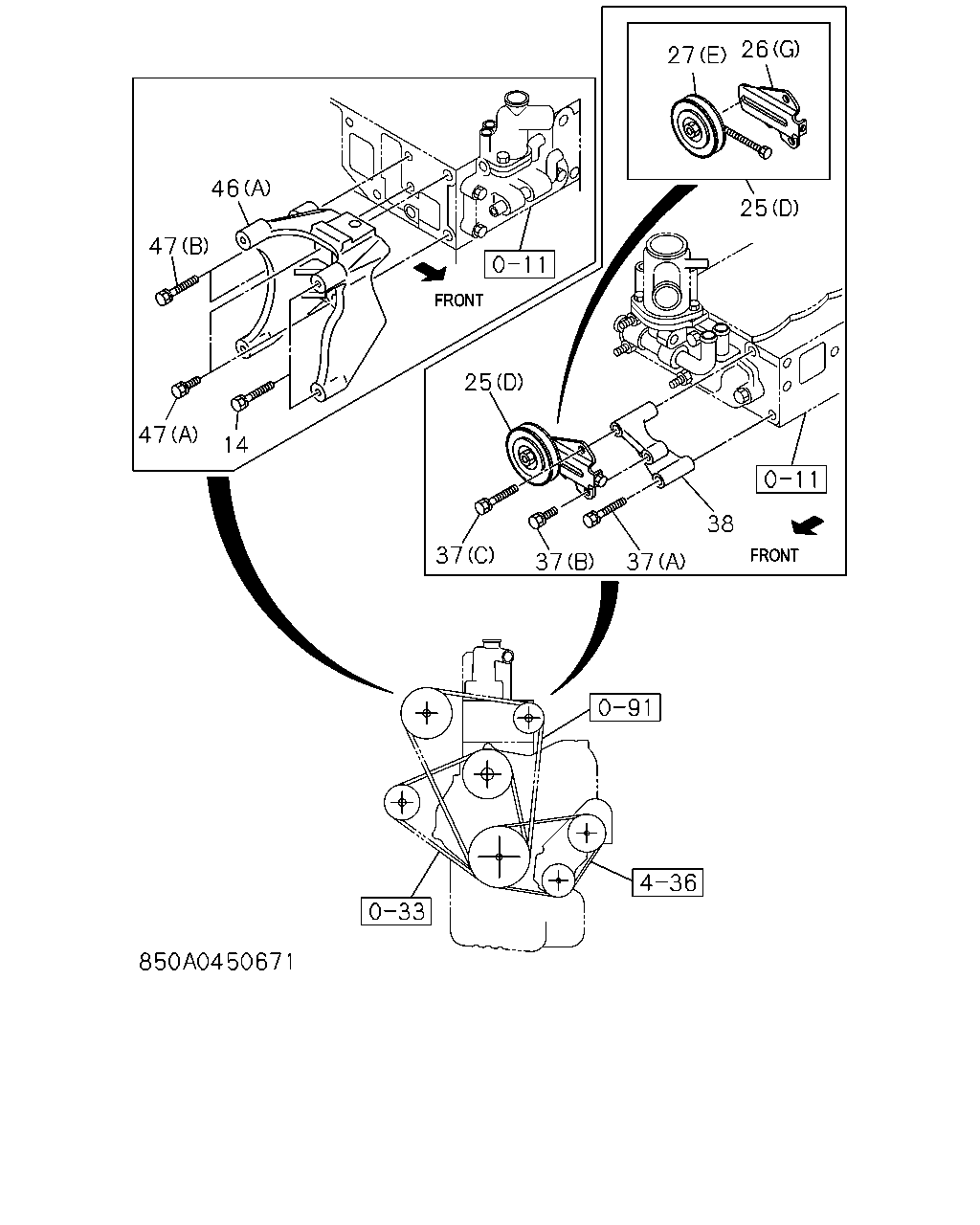

25	PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) (A) 1-GROOVE	8-94334-696-2	01	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 1-GROOVE	8-94334-696-2	01	1	9503-9610	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A) 1-GROOVE	8-94334-696-2	01	1	9611-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A) 1-GROOVE	8-94334-696-2	01	1	9704-		●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) (B) 1-GROOVE	8-94334-873-0	01	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B) 1-GROOVE	8-94334-873-0	01	1	9503-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B) 1-GROOVE	8-94334-873-0	01	1	9704-		●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (G) 1-GROOVE	8-97161-198-0	01	1	9611-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (G) 1-GROOVE	8-97161-198-0	01	1	9704-	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (C)	8-94478-941-1	01	1	9304-9502	●	●		●	●	●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (E)	8-97080-947-1	01	1	9510-9703	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (F)	8-97080-635-0	01	1	9510-9703	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) (D)	8-97080-948-0	01	1	9304-9502	●				●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97080-948-0	01	1	9503-9703	●	●		●	●	●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97080-948-0	01	1	9704-9710	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97180-245-0	01	1	9711-	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) (A)	8-97060-361-0	01	1	9304-9502	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-633-0	01	1	9503-9610	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-633-0	01	1	9611-9703	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-633-0	01	1	9704-		●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) (B)	8-97060-362-0	01	1	9304-9502	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97060-362-0	01	1	9503-9703	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97060-362-0	01	1	9704-		●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (C)	8-97012-505-0	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (E)	8-94478-942-0	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (F)	8-94478-943-1	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (H)	8-97080-891-1	01	1	9510-9703	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (I)	8-97126-653-0	01	1	9510-9703	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) (G)	8-94120-998-2	01	1	9407-9502	●				●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-94120-998-2	01	1	9503-9703	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-94120-998-2	01	1	9704-9710	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-97180-246-0	01	1	9711-	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97095-105-1	01	1	9304-9307		●		●		●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (J)	8-97161-031-0	01	1	9611-	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HF1 ENG(RLS) (A)	8-94200-984-1	01	1	9304-9502	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HF1 ENG(RLS) (B)	9-13663-606-0	01	1	9304-9502	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	9-13663-606-0	01	1	9503-9703	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	9-13663-606-0	01	1	9704-		●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97167-862-0	01	1	9503-9610	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97167-862-0	01	1	9611-9703	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97167-862-0	01	1	9704-		●	●	●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (C)	8-94318-352-0	01	1	9304-9502	●	●		●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (D)	8-97077-933-0	01	1	9304-9307	●	●		●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH) (D)	8-97077-933-0	01	1	9308-9502	●	●		●	●	●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (F)	8-97126-652-0	01	1	9510-9703	●	●			●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (G)	8-97105-396-0	01	1	9510-9703	●	●			●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) (E)	8-97126-290-0	01	1	9407-9502	●				●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97126-290-0	01	1	9503-9703	●	●		●	●	●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97126-290-0	01	1	9704-	●	●			●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (H)	8-97386-869-0	01	1	9611-	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) (A)	9-13369-603-0	02	1	9304-9502	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-97126-629-0	01	1	9503-9610	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-629-0	01	1	9611-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-629-0	01	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-630-0	01	1	9503-9610	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-630-0	01	1	9611-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-630-0	01	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A)	9-13669-603-0	02	1	9503-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A)	9-13669-603-0	02	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A)	9-13669-603-0	01	1	9304-9307	●	●		●	●	●
29	COVER; DUST,IDLE PULLEY 4BE1 ENG(RLH) (A)	9-13669-603-0	01	1	9308-9502	●	●		●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97384-114-0	01	1	9611-	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97384-115-0	01	1	9611-	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (A)	8-94207-192-0	01	1	9304-9307	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4BE1 ENG(RLH),4HF1 ENG(RLS) (A)	8-94207-192-0	01	1	9308-9502	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A)	8-94207-192-0	01	1	9503-9703	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A)	8-94207-192-0	01	1	9704-		●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-97126-632-0	01	1	9503-9610	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-632-0	01	1	9611-9703	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-632-0	01	1	9704-		●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (C)	8-97384-117-0	01	1	9611-	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS)	8-94238-324-0	01	1	9304-9502	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-97126-638-0	01	1	9503-9610	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	8-97126-638-0	01	1	9611-9703	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R)	8-97126-638-0	01	1	9704-		●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ)	8-94429-524-0	01	1	9304-9307	●	●		●	●	●
31	BOLT; ADJ,IDLE PULLEY 4BE1 ENG(RLH)	8-94429-524-0	01	1	9308-9502	●	●		●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R)	8-97384-113-0	01	1	9611-	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HF1 ENG(RLS)	8-97126-639-0	01	1	9304-9502	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-97126-639-0	01	1	9503-9610	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	8-97126-639-0	01	1	9611-9703	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R)	8-97126-639-0	01	1	9704-		●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R)	8-97384-118-0	01	1	9611-	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (A)	8-97060-285-0	01	1	9304-9502	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4BE1 ENG(RLH) (A)	8-97060-285-0	01	1	9503-9503	●	●		●	●	●
34	SHAFT; IDLE PULLEY 4HF1 ENG(RLS) (B) M10X30	0-28121-030-0	01	1	9304-9502	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B) M10X30	0-28121-030-0	01	1	9503-9703	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B) M10X30	0-28121-030-0	01	1	9704-		●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-631-0	01	1	9503-9610	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-631-0	01	1	9611-9703	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-631-0	01	1	9704-		●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97384-116-0	01	1	9611-	●	●	●	●	●	●
66	BELT; A/C CMPR 4HF1 ENG(RLS) L=1569	8-97014-702-2	01	1	9304-9407	●	●	●	●	●	●
66	BELT; A/C CMPR 4HF1 ENG(RLS) L=1569	8-97094-448-1	01	1	9408-9502	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1569	8-97094-448-1	01	1	9503-9703	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=1569	8-97094-448-1	01	1	9704-9706	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=1569	8-97180-183-2	01	1	9707-	●	●	●	●	●	●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) L=1499	8-94111-624-0	01	1	9304-9306	●	●		●	●	●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) L=1509	5-13671-113-0	01	1	9307-9502	●	●		●	●	●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1369 MITSUBOSHI	8-94252-342-0	01	1	9304-9306		●		●		●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1390	8-94218-575-0	01	1	9307-9502		●		●		●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) L=1569	5-13671-115-0	01	1	9304-9502	●	●		●	●	●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) BESTFIX	5-86750-007-0	01	1	9304-9306		●		●		●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) BESTFIX	5-86750-006-1	01	1	9707-	●	●	●	●	●	●

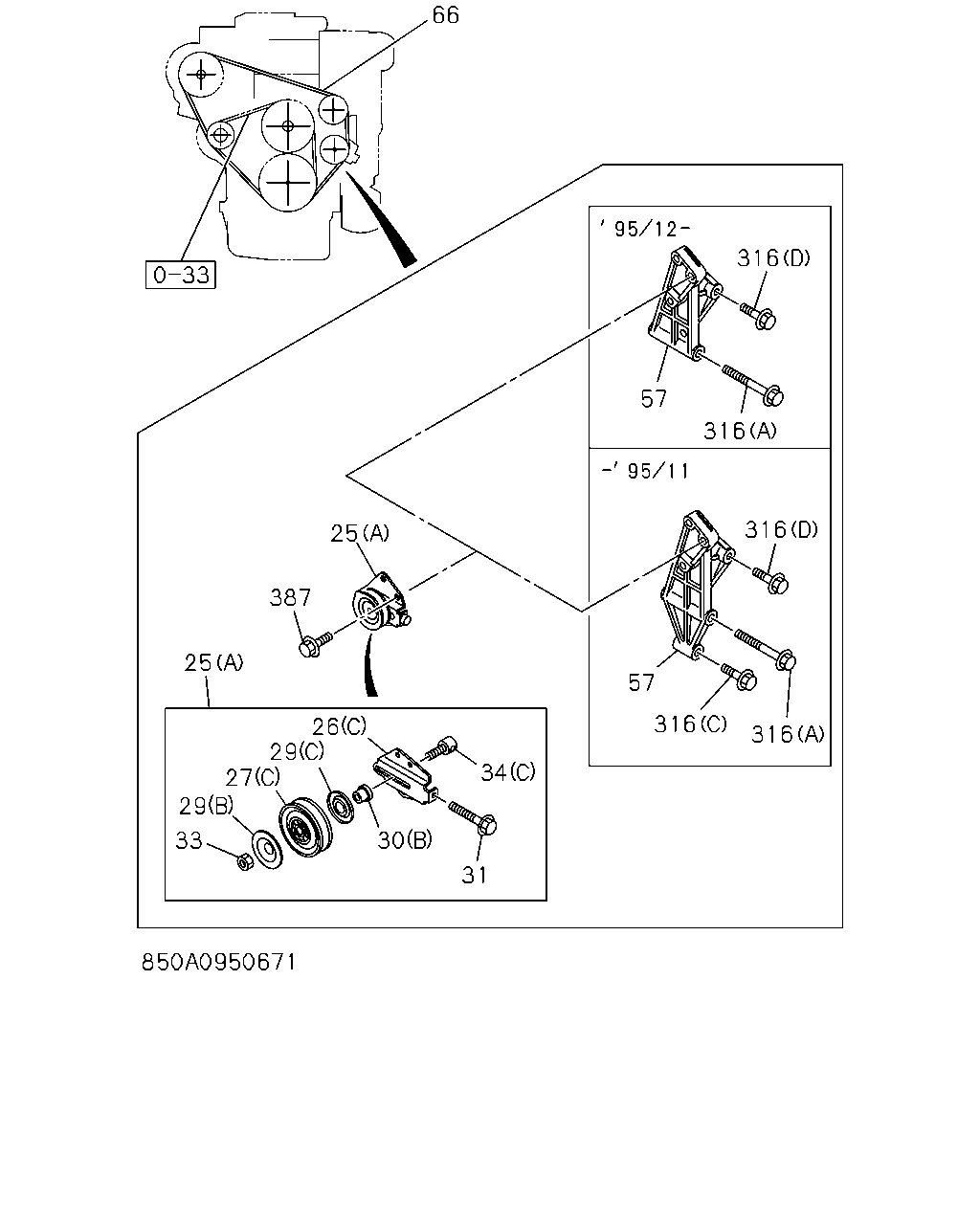

316	BOLT; BRKT FIX REFRIGERATION KIT-FOR VAN(7FH) (B)	8-97028-734-0	02	1	9304-9502	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (C) M10X50 FLANGE	0-28181-050-0	01	1	9503-9511	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (D) M8X50 FLANGE	0-28080-850-0	01	1	9503-9703	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (D) M8X50 FLANGE	0-28080-850-0	01	1	9704-	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (A) M10X100 FLANGE	0-28181-000-0	01	1	9503-9610	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (E) M10X65 FLANGE	8-94344-540-1	01	1	9611-9703	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (E) M10X65 FLANGE	8-94344-540-1	01	1	9704-	●	●	●	●	●	●

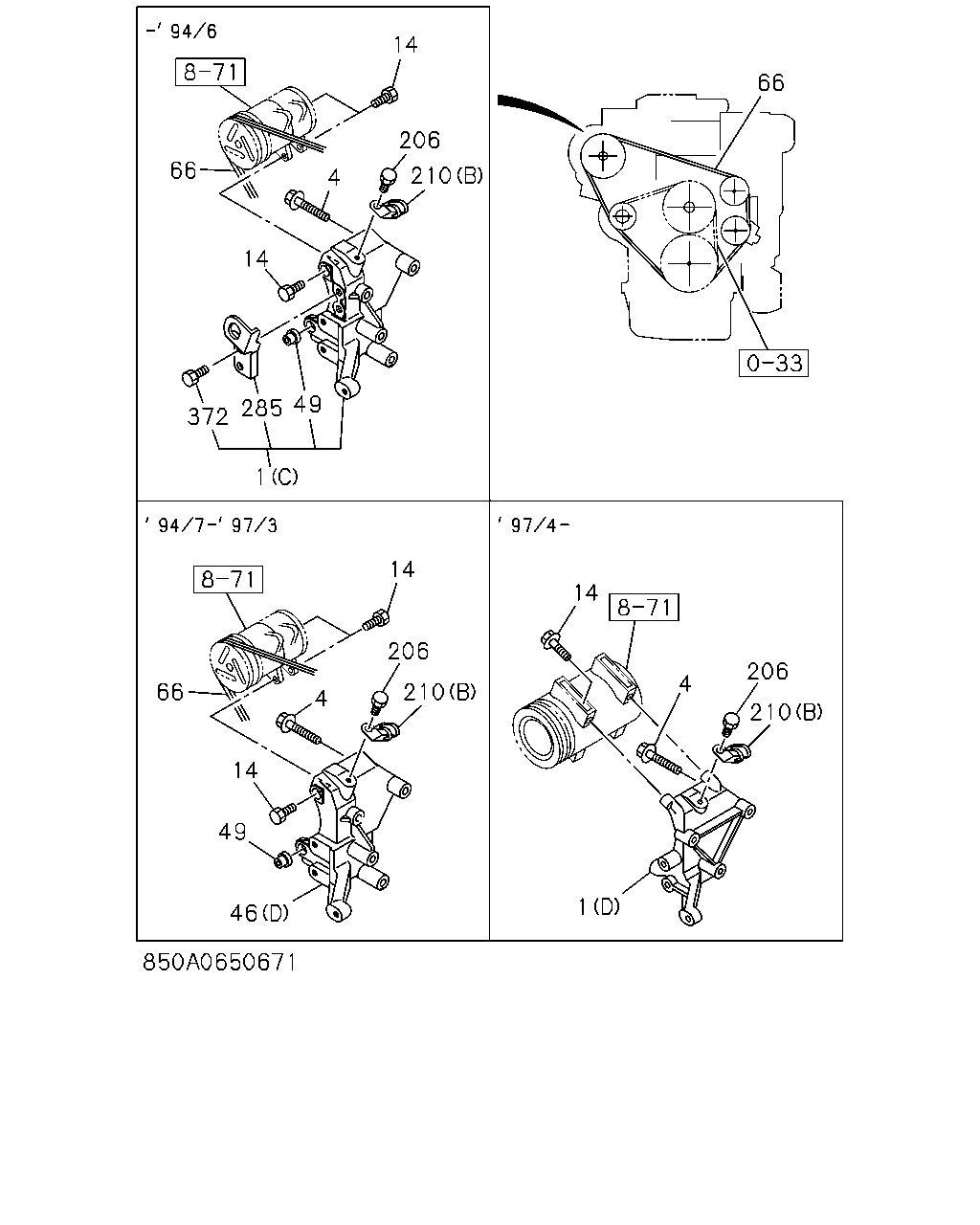

14 206 4 14 372 285 49 1 210 66 14 206 210 4 1 14 206 210 4 14 66 49 46 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	BRACKET; A/C 4HF1 ENG(RLS) (C)	8-97065-502-2	01	1	9304-9406	●	●	●	●	●	●
1	BRACKET; A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (A)	8-94478-944-1	01	1	9304-9502	●	●		●	●	●
1	BRACKET; A/C 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REFRIGERATOR CHASSIS(V4R) (B)	8-97086-974-1	01	1	9304-9502	●	●		●	●	●
1	BRACKET; A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R)	8-97115-106-0	01	1	9510-9703	●	●			●
1	BRACKET; A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-97162-776-0	01	1	9704-	●	●	●	●	●	●
1	BRACKET; A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (D)	8-97162-776-0	01	1	9704-		●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	9304-9502	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X55 FLANGE	8-94399-863-1	02	1	9503-9703	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X55 FLANGE	8-94399-863-1	02	1	9503-9703	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M10X55 FLANGE	8-94399-863-1	02	1	9704-	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) M10X55 FLANGE	8-94399-863-1	02	1	9704-		●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) M8X28 W/LK WASHER	0-50040-828-0	05	1	9304-9502	●	●		●	●	●
4	BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) M10X90 FLANGE	0-28181-090-0	02	1	9304-9502	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X90 FLANGE	0-28181-090-0	02	1	9503-9511	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X90 FLANGE	0-28181-090-0	02	1	9503-9511	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X90 FLANGE	0-28181-090-0	01	1	9512-9703	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X90 FLANGE	0-28181-090-0	01	1	9512-9703	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M10X110 FLANGE	0-28186-011-0	01	1	9704-	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) M10X110 FLANGE	0-28186-011-0	01	1	9704-		●	●	●	●	●
14	BOLT; CMPR 4HF1 ENG(RLS) M10X40	0-28281-040-0	04	1	9304-9304	●	●	●	●	●	●
14	BOLT; CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X40	0-28281-040-0	04	1	9304-9502	●	●	●	●	●	●
14	BOLT; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X40	0-28281-040-0	04	1	9503-9703	●	●	●	●	●	●
14	BOLT; CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X90 FLANGE	0-28080-890-0	04	1	9704-	●	●	●	●	●	●
14	BOLT; CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REFRIGERATOR CHASSIS(V4R) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9304-9502	●	●		●	●	●
14	BOLT; CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REFRIGERATOR CHASSIS(V4R) M10X40 W/LK&PL WASHER	0-50141-040-0	04	1	9304-9304	●	●		●	●	●
14	BOLT; CMPR 4JG2 ENG(RJC) M10X40 W/LK WASHER	0-50041-040-0	04	1	9304-9304	●				●
14	BOLT; CMPR 4JG2 ENG(RJC) M8X80 FLANGE	0-28080-880-0	04	1	9304-9502	●				●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X80 FLANGE	0-28080-880-0	04	1	9503-9509	●	●		●	●	●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) M8X80 FLANGE	0-28080-880-0	04	1	9510-9703	●	●		●	●	●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) M8X80 FLANGE	0-28080-880-0	04	1	9704-	●	●			●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) M10X40 FLANGE	0-28081-040-0	04	1	9510-9703					●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) M10X40 FLANGE	0-28681-040-0	04	1	9704-					●
46	BRACKET; CMPR 4HF1 ENG(RLS) (D)	8-97106-228-0	01	1	9407-9412	●	●	●	●	●	●
46	BRACKET; CMPR 4HF1 ENG(RLS) (D)	8-97126-030-0	01	1	9501-9502	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97126-030-0	01	1	9503-9511	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97126-030-0	01	1	9503-9511	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97136-247-0	01	1	9512-9603	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97136-247-0	01	1	9512-9603	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97147-029-0	01	1	9604-9703	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97147-029-0	01	1	9604-9703	●	●	●	●	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (B)	8-97075-756-0	01	1	9510-9703	●	●			●
46	BRACKET; CMPR 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (C)	8-97114-838-0	01	1	9510-9703	●	●			●
46	BRACKET; CMPR 4JG2 ENG(RJC) (A)	8-97089-616-0	01	1	9304-9304	●				●
46	BRACKET; CMPR 4JG2 ENG(RJC) (A)	8-97061-290-1	01	1	9304-9502	●				●
46	BRACKET; CMPR 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (A)	8-97061-290-1	01	1	9503-9605	●	●		●	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (A)	8-97119-318-0	01	1	9606-9703	●	●		●	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (A)	8-97119-318-0	01	1	9704-	●	●			●
49	COLLAR; BRKT,CMPR 4HF1 ENG(RLS)	8-94201-057-1	02	1	9304-9502	●	●	●	●	●	●
49	COLLAR; BRKT,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-94201-057-1	02	1	9503-9603	●	●	●	●	●	●
49	COLLAR; BRKT,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-94201-057-1	02	1	9503-9603	●	●	●	●	●	●
49	COLLAR; BRKT,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-97147-059-0	02	1	9604-9703	●	●	●	●	●	●
49	COLLAR; BRKT,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-97147-059-0	02	1	9604-9703	●	●	●	●	●	●
66	BELT; A/C CMPR 4HF1 ENG(RLS) L=1569	8-97014-702-2	01	1	9304-9407	●	●	●	●	●	●
66	BELT; A/C CMPR 4HF1 ENG(RLS) L=1569	8-97094-448-1	01	1	9408-9502	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1569	8-97094-448-1	01	1	9503-9703	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=1569	8-97094-448-1	01	1	9704-9706	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=1569	8-97180-183-2	01	1	9707-	●	●	●	●	●	●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) L=1499	8-94111-624-0	01	1	9304-9306	●	●		●	●	●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) L=1509	5-13671-113-0	01	1	9307-9502	●	●		●	●	●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1369 MITSUBOSHI	8-94252-342-0	01	1	9304-9306		●		●		●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1390	8-94218-575-0	01	1	9307-9502		●		●		●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) L=1569	5-13671-115-0	01	1	9304-9502	●	●		●	●	●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) BESTFIX	5-86750-007-0	01	1	9304-9306		●		●		●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) BESTFIX	5-86750-006-1	01	1	9707-	●	●	●	●	●	●
206	BOLT; CLIP BRKT 4HF1 ENG(RLS) M6X12 FLANGE	0-28280-612-0	01	1	9304-9502	●	●	●	●	●	●
206	BOLT; CLIP BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M6X12 FLANGE	0-28280-612-0	01	1	9503-9703	●	●	●	●	●	●
206	BOLT; CLIP BRKT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6X12 FLANGE	0-28280-612-0	01	1	9704-	●	●	●	●	●	●
210	CLIP; HARNESS 4HF1 ENG(RLS) (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9304-9703	●	●	●	●	●	●
210	CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9704-	●	●	●	●	●	●
210	CLIP; HARNESS 4HF1 ENG(RLS) (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9304-9502	●	●	●	●	●	●
210	CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9503-9703	●	●	●	●	●	●
210	CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9704-	●	●	●	●	●	●
210	CLIP; HARNESS 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	1-09700-160-0	01	1	9510-9703	●	●			●
285	HANGER; ENG BRKT 4HF1 ENG(RLS)	8-97065-504-1	01	1	9304-9406	●	●	●	●	●	●
372	BOLT; HANGER,CMPR BRKT 4HF1 ENG(RLS) M10X20 FLANGE	0-28181-020-0	02	1	9304-9406	●	●	●	●	●	●

66 25 30 29 29 27 34 26 57 8 8 25 35 25 35 35 35 35 33 26 34 39 31 25 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	BOLT; BRKT 4HF1 ENG(RLS) (A) M10X100 FLANGE	0-28181-000-0	01	1	9304-9502	●	●	●	●	●	●
8	BOLT; BRKT 4HF1 ENG(RLS) (B) M10X60 FLANGE	0-28181-060-0	02	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) (A) 1-GROOVE	8-94334-696-2	01	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 1-GROOVE	8-94334-696-2	01	1	9503-9610	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A) 1-GROOVE	8-94334-696-2	01	1	9611-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A) 1-GROOVE	8-94334-696-2	01	1	9704-		●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) (B) 1-GROOVE	8-94334-873-0	01	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B) 1-GROOVE	8-94334-873-0	01	1	9503-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B) 1-GROOVE	8-94334-873-0	01	1	9704-		●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (G) 1-GROOVE	8-97161-198-0	01	1	9611-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (G) 1-GROOVE	8-97161-198-0	01	1	9704-	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (C)	8-94478-941-1	01	1	9304-9502	●	●		●	●	●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (E)	8-97080-947-1	01	1	9510-9703	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (F)	8-97080-635-0	01	1	9510-9703	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) (D)	8-97080-948-0	01	1	9304-9502	●				●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97080-948-0	01	1	9503-9703	●	●		●	●	●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97080-948-0	01	1	9704-9710	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97180-245-0	01	1	9711-	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) (A)	8-97060-361-0	01	1	9304-9502	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-633-0	01	1	9503-9610	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-633-0	01	1	9611-9703	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-633-0	01	1	9704-		●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) (B)	8-97060-362-0	01	1	9304-9502	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97060-362-0	01	1	9503-9703	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97060-362-0	01	1	9704-		●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (C)	8-97012-505-0	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (E)	8-94478-942-0	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (F)	8-94478-943-1	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (H)	8-97080-891-1	01	1	9510-9703	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (I)	8-97126-653-0	01	1	9510-9703	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) (G)	8-94120-998-2	01	1	9407-9502	●				●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-94120-998-2	01	1	9503-9703	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-94120-998-2	01	1	9704-9710	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-97180-246-0	01	1	9711-	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97095-105-1	01	1	9304-9307		●		●		●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (J)	8-97161-031-0	01	1	9611-	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HF1 ENG(RLS) (A)	8-94200-984-1	01	1	9304-9502	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HF1 ENG(RLS) (B)	9-13663-606-0	01	1	9304-9502	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	9-13663-606-0	01	1	9503-9703	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	9-13663-606-0	01	1	9704-		●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97167-862-0	01	1	9503-9610	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97167-862-0	01	1	9611-9703	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97167-862-0	01	1	9704-		●	●	●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (C)	8-94318-352-0	01	1	9304-9502	●	●		●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (D)	8-97077-933-0	01	1	9304-9307	●	●		●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH) (D)	8-97077-933-0	01	1	9308-9502	●	●		●	●	●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (F)	8-97126-652-0	01	1	9510-9703	●	●			●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (G)	8-97105-396-0	01	1	9510-9703	●	●			●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) (E)	8-97126-290-0	01	1	9407-9502	●				●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97126-290-0	01	1	9503-9703	●	●		●	●	●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97126-290-0	01	1	9704-	●	●			●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (H)	8-97386-869-0	01	1	9611-	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) (A)	9-13369-603-0	02	1	9304-9502	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-97126-629-0	01	1	9503-9610	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-629-0	01	1	9611-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-629-0	01	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-630-0	01	1	9503-9610	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-630-0	01	1	9611-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-630-0	01	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A)	9-13669-603-0	02	1	9503-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A)	9-13669-603-0	02	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A)	9-13669-603-0	01	1	9304-9307	●	●		●	●	●
29	COVER; DUST,IDLE PULLEY 4BE1 ENG(RLH) (A)	9-13669-603-0	01	1	9308-9502	●	●		●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97384-114-0	01	1	9611-	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97384-115-0	01	1	9611-	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (A)	8-94207-192-0	01	1	9304-9307	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4BE1 ENG(RLH),4HF1 ENG(RLS) (A)	8-94207-192-0	01	1	9308-9502	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A)	8-94207-192-0	01	1	9503-9703	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A)	8-94207-192-0	01	1	9704-		●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-97126-632-0	01	1	9503-9610	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-632-0	01	1	9611-9703	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-632-0	01	1	9704-		●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (C)	8-97384-117-0	01	1	9611-	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS)	8-94238-324-0	01	1	9304-9502	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-97126-638-0	01	1	9503-9610	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	8-97126-638-0	01	1	9611-9703	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R)	8-97126-638-0	01	1	9704-		●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ)	8-94429-524-0	01	1	9304-9307	●	●		●	●	●
31	BOLT; ADJ,IDLE PULLEY 4BE1 ENG(RLH)	8-94429-524-0	01	1	9308-9502	●	●		●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R)	8-97384-113-0	01	1	9611-	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HF1 ENG(RLS)	8-97126-639-0	01	1	9304-9502	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-97126-639-0	01	1	9503-9610	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	8-97126-639-0	01	1	9611-9703	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R)	8-97126-639-0	01	1	9704-		●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R)	8-97384-118-0	01	1	9611-	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (A)	8-97060-285-0	01	1	9304-9502	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4BE1 ENG(RLH) (A)	8-97060-285-0	01	1	9503-9503	●	●		●	●	●
34	SHAFT; IDLE PULLEY 4HF1 ENG(RLS) (B) M10X30	0-28121-030-0	01	1	9304-9502	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B) M10X30	0-28121-030-0	01	1	9503-9703	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B) M10X30	0-28121-030-0	01	1	9704-		●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-631-0	01	1	9503-9610	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-631-0	01	1	9611-9703	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-631-0	01	1	9704-		●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97384-116-0	01	1	9611-	●	●	●	●	●	●
35	BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) M8X16 FLANGE	0-28080-816-0	05	1	9304-9502	●	●	●	●	●	●
35	BOLT; IDLER PULLEY TO C/BL 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) M8X16 FLANGE	0-28080-816-0	02	1	9503-9703	●	●	●	●	●	●
35	BOLT; IDLER PULLEY TO C/BL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) M8X16 FLANGE	0-28080-816-0	02	1	9704-		●	●	●	●	●
39	WASHER; LK,ADJ BOLT 4HF1 ENG(RLS)	1-83579-492-0	01	1	9304-9502	●	●	●	●	●	●
39	WASHER; LK,ADJ BOLT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=8.2	9-09150-508-0	01	1	9304-9307	●	●		●	●	●
39	WASHER; LK,ADJ BOLT 4BE1 ENG(RLH) ID=8.2	9-09150-508-0	01	1	9308-9502	●	●		●	●	●
57	BRACKET; IDLER PULLEY 4HF1 ENG(RLS)	8-97081-262-2	01	1	9304-9502	●	●	●	●	●	●
57	BRACKET; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R)	8-97100-809-0	01	1	9503-9511	●	●	●	●	●	●
57	BRACKET; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R)	8-97136-248-0	01	1	9512-9610	●	●	●	●	●	●
66	BELT; A/C CMPR 4HF1 ENG(RLS) L=1569	8-97014-702-2	01	1	9304-9407	●	●	●	●	●	●
66	BELT; A/C CMPR 4HF1 ENG(RLS) L=1569	8-97094-448-1	01	1	9408-9502	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1569	8-97094-448-1	01	1	9503-9703	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=1569	8-97094-448-1	01	1	9704-9706	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=1569	8-97180-183-2	01	1	9707-	●	●	●	●	●	●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) L=1499	8-94111-624-0	01	1	9304-9306	●	●		●	●	●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) L=1509	5-13671-113-0	01	1	9307-9502	●	●		●	●	●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1369 MITSUBOSHI	8-94252-342-0	01	1	9304-9306		●		●		●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1390	8-94218-575-0	01	1	9307-9502		●		●		●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) L=1569	5-13671-115-0	01	1	9304-9502	●	●		●	●	●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) BESTFIX	5-86750-007-0	01	1	9304-9306		●		●		●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) BESTFIX	5-86750-006-1	01	1	9707-	●	●	●	●	●	●

26 34 27 30 25 29 29 385 50 50 389 389 388 15 316 15 384 316 25 25 25 35 35 26 34 39 27 31 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
15	NUT; BRKT REFRIGERATION KIT-FOR VAN(7FH) M10 FLANGE	0-91150-210-0	02	1	9306-9502	●	●	●	●	●	●
15	NUT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	0-91150-106-0	01	1	9304-9502	●				●
15	NUT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	0-91150-106-0	01	1	9503-9703	●	●		●	●	●
15	NUT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	0-91150-106-0	01	1	9704-9801	●	●			●
25	PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) (A) 1-GROOVE	8-94334-696-2	01	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 1-GROOVE	8-94334-696-2	01	1	9503-9610	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A) 1-GROOVE	8-94334-696-2	01	1	9611-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A) 1-GROOVE	8-94334-696-2	01	1	9704-		●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) (B) 1-GROOVE	8-94334-873-0	01	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B) 1-GROOVE	8-94334-873-0	01	1	9503-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B) 1-GROOVE	8-94334-873-0	01	1	9704-		●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (G) 1-GROOVE	8-97161-198-0	01	1	9611-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (G) 1-GROOVE	8-97161-198-0	01	1	9704-	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (C)	8-94478-941-1	01	1	9304-9502	●	●		●	●	●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (E)	8-97080-947-1	01	1	9510-9703	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (F)	8-97080-635-0	01	1	9510-9703	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) (D)	8-97080-948-0	01	1	9304-9502	●				●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97080-948-0	01	1	9503-9703	●	●		●	●	●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97080-948-0	01	1	9704-9710	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97180-245-0	01	1	9711-	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) (A)	8-97060-361-0	01	1	9304-9502	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-633-0	01	1	9503-9610	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-633-0	01	1	9611-9703	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-633-0	01	1	9704-		●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) (B)	8-97060-362-0	01	1	9304-9502	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97060-362-0	01	1	9503-9703	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97060-362-0	01	1	9704-		●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (C)	8-97012-505-0	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (E)	8-94478-942-0	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (F)	8-94478-943-1	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (H)	8-97080-891-1	01	1	9510-9703	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (I)	8-97126-653-0	01	1	9510-9703	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) (G)	8-94120-998-2	01	1	9407-9502	●				●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-94120-998-2	01	1	9503-9703	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-94120-998-2	01	1	9704-9710	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-97180-246-0	01	1	9711-	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97095-105-1	01	1	9304-9307		●		●		●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (J)	8-97161-031-0	01	1	9611-	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HF1 ENG(RLS) (A)	8-94200-984-1	01	1	9304-9502	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HF1 ENG(RLS) (B)	9-13663-606-0	01	1	9304-9502	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	9-13663-606-0	01	1	9503-9703	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	9-13663-606-0	01	1	9704-		●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97167-862-0	01	1	9503-9610	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97167-862-0	01	1	9611-9703	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97167-862-0	01	1	9704-		●	●	●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (C)	8-94318-352-0	01	1	9304-9502	●	●		●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (D)	8-97077-933-0	01	1	9304-9307	●	●		●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH) (D)	8-97077-933-0	01	1	9308-9502	●	●		●	●	●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (F)	8-97126-652-0	01	1	9510-9703	●	●			●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (G)	8-97105-396-0	01	1	9510-9703	●	●			●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) (E)	8-97126-290-0	01	1	9407-9502	●				●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97126-290-0	01	1	9503-9703	●	●		●	●	●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97126-290-0	01	1	9704-	●	●			●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (H)	8-97386-869-0	01	1	9611-	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) (A)	9-13369-603-0	02	1	9304-9502	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-97126-629-0	01	1	9503-9610	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-629-0	01	1	9611-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-629-0	01	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-630-0	01	1	9503-9610	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-630-0	01	1	9611-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-630-0	01	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A)	9-13669-603-0	02	1	9503-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A)	9-13669-603-0	02	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A)	9-13669-603-0	01	1	9304-9307	●	●		●	●	●
29	COVER; DUST,IDLE PULLEY 4BE1 ENG(RLH) (A)	9-13669-603-0	01	1	9308-9502	●	●		●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97384-114-0	01	1	9611-	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97384-115-0	01	1	9611-	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (A)	8-94207-192-0	01	1	9304-9307	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4BE1 ENG(RLH),4HF1 ENG(RLS) (A)	8-94207-192-0	01	1	9308-9502	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A)	8-94207-192-0	01	1	9503-9703	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A)	8-94207-192-0	01	1	9704-		●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-97126-632-0	01	1	9503-9610	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-632-0	01	1	9611-9703	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-632-0	01	1	9704-		●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (C)	8-97384-117-0	01	1	9611-	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS)	8-94238-324-0	01	1	9304-9502	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-97126-638-0	01	1	9503-9610	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	8-97126-638-0	01	1	9611-9703	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R)	8-97126-638-0	01	1	9704-		●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ)	8-94429-524-0	01	1	9304-9307	●	●		●	●	●
31	BOLT; ADJ,IDLE PULLEY 4BE1 ENG(RLH)	8-94429-524-0	01	1	9308-9502	●	●		●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R)	8-97384-113-0	01	1	9611-	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HF1 ENG(RLS)	8-97126-639-0	01	1	9304-9502	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-97126-639-0	01	1	9503-9610	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	8-97126-639-0	01	1	9611-9703	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R)	8-97126-639-0	01	1	9704-		●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R)	8-97384-118-0	01	1	9611-	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (A)	8-97060-285-0	01	1	9304-9502	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4BE1 ENG(RLH) (A)	8-97060-285-0	01	1	9503-9503	●	●		●	●	●
34	SHAFT; IDLE PULLEY 4HF1 ENG(RLS) (B) M10X30	0-28121-030-0	01	1	9304-9502	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B) M10X30	0-28121-030-0	01	1	9503-9703	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B) M10X30	0-28121-030-0	01	1	9704-		●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-631-0	01	1	9503-9610	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-631-0	01	1	9611-9703	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-631-0	01	1	9704-		●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97384-116-0	01	1	9611-	●	●	●	●	●	●
35	BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) M8X16 FLANGE	0-28080-816-0	05	1	9304-9502	●	●	●	●	●	●
35	BOLT; IDLER PULLEY TO C/BL 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) M8X16 FLANGE	0-28080-816-0	02	1	9503-9703	●	●	●	●	●	●
35	BOLT; IDLER PULLEY TO C/BL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) M8X16 FLANGE	0-28080-816-0	02	1	9704-		●	●	●	●	●
39	WASHER; LK,ADJ BOLT 4HF1 ENG(RLS)	1-83579-492-0	01	1	9304-9502	●	●	●	●	●	●
39	WASHER; LK,ADJ BOLT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=8.2	9-09150-508-0	01	1	9304-9307	●	●		●	●	●
39	WASHER; LK,ADJ BOLT 4BE1 ENG(RLH) ID=8.2	9-09150-508-0	01	1	9308-9502	●	●		●	●	●
50	WASHER; PL REFRIGERATION KIT-FOR VAN(7FH) ID=10.5 OD=22	9-09164-610-0	02	1	9304-9502	●	●	●	●	●	●
316	BOLT; BRKT FIX REFRIGERATION KIT-FOR VAN(7FH) (B)	8-97028-734-0	02	1	9304-9502	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (C) M10X50 FLANGE	0-28181-050-0	01	1	9503-9511	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (D) M8X50 FLANGE	0-28080-850-0	01	1	9503-9703	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (D) M8X50 FLANGE	0-28080-850-0	01	1	9704-	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (A) M10X100 FLANGE	0-28181-000-0	01	1	9503-9610	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (E) M10X65 FLANGE	8-94344-540-1	01	1	9611-9703	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (E) M10X65 FLANGE	8-94344-540-1	01	1	9704-	●	●	●	●	●	●
384	LEVER ASM; ENG CONT A/T 4 SPEED-JATCO(RMK) REFRIGERATION KIT-FOR VAN(7FH)	8-97075-869-4	01	1	9304-9412	●	●	●	●	●	●
384	LEVER ASM; ENG CONT A/T 4 SPEED-JATCO(RMK) REFRIGERATION KIT-FOR VAN(7FH)	8-97118-732-0	01	1	9501-9502	●	●	●	●	●	●
384	LEVER ASM; ENG CONT M/T MXA5R(RMT),M/T MXA 6R(RMU) REFRIGERATION KIT-FOR VAN(7FH)	8-97079-523-3	01	1	9304-9412	●	●	●	●	●	●
384	LEVER ASM; ENG CONT M/T MXA5R(RMT),M/T MXA 6R(RMU) REFRIGERATION KIT-FOR VAN(7FH)	8-97118-731-0	01	1	9501-9502	●	●	●	●	●	●
385	PULLEY; DUMPER REFRIGERATION KIT-FOR VAN(7FH) 4-GROOVE	8-97033-848-0	01	1	9304-9412	●	●	●	●	●	●
385	PULLEY; DUMPER REFRIGERATION KIT-FOR VAN(7FH) 4-GROOVE	8-97088-478-2	01	1	9501-9502	●	●	●	●	●	●
388	BRACKET; FREEZER CMPR REFRIGERATION KIT-FOR VAN(7FH)	8-97065-483-0	01	1	9304-9406	●	●	●	●	●	●
388	BRACKET; FREEZER CMPR REFRIGERATION KIT-FOR VAN(7FH)	8-97115-710-0	01	1	9407-9502	●	●	●	●	●	●
389	SPACER; CMPR BRKT REFRIGERATION KIT-FOR VAN(7FH)	8-97065-515-2	02	1	9304-9502	●	●	●	●	●	●

66 316 316 57 316 316 316 57 31 30 34 26 29 27 29 33 25 387 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) (A) 1-GROOVE	8-94334-696-2	01	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 1-GROOVE	8-94334-696-2	01	1	9503-9610	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A) 1-GROOVE	8-94334-696-2	01	1	9611-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A) 1-GROOVE	8-94334-696-2	01	1	9704-		●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) (B) 1-GROOVE	8-94334-873-0	01	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B) 1-GROOVE	8-94334-873-0	01	1	9503-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B) 1-GROOVE	8-94334-873-0	01	1	9704-		●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (G) 1-GROOVE	8-97161-198-0	01	1	9611-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (G) 1-GROOVE	8-97161-198-0	01	1	9704-	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (C)	8-94478-941-1	01	1	9304-9502	●	●		●	●	●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (E)	8-97080-947-1	01	1	9510-9703	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (F)	8-97080-635-0	01	1	9510-9703	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) (D)	8-97080-948-0	01	1	9304-9502	●				●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97080-948-0	01	1	9503-9703	●	●		●	●	●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97080-948-0	01	1	9704-9710	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97180-245-0	01	1	9711-	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) (A)	8-97060-361-0	01	1	9304-9502	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-633-0	01	1	9503-9610	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-633-0	01	1	9611-9703	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-633-0	01	1	9704-		●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) (B)	8-97060-362-0	01	1	9304-9502	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97060-362-0	01	1	9503-9703	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97060-362-0	01	1	9704-		●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (C)	8-97012-505-0	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (E)	8-94478-942-0	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (F)	8-94478-943-1	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (H)	8-97080-891-1	01	1	9510-9703	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (I)	8-97126-653-0	01	1	9510-9703	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) (G)	8-94120-998-2	01	1	9407-9502	●				●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-94120-998-2	01	1	9503-9703	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-94120-998-2	01	1	9704-9710	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-97180-246-0	01	1	9711-	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97095-105-1	01	1	9304-9307		●		●		●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (J)	8-97161-031-0	01	1	9611-	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HF1 ENG(RLS) (A)	8-94200-984-1	01	1	9304-9502	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HF1 ENG(RLS) (B)	9-13663-606-0	01	1	9304-9502	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	9-13663-606-0	01	1	9503-9703	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	9-13663-606-0	01	1	9704-		●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97167-862-0	01	1	9503-9610	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97167-862-0	01	1	9611-9703	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97167-862-0	01	1	9704-		●	●	●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (C)	8-94318-352-0	01	1	9304-9502	●	●		●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (D)	8-97077-933-0	01	1	9304-9307	●	●		●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH) (D)	8-97077-933-0	01	1	9308-9502	●	●		●	●	●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (F)	8-97126-652-0	01	1	9510-9703	●	●			●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (G)	8-97105-396-0	01	1	9510-9703	●	●			●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) (E)	8-97126-290-0	01	1	9407-9502	●				●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97126-290-0	01	1	9503-9703	●	●		●	●	●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97126-290-0	01	1	9704-	●	●			●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (H)	8-97386-869-0	01	1	9611-	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) (A)	9-13369-603-0	02	1	9304-9502	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-97126-629-0	01	1	9503-9610	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-629-0	01	1	9611-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-629-0	01	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-630-0	01	1	9503-9610	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-630-0	01	1	9611-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-630-0	01	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A)	9-13669-603-0	02	1	9503-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A)	9-13669-603-0	02	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A)	9-13669-603-0	01	1	9304-9307	●	●		●	●	●
29	COVER; DUST,IDLE PULLEY 4BE1 ENG(RLH) (A)	9-13669-603-0	01	1	9308-9502	●	●		●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97384-114-0	01	1	9611-	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97384-115-0	01	1	9611-	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (A)	8-94207-192-0	01	1	9304-9307	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4BE1 ENG(RLH),4HF1 ENG(RLS) (A)	8-94207-192-0	01	1	9308-9502	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A)	8-94207-192-0	01	1	9503-9703	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A)	8-94207-192-0	01	1	9704-		●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-97126-632-0	01	1	9503-9610	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-632-0	01	1	9611-9703	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-632-0	01	1	9704-		●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (C)	8-97384-117-0	01	1	9611-	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS)	8-94238-324-0	01	1	9304-9502	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-97126-638-0	01	1	9503-9610	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	8-97126-638-0	01	1	9611-9703	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R)	8-97126-638-0	01	1	9704-		●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ)	8-94429-524-0	01	1	9304-9307	●	●		●	●	●
31	BOLT; ADJ,IDLE PULLEY 4BE1 ENG(RLH)	8-94429-524-0	01	1	9308-9502	●	●		●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R)	8-97384-113-0	01	1	9611-	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HF1 ENG(RLS)	8-97126-639-0	01	1	9304-9502	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-97126-639-0	01	1	9503-9610	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	8-97126-639-0	01	1	9611-9703	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R)	8-97126-639-0	01	1	9704-		●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R)	8-97384-118-0	01	1	9611-	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (A)	8-97060-285-0	01	1	9304-9502	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4BE1 ENG(RLH) (A)	8-97060-285-0	01	1	9503-9503	●	●		●	●	●
34	SHAFT; IDLE PULLEY 4HF1 ENG(RLS) (B) M10X30	0-28121-030-0	01	1	9304-9502	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B) M10X30	0-28121-030-0	01	1	9503-9703	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B) M10X30	0-28121-030-0	01	1	9704-		●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-631-0	01	1	9503-9610	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-631-0	01	1	9611-9703	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-631-0	01	1	9704-		●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97384-116-0	01	1	9611-	●	●	●	●	●	●
57	BRACKET; IDLER PULLEY 4HF1 ENG(RLS)	8-97081-262-2	01	1	9304-9502	●	●	●	●	●	●
57	BRACKET; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R)	8-97100-809-0	01	1	9503-9511	●	●	●	●	●	●
57	BRACKET; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R)	8-97136-248-0	01	1	9512-9610	●	●	●	●	●	●
66	BELT; A/C CMPR 4HF1 ENG(RLS) L=1569	8-97014-702-2	01	1	9304-9407	●	●	●	●	●	●
66	BELT; A/C CMPR 4HF1 ENG(RLS) L=1569	8-97094-448-1	01	1	9408-9502	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1569	8-97094-448-1	01	1	9503-9703	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=1569	8-97094-448-1	01	1	9704-9706	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=1569	8-97180-183-2	01	1	9707-	●	●	●	●	●	●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) L=1499	8-94111-624-0	01	1	9304-9306	●	●		●	●	●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) L=1509	5-13671-113-0	01	1	9307-9502	●	●		●	●	●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1369 MITSUBOSHI	8-94252-342-0	01	1	9304-9306		●		●		●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1390	8-94218-575-0	01	1	9307-9502		●		●		●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) L=1569	5-13671-115-0	01	1	9304-9502	●	●		●	●	●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) BESTFIX	5-86750-007-0	01	1	9304-9306		●		●		●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) BESTFIX	5-86750-006-1	01	1	9707-	●	●	●	●	●	●
316	BOLT; BRKT FIX REFRIGERATION KIT-FOR VAN(7FH) (B)	8-97028-734-0	02	1	9304-9502	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (C) M10X50 FLANGE	0-28181-050-0	01	1	9503-9511	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (D) M8X50 FLANGE	0-28080-850-0	01	1	9503-9703	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (D) M8X50 FLANGE	0-28080-850-0	01	1	9704-	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (A) M10X100 FLANGE	0-28181-000-0	01	1	9503-9610	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (E) M10X65 FLANGE	8-94344-540-1	01	1	9611-9703	●	●	●	●	●	●
316	BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (E) M10X65 FLANGE	8-94344-540-1	01	1	9704-	●	●	●	●	●	●
387	BOLT; TENSIONER FIX REFRIGERATION KIT-FOR VAN(7FH) M8X16 FLANGE	0-28080-816-0	03	1	9304-9502	●	●	●	●	●	●
387	BOLT; TENSIONER FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X16 FLANGE	0-28080-816-0	03	1	9503-9610	●	●	●	●	●	●
387	BOLT; TENSIONER FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) M8X16 FLANGE	0-28080-816-0	03	1	9611-9703	●	●	●	●	●	●
387	BOLT; TENSIONER FIX 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) M8X16 FLANGE	0-28080-816-0	03	1	9704-		●	●	●	●	●

66 25 30 29 27 26 34 25 25 35 387 26 29 27 29 33 30 31 34 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) (A) 1-GROOVE	8-94334-696-2	01	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 1-GROOVE	8-94334-696-2	01	1	9503-9610	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A) 1-GROOVE	8-94334-696-2	01	1	9611-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A) 1-GROOVE	8-94334-696-2	01	1	9704-		●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) (B) 1-GROOVE	8-94334-873-0	01	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B) 1-GROOVE	8-94334-873-0	01	1	9503-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B) 1-GROOVE	8-94334-873-0	01	1	9704-		●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (G) 1-GROOVE	8-97161-198-0	01	1	9611-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (G) 1-GROOVE	8-97161-198-0	01	1	9704-	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (C)	8-94478-941-1	01	1	9304-9502	●	●		●	●	●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (E)	8-97080-947-1	01	1	9510-9703	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (F)	8-97080-635-0	01	1	9510-9703	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) (D)	8-97080-948-0	01	1	9304-9502	●				●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97080-948-0	01	1	9503-9703	●	●		●	●	●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97080-948-0	01	1	9704-9710	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97180-245-0	01	1	9711-	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) (A)	8-97060-361-0	01	1	9304-9502	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-633-0	01	1	9503-9610	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-633-0	01	1	9611-9703	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-633-0	01	1	9704-		●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) (B)	8-97060-362-0	01	1	9304-9502	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97060-362-0	01	1	9503-9703	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97060-362-0	01	1	9704-		●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (C)	8-97012-505-0	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (E)	8-94478-942-0	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (F)	8-94478-943-1	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (H)	8-97080-891-1	01	1	9510-9703	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (I)	8-97126-653-0	01	1	9510-9703	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) (G)	8-94120-998-2	01	1	9407-9502	●				●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-94120-998-2	01	1	9503-9703	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-94120-998-2	01	1	9704-9710	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-97180-246-0	01	1	9711-	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97095-105-1	01	1	9304-9307		●		●		●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (J)	8-97161-031-0	01	1	9611-	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HF1 ENG(RLS) (A)	8-94200-984-1	01	1	9304-9502	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HF1 ENG(RLS) (B)	9-13663-606-0	01	1	9304-9502	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	9-13663-606-0	01	1	9503-9703	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	9-13663-606-0	01	1	9704-		●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97167-862-0	01	1	9503-9610	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97167-862-0	01	1	9611-9703	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97167-862-0	01	1	9704-		●	●	●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (C)	8-94318-352-0	01	1	9304-9502	●	●		●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (D)	8-97077-933-0	01	1	9304-9307	●	●		●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH) (D)	8-97077-933-0	01	1	9308-9502	●	●		●	●	●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (F)	8-97126-652-0	01	1	9510-9703	●	●			●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (G)	8-97105-396-0	01	1	9510-9703	●	●			●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) (E)	8-97126-290-0	01	1	9407-9502	●				●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97126-290-0	01	1	9503-9703	●	●		●	●	●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97126-290-0	01	1	9704-	●	●			●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (H)	8-97386-869-0	01	1	9611-	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) (A)	9-13369-603-0	02	1	9304-9502	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-97126-629-0	01	1	9503-9610	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-629-0	01	1	9611-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-629-0	01	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-630-0	01	1	9503-9610	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-630-0	01	1	9611-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-630-0	01	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A)	9-13669-603-0	02	1	9503-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A)	9-13669-603-0	02	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A)	9-13669-603-0	01	1	9304-9307	●	●		●	●	●
29	COVER; DUST,IDLE PULLEY 4BE1 ENG(RLH) (A)	9-13669-603-0	01	1	9308-9502	●	●		●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97384-114-0	01	1	9611-	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97384-115-0	01	1	9611-	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (A)	8-94207-192-0	01	1	9304-9307	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4BE1 ENG(RLH),4HF1 ENG(RLS) (A)	8-94207-192-0	01	1	9308-9502	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A)	8-94207-192-0	01	1	9503-9703	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A)	8-94207-192-0	01	1	9704-		●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-97126-632-0	01	1	9503-9610	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-632-0	01	1	9611-9703	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-632-0	01	1	9704-		●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (C)	8-97384-117-0	01	1	9611-	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS)	8-94238-324-0	01	1	9304-9502	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-97126-638-0	01	1	9503-9610	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	8-97126-638-0	01	1	9611-9703	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R)	8-97126-638-0	01	1	9704-		●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ)	8-94429-524-0	01	1	9304-9307	●	●		●	●	●
31	BOLT; ADJ,IDLE PULLEY 4BE1 ENG(RLH)	8-94429-524-0	01	1	9308-9502	●	●		●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R)	8-97384-113-0	01	1	9611-	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HF1 ENG(RLS)	8-97126-639-0	01	1	9304-9502	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-97126-639-0	01	1	9503-9610	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	8-97126-639-0	01	1	9611-9703	●	●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R)	8-97126-639-0	01	1	9704-		●	●	●	●	●
33	NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R)	8-97384-118-0	01	1	9611-	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (A)	8-97060-285-0	01	1	9304-9502	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4BE1 ENG(RLH) (A)	8-97060-285-0	01	1	9503-9503	●	●		●	●	●
34	SHAFT; IDLE PULLEY 4HF1 ENG(RLS) (B) M10X30	0-28121-030-0	01	1	9304-9502	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B) M10X30	0-28121-030-0	01	1	9503-9703	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B) M10X30	0-28121-030-0	01	1	9704-		●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-631-0	01	1	9503-9610	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-631-0	01	1	9611-9703	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-631-0	01	1	9704-		●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97384-116-0	01	1	9611-	●	●	●	●	●	●
35	BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) M8X16 FLANGE	0-28080-816-0	05	1	9304-9502	●	●	●	●	●	●
35	BOLT; IDLER PULLEY TO C/BL 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) M8X16 FLANGE	0-28080-816-0	02	1	9503-9703	●	●	●	●	●	●
35	BOLT; IDLER PULLEY TO C/BL 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) M8X16 FLANGE	0-28080-816-0	02	1	9704-		●	●	●	●	●
66	BELT; A/C CMPR 4HF1 ENG(RLS) L=1569	8-97014-702-2	01	1	9304-9407	●	●	●	●	●	●
66	BELT; A/C CMPR 4HF1 ENG(RLS) L=1569	8-97094-448-1	01	1	9408-9502	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1569	8-97094-448-1	01	1	9503-9703	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=1569	8-97094-448-1	01	1	9704-9706	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=1569	8-97180-183-2	01	1	9707-	●	●	●	●	●	●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) L=1499	8-94111-624-0	01	1	9304-9306	●	●		●	●	●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) L=1509	5-13671-113-0	01	1	9307-9502	●	●		●	●	●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1369 MITSUBOSHI	8-94252-342-0	01	1	9304-9306		●		●		●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1390	8-94218-575-0	01	1	9307-9502		●		●		●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) L=1569	5-13671-115-0	01	1	9304-9502	●	●		●	●	●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) BESTFIX	5-86750-007-0	01	1	9304-9306		●		●		●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) BESTFIX	5-86750-006-1	01	1	9707-	●	●	●	●	●	●
387	BOLT; TENSIONER FIX REFRIGERATION KIT-FOR VAN(7FH) M8X16 FLANGE	0-28080-816-0	03	1	9304-9502	●	●	●	●	●	●
387	BOLT; TENSIONER FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X16 FLANGE	0-28080-816-0	03	1	9503-9610	●	●	●	●	●	●
387	BOLT; TENSIONER FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) M8X16 FLANGE	0-28080-816-0	03	1	9611-9703	●	●	●	●	●	●
387	BOLT; TENSIONER FIX 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) M8X16 FLANGE	0-28080-816-0	03	1	9704-		●	●	●	●	●

210 176 87 199 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
87	BOLT; PANEL,AIR DUCT 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. CHASSIS PARTS FOR 2-COMP<6NG> M6X14	8-97046-332-0	02	1	9407-9408	●	●	●	●	●	●
176	NUT; PIPE 4HF1 ENG(RLS) M6 FLANGE	0-91150-106-0	01	1	9304-9504	●	●	●	●	●	●
176	NUT; PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G),REFRIGERATOR CHASSIS(V4R) M6 FLANGE	0-91150-106-0	01	1	9505-9703	●	●	●	●	●	●
176	NUT; PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) DUMP CHASSIS(V4D),GARBAGE/VACUUM CHASSIS(V4G), REFRIGERATOR CHASSIS(V4R) EXC. POWER TAKE OFF - FLYWHEEL(6SZ),AICHI SYARYO SPEC(6UE) M6 FLANGE	0-91150-106-0	01	1	9505-9703	●	●	●	●	●	●
176	NUT; PIPE 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91150-106-0	01	1	9704-9810	●	●	●	●	●	●
199	NUT 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. CHASSIS PARTS FOR 2-COMP<6NG>	9-09130-406-0	02	1	9407-9408	●	●	●	●	●	●
210	CLIP; HARNESS 4HF1 ENG(RLS) (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9304-9703	●	●	●	●	●	●
210	CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9704-	●	●	●	●	●	●
210	CLIP; HARNESS 4HF1 ENG(RLS) (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9304-9502	●	●	●	●	●	●
210	CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9503-9703	●	●	●	●	●	●
210	CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9704-	●	●	●	●	●	●
210	CLIP; HARNESS 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	1-09700-160-0	01	1	9510-9703	●	●			●
269	GUIDE; AIR 4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA 6R(RMU) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. CHASSIS PARTS FOR 2-COMP<6NG>	8-97110-300-0	01	1	9407-9408	●	●	●	●	●	●

4 1 66 27 26 373 300 56 26 47 1 14 14 66 47 26 47 26 34 25 39 31 30 29 27 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	BRACKET; A/C 4HF1 ENG(RLS) (C)	8-97065-502-2	01	1	9304-9406	●	●	●	●	●	●
1	BRACKET; A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (A)	8-94478-944-1	01	1	9304-9502	●	●		●	●	●
1	BRACKET; A/C 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REFRIGERATOR CHASSIS(V4R) (B)	8-97086-974-1	01	1	9304-9502	●	●		●	●	●
1	BRACKET; A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R)	8-97115-106-0	01	1	9510-9703	●	●			●
1	BRACKET; A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-97162-776-0	01	1	9704-	●	●	●	●	●	●
1	BRACKET; A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (D)	8-97162-776-0	01	1	9704-		●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	9304-9502	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X55 FLANGE	8-94399-863-1	02	1	9503-9703	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X55 FLANGE	8-94399-863-1	02	1	9503-9703	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M10X55 FLANGE	8-94399-863-1	02	1	9704-	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) M10X55 FLANGE	8-94399-863-1	02	1	9704-		●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) M8X28 W/LK WASHER	0-50040-828-0	05	1	9304-9502	●	●		●	●	●
4	BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) M10X90 FLANGE	0-28181-090-0	02	1	9304-9502	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X90 FLANGE	0-28181-090-0	02	1	9503-9511	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X90 FLANGE	0-28181-090-0	02	1	9503-9511	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X90 FLANGE	0-28181-090-0	01	1	9512-9703	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X90 FLANGE	0-28181-090-0	01	1	9512-9703	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M10X110 FLANGE	0-28186-011-0	01	1	9704-	●	●	●	●	●	●
4	BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) M10X110 FLANGE	0-28186-011-0	01	1	9704-		●	●	●	●	●
14	BOLT; CMPR 4HF1 ENG(RLS) M10X40	0-28281-040-0	04	1	9304-9304	●	●	●	●	●	●
14	BOLT; CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X40	0-28281-040-0	04	1	9304-9502	●	●	●	●	●	●
14	BOLT; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X40	0-28281-040-0	04	1	9503-9703	●	●	●	●	●	●
14	BOLT; CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X90 FLANGE	0-28080-890-0	04	1	9704-	●	●	●	●	●	●
14	BOLT; CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REFRIGERATOR CHASSIS(V4R) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9304-9502	●	●		●	●	●
14	BOLT; CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REFRIGERATOR CHASSIS(V4R) M10X40 W/LK&PL WASHER	0-50141-040-0	04	1	9304-9304	●	●		●	●	●
14	BOLT; CMPR 4JG2 ENG(RJC) M10X40 W/LK WASHER	0-50041-040-0	04	1	9304-9304	●				●
14	BOLT; CMPR 4JG2 ENG(RJC) M8X80 FLANGE	0-28080-880-0	04	1	9304-9502	●				●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X80 FLANGE	0-28080-880-0	04	1	9503-9509	●	●		●	●	●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) M8X80 FLANGE	0-28080-880-0	04	1	9510-9703	●	●		●	●	●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) M8X80 FLANGE	0-28080-880-0	04	1	9704-	●	●			●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) M10X40 FLANGE	0-28081-040-0	04	1	9510-9703					●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) M10X40 FLANGE	0-28681-040-0	04	1	9704-					●
25	PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) (A) 1-GROOVE	8-94334-696-2	01	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 1-GROOVE	8-94334-696-2	01	1	9503-9610	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A) 1-GROOVE	8-94334-696-2	01	1	9611-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A) 1-GROOVE	8-94334-696-2	01	1	9704-		●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) (B) 1-GROOVE	8-94334-873-0	01	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B) 1-GROOVE	8-94334-873-0	01	1	9503-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B) 1-GROOVE	8-94334-873-0	01	1	9704-		●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (G) 1-GROOVE	8-97161-198-0	01	1	9611-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (G) 1-GROOVE	8-97161-198-0	01	1	9704-	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (C)	8-94478-941-1	01	1	9304-9502	●	●		●	●	●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (E)	8-97080-947-1	01	1	9510-9703	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (F)	8-97080-635-0	01	1	9510-9703	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) (D)	8-97080-948-0	01	1	9304-9502	●				●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97080-948-0	01	1	9503-9703	●	●		●	●	●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97080-948-0	01	1	9704-9710	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97180-245-0	01	1	9711-	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) (A)	8-97060-361-0	01	1	9304-9502	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-633-0	01	1	9503-9610	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-633-0	01	1	9611-9703	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-633-0	01	1	9704-		●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) (B)	8-97060-362-0	01	1	9304-9502	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97060-362-0	01	1	9503-9703	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97060-362-0	01	1	9704-		●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (C)	8-97012-505-0	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (E)	8-94478-942-0	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (F)	8-94478-943-1	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (H)	8-97080-891-1	01	1	9510-9703	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (I)	8-97126-653-0	01	1	9510-9703	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) (G)	8-94120-998-2	01	1	9407-9502	●				●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-94120-998-2	01	1	9503-9703	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-94120-998-2	01	1	9704-9710	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-97180-246-0	01	1	9711-	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97095-105-1	01	1	9304-9307		●		●		●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (J)	8-97161-031-0	01	1	9611-	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HF1 ENG(RLS) (A)	8-94200-984-1	01	1	9304-9502	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HF1 ENG(RLS) (B)	9-13663-606-0	01	1	9304-9502	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	9-13663-606-0	01	1	9503-9703	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	9-13663-606-0	01	1	9704-		●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97167-862-0	01	1	9503-9610	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97167-862-0	01	1	9611-9703	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97167-862-0	01	1	9704-		●	●	●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (C)	8-94318-352-0	01	1	9304-9502	●	●		●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (D)	8-97077-933-0	01	1	9304-9307	●	●		●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH) (D)	8-97077-933-0	01	1	9308-9502	●	●		●	●	●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (F)	8-97126-652-0	01	1	9510-9703	●	●			●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (G)	8-97105-396-0	01	1	9510-9703	●	●			●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) (E)	8-97126-290-0	01	1	9407-9502	●				●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97126-290-0	01	1	9503-9703	●	●		●	●	●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97126-290-0	01	1	9704-	●	●			●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (H)	8-97386-869-0	01	1	9611-	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) (A)	9-13369-603-0	02	1	9304-9502	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-97126-629-0	01	1	9503-9610	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-629-0	01	1	9611-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-629-0	01	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-630-0	01	1	9503-9610	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-630-0	01	1	9611-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-630-0	01	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A)	9-13669-603-0	02	1	9503-9703	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A)	9-13669-603-0	02	1	9704-		●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (A)	9-13669-603-0	01	1	9304-9307	●	●		●	●	●
29	COVER; DUST,IDLE PULLEY 4BE1 ENG(RLH) (A)	9-13669-603-0	01	1	9308-9502	●	●		●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97384-114-0	01	1	9611-	●	●	●	●	●	●
29	COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97384-115-0	01	1	9611-	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (A)	8-94207-192-0	01	1	9304-9307	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4BE1 ENG(RLH),4HF1 ENG(RLS) (A)	8-94207-192-0	01	1	9308-9502	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A)	8-94207-192-0	01	1	9503-9703	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A)	8-94207-192-0	01	1	9704-		●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-97126-632-0	01	1	9503-9610	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-632-0	01	1	9611-9703	●	●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97126-632-0	01	1	9704-		●	●	●	●	●
30	COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (C)	8-97384-117-0	01	1	9611-	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS)	8-94238-324-0	01	1	9304-9502	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-97126-638-0	01	1	9503-9610	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	8-97126-638-0	01	1	9611-9703	●	●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R)	8-97126-638-0	01	1	9704-		●	●	●	●	●
31	BOLT; ADJ,IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ)	8-94429-524-0	01	1	9304-9307	●	●		●	●	●
31	BOLT; ADJ,IDLE PULLEY 4BE1 ENG(RLH)	8-94429-524-0	01	1	9308-9502	●	●		●	●	●
31	BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R)	8-97384-113-0	01	1	9611-	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) (A)	8-97060-285-0	01	1	9304-9502	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4BE1 ENG(RLH) (A)	8-97060-285-0	01	1	9503-9503	●	●		●	●	●
34	SHAFT; IDLE PULLEY 4HF1 ENG(RLS) (B) M10X30	0-28121-030-0	01	1	9304-9502	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B) M10X30	0-28121-030-0	01	1	9503-9703	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B) M10X30	0-28121-030-0	01	1	9704-		●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-631-0	01	1	9503-9610	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-631-0	01	1	9611-9703	●	●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-631-0	01	1	9704-		●	●	●	●	●
34	SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97384-116-0	01	1	9611-	●	●	●	●	●	●
39	WASHER; LK,ADJ BOLT 4HF1 ENG(RLS)	1-83579-492-0	01	1	9304-9502	●	●	●	●	●	●
39	WASHER; LK,ADJ BOLT 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) ID=8.2	9-09150-508-0	01	1	9304-9307	●	●		●	●	●
39	WASHER; LK,ADJ BOLT 4BE1 ENG(RLH) ID=8.2	9-09150-508-0	01	1	9308-9502	●	●		●	●	●
47	BOLT; BRKT TO BODY 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) M10X20 W/LK WASHER	0-50041-020-0	01	1	9304-9502	●	●		●	●	●
47	BOLT; BRKT TO BODY 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9304-9502	●	●		●	●	●
47	BOLT; BRKT TO BODY 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) M8X100 W/LK WASHER	0-50040-800-0	04	1	9304-9502	●	●		●	●	●
47	BOLT; BRKT TO BODY 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) M8X18 W/LK WASHER	0-50040-818-0	01	1	9304-9502	●	●		●	●	●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (D) M8X45 W/LK WASHER	0-50040-845-0	02	1	9510-9703	●	●			●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (C) M10X45 W/LK WASHER	0-50041-045-0	02	1	9510-9703	●	●			●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) (A) M10X35 W/LK WASHER	0-50041-035-0	02	1	9304-9502	●				●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (A) M10X35 W/LK WASHER	0-50041-035-0	02	1	9503-9703	●	●		●	●	●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (A) M10X35 W/LK WASHER	0-50041-035-0	02	1	9704-	●	●			●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) (B) M8X65	5-09030-021-1	02	1	9304-9304	●				●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) (B) M8X32 W/LK WASHER	0-50040-832-0	02	1	9304-9502	●				●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (B) M8X32 W/LK WASHER	0-50040-832-0	02	1	9503-9703	●	●		●	●	●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (B) M8X32 W/LK WASHER	0-50040-832-0	02	1	9704-	●	●			●
47	BOLT; BRKT TO BODY 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	9304-9502		●		●		●
47	BOLT; BRKT TO BODY 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X70 W/LK&PL WASHER	0-50140-870-0	02	1	9304-9307		●		●		●
47	BOLT; BRKT TO BODY 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X65 W/PL WASHER	8-94388-781-0	02	1	9308-9502		●		●		●
56	BOLT; IDLER PULLEY 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9304-9502	●	●		●	●	●
56	BOLT; IDLER PULLEY 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) M10X25 W/LK&PL WASHER	0-50141-025-0	01	1	9304-9502	●	●		●	●	●
66	BELT; A/C CMPR 4HF1 ENG(RLS) L=1569	8-97014-702-2	01	1	9304-9407	●	●	●	●	●	●
66	BELT; A/C CMPR 4HF1 ENG(RLS) L=1569	8-97094-448-1	01	1	9408-9502	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1569	8-97094-448-1	01	1	9503-9703	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=1569	8-97094-448-1	01	1	9704-9706	●	●	●	●	●	●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=1569	8-97180-183-2	01	1	9707-	●	●	●	●	●	●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) L=1499	8-94111-624-0	01	1	9304-9306	●	●		●	●	●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) L=1509	5-13671-113-0	01	1	9307-9502	●	●		●	●	●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1369 MITSUBOSHI	8-94252-342-0	01	1	9304-9306		●		●		●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1390	8-94218-575-0	01	1	9307-9502		●		●		●
66	BELT; A/C CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) L=1569	5-13671-115-0	01	1	9304-9502	●	●		●	●	●
66	BELT; A/C CMPR 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) BESTFIX	5-86750-007-0	01	1	9304-9306		●		●		●
66	BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) BESTFIX	5-86750-006-1	01	1	9707-	●	●	●	●	●	●
300	BOLT; HEAT PROTECTOR,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) M6X10	0-20800-610-0	02	1	9304-9308	●	●		●	●	●
300	BOLT; HEAT PROTECTOR,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9309-9502	●	●		●	●	●
373	WASHER; LK,HEAT PROTECTOR 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) ID=6.1	9-09150-506-0	02	1	9304-9308	●	●		●	●	●

150 151 183 151 151 150 357 220 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E	F
150	HOSE; VAC,FAST IDLE,A/C 4BE1 ENG(RLH) (A) L=220 SERVICED BY L=3000	0-04730-300-0	01	1	9304-9502	●	●	●	●	●
150	HOSE; VAC,FAST IDLE,A/C 4BE1 ENG(RLH) (B) L=105 SERVICED BY L=3000	0-04730-300-0	01	1	9304-9307	●	●	●	●	●
150	HOSE; VAC,FAST IDLE,A/C 4BE1 ENG(RLH) (B) L=1150	8-97103-302-0	01	1	9308-9502	●	●	●	●	●
151	CLIP; VAC HOSE 4BE1 ENG(RLH) (A) ID=20	1-09709-068-0	01	1	9304-9307	●	●	●	●	●
151	CLIP; VAC HOSE 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (A) ID=20	1-09709-068-0	01	1	9308-9502	●	●	●	●	●
151	CLIP; VAC HOSE 4BE1 ENG(RLH) (B) ID=25	8-94120-831-0	01	1	9304-9502	●	●	●	●	●
151	CLIP; VAC HOSE 4BE1 ENG(RLH) (C) ID=6 & 10	8-94154-844-0	01	1	9304-9502	●	●	●	●	●
183	BOLT; CLIP 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) M8X16 W/LK WASHER	0-50040-816-0	01	1	9304-9502	●	●	●	●	●
220	CLIP; IDLER PULLEY 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R)	8-97011-093-0	01	1	9304-9502	●	●	●	●	●
357	TUBE; CORRUGATE 4BE1 ENG(RLH)	8-97035-872-1	01	1	9304-9307	●	●	●	●	●
357	TUBE; CORRUGATE 4BE1 ENG(RLH)	8-97103-373-0	01	1	9308-9502	●	●	●	●	●

321 210 46 26 27 25 37 37 25 129 58 58 25 38 25 27 26 47 14 47 46 46 99 99 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	BRACKET; A/C 4HF1 ENG(RLS) (C)	8-97065-502-2	01	1	9304-9406	●	●	●	●	●	●
1	BRACKET; A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (A)	8-94478-944-1	01	1	9304-9502	●	●		●	●	●
1	BRACKET; A/C 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REFRIGERATOR CHASSIS(V4R) (B)	8-97086-974-1	01	1	9304-9502	●	●		●	●	●
1	BRACKET; A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R)	8-97115-106-0	01	1	9510-9703	●	●			●
1	BRACKET; A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-97162-776-0	01	1	9704-	●	●	●	●	●	●
1	BRACKET; A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (D)	8-97162-776-0	01	1	9704-		●	●	●	●	●
14	BOLT; CMPR 4HF1 ENG(RLS) M10X40	0-28281-040-0	04	1	9304-9304	●	●	●	●	●	●
14	BOLT; CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X40	0-28281-040-0	04	1	9304-9502	●	●	●	●	●	●
14	BOLT; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X40	0-28281-040-0	04	1	9503-9703	●	●	●	●	●	●
14	BOLT; CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X90 FLANGE	0-28080-890-0	04	1	9704-	●	●	●	●	●	●
14	BOLT; CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REFRIGERATOR CHASSIS(V4R) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9304-9502	●	●		●	●	●
14	BOLT; CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REFRIGERATOR CHASSIS(V4R) M10X40 W/LK&PL WASHER	0-50141-040-0	04	1	9304-9304	●	●		●	●	●
14	BOLT; CMPR 4JG2 ENG(RJC) M10X40 W/LK WASHER	0-50041-040-0	04	1	9304-9304	●				●
14	BOLT; CMPR 4JG2 ENG(RJC) M8X80 FLANGE	0-28080-880-0	04	1	9304-9502	●				●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X80 FLANGE	0-28080-880-0	04	1	9503-9509	●	●		●	●	●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) M8X80 FLANGE	0-28080-880-0	04	1	9510-9703	●	●		●	●	●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) M8X80 FLANGE	0-28080-880-0	04	1	9704-	●	●			●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) M10X40 FLANGE	0-28081-040-0	04	1	9510-9703					●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) M10X40 FLANGE	0-28681-040-0	04	1	9704-					●
25	PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) (A) 1-GROOVE	8-94334-696-2	01	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 1-GROOVE	8-94334-696-2	01	1	9503-9610	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A) 1-GROOVE	8-94334-696-2	01	1	9611-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A) 1-GROOVE	8-94334-696-2	01	1	9704-		●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) (B) 1-GROOVE	8-94334-873-0	01	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B) 1-GROOVE	8-94334-873-0	01	1	9503-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B) 1-GROOVE	8-94334-873-0	01	1	9704-		●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (G) 1-GROOVE	8-97161-198-0	01	1	9611-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (G) 1-GROOVE	8-97161-198-0	01	1	9704-	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (C)	8-94478-941-1	01	1	9304-9502	●	●		●	●	●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (E)	8-97080-947-1	01	1	9510-9703	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (F)	8-97080-635-0	01	1	9510-9703	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) (D)	8-97080-948-0	01	1	9304-9502	●				●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97080-948-0	01	1	9503-9703	●	●		●	●	●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97080-948-0	01	1	9704-9710	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97180-245-0	01	1	9711-	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) (A)	8-97060-361-0	01	1	9304-9502	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-633-0	01	1	9503-9610	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-633-0	01	1	9611-9703	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-633-0	01	1	9704-		●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) (B)	8-97060-362-0	01	1	9304-9502	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97060-362-0	01	1	9503-9703	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97060-362-0	01	1	9704-		●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (C)	8-97012-505-0	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (E)	8-94478-942-0	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (F)	8-94478-943-1	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (H)	8-97080-891-1	01	1	9510-9703	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (I)	8-97126-653-0	01	1	9510-9703	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) (G)	8-94120-998-2	01	1	9407-9502	●				●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-94120-998-2	01	1	9503-9703	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-94120-998-2	01	1	9704-9710	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-97180-246-0	01	1	9711-	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97095-105-1	01	1	9304-9307		●		●		●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (J)	8-97161-031-0	01	1	9611-	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HF1 ENG(RLS) (A)	8-94200-984-1	01	1	9304-9502	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HF1 ENG(RLS) (B)	9-13663-606-0	01	1	9304-9502	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	9-13663-606-0	01	1	9503-9703	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	9-13663-606-0	01	1	9704-		●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97167-862-0	01	1	9503-9610	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97167-862-0	01	1	9611-9703	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97167-862-0	01	1	9704-		●	●	●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (C)	8-94318-352-0	01	1	9304-9502	●	●		●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (D)	8-97077-933-0	01	1	9304-9307	●	●		●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH) (D)	8-97077-933-0	01	1	9308-9502	●	●		●	●	●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (F)	8-97126-652-0	01	1	9510-9703	●	●			●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (G)	8-97105-396-0	01	1	9510-9703	●	●			●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) (E)	8-97126-290-0	01	1	9407-9502	●				●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97126-290-0	01	1	9503-9703	●	●		●	●	●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97126-290-0	01	1	9704-	●	●			●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (H)	8-97386-869-0	01	1	9611-	●	●	●	●	●	●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (D) M8X20 W/LK WASHER	0-50040-820-0	02	1	9510-9703	●	●			●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) (A) M8X60 W/LK WASHER	0-50040-860-0	01	1	9304-9502	●				●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (A) M8X60 W/LK WASHER	0-50040-860-0	01	1	9503-9703	●	●		●	●	●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (A) M8X60 W/LK WASHER	0-50040-860-0	01	1	9704-	●	●			●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) (B) M10X28 W/LK WASHER	0-50041-028-0	01	1	9304-9502	●				●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (B) M10X28 W/LK WASHER	0-50041-028-0	01	1	9503-9703	●	●		●	●	●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (B) M10X28 W/LK WASHER	0-50041-028-0	01	1	9704-9710	●	●			●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	9711-	●	●			●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) (C) M10X80 W/LK WASHER	0-50041-080-0	01	1	9304-9502	●				●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (C) M10X80 W/LK WASHER	0-50041-080-0	01	1	9503-9703	●	●		●	●	●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (C) M10X80 W/LK WASHER	0-50041-080-0	01	1	9704-	●	●			●
38	BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	8-97038-618-1	01	1	9510-9703	●	●			●
38	BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC)	8-94109-900-1	01	1	9304-9408	●				●
38	BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC)	8-97107-868-0	01	1	9409-9502	●				●
38	BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R)	8-97107-868-0	01	1	9503-9703	●	●		●	●	●
38	BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R)	8-97107-868-0	01	1	9704-9710	●	●			●
38	BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R)	8-97180-047-0	01	1	9711-	●	●			●
46	BRACKET; CMPR 4HF1 ENG(RLS) (D)	8-97106-228-0	01	1	9407-9412	●	●	●	●	●	●
46	BRACKET; CMPR 4HF1 ENG(RLS) (D)	8-97126-030-0	01	1	9501-9502	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97126-030-0	01	1	9503-9511	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97126-030-0	01	1	9503-9511	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97136-247-0	01	1	9512-9603	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97136-247-0	01	1	9512-9603	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97147-029-0	01	1	9604-9703	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97147-029-0	01	1	9604-9703	●	●	●	●	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (B)	8-97075-756-0	01	1	9510-9703	●	●			●
46	BRACKET; CMPR 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (C)	8-97114-838-0	01	1	9510-9703	●	●			●
46	BRACKET; CMPR 4JG2 ENG(RJC) (A)	8-97089-616-0	01	1	9304-9304	●				●
46	BRACKET; CMPR 4JG2 ENG(RJC) (A)	8-97061-290-1	01	1	9304-9502	●				●
46	BRACKET; CMPR 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (A)	8-97061-290-1	01	1	9503-9605	●	●		●	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (A)	8-97119-318-0	01	1	9606-9703	●	●		●	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (A)	8-97119-318-0	01	1	9704-	●	●			●
47	BOLT; BRKT TO BODY 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) M10X20 W/LK WASHER	0-50041-020-0	01	1	9304-9502	●	●		●	●	●
47	BOLT; BRKT TO BODY 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9304-9502	●	●		●	●	●
47	BOLT; BRKT TO BODY 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) M8X100 W/LK WASHER	0-50040-800-0	04	1	9304-9502	●	●		●	●	●
47	BOLT; BRKT TO BODY 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) M8X18 W/LK WASHER	0-50040-818-0	01	1	9304-9502	●	●		●	●	●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (D) M8X45 W/LK WASHER	0-50040-845-0	02	1	9510-9703	●	●			●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (C) M10X45 W/LK WASHER	0-50041-045-0	02	1	9510-9703	●	●			●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) (A) M10X35 W/LK WASHER	0-50041-035-0	02	1	9304-9502	●				●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (A) M10X35 W/LK WASHER	0-50041-035-0	02	1	9503-9703	●	●		●	●	●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (A) M10X35 W/LK WASHER	0-50041-035-0	02	1	9704-	●	●			●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) (B) M8X65	5-09030-021-1	02	1	9304-9304	●				●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) (B) M8X32 W/LK WASHER	0-50040-832-0	02	1	9304-9502	●				●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (B) M8X32 W/LK WASHER	0-50040-832-0	02	1	9503-9703	●	●		●	●	●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (B) M8X32 W/LK WASHER	0-50040-832-0	02	1	9704-	●	●			●
47	BOLT; BRKT TO BODY 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	9304-9502		●		●		●
47	BOLT; BRKT TO BODY 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X70 W/LK&PL WASHER	0-50140-870-0	02	1	9304-9307		●		●		●
47	BOLT; BRKT TO BODY 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X65 W/PL WASHER	8-94388-781-0	02	1	9308-9502		●		●		●
58	BOLT; IDLER PULLEY TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) M8X20 W/LK WASHER	0-50040-820-0	02	1	9510-9703	●	●			●
99	BOLT; BRKT 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (B) M8X18 W/LK&PL WASHER	0-50140-818-0	01	1	9510-9703	●	●			●
99	BOLT; BRKT 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (A) M10X20 W/LK&PL WASHER	0-50141-020-0	01	1	9510-9703	●	●			●
129	NUT; LK,ADJ BRKT,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) M8 FLANGE	0-91150-208-0	03	1	9510-9703	●	●			●
210	CLIP; HARNESS 4HF1 ENG(RLS) (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9304-9703	●	●	●	●	●	●
210	CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9704-	●	●	●	●	●	●
210	CLIP; HARNESS 4HF1 ENG(RLS) (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9304-9502	●	●	●	●	●	●
210	CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9503-9703	●	●	●	●	●	●
210	CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9704-	●	●	●	●	●	●
210	CLIP; HARNESS 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	1-09700-160-0	01	1	9510-9703	●	●			●
321	BOLT; BRKT 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) M8X50 W/LK WASHER	0-50040-850-0	01	1	9510-9703	●	●			●

46 47 47 14 25 37 37 37 38 25 27 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	BOLT; CMPR 4HF1 ENG(RLS) M10X40	0-28281-040-0	04	1	9304-9304	●	●	●	●	●	●
14	BOLT; CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X40	0-28281-040-0	04	1	9304-9502	●	●	●	●	●	●
14	BOLT; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M10X40	0-28281-040-0	04	1	9503-9703	●	●	●	●	●	●
14	BOLT; CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X90 FLANGE	0-28080-890-0	04	1	9704-	●	●	●	●	●	●
14	BOLT; CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REFRIGERATOR CHASSIS(V4R) M10X30 W/LK&PL WASHER	0-50141-030-0	01	1	9304-9502	●	●		●	●	●
14	BOLT; CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) EXC. REFRIGERATOR CHASSIS(V4R) M10X40 W/LK&PL WASHER	0-50141-040-0	04	1	9304-9304	●	●		●	●	●
14	BOLT; CMPR 4JG2 ENG(RJC) M10X40 W/LK WASHER	0-50041-040-0	04	1	9304-9304	●				●
14	BOLT; CMPR 4JG2 ENG(RJC) M8X80 FLANGE	0-28080-880-0	04	1	9304-9502	●				●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X80 FLANGE	0-28080-880-0	04	1	9503-9509	●	●		●	●	●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) M8X80 FLANGE	0-28080-880-0	04	1	9510-9703	●	●		●	●	●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) M8X80 FLANGE	0-28080-880-0	04	1	9704-	●	●			●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) M10X40 FLANGE	0-28081-040-0	04	1	9510-9703					●
14	BOLT; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) M10X40 FLANGE	0-28681-040-0	04	1	9704-					●
25	PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) (A) 1-GROOVE	8-94334-696-2	01	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 1-GROOVE	8-94334-696-2	01	1	9503-9610	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (A) 1-GROOVE	8-94334-696-2	01	1	9611-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (A) 1-GROOVE	8-94334-696-2	01	1	9704-		●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) (B) 1-GROOVE	8-94334-873-0	01	1	9304-9502	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B) 1-GROOVE	8-94334-873-0	01	1	9503-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B) 1-GROOVE	8-94334-873-0	01	1	9704-		●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REFRIGERATOR CHASSIS(V4R) (G) 1-GROOVE	8-97161-198-0	01	1	9611-9703	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (G) 1-GROOVE	8-97161-198-0	01	1	9704-	●	●	●	●	●	●
25	PULLEY ASM; IDLER,CMPR 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (C)	8-94478-941-1	01	1	9304-9502	●	●		●	●	●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (E)	8-97080-947-1	01	1	9510-9703	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (F)	8-97080-635-0	01	1	9510-9703	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) (D)	8-97080-948-0	01	1	9304-9502	●				●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97080-948-0	01	1	9503-9703	●	●		●	●	●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97080-948-0	01	1	9704-9710	●	●			●
25	PULLEY ASM; IDLER,CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (D)	8-97180-245-0	01	1	9711-	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) (A)	8-97060-361-0	01	1	9304-9502	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97126-633-0	01	1	9503-9610	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-633-0	01	1	9611-9703	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97126-633-0	01	1	9704-		●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) (B)	8-97060-362-0	01	1	9304-9502	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	8-97060-362-0	01	1	9503-9703	●	●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	8-97060-362-0	01	1	9704-		●	●	●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (C)	8-97012-505-0	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (E)	8-94478-942-0	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (F)	8-94478-943-1	01	1	9304-9502	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (H)	8-97080-891-1	01	1	9510-9703	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (I)	8-97126-653-0	01	1	9510-9703	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) (G)	8-94120-998-2	01	1	9407-9502	●				●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-94120-998-2	01	1	9503-9703	●	●		●	●	●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-94120-998-2	01	1	9704-9710	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (G)	8-97180-246-0	01	1	9711-	●	●			●
26	BRACKET; IDLE PULLEY,A/C 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97095-105-1	01	1	9304-9307		●		●		●
26	BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (J)	8-97161-031-0	01	1	9611-	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HF1 ENG(RLS) (A)	8-94200-984-1	01	1	9304-9502	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HF1 ENG(RLS) (B)	9-13663-606-0	01	1	9304-9502	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (B)	9-13663-606-0	01	1	9503-9703	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (B)	9-13663-606-0	01	1	9704-		●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (C)	8-97167-862-0	01	1	9503-9610	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (C)	8-97167-862-0	01	1	9611-9703	●	●	●	●	●	●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) REFRIGERATOR CHASSIS(V4R) (C)	8-97167-862-0	01	1	9704-		●	●	●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (C)	8-94318-352-0	01	1	9304-9502	●	●		●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH),4BE2 ENGINE(RLQ) (D)	8-97077-933-0	01	1	9304-9307	●	●		●	●	●
27	PULLEY; IDLE,A/C 4BE1 ENG(RLH) (D)	8-97077-933-0	01	1	9308-9502	●	●		●	●	●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R) (F)	8-97126-652-0	01	1	9510-9703	●	●			●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (G)	8-97105-396-0	01	1	9510-9703	●	●			●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) (E)	8-97126-290-0	01	1	9407-9502	●				●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97126-290-0	01	1	9503-9703	●	●		●	●	●
27	PULLEY; IDLE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (E)	8-97126-290-0	01	1	9704-	●	●			●
27	PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1 ENG(RJK),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),FULLAUTO AIR CONDITIONER(C68) EXC. REFRIGERATOR CHASSIS(V4R) (H)	8-97386-869-0	01	1	9611-	●	●	●	●	●	●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (D) M8X20 W/LK WASHER	0-50040-820-0	02	1	9510-9703	●	●			●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) (A) M8X60 W/LK WASHER	0-50040-860-0	01	1	9304-9502	●				●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (A) M8X60 W/LK WASHER	0-50040-860-0	01	1	9503-9703	●	●		●	●	●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (A) M8X60 W/LK WASHER	0-50040-860-0	01	1	9704-	●	●			●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) (B) M10X28 W/LK WASHER	0-50041-028-0	01	1	9304-9502	●				●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (B) M10X28 W/LK WASHER	0-50041-028-0	01	1	9503-9703	●	●		●	●	●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (B) M10X28 W/LK WASHER	0-50041-028-0	01	1	9704-9710	●	●			●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	9711-	●	●			●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) (C) M10X80 W/LK WASHER	0-50041-080-0	01	1	9304-9502	●				●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (C) M10X80 W/LK WASHER	0-50041-080-0	01	1	9503-9703	●	●		●	●	●
37	BOLT; PULLEY BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (C) M10X80 W/LK WASHER	0-50041-080-0	01	1	9704-	●	●			●
38	BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REFRIGERATOR CHASSIS(V4R)	8-97038-618-1	01	1	9510-9703	●	●			●
38	BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC)	8-94109-900-1	01	1	9304-9408	●				●
38	BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC)	8-97107-868-0	01	1	9409-9502	●				●
38	BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R)	8-97107-868-0	01	1	9503-9703	●	●		●	●	●
38	BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R)	8-97107-868-0	01	1	9704-9710	●	●			●
38	BRACKET; PULLEY TO CYL HD 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R)	8-97180-047-0	01	1	9711-	●	●			●
46	BRACKET; CMPR 4HF1 ENG(RLS) (D)	8-97106-228-0	01	1	9407-9412	●	●	●	●	●	●
46	BRACKET; CMPR 4HF1 ENG(RLS) (D)	8-97126-030-0	01	1	9501-9502	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97126-030-0	01	1	9503-9511	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97126-030-0	01	1	9503-9511	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97136-247-0	01	1	9512-9603	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97136-247-0	01	1	9512-9603	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97147-029-0	01	1	9604-9703	●	●	●	●	●	●
46	BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) REFRIGERATOR CHASSIS(V4R) EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (D)	8-97147-029-0	01	1	9604-9703	●	●	●	●	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (B)	8-97075-756-0	01	1	9510-9703	●	●			●
46	BRACKET; CMPR 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (C)	8-97114-838-0	01	1	9510-9703	●	●			●
46	BRACKET; CMPR 4JG2 ENG(RJC) (A)	8-97089-616-0	01	1	9304-9304	●				●
46	BRACKET; CMPR 4JG2 ENG(RJC) (A)	8-97061-290-1	01	1	9304-9502	●				●
46	BRACKET; CMPR 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (A)	8-97061-290-1	01	1	9503-9605	●	●		●	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (A)	8-97119-318-0	01	1	9606-9703	●	●		●	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (A)	8-97119-318-0	01	1	9704-	●	●			●
47	BOLT; BRKT TO BODY 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) M10X20 W/LK WASHER	0-50041-020-0	01	1	9304-9502	●	●		●	●	●
47	BOLT; BRKT TO BODY 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9304-9502	●	●		●	●	●
47	BOLT; BRKT TO BODY 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) M8X100 W/LK WASHER	0-50040-800-0	04	1	9304-9502	●	●		●	●	●
47	BOLT; BRKT TO BODY 4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) M8X18 W/LK WASHER	0-50040-818-0	01	1	9304-9502	●	●		●	●	●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (D) M8X45 W/LK WASHER	0-50040-845-0	02	1	9510-9703	●	●			●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) REFRIGERATOR CHASSIS(V4R) (C) M10X45 W/LK WASHER	0-50041-045-0	02	1	9510-9703	●	●			●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) (A) M10X35 W/LK WASHER	0-50041-035-0	02	1	9304-9502	●				●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (A) M10X35 W/LK WASHER	0-50041-035-0	02	1	9503-9703	●	●		●	●	●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (A) M10X35 W/LK WASHER	0-50041-035-0	02	1	9704-	●	●			●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) (B) M8X65	5-09030-021-1	02	1	9304-9304	●				●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) (B) M8X32 W/LK WASHER	0-50040-832-0	02	1	9304-9502	●				●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) EXC. REFRIGERATOR CHASSIS(V4R) (B) M8X32 W/LK WASHER	0-50040-832-0	02	1	9503-9703	●	●		●	●	●
47	BOLT; BRKT TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) FRT INDEPENDENT SUSPENSION(6PP) EXC. REFRIGERATOR CHASSIS(V4R) (B) M8X32 W/LK WASHER	0-50040-832-0	02	1	9704-	●	●			●
47	BOLT; BRKT TO BODY 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	9304-9502		●		●		●
47	BOLT; BRKT TO BODY 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X70 W/LK&PL WASHER	0-50140-870-0	02	1	9304-9307		●		●		●
47	BOLT; BRKT TO BODY 4BE2 ENGINE(RLQ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X65 W/PL WASHER	8-94388-781-0	02	1	9308-9502		●		●		●

78 78 15 78 78 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
15	NUT; BRKT REFRIGERATION KIT-FOR VAN(7FH) M10 FLANGE	0-91150-210-0	02	1	9306-9502	●	●	●	●	●	●
15	NUT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	0-91150-106-0	01	1	9304-9502	●				●
15	NUT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	0-91150-106-0	01	1	9503-9703	●	●		●	●	●
15	NUT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	0-91150-106-0	01	1	9704-9801	●	●			●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M6X20	0-28280-620-0	02	1	9304-9405	●	●	●	●	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M6X20	0-28280-620-0	02	1	9406-9502	●	●	●	●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X20	0-28280-620-0	02	1	9406-9502	●				●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M6X20	0-28280-620-0	02	1	9503-9605	●	●	●	●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X20	0-28280-620-0	02	1	9503-9605	●	●		●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X20	0-28280-620-0	02	1	9606-9703	●	●		●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X20	0-28280-620-0	02	1	9704-9801	●	●			●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X25 FLANGE	0-28280-825-0	01	1	9304-9311	●	●	●	●	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X20 FLANGE	0-28280-820-0	01	1	9312-9404	●	●	●	●	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X20 FLANGE	0-28080-820-0	01	1	9405-9605	●	●	●	●	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M6X20 FLANGE	0-28680-620-0	02	1	9606-9703	●	●	●	●	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6X20 FLANGE	0-28680-620-0	02	1	9704-	●	●	●	●	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M8X20 FLANGE	0-28680-820-0	01	1	9606-9703	●	●	●	●	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE	0-28680-820-0	01	1	9704-	●	●	●	●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X16 FLANGE	0-28080-616-0	04	1	9304-9502	●				●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X16 FLANGE	0-28080-616-0	04	1	9503-9703	●	●		●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X16 FLANGE	0-28080-616-0	04	1	9704-9801	●	●			●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28280-820-0	01	1	9304-9502	●				●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28280-820-0	01	1	9503-9703	●	●		●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28280-820-0	01	1	9704-9801	●	●			●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9304-9502	●				●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9503-9703	●	●		●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X12 W/LK&PL WASHER	0-50140-612-0	01	1	9704-9801	●	●			●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9304-9502	●				●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9503-9703	●	●		●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9704-9801	●	●			●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9304-9502	●				●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9503-9703	●	●		●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9704-9801	●	●			●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9304-9502	●				●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9503-9703	●	●		●	●	●
78	BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9704-9801	●	●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
